FT5320M Digital Servo 20KG Waterproof High Speed Servo Metal Gear Digital Servo For 1/8 1/10 RC Car Boat Robot

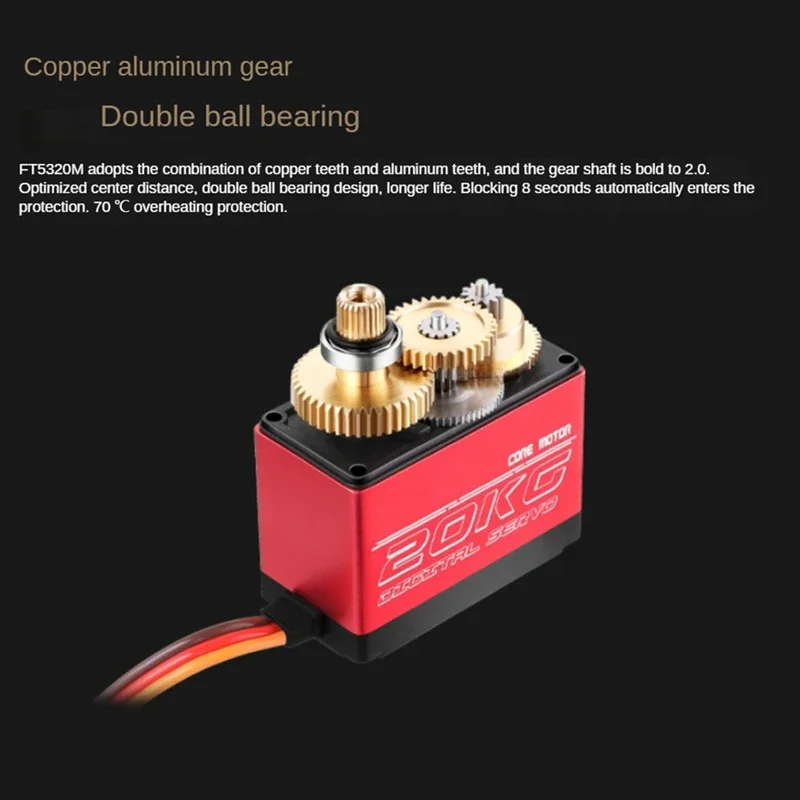

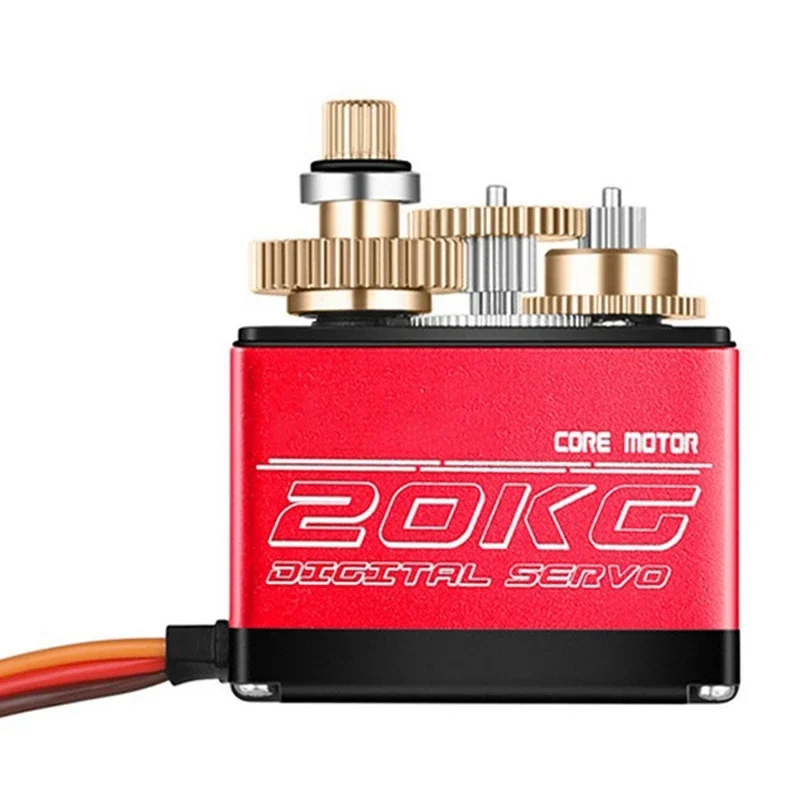

FT5320M uses a combination of copper and aluminum gears, and the gear shaft is thickened to 2.0. Optimized center distance, double ball bearing design, longer life. Automatically enter protection after 8 seconds of stalling. 70℃ overheat protection
With 8-second overload protection and 70℃ overheat protection After the servo is stalled, the output torque exceeds the overload torque and continues for more than 8 seconds, and then automatically outputs the protection torque. (Overload torque, protection time, protection torque support modification)

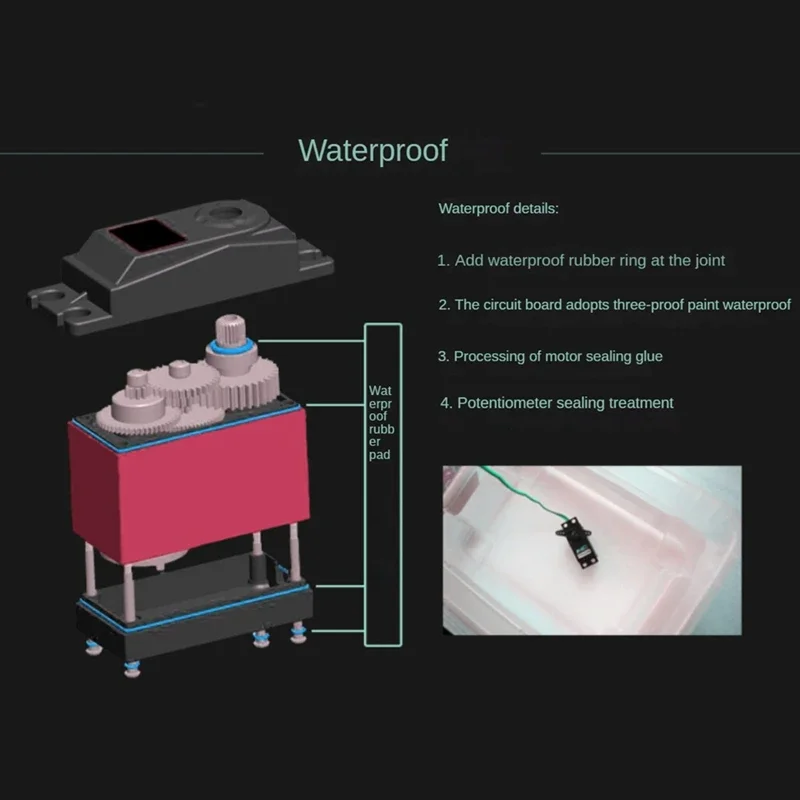

With waterproof characteristics
Aluminum middle shell design for better heat dissipation
Position sensor can rotate 180°
Appearance size: 40x20x43mm
Unlimited: Mechanism limit angle
Output shaft: 25T/5.9mm
Gear material: Copper teeth
Bearing type: Ball bearing
Motor type: Core Motor
Working voltage: 6V 7.4V
No-load speed: 0.185sec/60° 0.151sec/60°
No-load current: 100mA 120mA
Stalled torque: 16.5Kg.cm 20Kg.cm
Stalled current: 2.3A 3A
Rated load: 5.5Kg.cm 6.5Kg.cm
Rated current: 800mA 1000mA
Voltage range: 4V-8.4V
Kt constant: 6.5Kg.cm/A
Control signal: PWM
Control system type: Digital comparator
Operation angle 180°
Pulse width range 500→2500 μsec
Electronic protection: 8 seconds of stall
Temperature protection: Greater than 70℃
After the servo is stalled, the output torque exceeds the overload torque and lasts for more than 8 seconds, and the protection torque is automatically output. The overload torque and protection time can be modified.
Note: Different batches may have different product printing words, which will not affect the use
Colour:Black & Red
Material:Aluminum

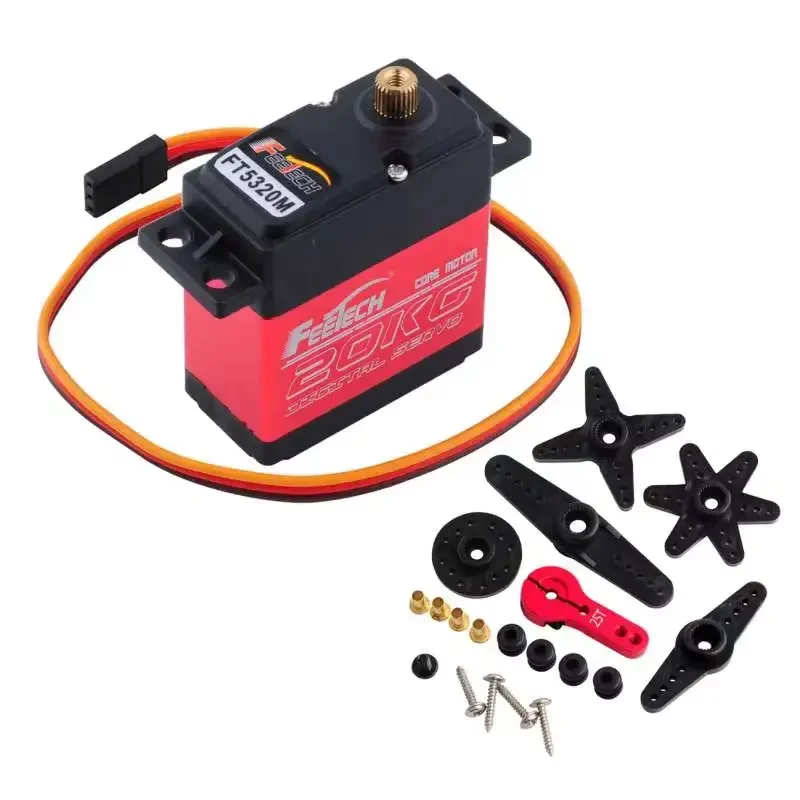

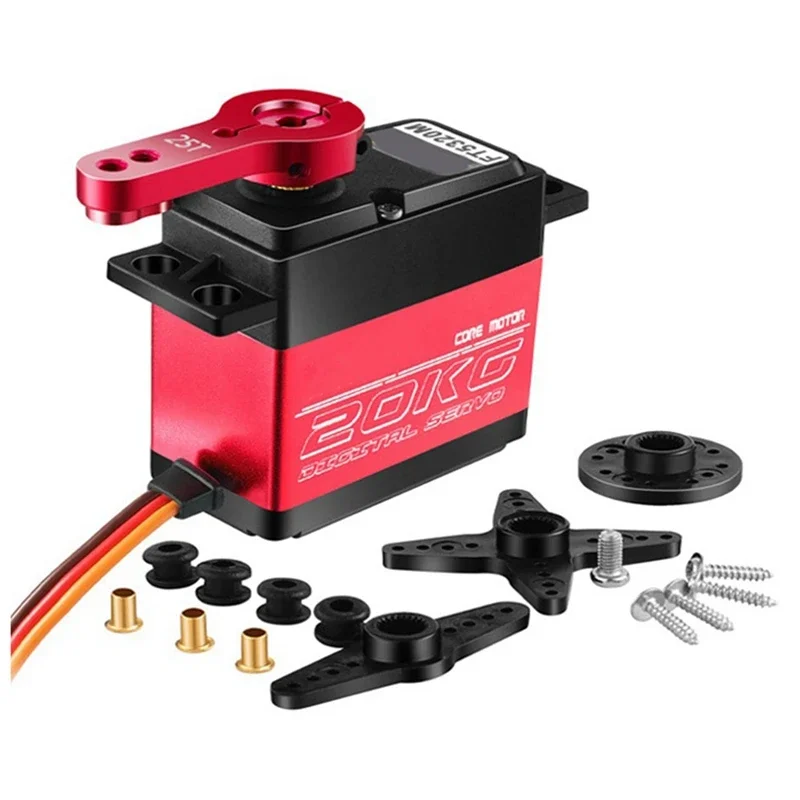

Package Contents:
1x Servo
1 Set x Accessories
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
