Sabvoton controller system, BLUETOOTH function, Lithium battery 2# protocol

Technical Data: suitable for 3000w 5000w, etc big power motor

Rated voltage: DC72V

Current limit: 100A

Max phase current :200A

Size: 230*146*67mm

Mosfet: 24 pcs

Lithium battery 2# protocol

This is a waterproof programmable controller system.The programmable sine-wave motor controller works with high efficiency, less noise, and lower energy consumption.

The programmable controller support setting the parameters, conduct the tests and obtain the diagnostic info easily and quickly.

Functions availiable

1).Programable.You can set many parameters from the programable software.

2).Faults can be identified by the fault LED flashes in the programable software.

3).Detecting the voltage ,current ,and over-current to keep safety and steady.

4).Saving energy, you can set current-limit by yourself.

5)Anti-theft alarm function (optional)

6).ABS electronic brake function.

7)Re-charge function.

8)Waterproof connectors.

Wiring

1. The motor phase wire connect with controller color to color.

2. The hall sensor must be connected.

3. Connect the Bluthtooth adapter.

4. Green part must be connected.

5. Disconnect 3 pins white connector.

6. Download MQCON APP to program.

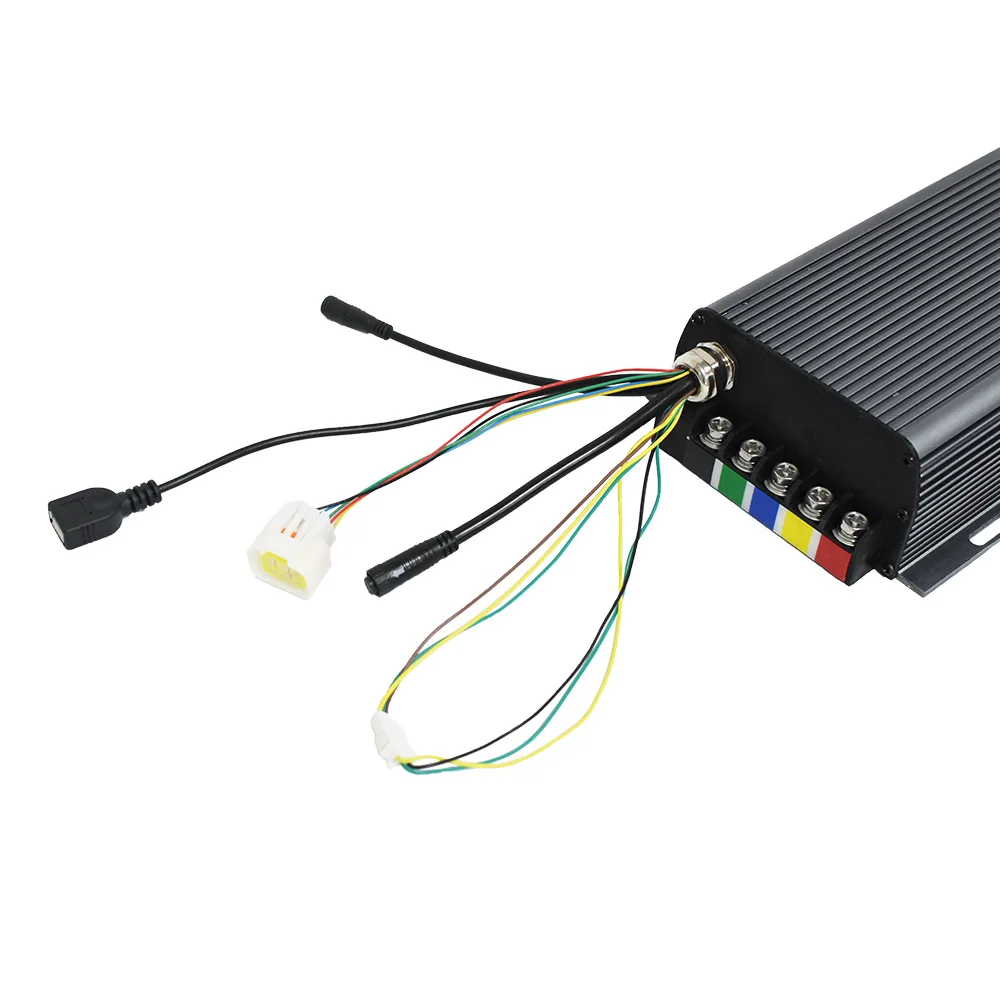

Images of the 72v 100A controller system

Package

The package of the Sabvoton controller system is in a 33cm *27cm*28cm carton in lined with foam in good protection condition.
