Overview

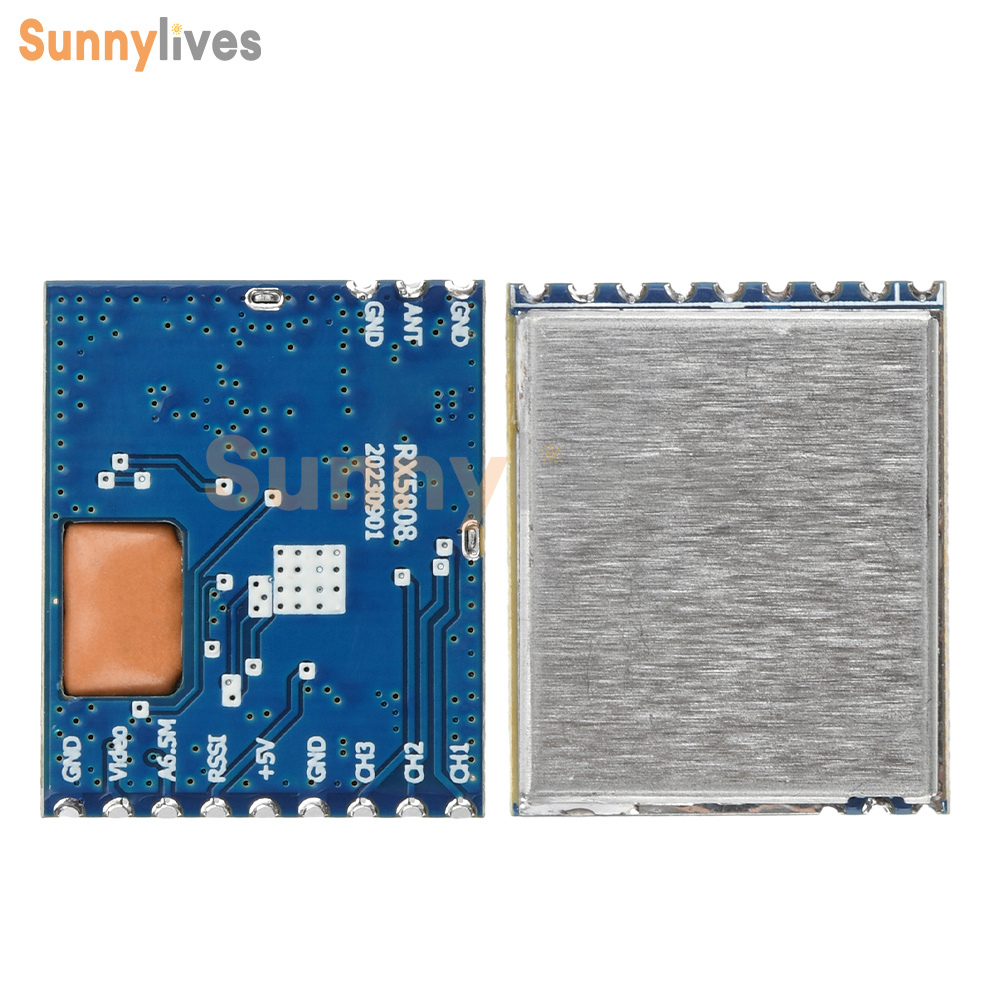

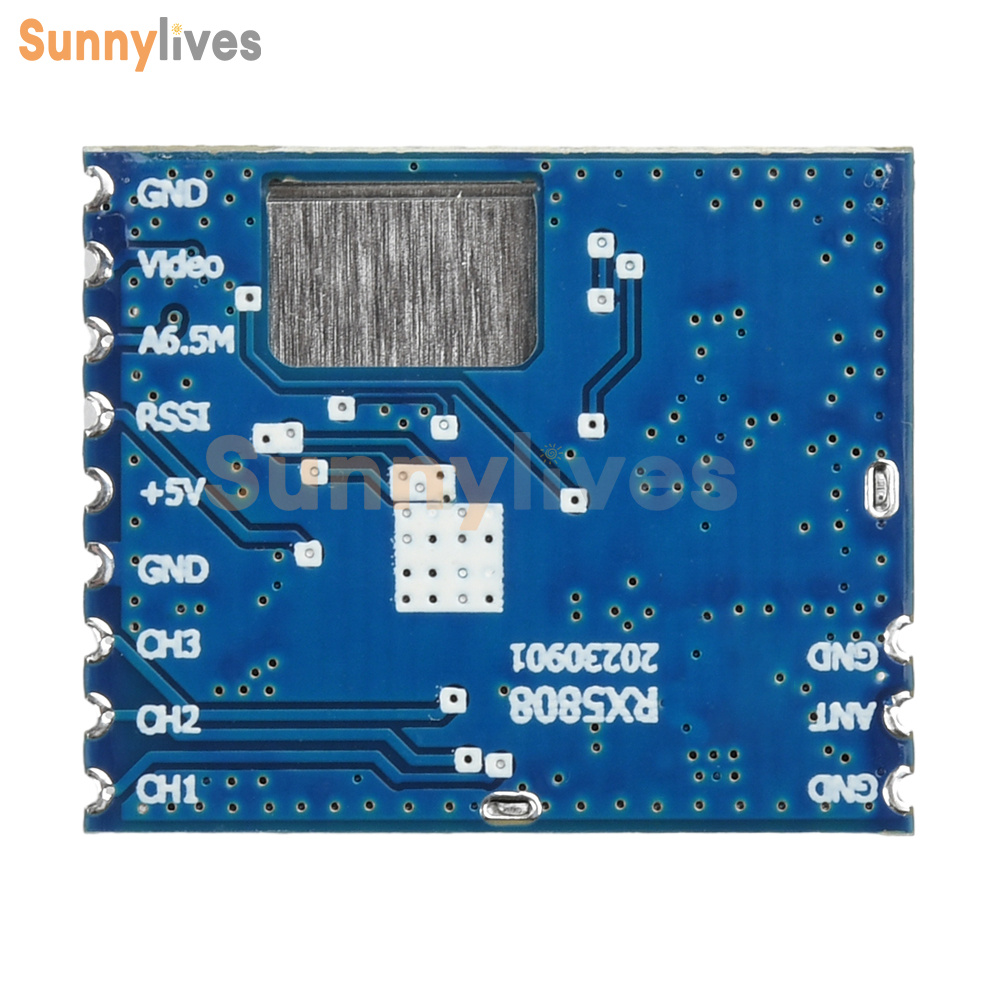

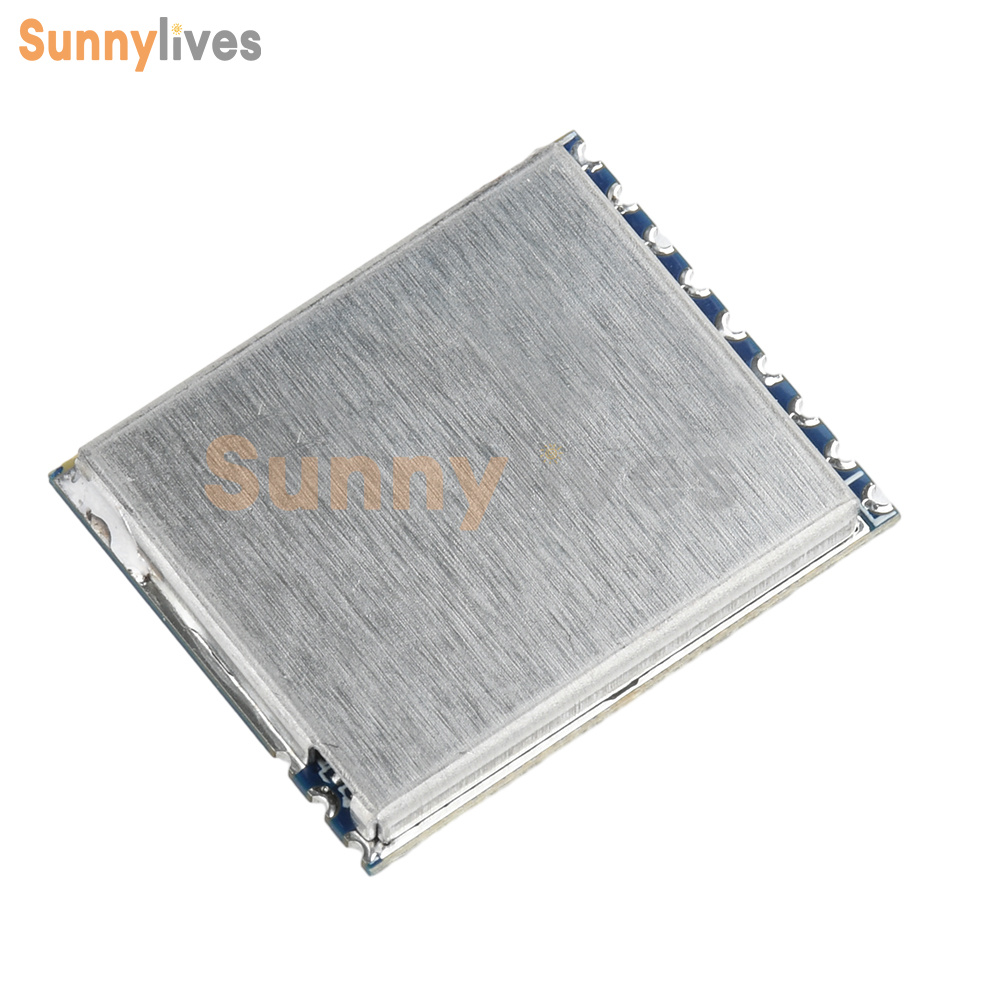

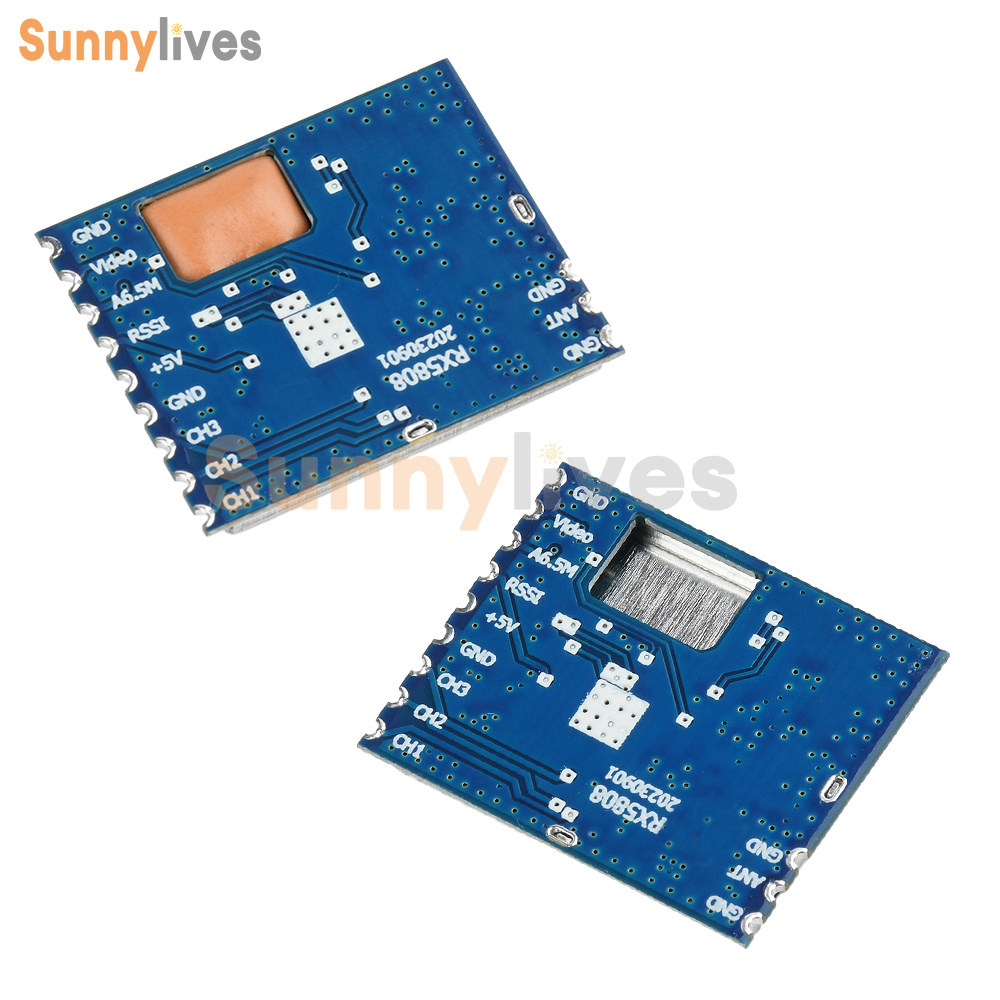

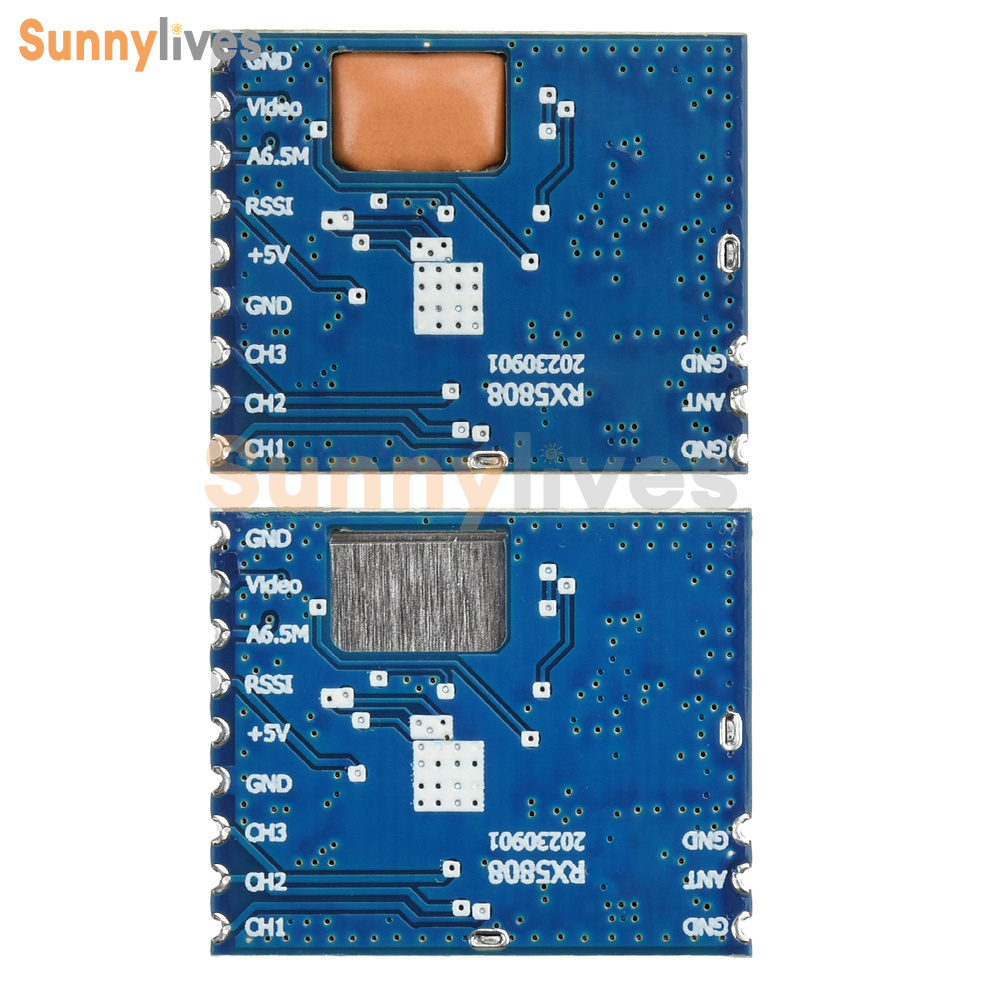

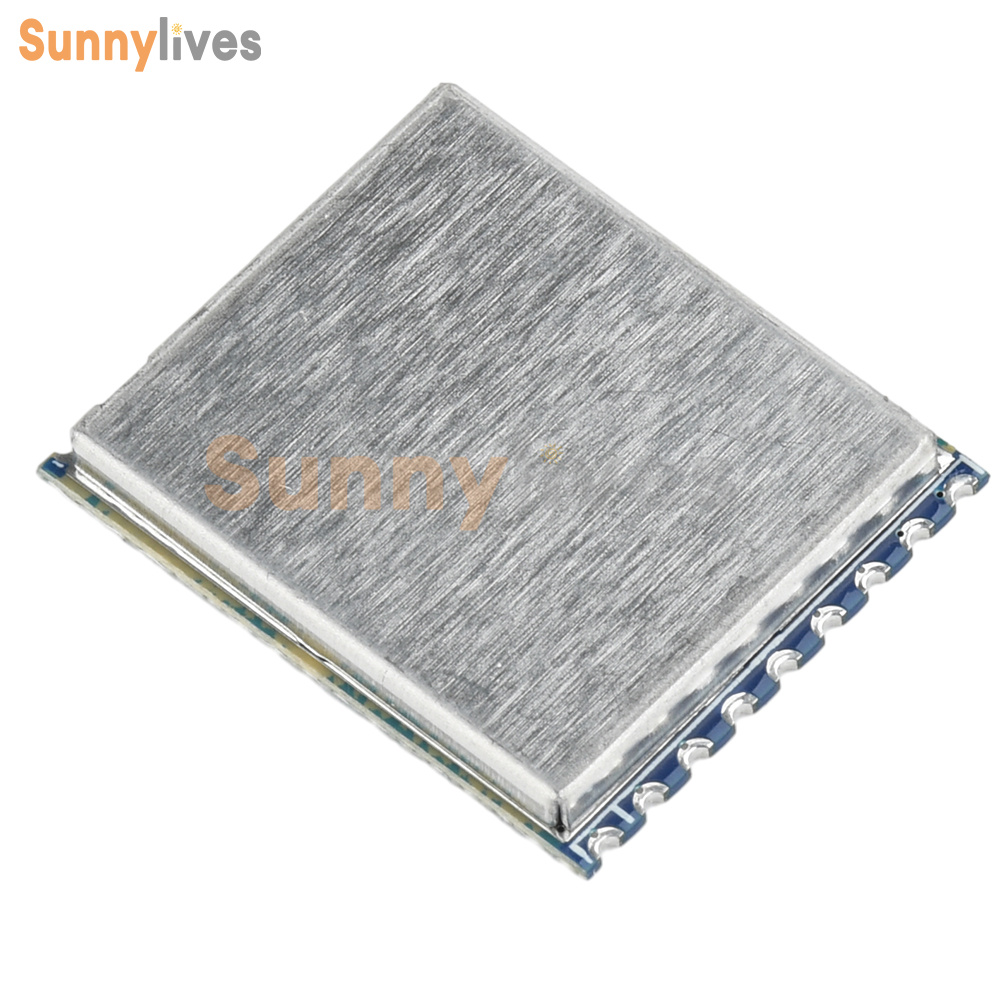

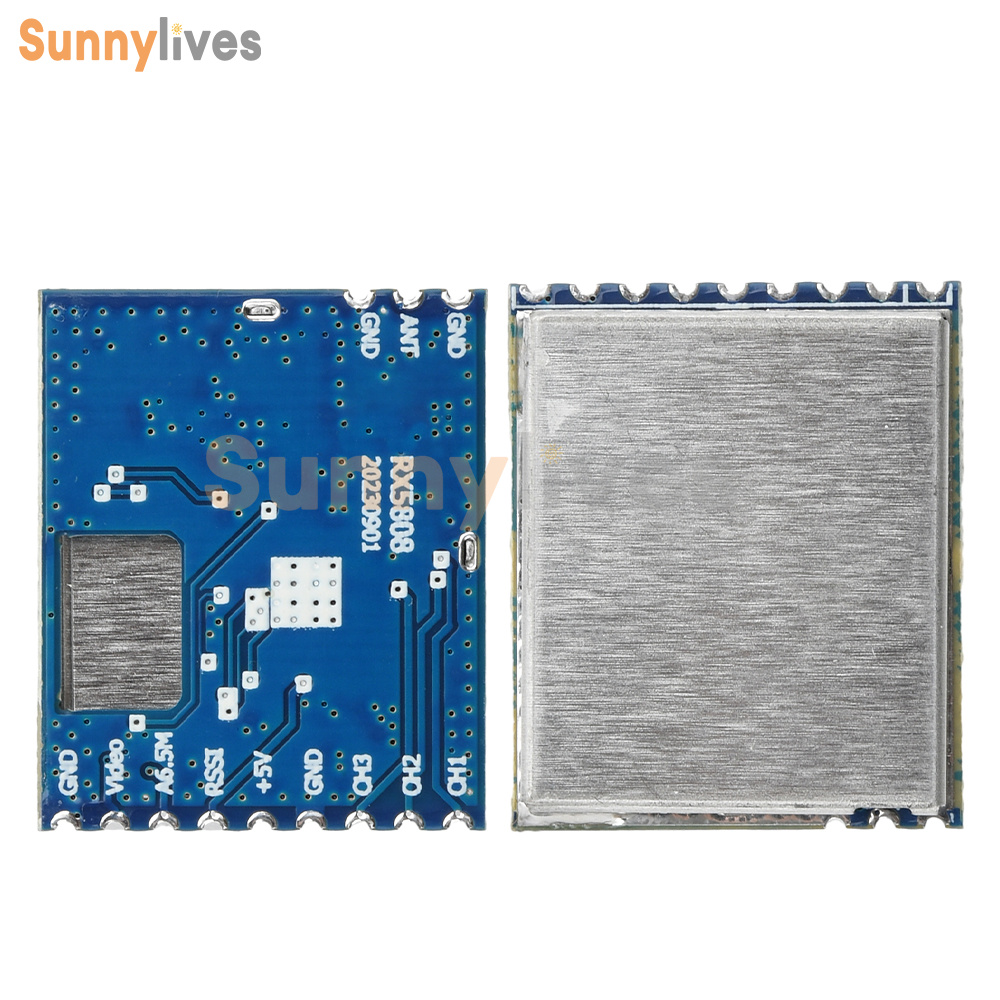

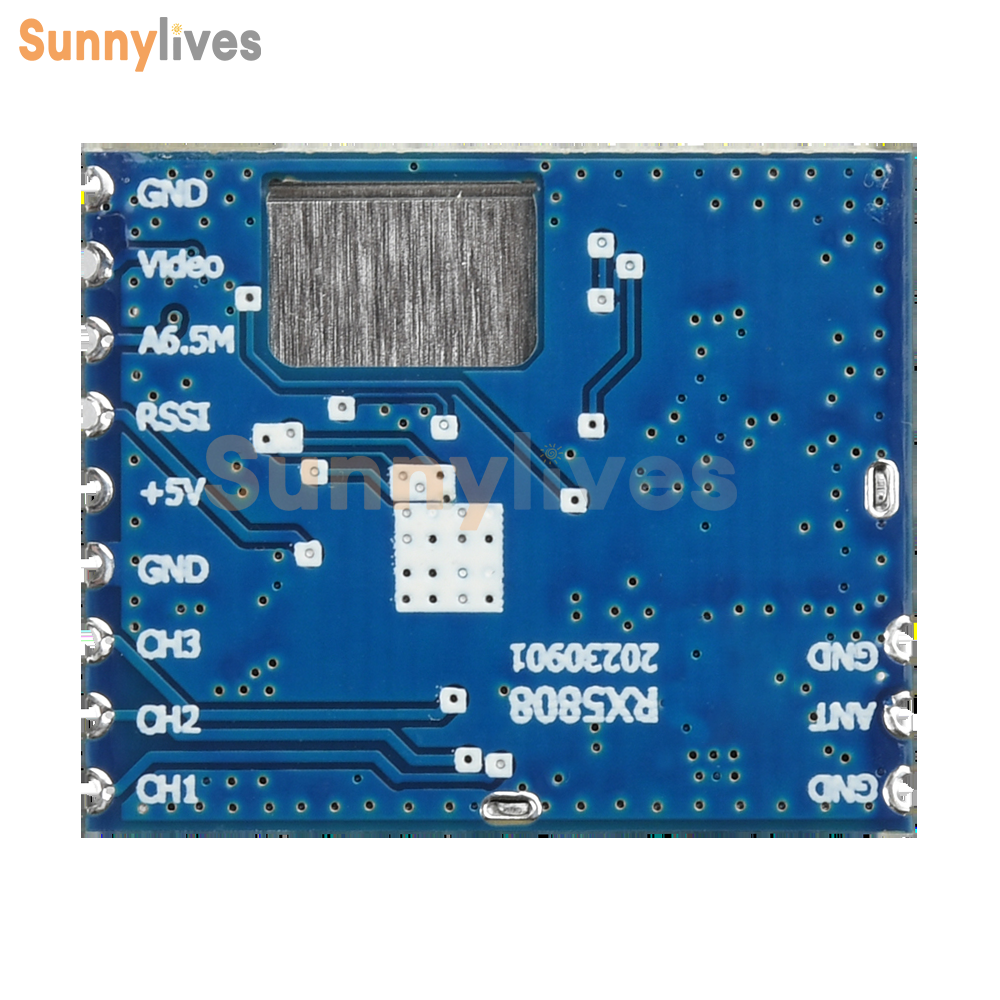

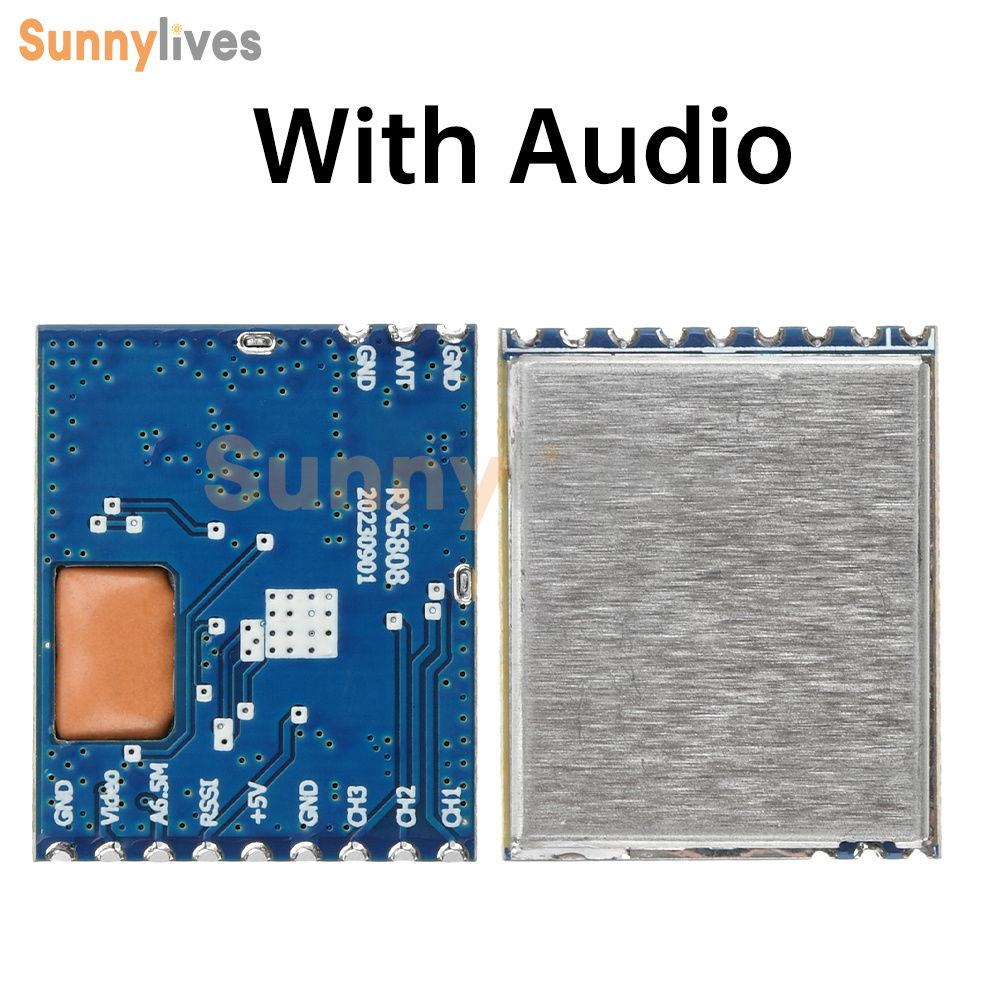

RX5808 is an FM audio/video receiver and demodulator module working in 5725-5865MHz ISM band. The module adopts a single chip design, the chip integrates VCO, PLL, broadband FM video demodulation, FM backing voice demodulation, making the module small size and low power consumption, low sensitivity and high characteristics; the module takes the form of a SMD package, taking up a very small space of the whole machine.

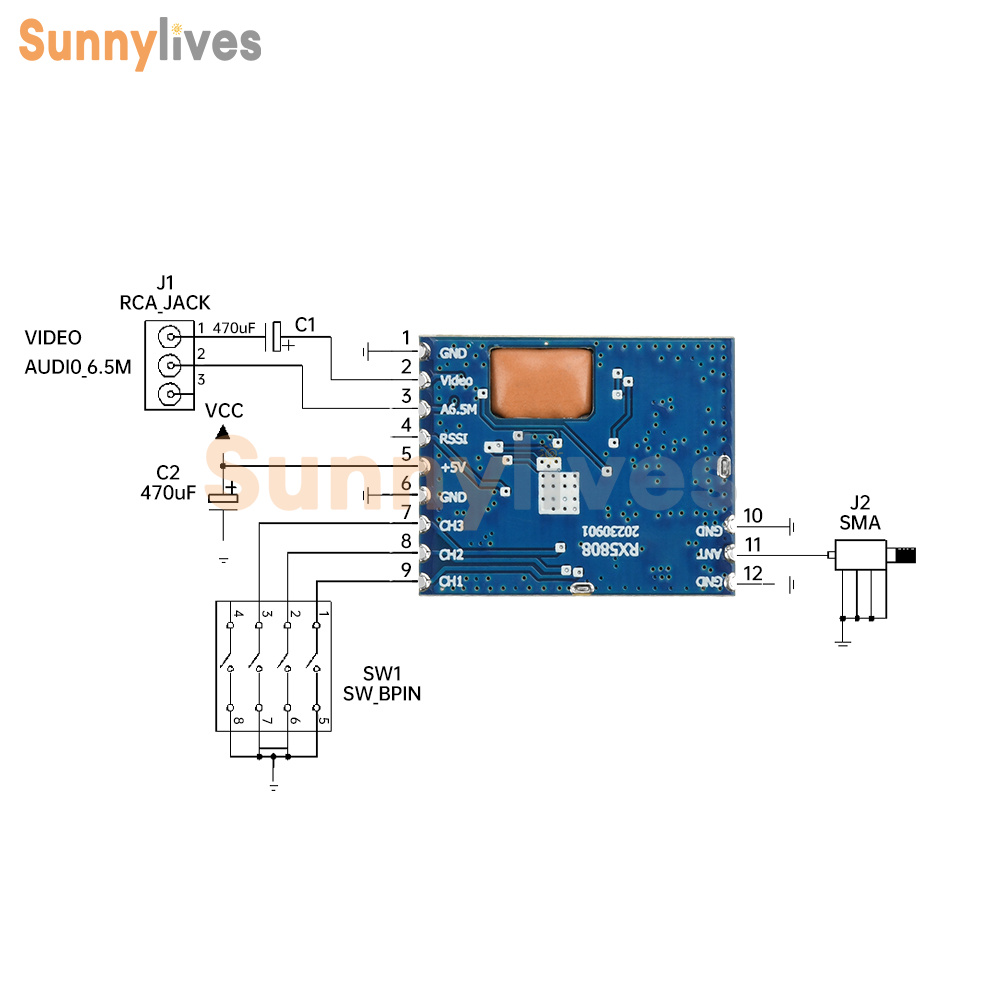

The application of this module only needs to simply connect the power supply, audio cable, video cable, and connect the antenna to receive sound and image signals.
The application of this module only needs to simply connect the power supply, audio cable, video cable, and connect the antenna to receive sound and image signals.
Features
1.4.8~6.0G broadband FM audio/video synchronous reception, ensure HD smooth transmission

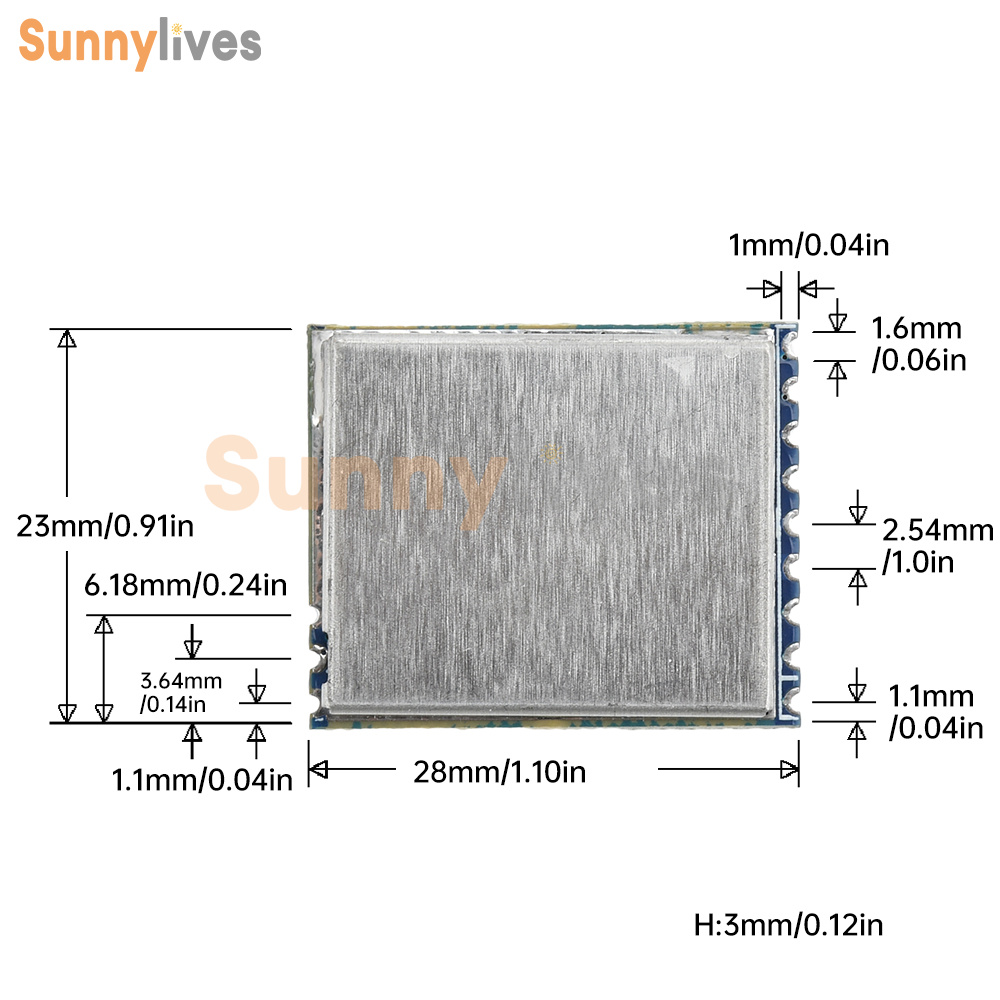

2.Small size SMD package (28×23×3 mm), easy to integrate various devices
3. Low power consumption design (5V 170mA), saving energy and prolonging usage time.
4. High reception sensitivity (-90dBm), signal stability, anti-interference strong
5. Built-in frequency phase-locked loop, providing high stability and accurate reception
1.4.8~6.0G broadband FM audio/video synchronous reception, ensure HD smooth transmission
2.Small size SMD package (28×23×3 mm), easy to integrate various devices
3. Low power consumption design (5V 170mA), saving energy and prolonging usage time.
4. High reception sensitivity (-90dBm), signal stability, anti-interference strong
5. Built-in frequency phase-locked loop, providing high stability and accurate reception
Specification
Product name: RX5808 wireless audio and video receiver module
Supply voltage: 3.5~5.5V
Power supply current: 170mA
Power supply ripple voltage: 10mVpp (Max 25mVpp)
Wideband: 4.8~6.0GHz
Receiving frequency: 5725~5865MHz; 8 channels
Frequency control: Built-in frequency phase-locked loop
AV Output: Directly output analogue audio and video signals
Power Consumption: 5V 170mA
Receiving sensitivity: -90dBm
Operating temperature: -20~70°C (only the module itself, not other parts)
Small size SMD package: 28×23×3mm
Product name: RX5808 wireless audio and video receiver module
Supply voltage: 3.5~5.5V
Power supply current: 170mA
Power supply ripple voltage: 10mVpp (Max 25mVpp)
Wideband: 4.8~6.0GHz
Receiving frequency: 5725~5865MHz; 8 channels
Frequency control: Built-in frequency phase-locked loop
AV Output: Directly output analogue audio and video signals
Power Consumption: 5V 170mA
Receiving sensitivity: -90dBm
Operating temperature: -20~70°C (only the module itself, not other parts)
Small size SMD package: 28×23×3mm
Package includes
1 x Module
1 x Module
