Features:
1. Adopting high efficiency tps61023 chip, integrated dual 3a mosfet switch, excellent performance
2. Over-voltage thermal shutdown protection prevents over-voltage and high temperature damage and ensures long-lasting performance
3. Light load automatic PFM mode to optimize efficiency and extend battery life
4. VIN>VOUT pass-through mode to maintain stable performance and uninterrupted power operation
5. Inputs and outputs are truly disconnected during shutdown, providing complete isolation and ensuring safety
Parameter:

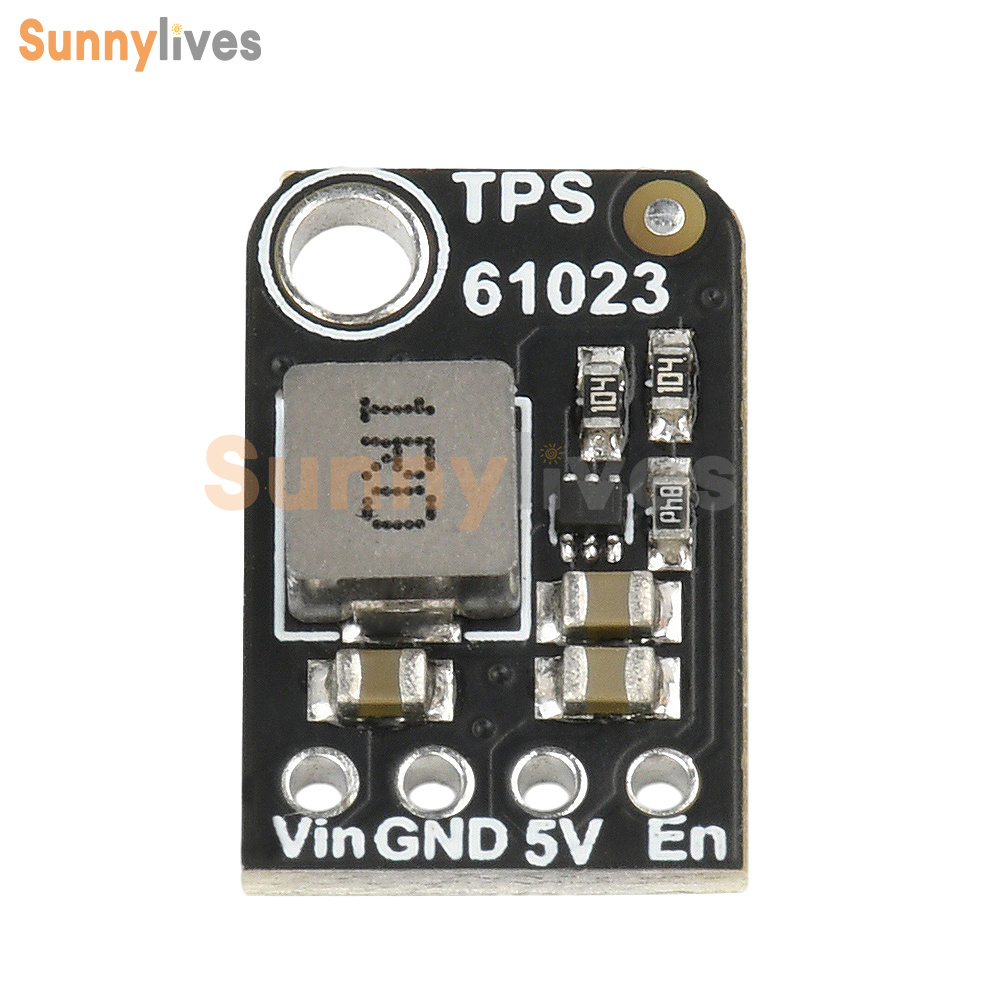

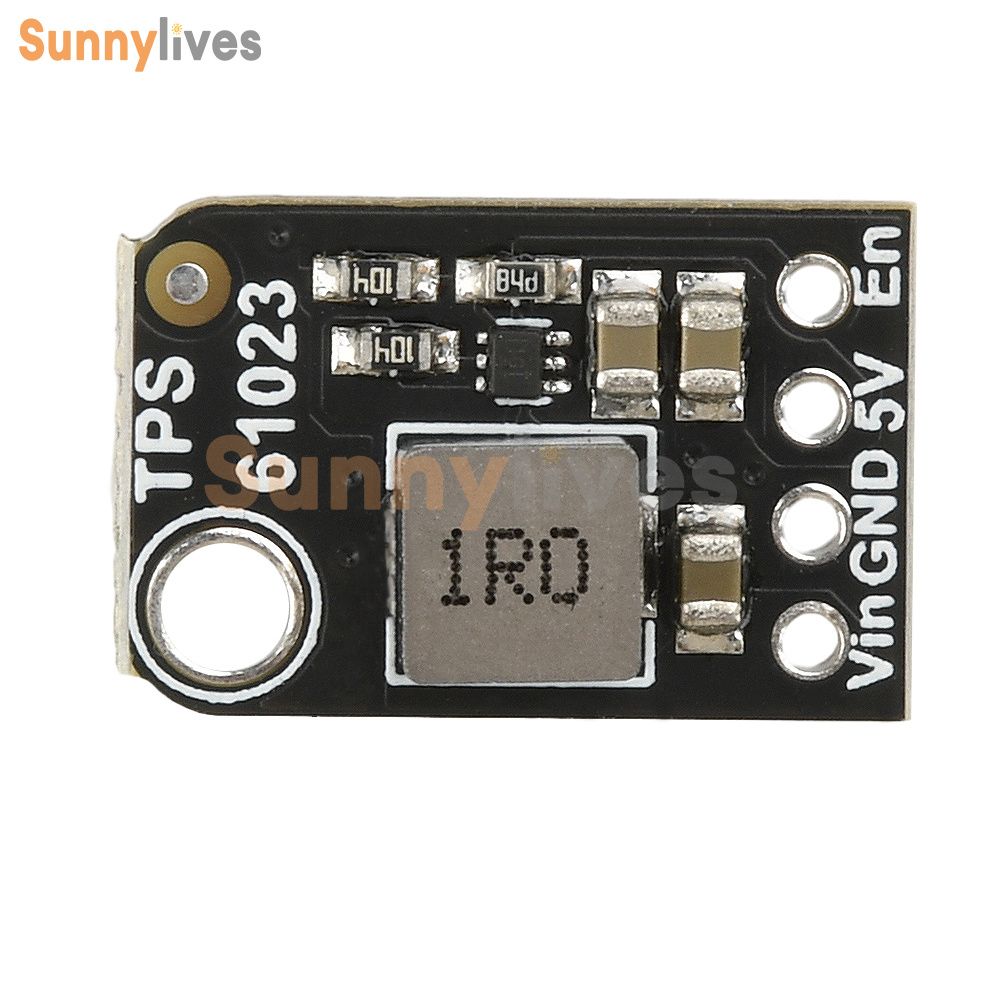

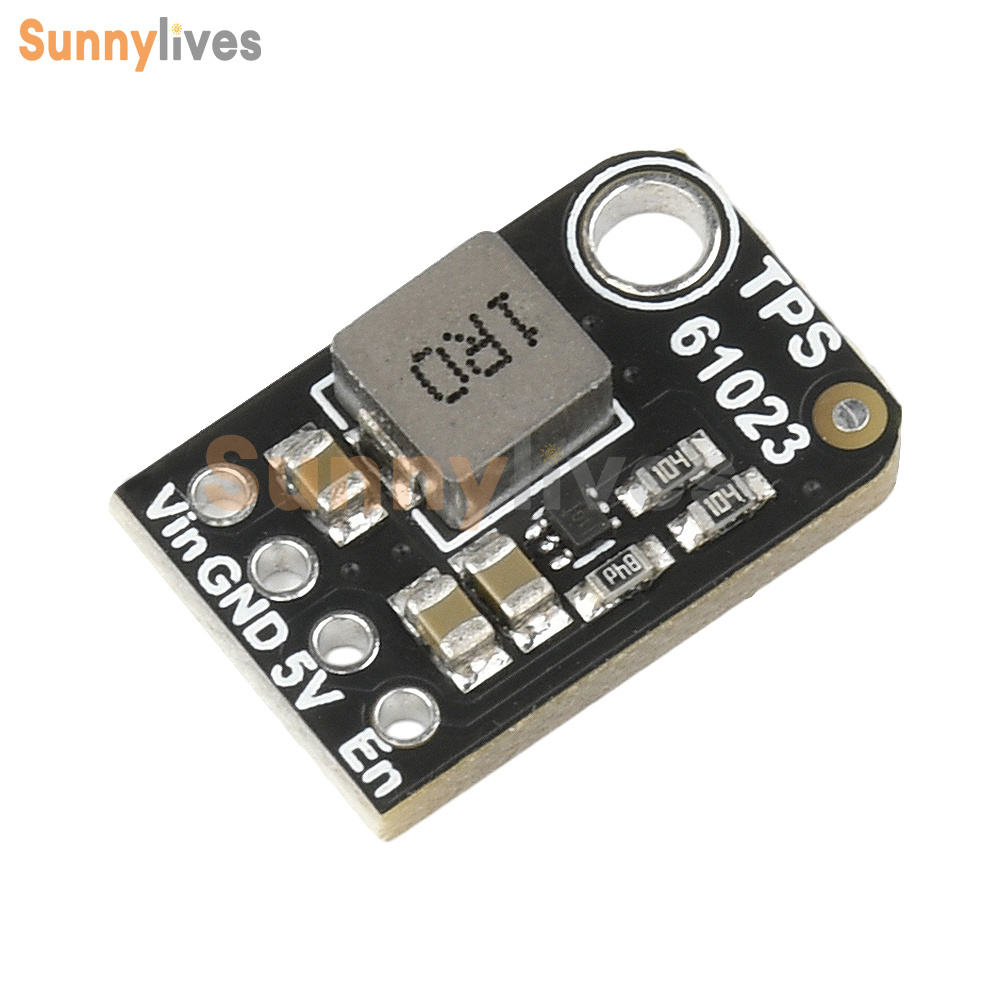

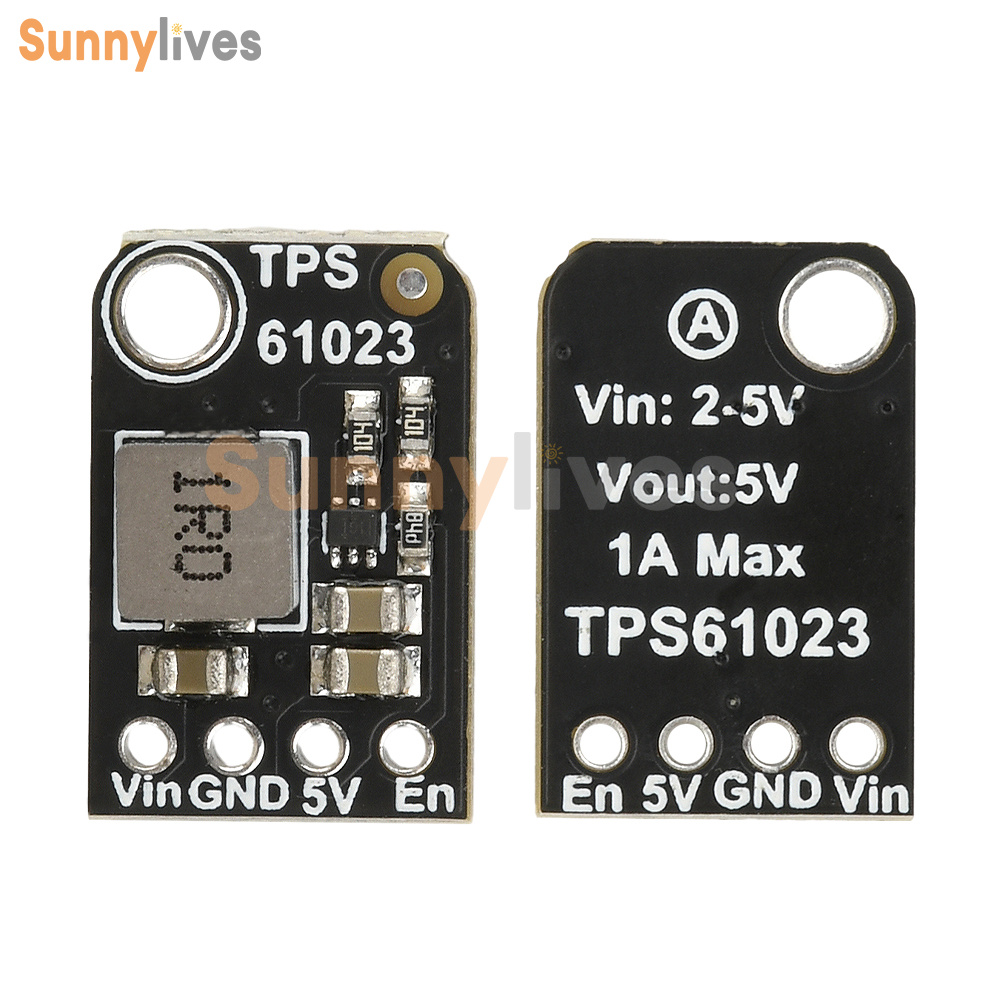

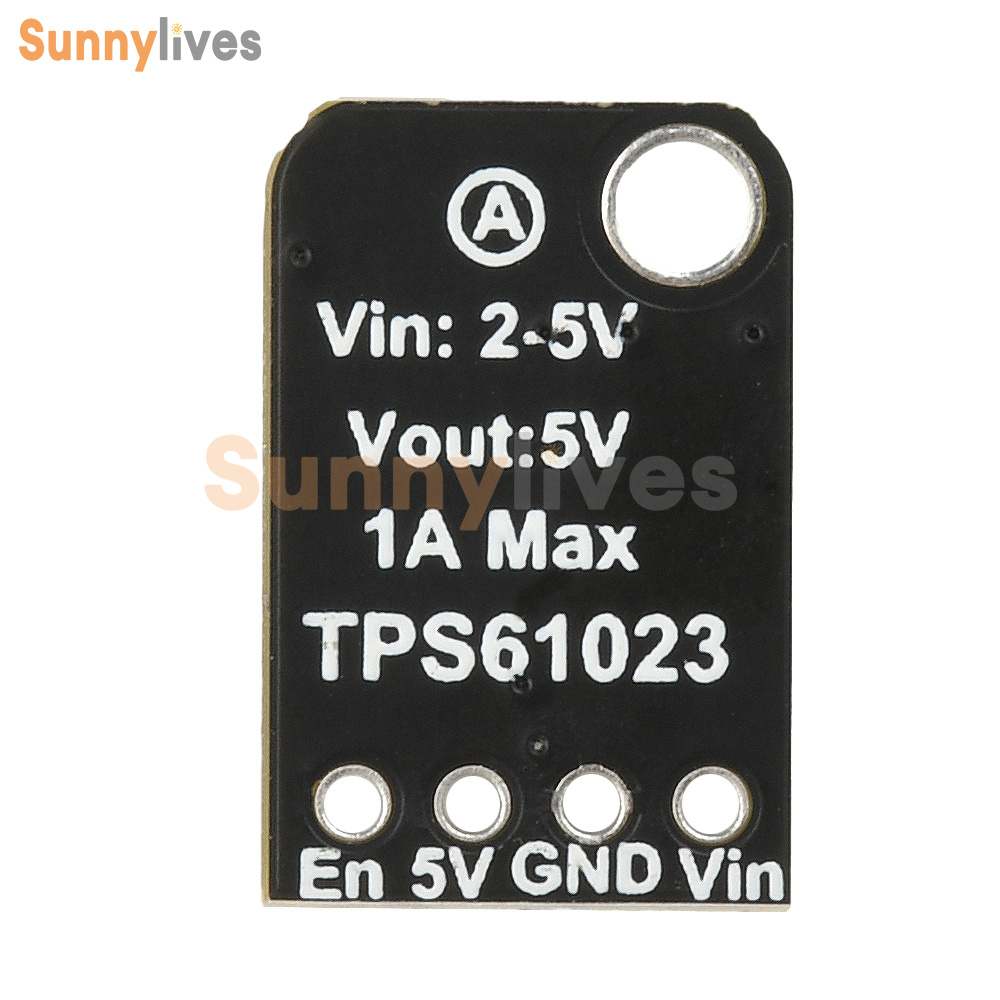

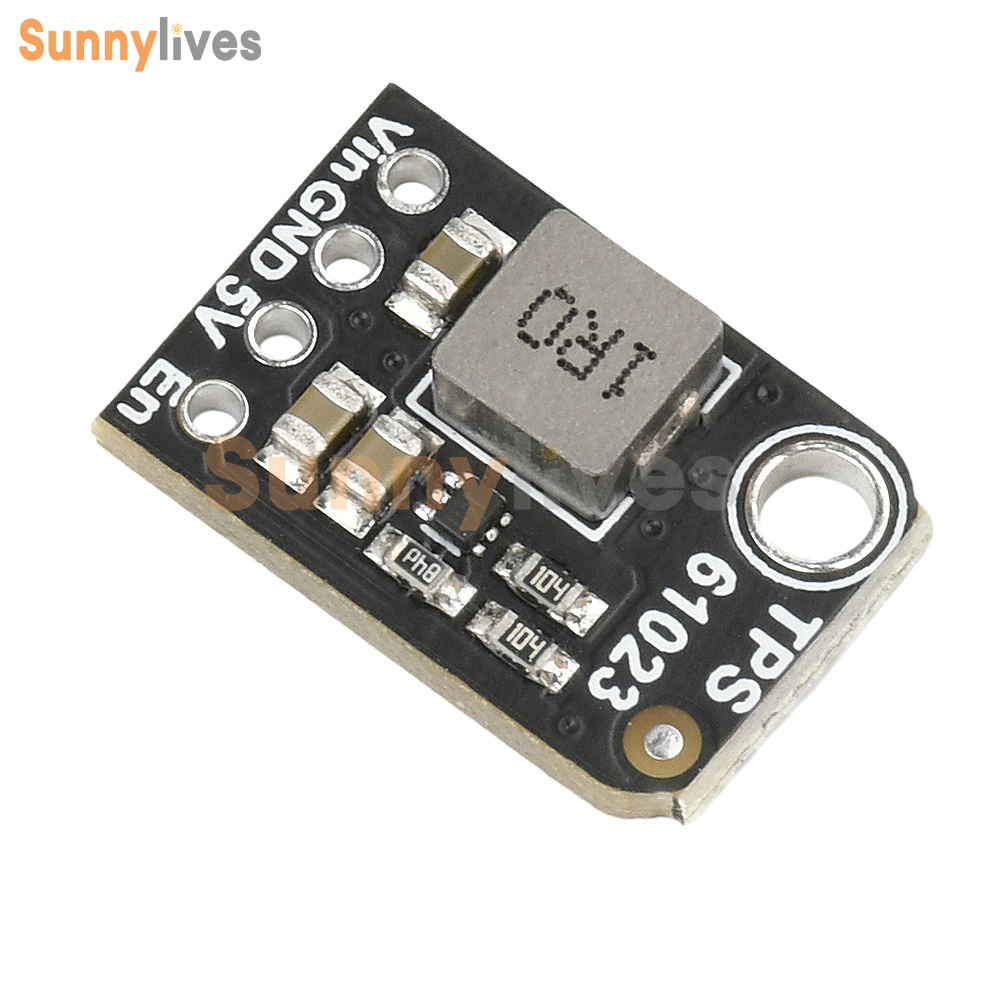

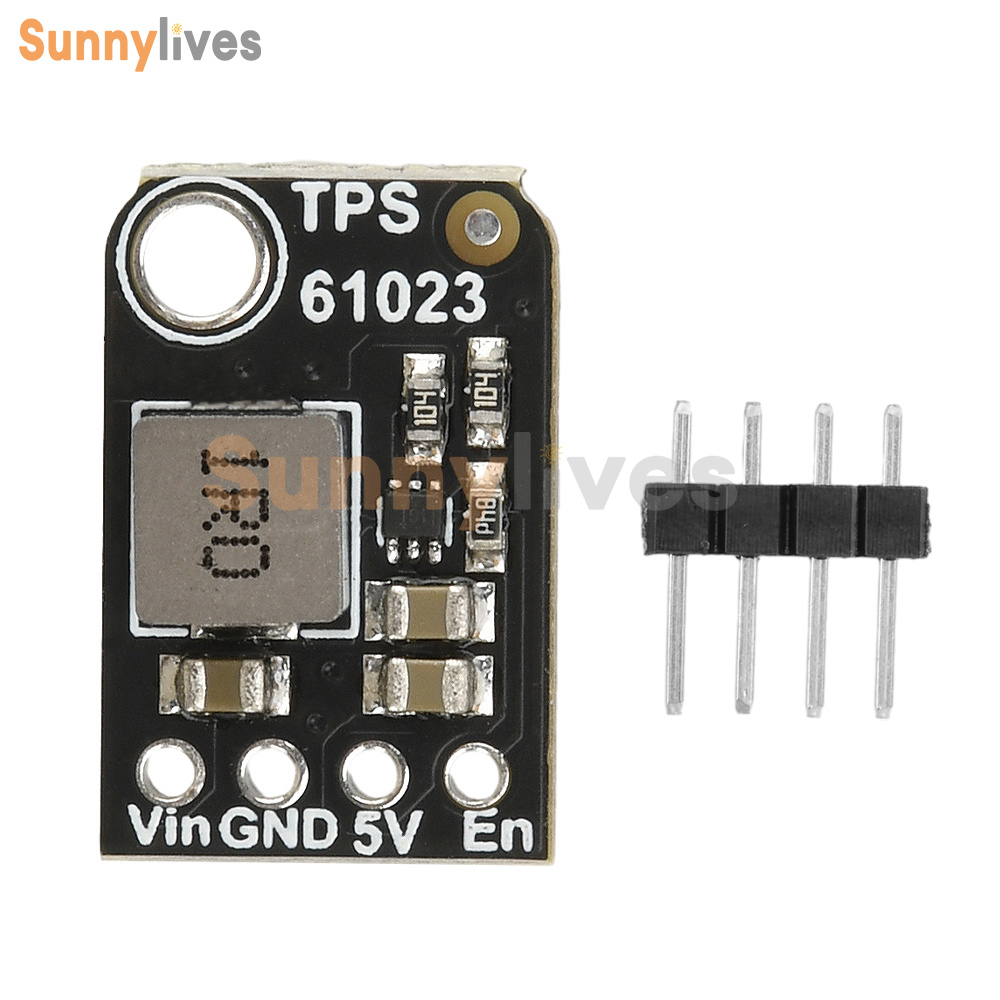

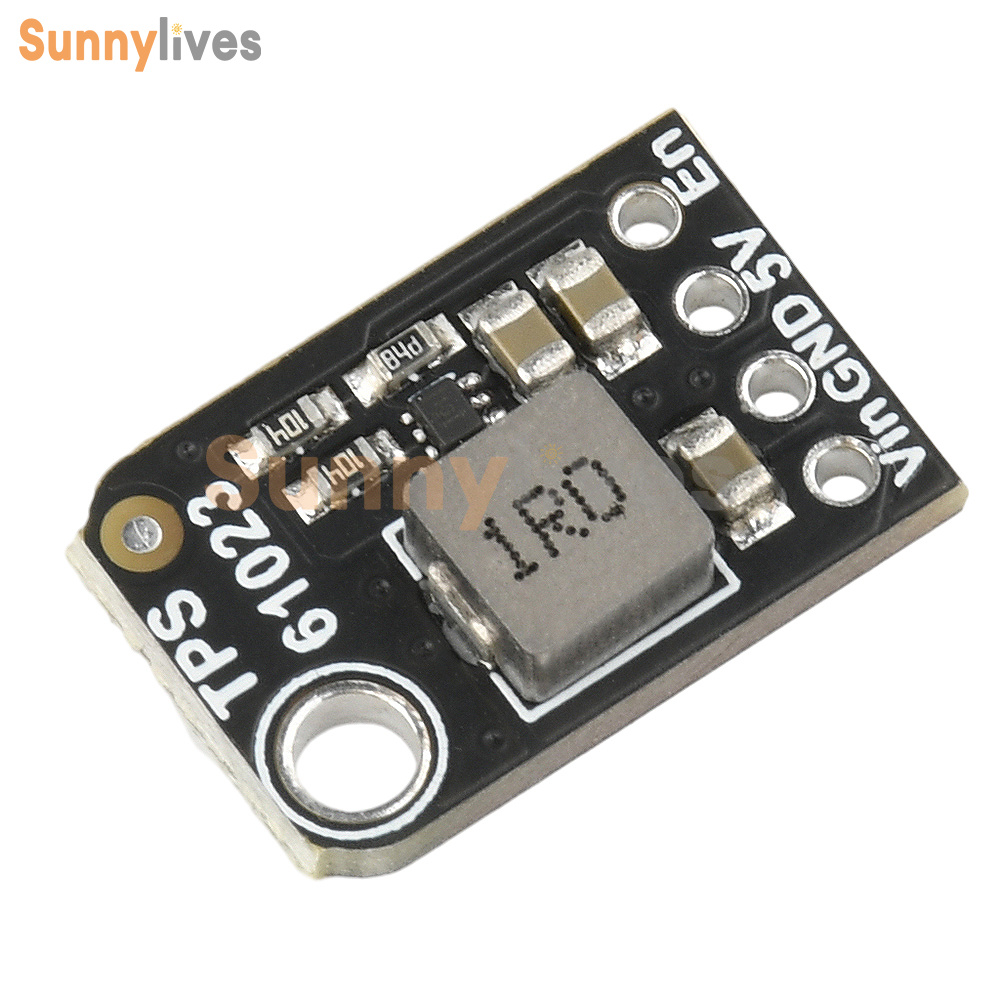

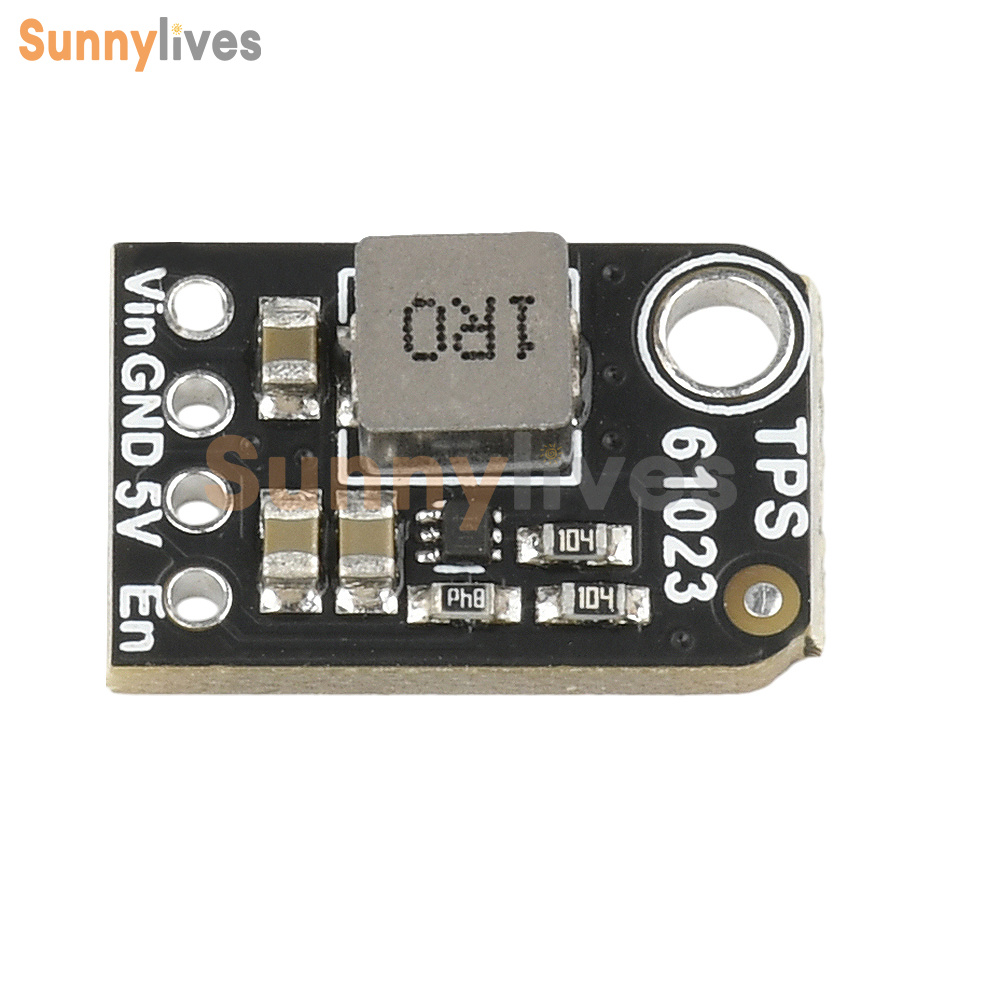

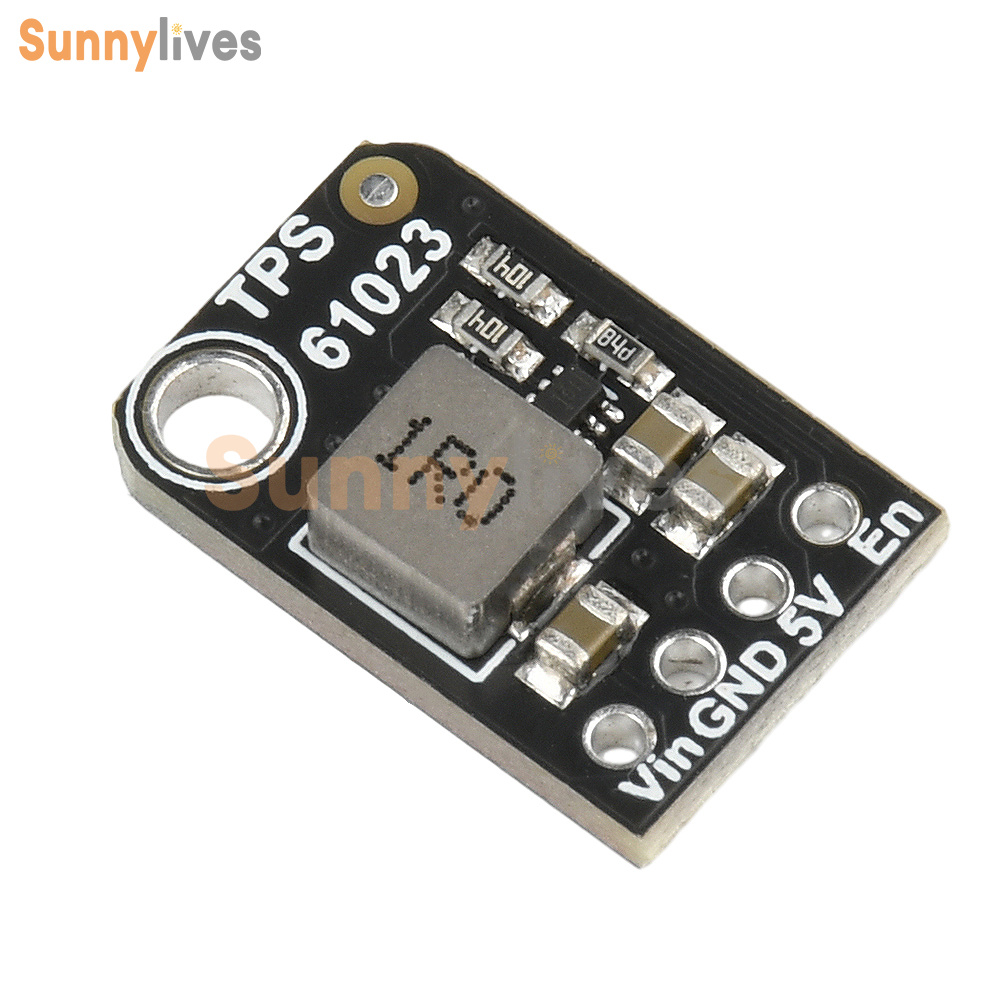

Product Name：TPS61023 Booster Module
Input Voltage Range：0.5~ 5.5V
Minimum Startup Input Voltage: 1.8V
Output voltage: 5V (actual output 5.2V)
Maximum output current: 1A
Battery Type: 2-3 alkaline or single lithium batteries
MOSFET Parameters: Two 47mΩ (LS) / 68mΩ (HS) MOSFETs
Valley switching current limit: 3.7A
Switching frequency: 1MHz for VIN > 1.5V, 0.5MHz for VIN < 1V
Shutdown Current: Typical shutdown current of 0.1μA at Vin and SW
Reference voltage accuracy: ±2.5% (-40°C to +125°C range)
Operating modes: Automatic PFM operation at light loads
Pass-through mode: when VIN > VOUT
Protection: Output overvoltage and thermal shutdown protection, output short circuit protection

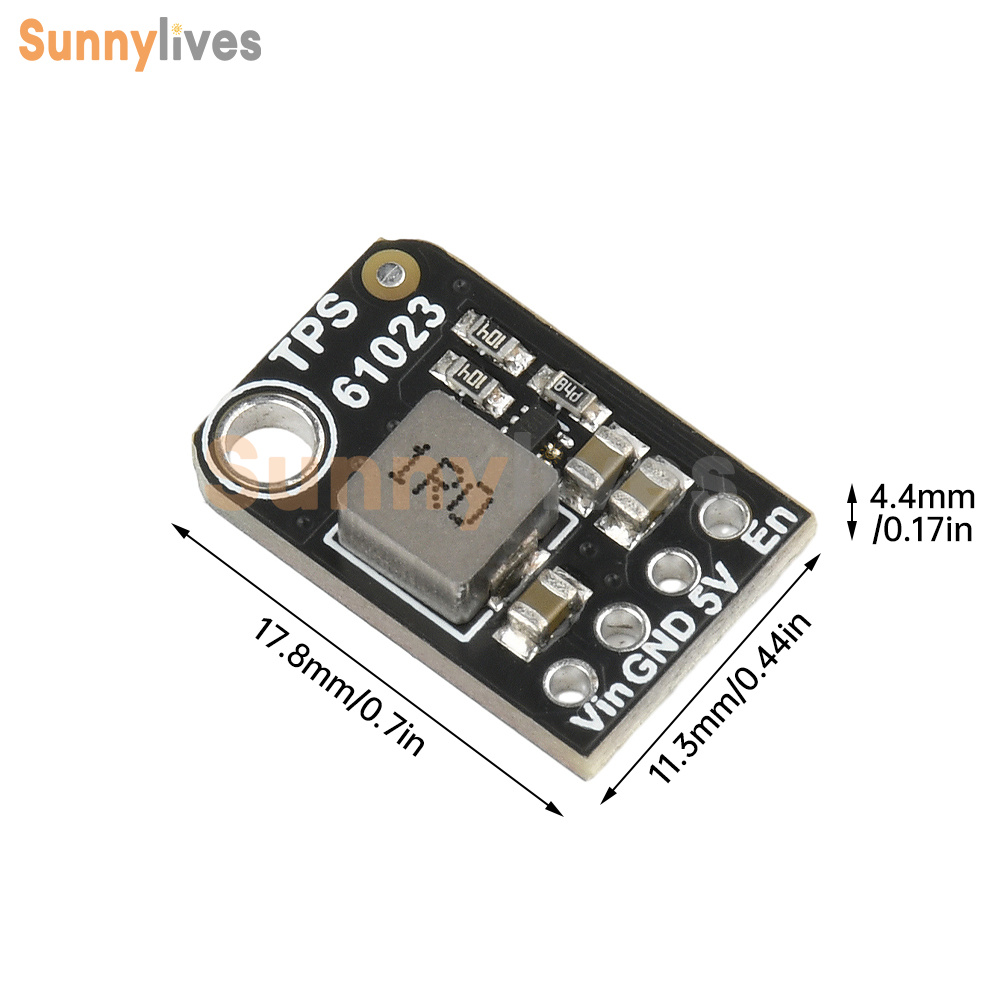

Product dimensions: 17.8x11.3x5.6mm
Description:
This mini boost module is extremely useful when you need a large amount of 5V power. It is comparable in size to a linear regulator, but powerful enough to provide 5V at 2-5VDC input and up to 1A output.
It is suitable for projects powered by 2-3 alkaline batteries or a single lithium battery.The module utilizes TI's highly efficient TPS61023 chip with integrated dual 3A MOSFET switches.Feedback resistors are set to 5.2V output to compensate for cable voltage drop.

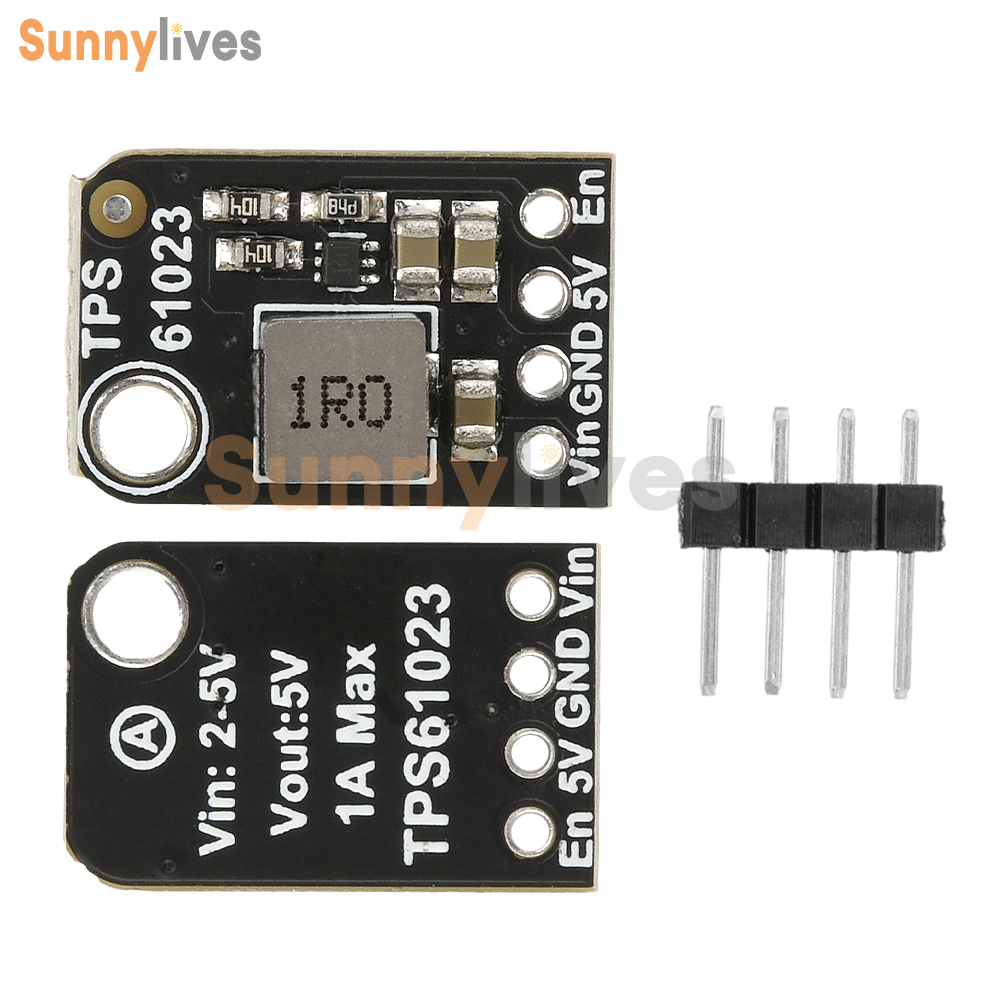

Package include:
Module x 1
Pin x 1
