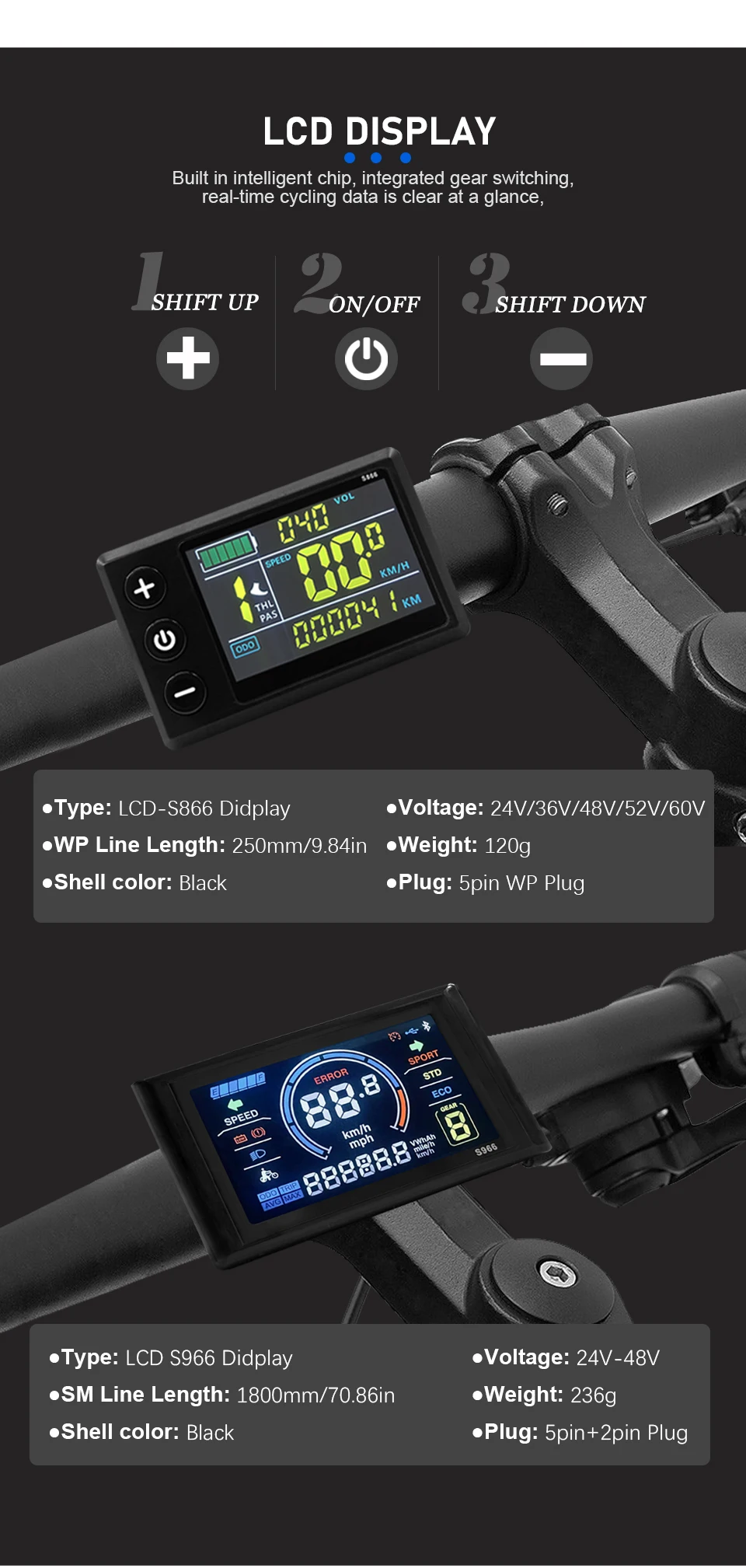

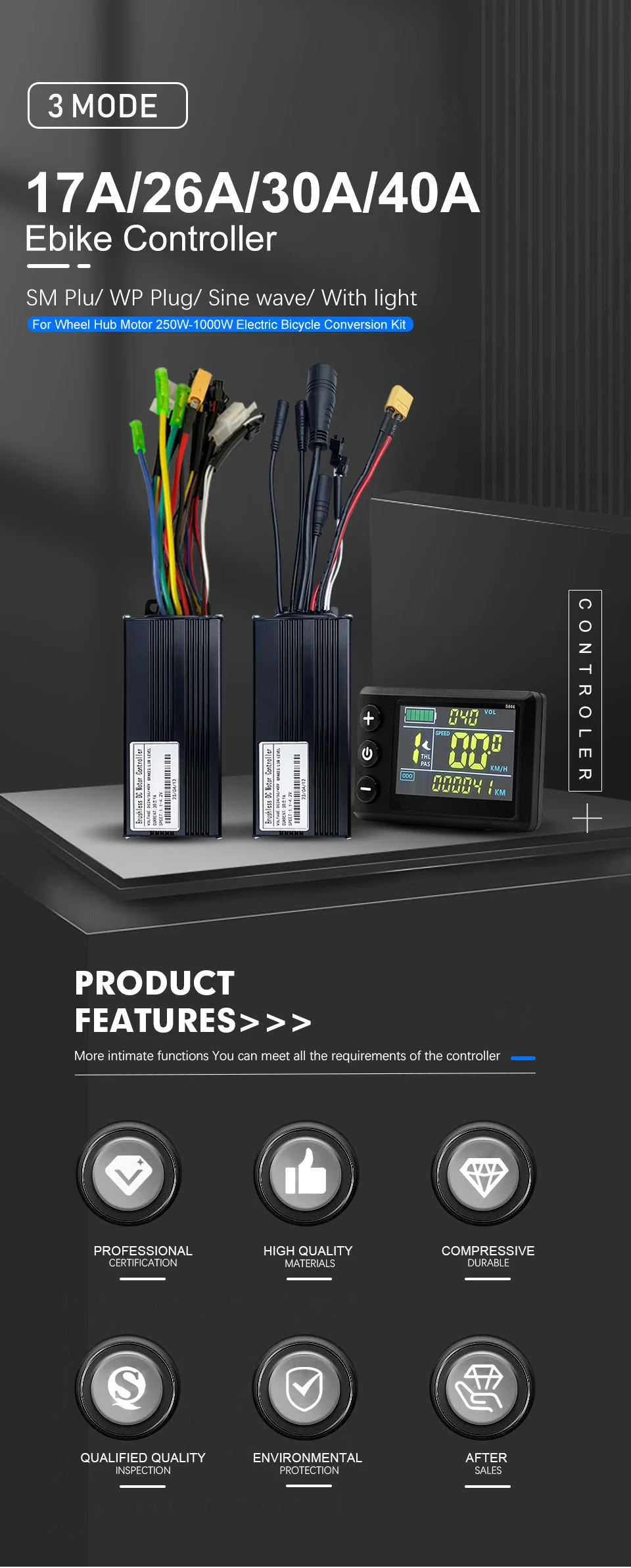

LCD S866 S966 Display :
Voltage : 24V 36V 48V 60V
Plug : 5Pin Female SM Plug
Holder Diameter :φ22mm
Cable Length: 170cm ( SM )

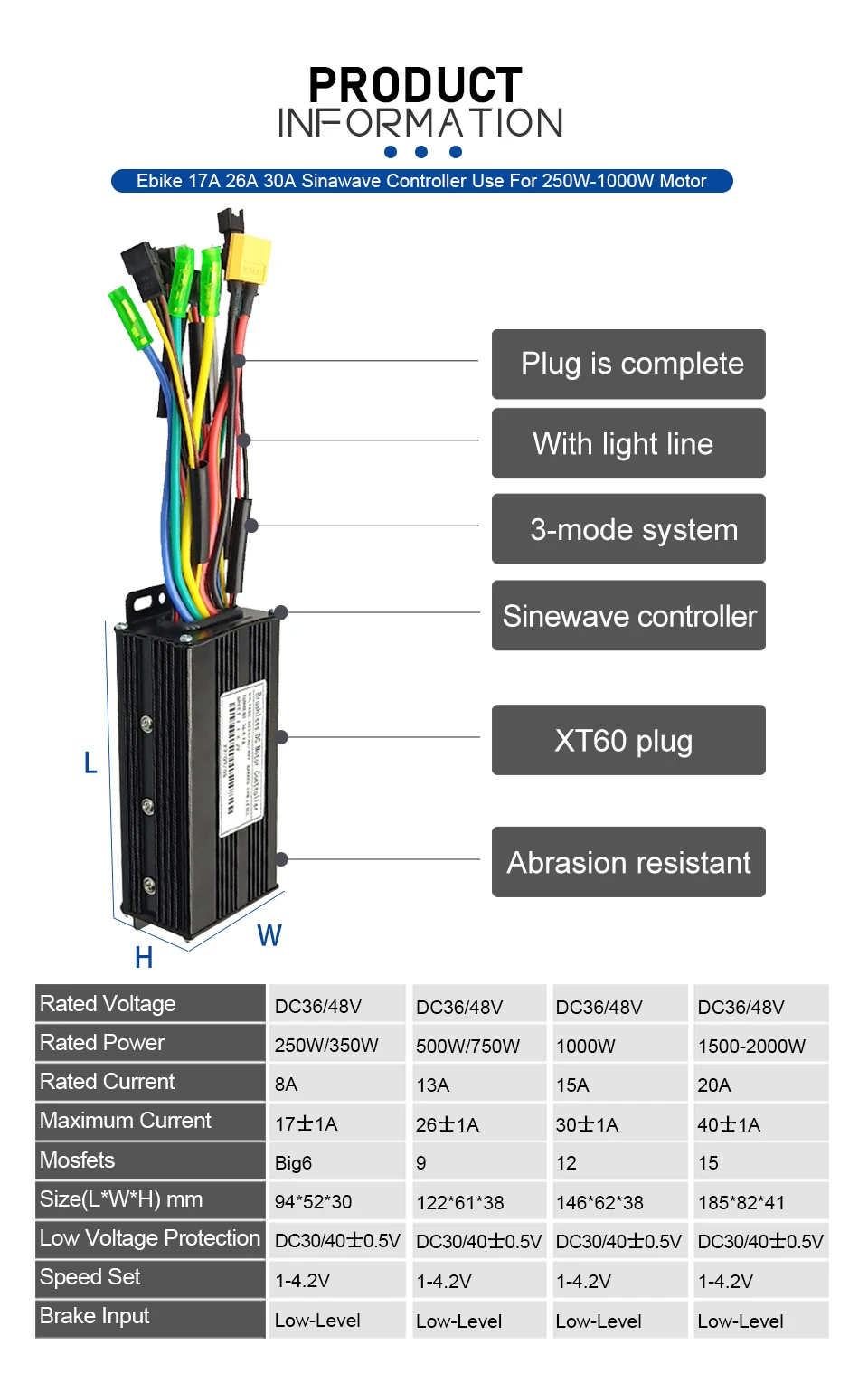

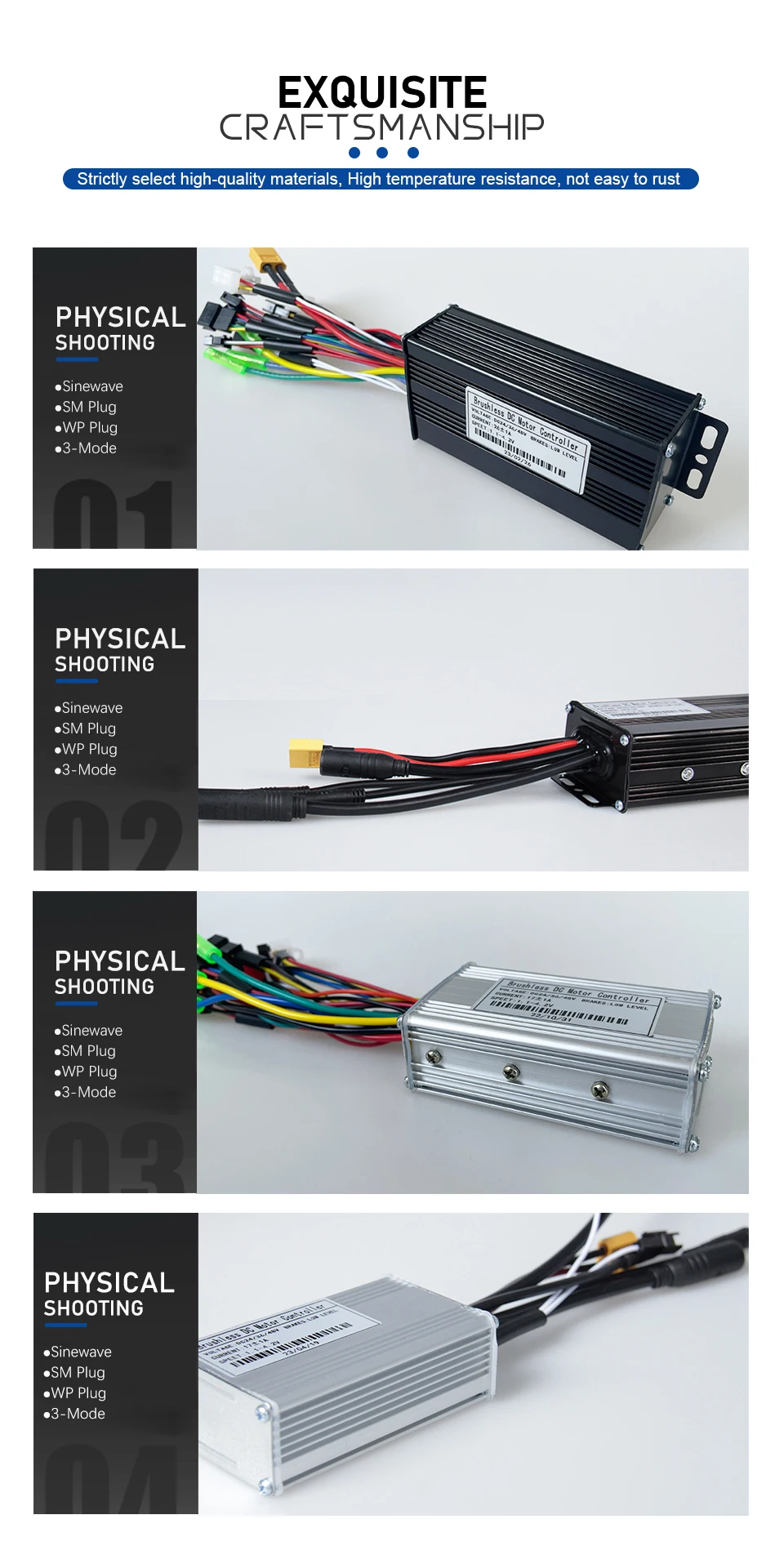

17A Controller :
Size:95*53*30 mm
Weight:198g
Mosfets:6 mosfets
Maximum current:17±1A
Rated voltage:DC36V/48V
Rated current:8A
26A Controller :
Size:124*62*38 mm
Weight:348g
Mosfets:9 mosfets
Maximum current:26±1A
Rated current:13A
30A Controller :
Size:145*60*36 mm
Weight:398g
Mosfets:12 mosfets
Maximum current:30±1A
Rated current:15A

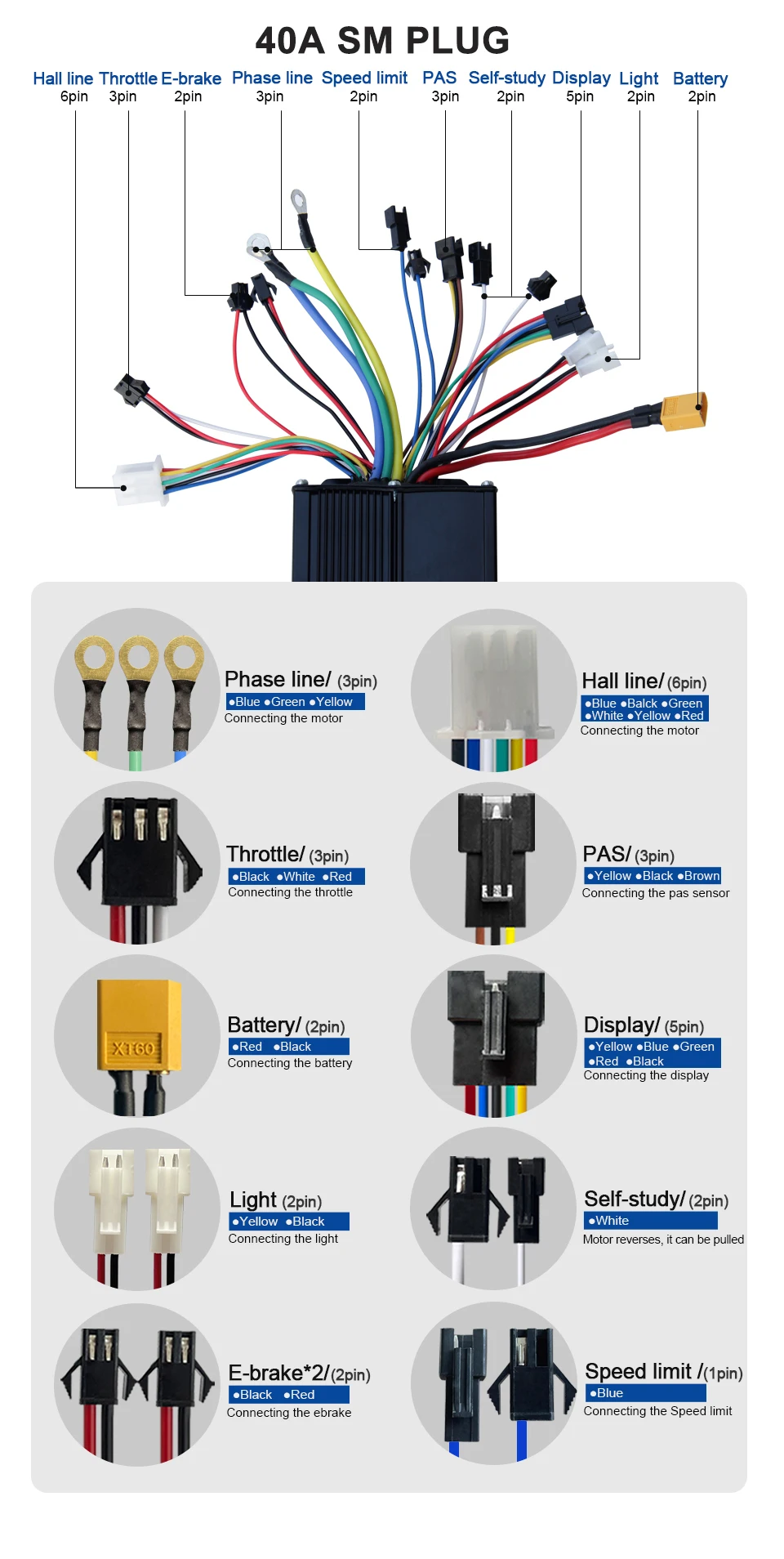

40A Controller :
Maximum current:40±1A
Size:185*82*41 mm
Weight:546g
Mosfets:15mosfets
Rated current:20A

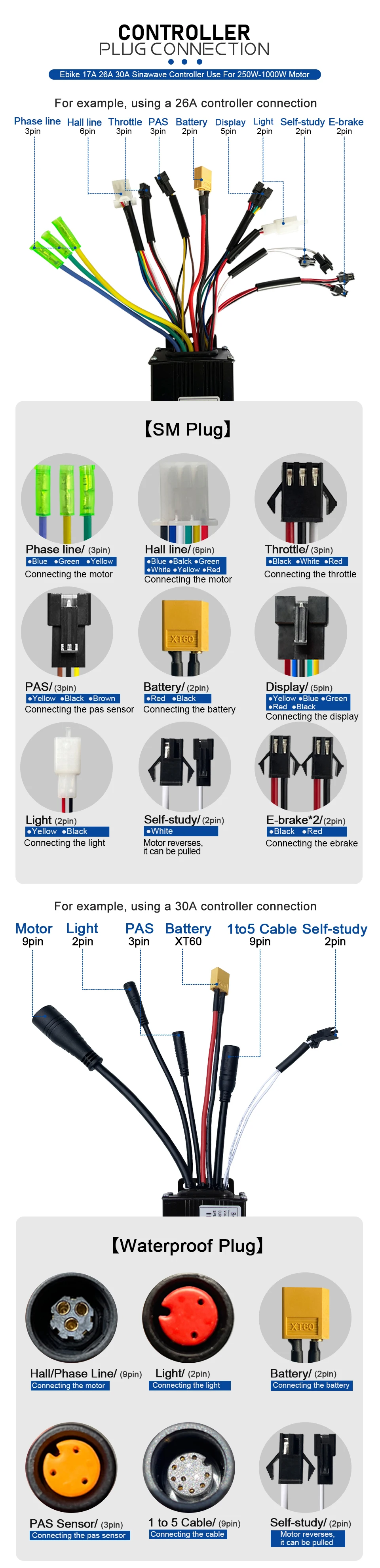

Introduction to plugs:
1.display line
2.Phase line
3.self-learning line
4.hall line
5.PAS sensor line
6.throttle line
7.brake
8.light line
9.battery（red wires battery +，black battery -）
①connect the motor line (color to color）
②connect the battery line(2 red wires :battery + , black:battery-)
③connect the controller throttle line（color to color）
④connect the hall line(if motor without hall line, don’t need connect)
⑤docking the two self-learning lines, the wheel will forward or reverse.
(1.if wheel forward ,Separate the self-learning line.
(2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again，if wheel forward ,Separate the self-learning line.)
⑥other functions can be connected as needed.
