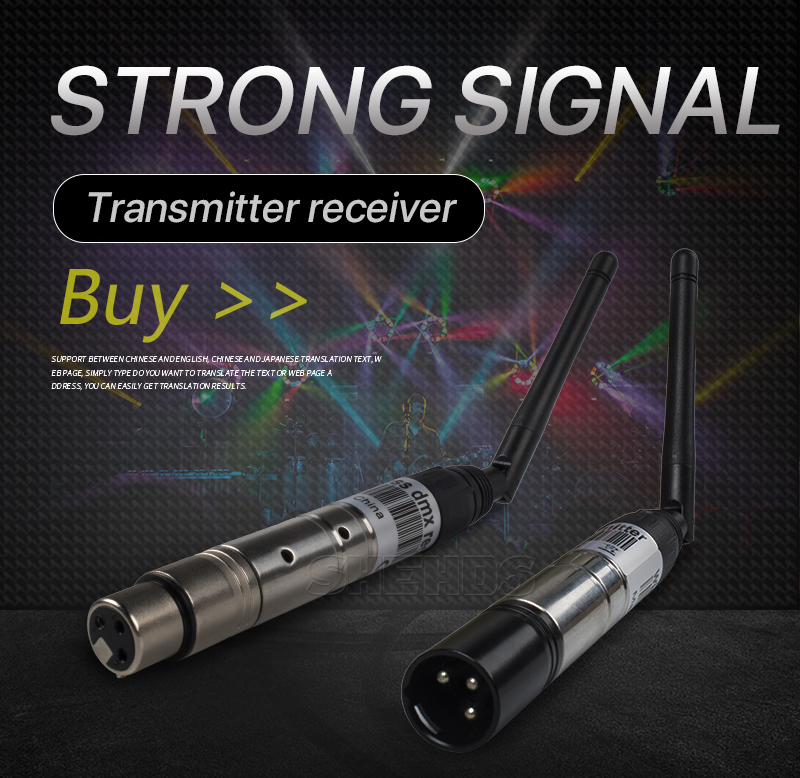

Wireless DMX Transmitter/ Receiver

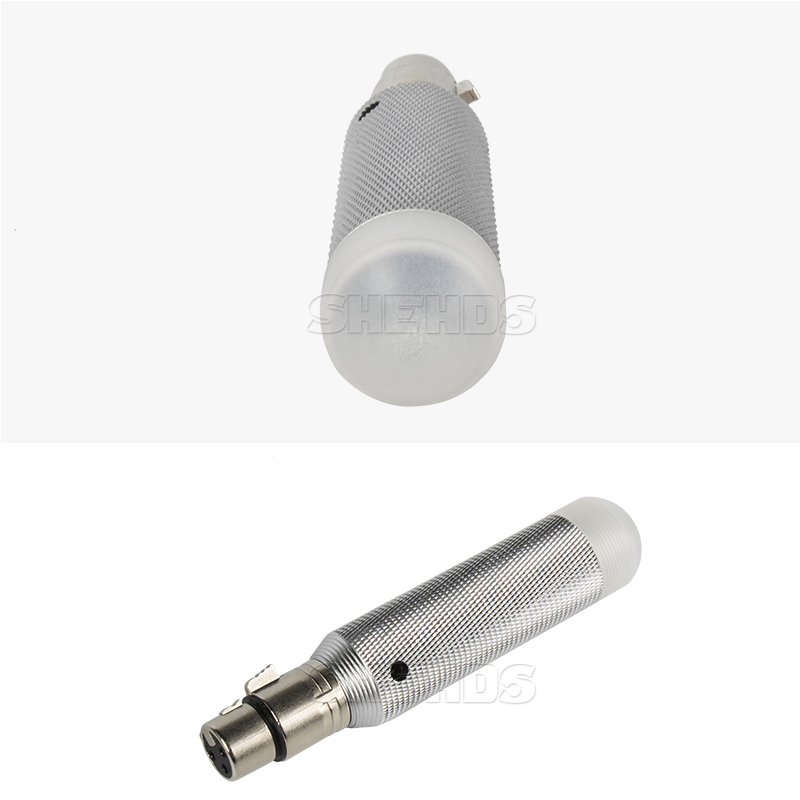

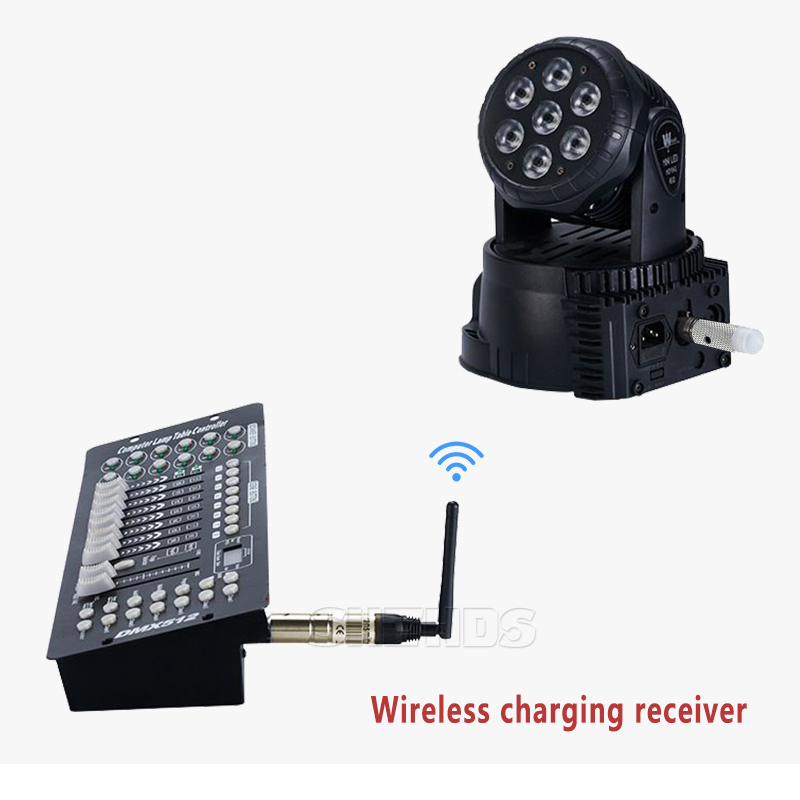

Wireless DMX Rechargeable Battery Receiver
Features:

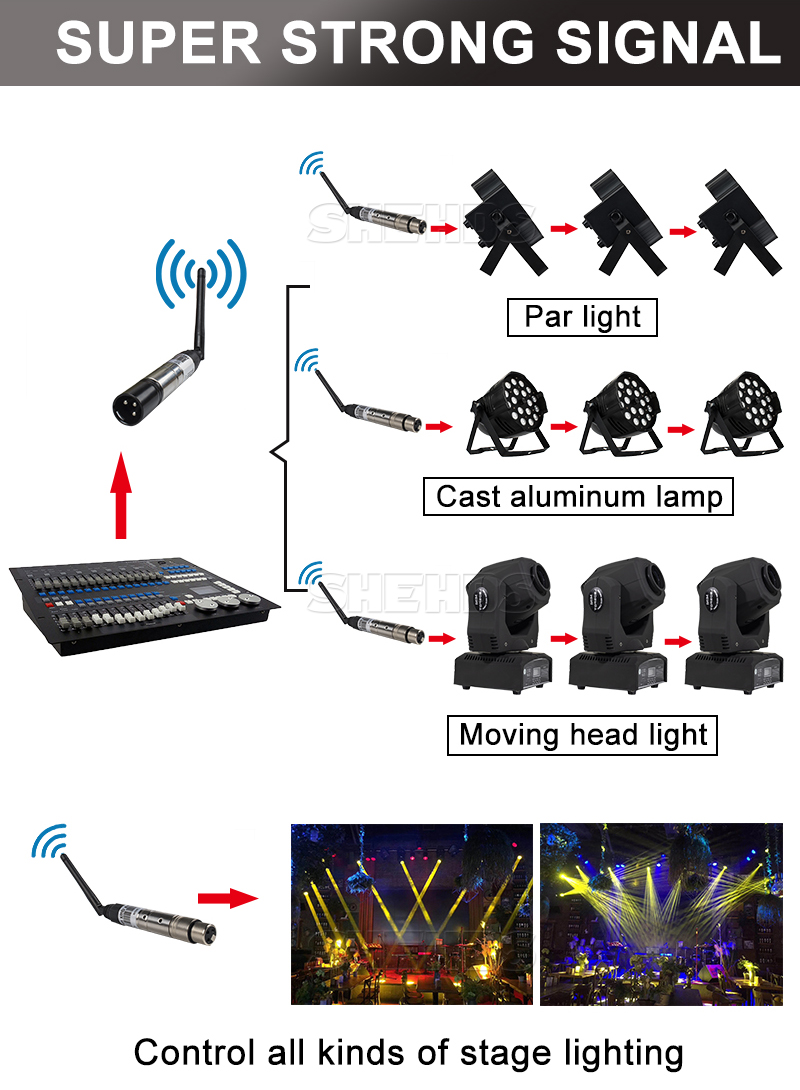

DMX512 wireless receiver transmits standard DMX512 protocol
data ( generated by console ) by wireless way.
No time delay when signal data is transmitting, signal data is real time and reliably.
This product adopts a 2.4G ISM frequency section.
High effective GFSK modulate,communication design; 126 channels jumping frequency
automatically, high anti-jamming ability.
126 channels jumping frequency automatically, high anti-jamming ability, to ensure
works reliability.

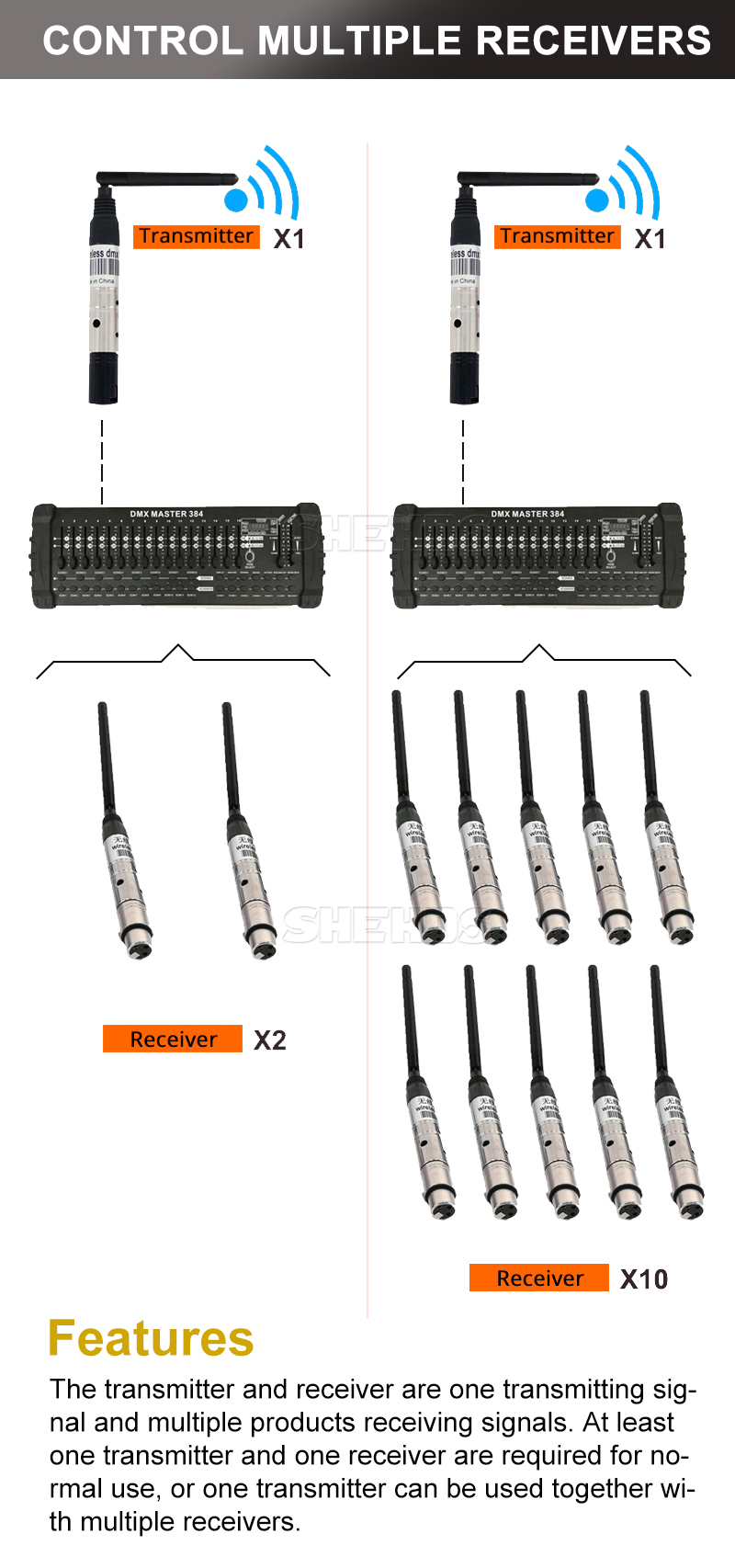

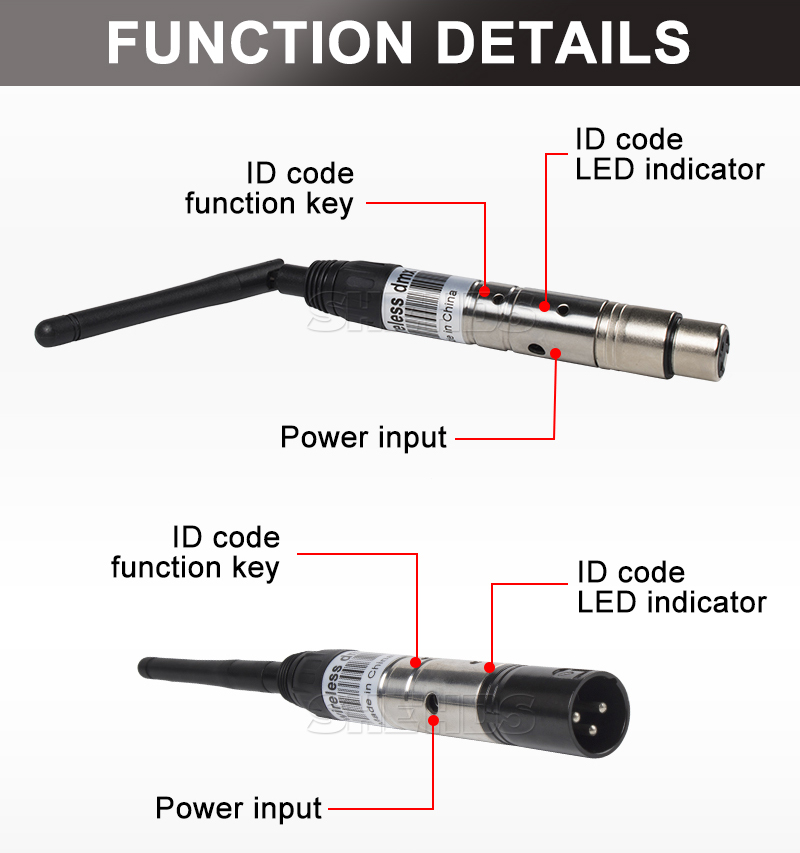

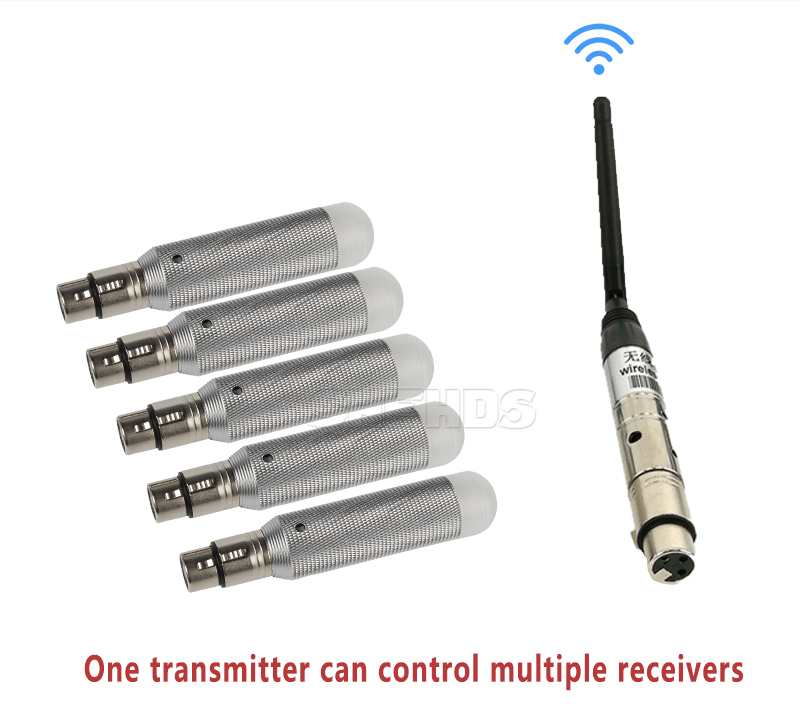

7 groups ID code settable,User can use 7 groups individual wireless net without any interfere
each other in the same place. ( Tricolor LED displaying Indicators )

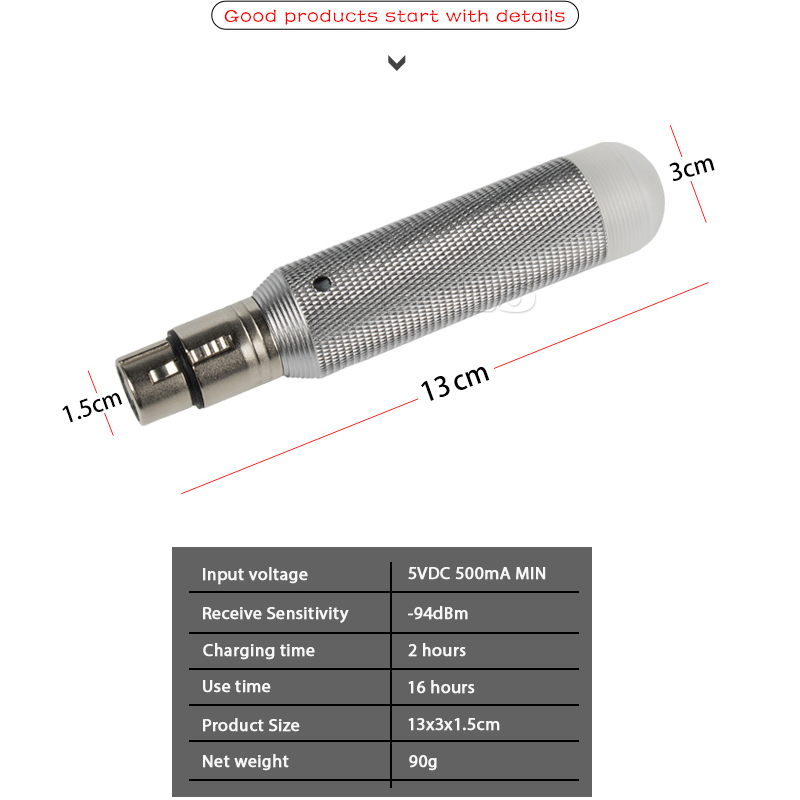

Specification:
2.4G wireless DMX512 R
Input voltage: 5VDC 500mA MIN
Receive Sensitivity: -94dBm
Max transmitting power rate: 20dBm

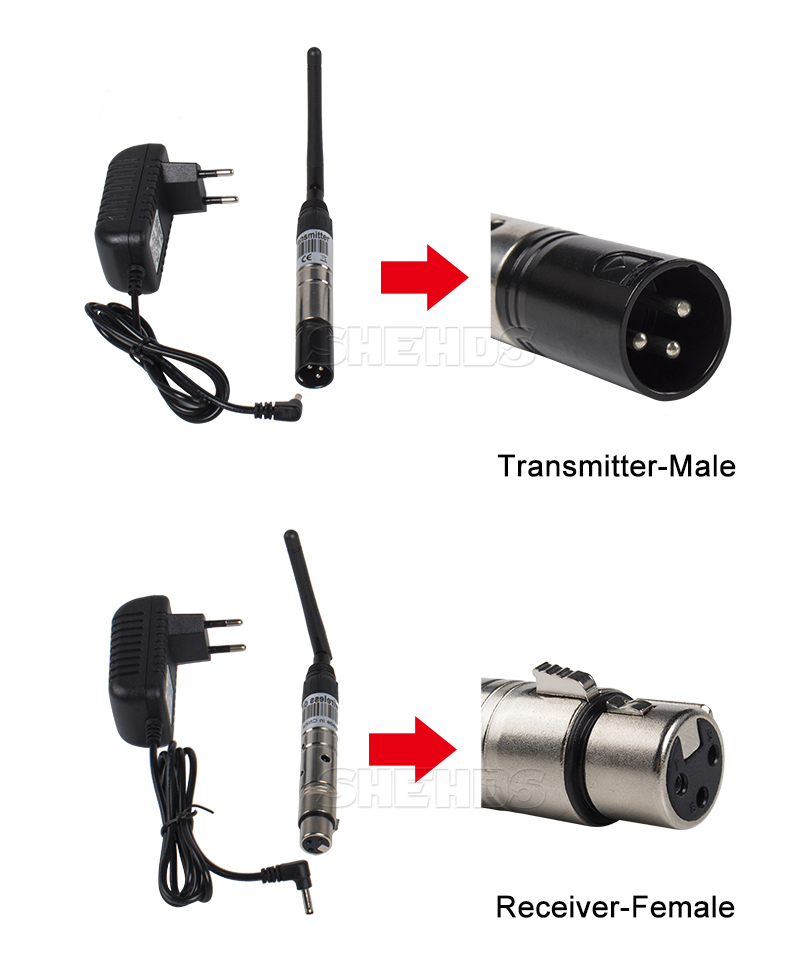

DMX connector: 3pin female
Communication distance: 800M ( visible distance )
Work frequency section: 2.4G ISM, 126 channels.frequency section
Material: zinc alloy + plastic
Charging time: 2 hours
Use time: 16 hours
Item Weight: 90g

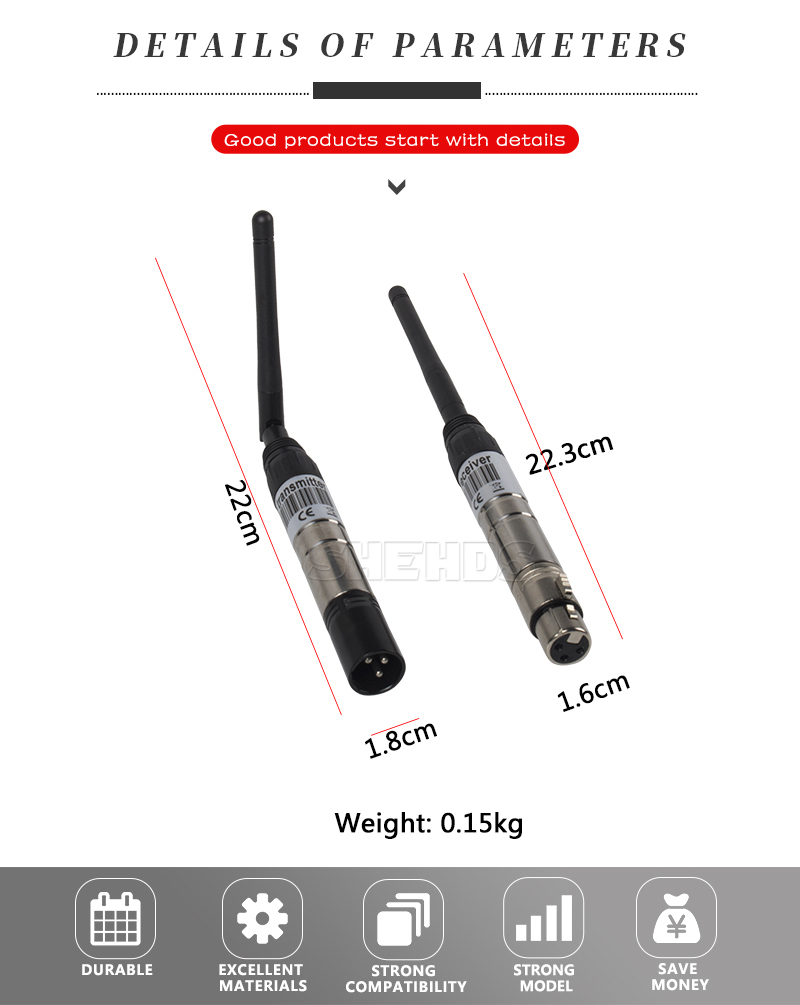

Item Size: 13*3cm
Operating manual:
ID code and LED color corresponding relationship:
1: RED
2: GREEN
3: RED+GREEN
4: BLUE
