Attention

1.XT60 Battery Connector,If you need to change the connector , please contact customer service

  Features:

●The Display is easy to install, with clear screen display and powerful functions

●Brushless Hub Motor for 250W-3000W, Electric Bike, Electric Bike Kit

●The controller has a headlight function, making it more convenient and safe for you to ride at night

●Compatible with motors with or without Hall

●With motor forward and reverse learning function

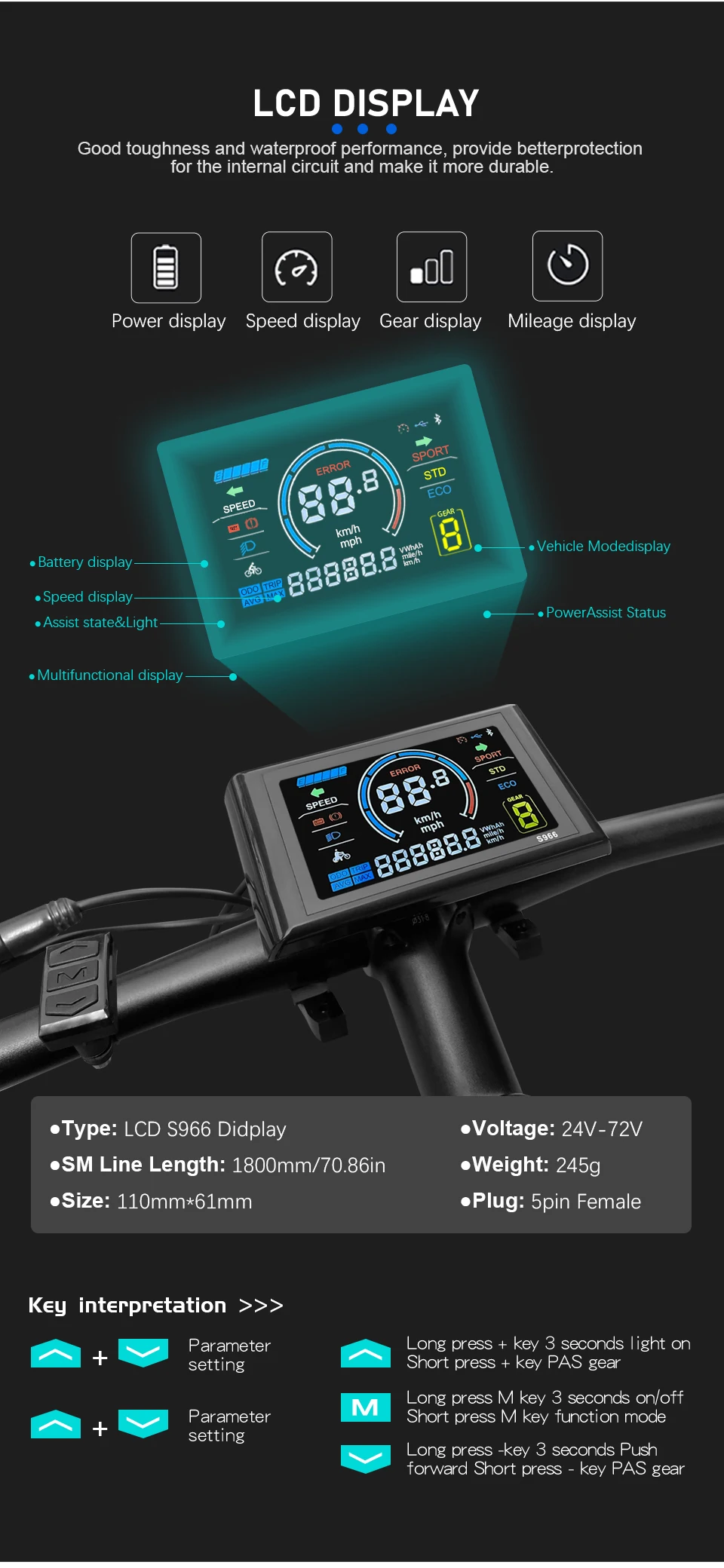

  LCD Display ：

Type : S966 Color LCD Display

Voltage : 24V 36V 48V 52V 72V

Plug : 5Pin Female SM Plug

Holder Diameter :φ22mm

Cable Length: 30cm ( SM )

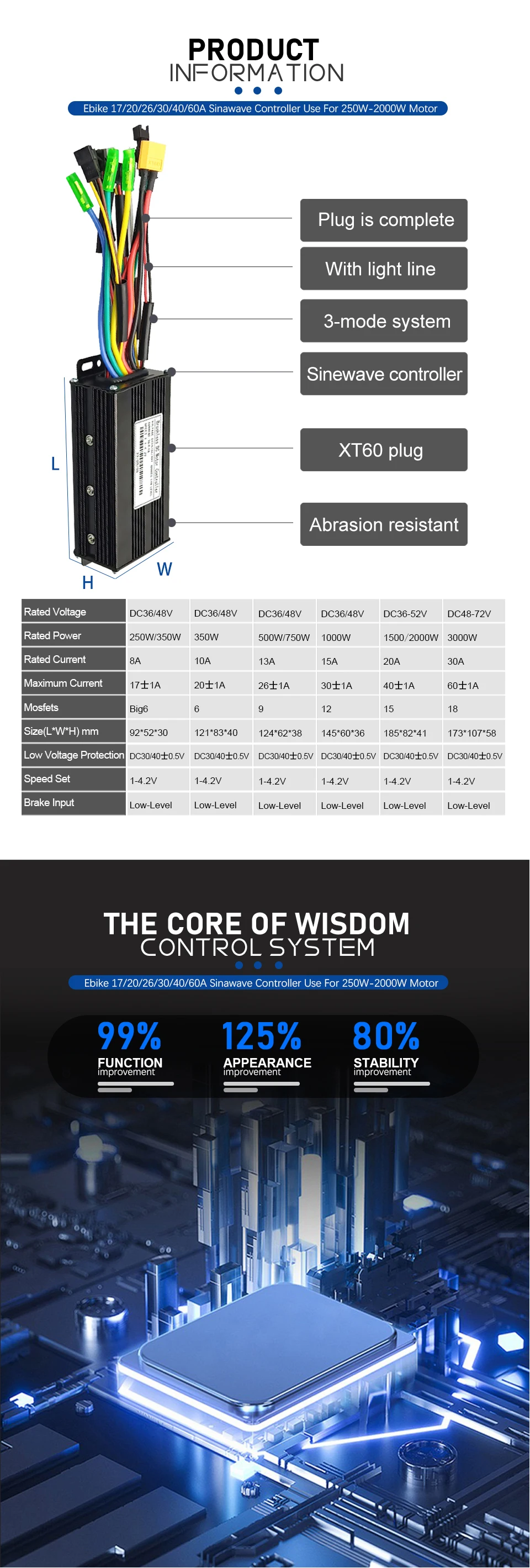

  17A Sine Wave Controller :

Size(L*W*H): About 92*30*52mm

Rated Power: 250/350W

Mosfet: Big 6 Mosfets

Rated Voltage: DC36/48V

  20A Sine Wave Controller :

Size(L*W*H): About 121*40*83mm

Rated Power: 350W

Mosfet: 6 Mosfets

Rated Voltage: DC36/48V

  26A Sine Wave Controller :

Size(L*W*H): About 124*38*62mm

Rated Power: 500/750W

Mosfet: 9 Mosfets

Rated Voltage: DC36/48V

  30A Sine Wave Controller :

Size(L*W*H): About 145*36*60mm

Rated Power: 1000W

Mosfet: 12 Mosfets

Rated Voltage: DC36/48V

  40A Sine Wave Controller :

Size(L*W*H): About 185*41*82mm

Rated Power: 1500/2000W

Mosfet: 15 Mosfets

Rated Voltage: DC36-52V

  60A Sine Wave Controller :

Size(L*W*H): About 173*58*107mm

Rated Power: 3000W

Mosfet: 18 Mosfets

Rated Voltage: DC48-72V
