SNOWPLOW APPLICATIONS:

Boss Snowplows:
• Boss RT3 Series Snowplows - Power Hitch Motor Solenoid
• Boss RT2 Series Snowplows - Hydraulic Pump Control
• Replaces Boss Part # HYD01633

Hiniker Snowplows:
• Hiniker V-Plow and Straight Blade Models
• Replaces Hiniker Part # 38350015

SnowEx Snowplows:
• SnowEx Power Hitch Attachment System
• Replaces SnowEx Part # B62178

GOLF CART APPLICATIONS:

Yamaha Gas Golf Carts:
• Yamaha G8 Gas Golf Cart
• Yamaha G9 Gas Golf Cart
• Yamaha G11 Gas Golf Cart
• Yamaha G14 Gas Golf Cart
• Yamaha G16 Gas Golf Cart
• Yamaha G20 Gas Golf Cart

RV & MOTORHOME APPLICATIONS:

Battery Isolator & Charging Relay:
• Winnebago Motorhomes
• Monaco Motorhomes
• Fleetwood Bounder RVs
• Replaces Winnebago Part # 008188-02-000

Slide-Out Motors & Leveling Jacks:
• RV Slide-Out Motor Control
• Hydraulic Leveling Jack Systems

AUTOMOTIVE APPLICATIONS:

Ford Powerstroke Diesel:
• Ford F-250 7.3L Powerstroke - Glow Plug Relay
• Ford F-350 7.3L Powerstroke - Glow Plug Relay

INDUSTRIAL & MARINE APPLICATIONS:

Hydraulic Equipment:
• Hydraulic Pump Motor Control
• Dump Trailer Lift Systems
• Service Vehicle Liftgates

Marine Equipment:
• Marine Boat Lifts
• Marine Winch Systems
• Anchor Windlass Control

FITS / Replacement Part Numbers:

OEM PART NUMBERS:
• Trombetta: 114-1211-020, 114-1211-010
• White Rodgers: 586-902, 586-105111, 586-105111-3, 586-105111S1, 586-902S1, 586-105111-5
• Prestolite: 15-550, SBJ4201
• Johnson Electric: 5122140, SO51221
• Boss: HYD01633
• Hiniker: 38350015
• SnowEx: B62178
• Winnebago: 008188-02-000

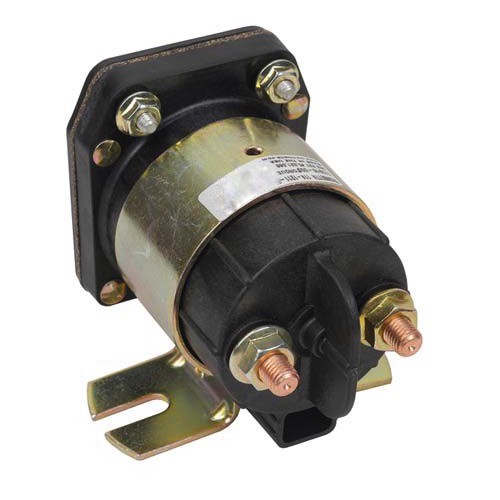

SPECIFICATIONS:
• Voltage: 12V DC
• Continuous Amps: 200A
• Surge/Inrush Amps: 600A
• Duty Cycle: 100% Continuous
• Circuit Type: SPST Normally Open (SPNO)
• Contact Material: Silver Alloy
• Case Material: Plastic (Sealed)
• Number of Terminals: 4
• High Current Studs: (2) 5/16-24 Threaded
• Coil Terminals: (2) 10-32 Threaded
• Mounting: Flat 180 (F180) L-Bracket
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Coil Resistance: 21 Ohm
• Coil Configuration: Isolated (Not internally grounded)
• Includes: Terminal Hardware

COMPATIBLE EQUIPMENT:
• Snowplows: Boss, Hiniker, SnowEx, Pierce
• Golf Carts: Yamaha G8, G9, G11, G14, G16, G20
• RVs: Winnebago, Monaco, Fleetwood
• Automotive: Ford F-250, F-350 7.3L Powerstroke
• Industrial: Hydraulic Pumps, Dump Trailers, Liftgates
• Marine: Boat Lifts, Winches, Windlass

Product Notice:
