Product Feature:

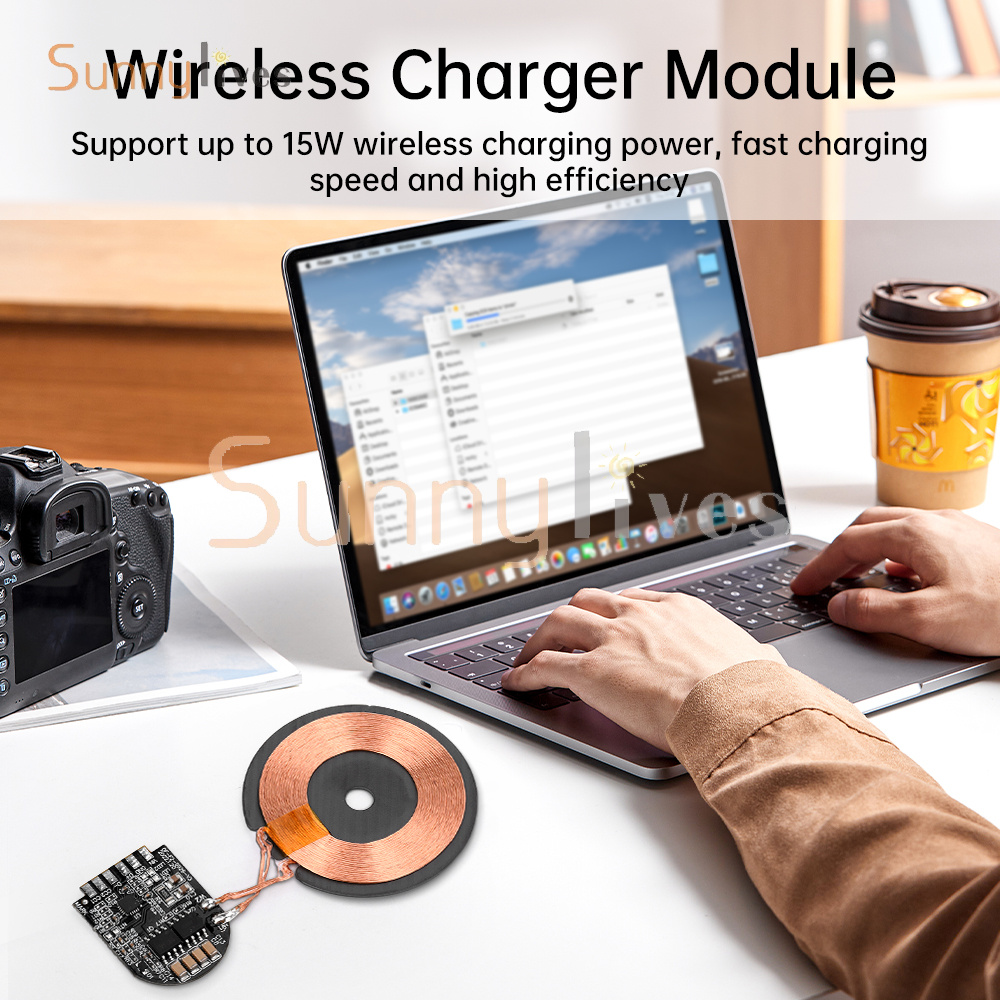

1. Supports up to 15W wireless charging power, fast charging speed, and high efficiency

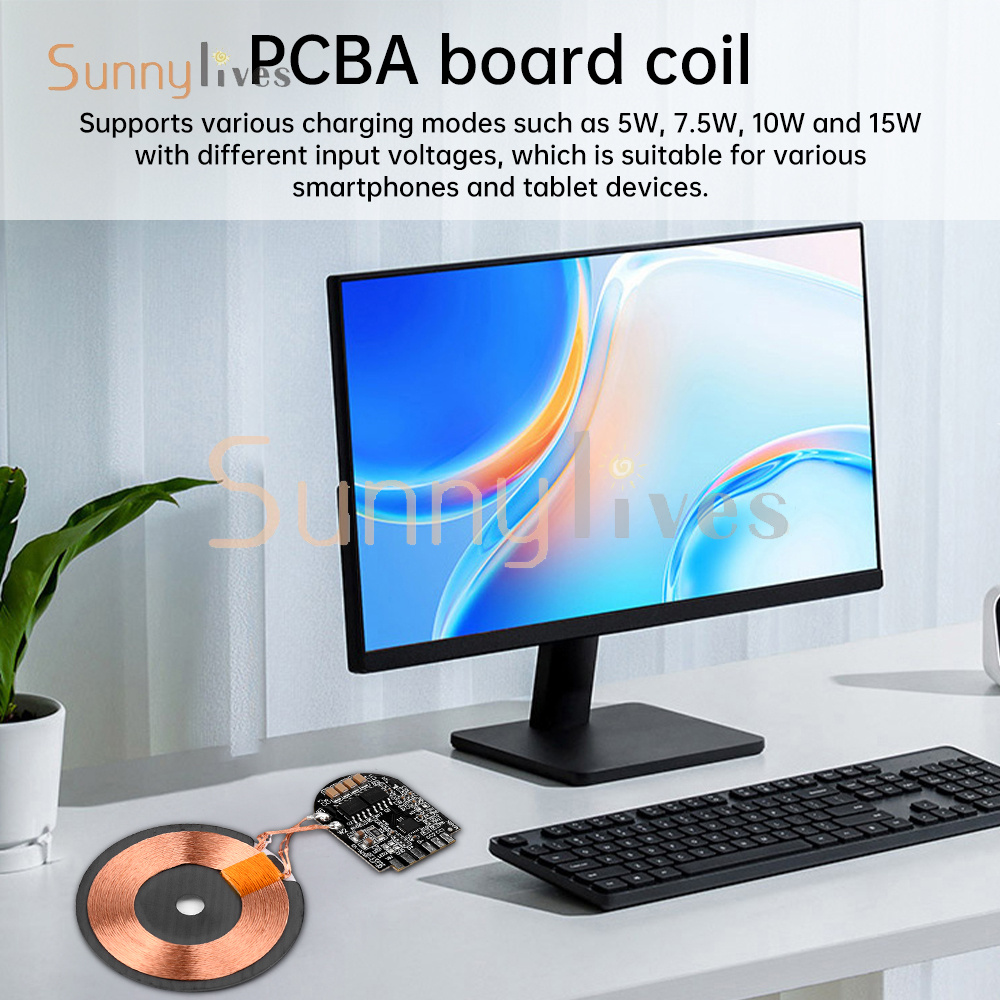

2. With different input voltages, it supports multiple charging modes such as 5W, 7.5W, 10W, and 15W, and is compatible with various smartphones and tablets

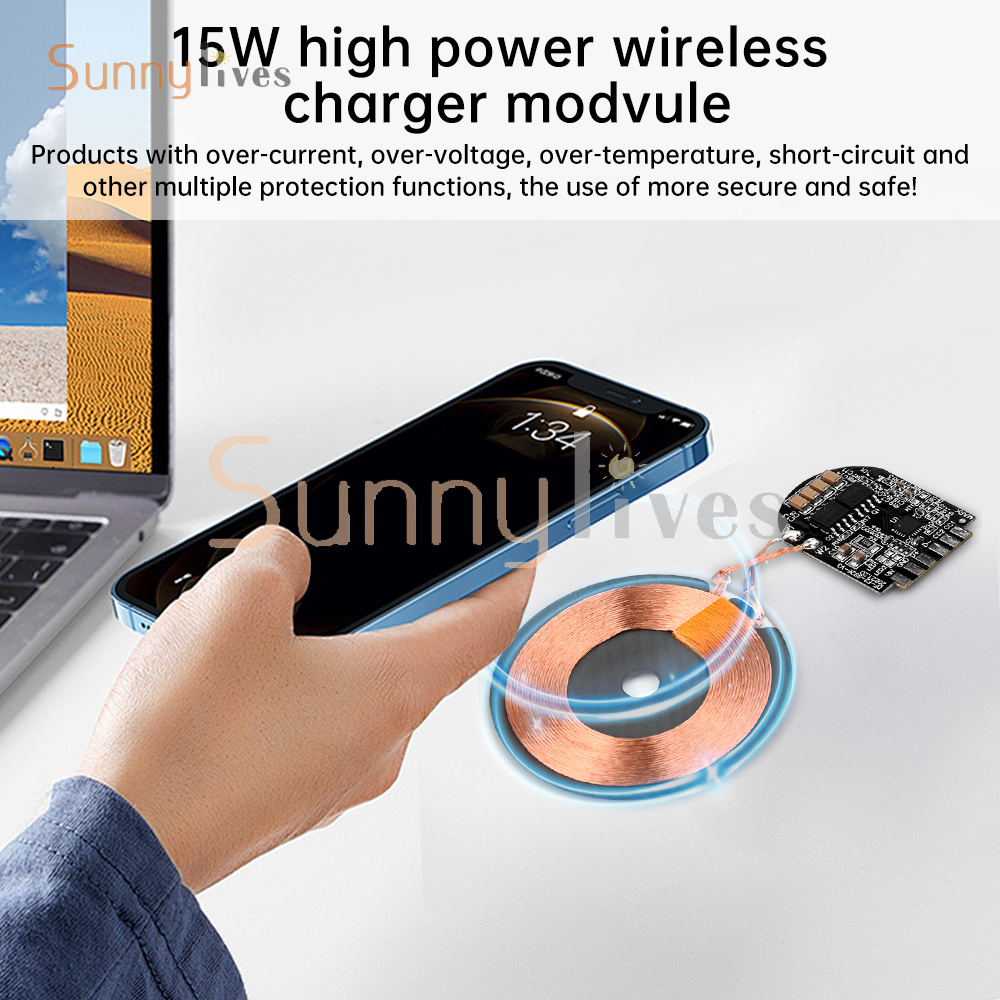

3. The product has multiple protection functions such as overcurrent, overvoltage, overheating, and short circuit, making it safer and more reassuring to use

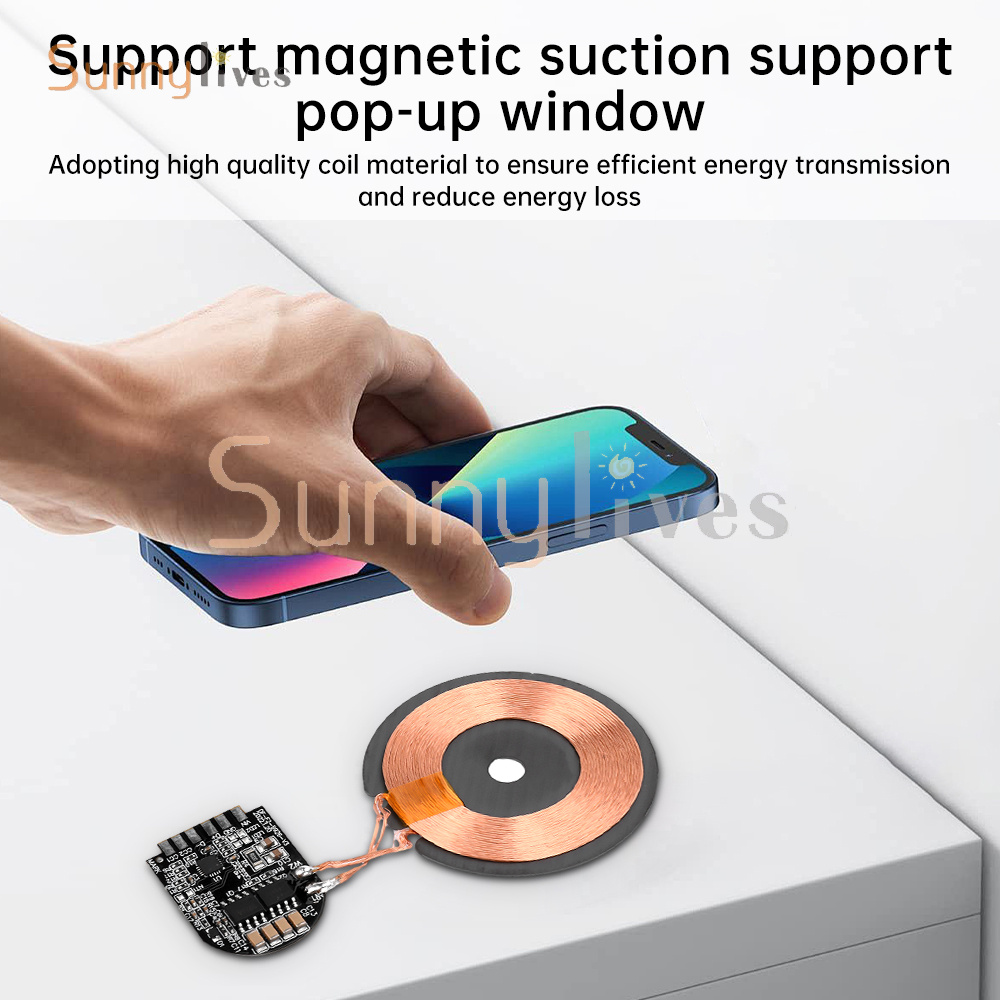

4. Using high-quality coil materials to ensure efficient energy transmission and reduce energy loss

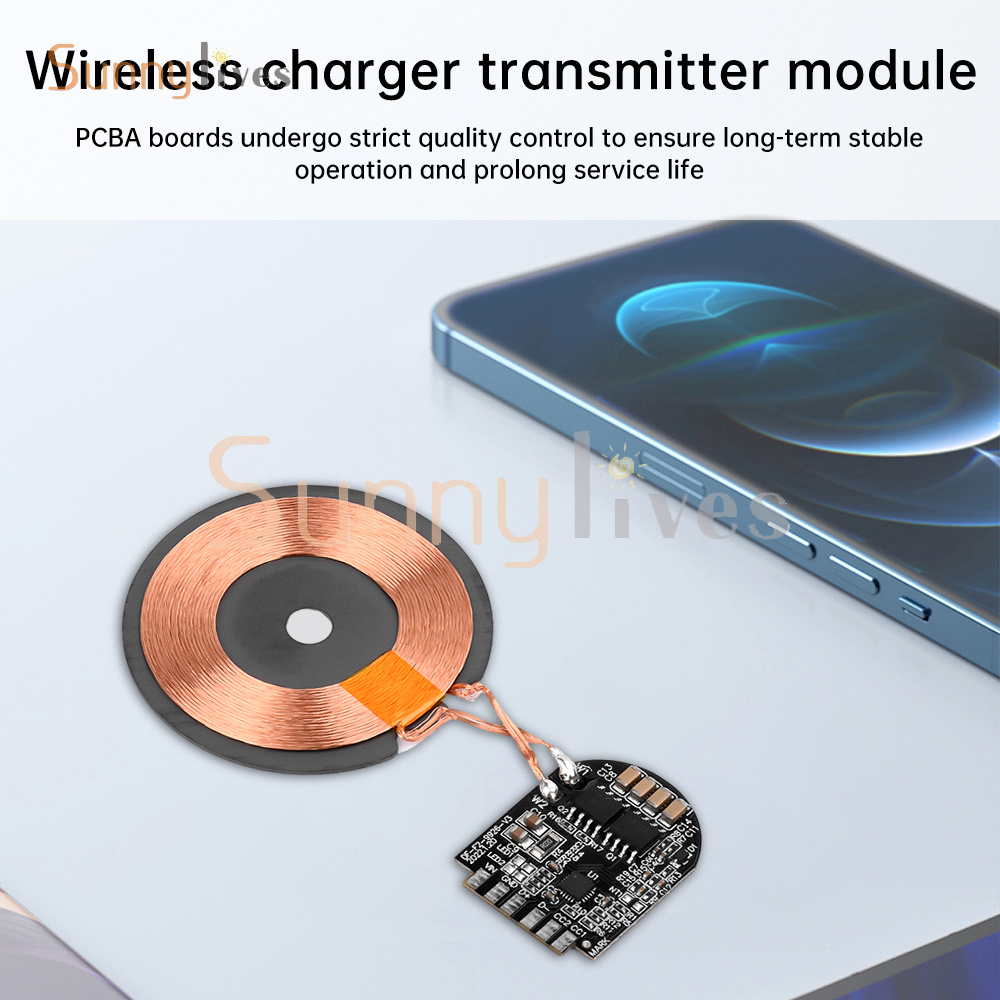

PCBA boards undergo strict quality control to ensure long-term stable operation and extend their service life
1. Supports up to 15W wireless charging power, fast charging speed, and high efficiency
2. With different input voltages, it supports multiple charging modes such as 5W, 7.5W, 10W, and 15W, and is compatible with various smartphones and tablets
3. The product has multiple protection functions such as overcurrent, overvoltage, overheating, and short circuit, making it safer and more reassuring to use
4. Using high-quality coil materials to ensure efficient energy transmission and reduce energy loss
PCBA boards undergo strict quality control to ensure long-term stable operation and extend their service life
Product parameters:
Compliant with WPC V1.2.3 wireless charging specifications
Support Samsung fast charging protocol, compatible with iPx/8/8p fast charging protocol
Built in MCU, 12 bit high-precision ADC, communication decoding

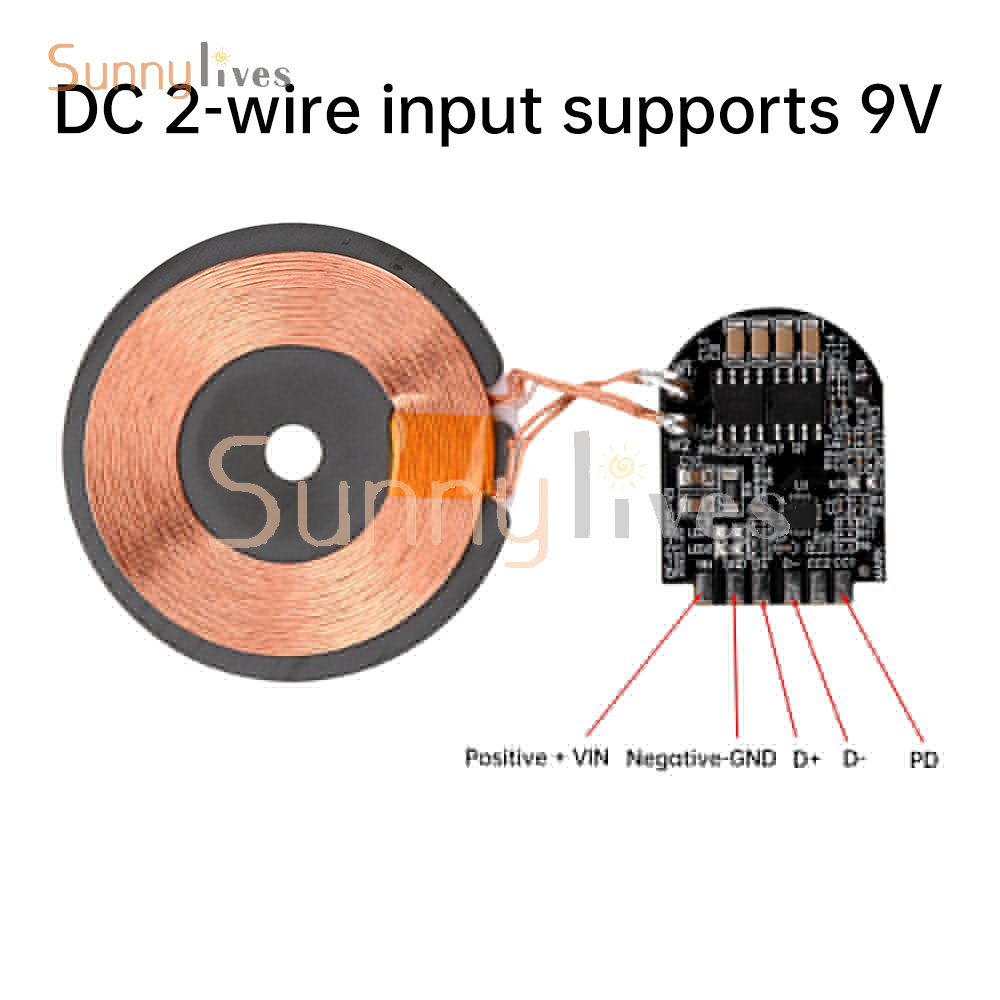

Input voltage/current: 5V-2A, 9V-1.67A
Output current: 5V-1A, 9V-1.1A, 9V-1.66A
Supports a maximum power output of 15W
Efficiency reaches 75% -85%
Sensing distance ≤ 8mm
Working frequency: 100-200Khz
Support dynamic energy balance

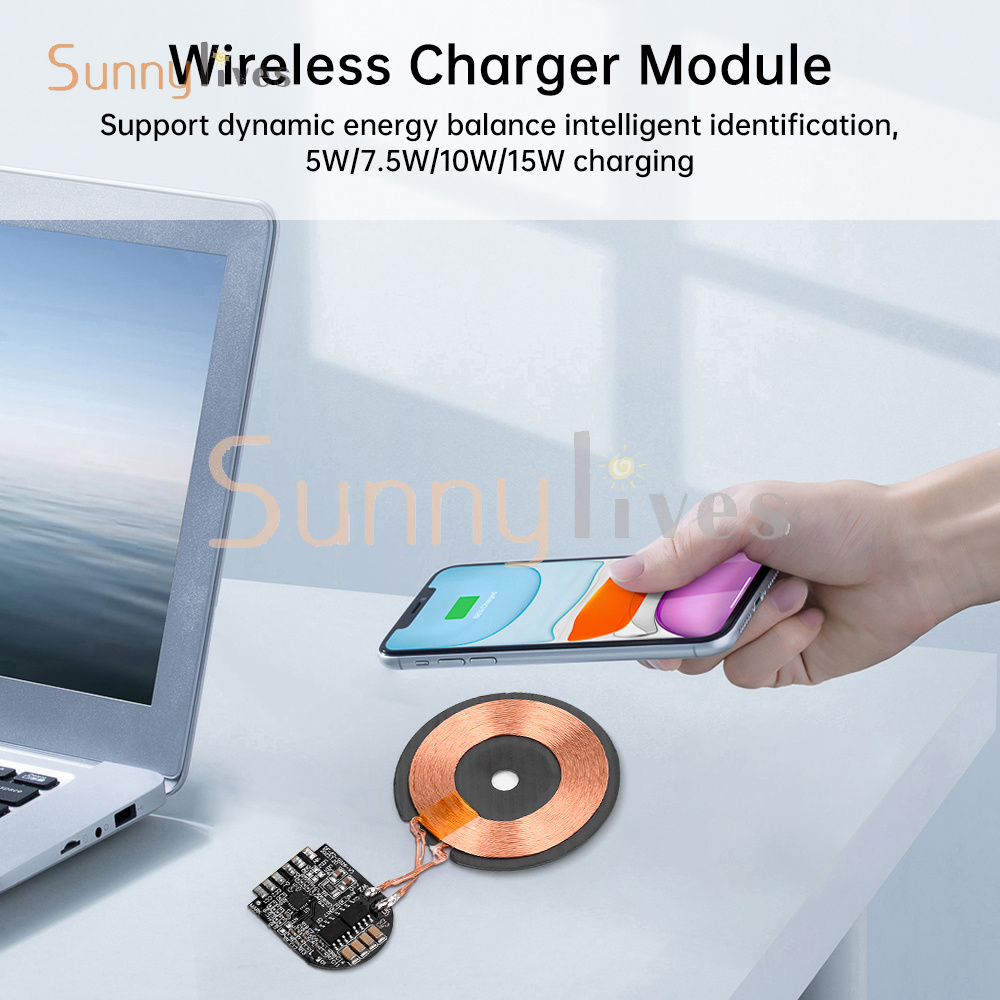

Intelligent recognition, 5W/7.5W/10W/15W charging
Support dual foreign object inspection (FOD)

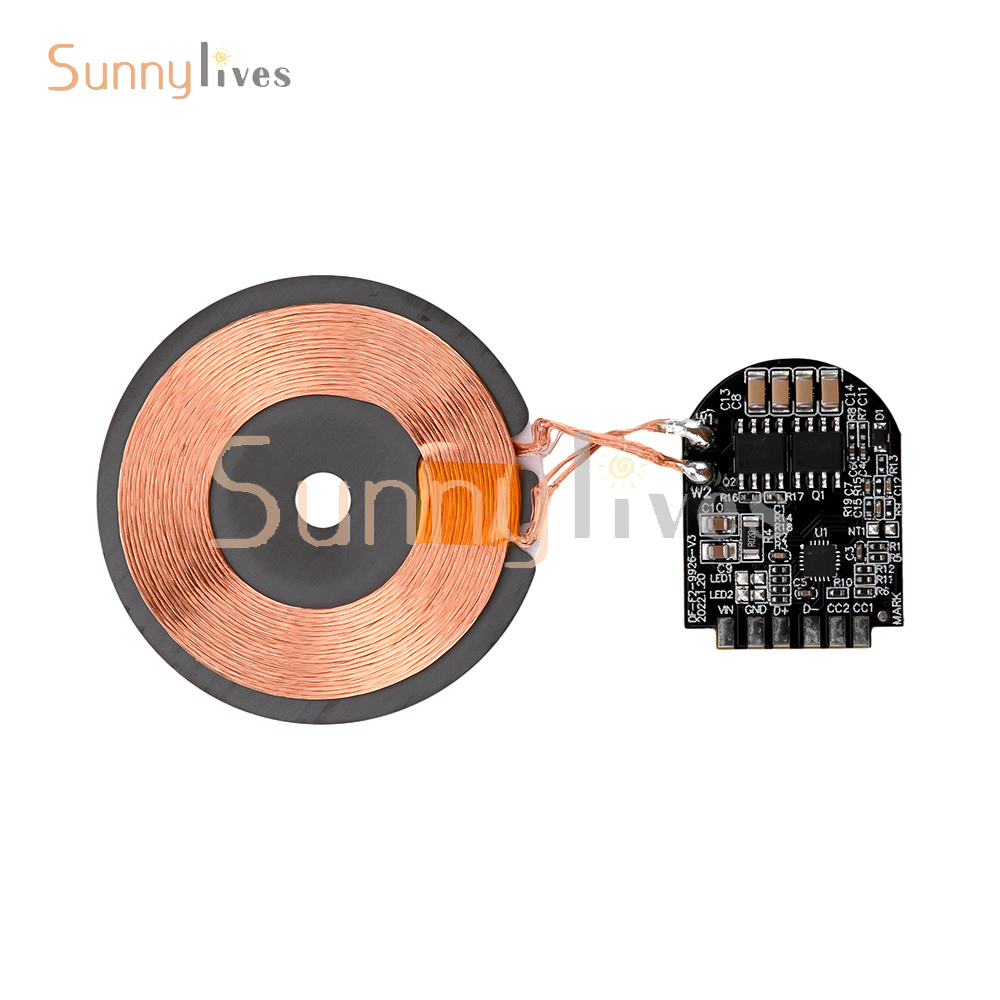

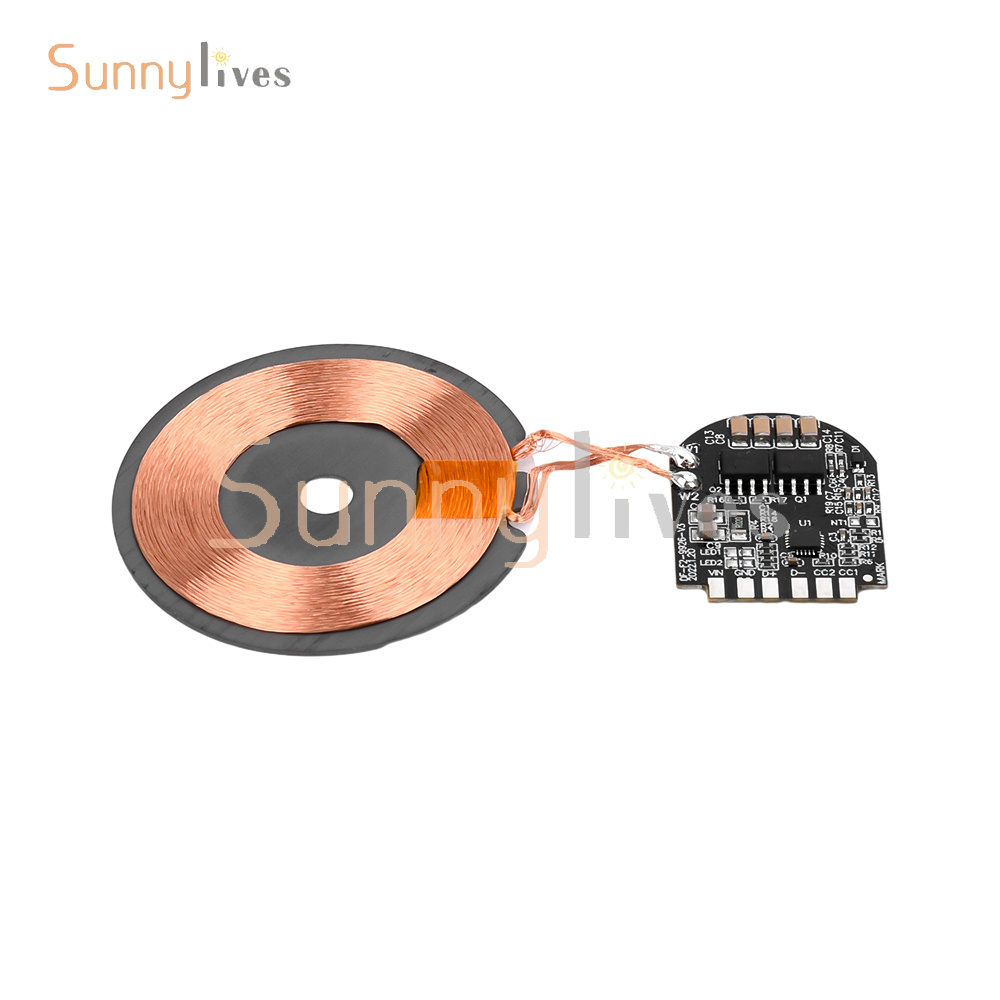

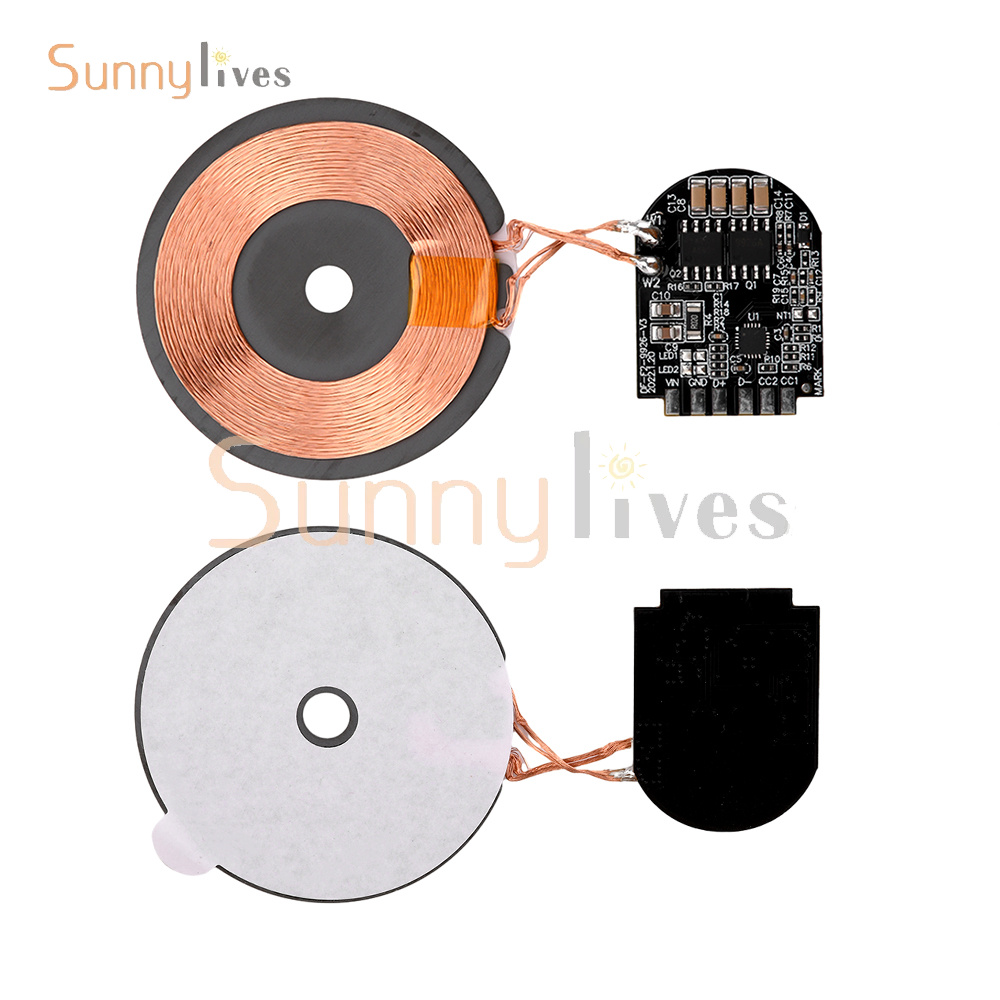

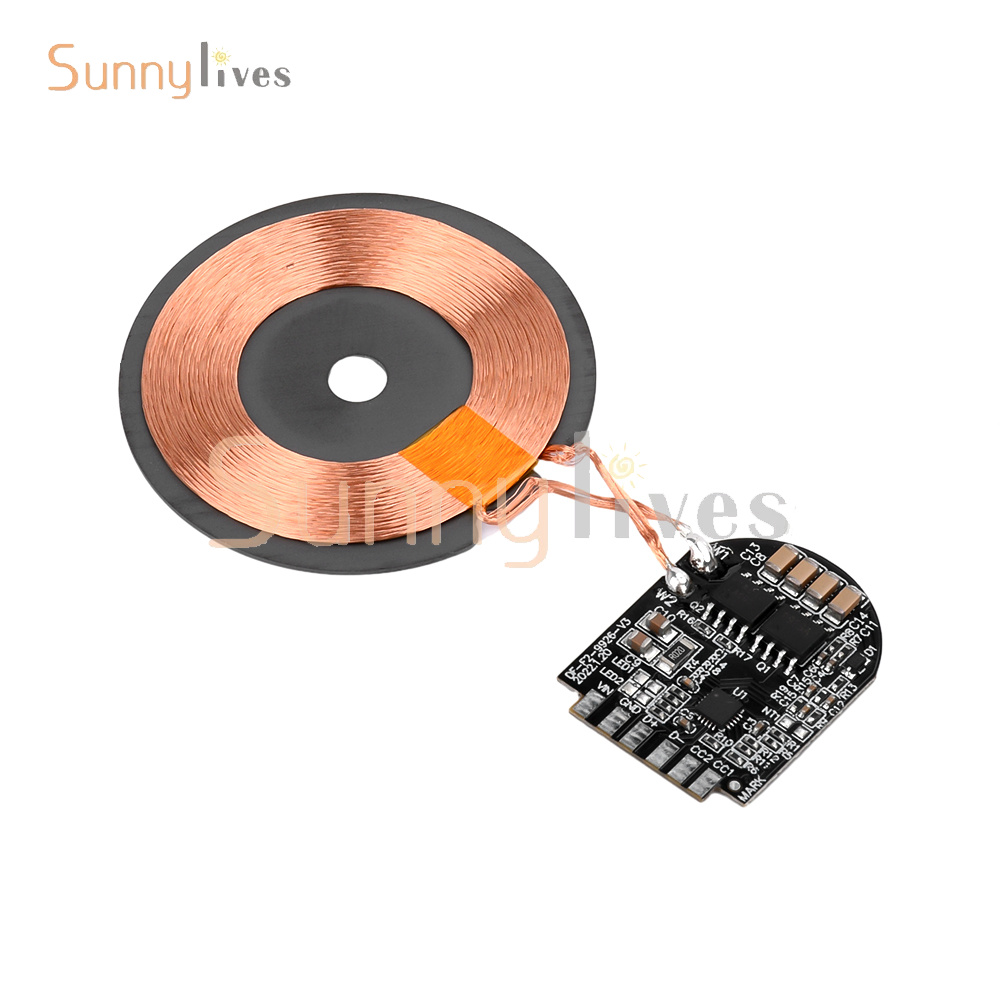

PCBA board dimensions: length 24mm * width 21mm * thickness 2.0mm, coil diameter 43mm
reminder:
The module itself does not come with magnets. If you want to DIY magnetic attraction, you need to equip your own magnets
Compliant with WPC V1.2.3 wireless charging specifications
Support Samsung fast charging protocol, compatible with iPx/8/8p fast charging protocol
Built in MCU, 12 bit high-precision ADC, communication decoding
Input voltage/current: 5V-2A, 9V-1.67A
Output current: 5V-1A, 9V-1.1A, 9V-1.66A
Supports a maximum power output of 15W
Efficiency reaches 75% -85%
Sensing distance ≤ 8mm
Working frequency: 100-200Khz
Support dynamic energy balance
Intelligent recognition, 5W/7.5W/10W/15W charging
Support dual foreign object inspection (FOD)
PCBA board dimensions: length 24mm * width 21mm * thickness 2.0mm, coil diameter 43mm
reminder:
The module itself does not come with magnets. If you want to DIY magnetic attraction, you need to equip your own magnets
Shipping List:

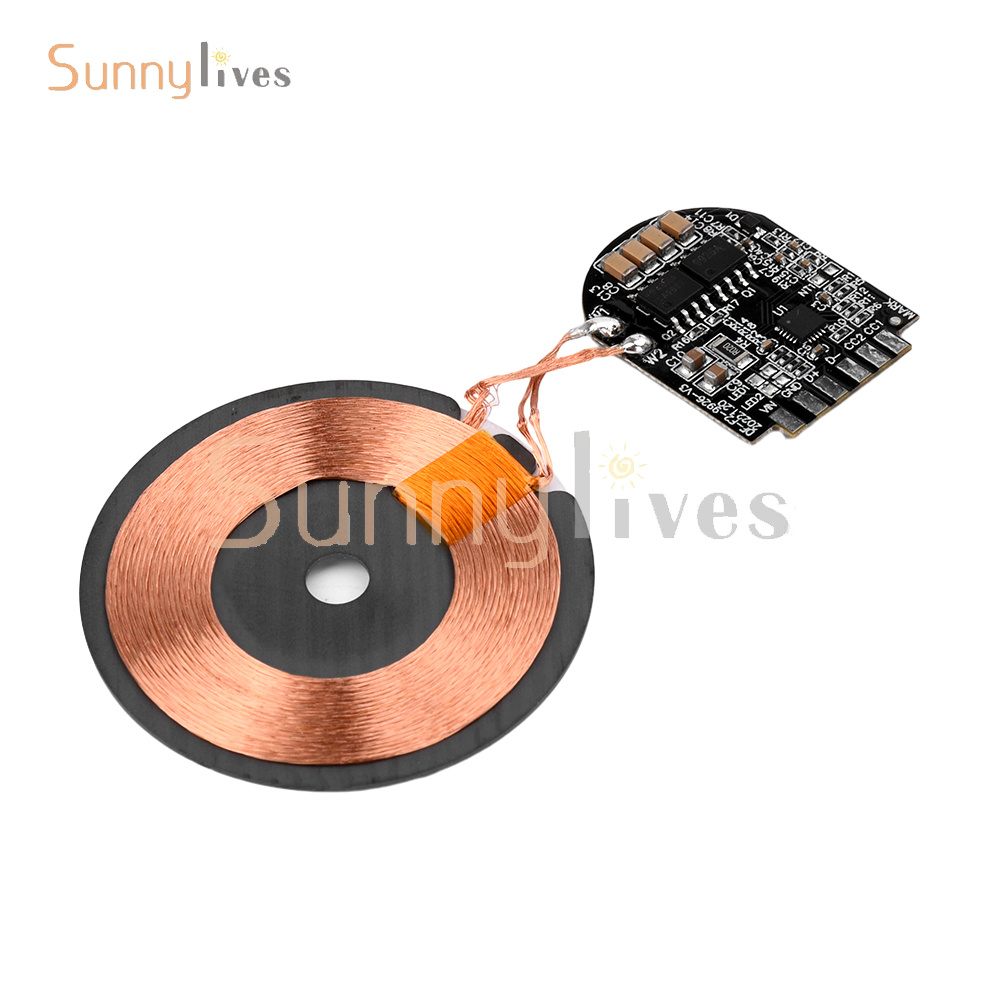

Wireless charging transmission module X1
Wireless charging transmission module X1
