HOBBYWING QUICRUN WP-MINI24 25A ESC Esterno 1621 3500KV Motor Brushless Sensorless Combo Per For 1/24 RC Model Car Crawler
ESC Features:

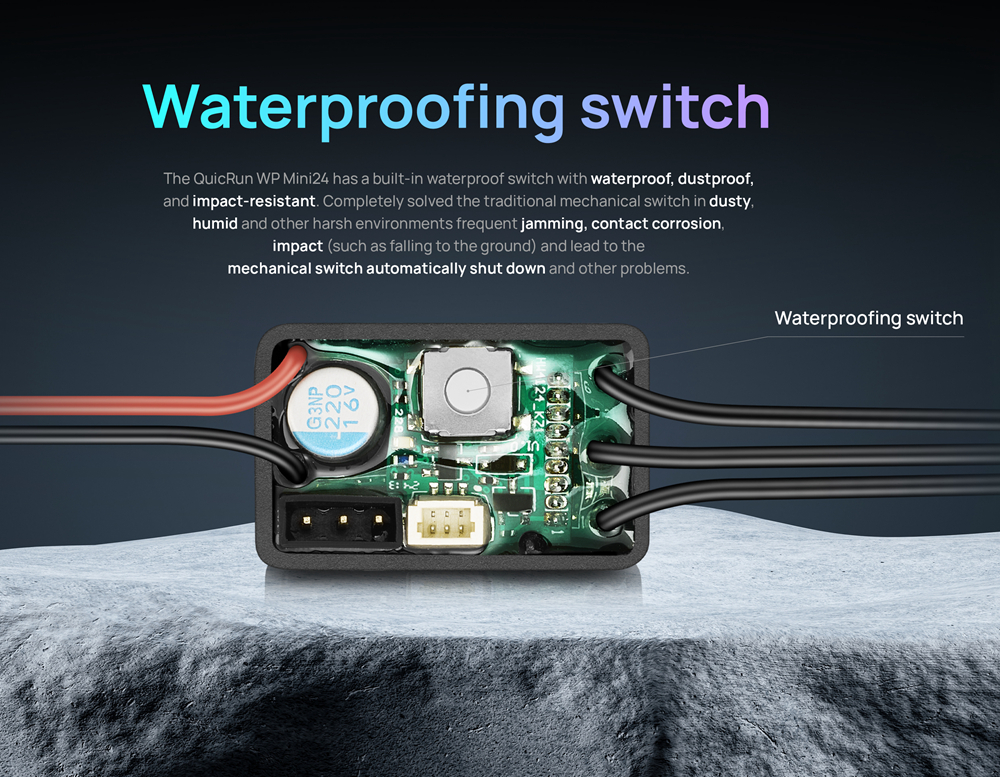

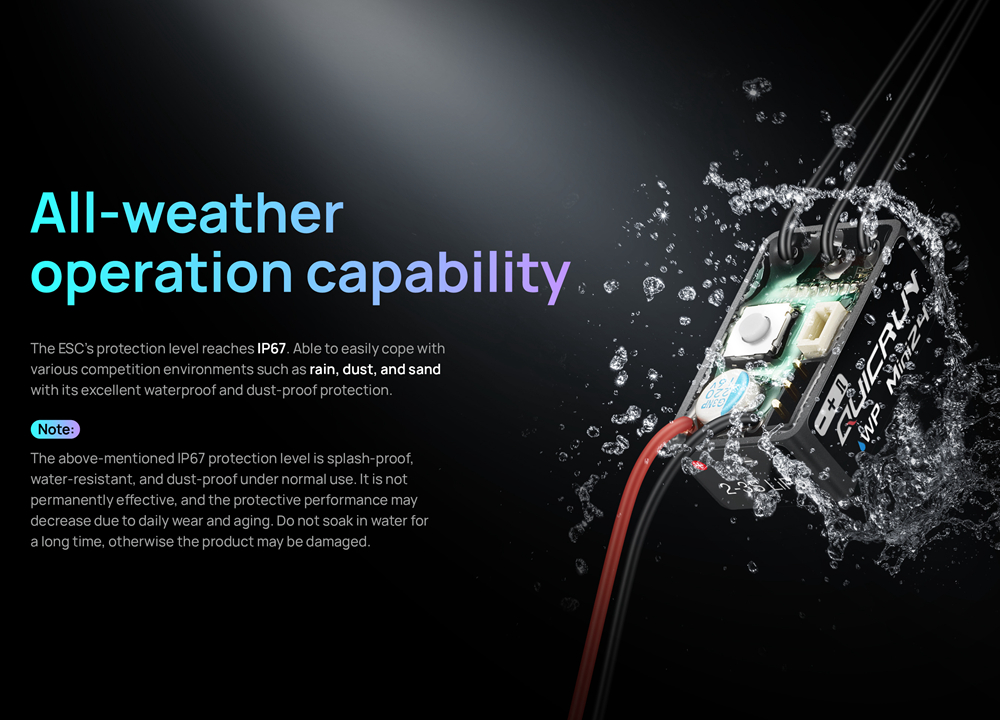

1. ESC Fully waterproof design for all conditions.

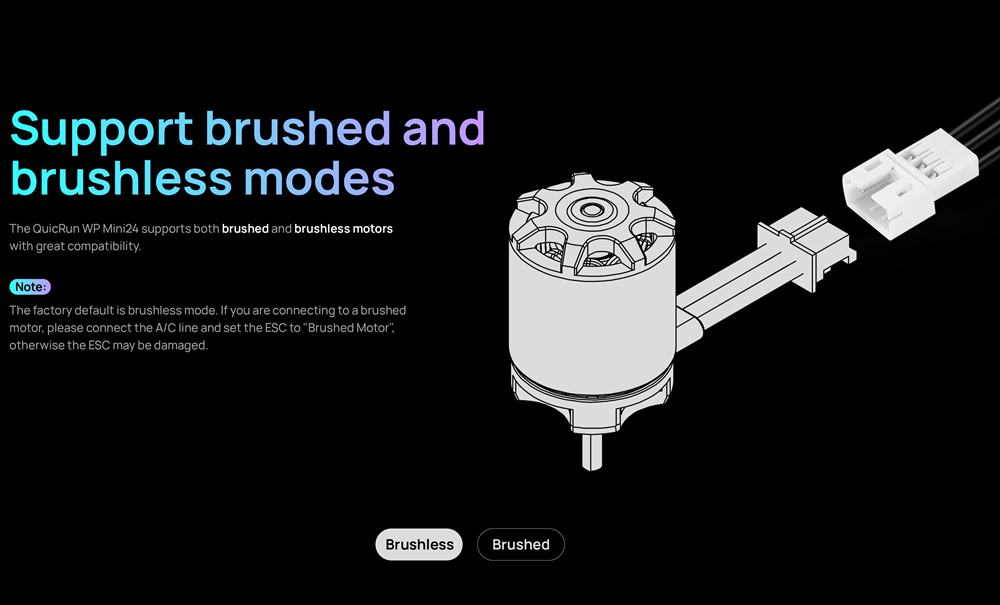

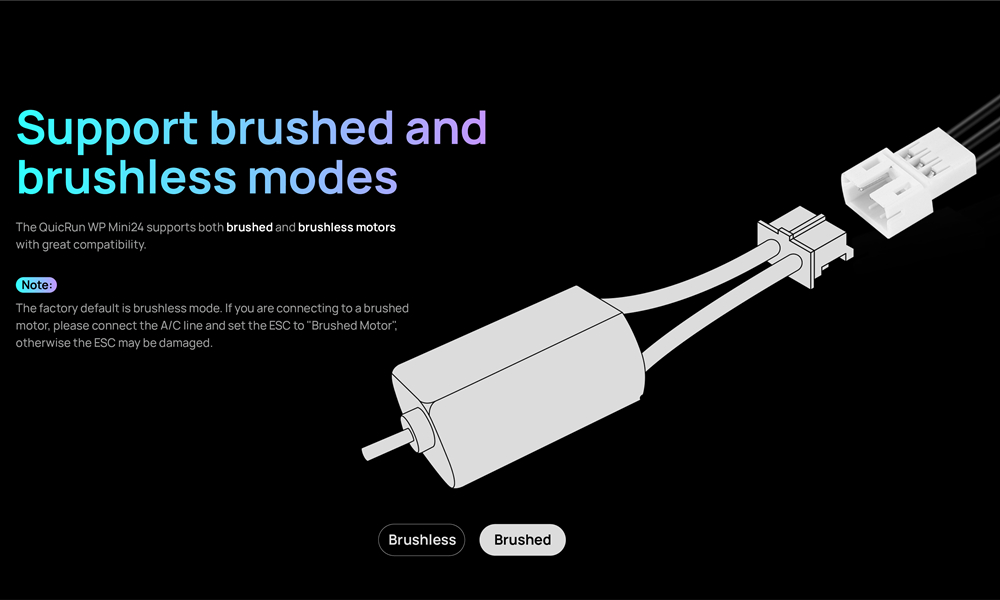

2. supports sensorless brushless motors and brushed motors,Compatible with most brushed or brushless motors on the market.

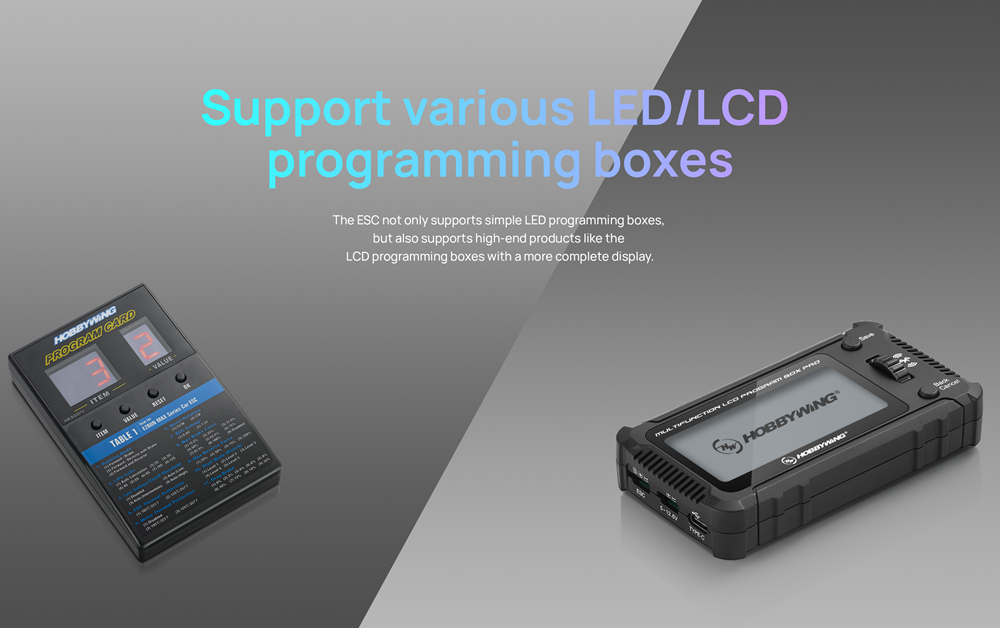

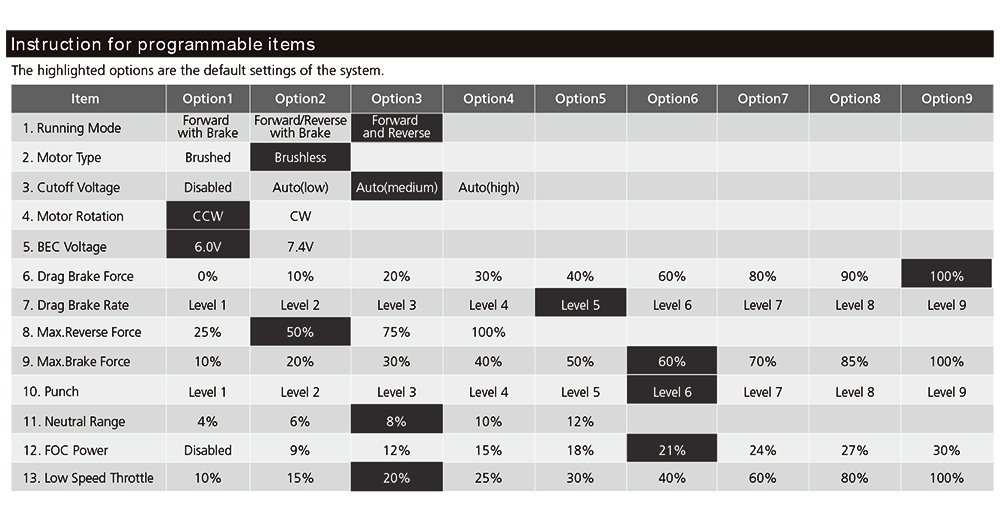

3. Separate programming port to easily connect the LED program card or the LCD Pro program box to the ESC.
4. Super internal switch-mode BEC with switchable votage of 6V/7.4V for usage with high torque and high voltage servos.
5.Has the function of using transmitter (AUX channel to adjust the drag brake force in real time.
6. Multiple protections: motr lockup protection, low-voltage cutoff protection,thermal protection, overlad protection, and fail safe (throtie signal loss protection).

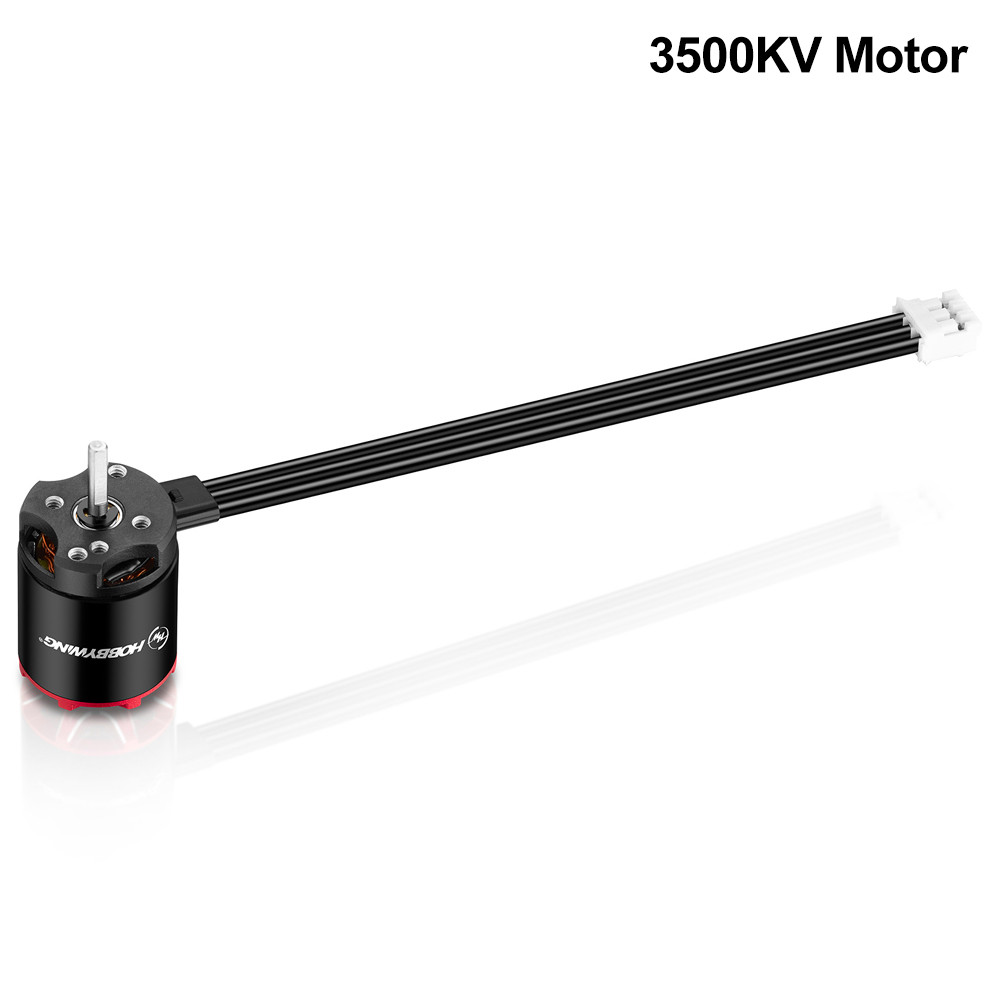

Motor Features:

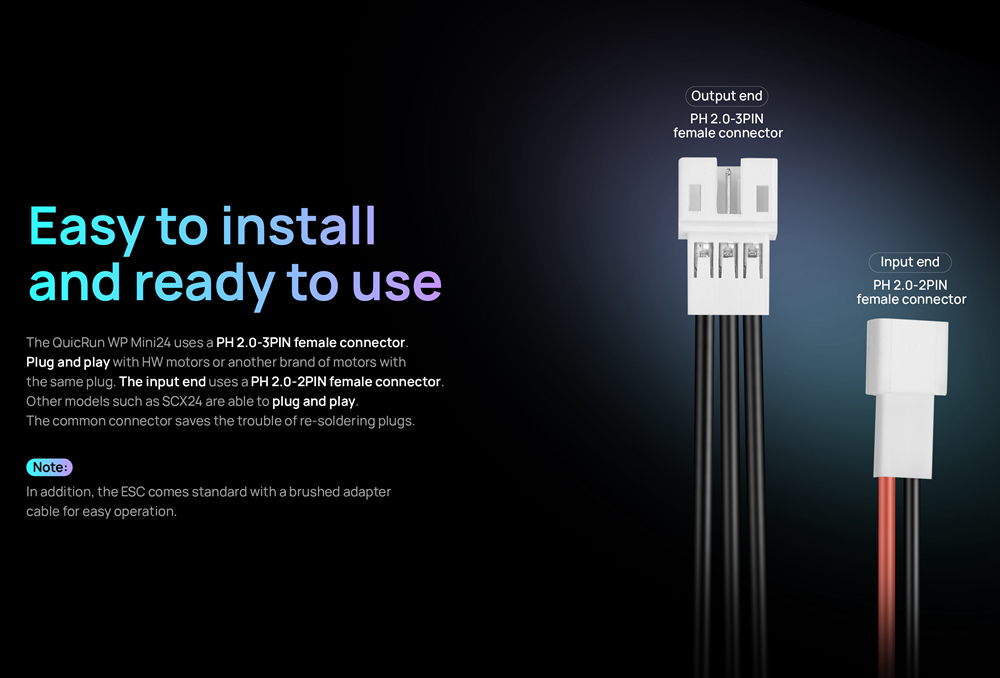

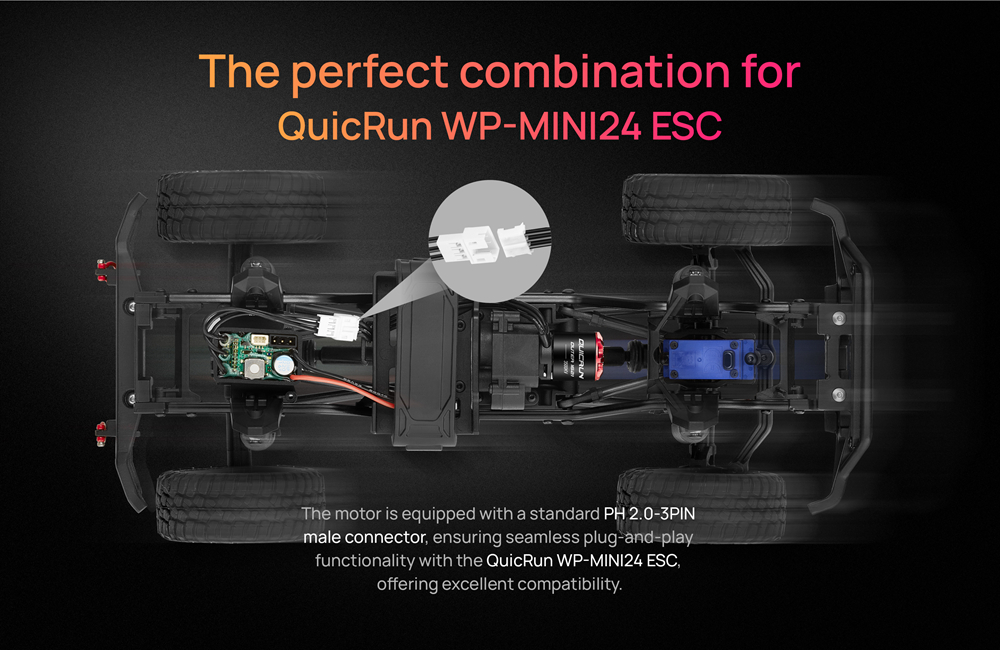

1. The motor is equipped with a standard PH 2.0-3PINmale connector, ensuring seamless plug-and-playfunctionality with the QuicRun WP-MINI24 ESC offering excellent compatibility.

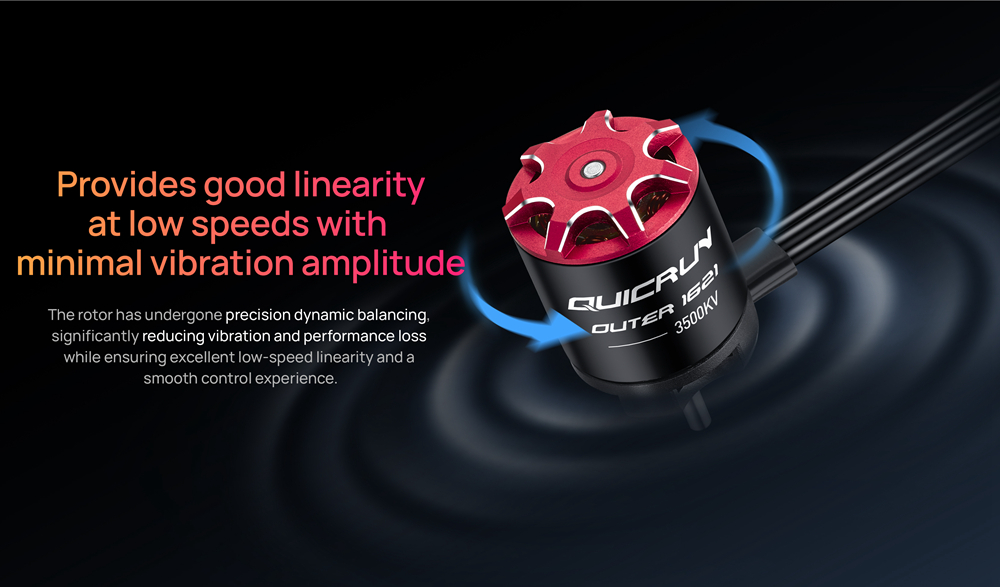

2. Provides good linearityat low speeds withminimal vibration amplitude,The rotor has undergone precision dynamic balancing significantly reducing vibration and performance loss.

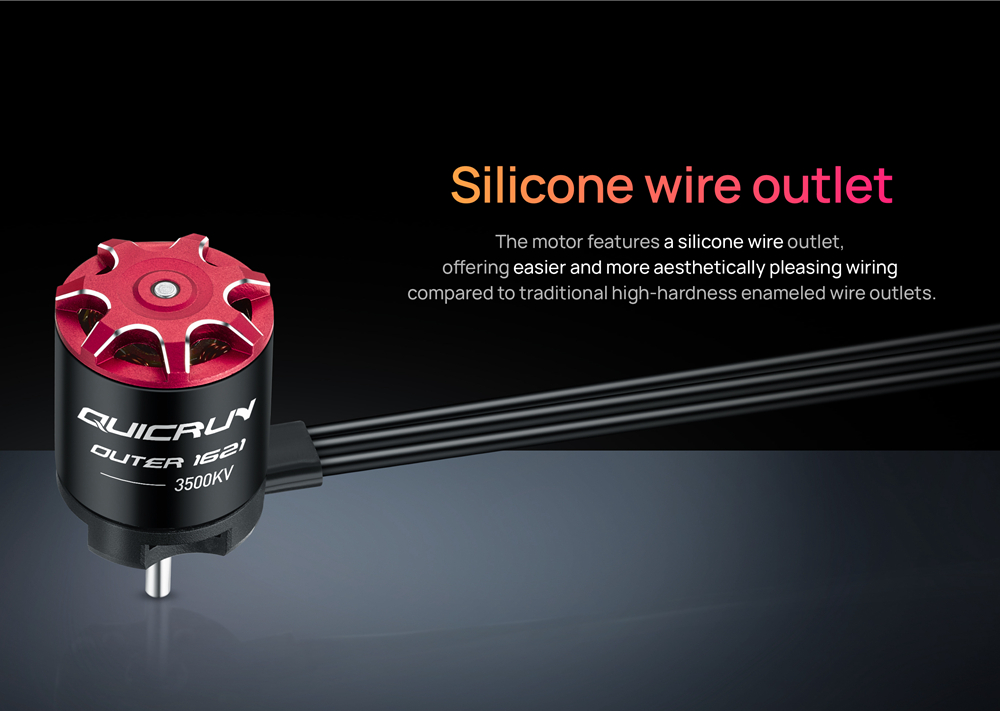

3. Silicone wire outlet offering easier and more aesthetically pleasing wiring.
4. The motor includes 3 sets of M2 screw holes hole pitches 9mm/10mm/12.5mm.

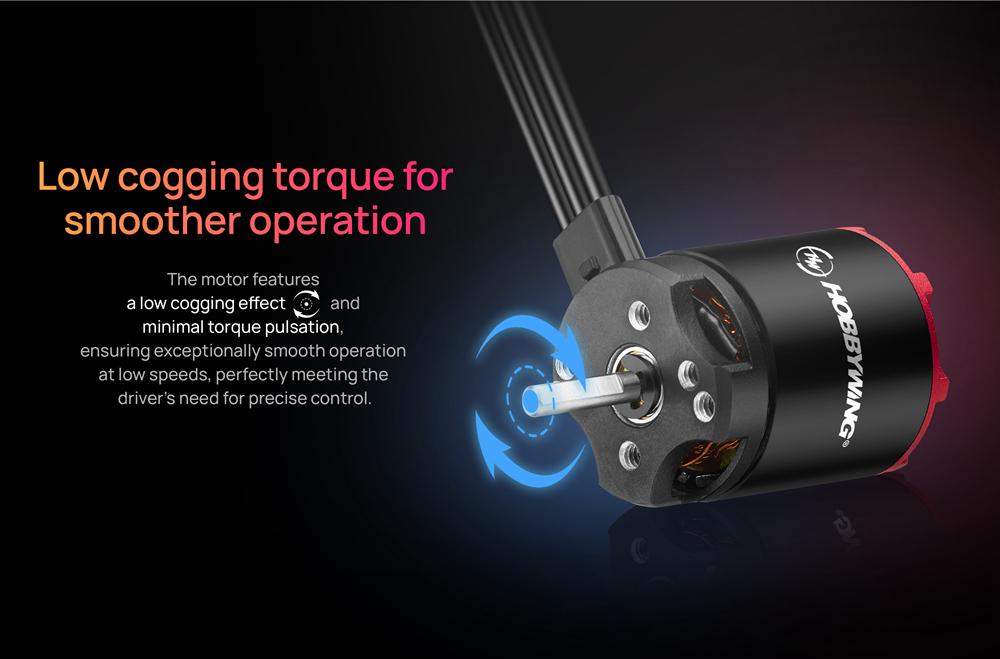

5. Low cogging torque forsmoother operation.

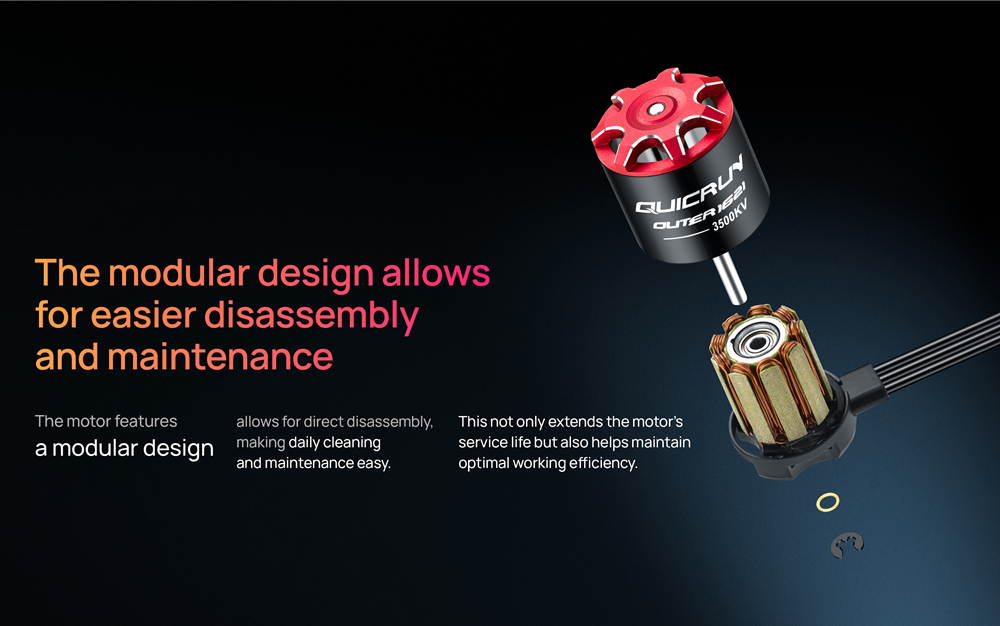

6. The modular design allowsfor easier disassemblyand maintenance.

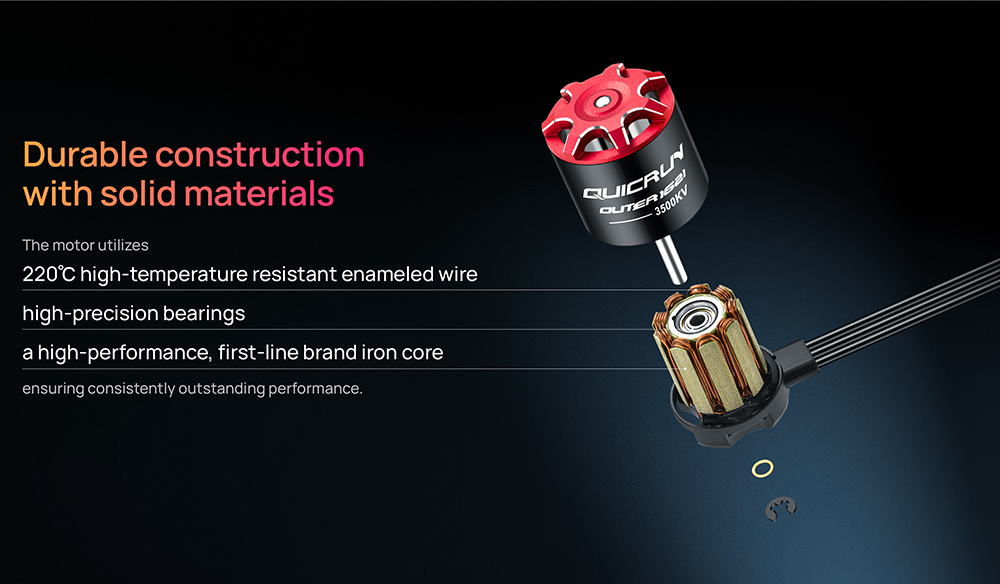

7. Durable constructionwith solid materials 220℃ high-temperature resistant enameled wire,high-precision bearings.

Description:
HOBBYWING QUICRUN WP-MINI24 25A ESC perfect combination for QuicRun Outer 1621SL 3500KV motor,The motor is equipped with a standard PH 2.0-3PINmale connector,ensuring seamless plug-and-playfunctionality with the QuicRun WP-MINI24 ESC offering excellent compatibility.

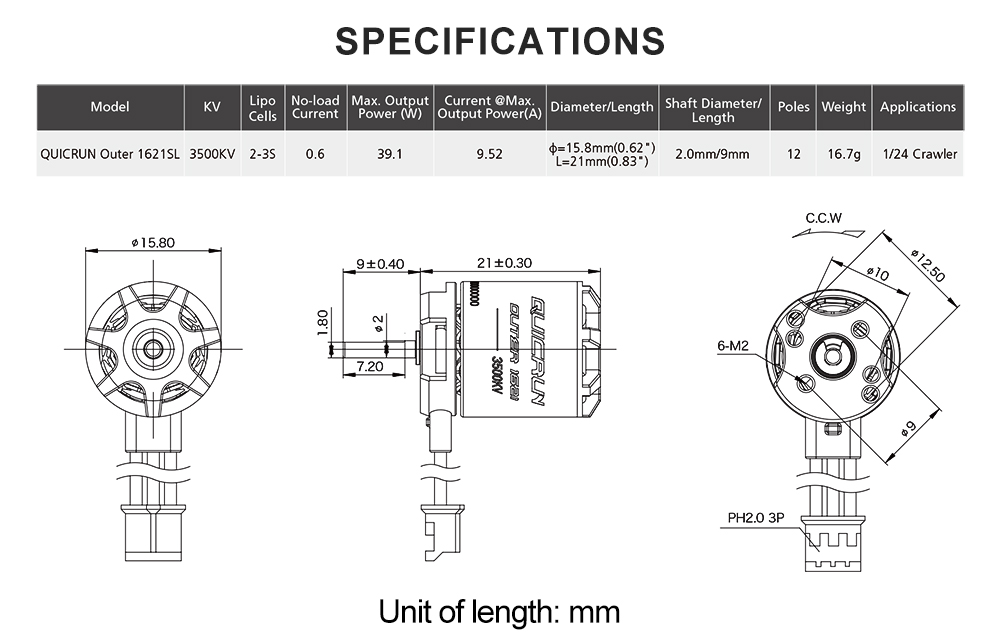

Specifications:

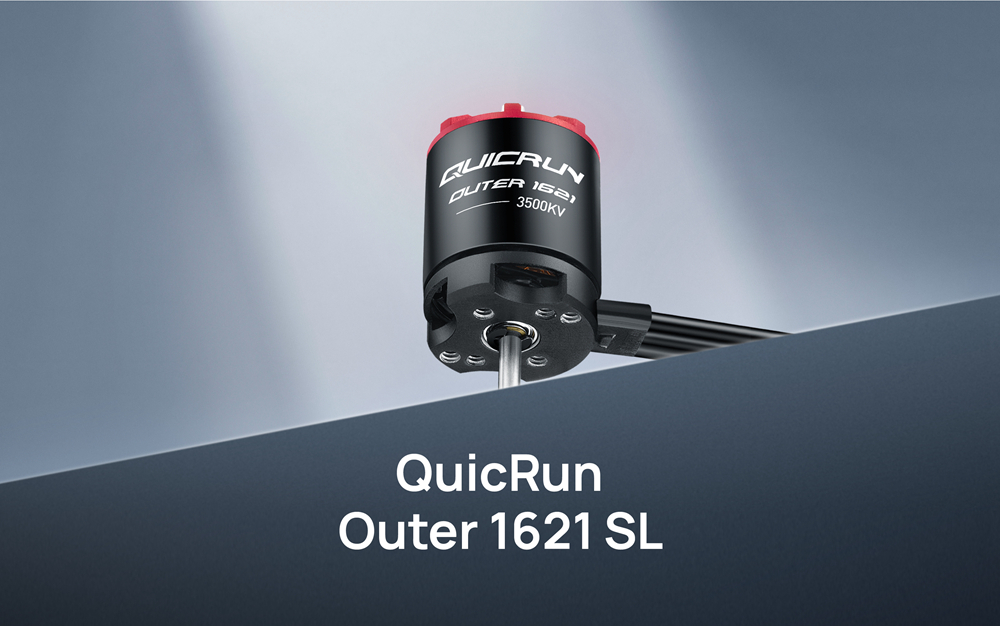

Model: QUICRUN Outer-1621SL
KV: 3500KV
Lipo Cells: 2-3S
No-load current: 0.6
Max output power: 39.1W
Current@max.output power: 9.25A
Diameter:15.8mm
Length: 21mm
Shaft diameter: 2mm
Shaft length: 9mm
Poles: 12
Weight: 16.7g

Specifications:

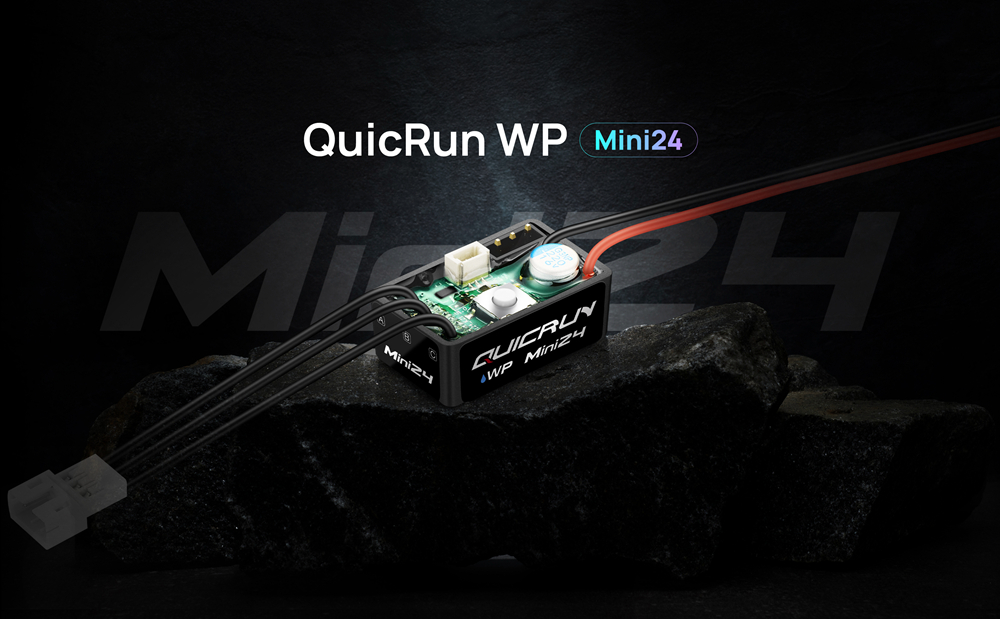

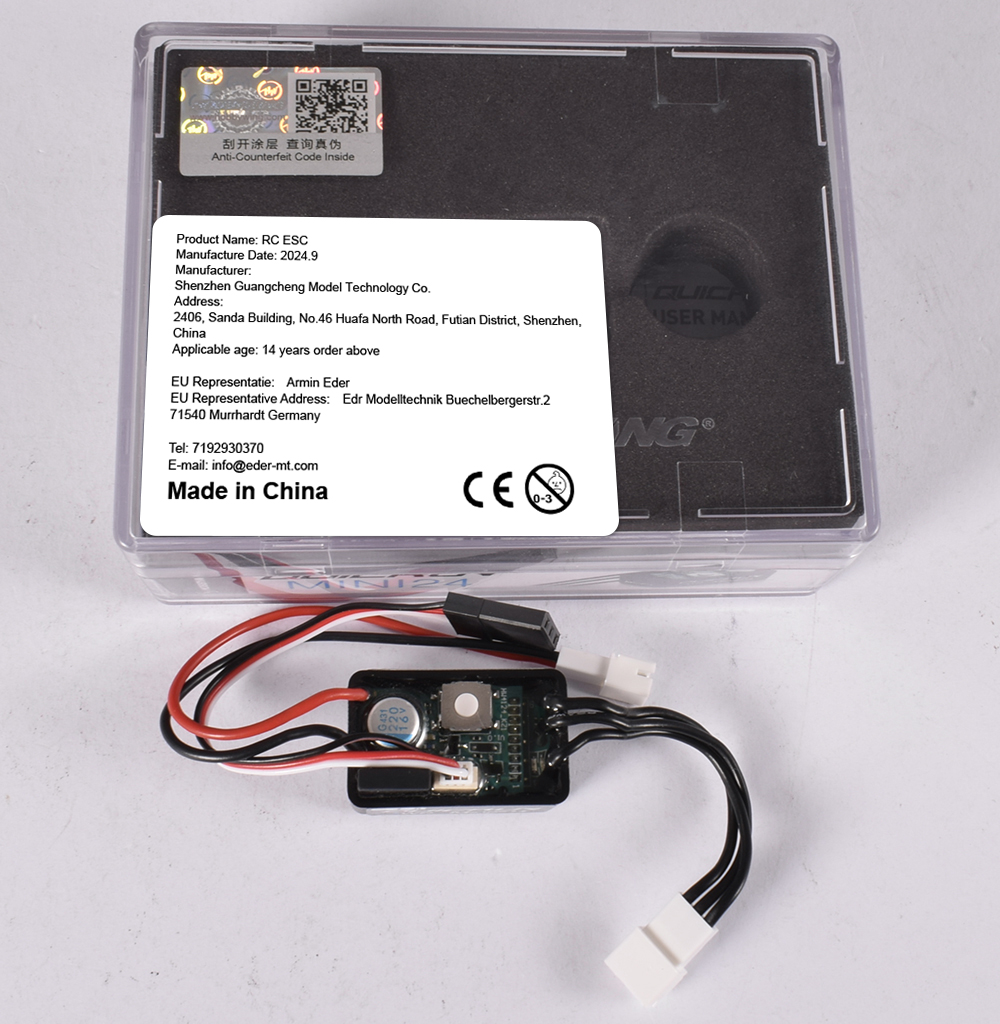

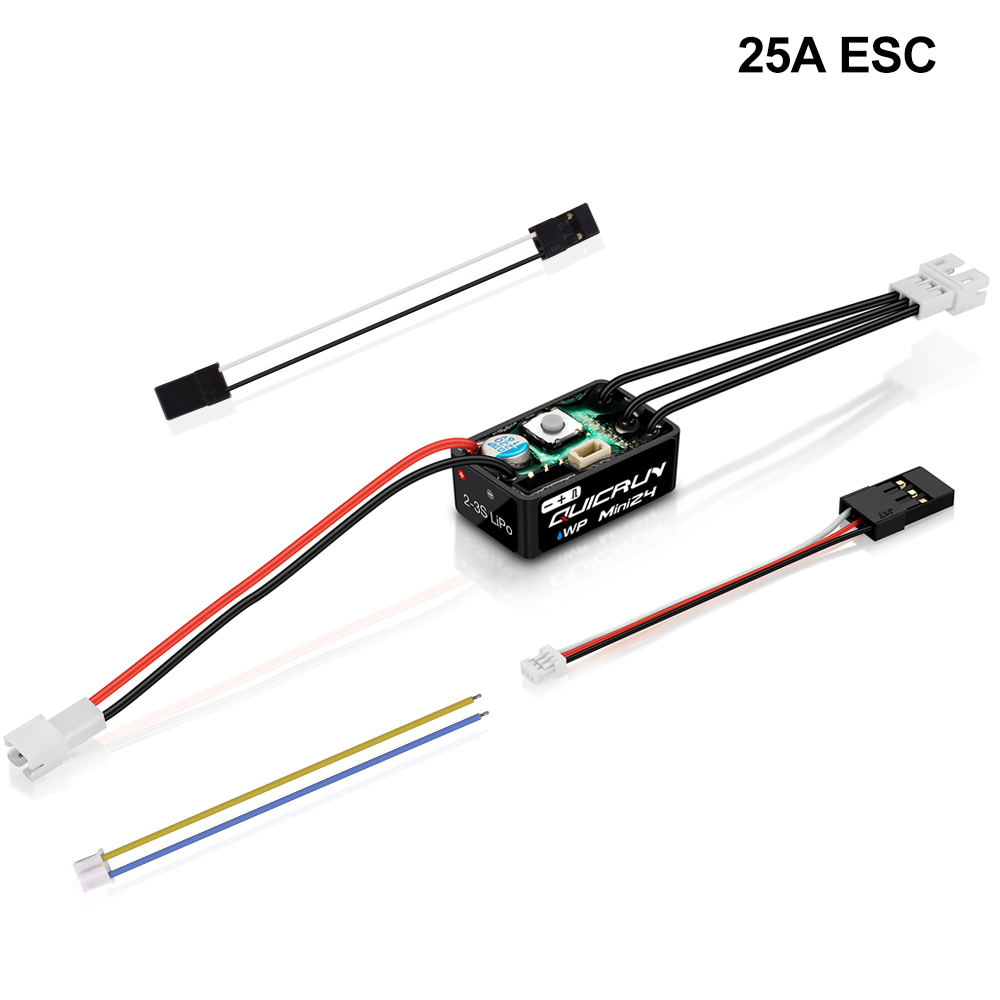

Model: QUICRUN WP Mini24
Lipo Cells: 2-3S
Cont./Peak current: 25A/60A
Protection level:  lP67
BEC output : 6V/7.4V adjustable, Continuous Current of 2A

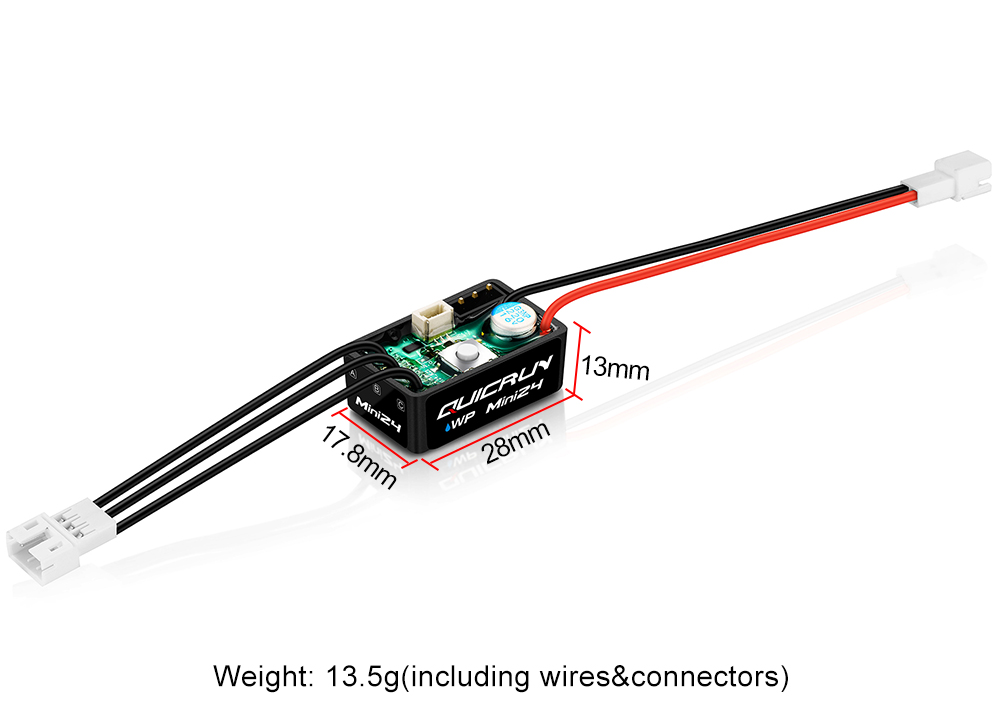

Size: 28,1mm*17.9mm*12mm
Weight: 10.8g (included wires&connectors)

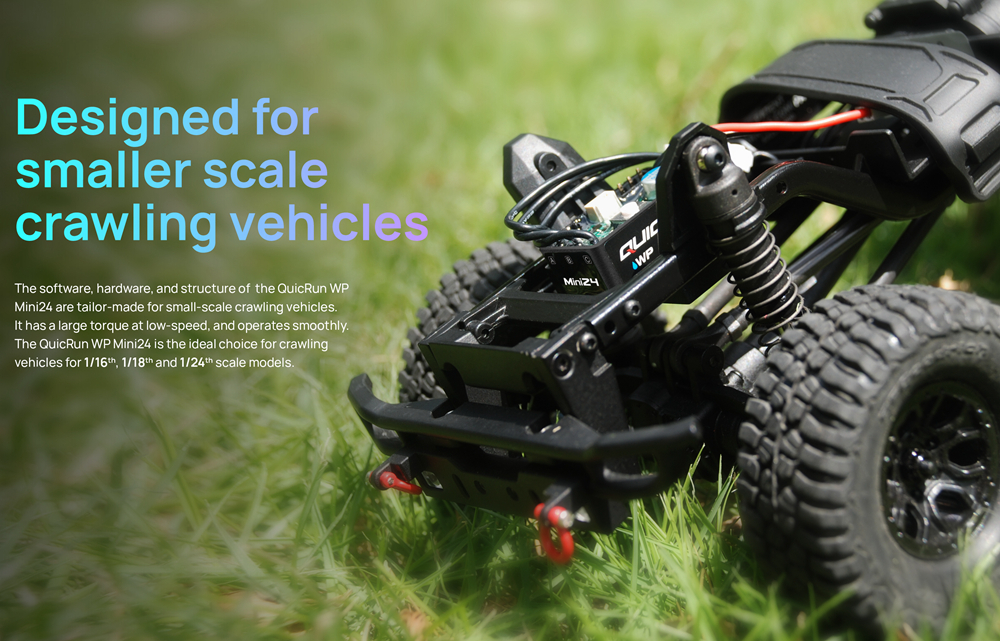

Applications: 1/24 vehicles, 1/18 & 1/16 Crawlers
Applicable motors: QUICRUN Outer-1621,manistream 1212,1806 sensorless outrunter motor; 050,130,180including other brushed motors

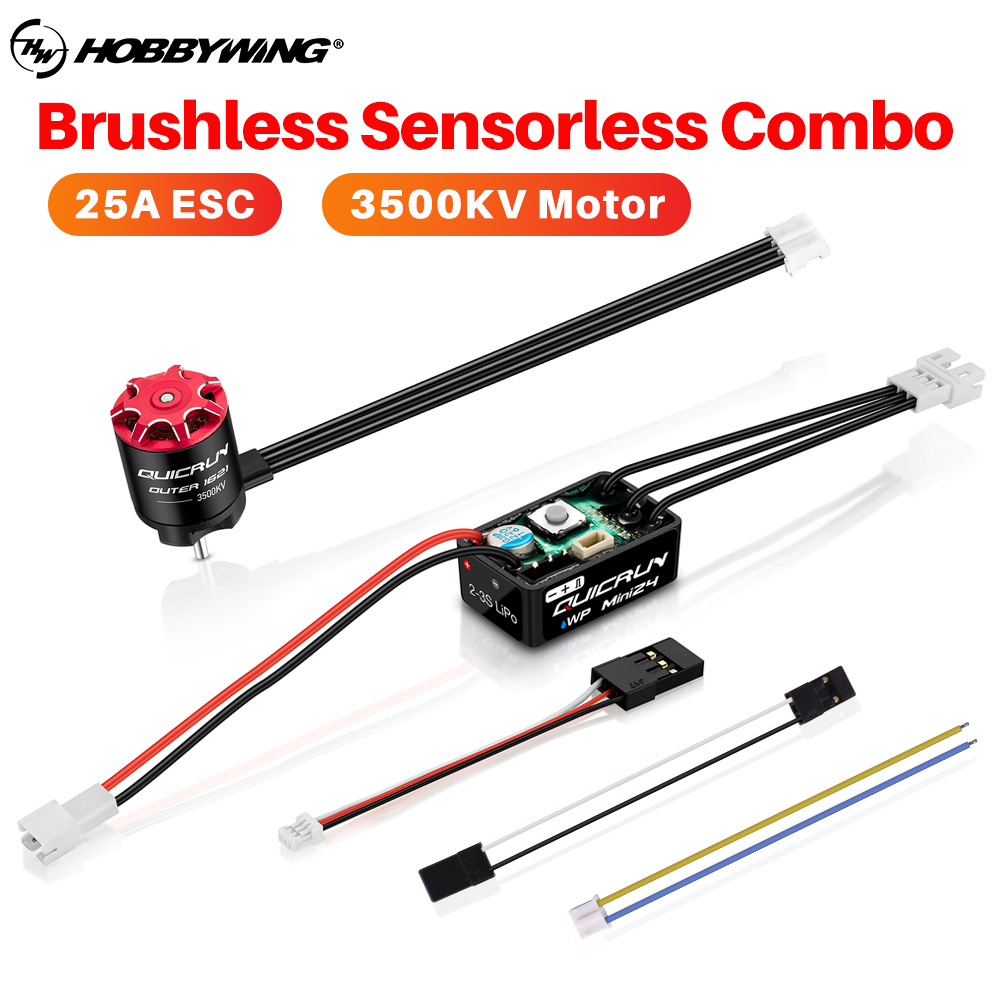

Package contents:

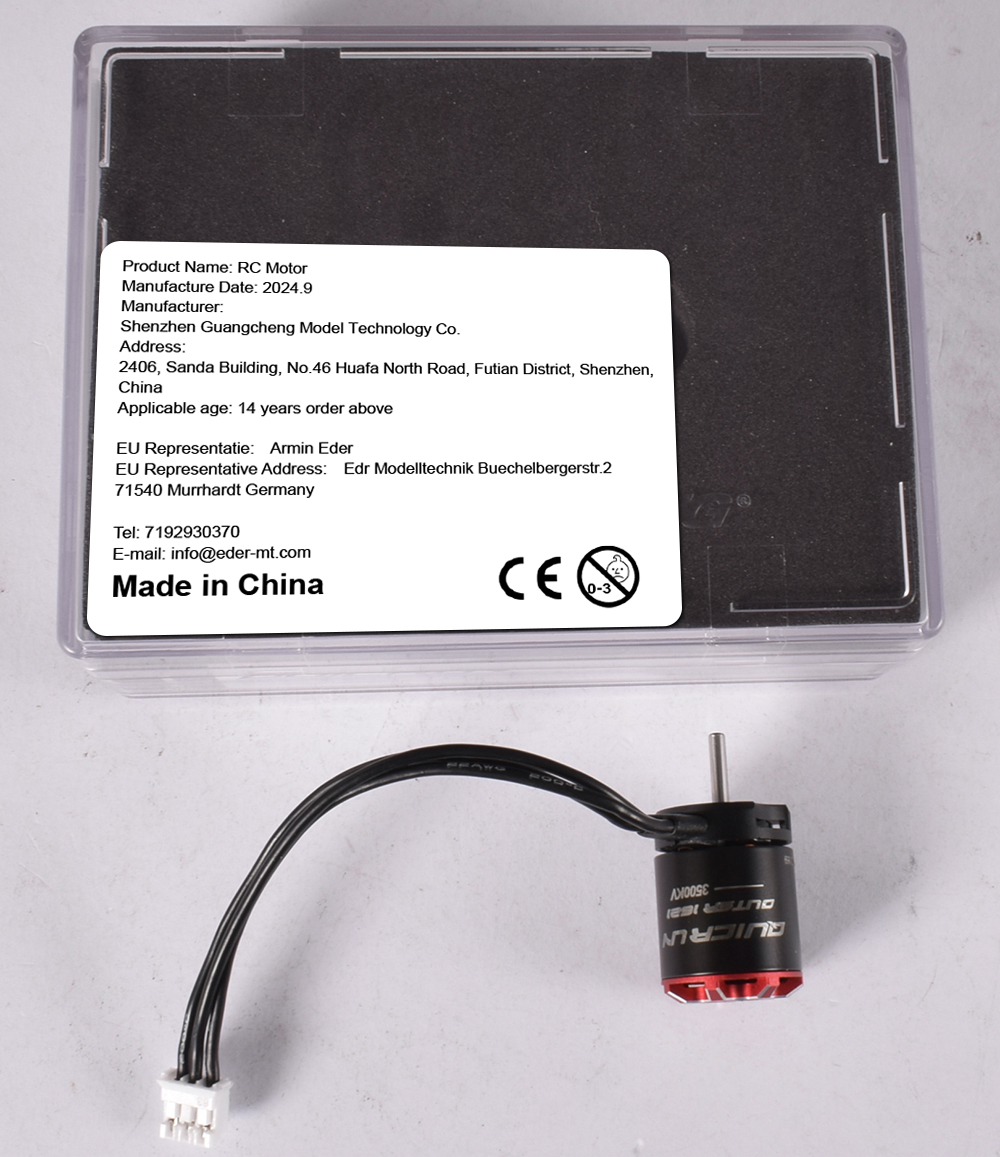

1* QUICRUN Outer-1621SL
1* QUICRUN WP Mini24

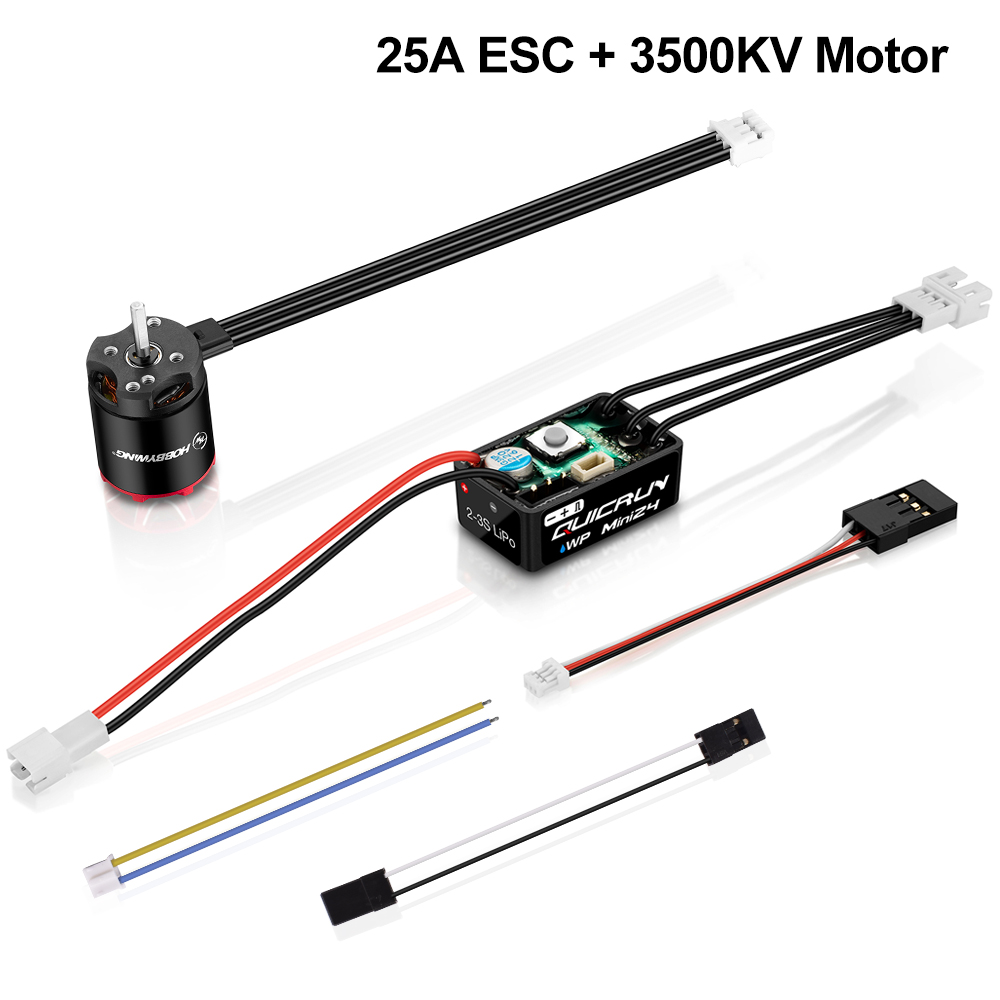

1* Combo(QUICRUN Outer-1621SL+QUICRUN WP Mini24)
(It's your choice)

Note:
Only the above package content, other products are not included.
