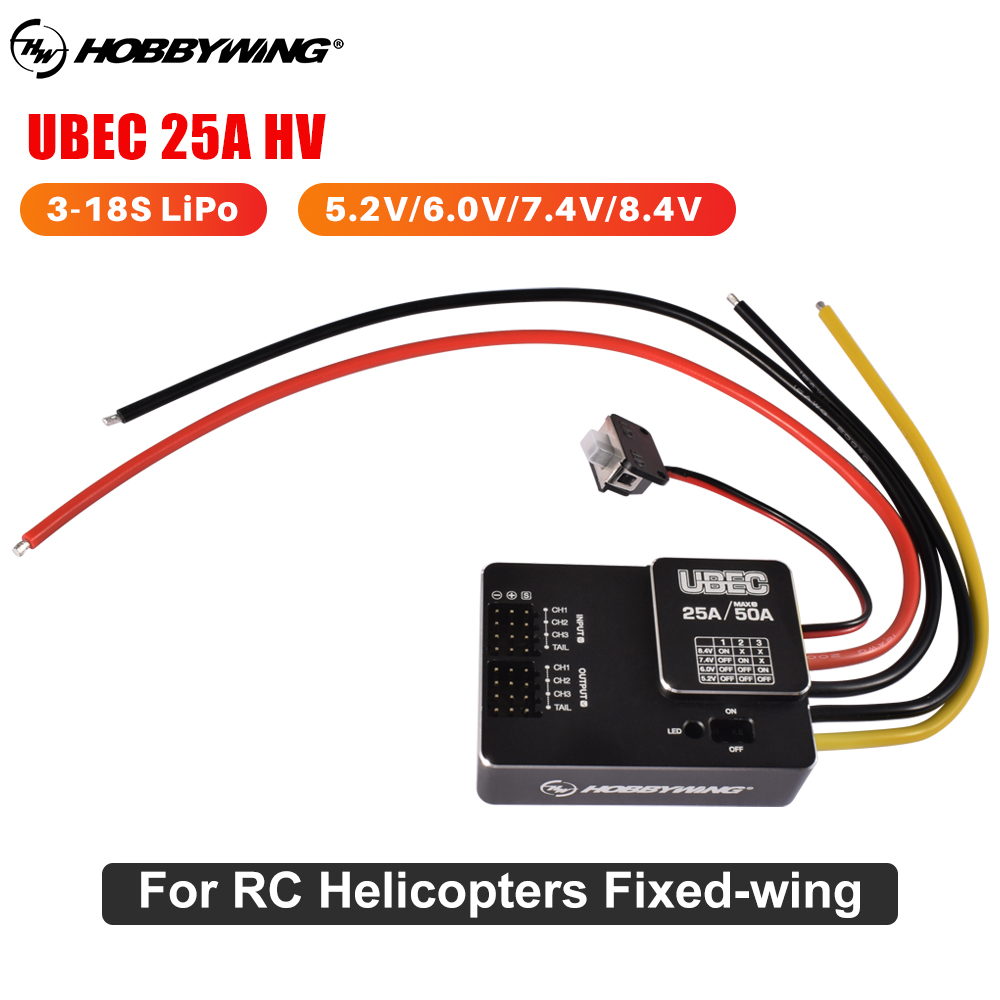

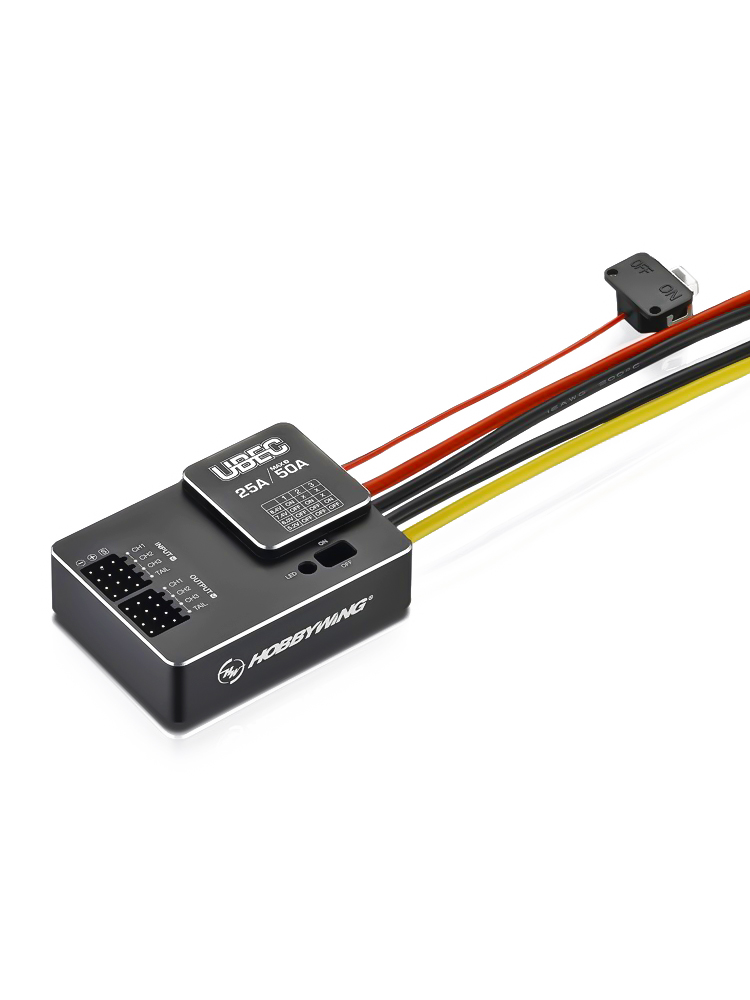

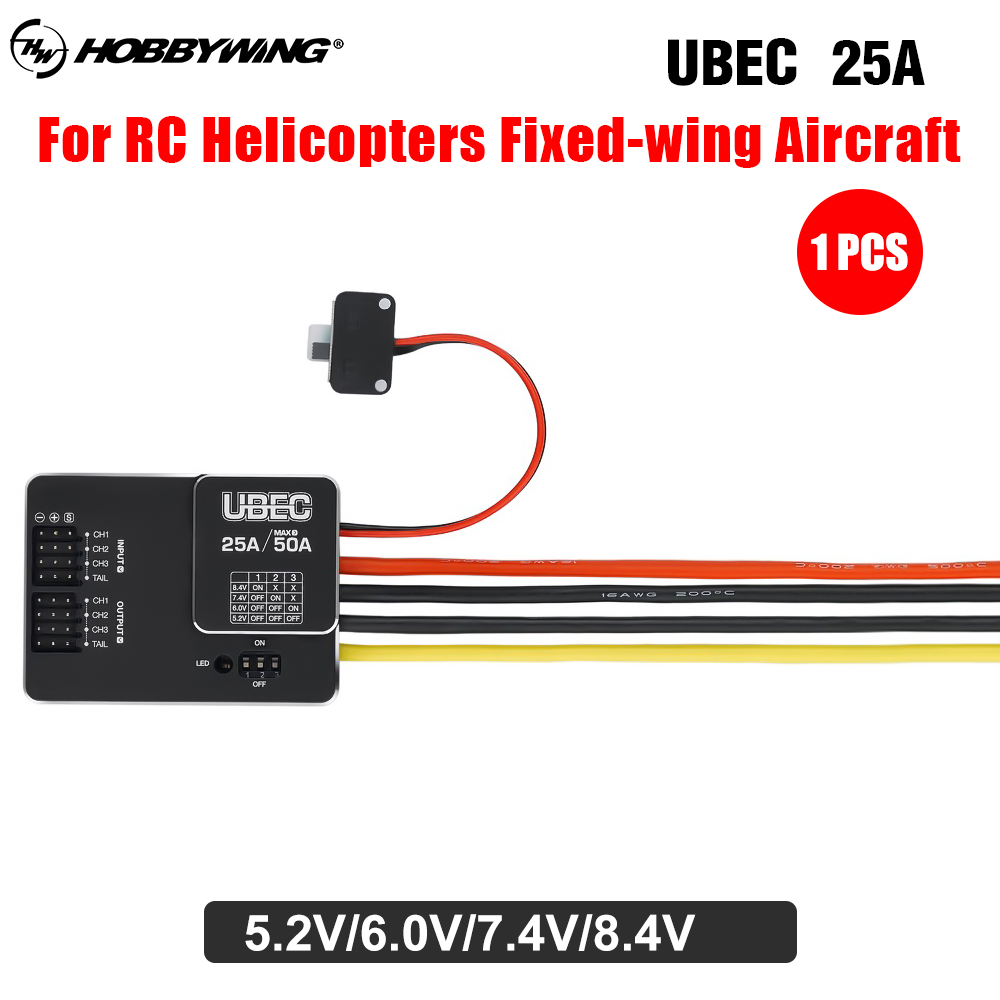

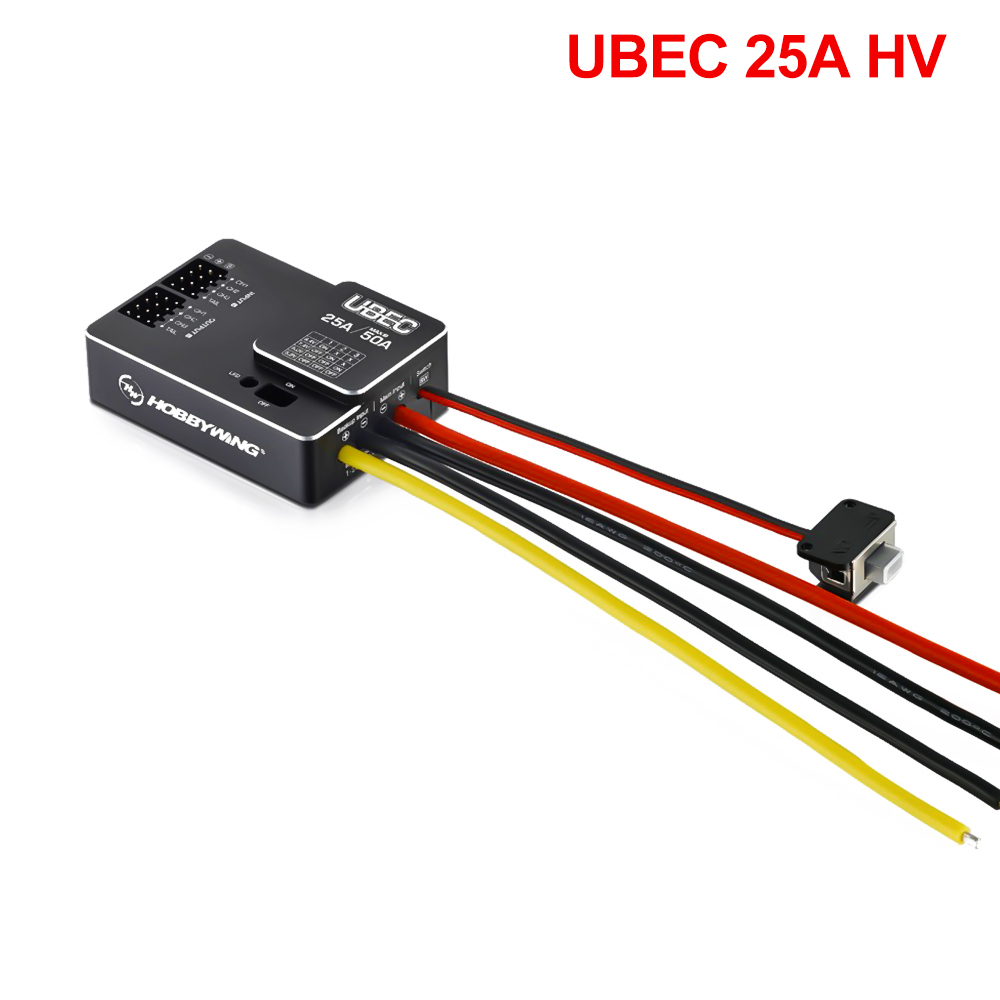

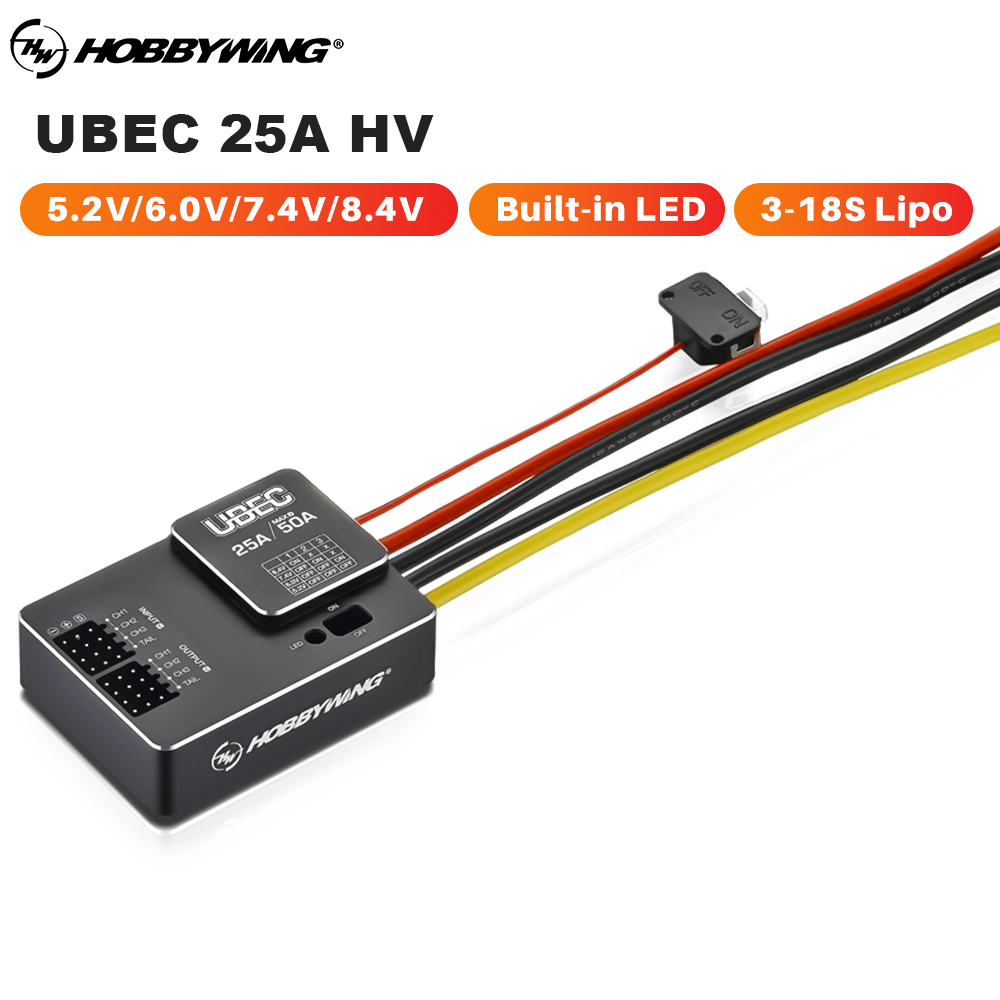

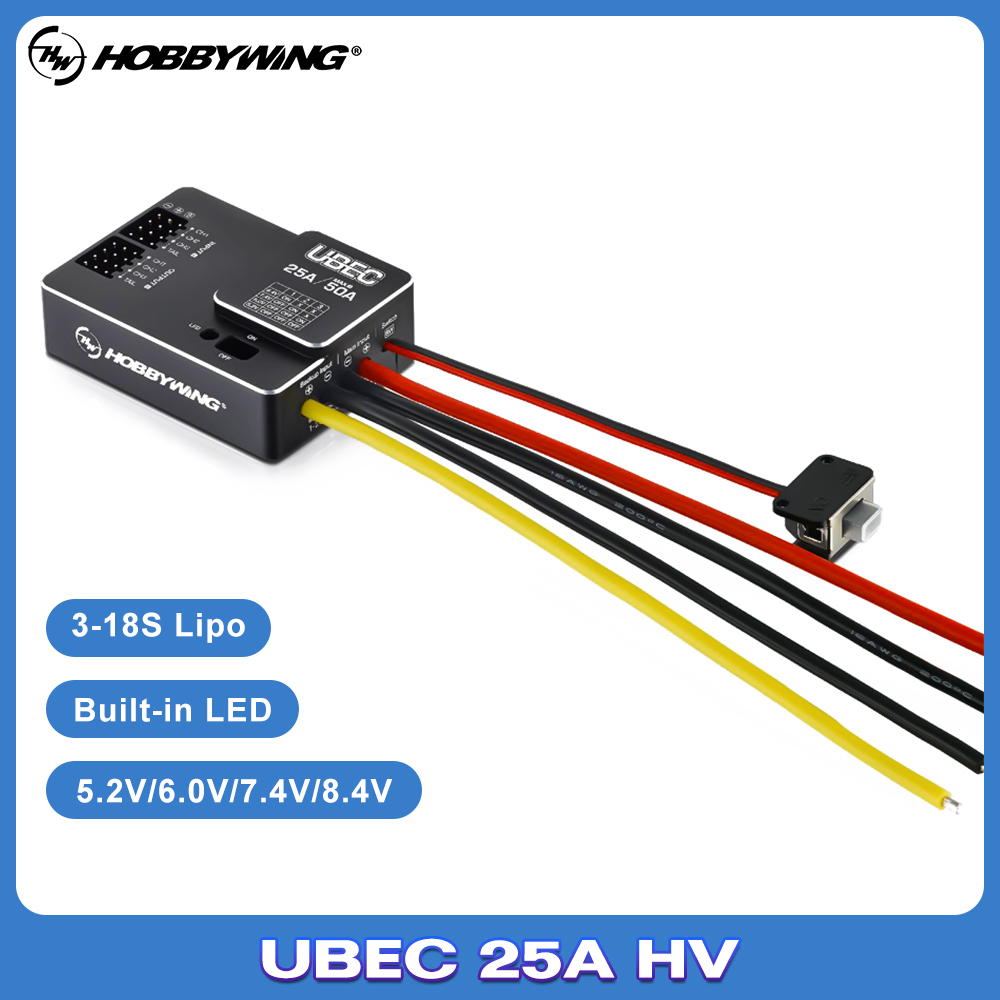

HOBBYWING UBEC 25A HV 5.2V/6.0V/7.4V/8.4V Built-in LED Indicator 90% Conversion Efficiency For FPV Racing Drone Helicopters Fixed-wing Aircraft
Features:
1. High efficiency DC-DC regulator chip for transfer efficiency of over 90%.

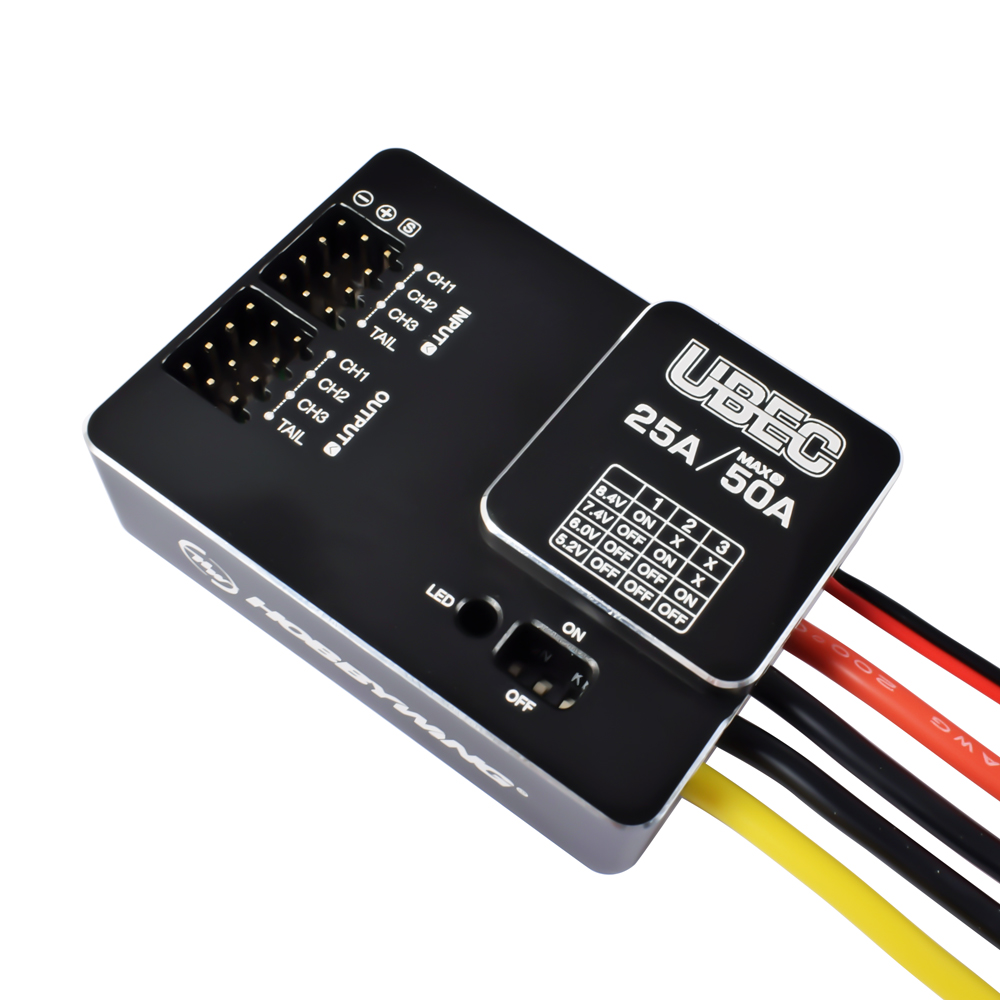

2. Adjustable output voltage (5.2V/6.0V/7.4V/8.4V) applicable for servos with different voltages.
3. 8-channel parallel outputs for greater current endurance.
4. BEC shot-through protection prevents the input voltage of the main powe suply from directly flowing to the output end of the UBEC and damaging the electronic devices connecting to the output end when the UBEC is accidentally damaged.
5. Multiple protections including over-current, (output end) short circuit, overheat, and low-voltage cutoff.

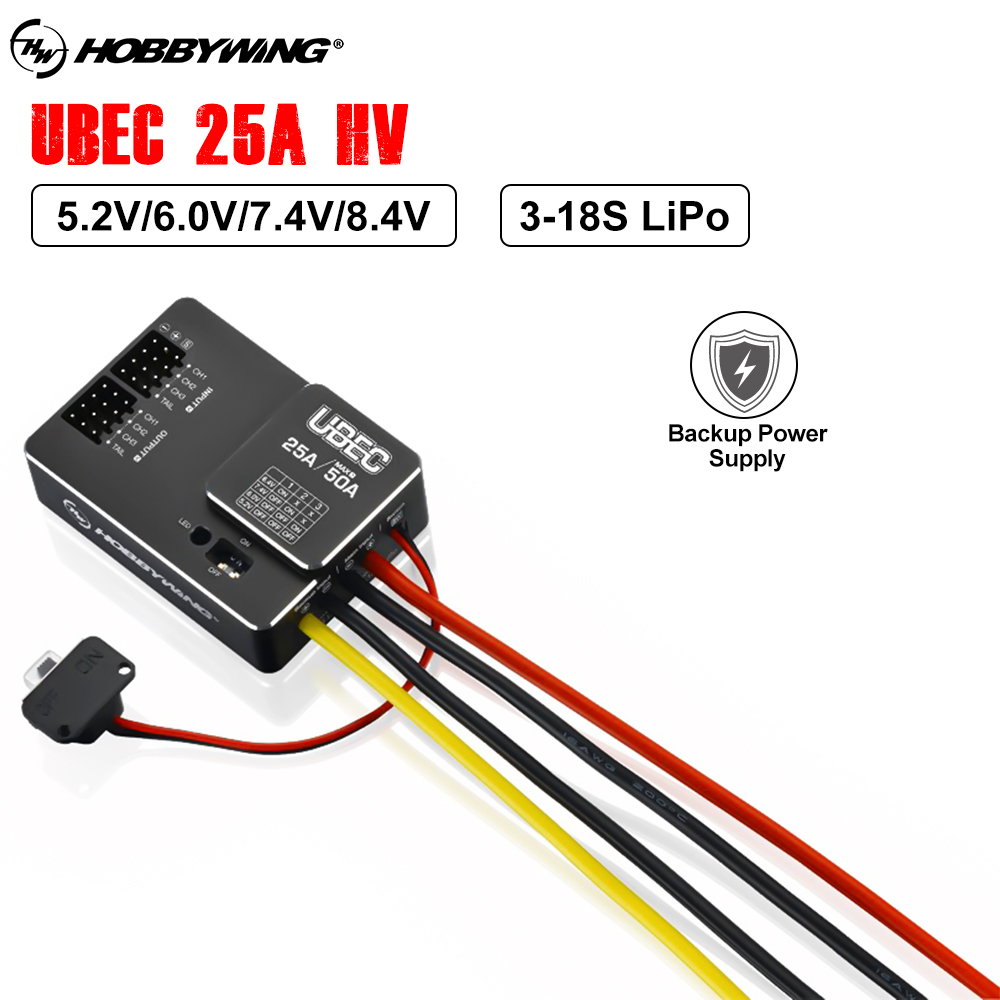

6. Alows the connected electronic devices to directly get power from the backup power suply to keep the normal operation when the main power supply connecting to the UBEC is damaged or the UBEC fails.
7. External switch allows to turn on/off the UBEC easily.
8. Metal housing for quick heat dissipation and less electromagnetic interference.
9. LED indicator for indicating the work status of the UBEC and the connecting status of the backup power supply.
Description:
The UBEC is an external switching-mode DC-DC regulator chip. lt draws the DC voltage from a 3-18S LiPo battery and drops the voltage to a level suitable for receivers and other electronic devices and keeps providing the stable current output of up to 25Amp.It is particularly applicable for thelarge helicopters or fixed-wing aircraft which use several servos.
Specifications:
Product Name: UBEC 25A HV
Linear Mode/Switch Mode: Switch Mode
High Voltage/Regular: HV
Cont./Peak Current: 25A/50A

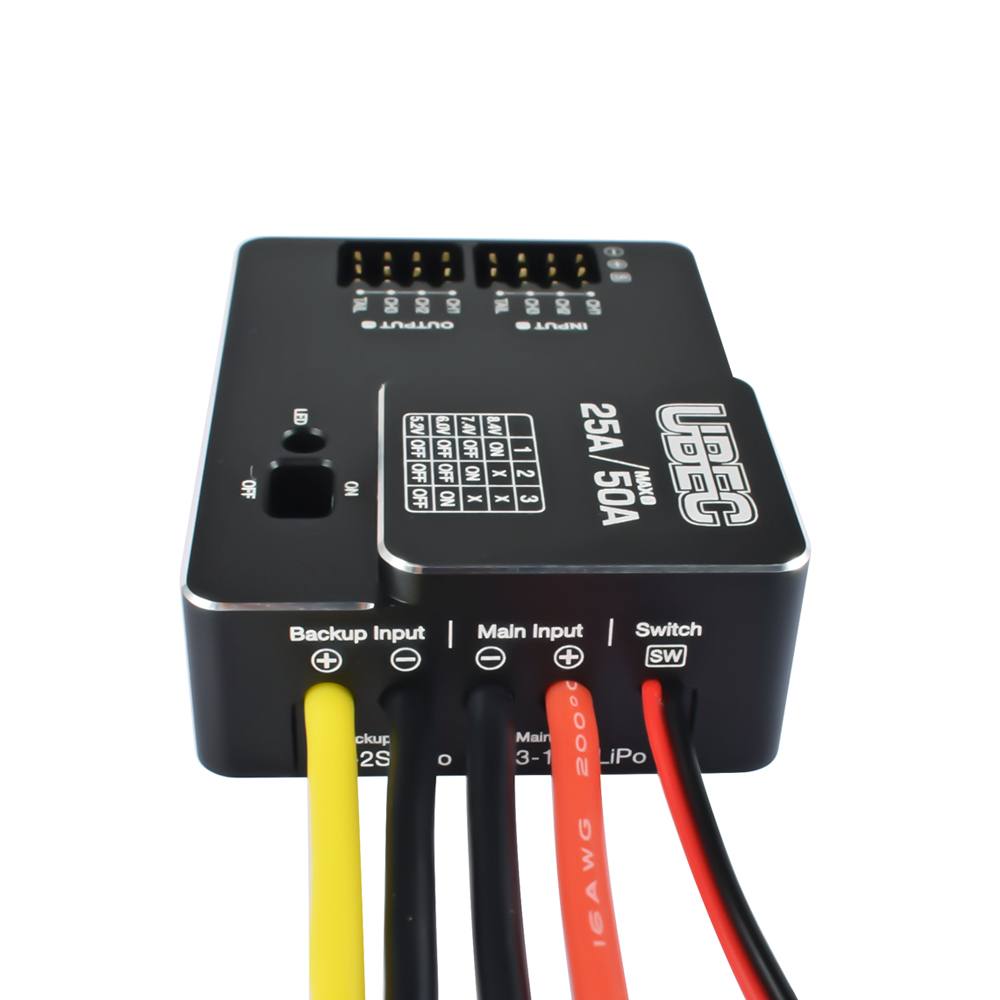

Main Input Voltage: 3S~18S LiPo(/9V~80V)
Backup Input Voltage: 1S~2S LiPo (13-9V)
output Voltage: 5.2V/ 16.0V/ 17.4V/ 18.4V Adjustable

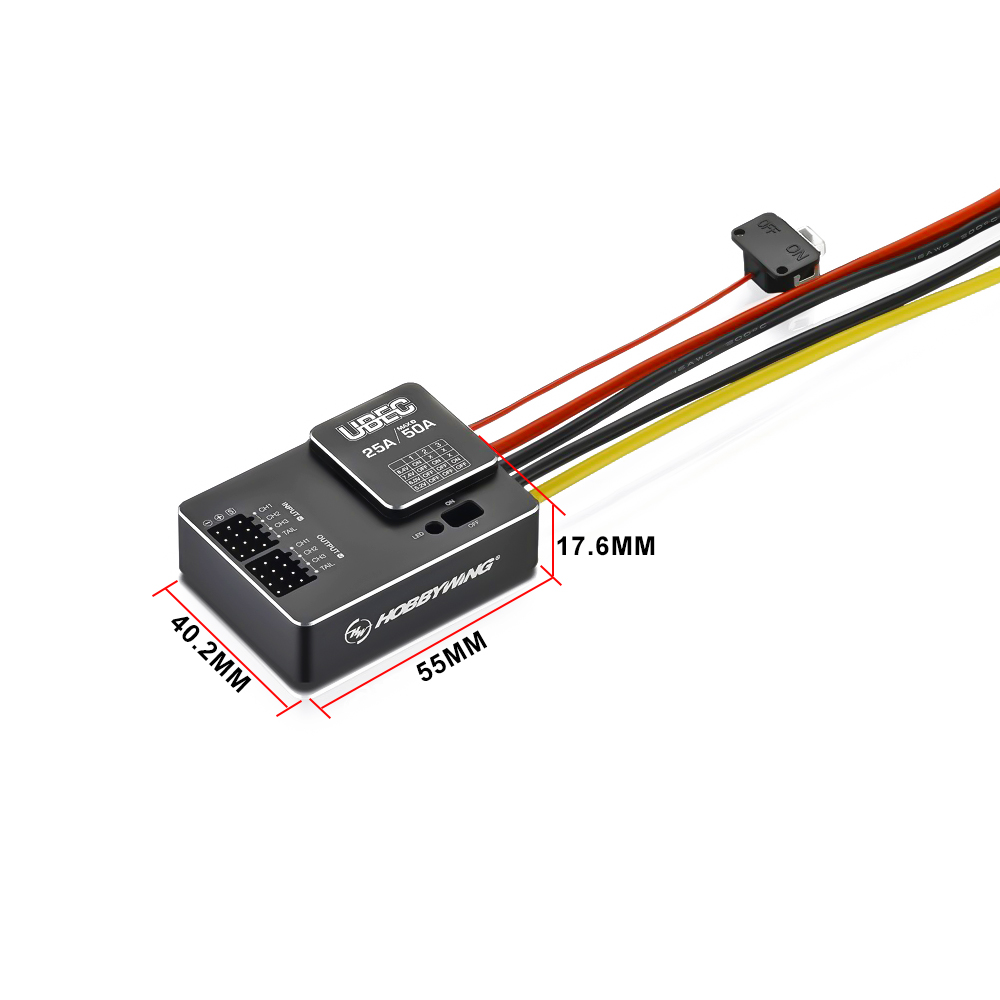

size:55*40.2*17.6mm
weight:74g

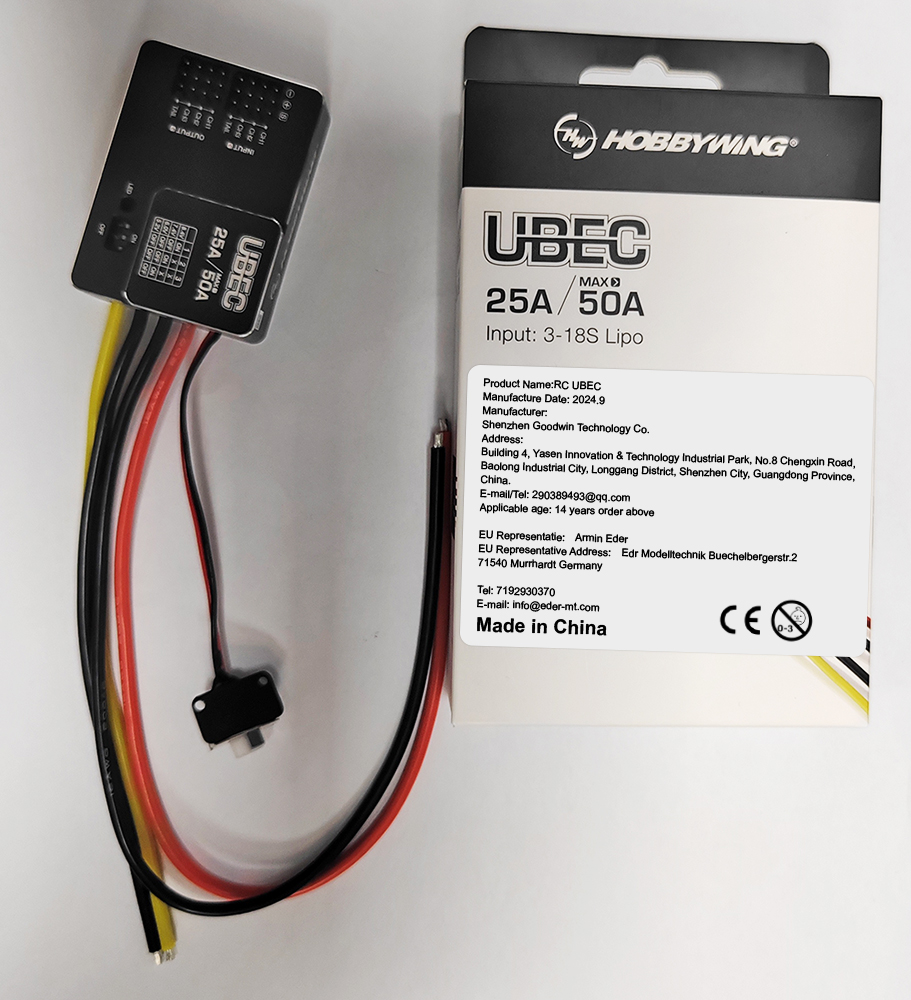

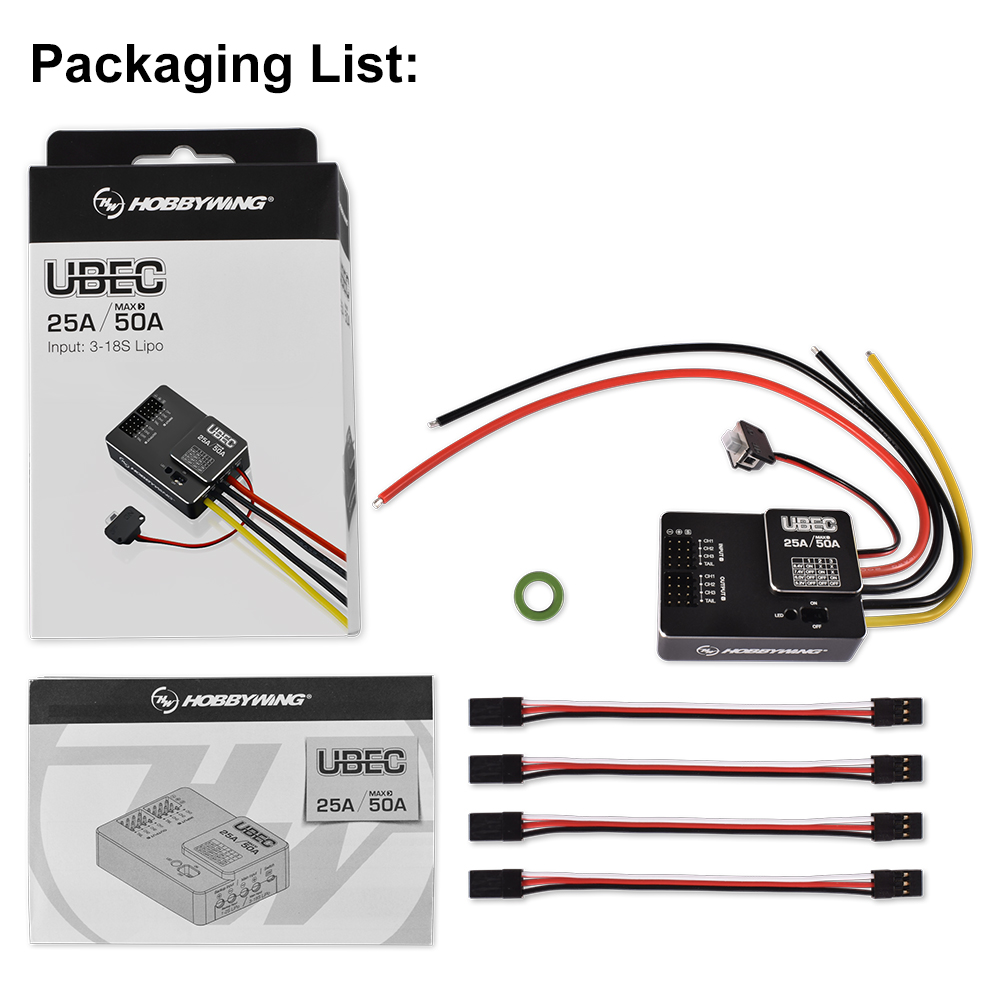

Package contents:
1* UBEC 25A
