Description:
Blue LED W1209 Thermometer
Blue LED W1209 Thermometer
Temperature range :-50-110 ℃
Dimensions: 48.5 * 40mm
Temperature control mode: ON / OFF
Resolution：When temperature is 0.1℃, the resolution is -9.9~99.9, other temperature segment is 1℃
Control accuracy: 0.1 ℃
Hysteresis accuracy: 0.1℃
Refresh rate: 0.5S
High temperature protection： 0-110℃
Supply voltage: DC 12V
Static current: ≤ 35MA, attract current ≤ 65MA
Output voltage: DC 12V
Output power: 20A relay
Measurement input: NTC (10K 0.5%) Waterproof Sensor
Color of the LED:Blue
Environmental requirements: -10 ~ 60 ℃ ，Humidity 20% -85%
How to use:
Connect the power supply and the load, you can supply to the controller,
Is displayed as a measured temperature,
Press the SET button, the display flashes the temperature,
Press - to set the desired temperature,
After setting press SET to confirm return,
The controller automatically performs the relay by setting off!
Lights, LED status descriptions:
Indicator: Off The relay is switched off, Always indicate the relay is closed.
LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close
the relay, the display --- as high temperature protection.

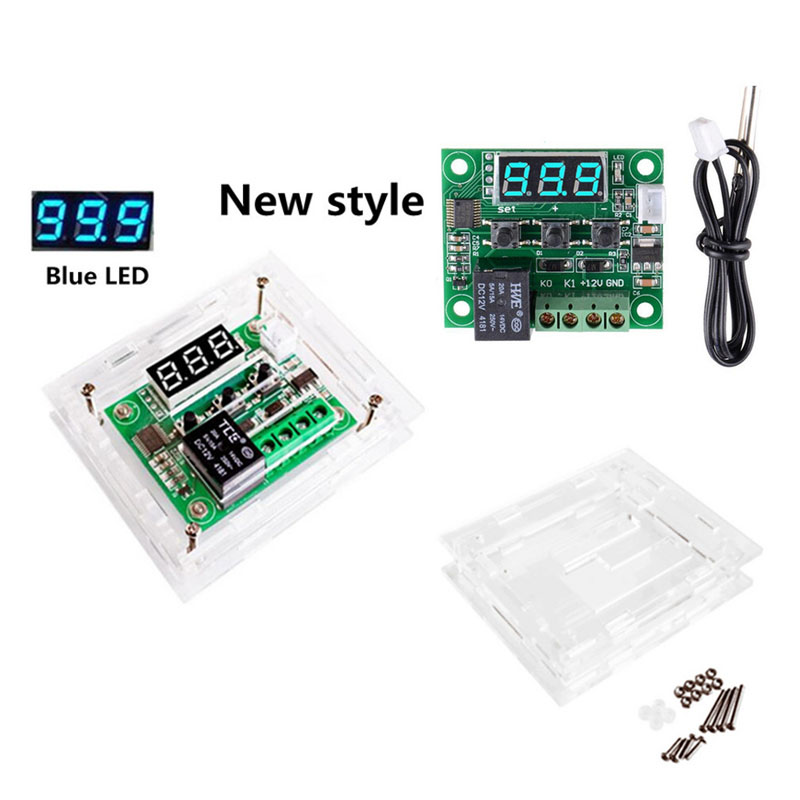

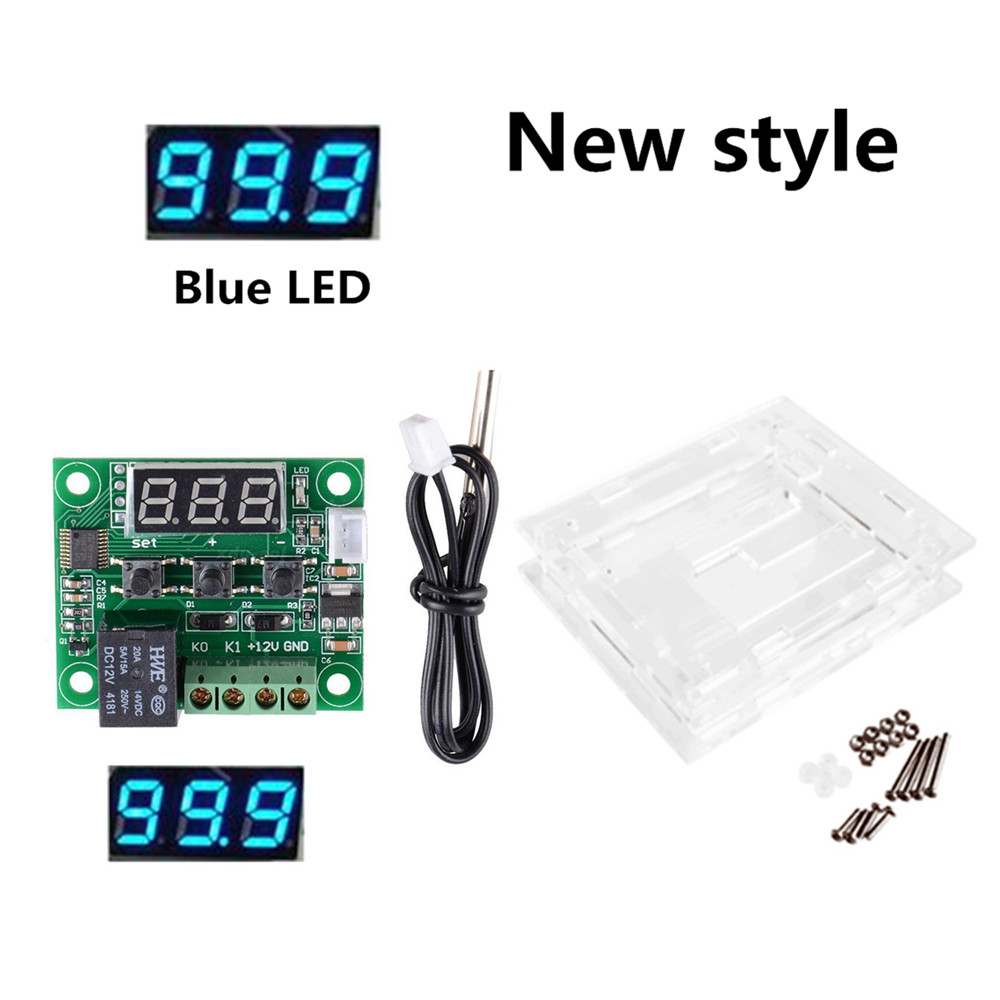

Package included:1 x DC 12V -50-110°C W1209 Digital Thermostat Temperature Control Switch Sensor Blue
Case for W1209 Thermometer
DIY cover for W1209 Control Module
Acrylic material, looks transparent(may need to tear down the film).
Easy for electronic enthusiasts to assemble.
Package included:1*Clear Acrylic Case Shell Box Kit for XH W1209 Digital Temperature Control Module

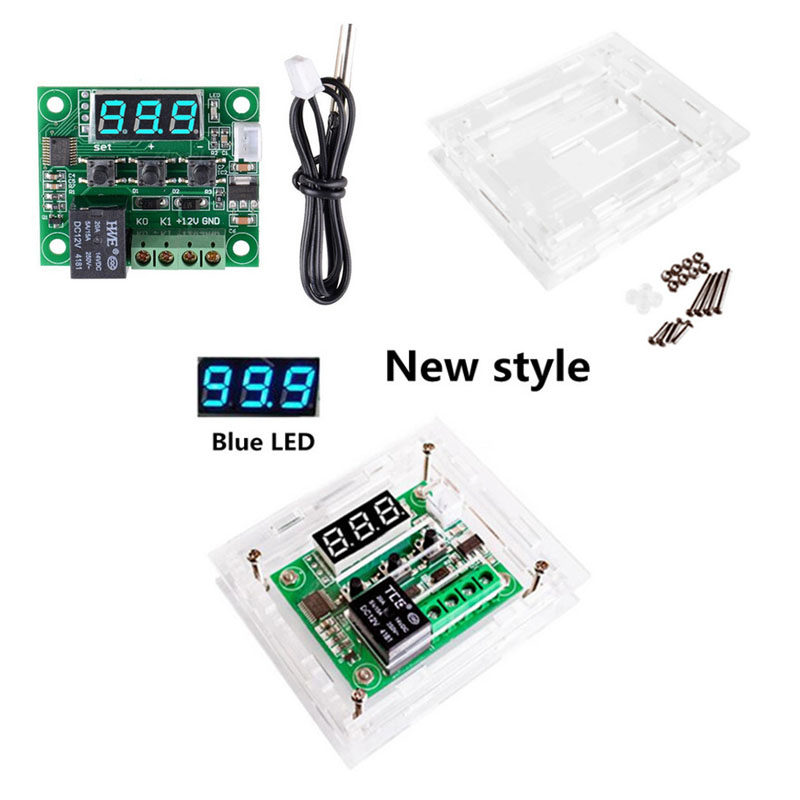

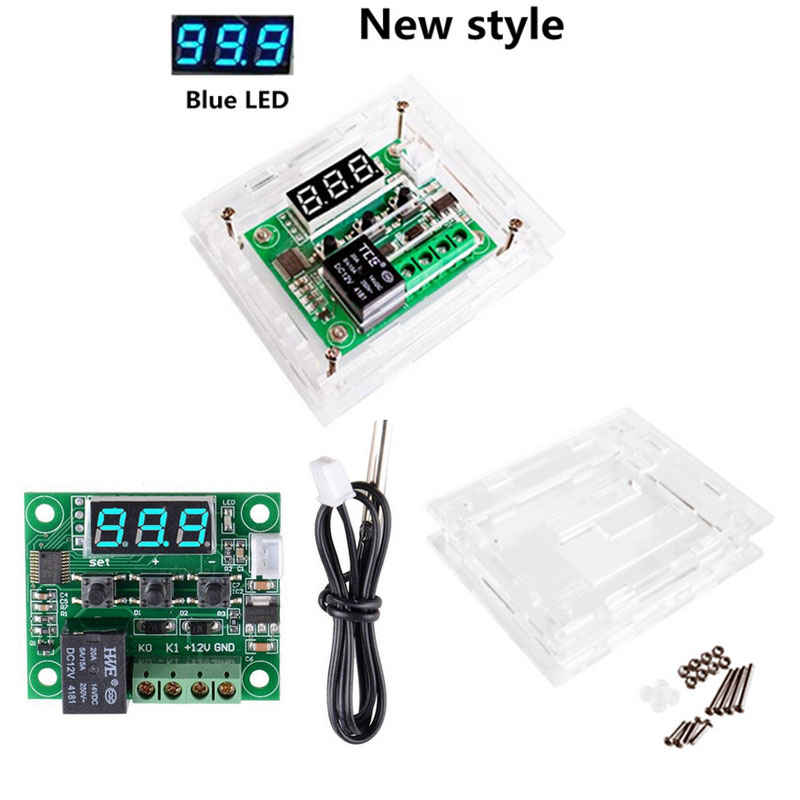

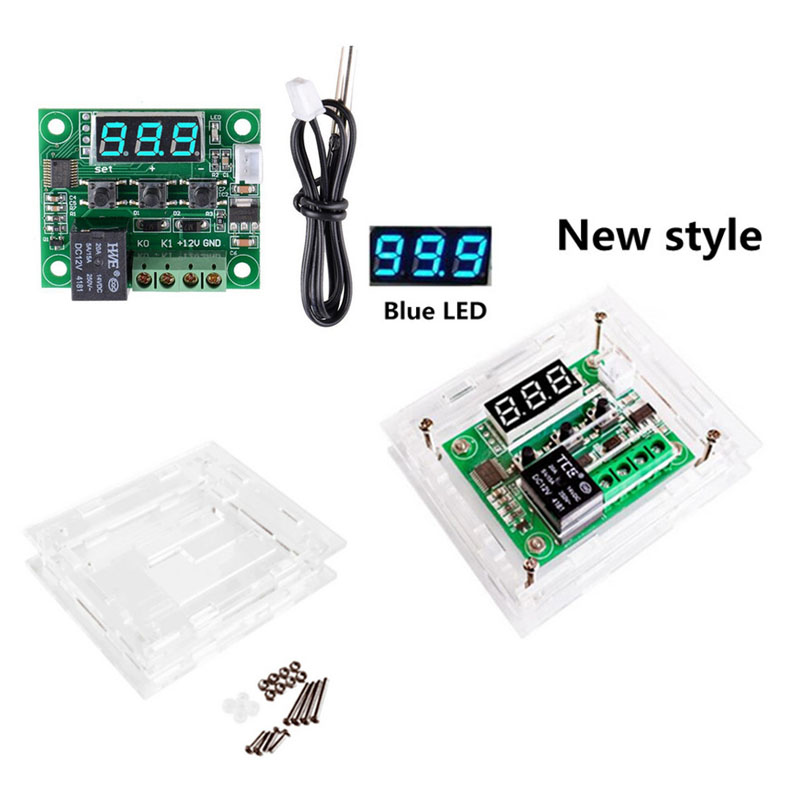

Blue W1209 DC12V Thermostat Temperature Control Switch Thermometer+Case
Package included:
1*Clear Acrylic Case Shell Box Kit for XH W1209 Digital Temperature Control Module
1 x DC 12V -50-110°C W1209 Digital Thermostat Temperature Control Switch Sensor Blue
Dimensions: 48.5 * 40mm
Temperature control mode: ON / OFF
Resolution：When temperature is 0.1℃, the resolution is -9.9~99.9, other temperature segment is 1℃
Control accuracy: 0.1 ℃
Hysteresis accuracy: 0.1℃
Refresh rate: 0.5S
High temperature protection： 0-110℃
Supply voltage: DC 12V
Static current: ≤ 35MA, attract current ≤ 65MA
Output voltage: DC 12V
Output power: 20A relay
Measurement input: NTC (10K 0.5%) Waterproof Sensor
Color of the LED:Blue
Environmental requirements: -10 ~ 60 ℃ ，Humidity 20% -85%
How to use:
Connect the power supply and the load, you can supply to the controller,
Is displayed as a measured temperature,
Press the SET button, the display flashes the temperature,
Press - to set the desired temperature,
After setting press SET to confirm return,
The controller automatically performs the relay by setting off!
Lights, LED status descriptions:
Indicator: Off The relay is switched off, Always indicate the relay is closed.
LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close
the relay, the display --- as high temperature protection.
Package included:1 x DC 12V -50-110°C W1209 Digital Thermostat Temperature Control Switch Sensor Blue
Case for W1209 Thermometer
DIY cover for W1209 Control Module
Acrylic material, looks transparent(may need to tear down the film).
Easy for electronic enthusiasts to assemble.
Package included:1*Clear Acrylic Case Shell Box Kit for XH W1209 Digital Temperature Control Module
Blue W1209 DC12V Thermostat Temperature Control Switch Thermometer+Case
Package included:
1*Clear Acrylic Case Shell Box Kit for XH W1209 Digital Temperature Control Module
1 x DC 12V -50-110°C W1209 Digital Thermostat Temperature Control Switch Sensor Blue
