Features:
1: Widely used
2: Stepper motor controller + driver integrated
3: TTL serial communication
4: Automatic/manual multiple modes
5: LCD display
1: Widely used
2: Stepper motor controller + driver integrated
3: TTL serial communication
4: Automatic/manual multiple modes
5: LCD display
Pay attention:
Electronic module products require you to have a certain electronic foundation, and read the product description carefully before use; the product is not designed for medical, life-saving, life-saving and other purposes, and cannot be used in dangerous places such as coal mines and oil depots. We will not take any such responsibilities. Guarantee; product profits are low, users' operating capabilities and use occasions vary greatly, and any electronic equipment cannot be foolproof. The owner of the equipment should prepare corresponding protective measures and risk management plans. If the equipment directly or indirectly causes any personal or property damage, the company is not responsible for compensation
Electronic module products require you to have a certain electronic foundation, and read the product description carefully before use; the product is not designed for medical, life-saving, life-saving and other purposes, and cannot be used in dangerous places such as coal mines and oil depots. We will not take any such responsibilities. Guarantee; product profits are low, users' operating capabilities and use occasions vary greatly, and any electronic equipment cannot be foolproof. The owner of the equipment should prepare corresponding protective measures and risk management plans. If the equipment directly or indirectly causes any personal or property damage, the company is not responsible for compensation
1. Product introduction:
This is an operation control module specifically for single-axis stepper motors. The module has a variety of fixed operating modes built-in, and the user can quickly select the appropriate motion track. You can save and set the distance/speed/delay/cycle times after power-off. It can run independently as a module, or it can be used in conjunction with other systems. It can be used in general industrial control occasions, but cannot be used in special industries such as medical treatment and fire fighting or life-critical fields.
This is an operation control module specifically for single-axis stepper motors. The module has a variety of fixed operating modes built-in, and the user can quickly select the appropriate motion track. You can save and set the distance/speed/delay/cycle times after power-off. It can run independently as a module, or it can be used in conjunction with other systems. It can be used in general industrial control occasions, but cannot be used in special industries such as medical treatment and fire fighting or life-critical fields.
2. Product parameters:

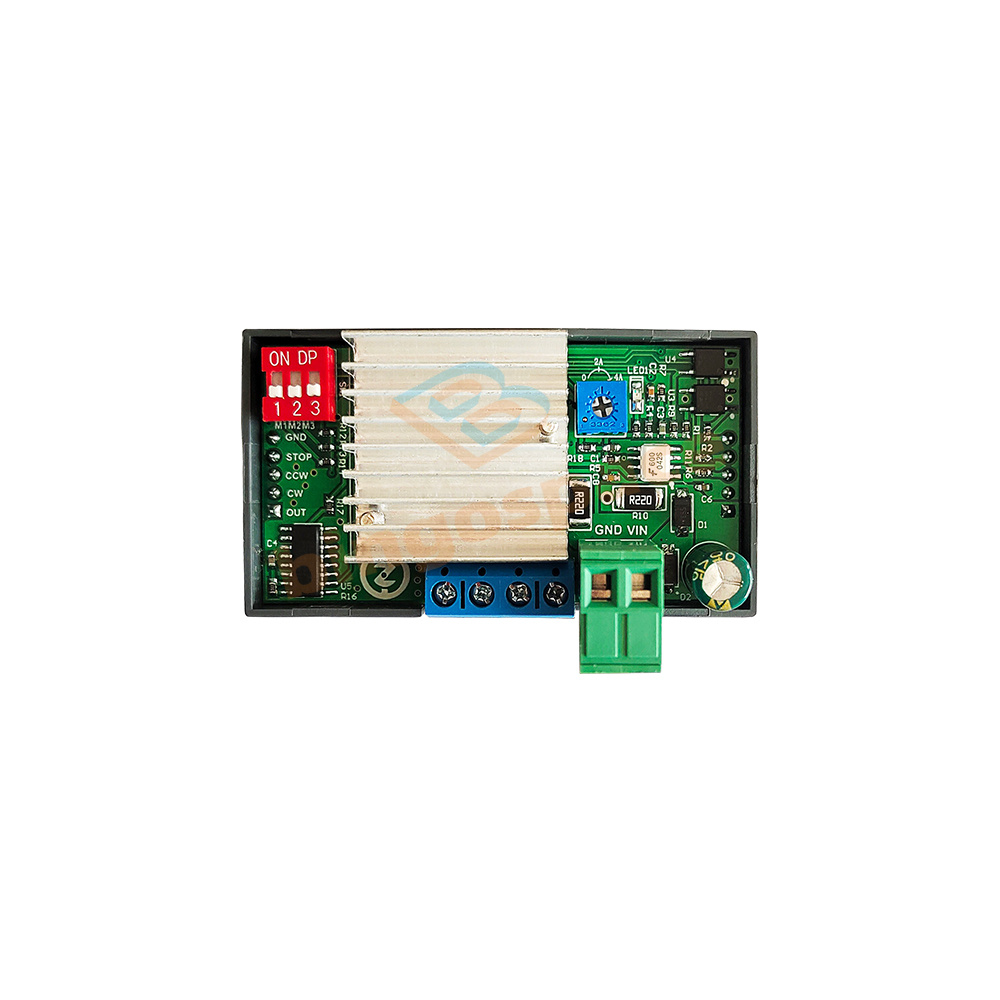

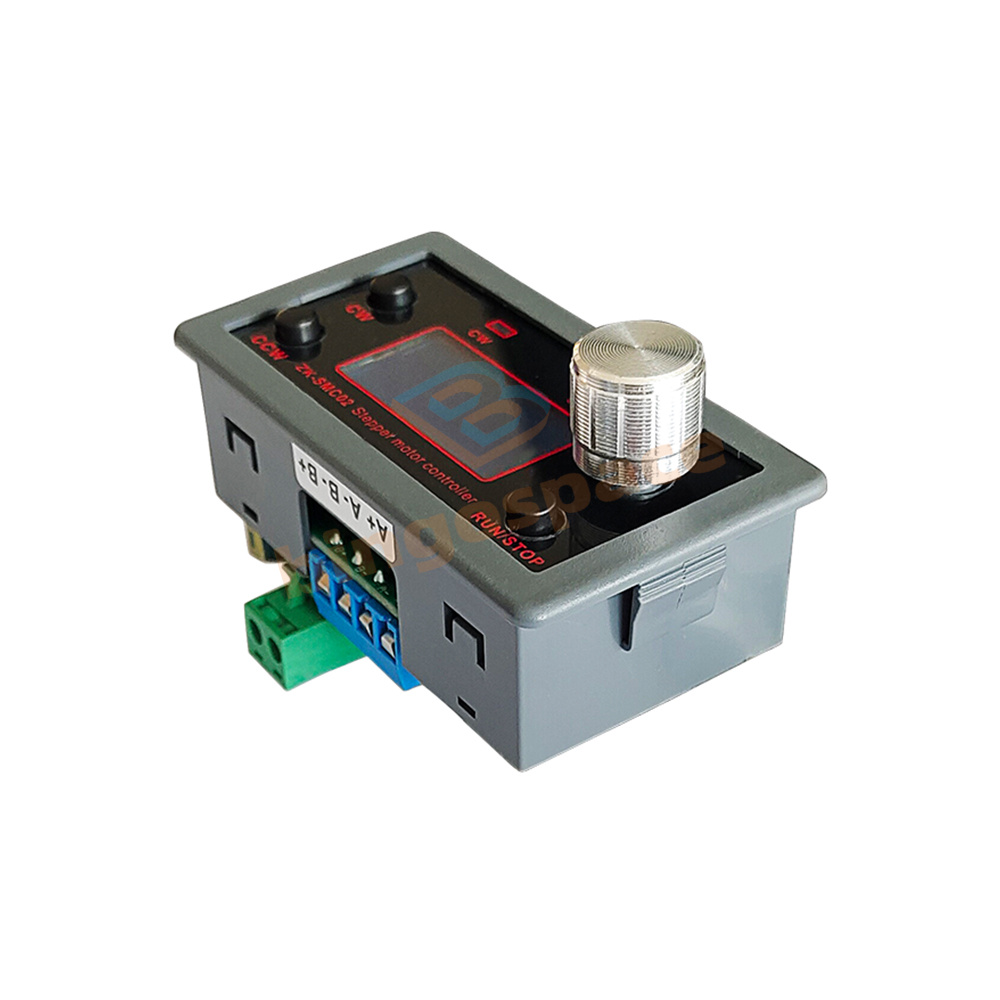

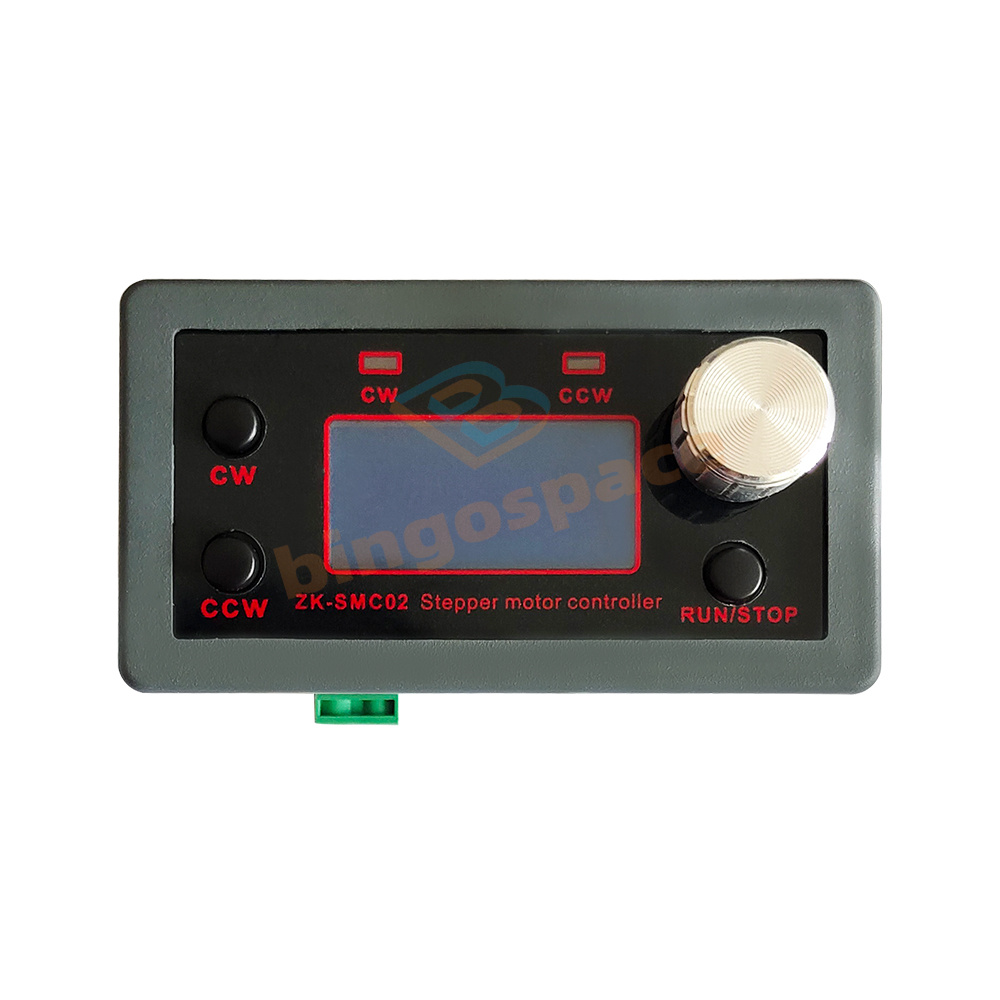

Model: ZK-SMC02 stepping motor controller + driver
Adapted motor: stepper motor
Number of control axes: single axis
Motor signal: common cathode
Power supply range: DC 5-30V universal
Drive capacity: 4A
Instruction features: streamline and optimize multiple commonly used instructions
Acceleration and deceleration control: Yes
Input reverse connection protection: Yes
Remote communication control: TTL serial port
Main functions of the system: automatic, manual, setting, serial port control
Speed range: 0.1~999 laps/minute
Number of forward pulses: 1-9999 pulses
Number of reverse pulses: 1-9999 pulses
Cycle work times: 1-9999 times
Forward delay time: 0.0-999.9 seconds
Reversal delay time: 0.0-999.9 seconds
Subdivision selection range: 1-128 subdivision
Product use environment: -5℃-60℃ (non-condensing)
Model: ZK-SMC02 stepping motor controller + driver
Adapted motor: stepper motor
Number of control axes: single axis
Motor signal: common cathode
Power supply range: DC 5-30V universal
Drive capacity: 4A
Instruction features: streamline and optimize multiple commonly used instructions
Acceleration and deceleration control: Yes
Input reverse connection protection: Yes
Remote communication control: TTL serial port
Main functions of the system: automatic, manual, setting, serial port control
Speed range: 0.1~999 laps/minute
Number of forward pulses: 1-9999 pulses
Number of reverse pulses: 1-9999 pulses
Cycle work times: 1-9999 times
Forward delay time: 0.0-999.9 seconds
Reversal delay time: 0.0-999.9 seconds
Subdivision selection range: 1-128 subdivision
Product use environment: -5℃-60℃ (non-condensing)
Other instructions:
1. As long as it is a 2-phase 4-wire 5-wire 6-wire 8-wire stepper motor, it can be controlled.
2. It can control drivers with similar interfaces.
3. The number of pulses for one revolution should be determined according to the subdivision of the driver and the step angle of the stepper motor
1. As long as it is a 2-phase 4-wire 5-wire 6-wire 8-wire stepper motor, it can be controlled.
2. It can control drivers with similar interfaces.
3. The number of pulses for one revolution should be determined according to the subdivision of the driver and the step angle of the stepper motor
Package list:
1* Controller
1* Controller
