Details
1. Exquisite and compact appearance, beautiful arrangement of components
2. Made of high quality materials, durable and practical
3. Frequency can be adjusted from 1Hz-1MHz, the amplitude of the frequency can be adjusted
4. Wide range of applicable power supply, can use 9-12V or 9V external power supply.
5. Wide range of applications, suitable for a variety of industrial DIY occasions
Product parameters:
Voltage supply: DC9-12V

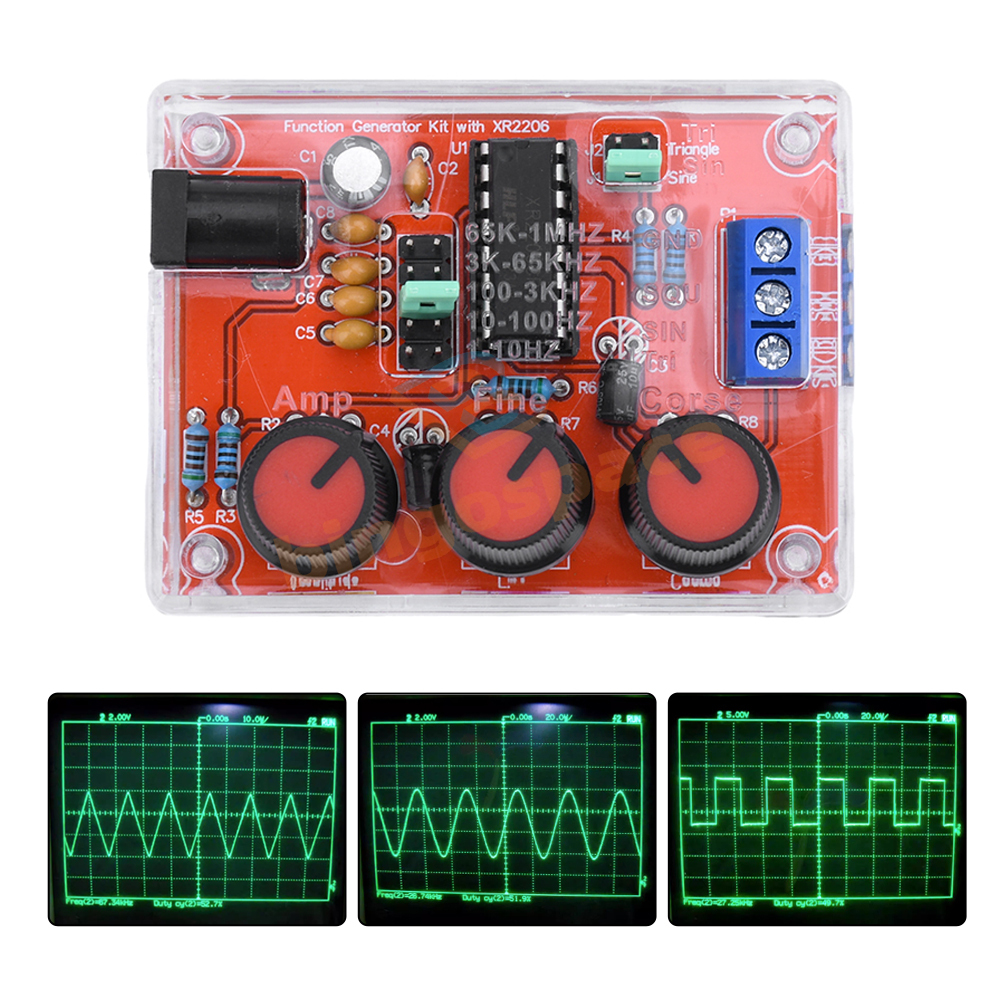

Waveform: square wave, sine and triangle
Impedance: 600 ohm +10%
Frequency: 1hz-1MHz
Sine wave:
Amplitude: 0-3V at 9V DC input
Distortion: less than 1%
Square wave:
Amplitude: 8V at 9V DC input (no load)
Rise time: less than 50ns
Fall time: less than 30ns
Symmetry: Less than 5% (at 1KHZ)
Triangle wave:
Amplitude: 0-3V at 9V DC input
Linearity: less than 1% (up to 100 khz ) 10mA
Packing List:
DIY kit or finished product *1
Copyright©2018 datacaciques
Top & Fast Shipping！
Get The Right At The Right Price！

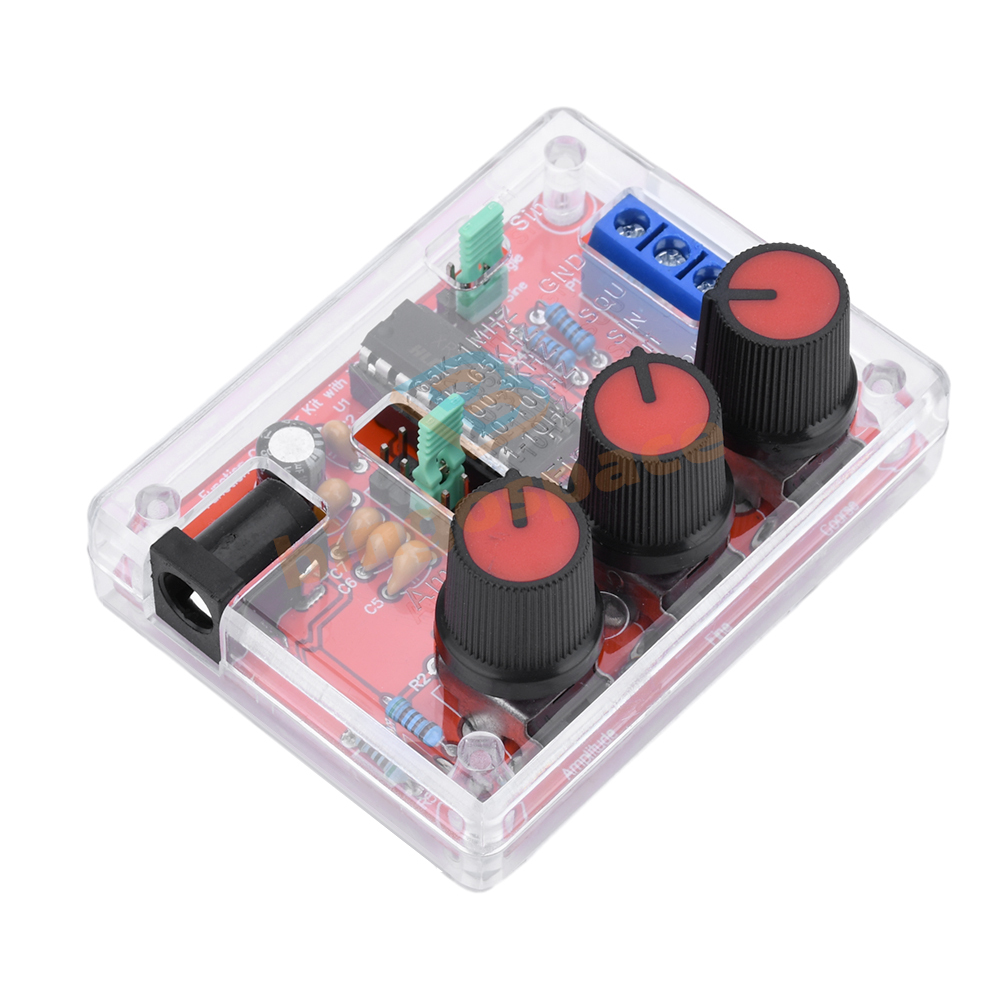

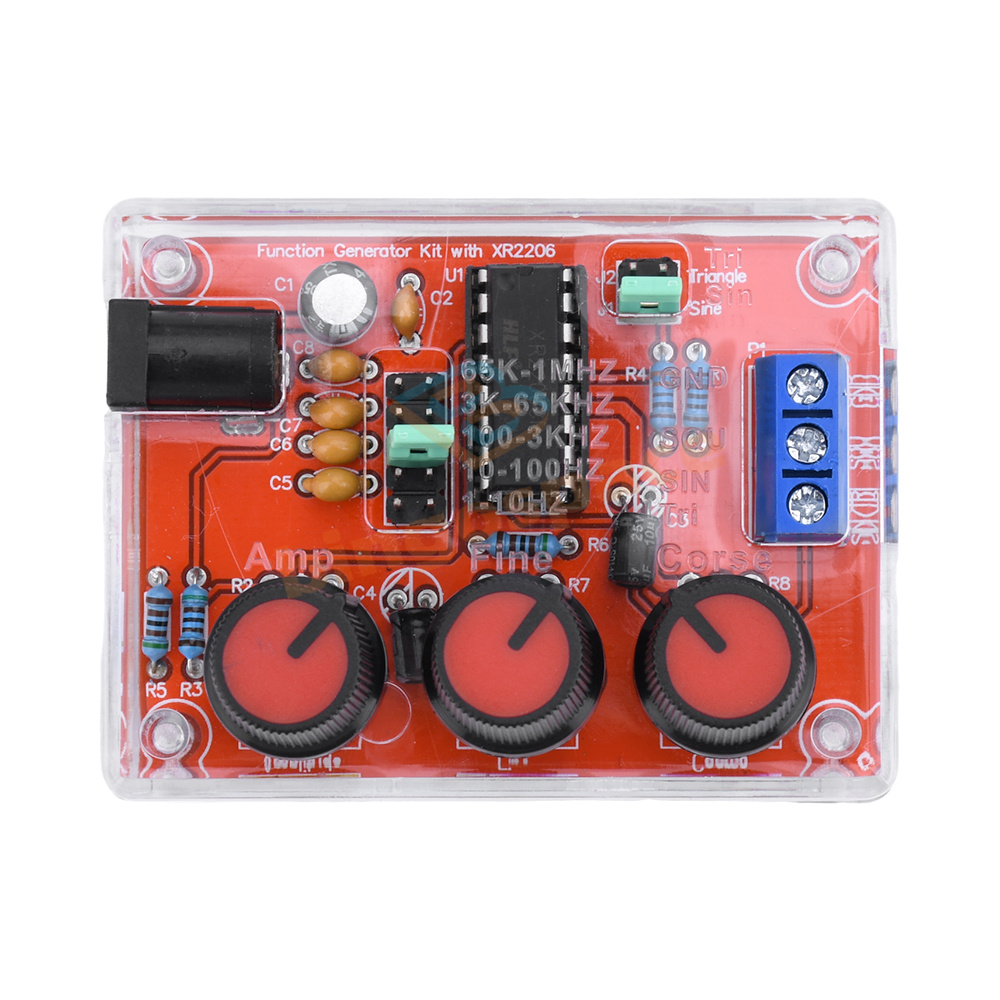

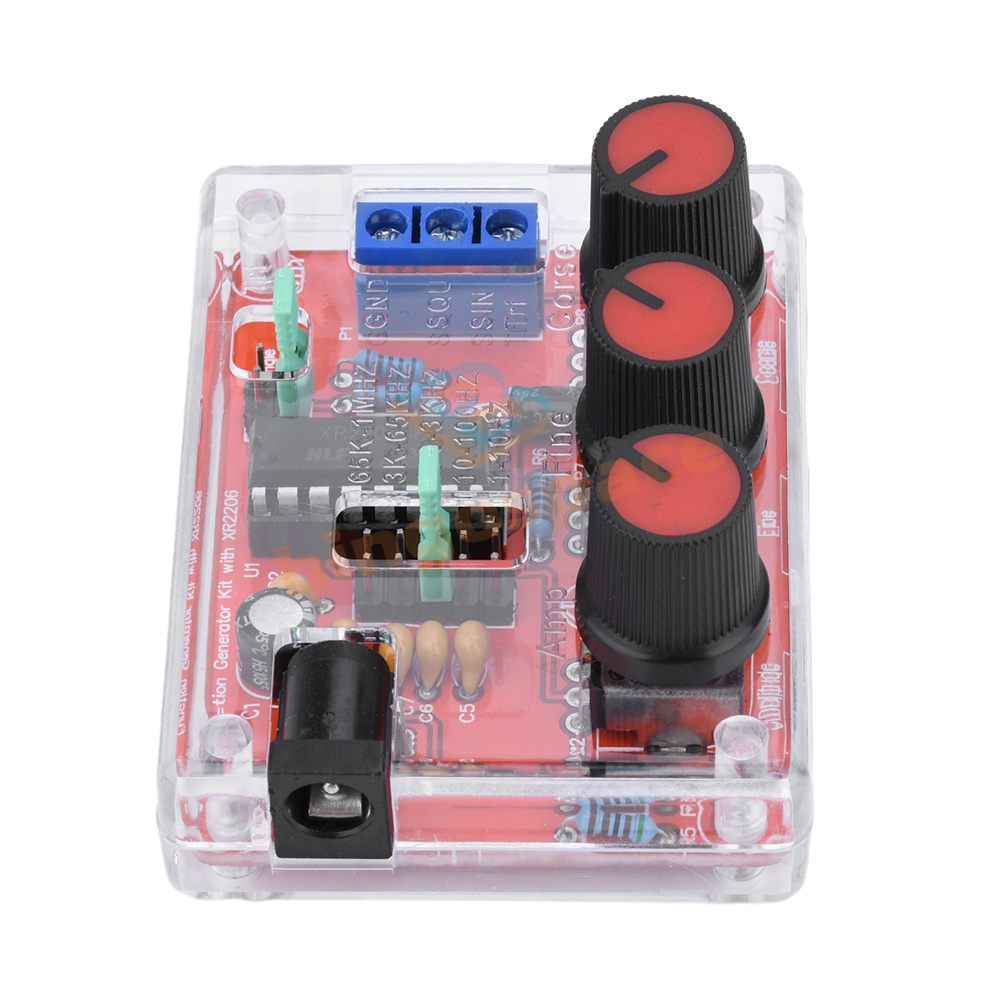

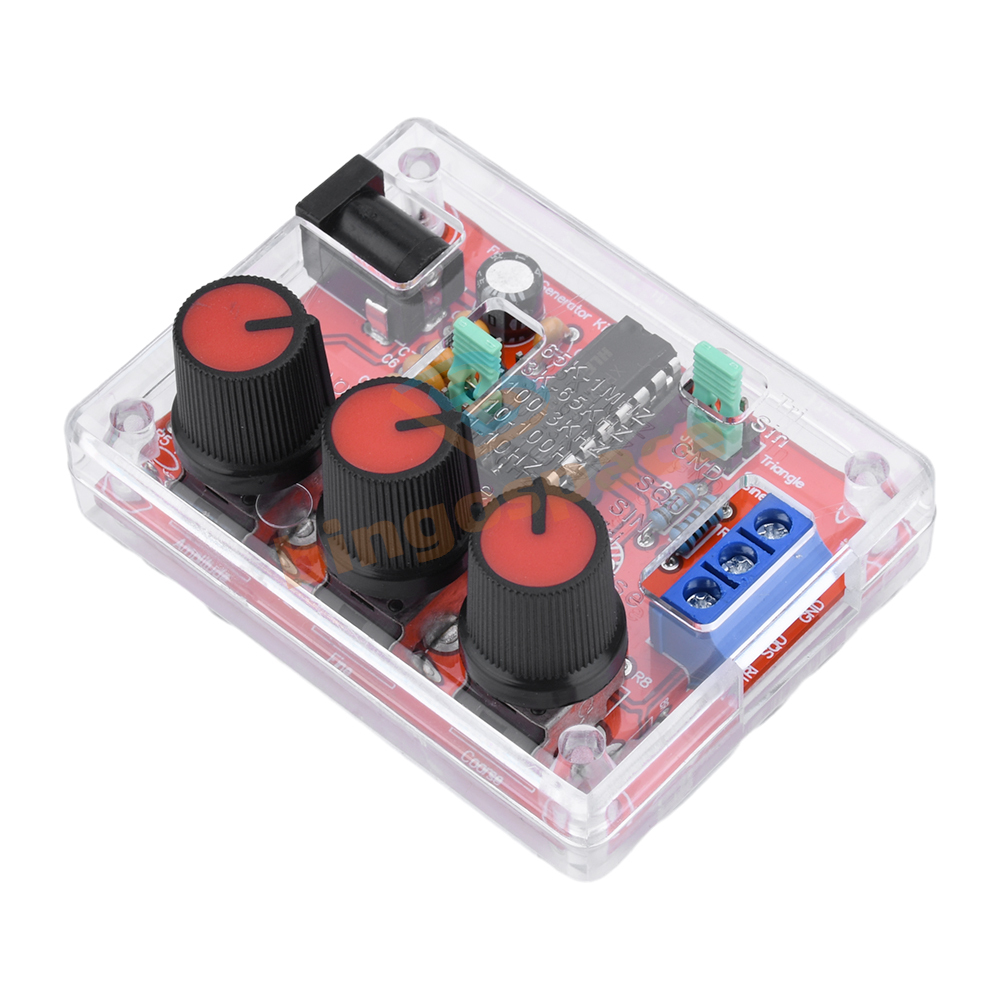

XR2206 Function Signal Generator Finished Sine Triangle Square Wave 1HZ-1MHZ
DESCRIPTION
1. Exquisite and compact appearance, beautiful arrangement of components
2. Made of high quality materials, durable and practical
3. Frequency can be adjusted from 1Hz-1MHz, the amplitude of the frequency can be adjusted
4. Wide range of applicable power supply, can use 9-12V or 9V external power supply.
5. Wide range of applications, suitable for a variety of industrial DIY occasions
Product parameters:
Voltage supply: DC9-12V
Waveform: square wave, sine and triangle
Impedance: 600 ohm +10%
Frequency: 1hz-1MHz
Sine wave:
Amplitude: 0-3V at 9V DC input
Distortion: less than 1%
Square wave:
Amplitude: 8V at 9V DC input (no load)
Rise time: less than 50ns
Fall time: less than 30ns
Symmetry: Less than 5% (at 1KHZ)
Triangle wave:
Amplitude: 0-3V at 9V DC input
Linearity: less than 1% (up to 100 khz ) 10mA
Packing List:
DIY kit or finished product *1
