Please note that the 1T5 brake in this product is 2Pin female plug

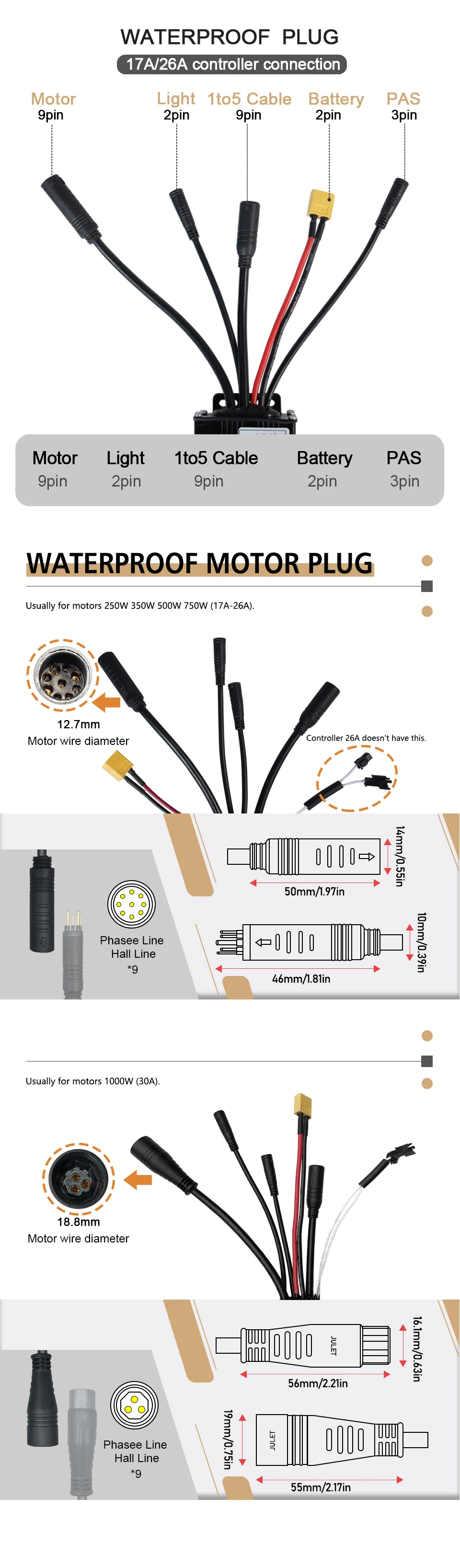

1,If you need awaterprooftype, Thewaterproof connector is very special, because of the wire sequence I cannot guarantee that it will be 100% compatible and work.

Our controller cable brand is Julet. Please check and confirm the appearance of your connector. Usually 90% of them can work normally. If you encounter problems during installation, please contact us and we will try our best to help you solve it.

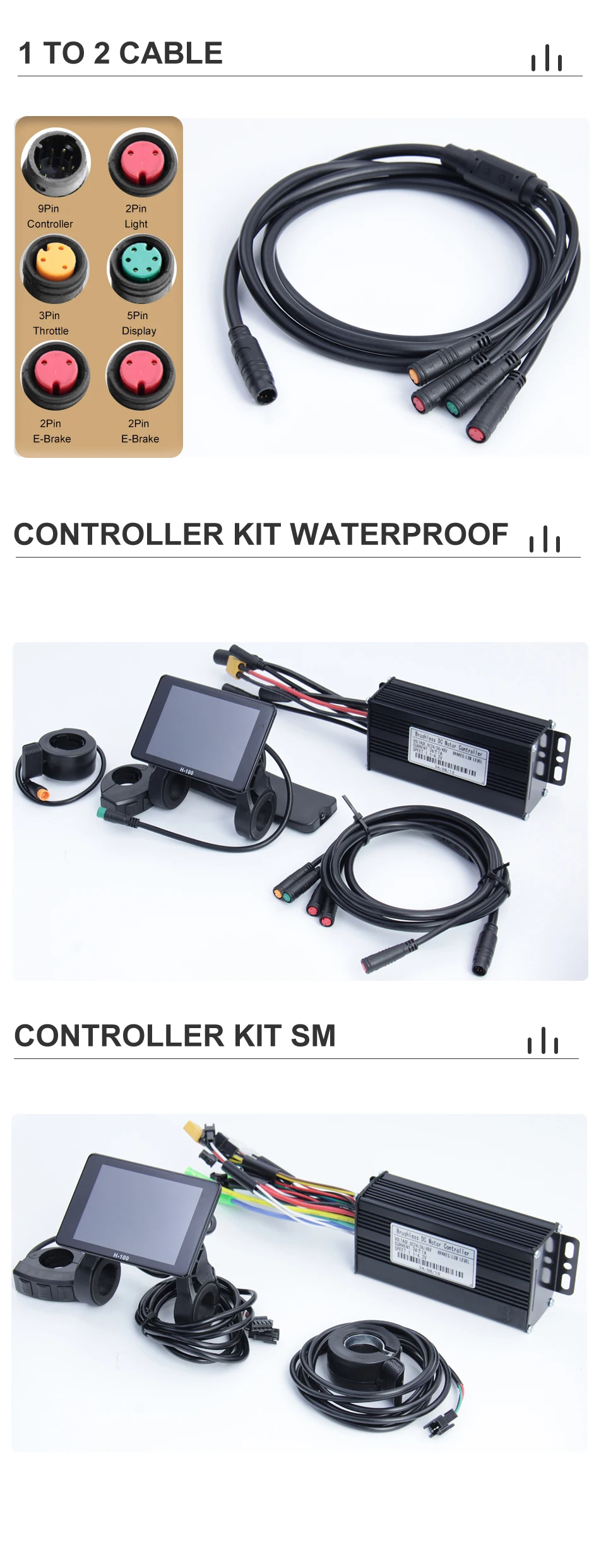

2.Waterproof cable length is about 13-15cm.If you want to connect the controller,you need one 1 to 4 /1 to 5 Extension Cable.

3.Please contact me if you are not sure which is right for you or have further questions by Aliexpress message.

4.If you have any questions after receiving the goods, or if you are worried about logistics when the goods are not received, please contact our staff as soon as possible.

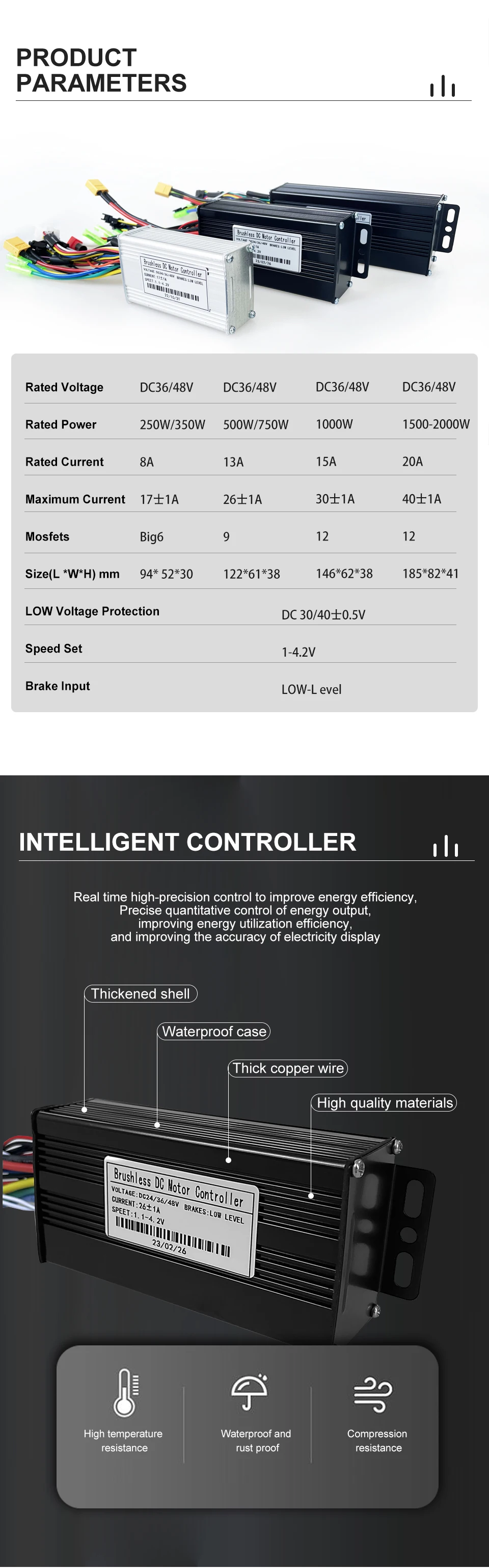

17AController

Type: 17A Controller

Size(L*W*H):About 95*53*30mm

Rated Power:250W/350W

Speed Set:1.1-4.2V

Mosfet:9Mosfet

Booster:1:5

Brakes:Low-L evel

Rated Voltage:DC36/48V

Compatible with motors with or without Hall

With motor forward and reverse learning function

26A Controller

Type: 26A Controller

Size(L*W*H):About 122*61*30mm

Rated Power:500W/750W

Speed Set:1.1-4.2V

Mosfet:9Mosfet

Booster:1:5

Brakes:Low-L evel

Rated Voltage:DC36/48V

Compatible with motors with or without Hall

With motor forward and reverse learning function

30A Controller

Type: 30A Controller

Size(L*W*H):145*61*38mm

Rated Power:1000W

Speed Set:1.1-4.2V

Mosfet:12 Mosfet

Booster:1:5

Brakes:Low-Level

Rated Voltage:DC36/48V

Compatible with motors with or without Hall

With motor forward and reverse learning function

40A Controller

Type: 40A Controller SM Plug

Size(L*W*H):185*82*41mm

Rated Power:2000W

Speed Set:1.1-4.2V

Mosfet:15 Mosfet

Booster:1:5

Brakes:Low-Level

Rated Voltage:DC36/48/52V

Compatible with motors with or without Hall

With motor forward and reverse learning function

Can manually connect to the 25km/h speed limit line
