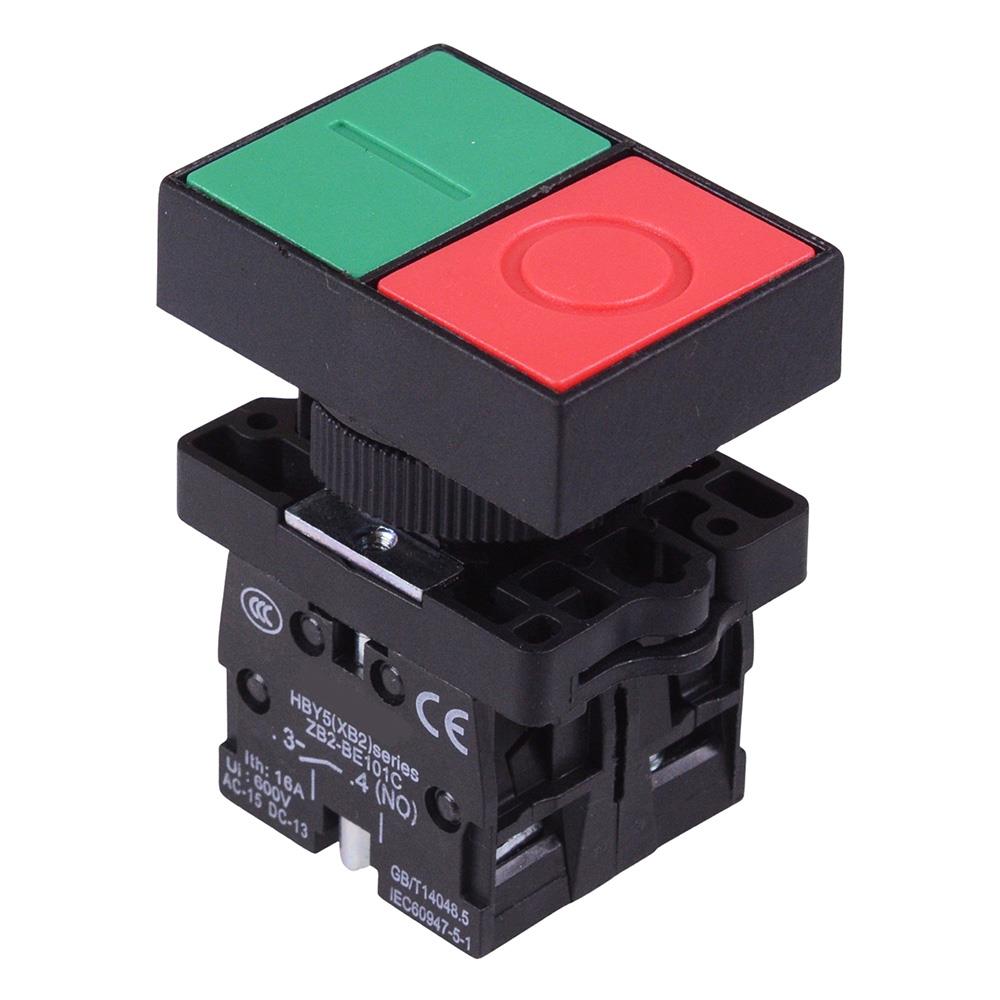

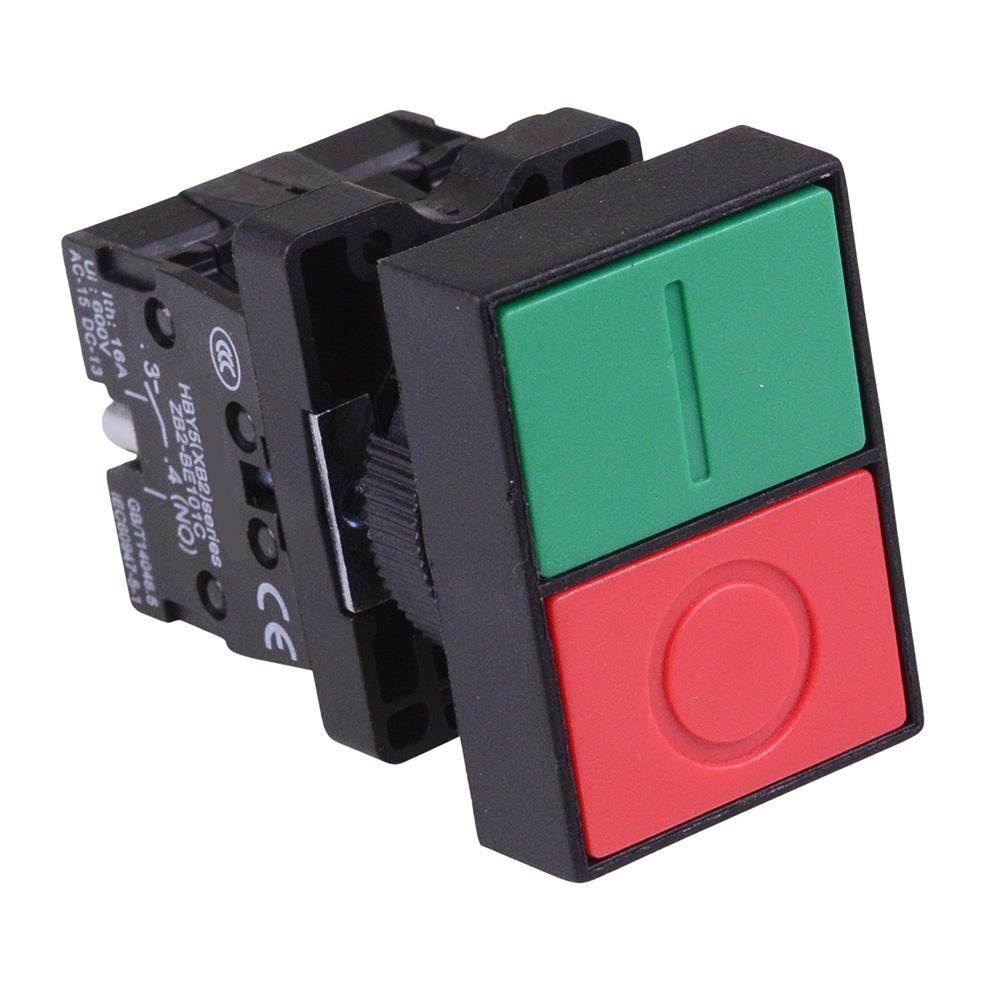

Red/Green Double Head Momentary Push Button Industrial Switch NO/NC

Red / green industrial push button switch featuring 1NO1NC contacts, suitable for 22mm panel cut-outs. The switch features 10A rated contact blocks and is terminated using the screw terminals. The switch is suitable for a wide range of industrial applications.

Corrosion resistant plastic construction

Interchangeable contact blocks and operators

Panel thickness: 5mm max

Panel cut-out: 22mm

Rated insulation voltage: 400V

Rated thermal current: 10A

1NO and 1NC contacts

Head size: 30.1 x 42.1mm
