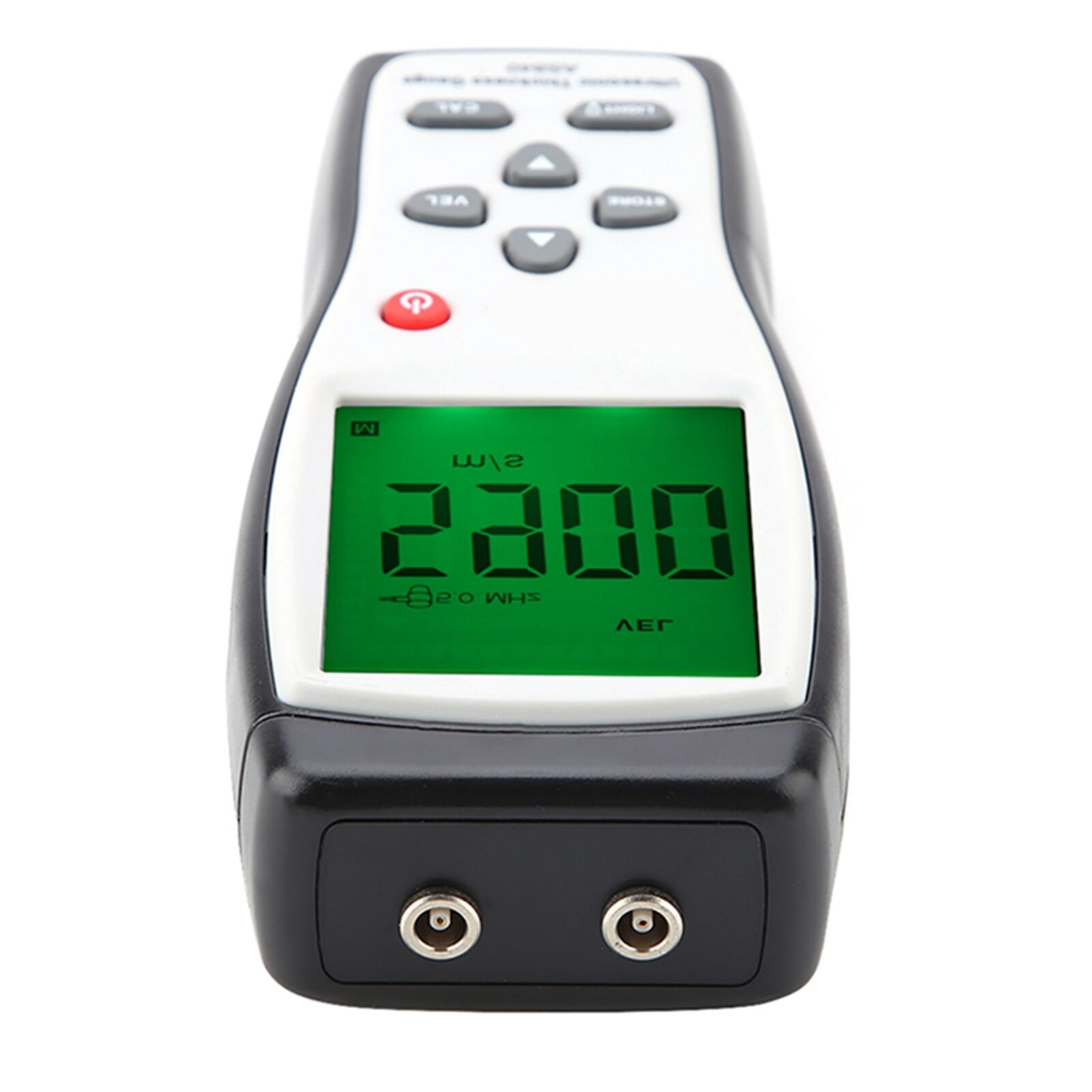

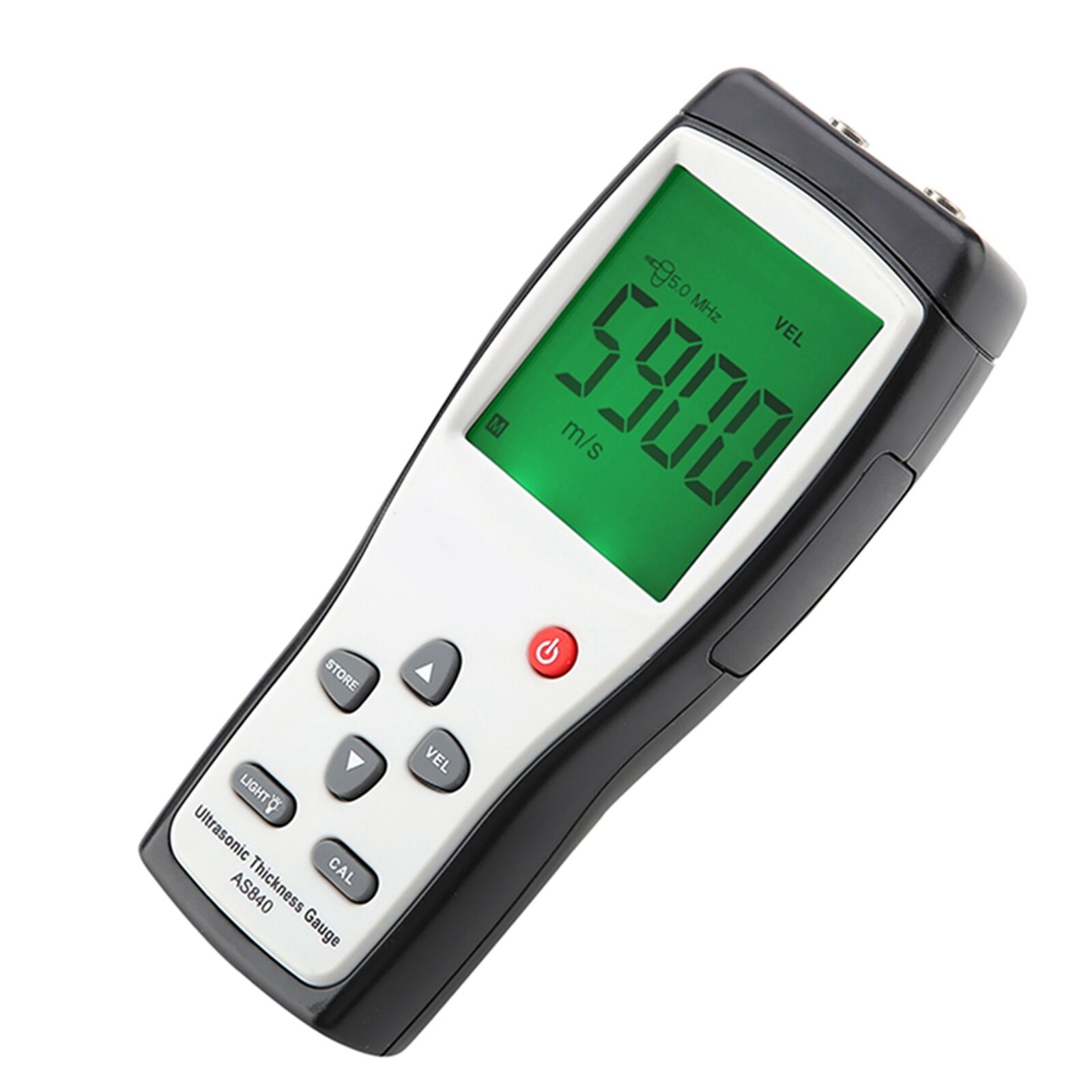

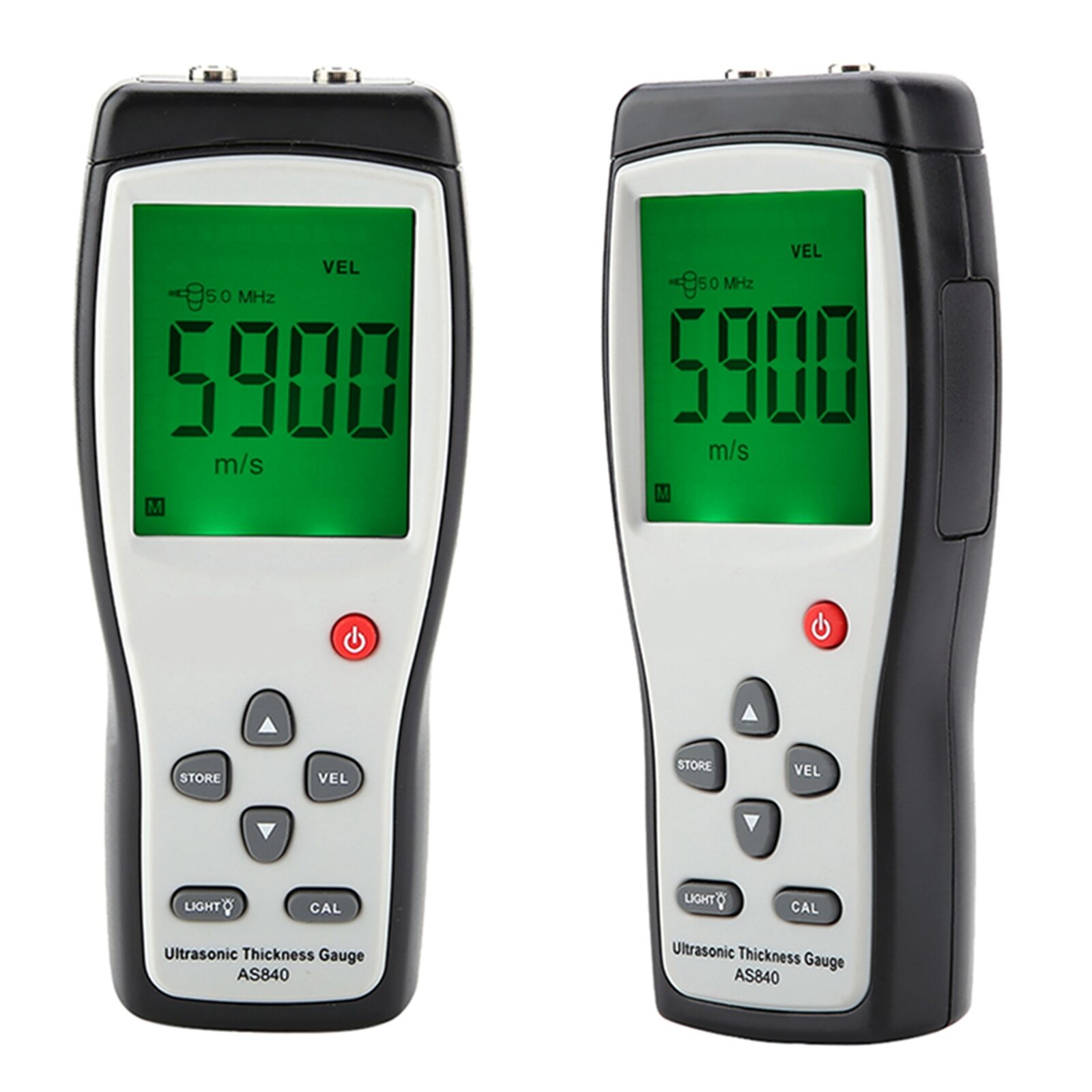

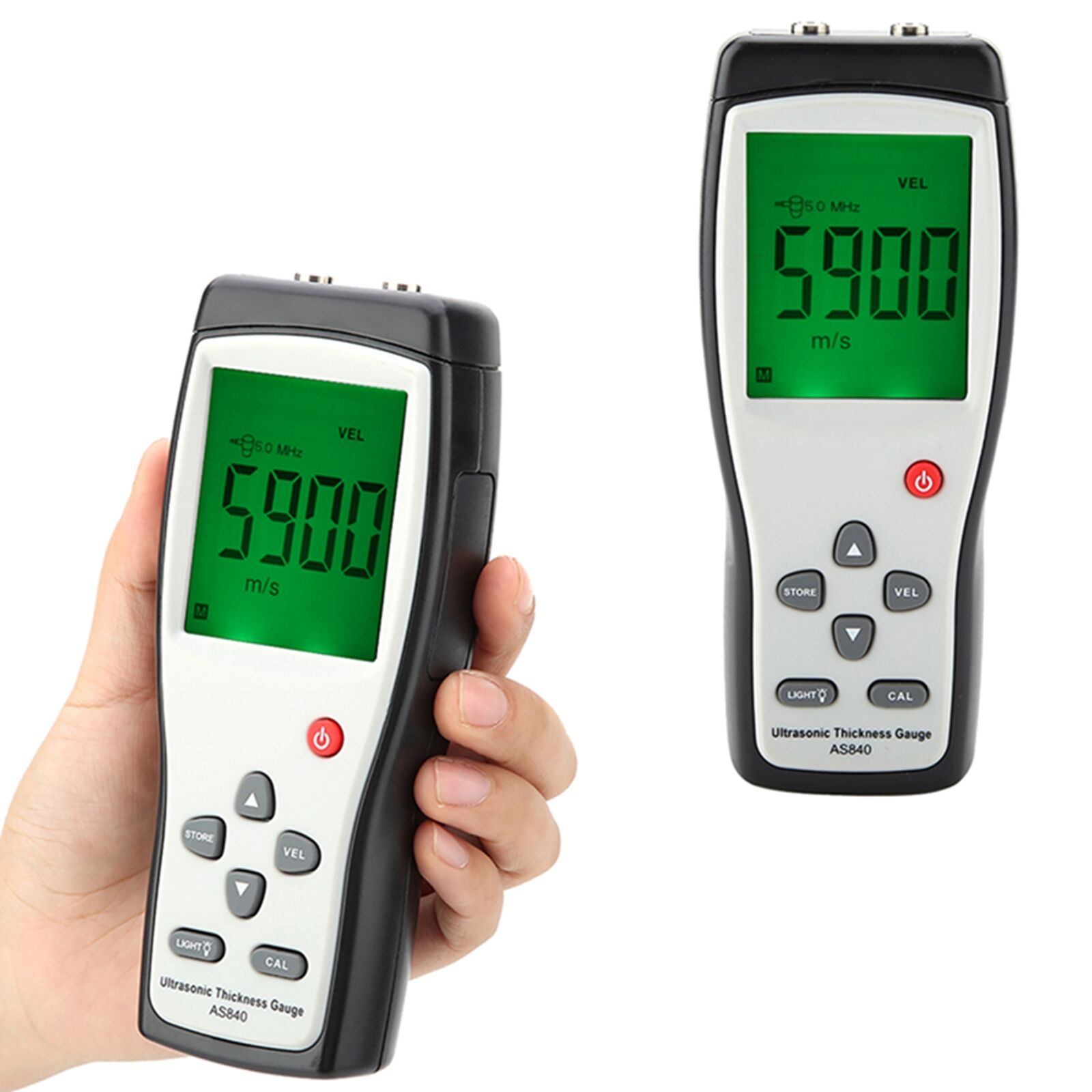

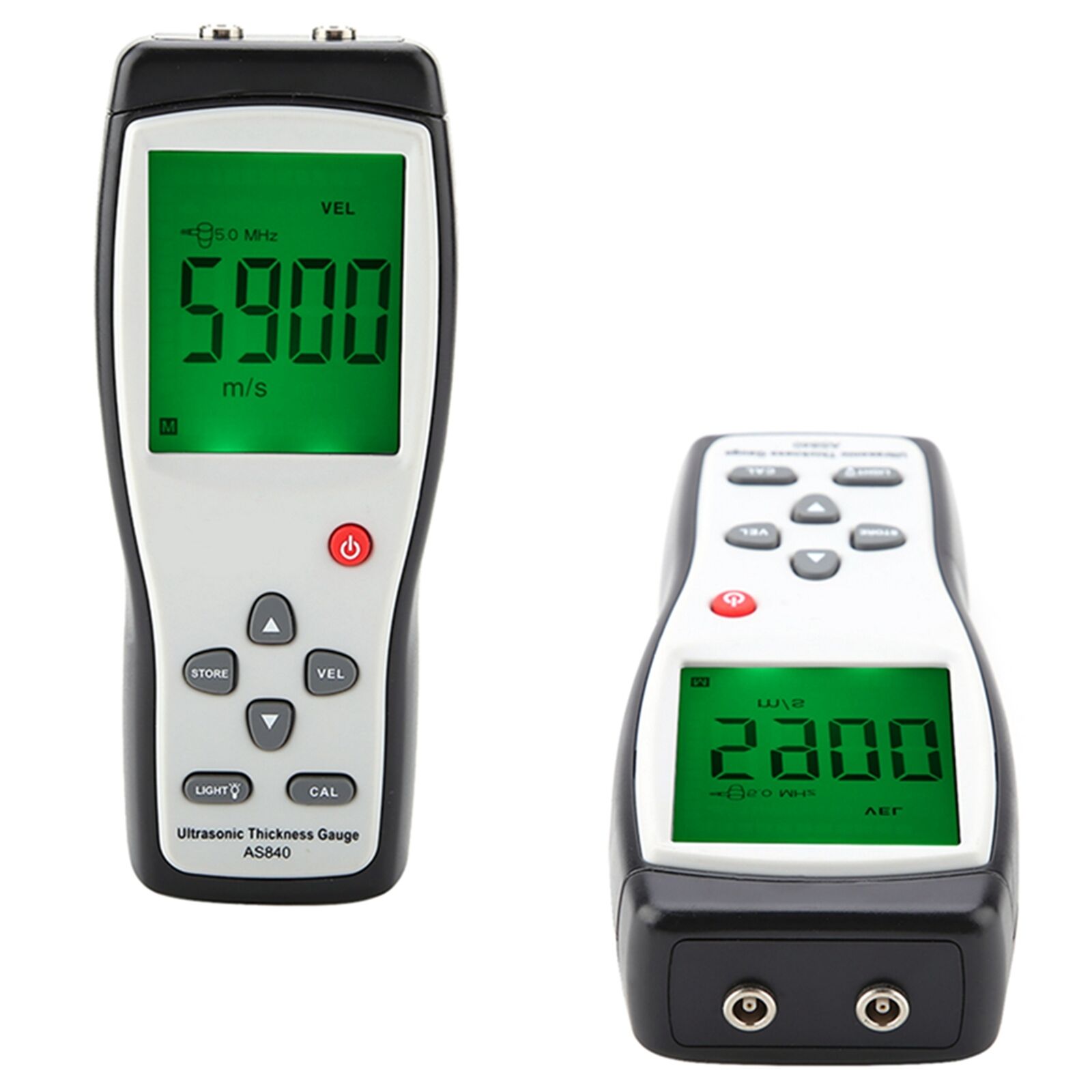

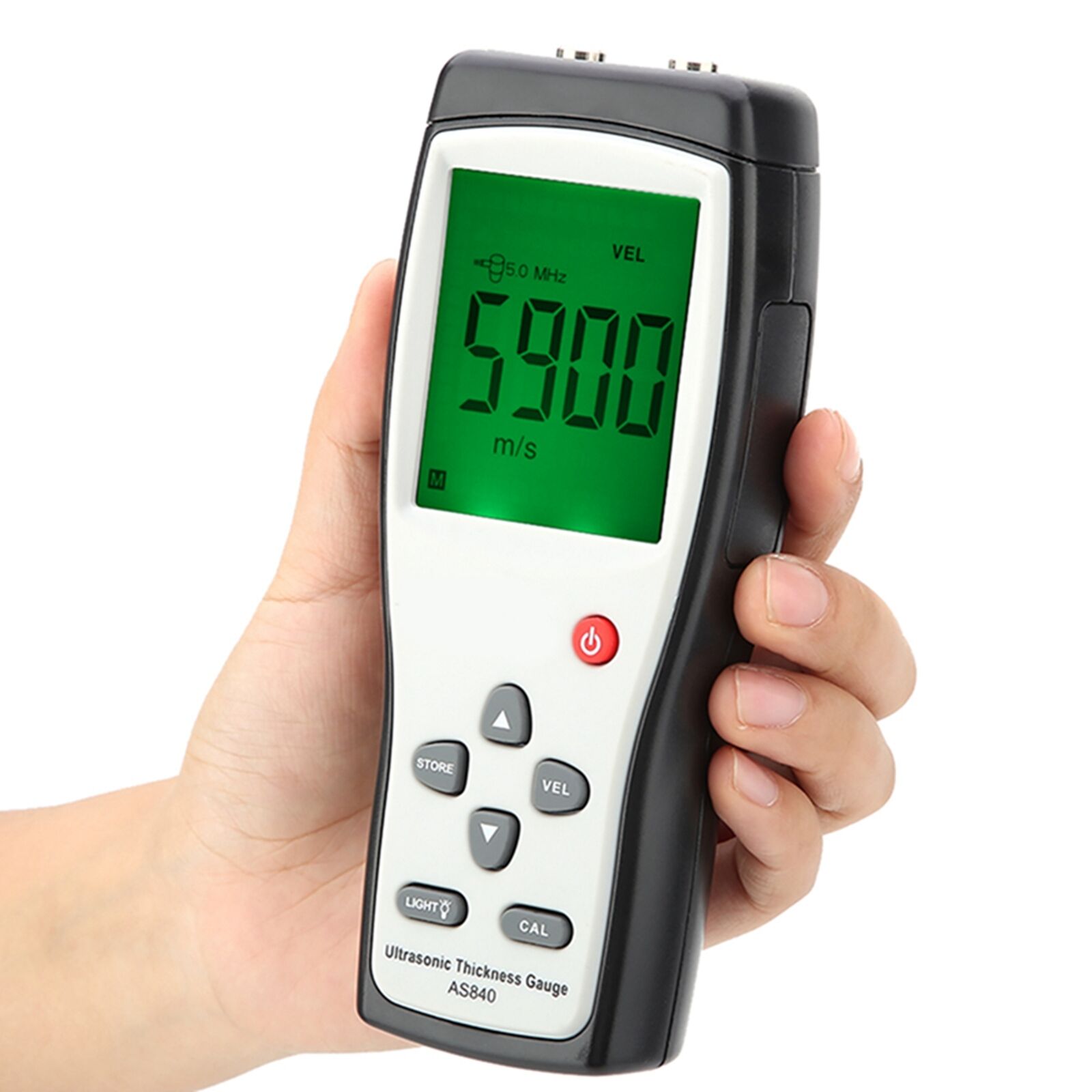

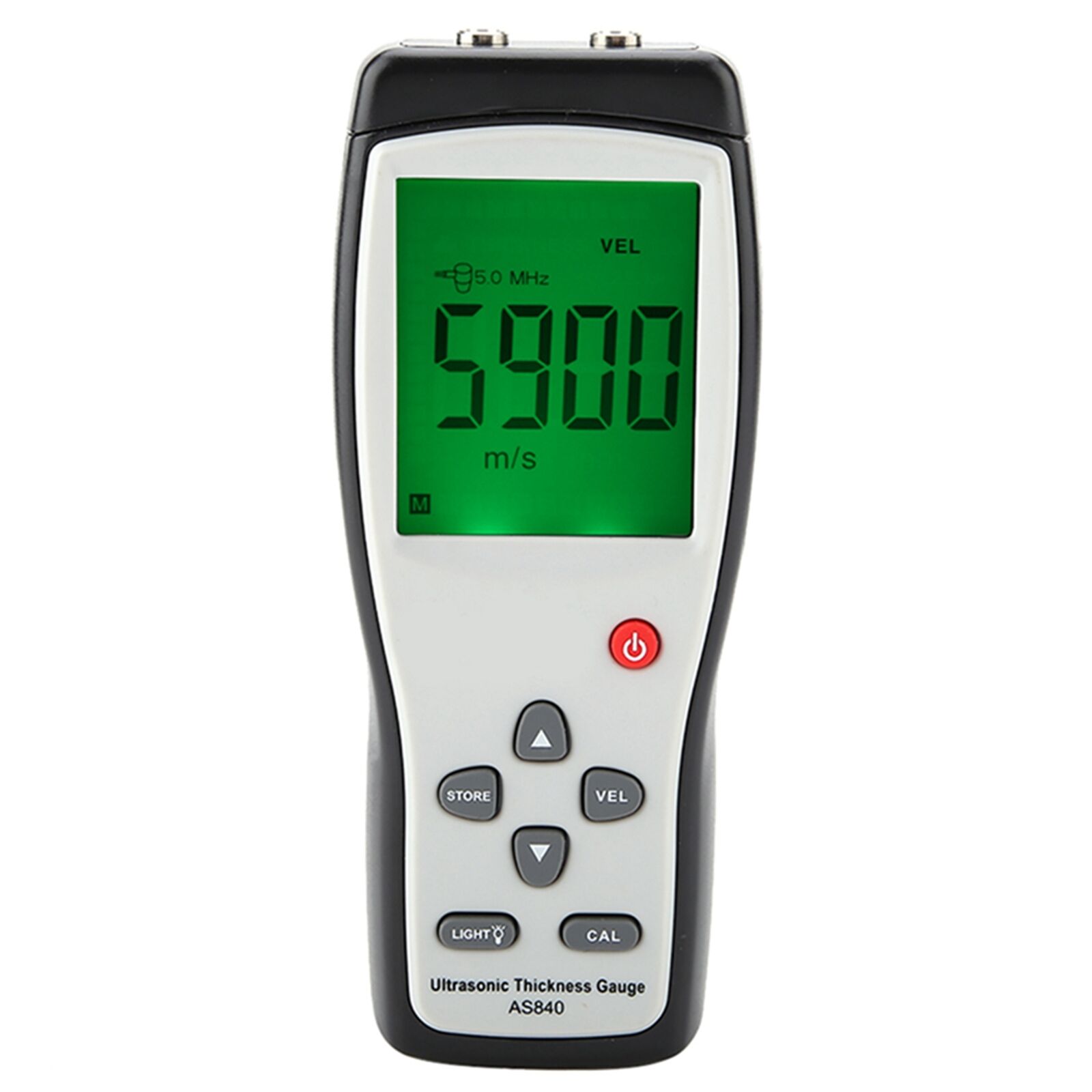

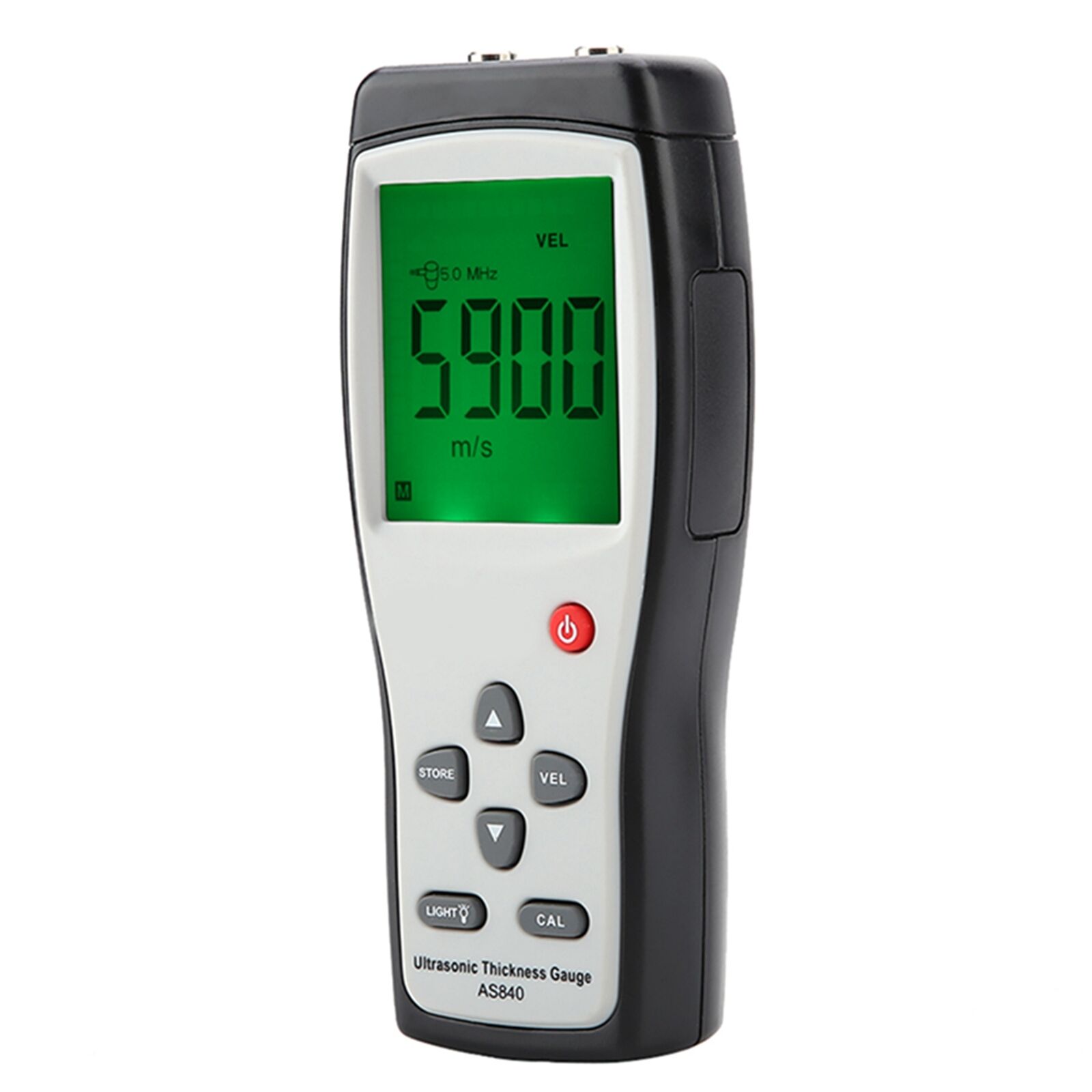

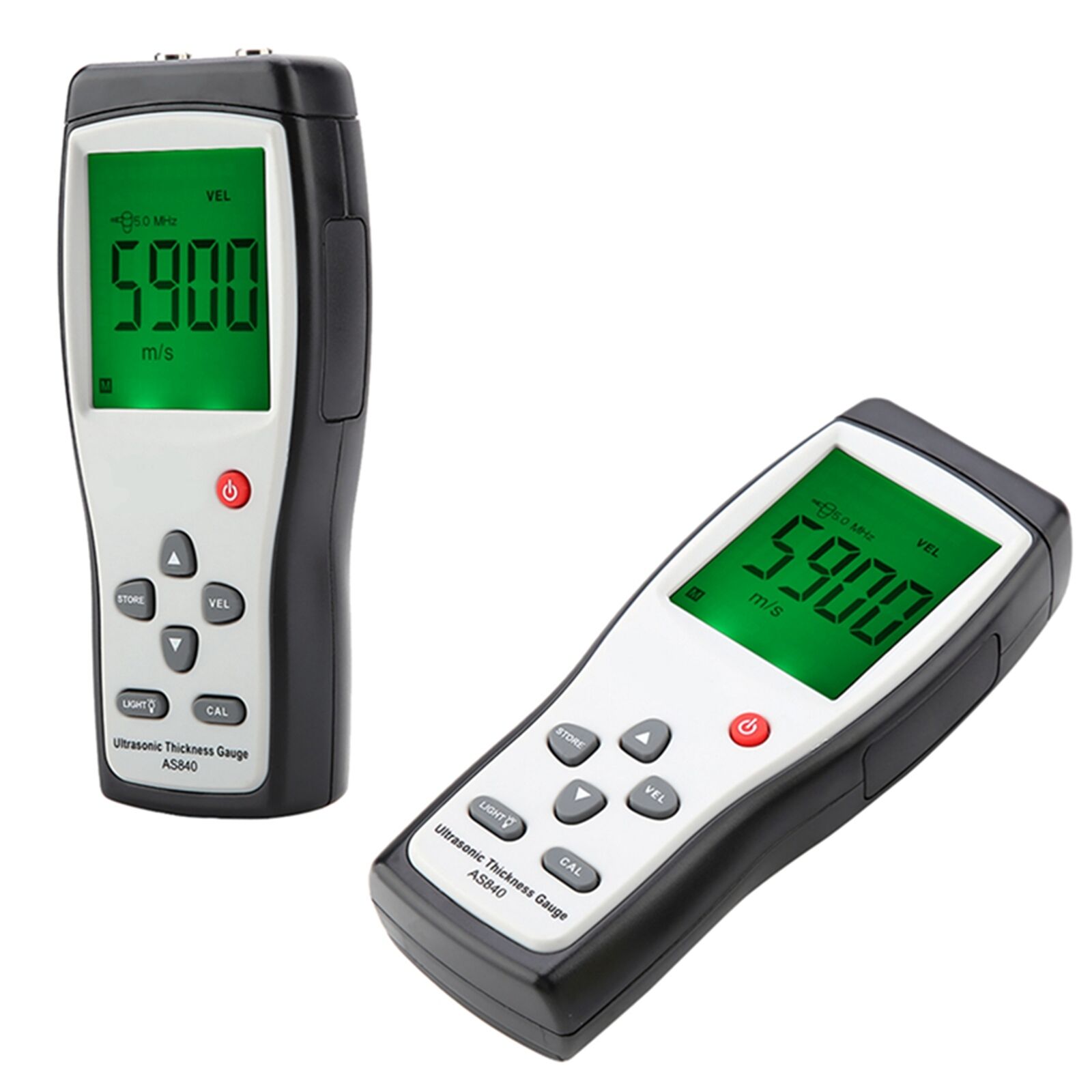

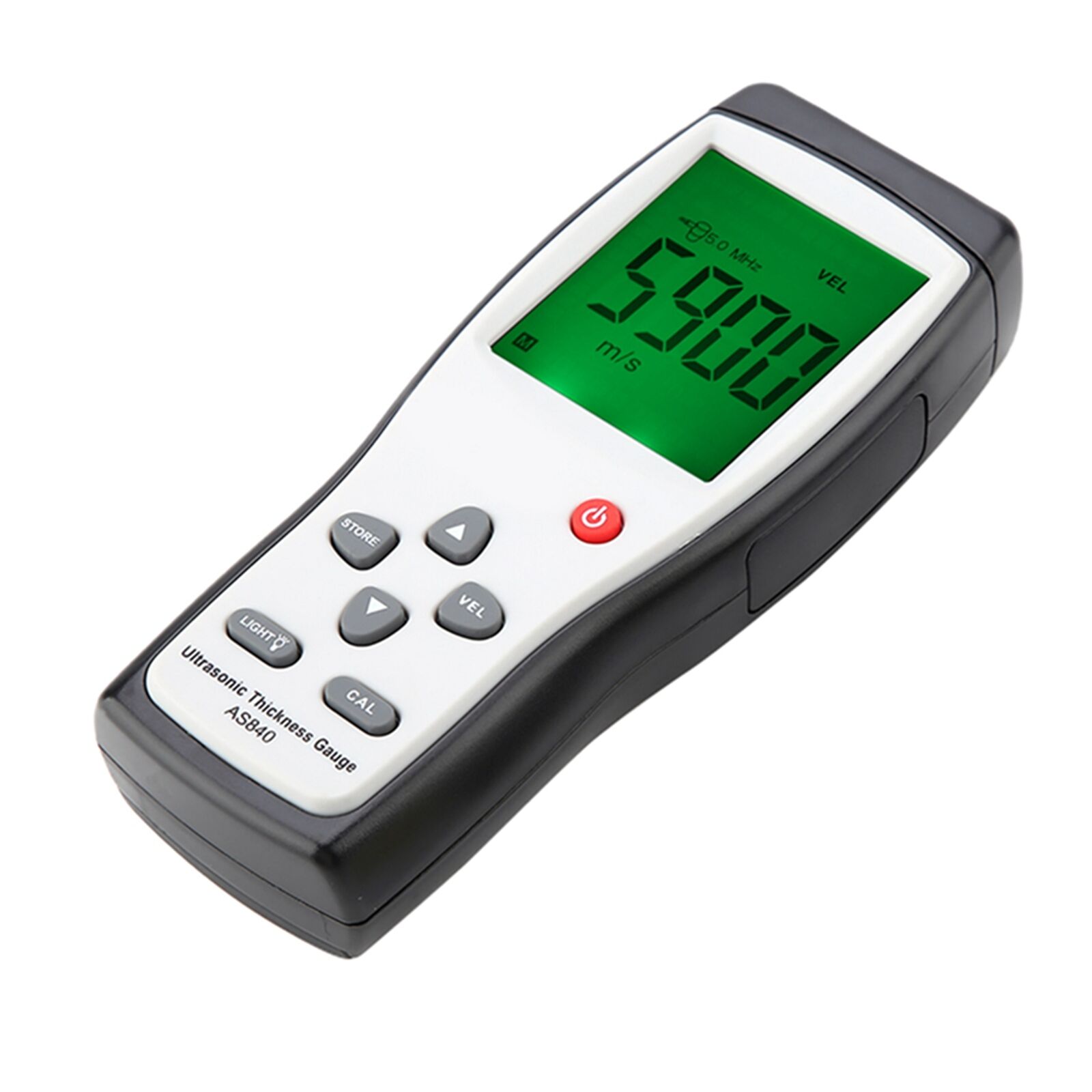

SMART SENSOR Ultrasonic Thickness Gauge This unit is an intelligent handheld product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material. This unit is widely used in various precise measurement for different hardware / parts in industrial realm; one of its important application is to monitor the level of thickness-decreasing during operation of various and pressure container. Diffusely
applied in manufacture fields, metal processing, and commercial inspection.
Scope of application:
This unit is suitable for measuring materials that are good ultrasonic conductor such as metal, plastic, ceramic, glass etc.,as long as the measured part in two parallel surfaces for measurement of thickness. This unit is not suitable for cast iron
due to its big crystalloid composition.
Features:
1. Auto calibration to assure the accuracy.
2. Auto linear compensation: this advanced software program enhances the by correcting the non-linear accuracy of transducer.
3. Use and keys to make a quick adjustment for the sound /thickness,and a quick recall to the stored data.
4. Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not.
5. 10 thickness measurement storage and recall function is available
6. which facilitates the height work or working in wild area.
7. Sound measurement: With a given thickness by a sample hardware to measure the sound , which avoid the further conversion or consultation of the table.
8. 12 sound for different material
9. Low battery indication
10. Auto power off mode designed to conserve battery power.
11. More than 10000 times long lift keys.
12. Manual power off
Specification:
| Display: | 4-digital LCD display |
| Minimum display unit: | 0.1 mm |
| Measuring range: | 1.2 to 225.0mm (steel) |
| Working frequency: | 5MHz |
| Accuracy: | (1%H+0.1)mm,H denotes the measured thickness. |
| Minimum limit for tube measuring: | 20*3mm (steel) |
| Sound range: | 1000 to 9999 m/s |
| Measuring sound with a given thickness: |
measuring range: 1000 to 9999 m/s. When the given thickness > 20mm, the accuracy is +/-5%; when the given thickness < 20mm, the accuracy is +/-1mm/H*100%. |
| Operation Condition |
temperature: 0°C~40°C Relative humidity: <90% Hardware/workpiece/material temperature: <60°C |
| Operation current: |
Normal operation current: 50mA With Backlight turn on current: 120mA Stand-by current: 20uA |
| Packing Contents |

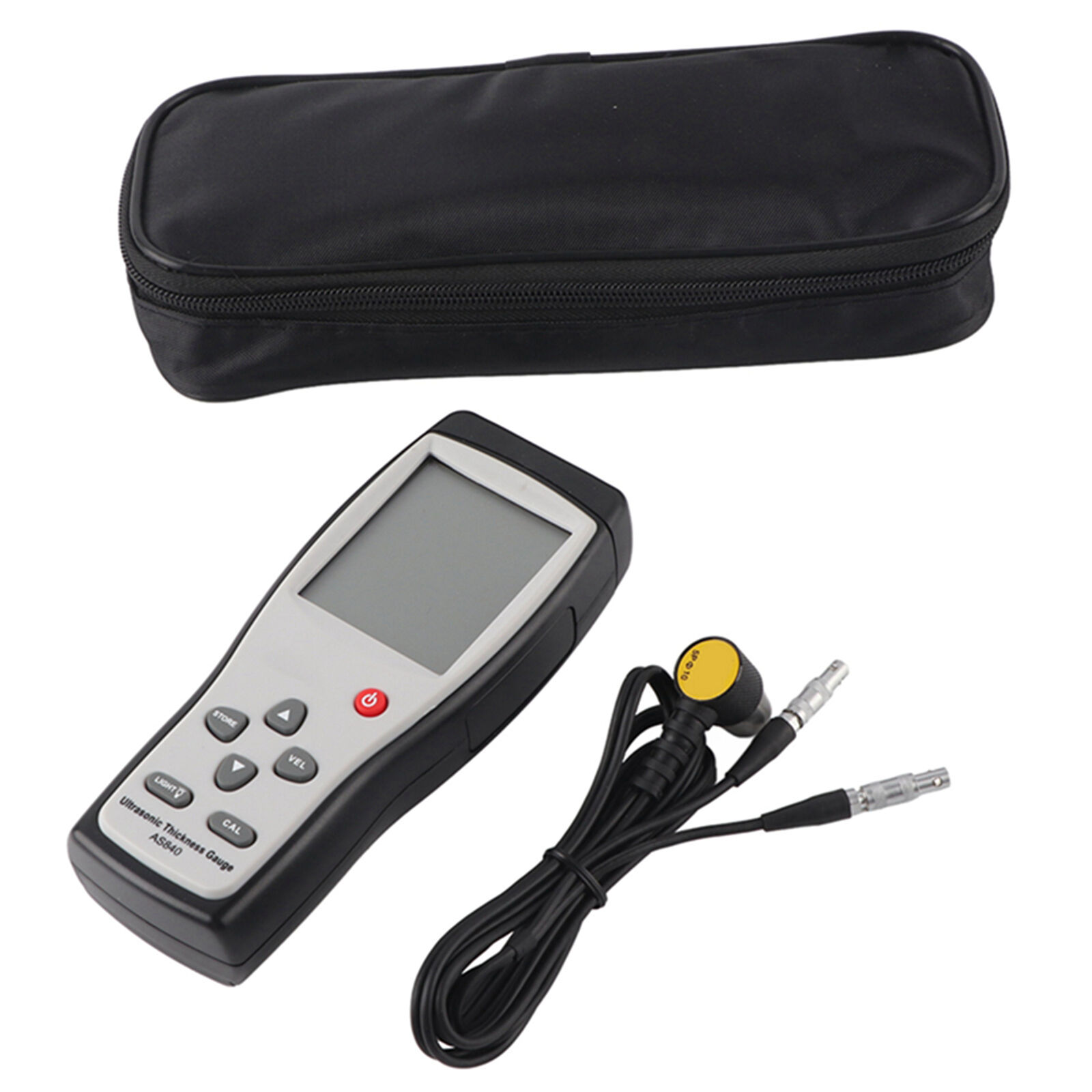

main unit-1PCS 4mmSample block-1PCS |
| Power supply: | 1.5V AAA * 3 PCS (not include due to limit) |
|
|
|
| Minimum limit for tube measuring | Dia.20*3mm(steel) |
| Auto Calibration | V |
| Auto linear compensation | V |
| Coupling Indicator | V |
| / Imperial Switchable | --- |
| Battery Indication / Auto Power Off | V |
| Product Net Weight / Product Size |
|
| Size | 158*62*30mm/6.2*2.4*1.2in |
| Weight | Approx.746g/26.3oz |
| Table of sound (Sound of common materials) | |||
| Material | (m/s) | Material | (m/s) |
| Aluminum | 6320 | Acetate resin | 2670 |
| Zinc | 4170 | Phosphor bronze | 3530 |
| Silver | 3600 | Turpentine | 4430 |
| Glod | 3240 | Glass | 5440 |
| Tin | 3230 | Incoloy alloy | 5720 |
| Iron/Steel | 5900 |
|
6310 |
| Brass | 4640 | Monel alloy | 6020 |
| Copper | 4700 | Nickle | 5630 |
| SUS | 5790 | Steel 4330 mild | 5850 |
| Acrylic resin | 2730 | Steel 330 | 5660 |
| Water 20C | 1480 |
|
6070 |
| Glycerinl | 1920 | Zirconium | 4650 |
| soluble glass | 2350 | Nylon | 2620 |
