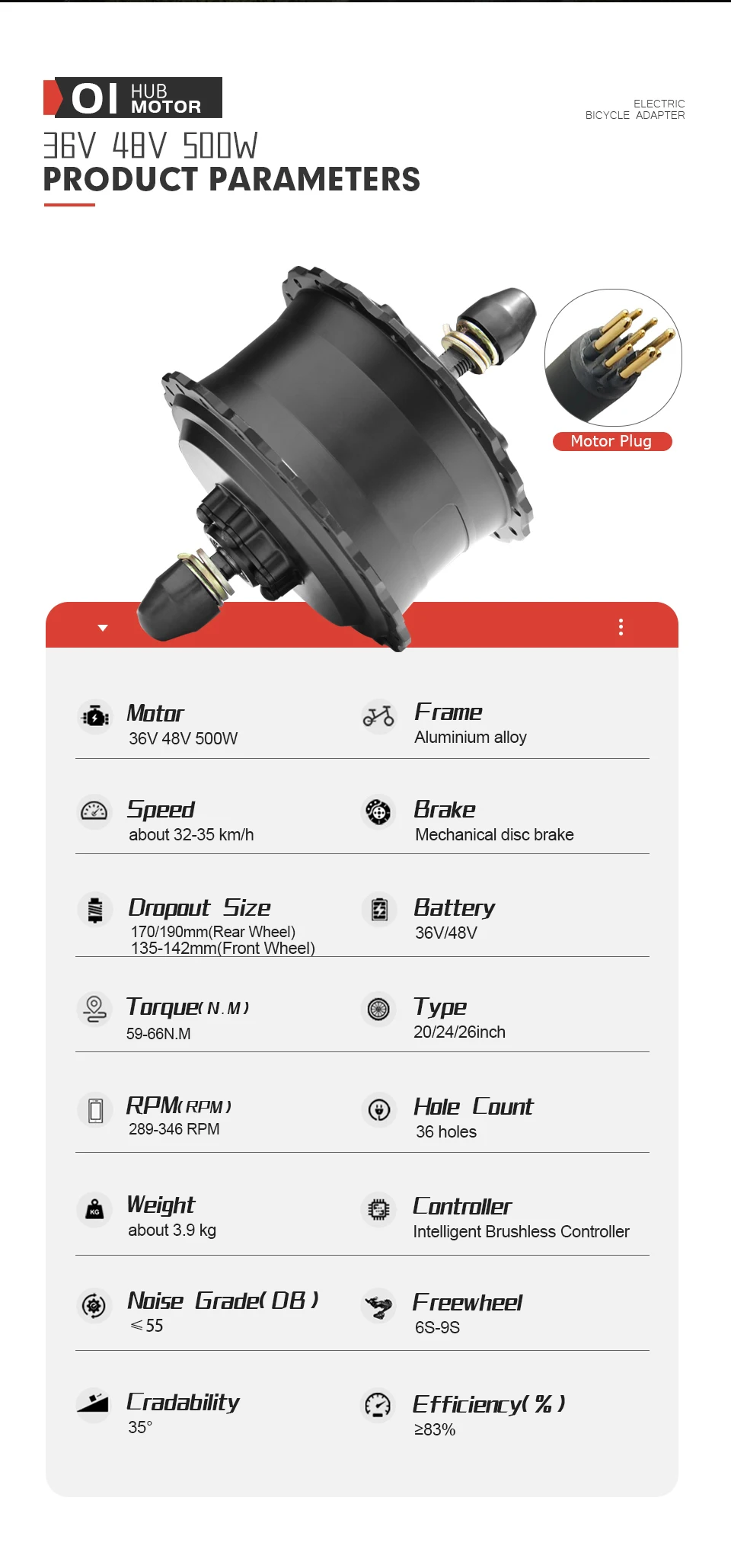

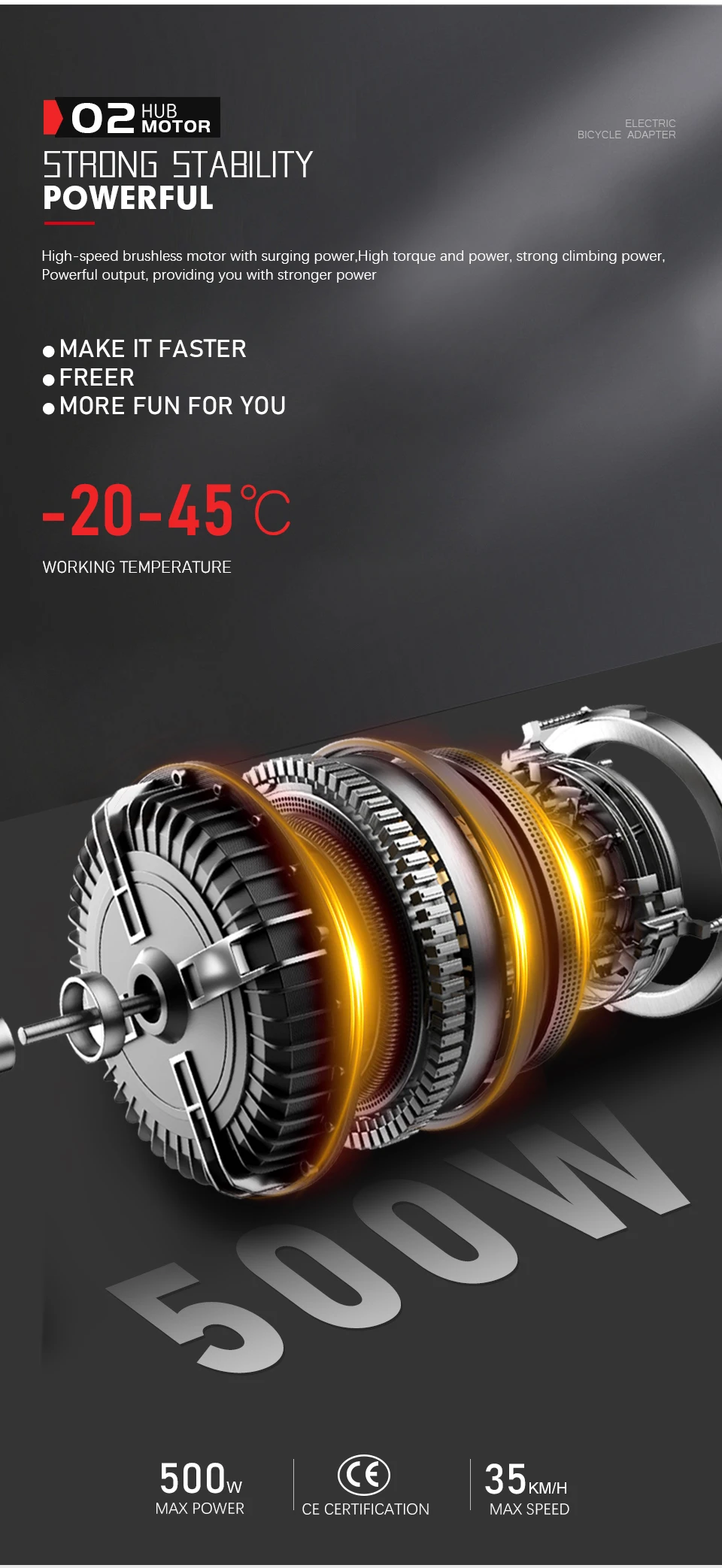

500W Front Motor

● Rated  Power：500W

● Rated  Speed：about 30-32km/h

● RPM：265-325 RPM

● Torque(N.M)：60-63 N.M

● Brake Type：Disc Brake

● Position: Front

● Construction:Gear motor

● Operating Temperature(℃):-20-45

● IP Grade:IP65

● Wheel Size (inch) :20inch 26inch

● Tyre:Brushless Gear hub motor

● Spokes Specification:12/13G

● Rated Efficiency(%):>=80

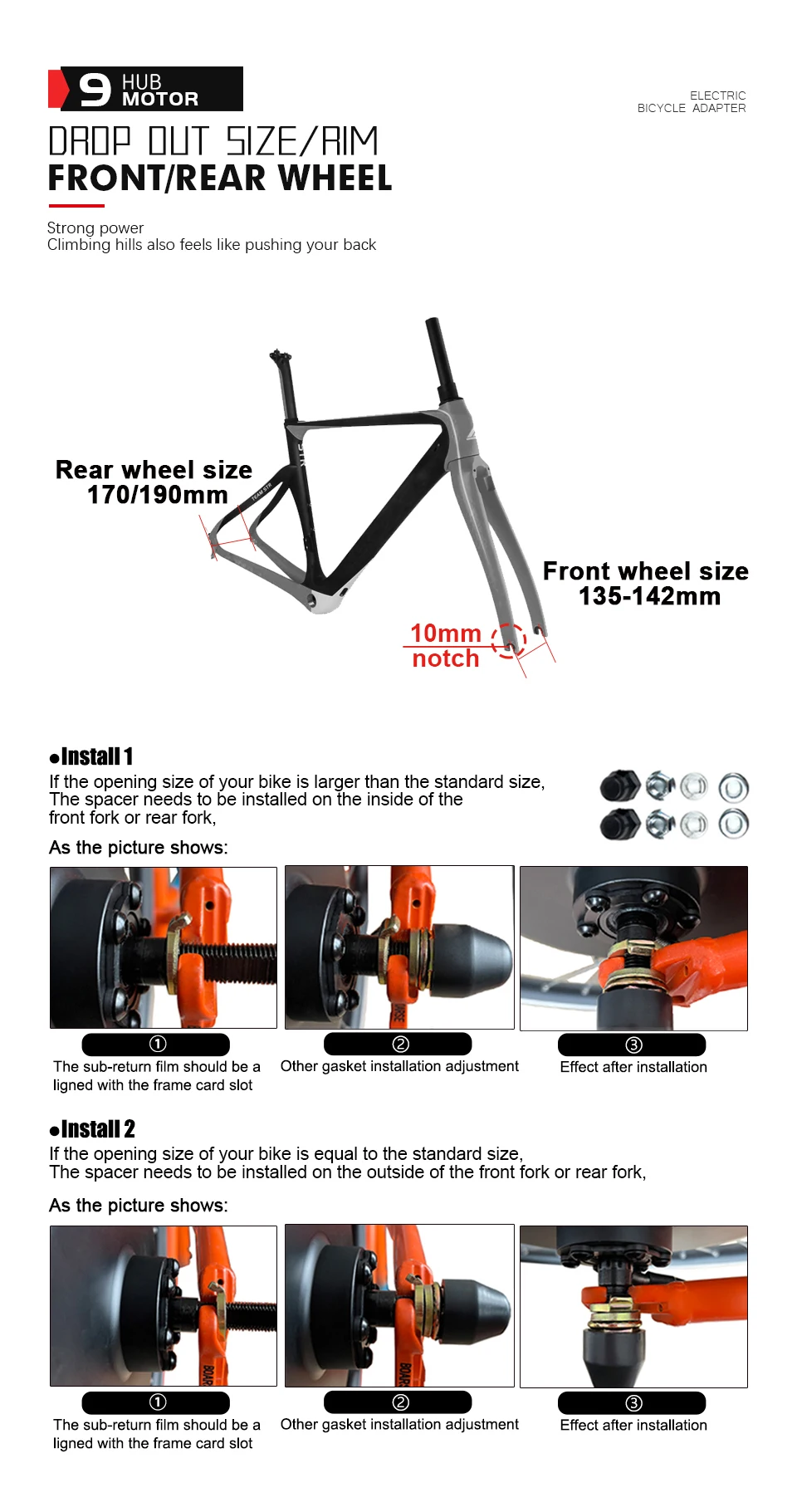

● Fork(mm):135-142mm

● Noise(db):<55db

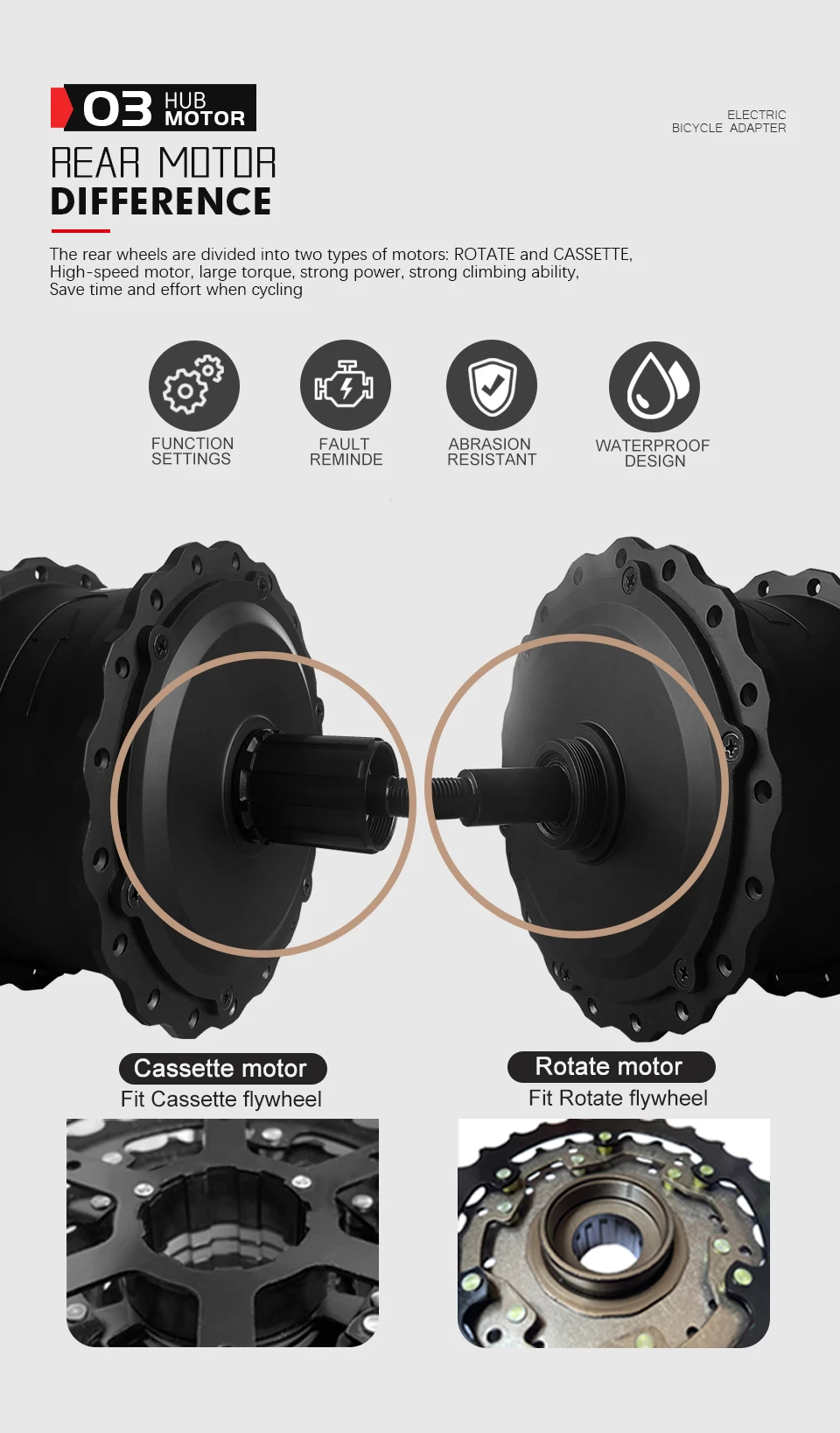

500W Rear Rotate Motor

● Rated  Power：500W

● Rated  Speed：about 30-32km/h

● RPM：265-325 RPM

● Torque(N.M)：60-63 N.M

● Brake Type：Disc Brake

● Position: Rear

● Construction:Gear motor

● Operating Temperature(℃):-20-45

● IP Grade:IP65

● Wheel Size (inch) :20inch 26inch

● Tyre:Brushless Gear hub motor

● Spokes Specification:12/13G

● Rated Efficiency(%):>=80

● Rear Fork(mm):170/190mm

● Noise(db):<55db


500W Rear Cassette Motor

● Rated  Power：500W

● Rated  Speed：about 30-32km/h

● RPM：265-325 RPM

● Torque(N.M)：60-63 N.M

● Brake Type：Disc Brake

● Position: Rear

● Construction:Gear motor

● Operating Temperature(℃):-20-45

● IP Grade:IP65

● Wheel Size (inch) :20inch 26inch

● Tyre:Brushless Gear hub motor

● Spokes Specification:12/13G

● Rated Efficiency(%):>=80

● Rear Fork(mm):190mm

● Noise(db):<55db



The item comply with UL requirement, and it is certified to meet UL 2849 safety standards
