HobbyWing QUICRUN Fusion Mini16 3000KV 24MM Brushless Sensory 2 in 1 Motor 80A Peak Current For 1/16 1/18 RC Climbing Crawler Car
Features:

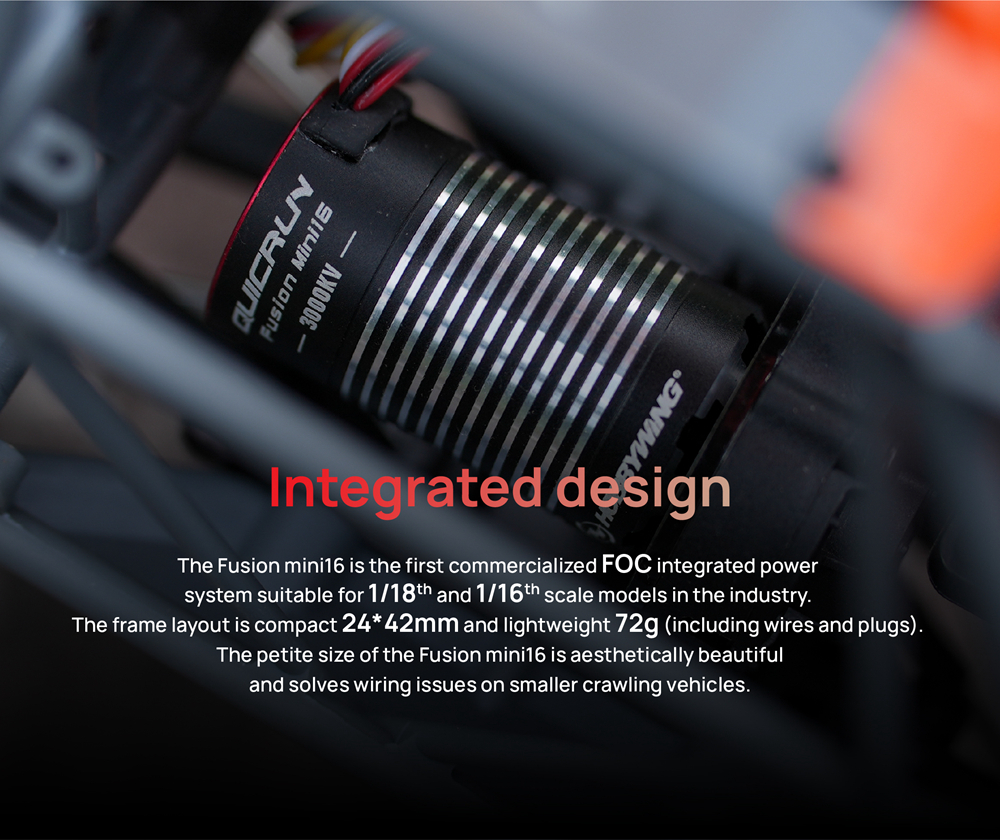

1. One-piece design: The petite size of the Fusion mini16 is aesthetically beautiful and solves wiring issues on smaller crawling vehicles

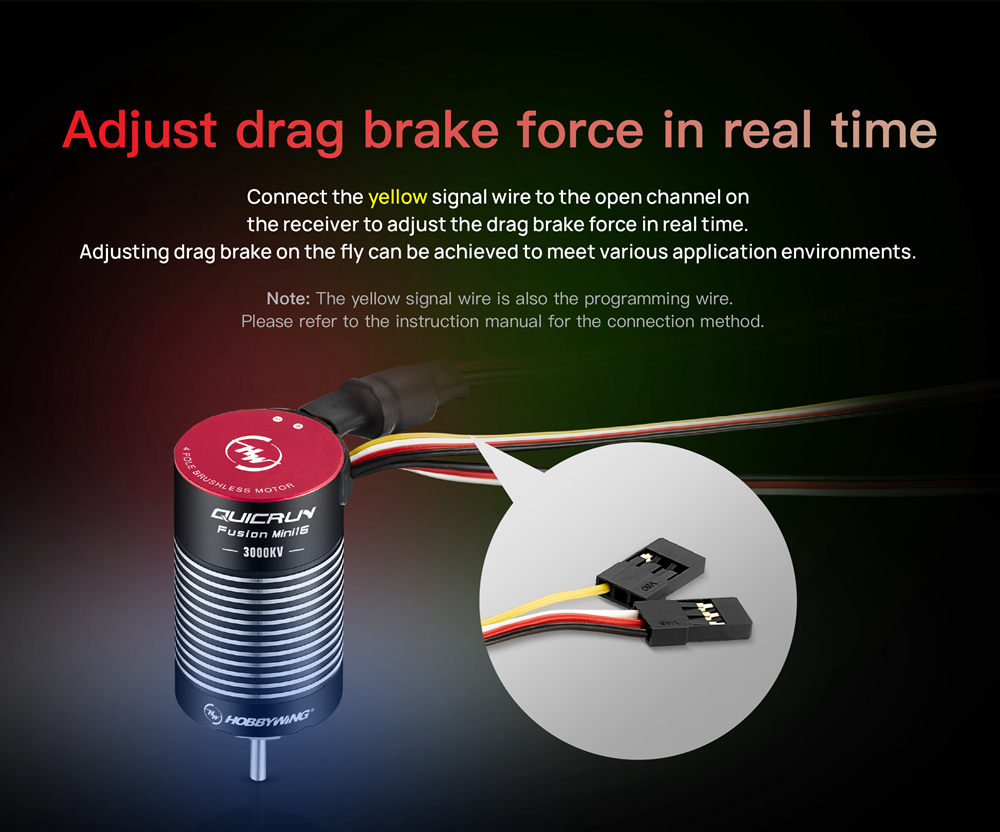

2. Adjust drag brake force in real time,Connect the yellow signal wire to the open channel onthe receiver to adjust the drag brake force in real time

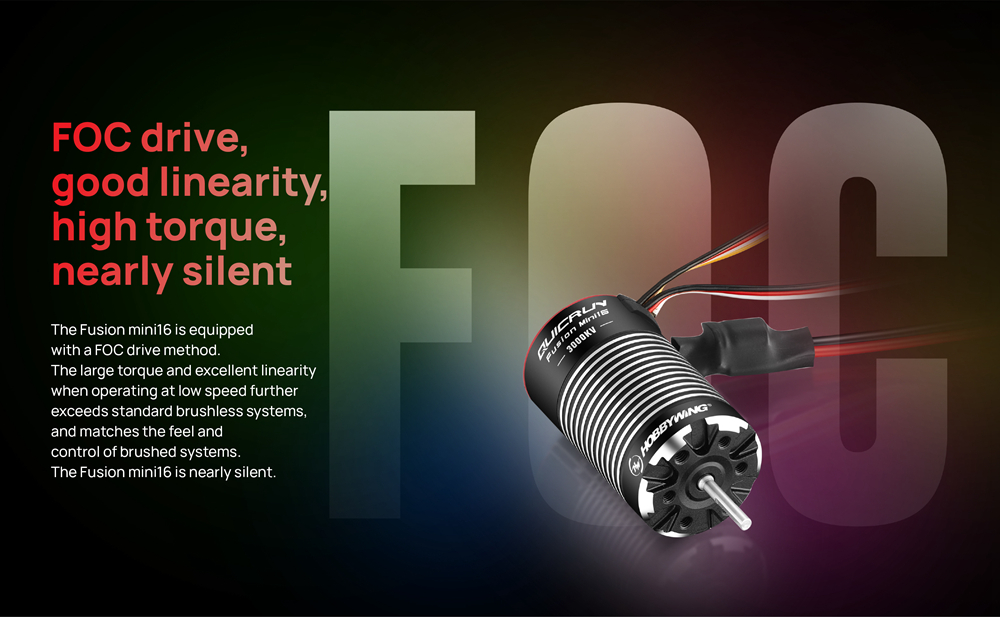

3. FOC drive,good linearity,high torque,nearly silent

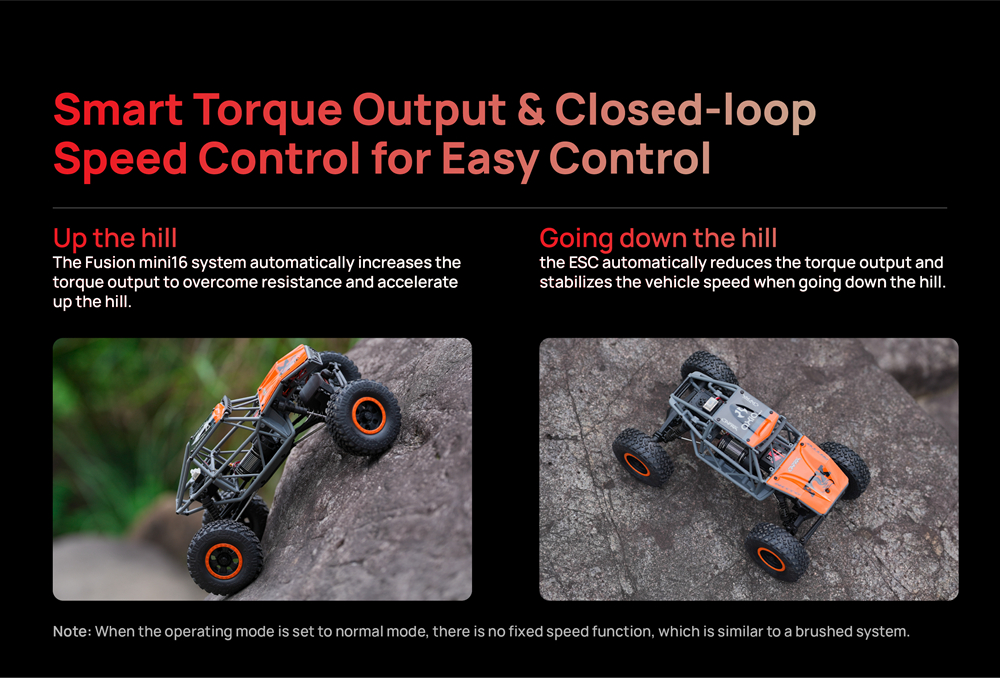

4. Smart torque output & closed-loop Speed control for Easy control
5. IP66 protection level,lt has excellent waterproofing and dust-proofing performanceto cope with complex and various running conditions
6. Super Internal BEC,continuous current of 4A,Maximum current of 10A,The output voltage is switchable between 6V/7.4V
7. Supports optional motor adapter:compatible with25.4mm mounting holes
8. The motor built in a set of mounting holes: 14mm-M2.5/16mm-M2.5/17mm-M3
9. Wide Applicability: for 1/16 1/18 climbing models,also suitable for 1/14、1/12 and 1/10 lightweight single-speec scale models(≦1.8kg, gear ratio≧60)
Description:
The integrated design of the ESC and the motor greatly reduces the overall volume and weight, and makes the layout and wiring of car frame simpler and more convenient.The FOC driving mode, low speed torque is strong. Smooth running at extreme low speed, which is far superior to the common sensored brushless power system, even better than the brushed power.
Specifications:
model: QuicRun fusion Mini16
Model Continuous: 30A
Peak Current: 80A
Main applications:1/16&1/18 Crawier
Lipo Cells: 2-3S Lipo,6-9cells NiMH
BEC output: 6V/7.4V 4A

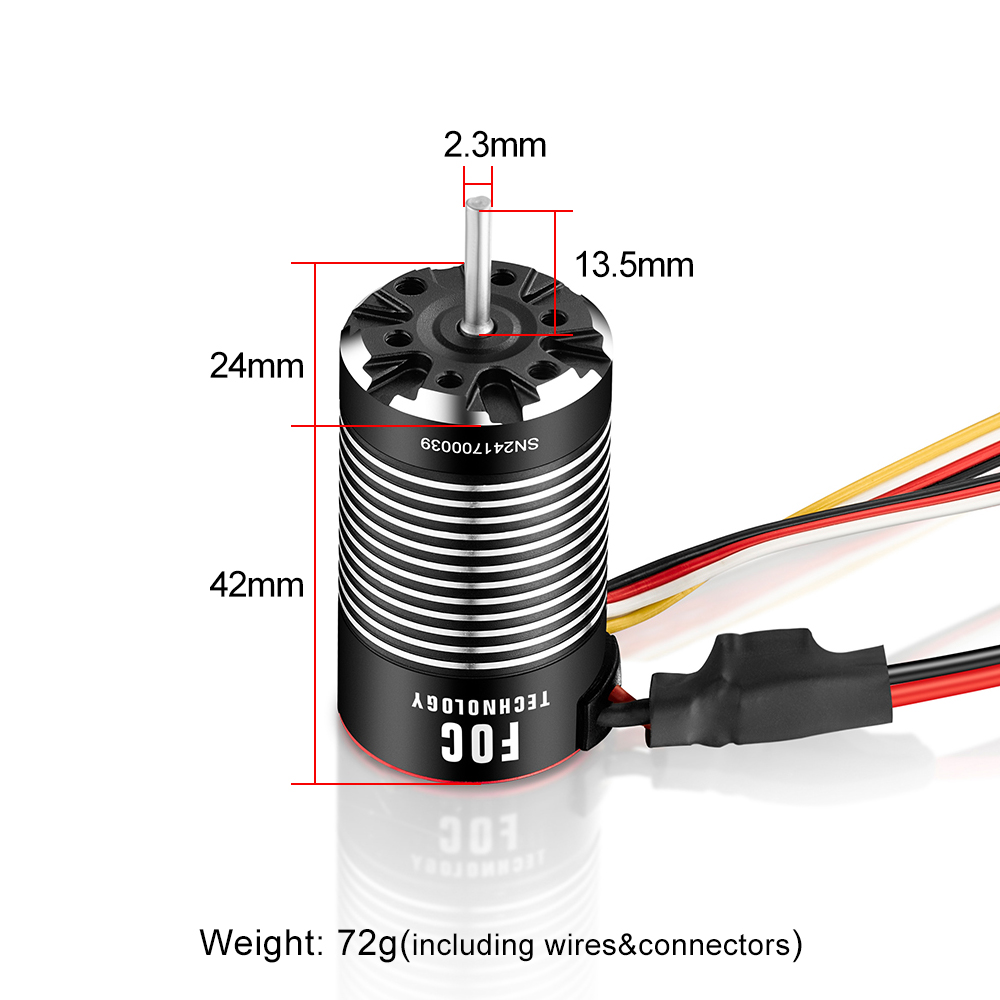

Size: 42mm*24mm
Weight: 72g(including wire&connectors)

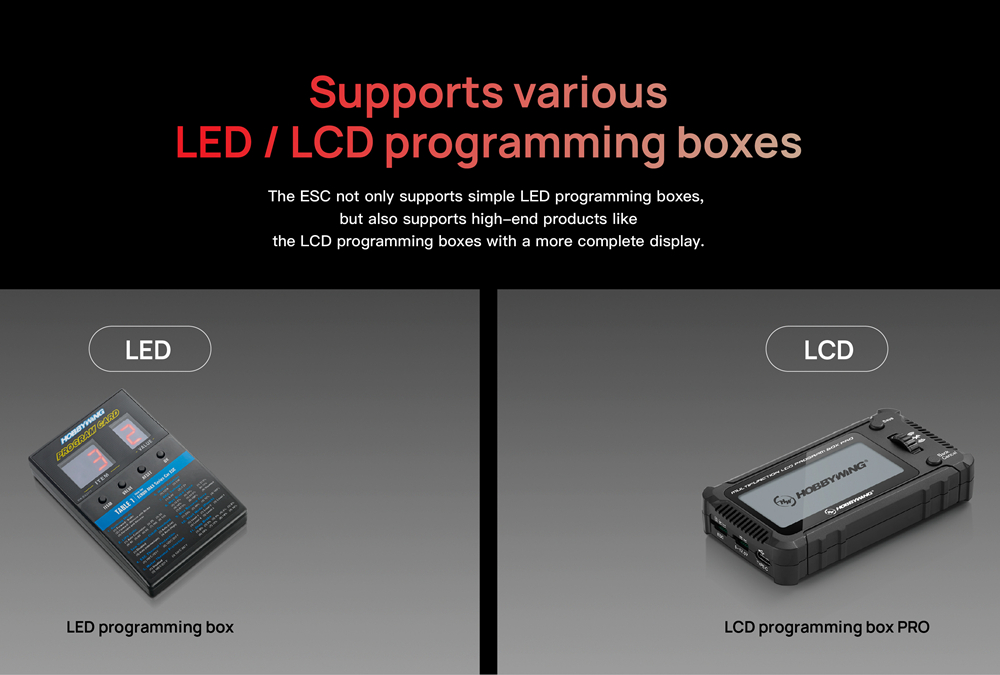

Programming port: independent programming cable
Motor KV: 3000KV
Diameter :24mm
Length of motor:42mm
Shaft diameter: 2.3mm
Exposed shaft length: 13.5mm
Motor Poles: 4
Built-in three sets of mounting holes: 14mm-M2.5/16mm-M2.5/17mm-M3
Package Contents:
1*QUICRUN Fusion Mini16 Motor
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee
the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
