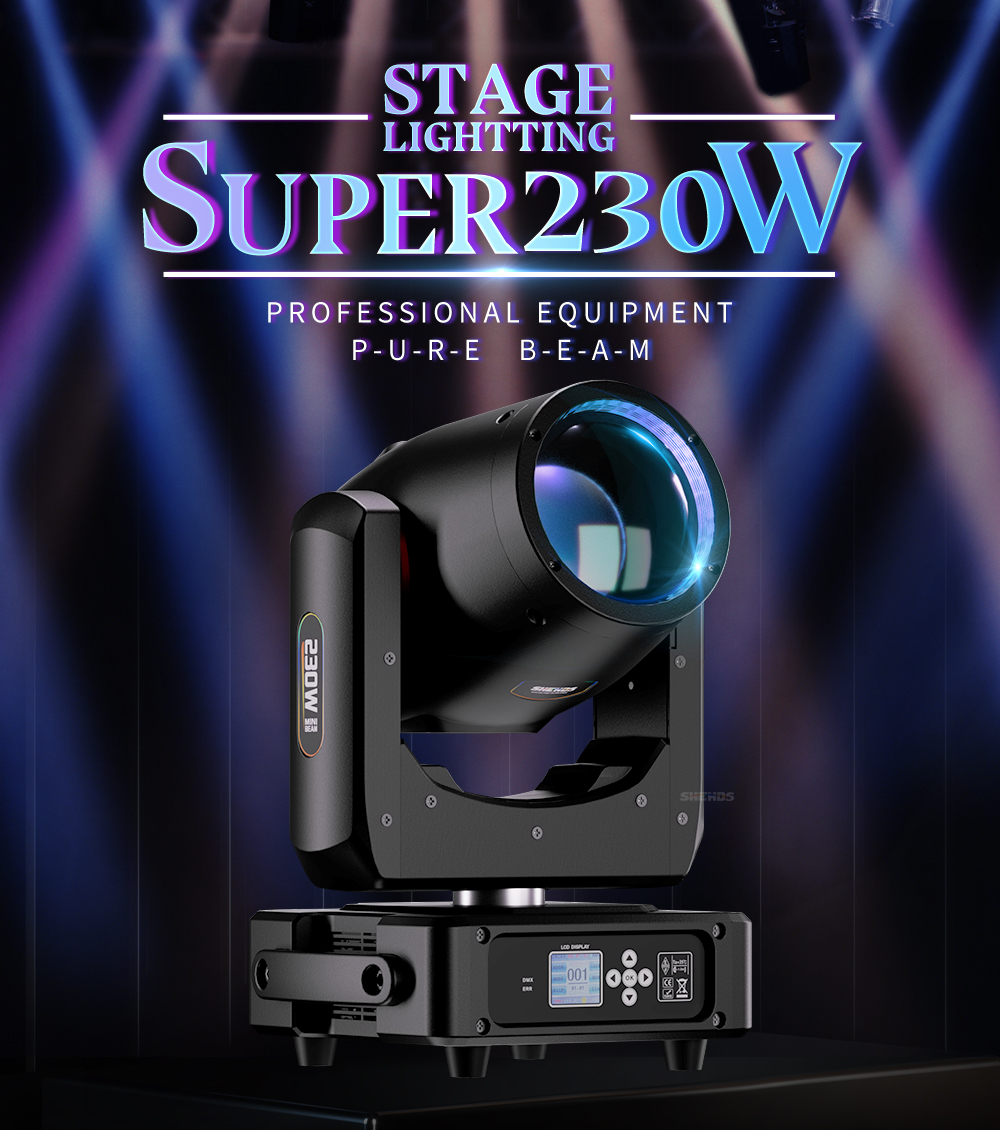

230W Beam Moving Head Lighting

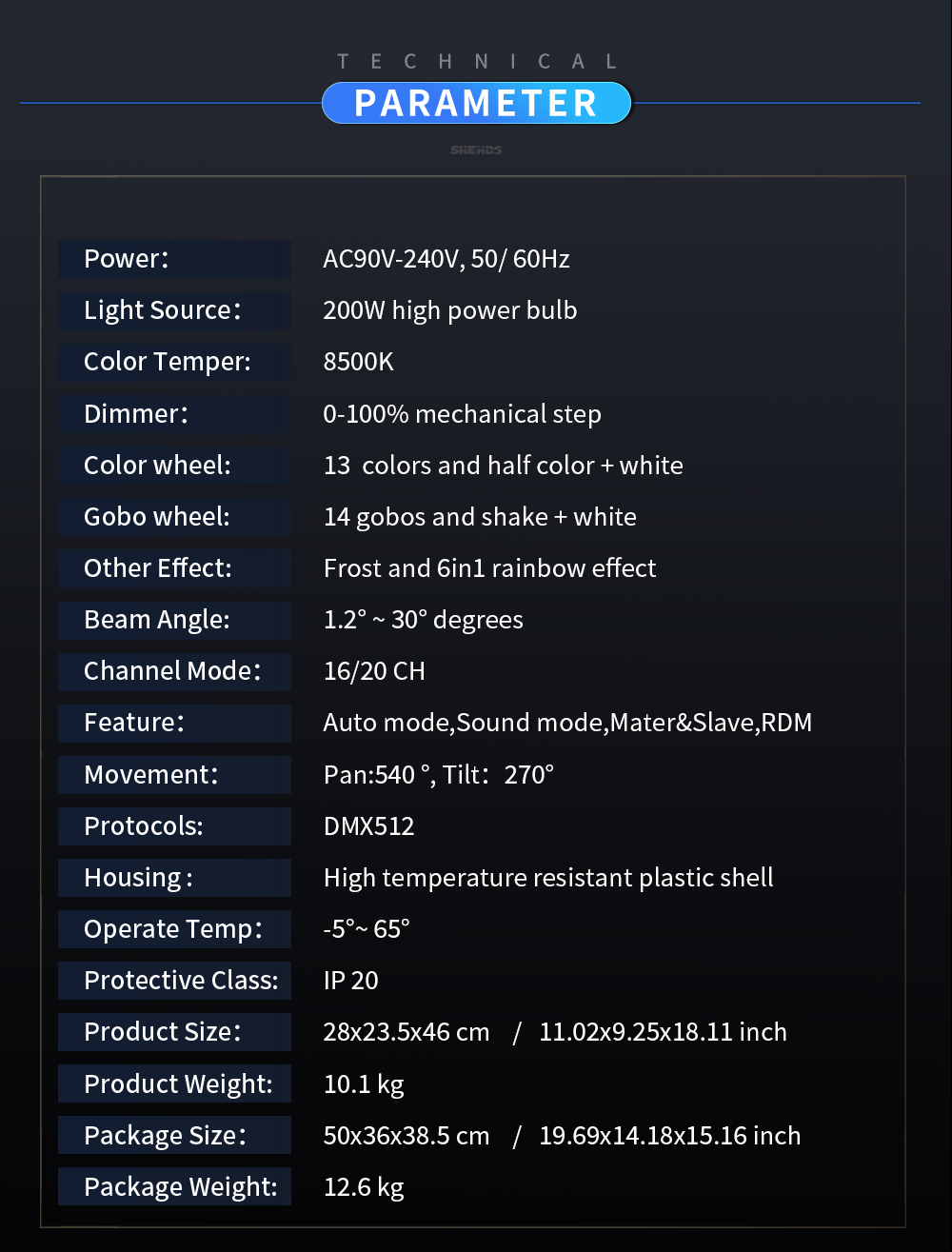

Specification

Voltage:	AC90V ~ 240V / 50 ~ 60Hz	Rainbow Wheel：	Color rainbow effect
Power consumption:	230W	Prism1:	8-face circular prism rotating
Lights Source:	Highpower 200W Bulb	Dimmer:	0-100% 16Bit mechanic dimmer
Drive Current:	1500mA	Lux:	330000 Lux / 5m
Color Temperature:	8000k	Control Modes:	DMX512,Auto,Sound , Master/Slave,RDM
Beam Angle:	1.2° Beam / 30° Frost	Shutter:	Flash rate 0-25HZ

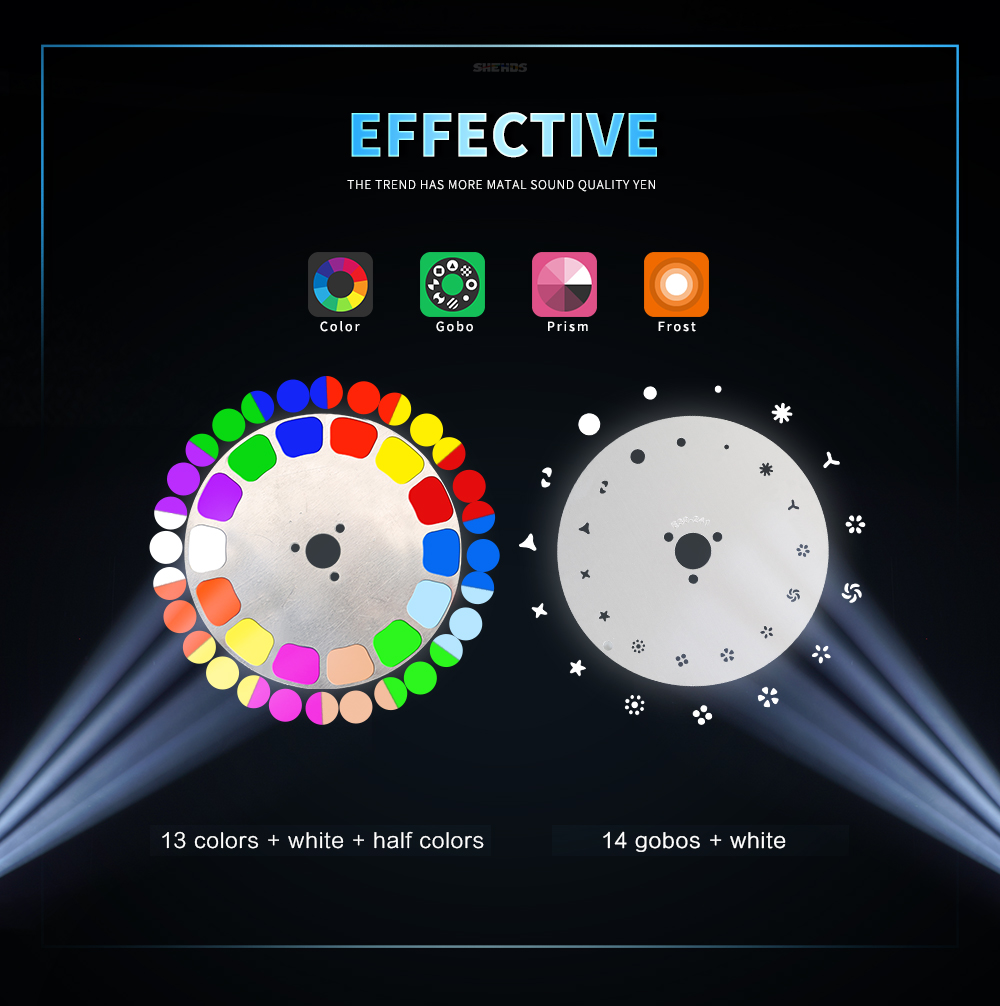

Color Wheel:	13 colors+white(half color)	Channel:	16/20 CH
Gobo Wheel:	14 gobos	Ambient temperature:	-20°C～40°C
Tilt：	270° (16bit)	Cooling System:	Box Heat Conduction
Pan：	540°(16bit）	Shell Material:	High temperture resistant plastic
Dimmer:	0-100% mechanic dimmer	Product Color:	Black

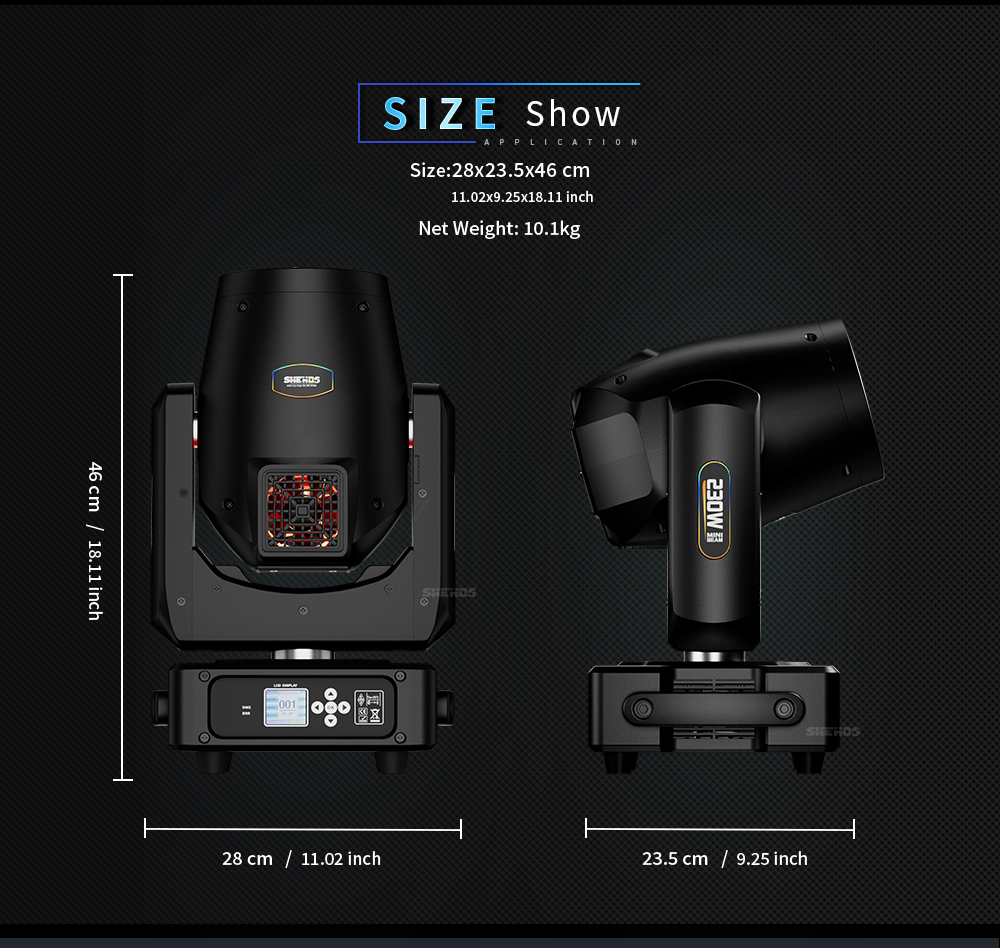

Long Lifespan LEDs	More than 60,000 hours	Product Size:	28x23.5x46 cm
Waterproof level:	IP20 Indoor	Product Weight:	10.1 kg
Package Size:	50x36x38.5 cm	Package Weight:	12.6 kg

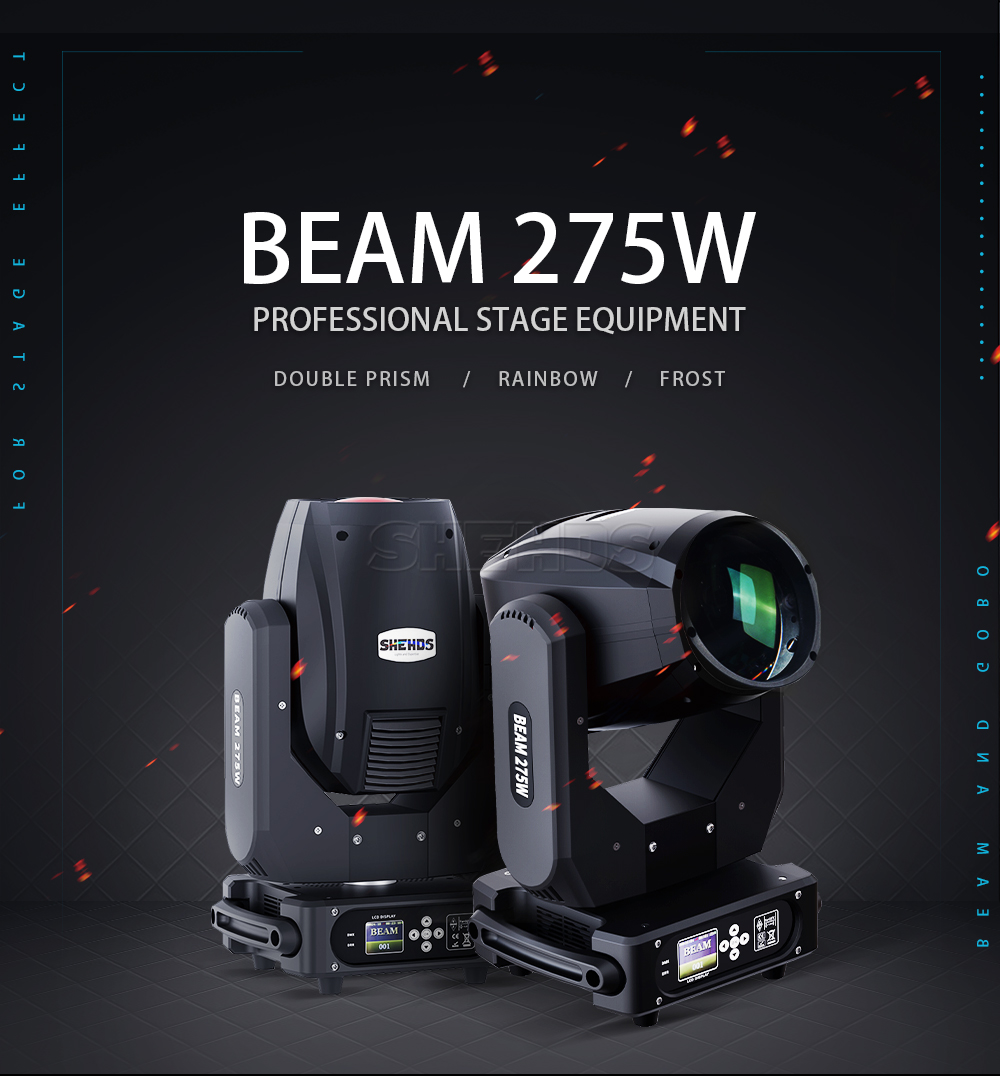

275W Beam Moving Head Lighting

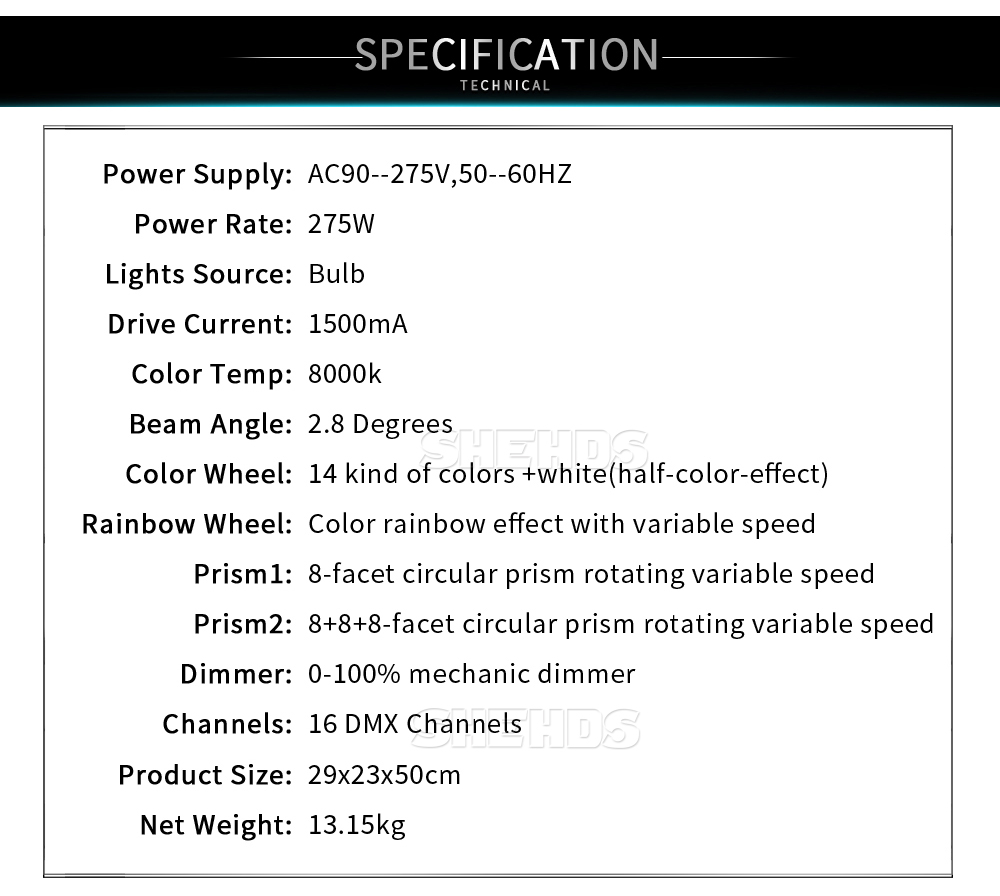

Product Introduction

* Power Supply: AC90--275V,50--60HZ

* Power consumption: 275W

* Lights Source: Bulb

* Drive Current:1500mA

* Color Temperature: 8000k

* Beam Angle: 5-15 Degrees

* Color Wheel:14 kind of colors +white(half-color-effect)

* Rainbow Wheel：Color rainbow effect with variable speed

* Prism1: 8-facet circular prism rotating variable speed

* Prism2: 16-facet circular prism rotating variable speed

* Dimmer: 0-100% mechanic dimmer

* Control Modes:DMX512,Auto Run,Sound Action,Strobe，Stand Alone and Master/Slave,With Rich Advanced Built-in Program

* Strobe: Flash rate 0--25HZ

* DMX-Control-channels:16 DMX Channels

* Frost:Soft lights effect

* Tilt：270° (16bit)

* Pan：540°(16bit）

* Dimmer: 0-100% mechanic dimmer

* Long Lifespan LEDs(more than 60,000 hours)

* Waterproof level: IP20 Indoor

* Ambient temperature: -20°C～40°C

* Cooling System: Box Heat Conduction

* Shell Material: high temperture resistant plastic

* Product Color: Black

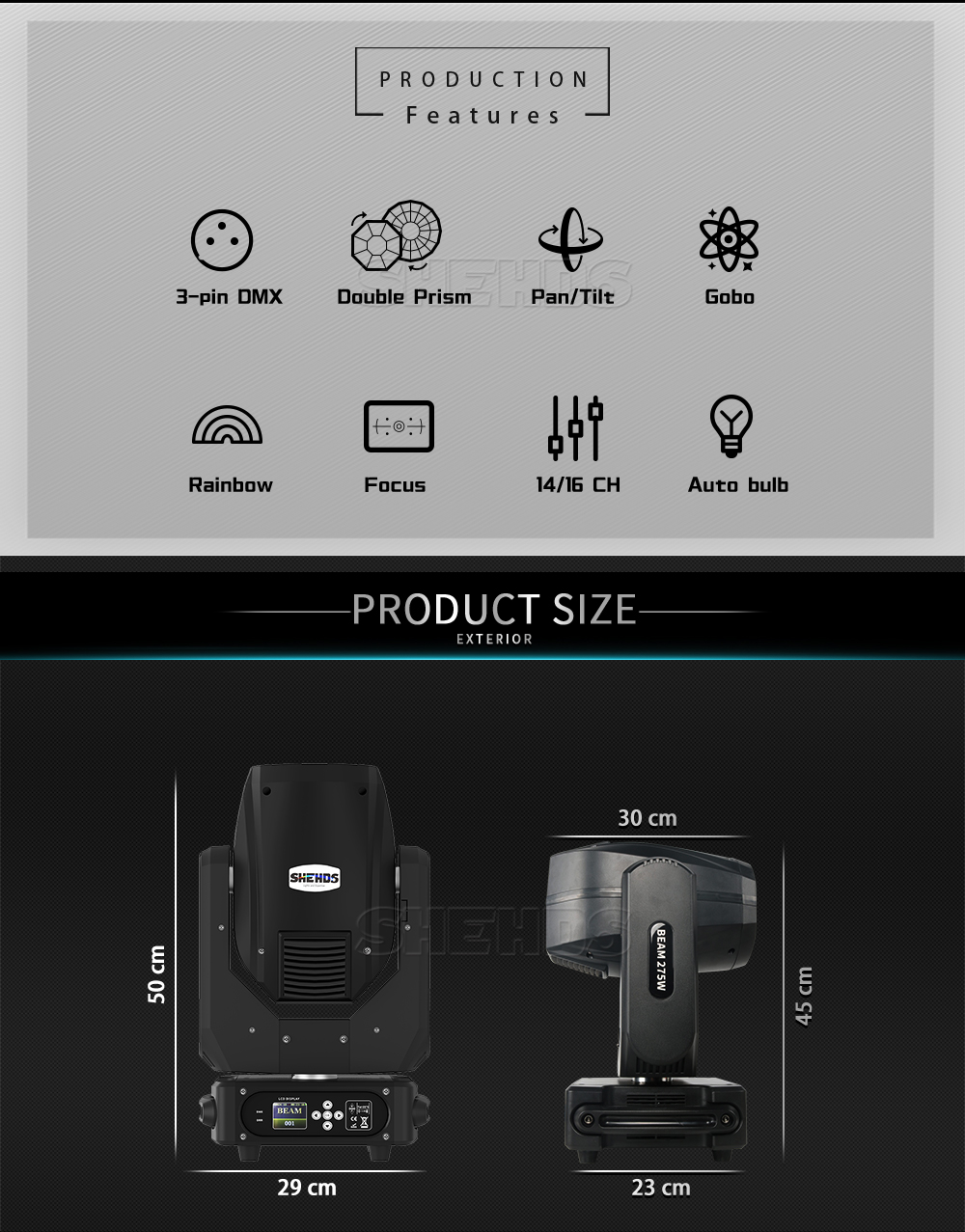

* Product Size: 29x23x50cm

* Product Weight: 13.15kg

* Package Size: 31X25x52cm

* Package Weight: 20kg

311W BEAM LIGHT

The 311W beam is straight and sharp, with fast movement speed.

The rich color and pattern plates, excellent beam and prism effects,

combined with various strobe speeds, create a colorful and ever-changing visual effect.

Product Features

Flexibly shaping uniform and colorful pattern effects, effortlessly showcasing exciting and colorful illusion lighting effects.

Uniform color mixing and excellent color reproduction can create a dazzling stage light and shadow visual experience,

Improve the level of stage performance in all aspects, providing high-quality choices

for various professional performance venues such as concerts, bars, evening parties, roadshows, etc.

Technical Parameter

-Electrical specification and connections
Power supply:	500W
Input voltage range:	100-240 V, 50/60 Hz
Power in connector:	Neutrik PowerCON
-Source
Light source type:	311W Bulb
Colour temperature output:	7000±500 K
10m/20m Illuminance:	365800 lux@5m
Life expectancy:	min. 2000 hours
-Optical system
Beam angle:	Beam 1.9°
Dimmer:	Mechanical shutter
-Dynamic Effects and Features

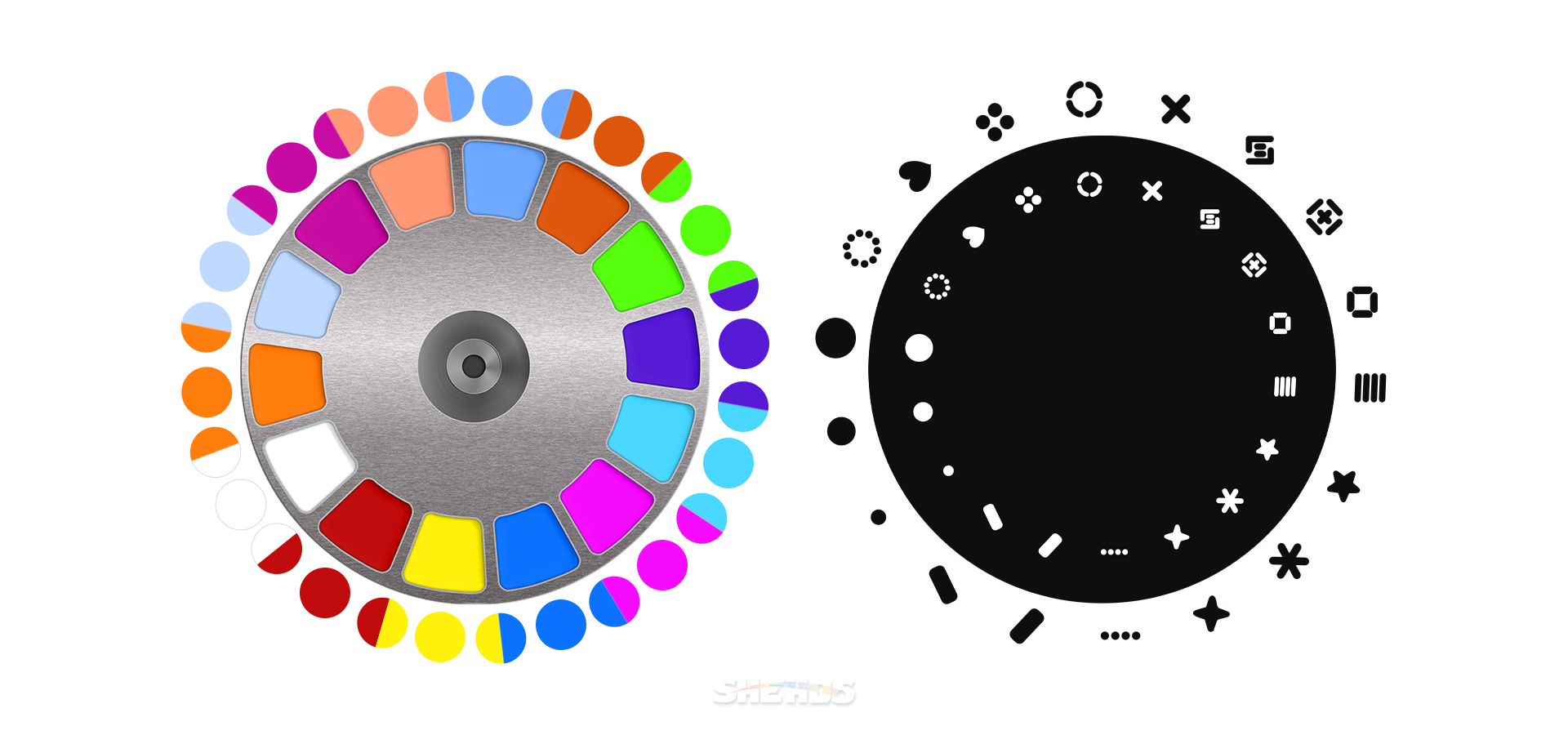

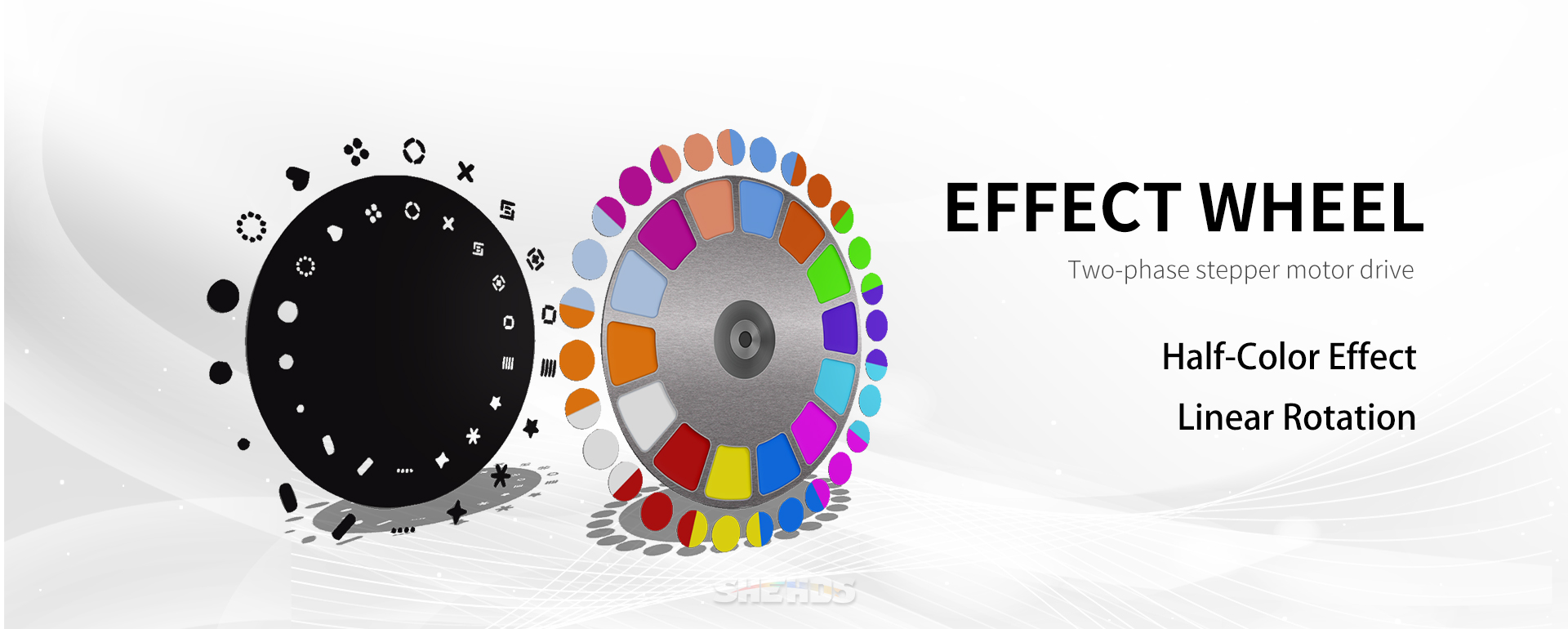

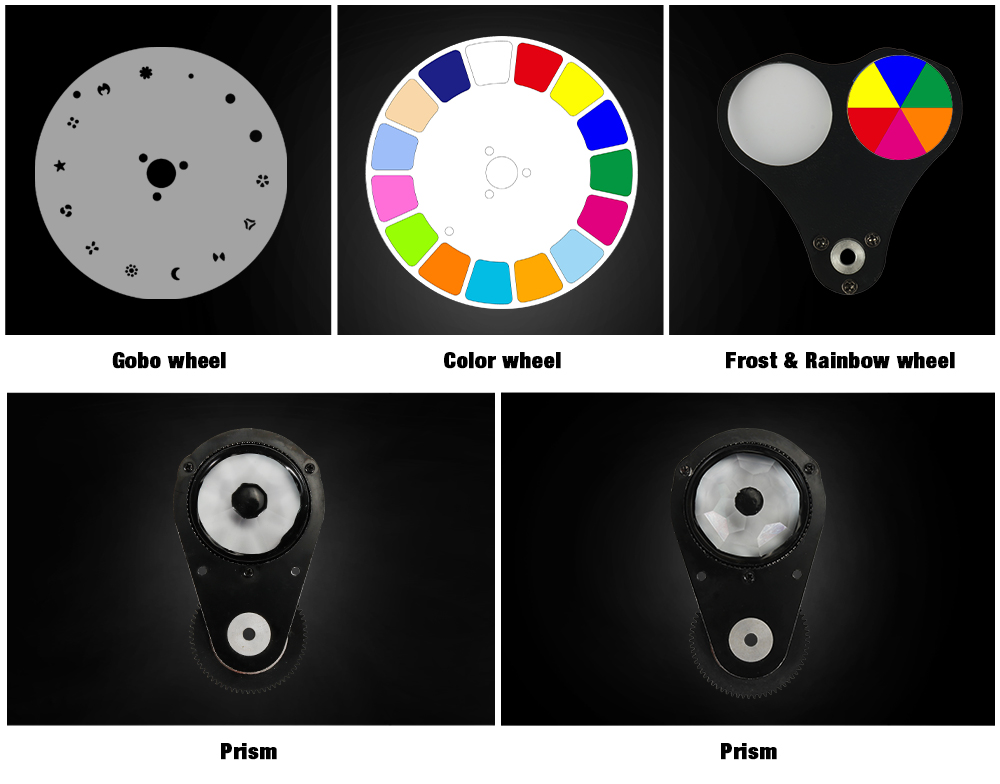

Colour wheel :	14 fixed dichroic colours + white

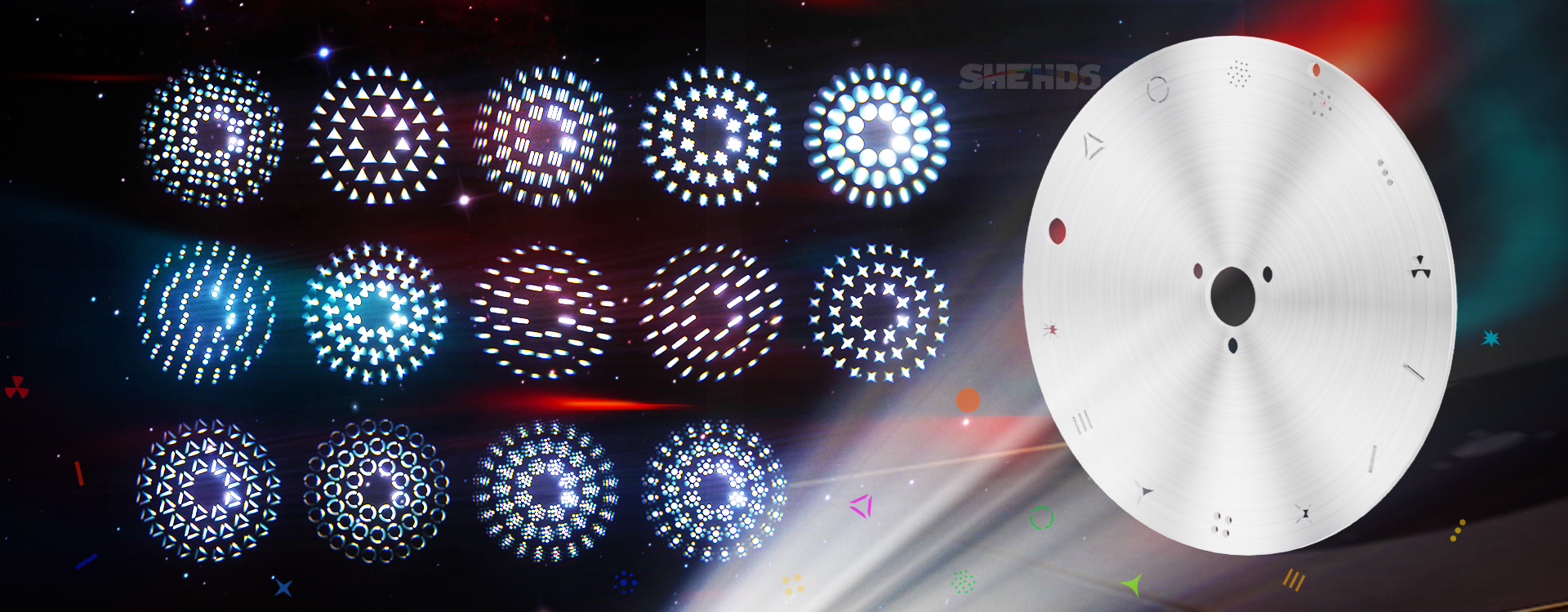

Static gobo wheel:	13 static gobos + open
Prism 1:	8-facet prism rotating in both directions at variable speed
Prism 2:	48-facet prism rotating in both directions at variable speed
Frosts:	Fast change frosts for instant softening of the projected gobo or framing shutters
Raimbow wheel:	6 colors
-Control and programming
Protocols:	DMX512,RDM
Movement：	Pan：540°；Tilt：270°
DMX Channel Mode：	16 CH
Feature：	Auto mode ,sound mode,Manual programming scenarios
-Mechanical specification

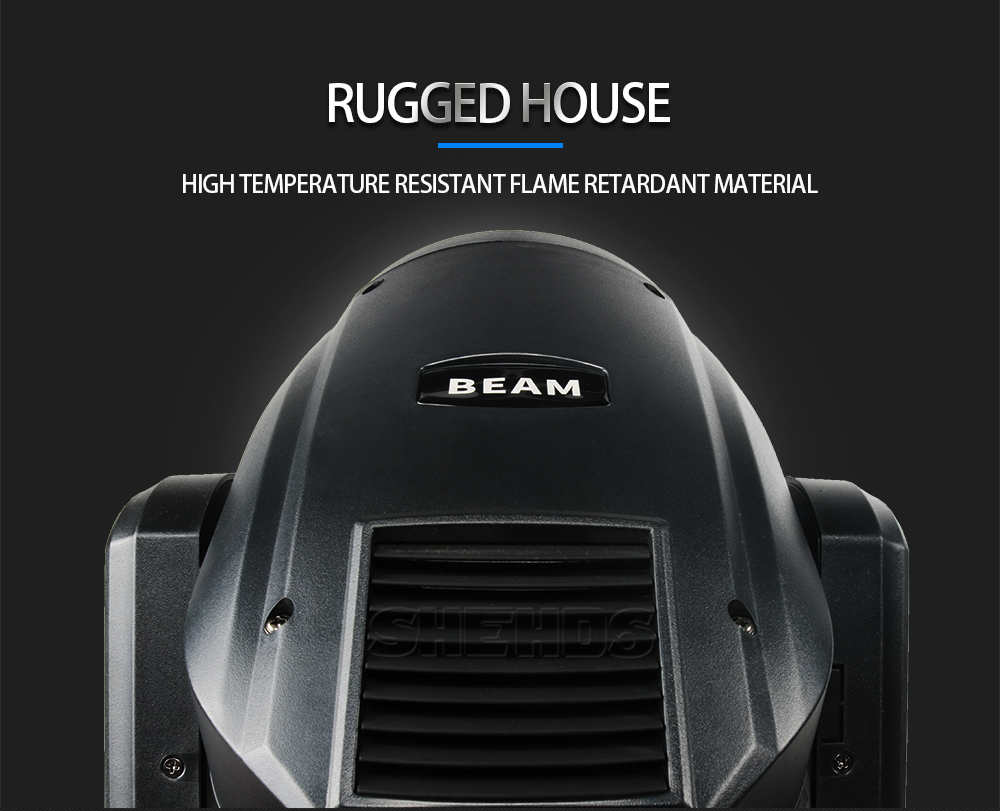

Housing :	High temperature resistant and flame retardant plastic housing

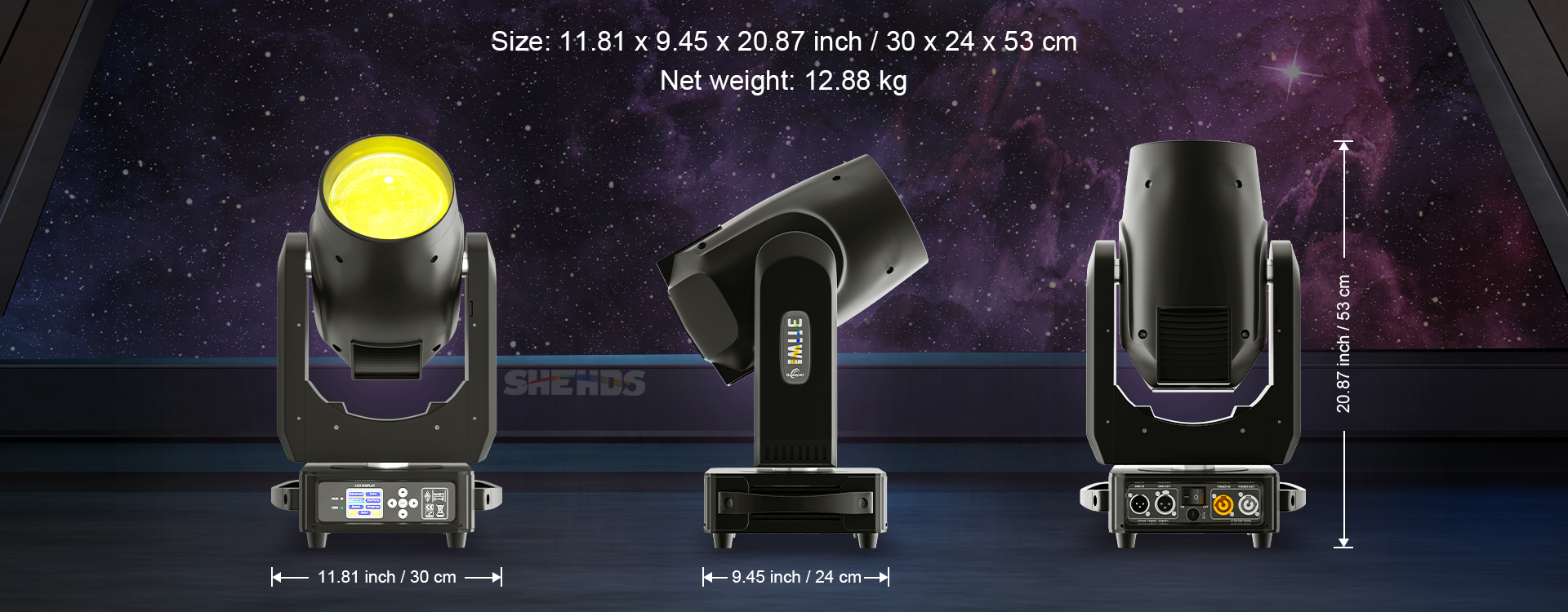

Product size：	30x24x53cm / 11.81x9.45x20.87inch
Product weight:	12.88kg
Package size:	57.5x42.5x41.5cm / 22.64x16.73x16.34inch
Package weight:	17.1kg
Operating temperature:	-20~60℃
Ingress protection rating:	IP20

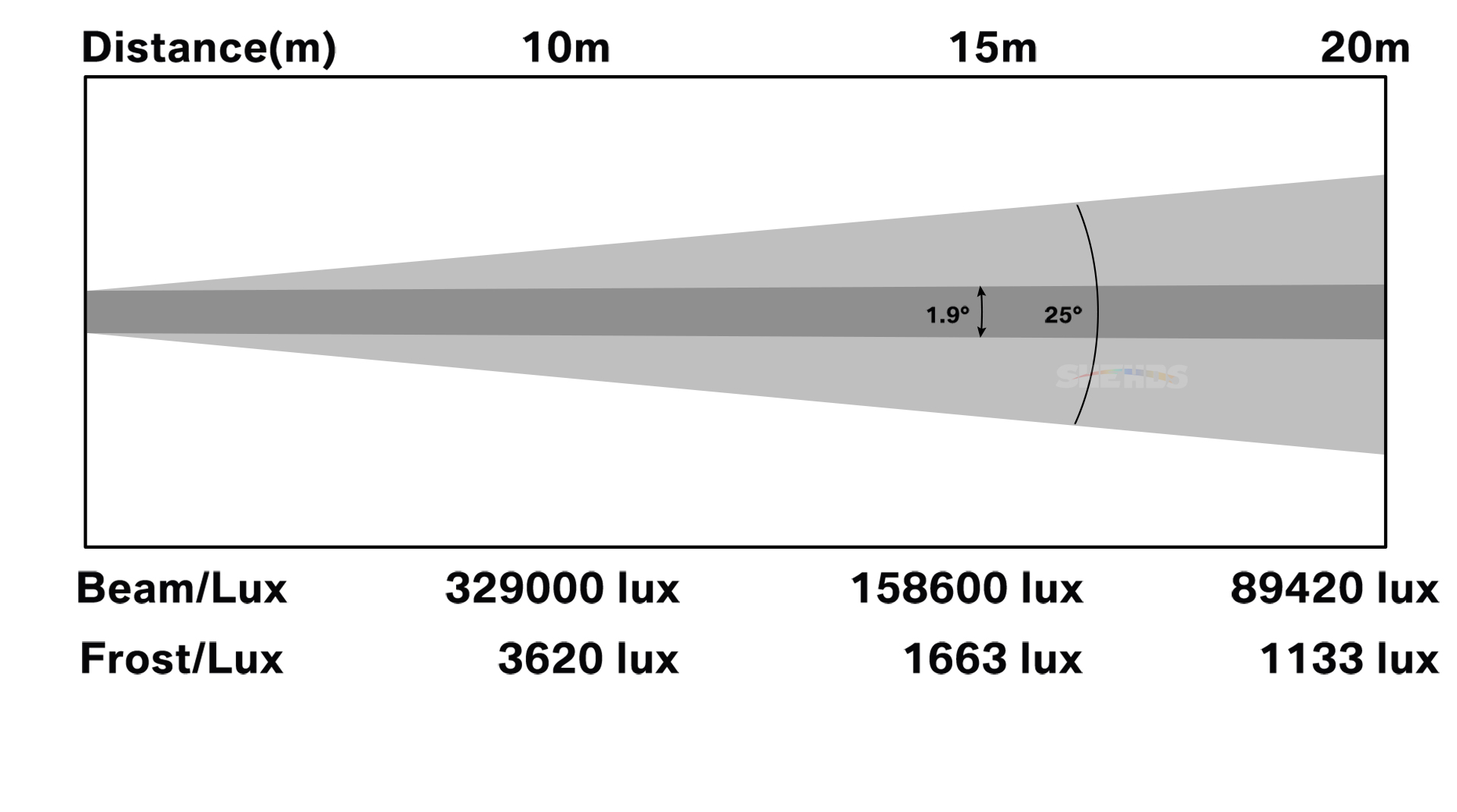

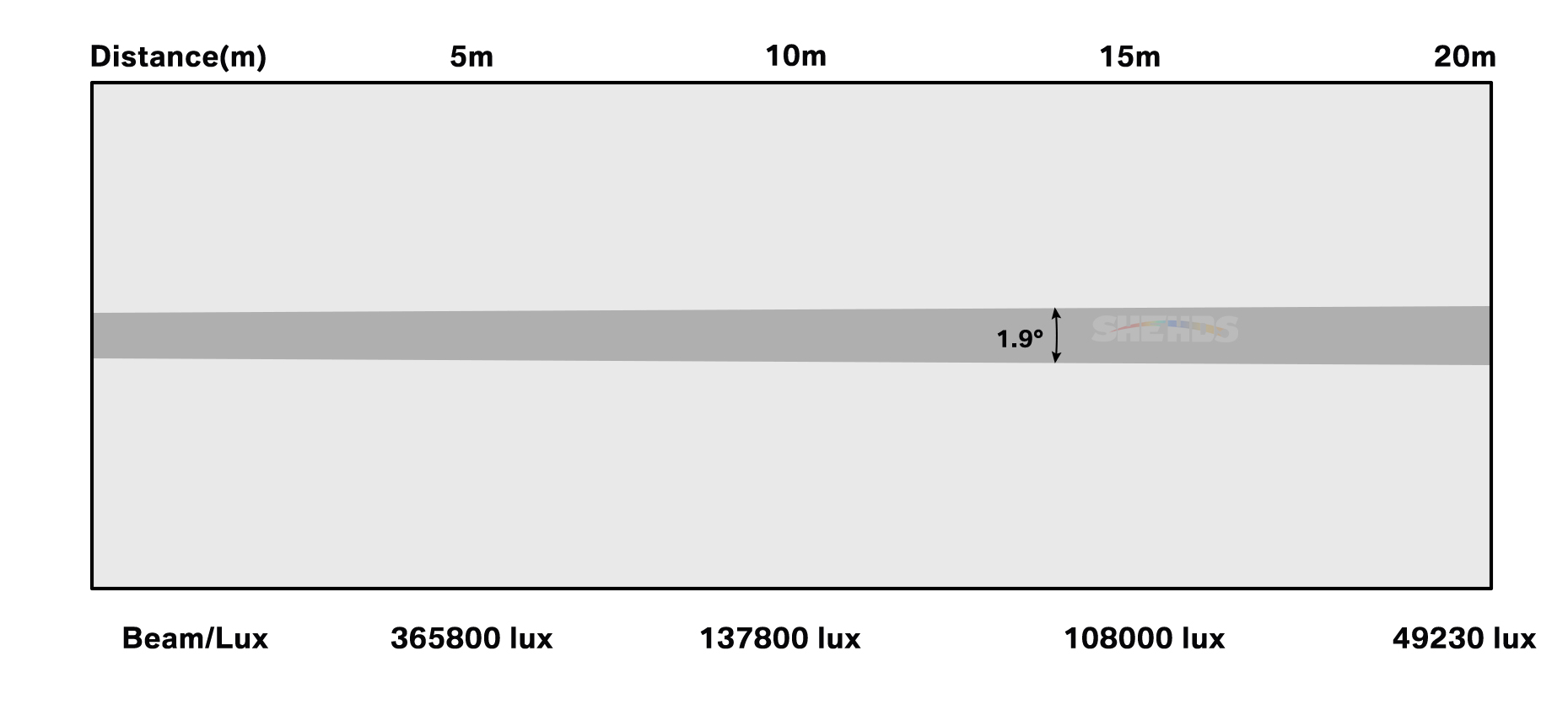

Beam Angle

1.9 ° beam angle

Effect Show

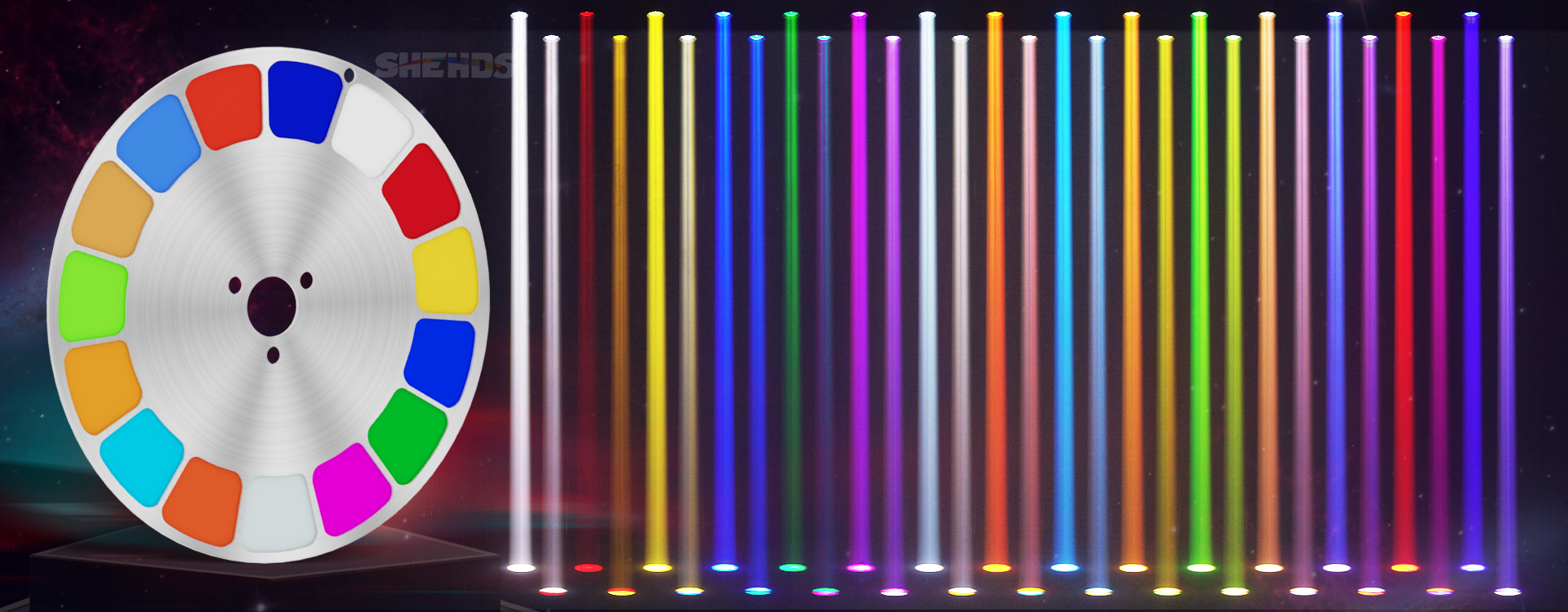

Colors Effect

Frost Effect Display

Rendering the Stage Atmosphere

Prism Effect Display

Bright And Colorful

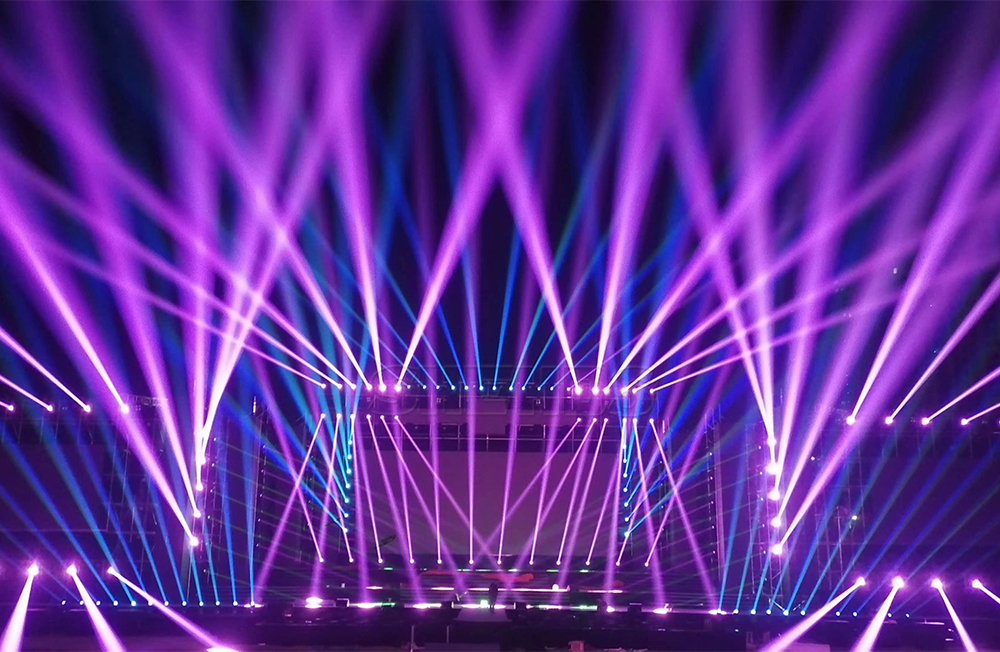

Beam Effect

Uniform and colorful pattern effects with uniform light spots

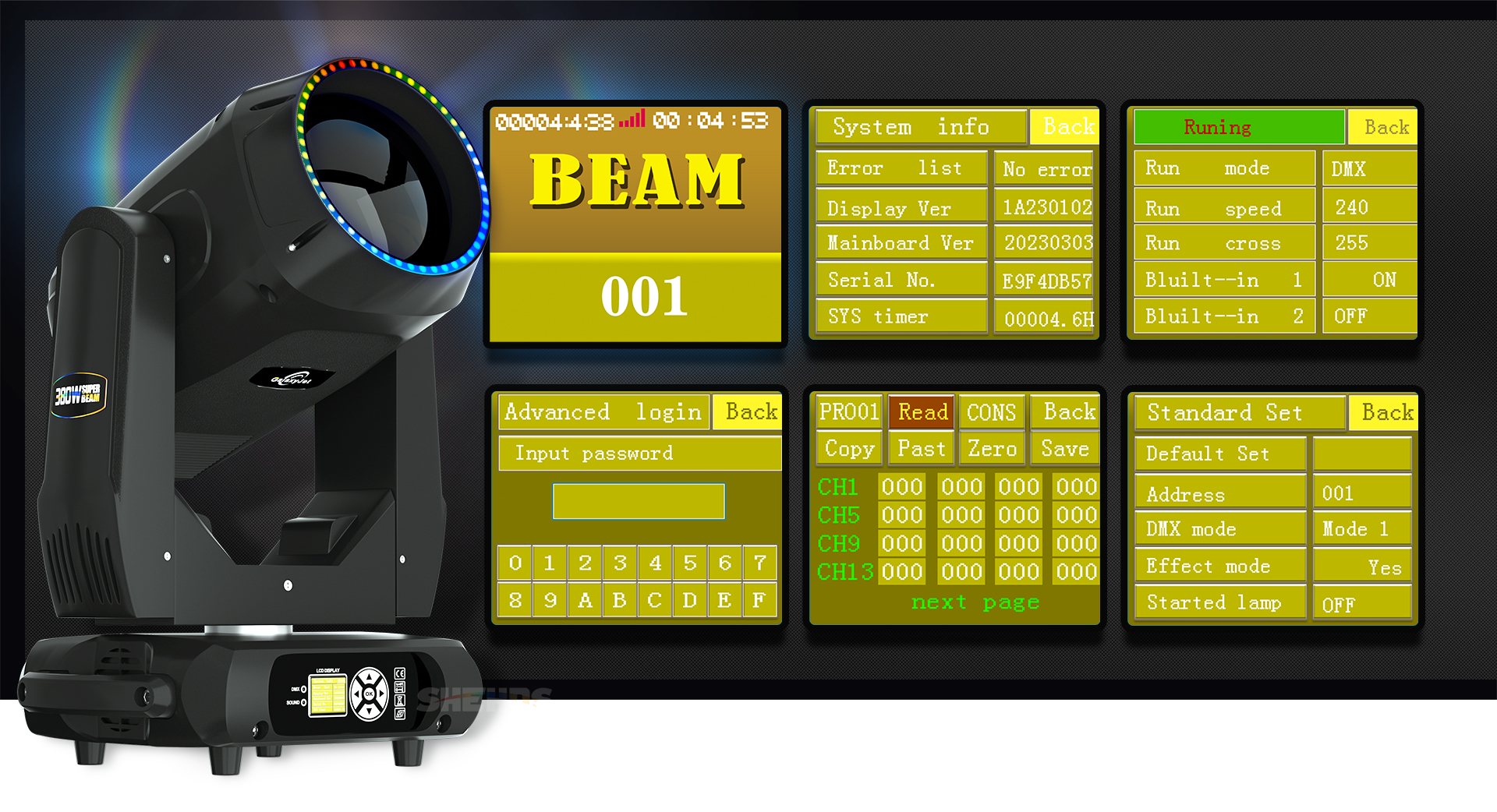

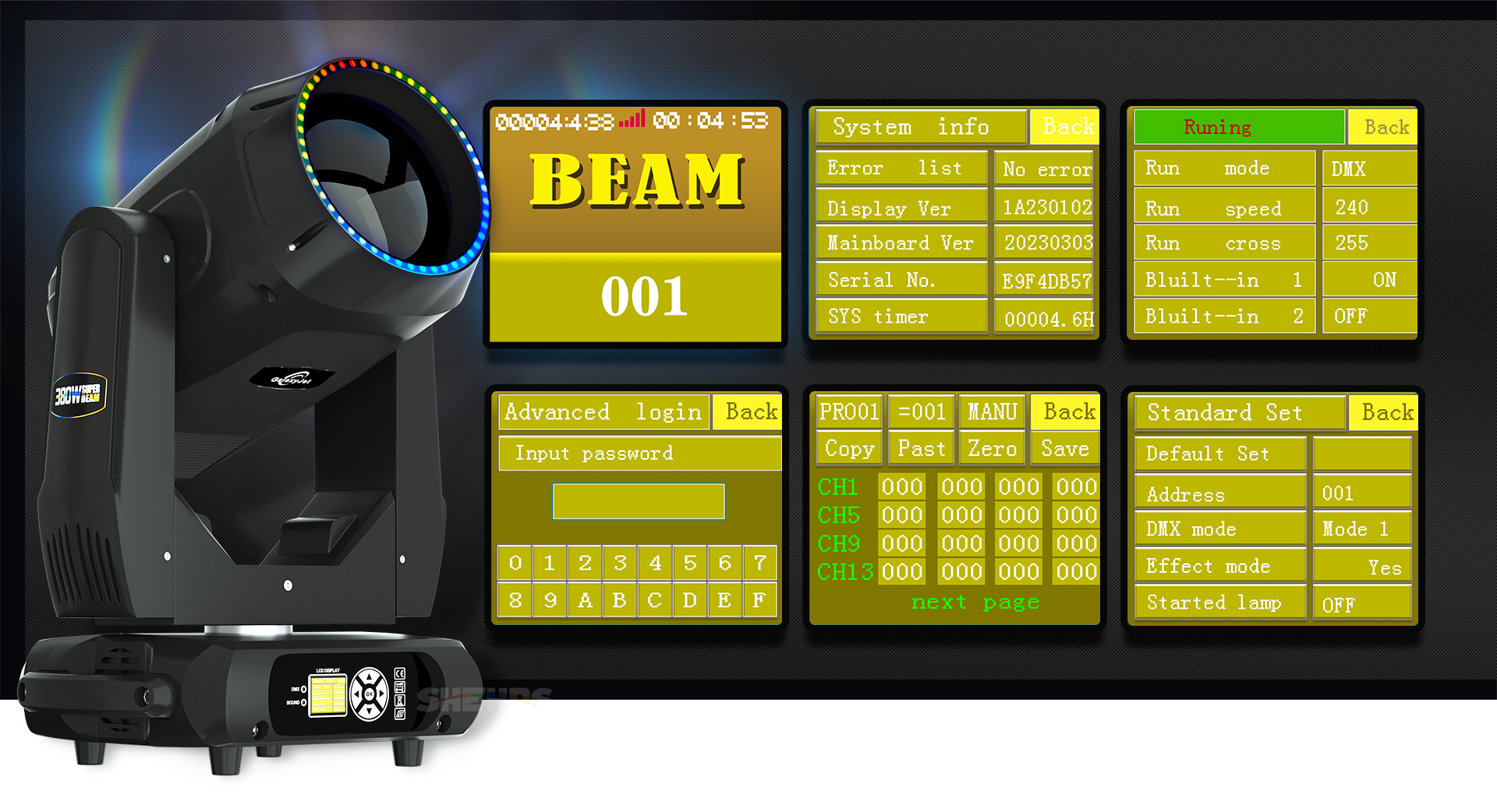

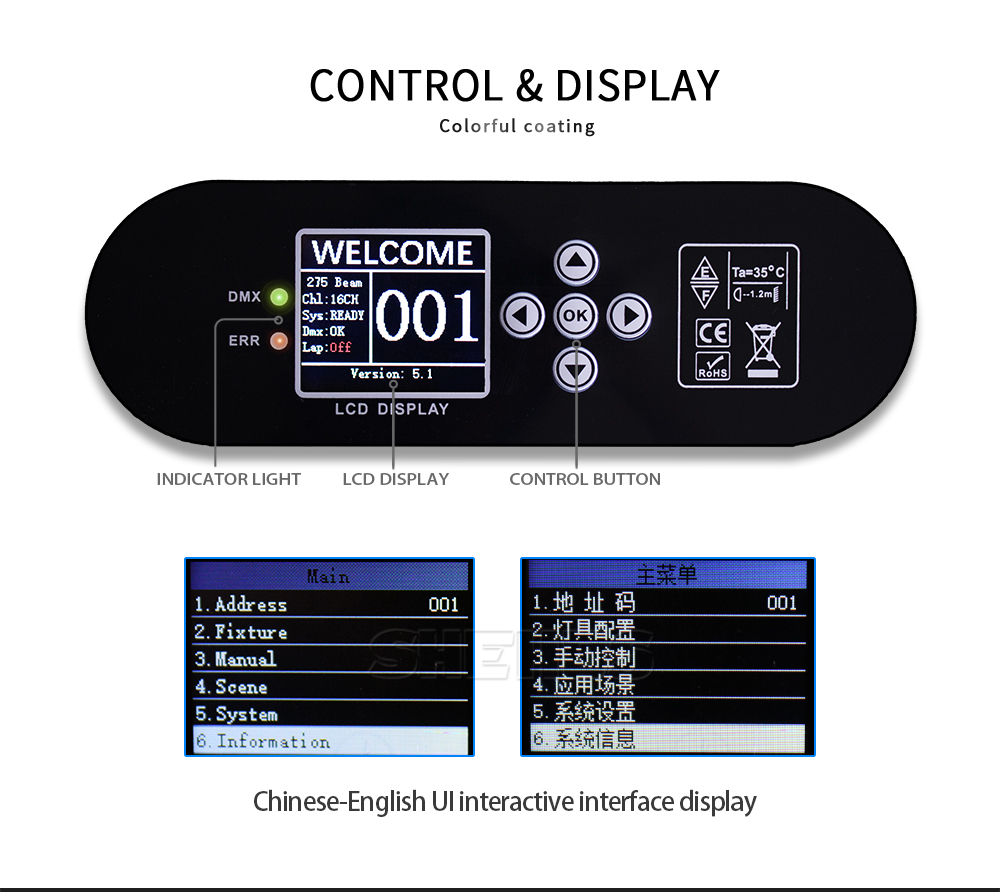

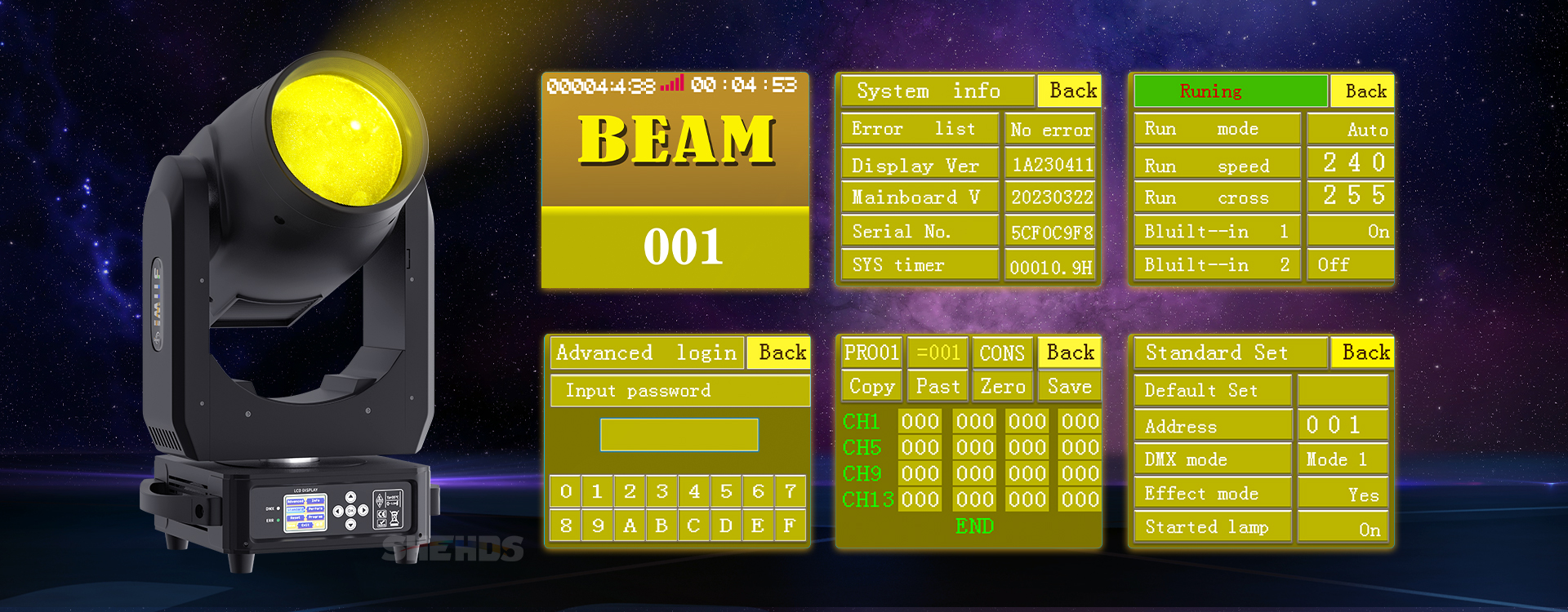

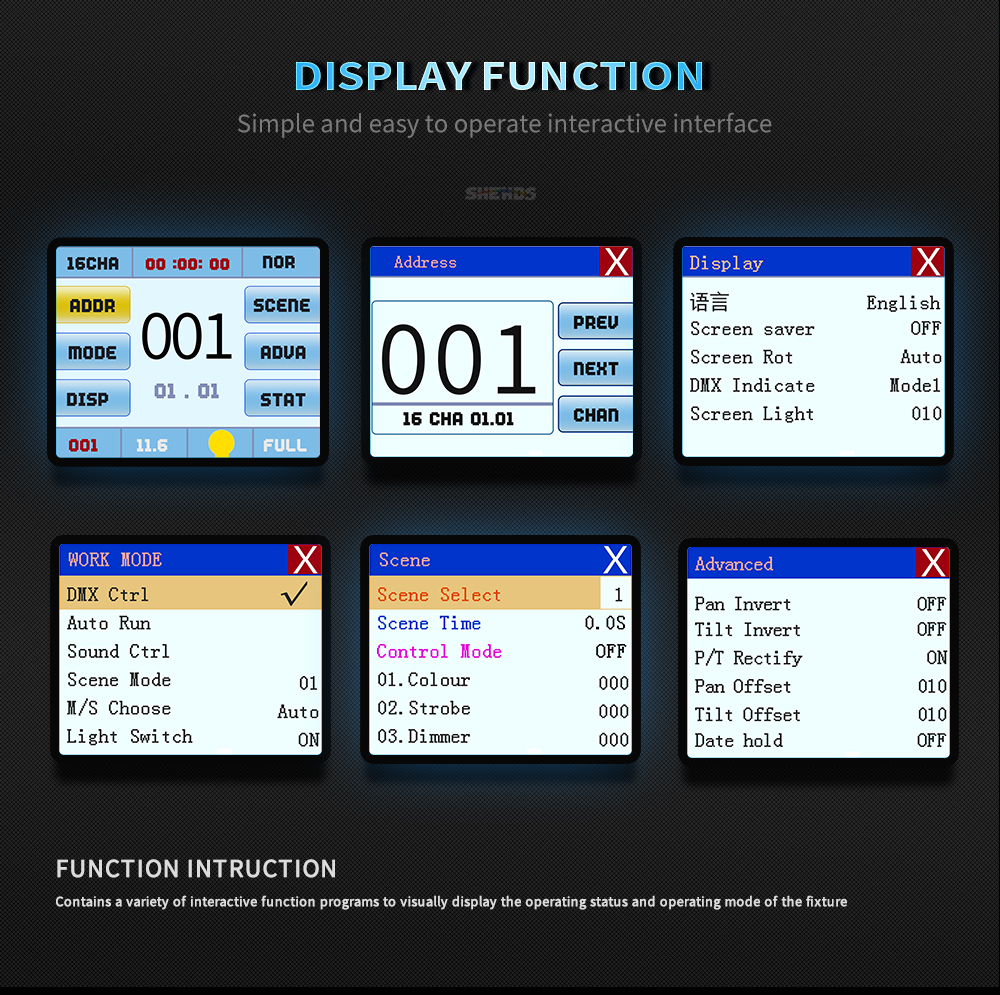

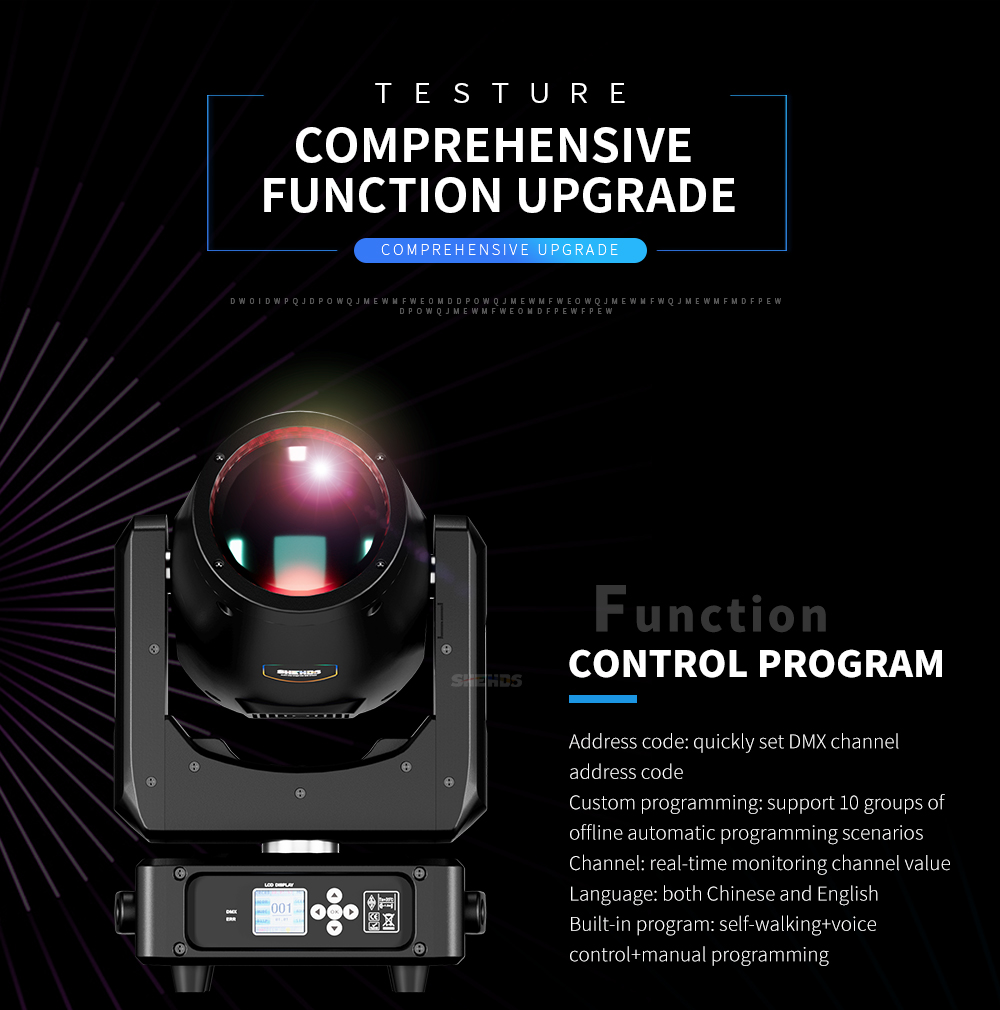

Introduction to Panel Functions

Contains multiple interactive function programs to visually display the operating status and mode of the lighting fixtures,

Built-in lamp operation status sensing and monitoring system,

which can check the operation status of the lamp at any time for easy parameter adjustment

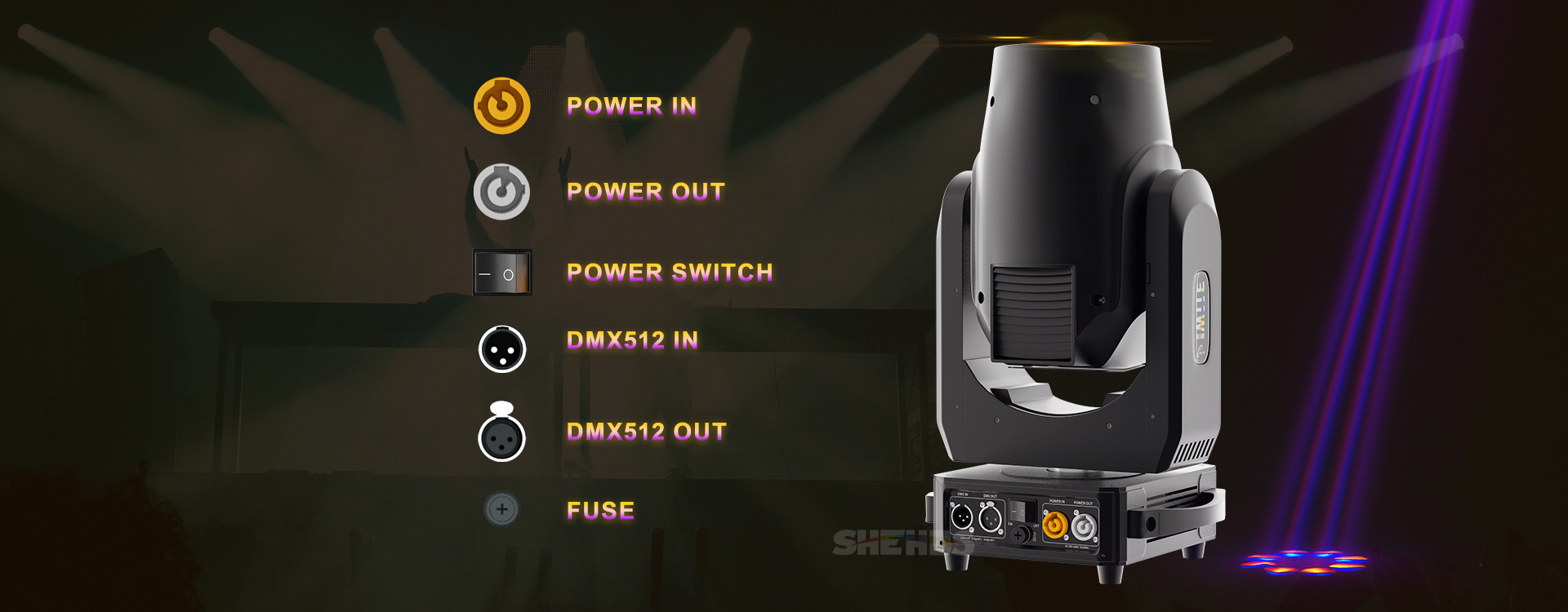

Function Introduction

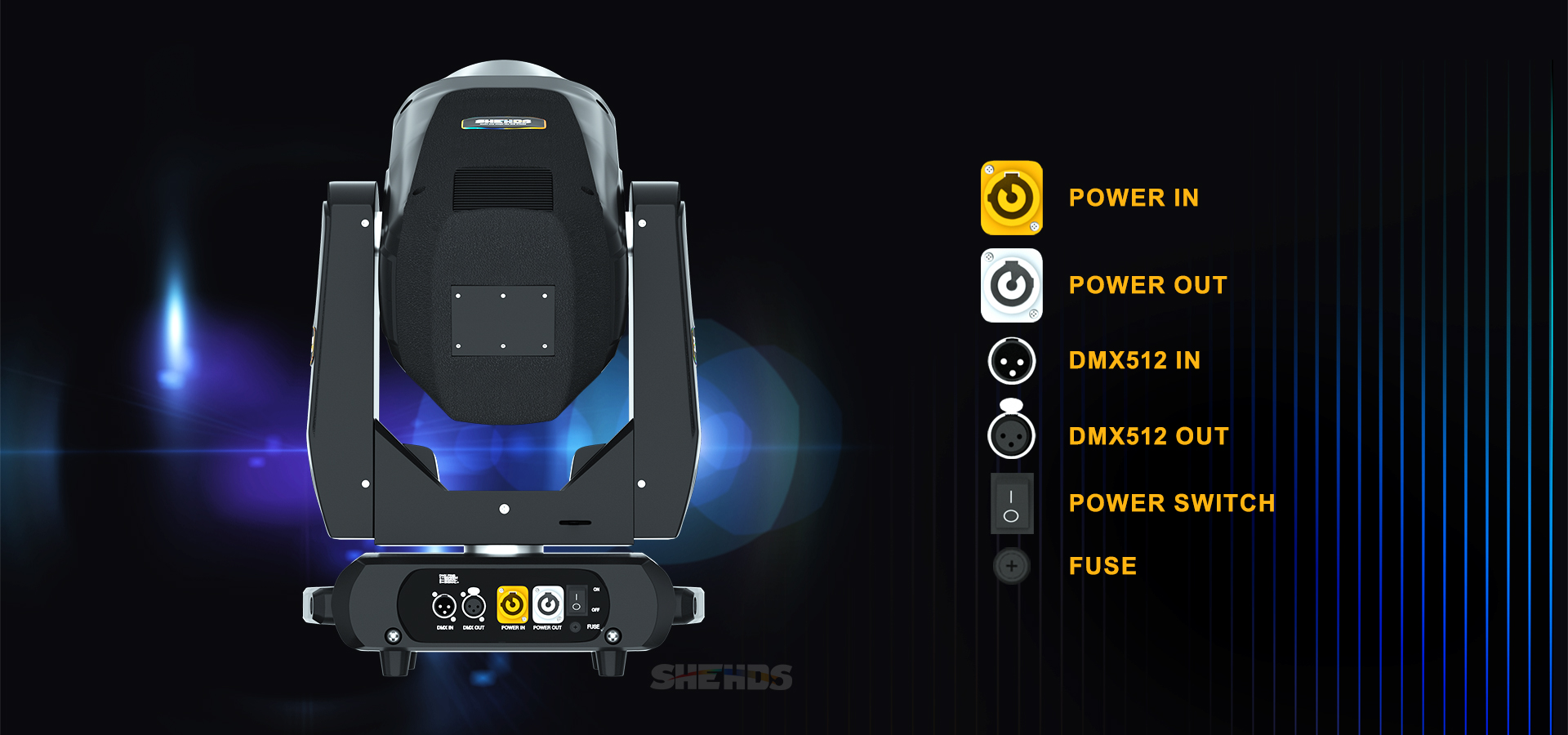

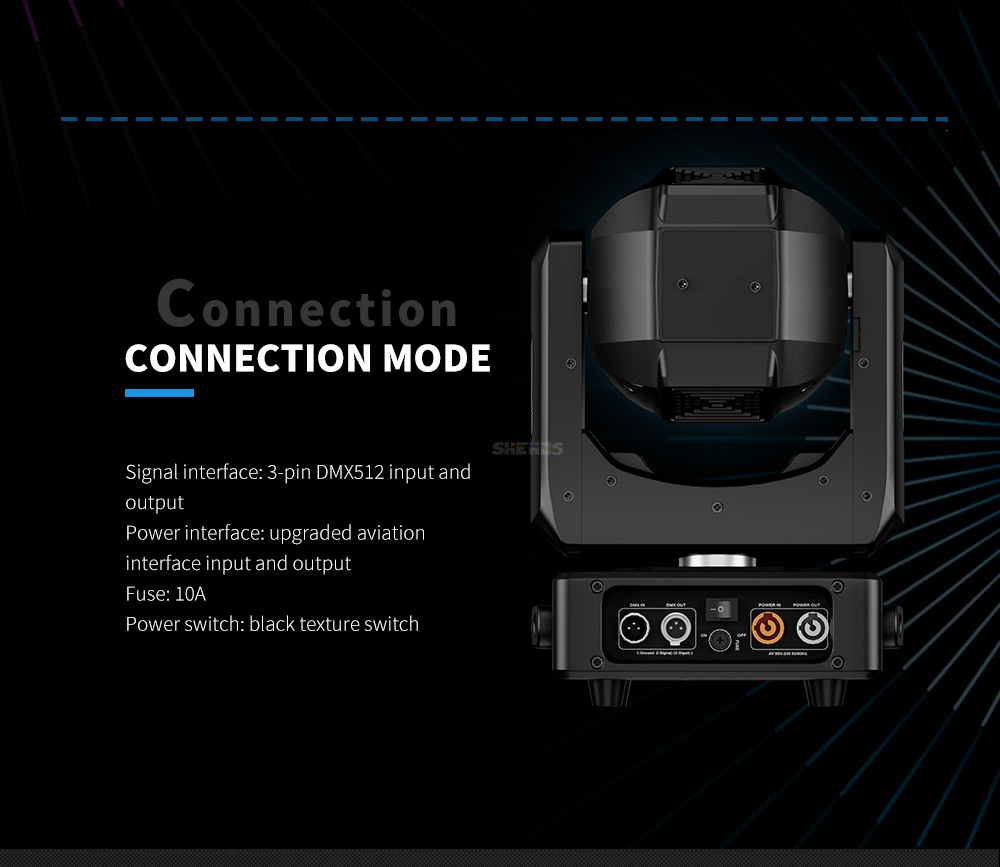

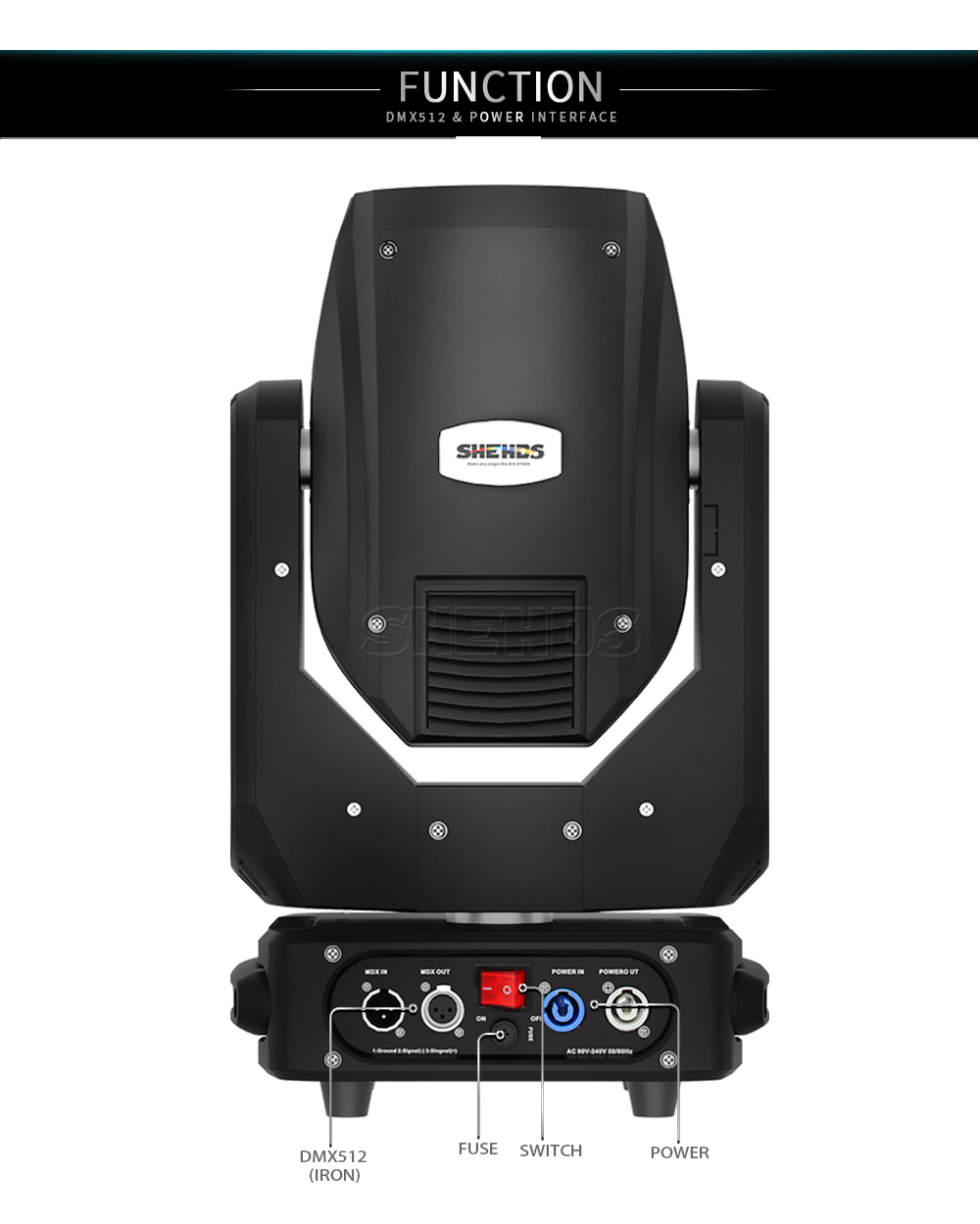

DMX512 signal/power cord interface

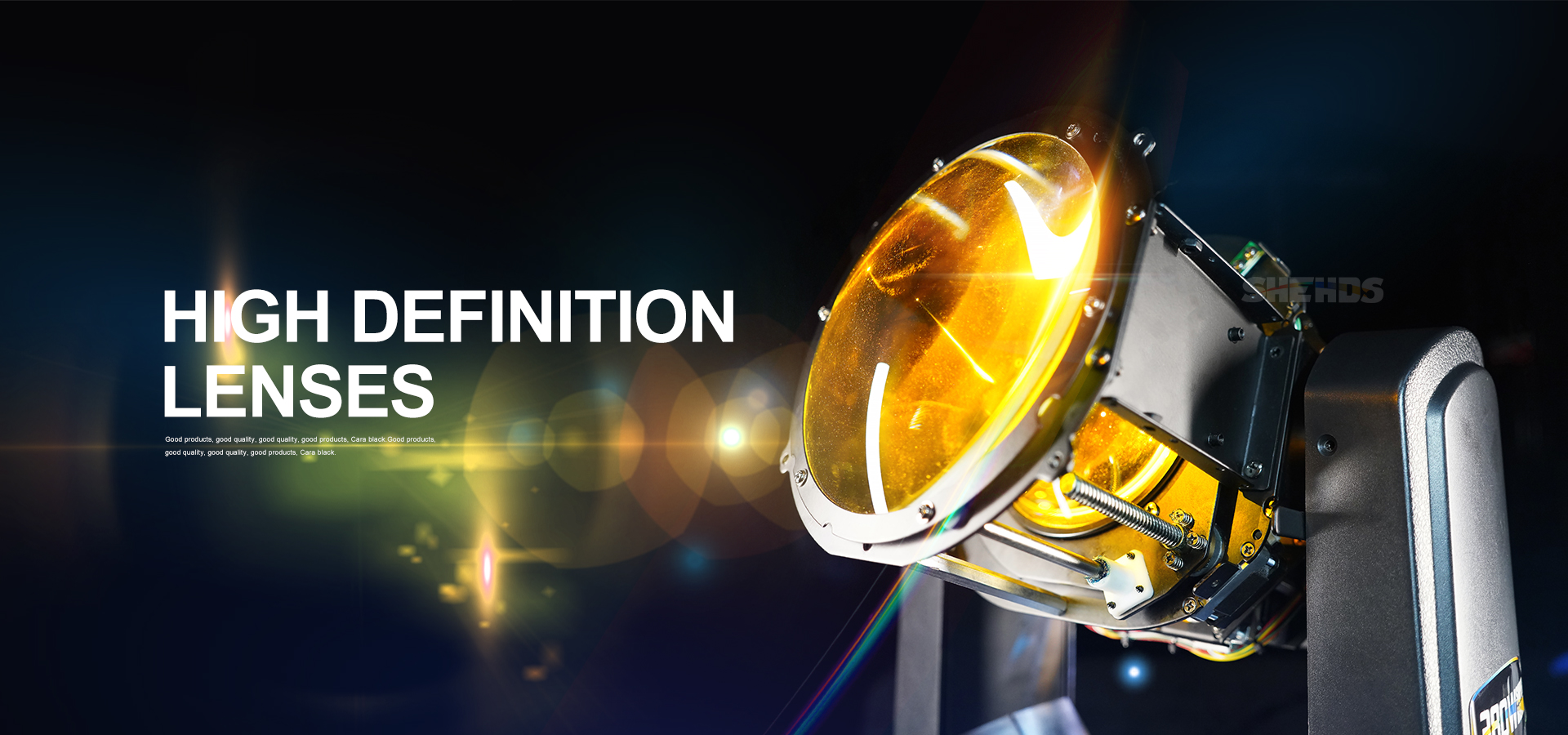

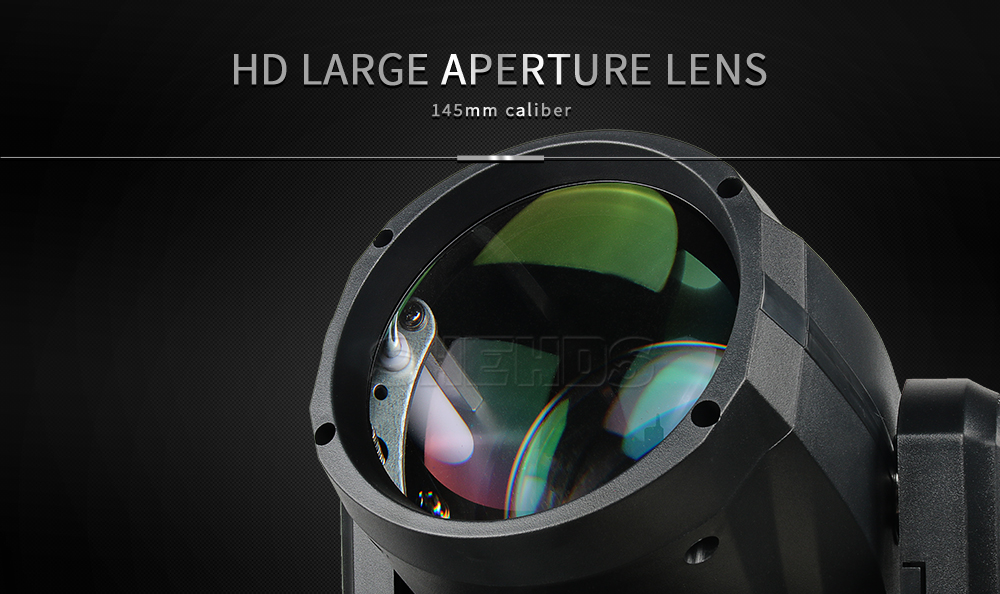

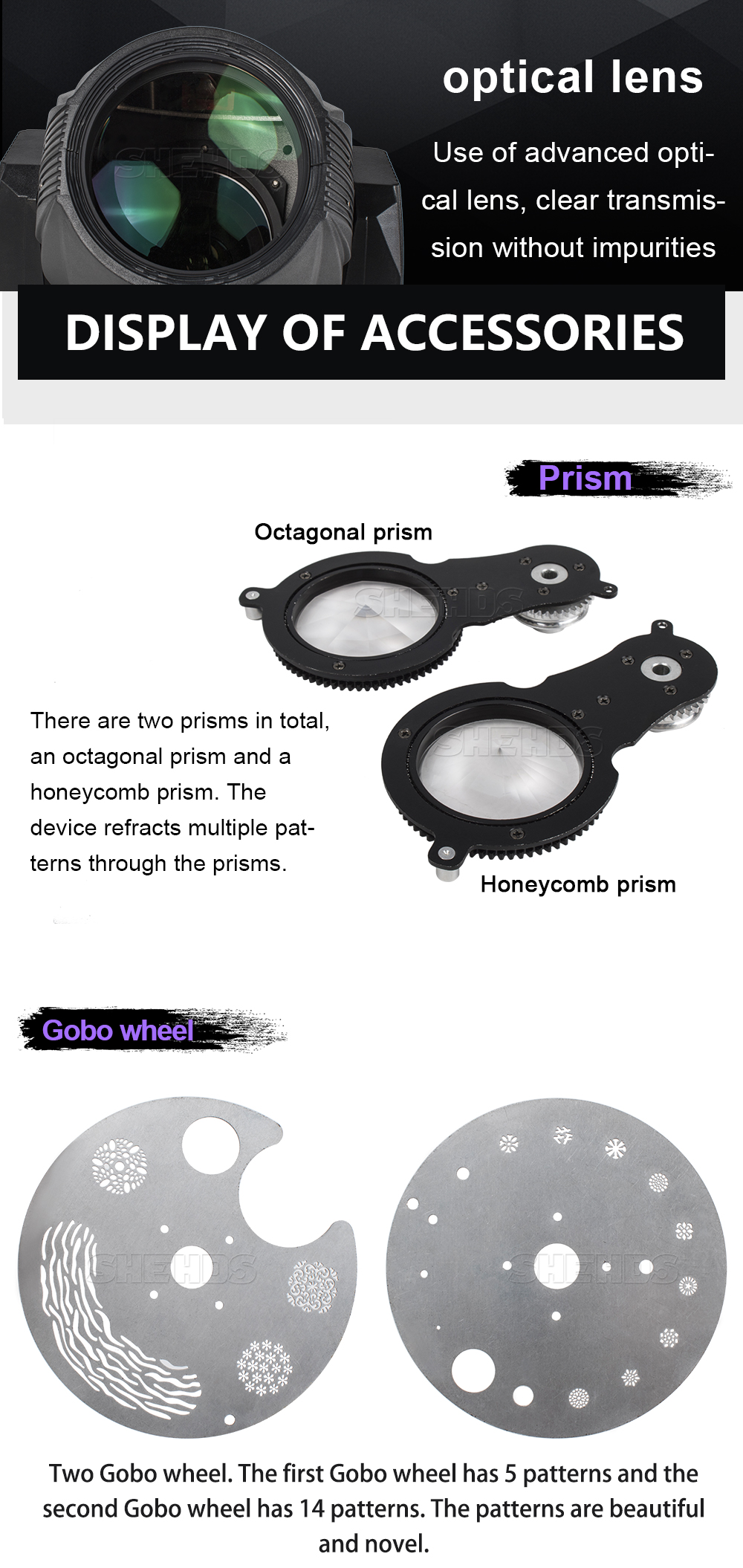

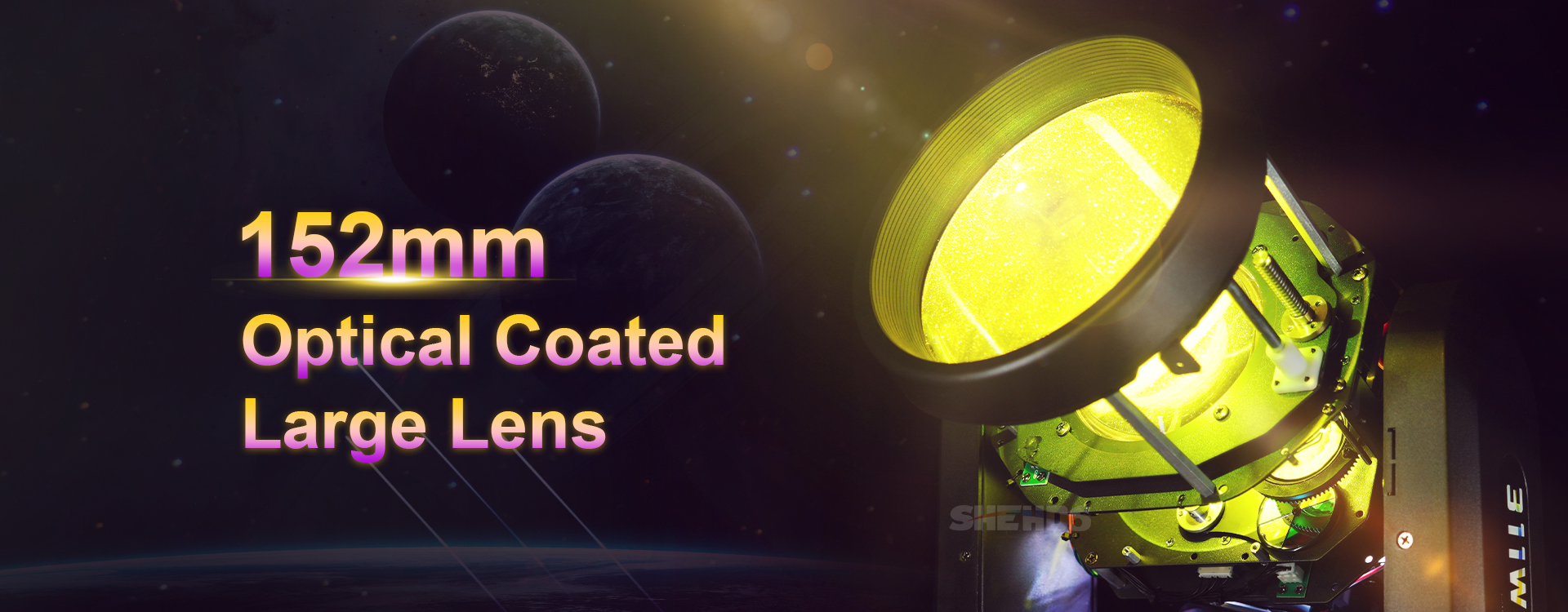

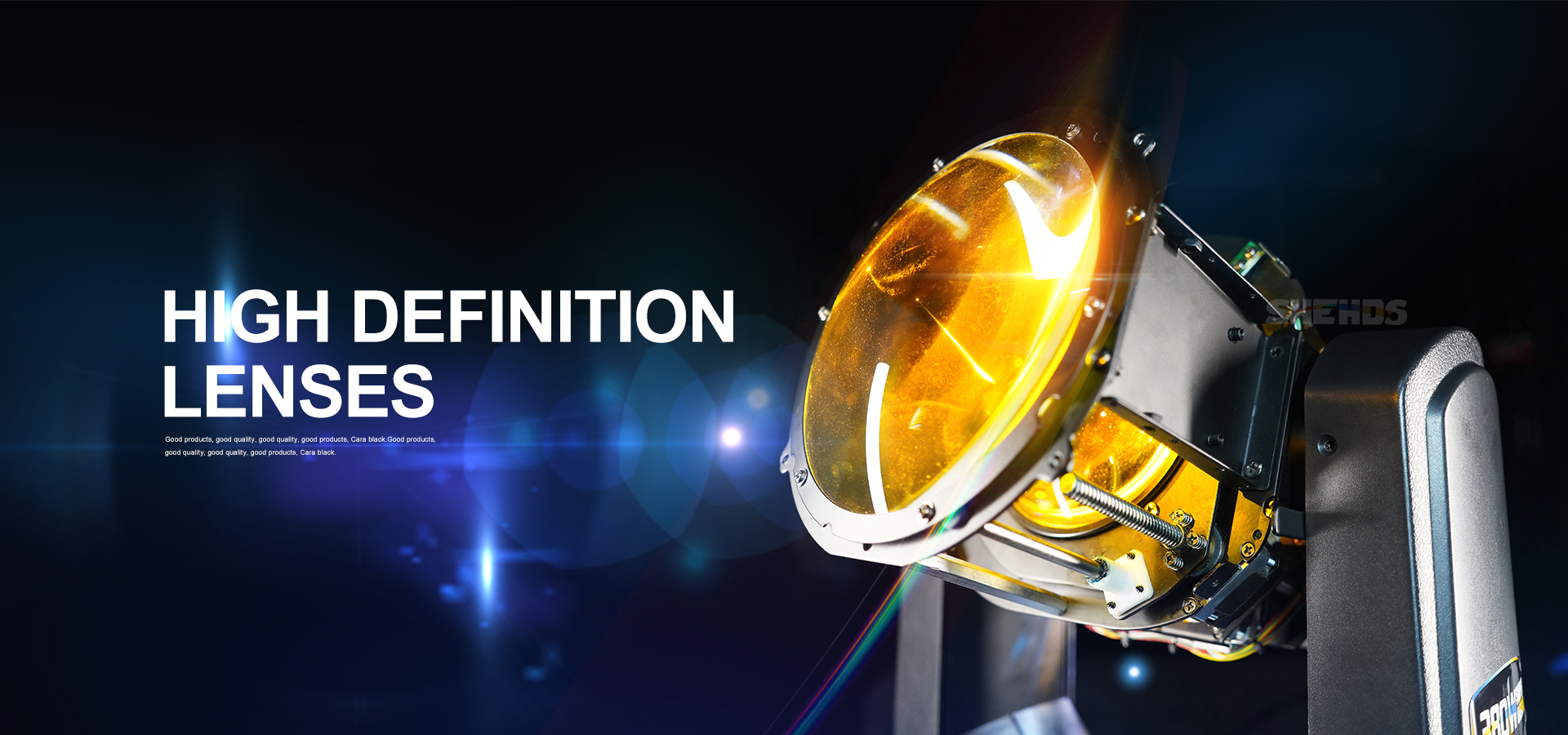

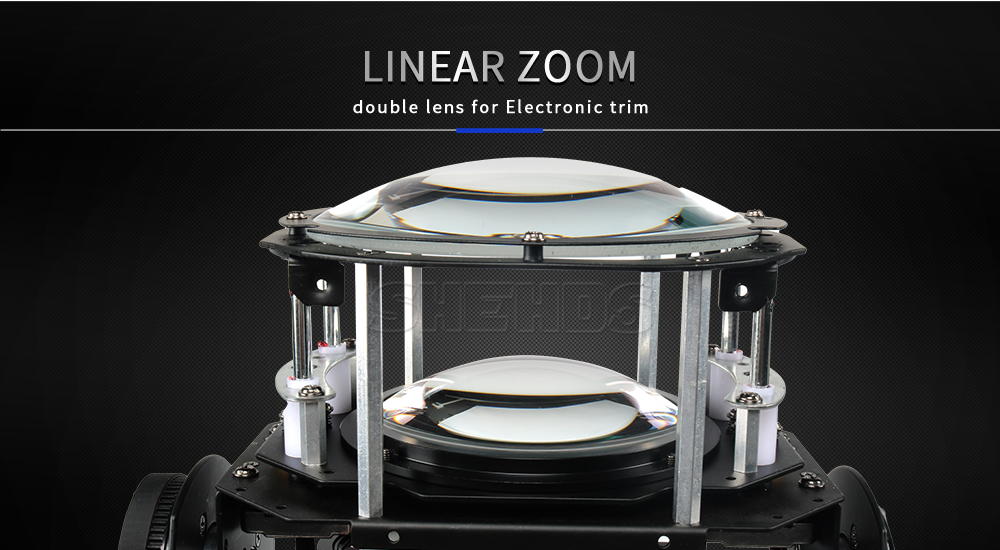

152mm Optical Coated Large Lens

More powerful and spectacular beam of light,

The pattern is clearer and more natural,

New Process Technology for Colorful Coating

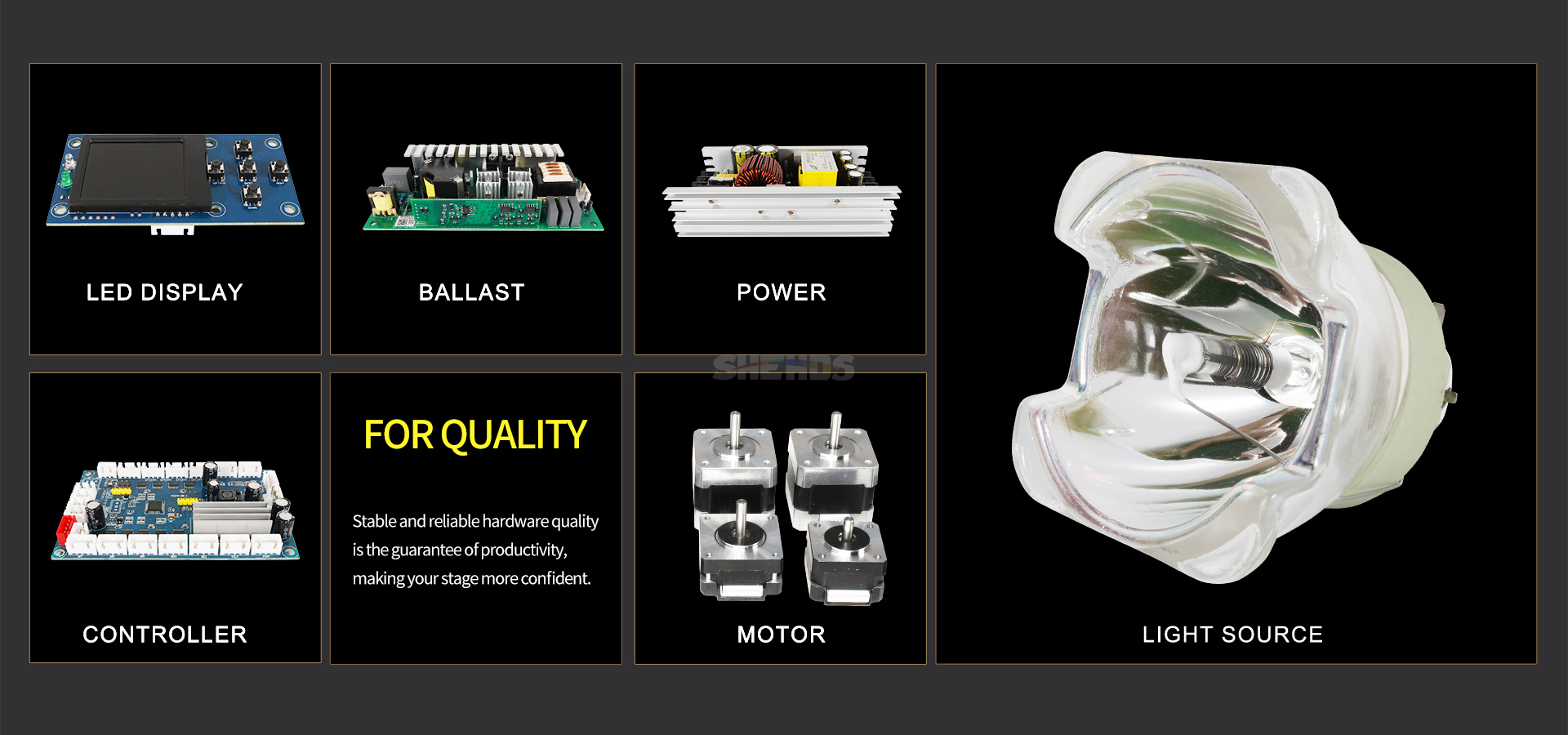

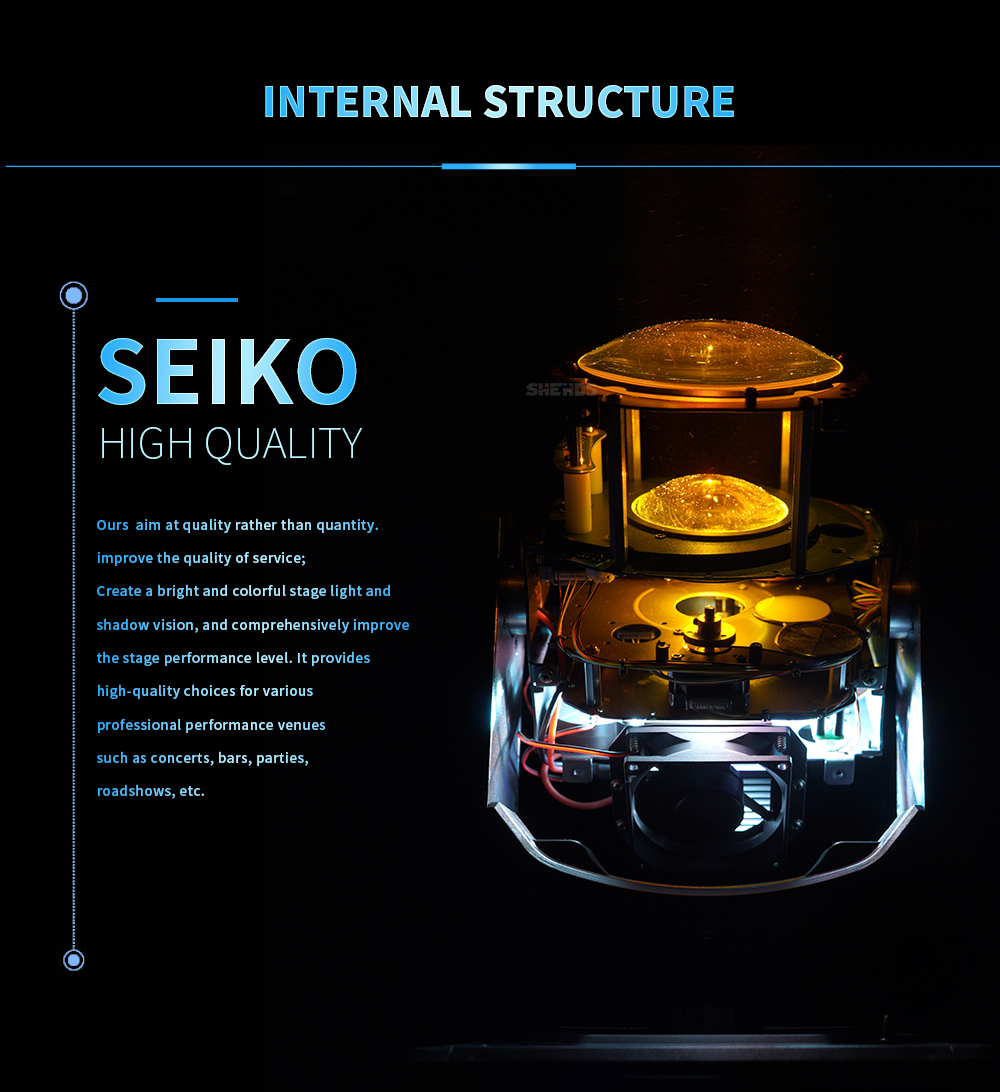

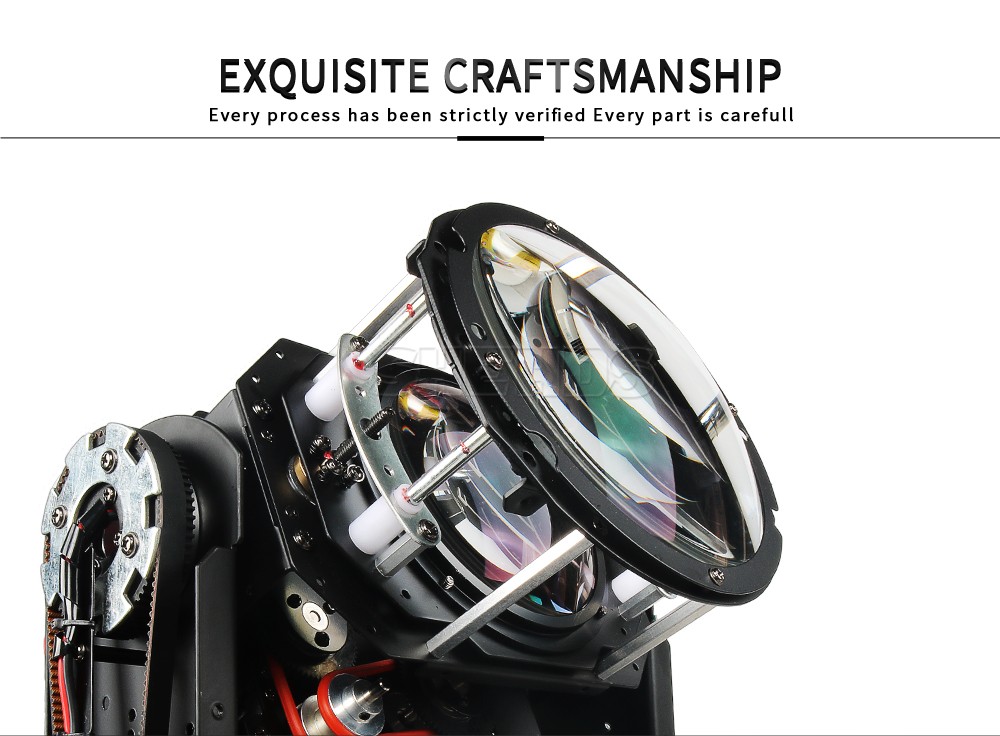

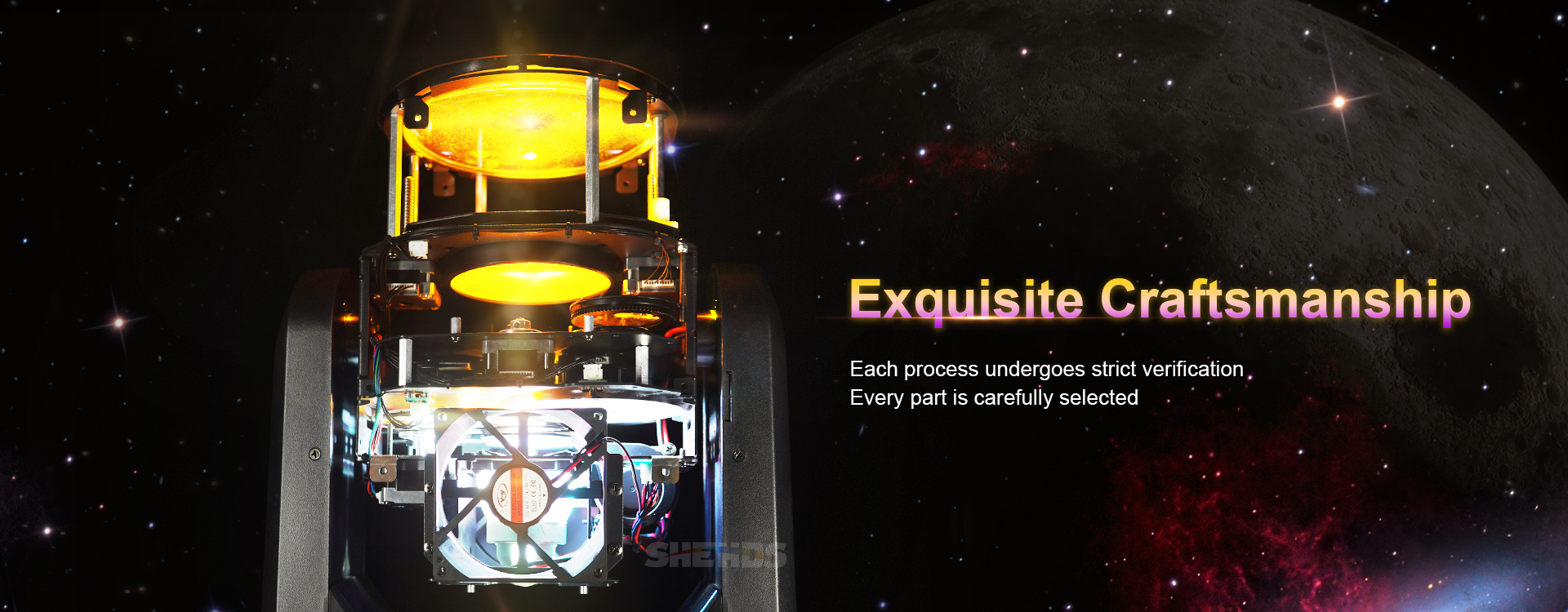

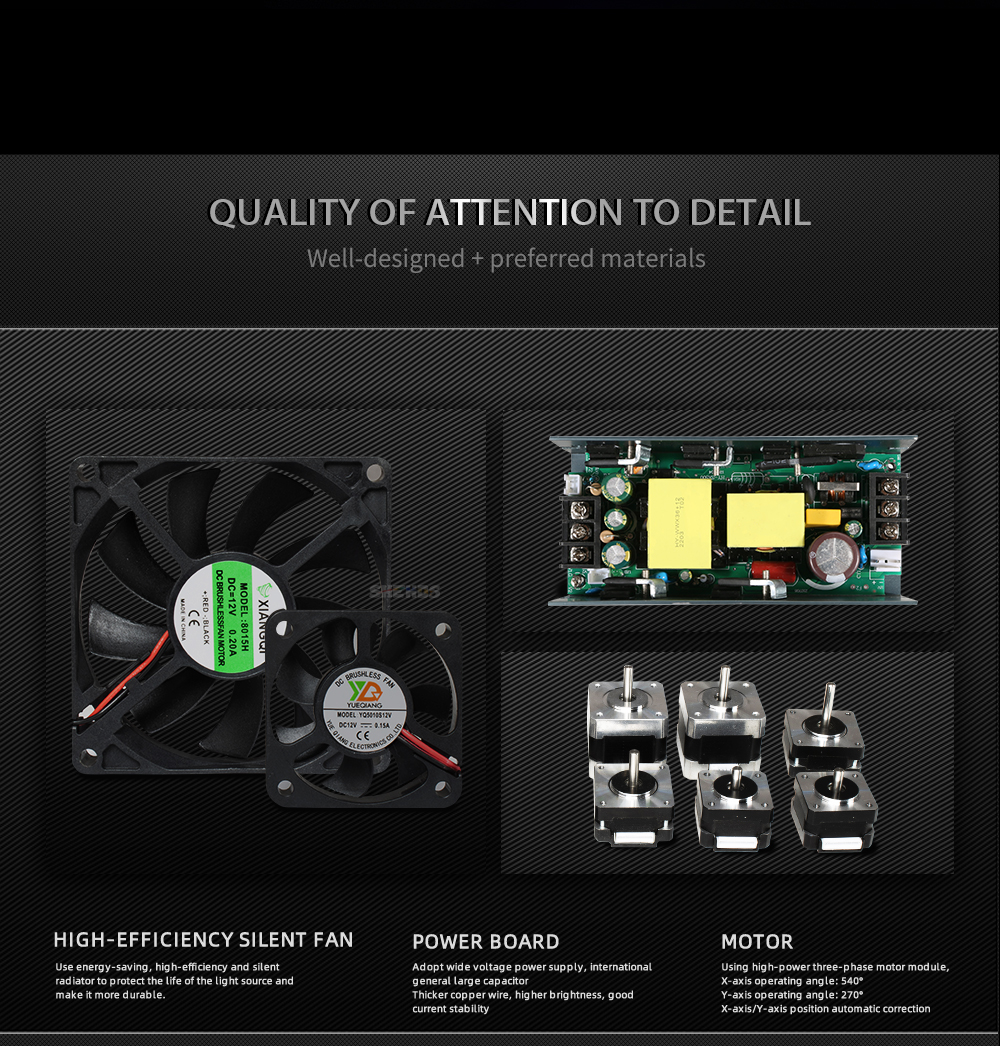

Exquisite Craftsmanship

Each process undergoes strict verification

Every part is carefully selected

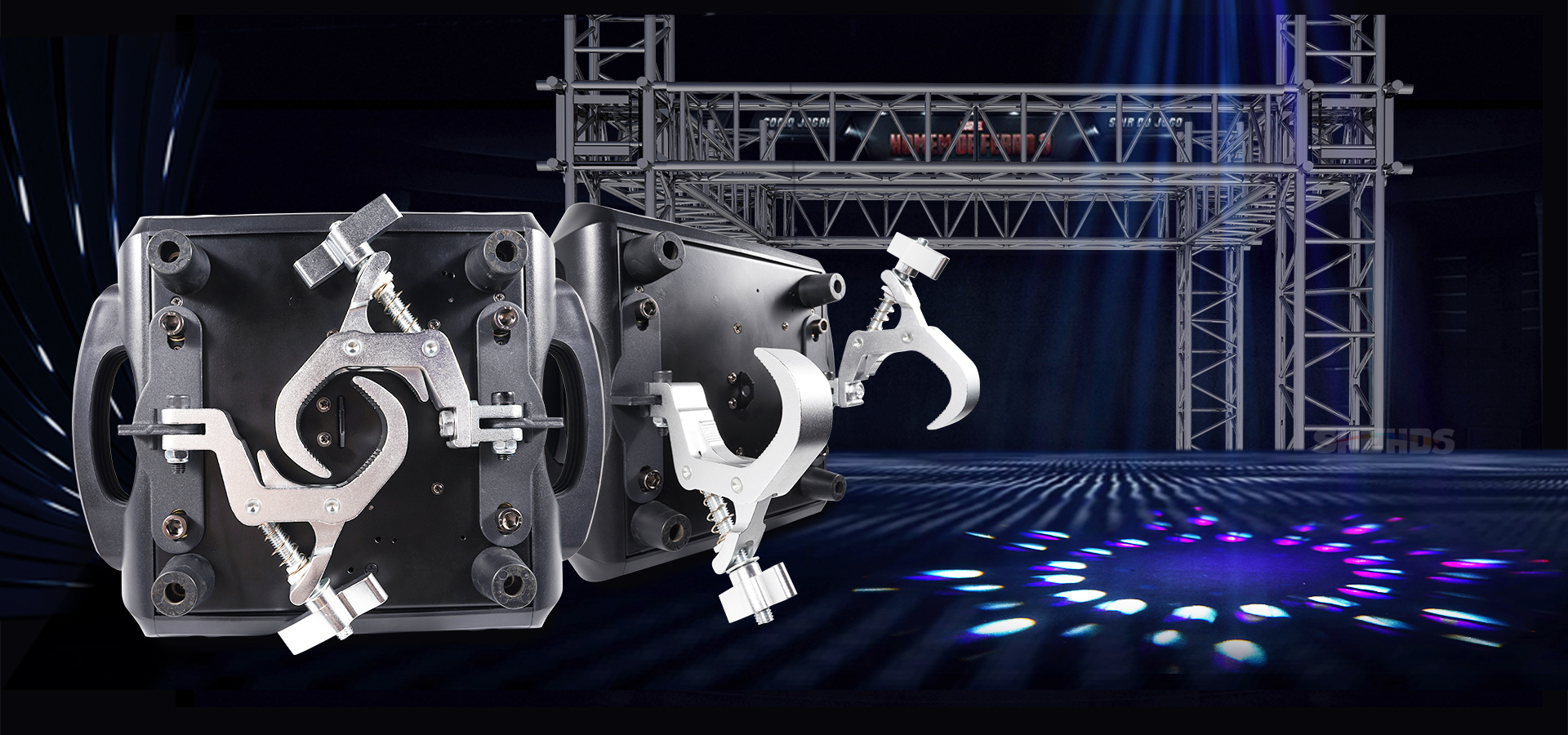

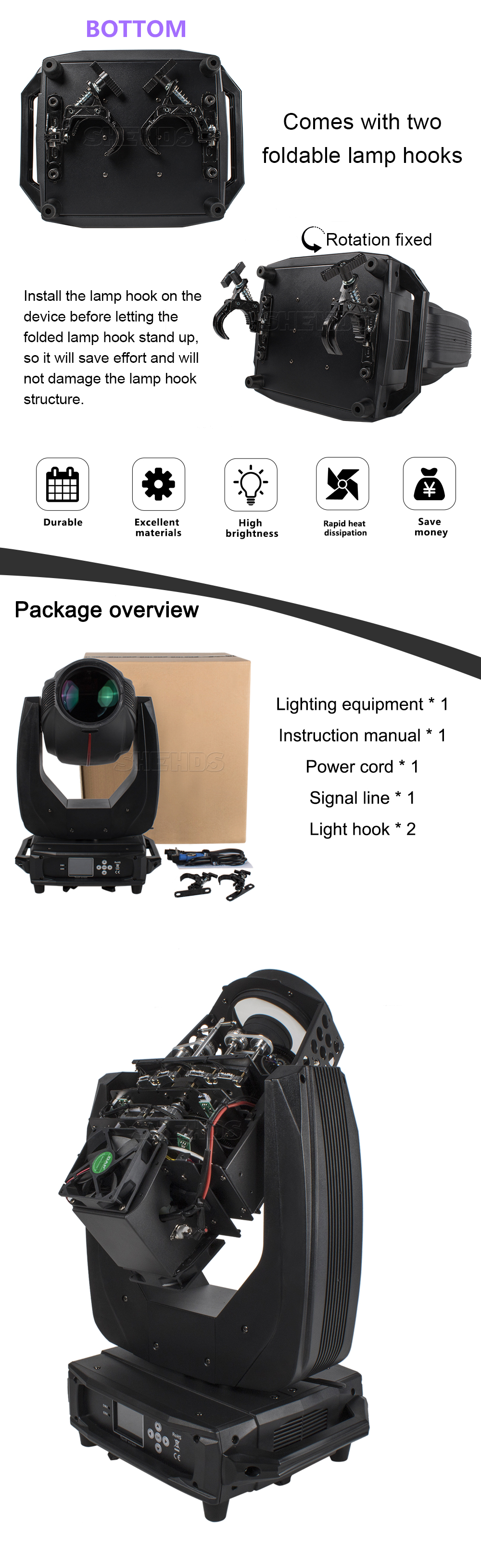

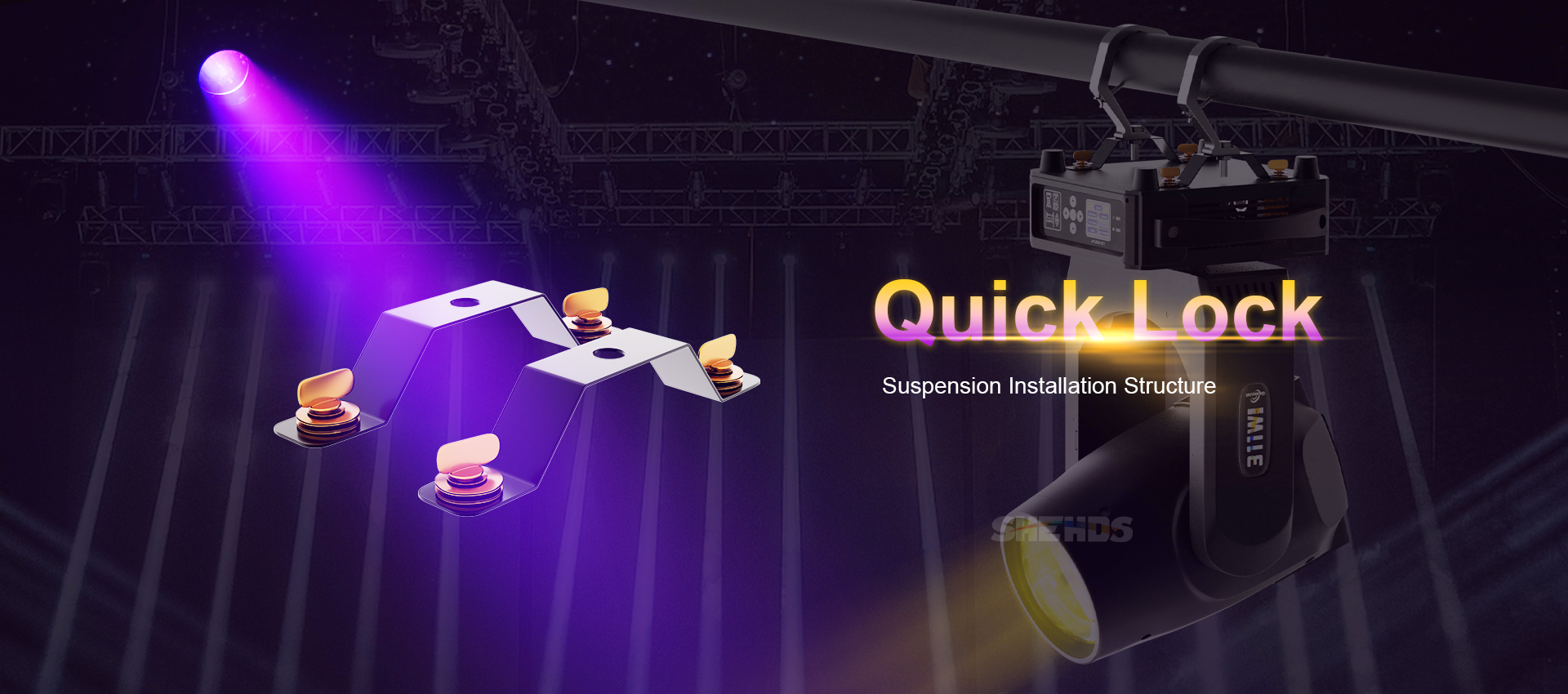

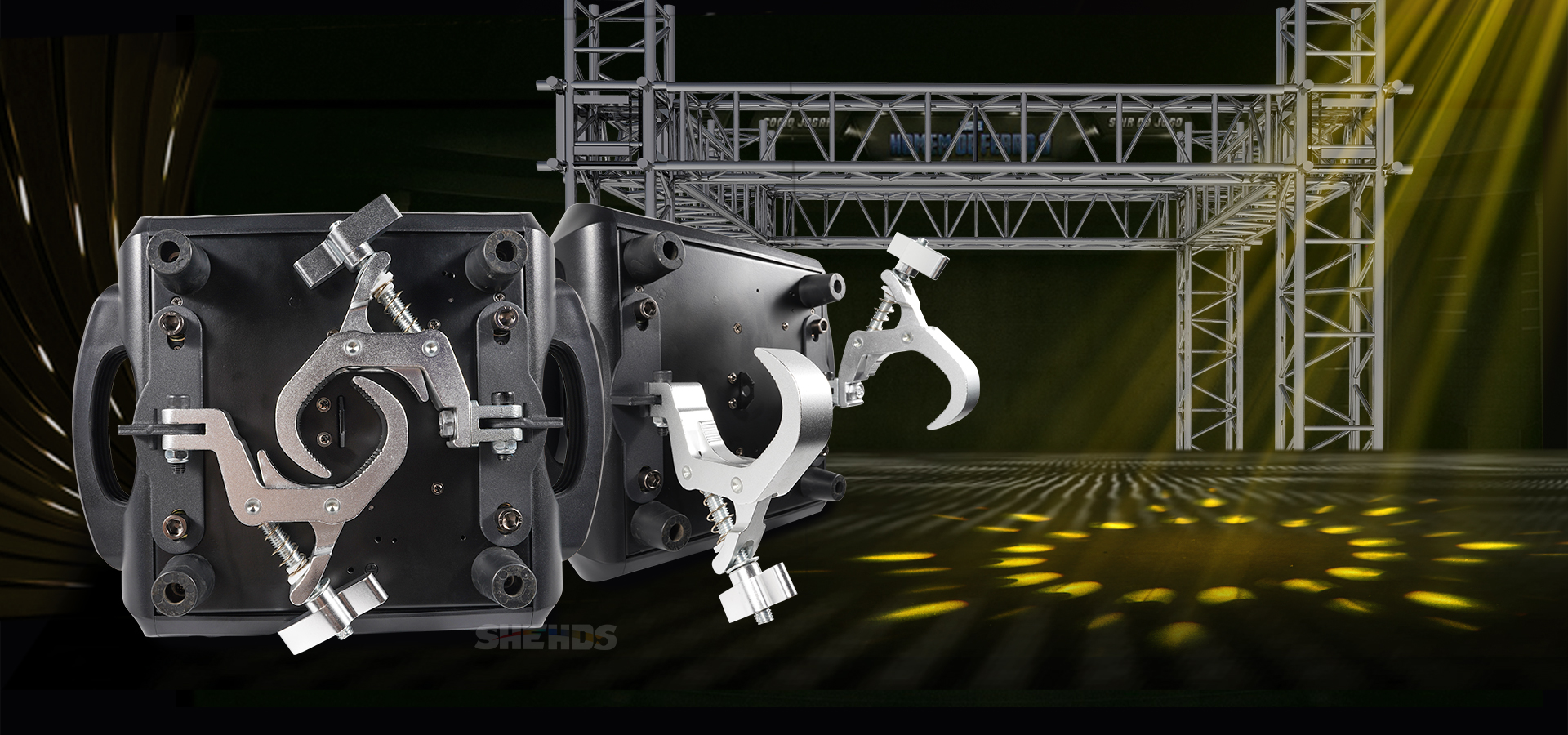

Suspension Installation Structure

Reserve installation position and quick lock for safety rope

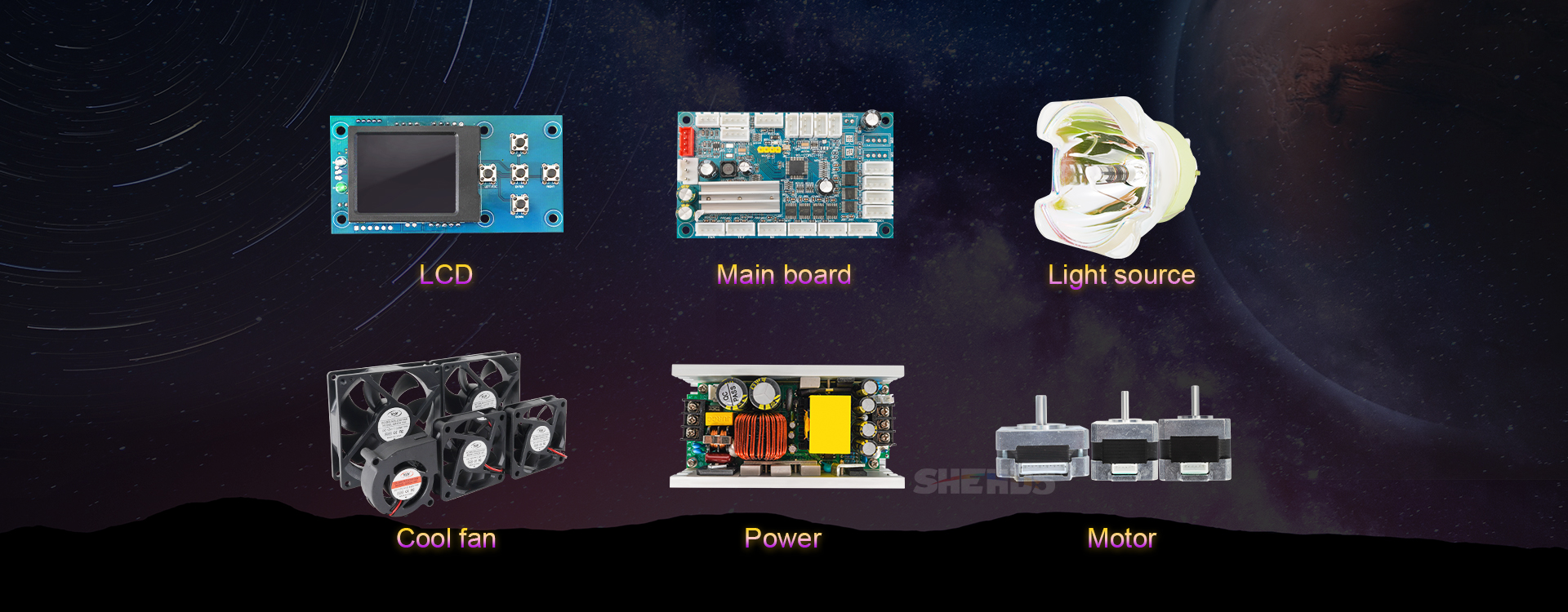

Carefully Select Excellent Accessories

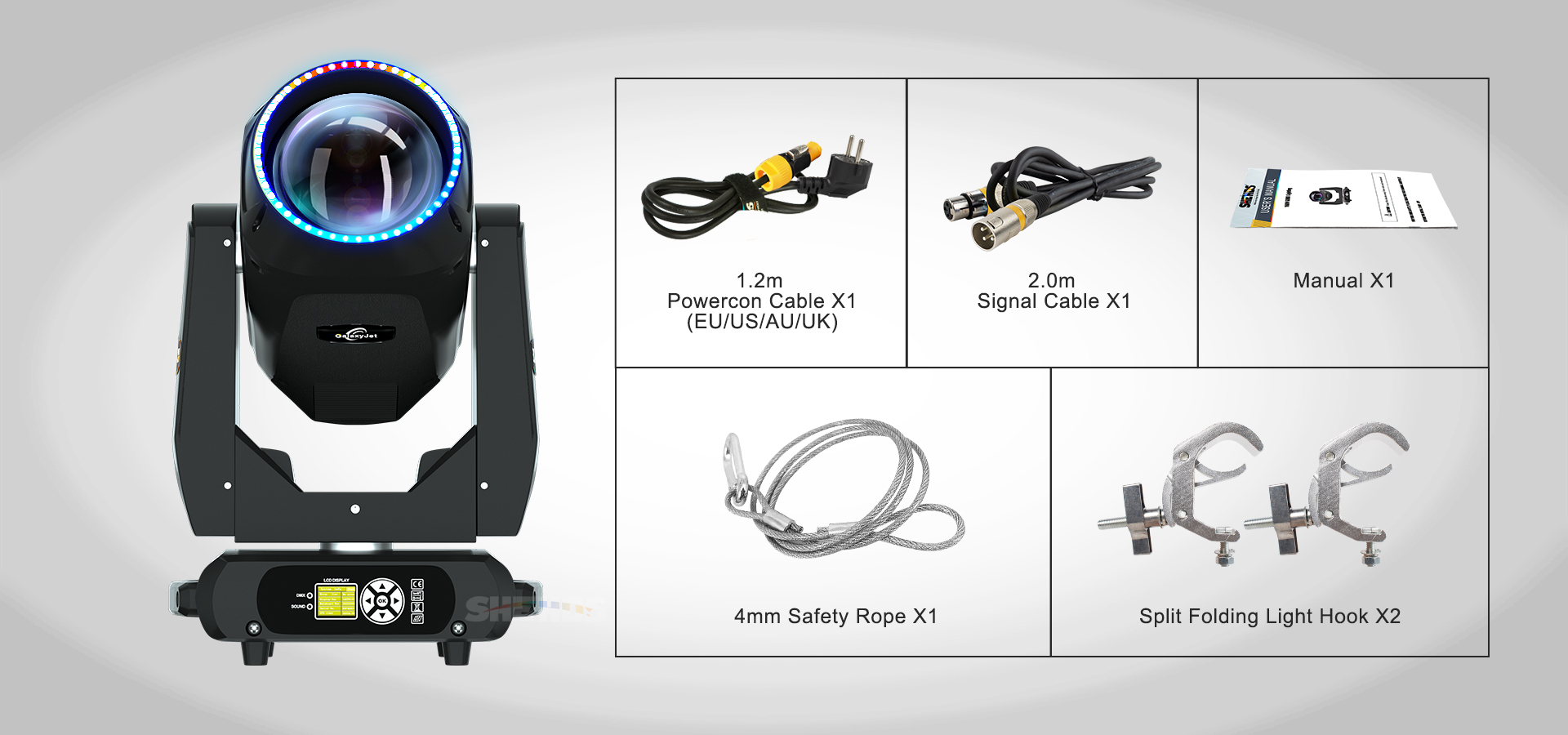

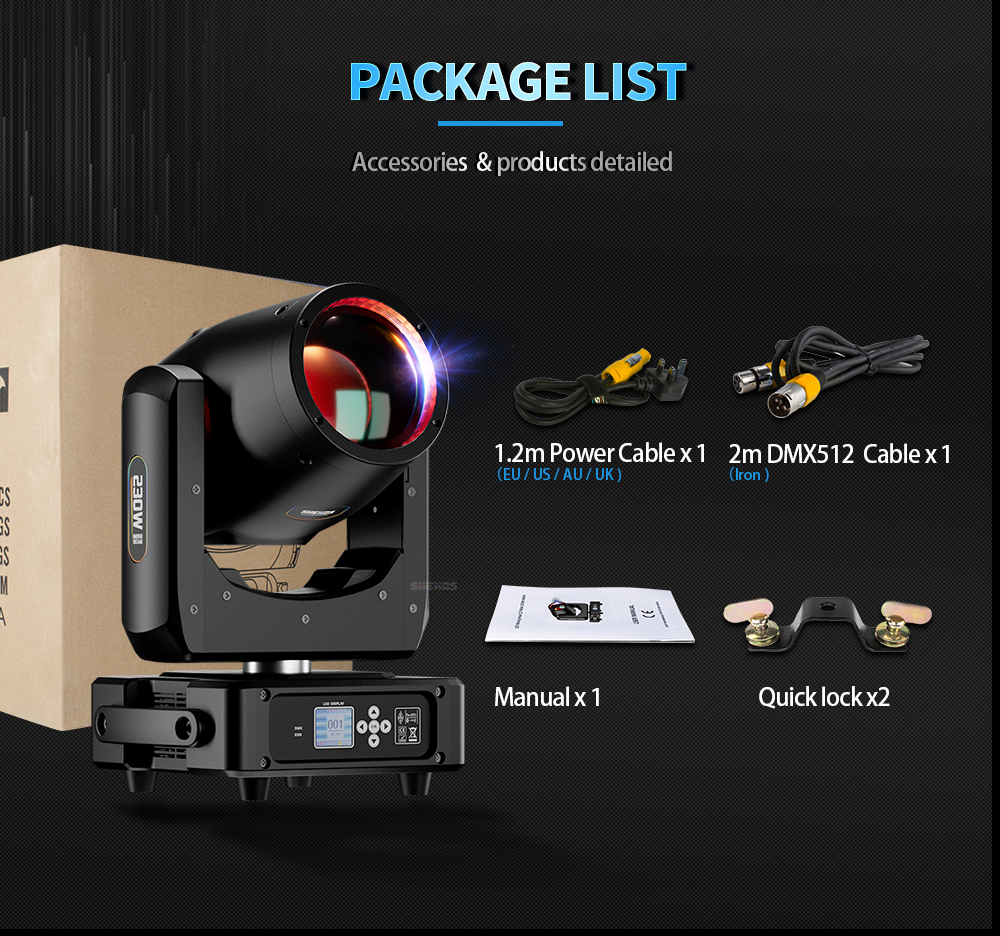

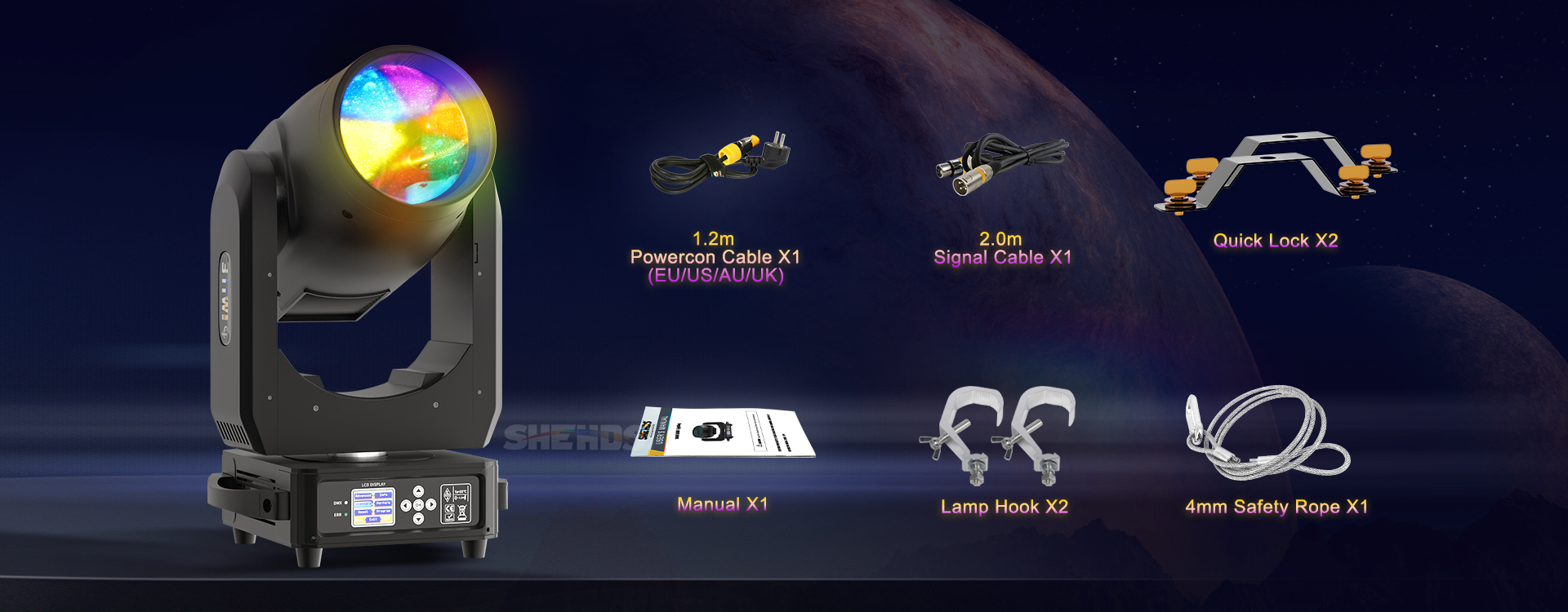

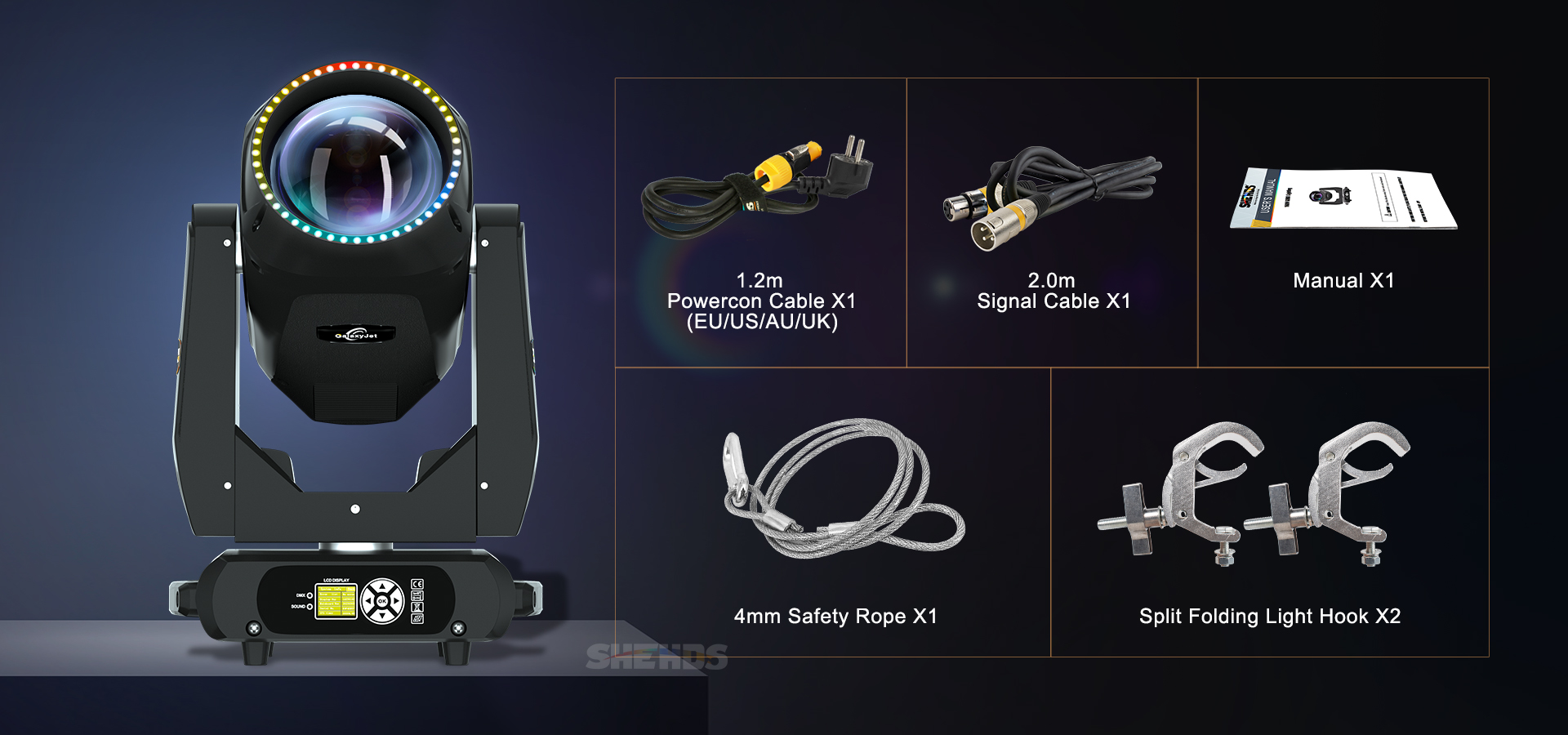

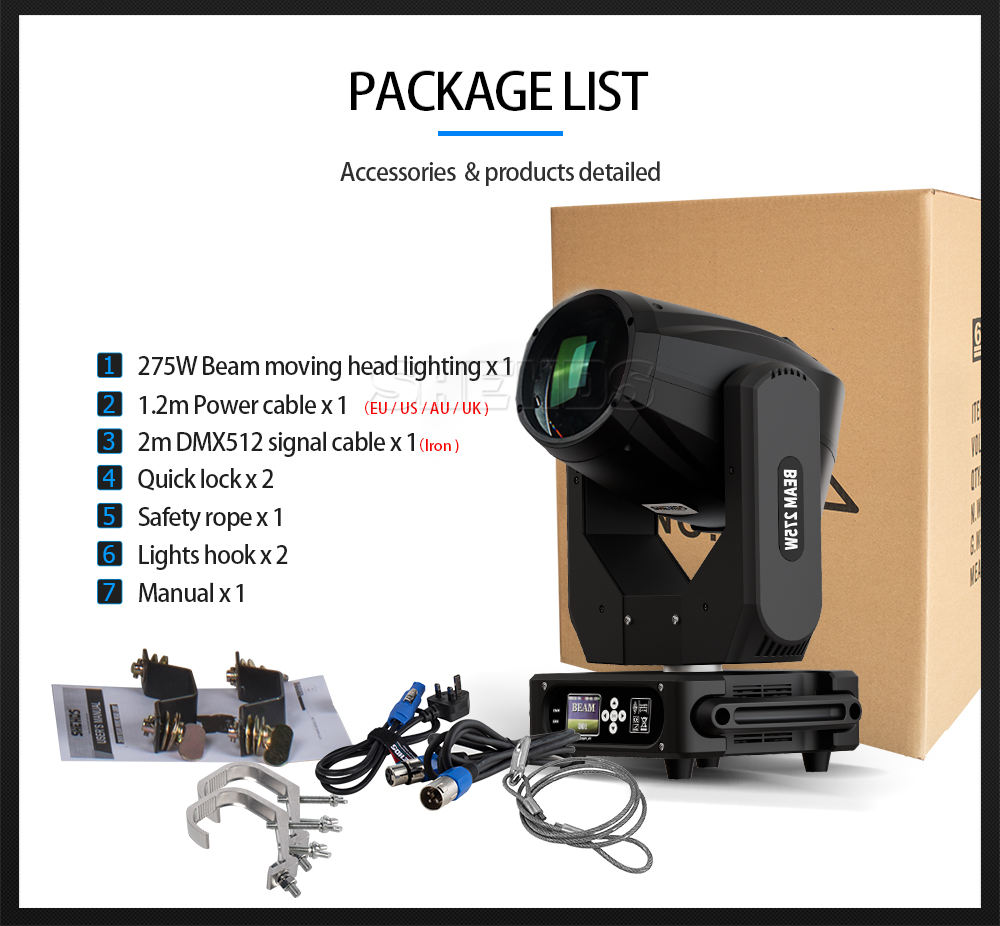

Packing List

Each process undergoes strict verification

Every part is carefully selected

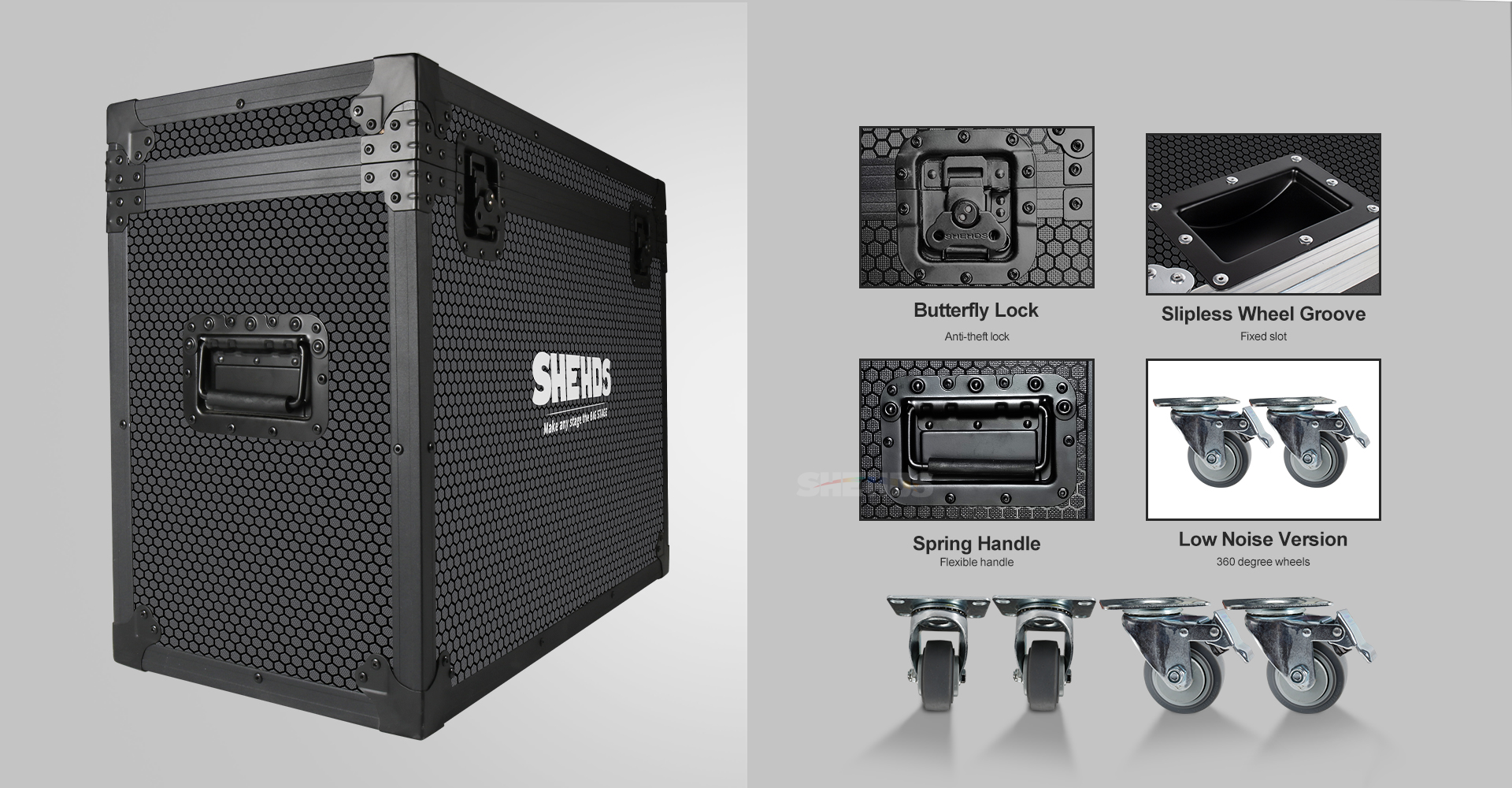

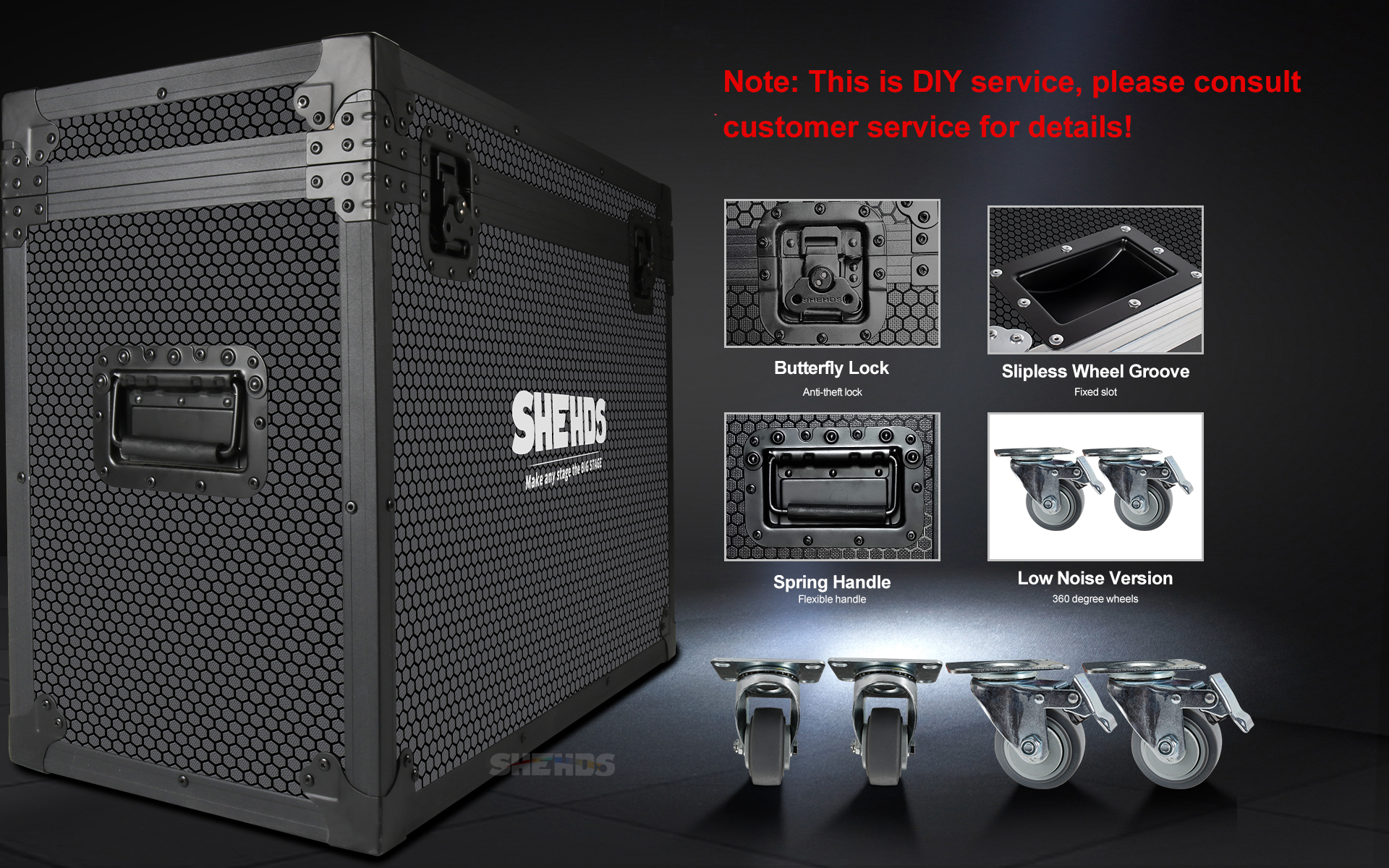

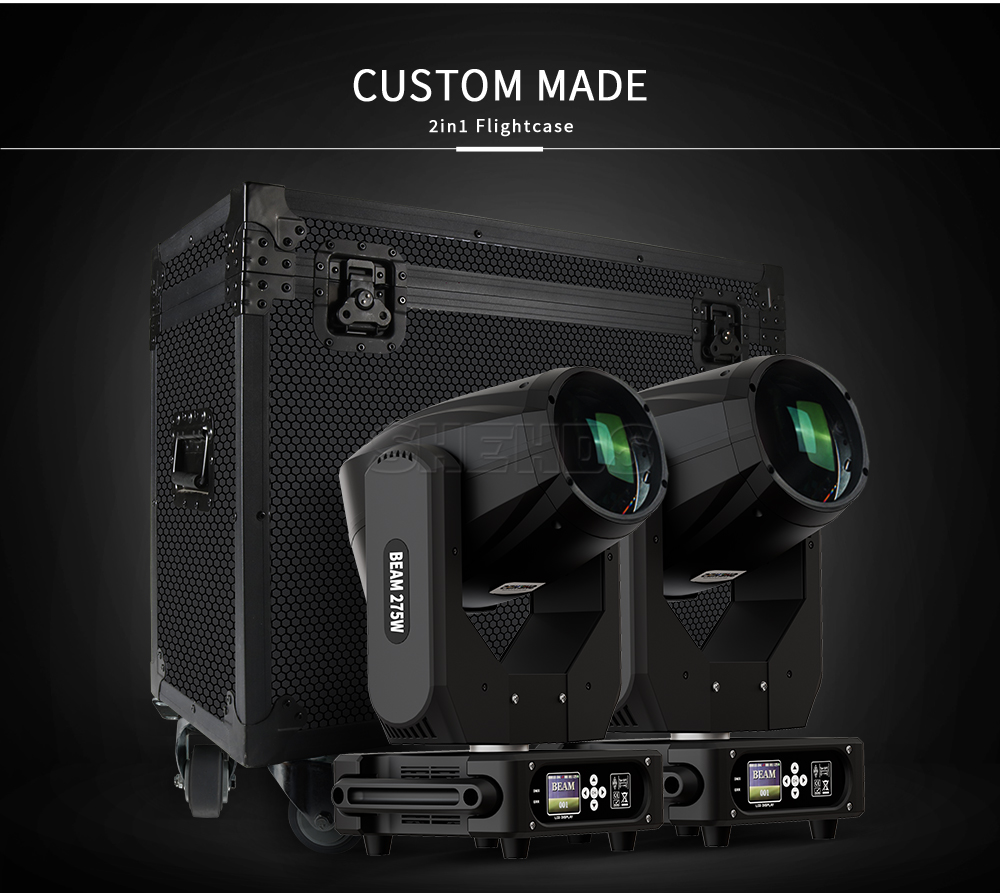

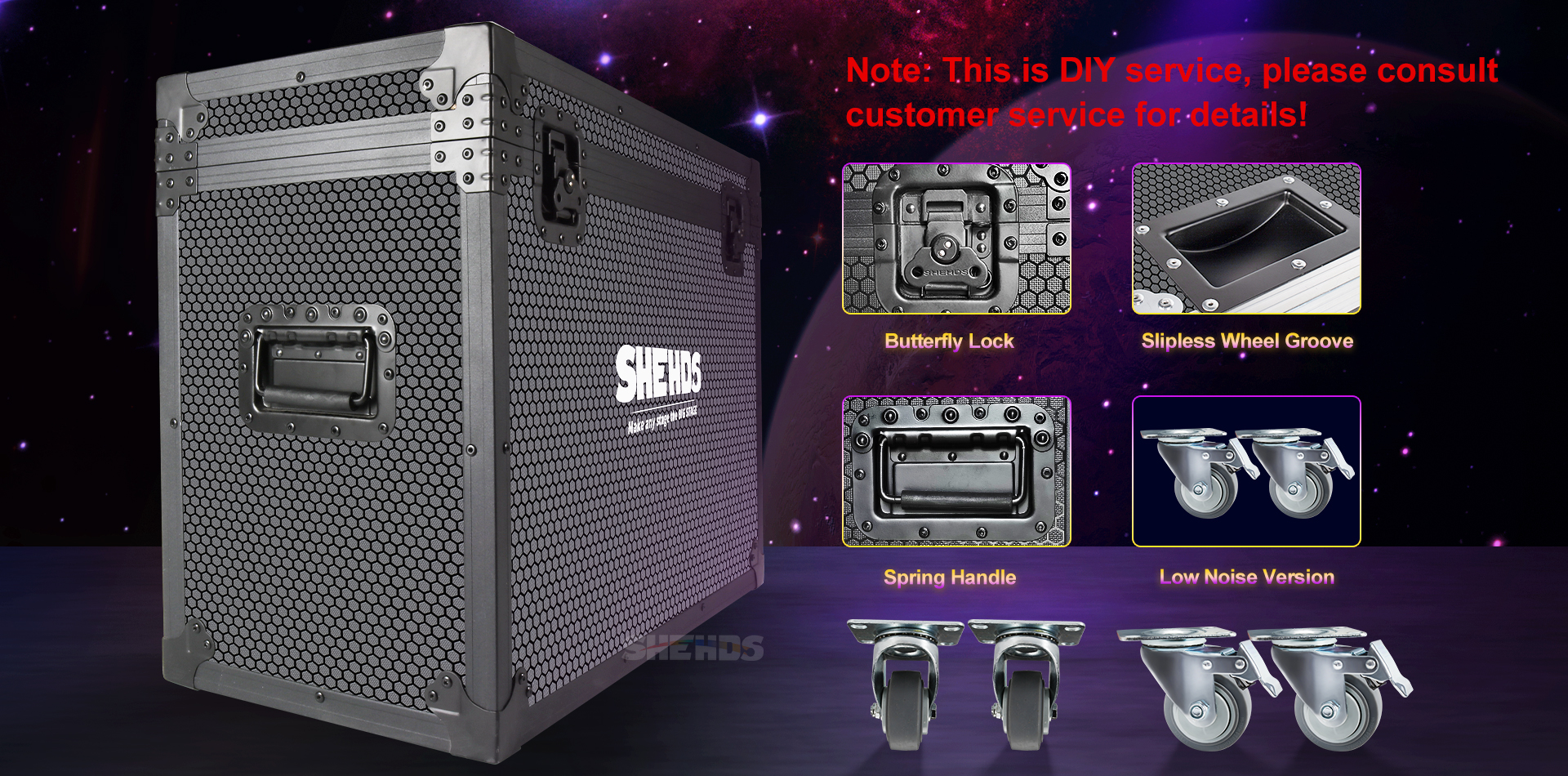

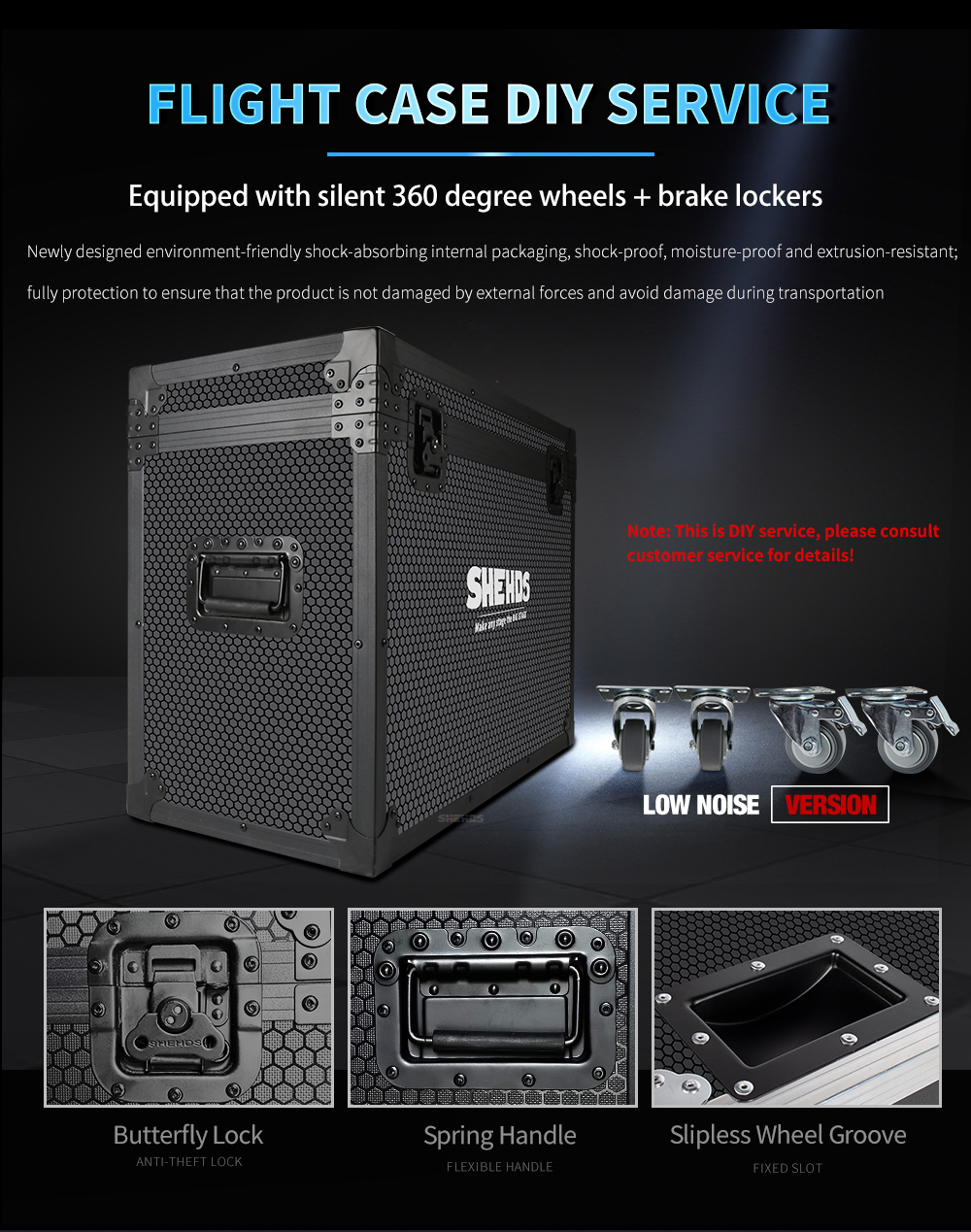

Flight Case DIY Service

Equipped with silent 360 degree wheels + brake lockers

Note: This is DIY service, please consult customer service for details!

Qualification Certificate

International organizations Authority certification

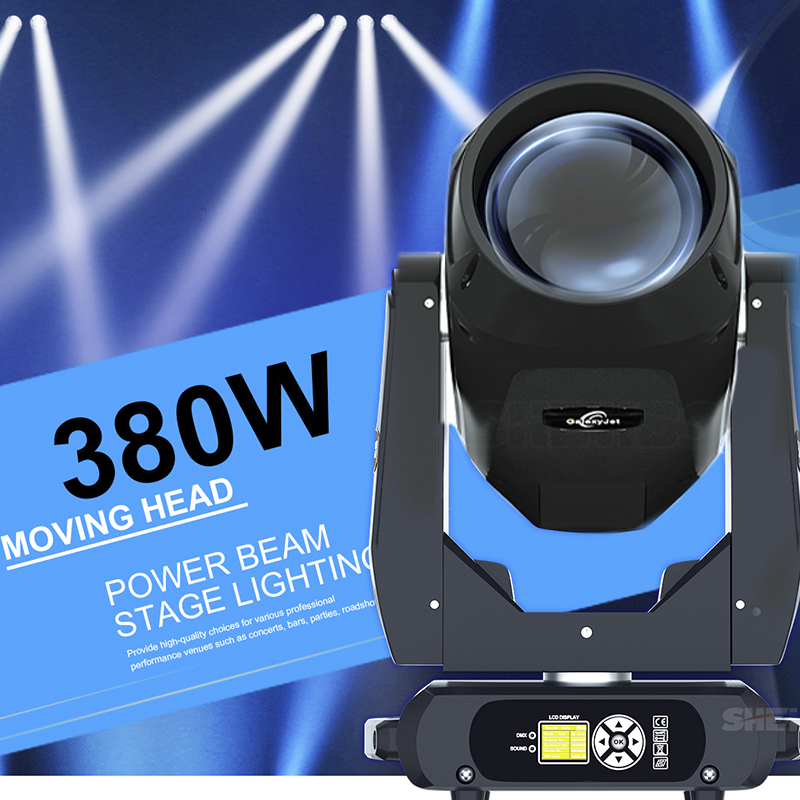

380W Beam Moving Head Light

Without Ring version

Technical Specifications

Voltage: AC90V ~ 240V / 50 ~ 60Hz	Pan/Tilt: 540°/190°
Output Power: 460W	Dimmer: 0-100% Linear dimmer
Light source: 380W Bulb white color	Effect: Frost wash
Beam angle: 1.9 degrees	Prism 1: 8 face prism and rotating
Control mode: DMX512/Master-Slave/Auto/Sound	Prism 2: 8+8+8 face prism and rotating

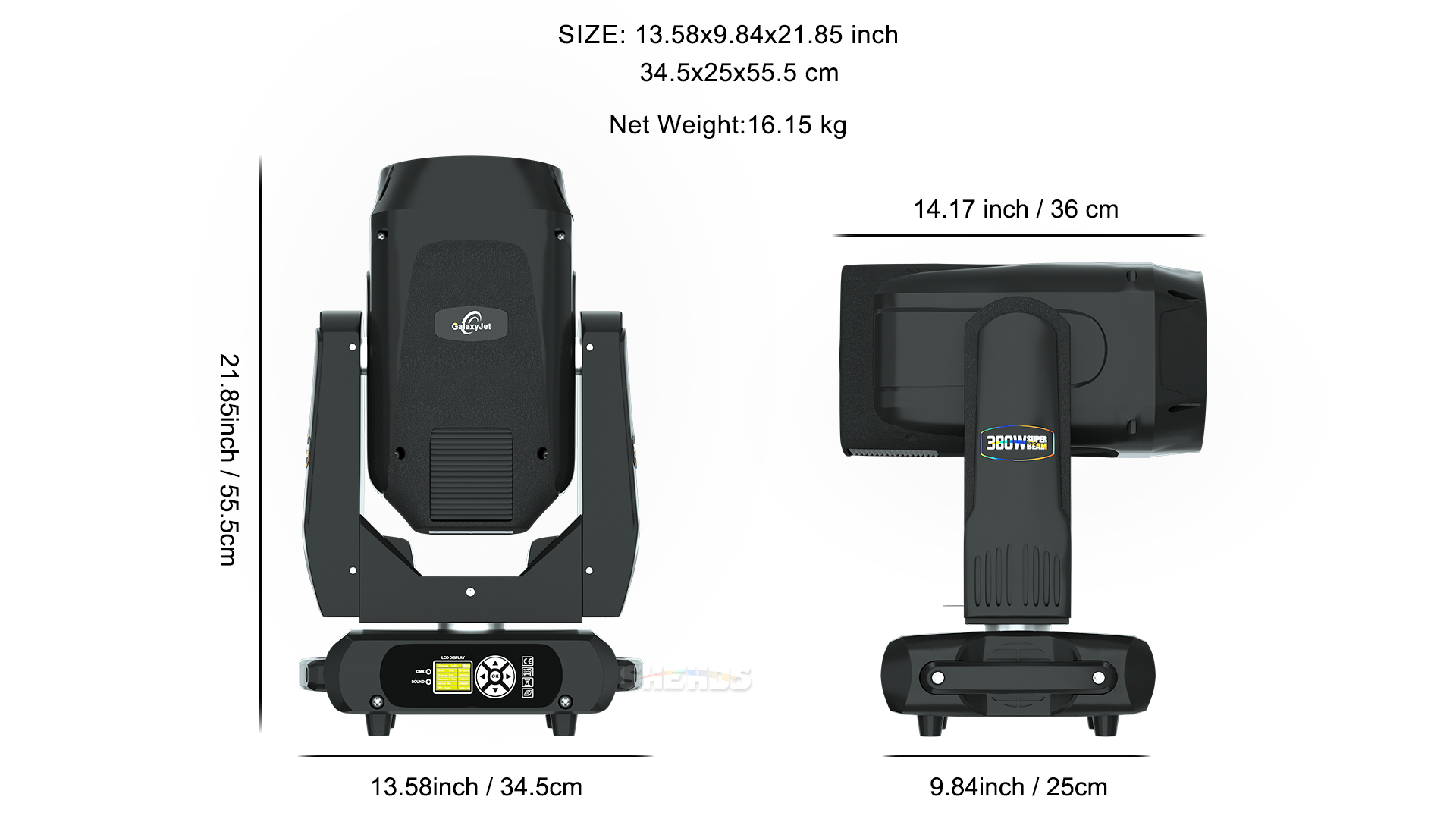

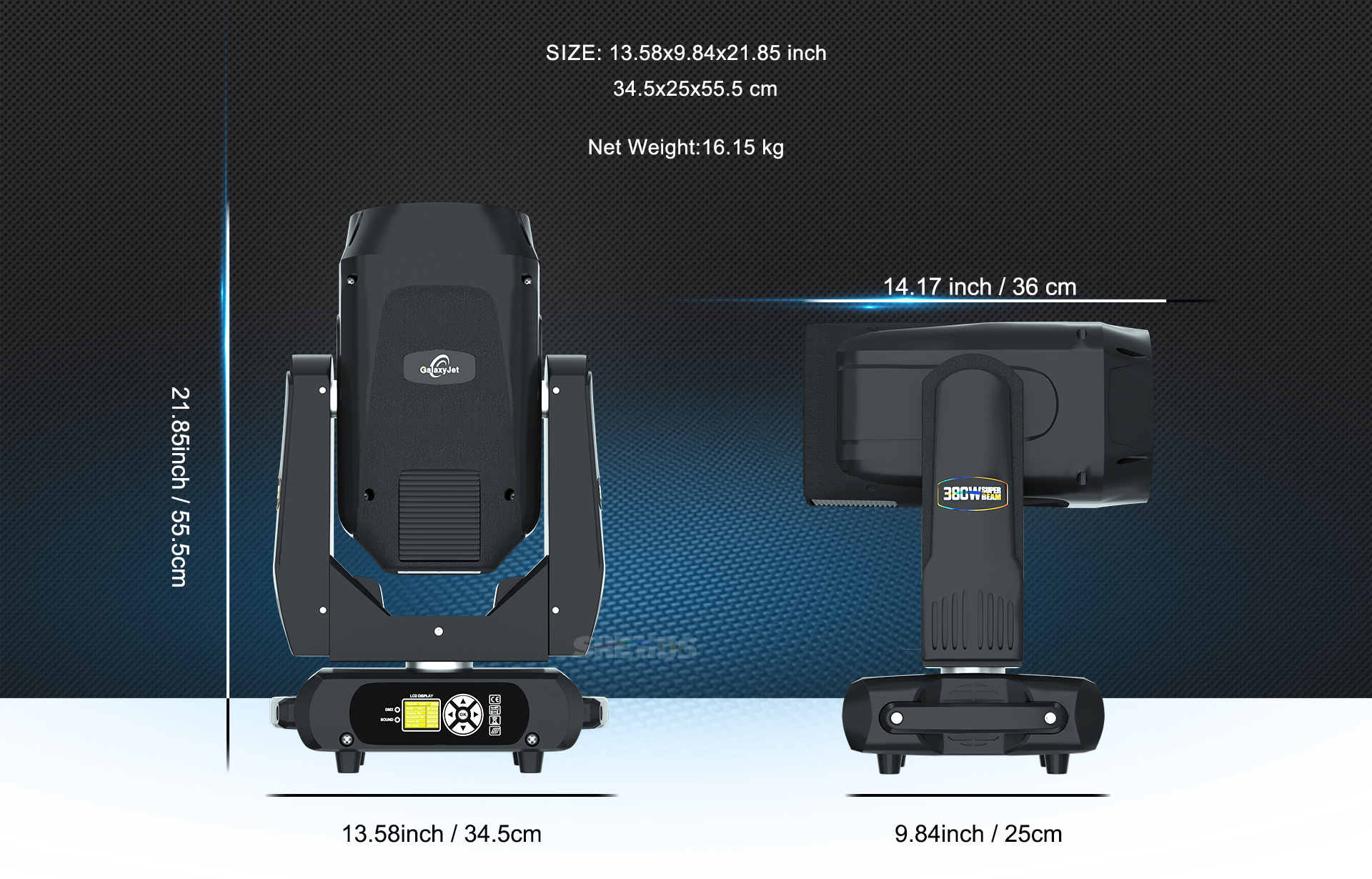

Channel： 16 CH	Product Size: 55.5x34.5x25 cm
Color wheel: 14 colors + open	Product weight: 16.15kg
Gobo wheel: 16 gobos + open	Package Size: 50x46x42.5 cm
Rainbow wheel: 6 colors	Package weight: 19.85 kg
Function:	RDM. Intelligent temperature control, DMX monitor, Manual control

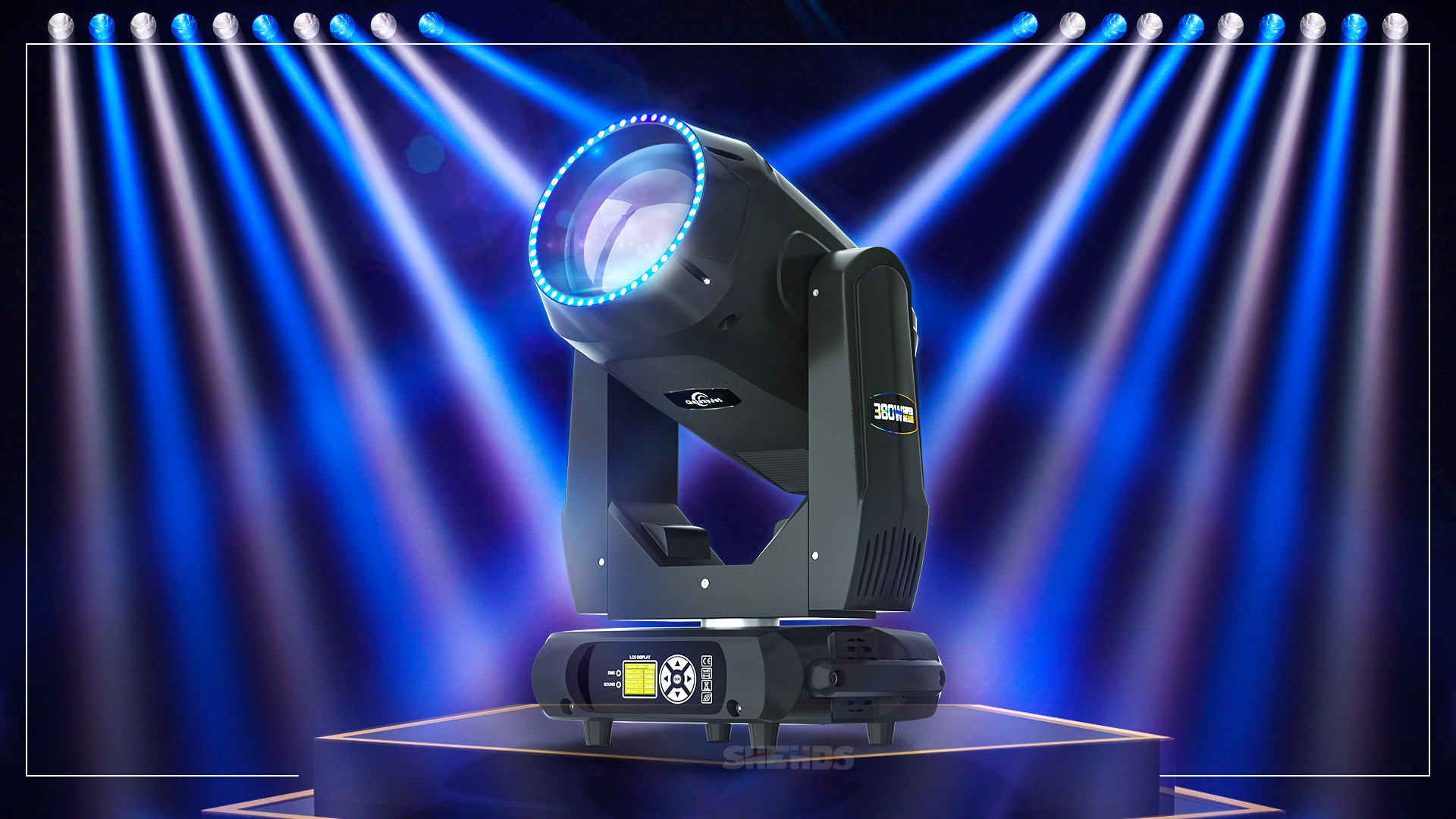

380W Beam Moving Head Light

With Ring version

Technical Specifications

Voltage: AC90V ~ 240V / 50 ~ 60Hz	Pan/Tilt: 540°/190°
Output Power: 460W	Dimmer: 0-100% Linear dimmer
Light source: 380W Bulb white color	Effect: Frost wash
Beam angle: 1.9 degrees	Prism 1: 8 face prism and rotating
Control mode: DMX512/Master-Slave/Auto/Sound	Prism 2: 8+8+8 face prism and rotating
Channel： 19 CH	Product Size: 55.5x34.5x25 cm
Color wheel: 14 colors + open	Product weight: 16.15kg
Gobo wheel: 16 gobos + open	Package Size: 50x46x42.5 cm
Rainbow wheel: 6 colors	Package weight: 19.85 kg
Function:	RDM. Intelligent temperature control, DMX monitor, Manual control
