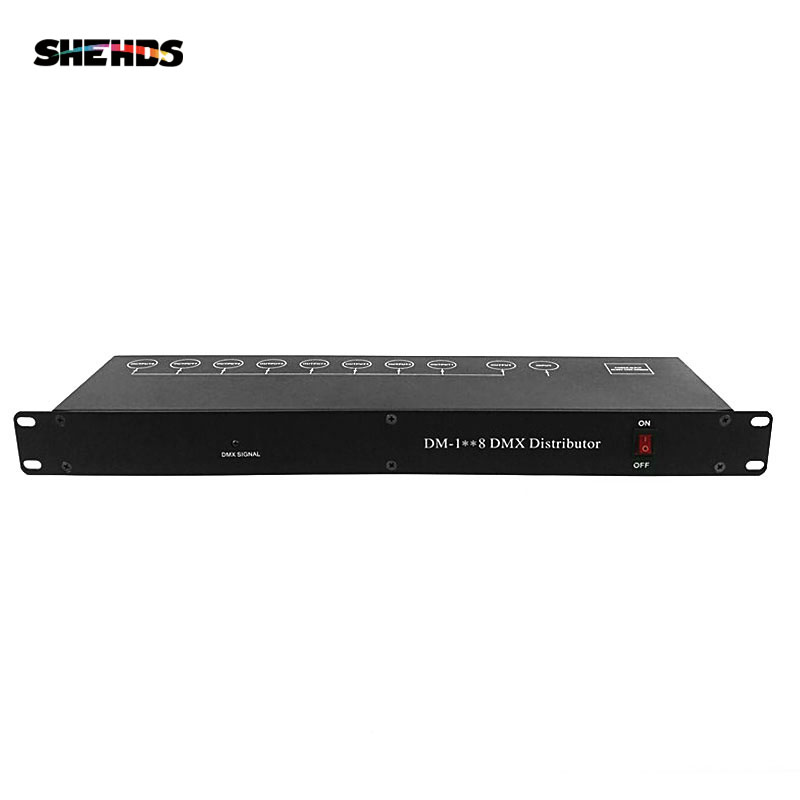

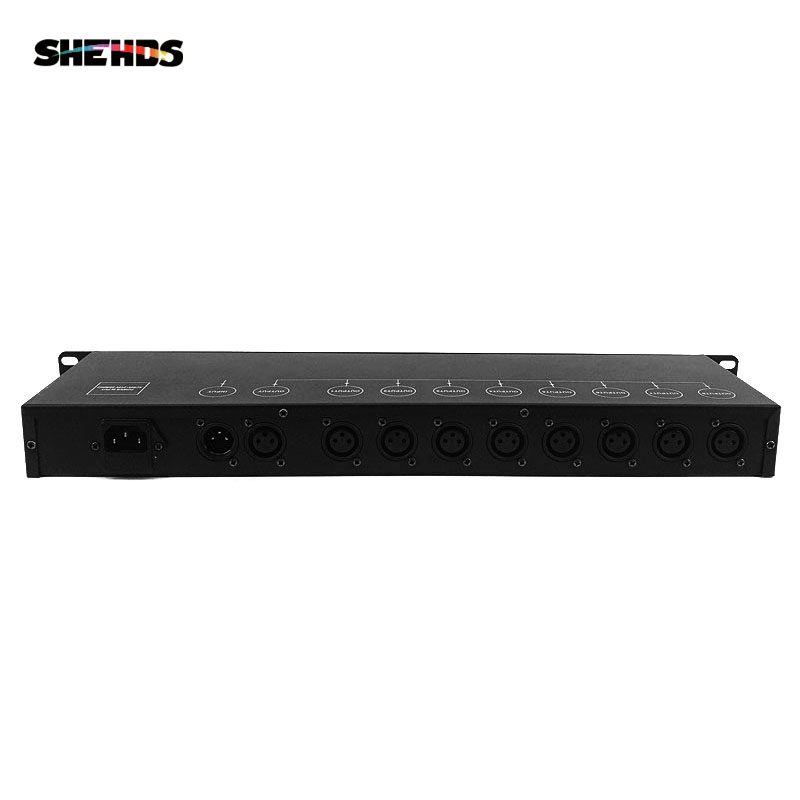

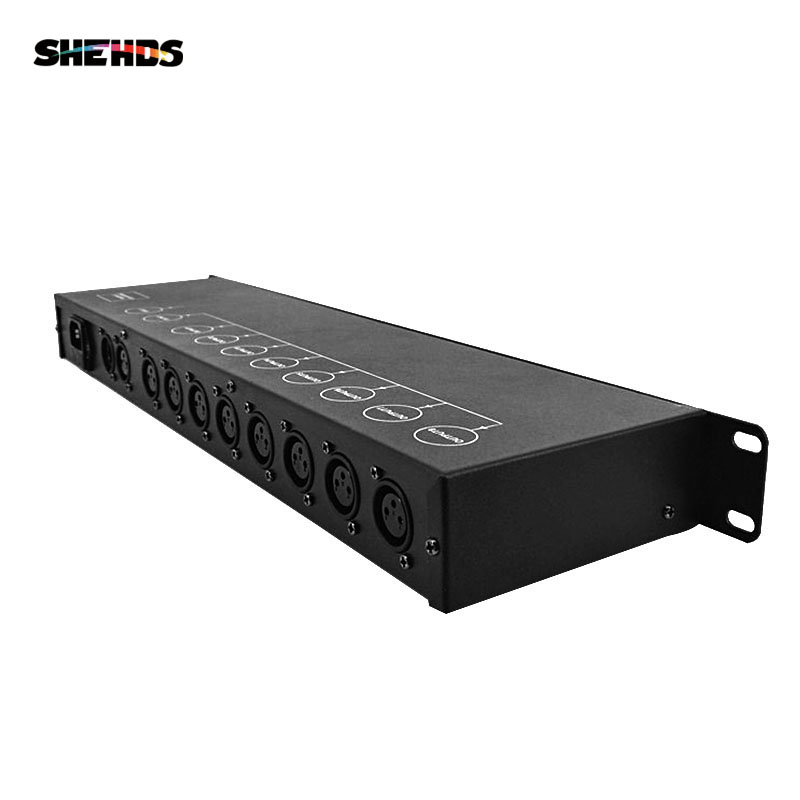

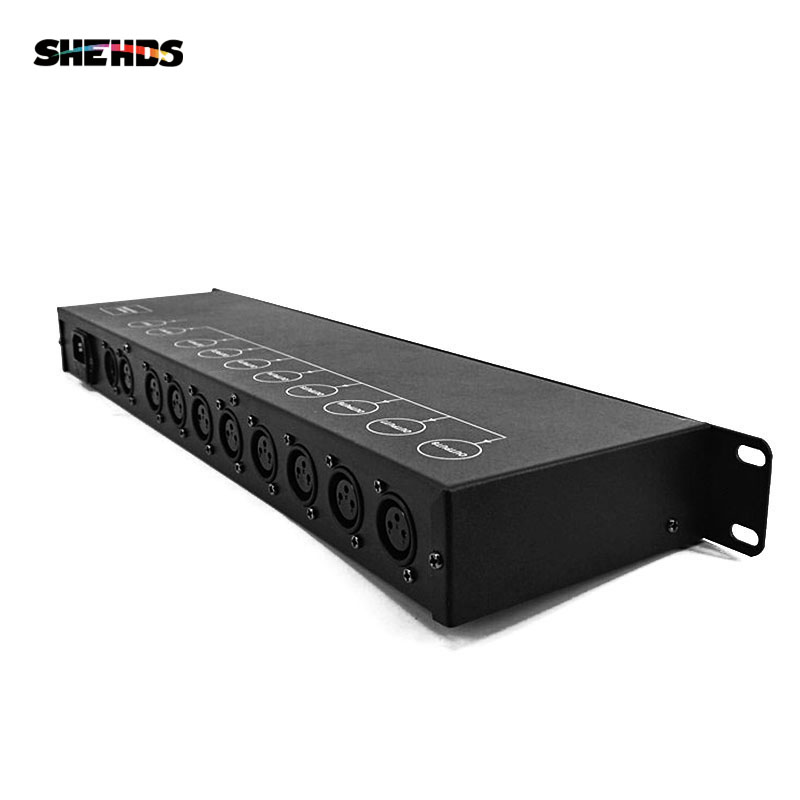

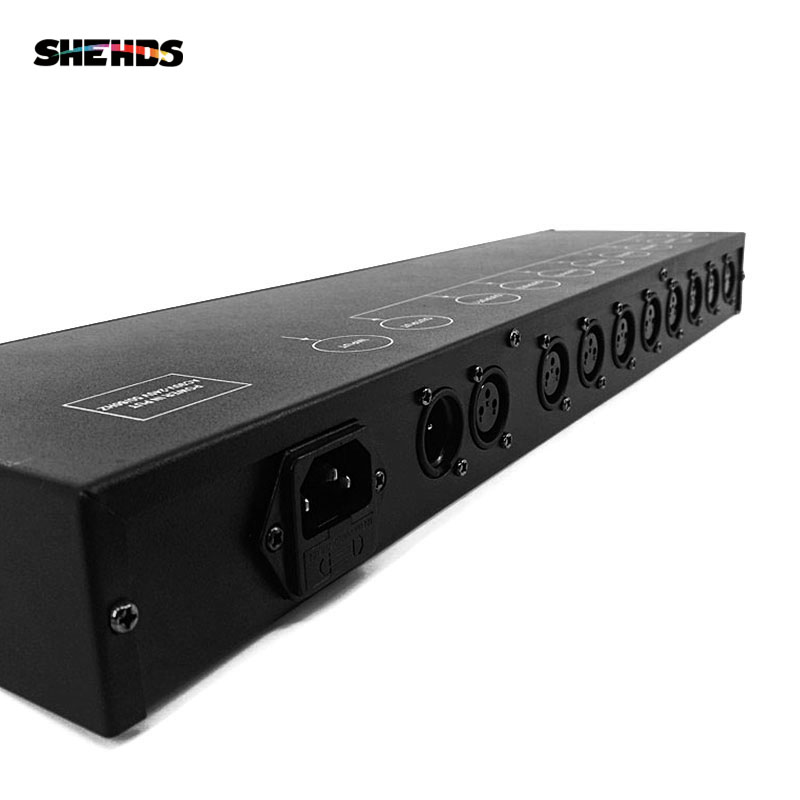

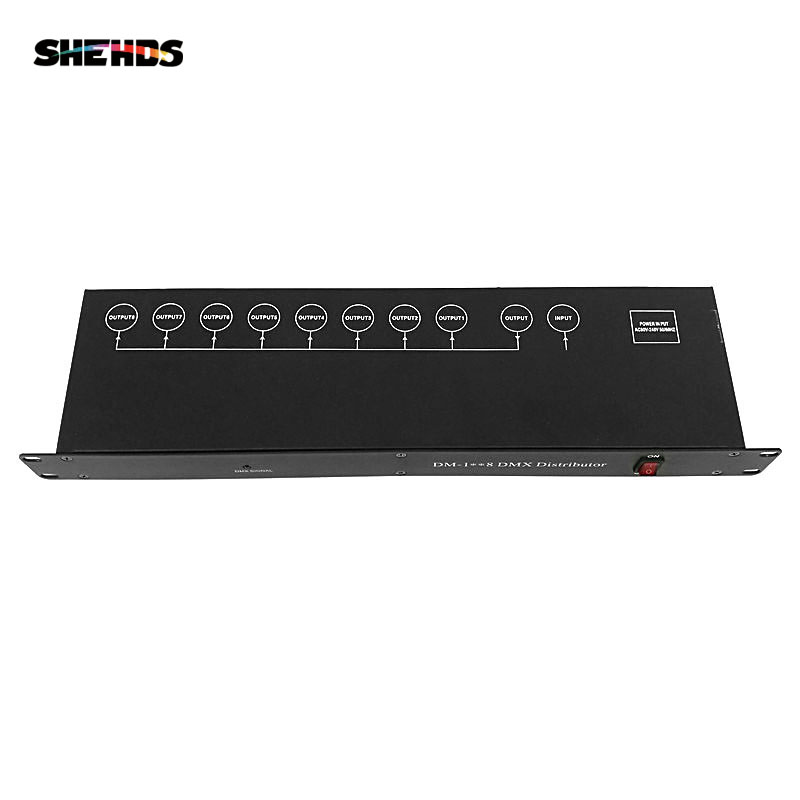

DMX Distributor 8way

Technical Parameters
Voltage: AC90--275V,50--60Hz
Power: 15W
Function effect:
1, DMX512 8-way distribution amplifier; RS-485 and a variety of digital signals transmitted using RS-485 interface
2, 1 DMX512 digital input, 1 DMX512 direct output
3, input / output optical isolation
4, 8-way independent amplification drive output
5, signal amplification and shaping function, extend the signal transmission distance
6、Enhance the ability of the data bus to access the number of devices
7, protection of lighting console DMX512 output interface, fault site isolation, to improve the safety and reliability of digital lighting control system operation
Shell material: black, iron alloy shell
Waterproof grade: IP20 indoor
Product size: 52x19.8x12 cm
Product weight: 2.35 kg
Package size: 55x22x14 cm
Package weight: 2.5 kg
Product Certification: ISO & CE & ROHS & UL & FCC & EAC & SAA
Plug Type: China Standard, European Standard, American Standard, Australian Standard, British Standard
Warranty service: 1 year warranty digital
