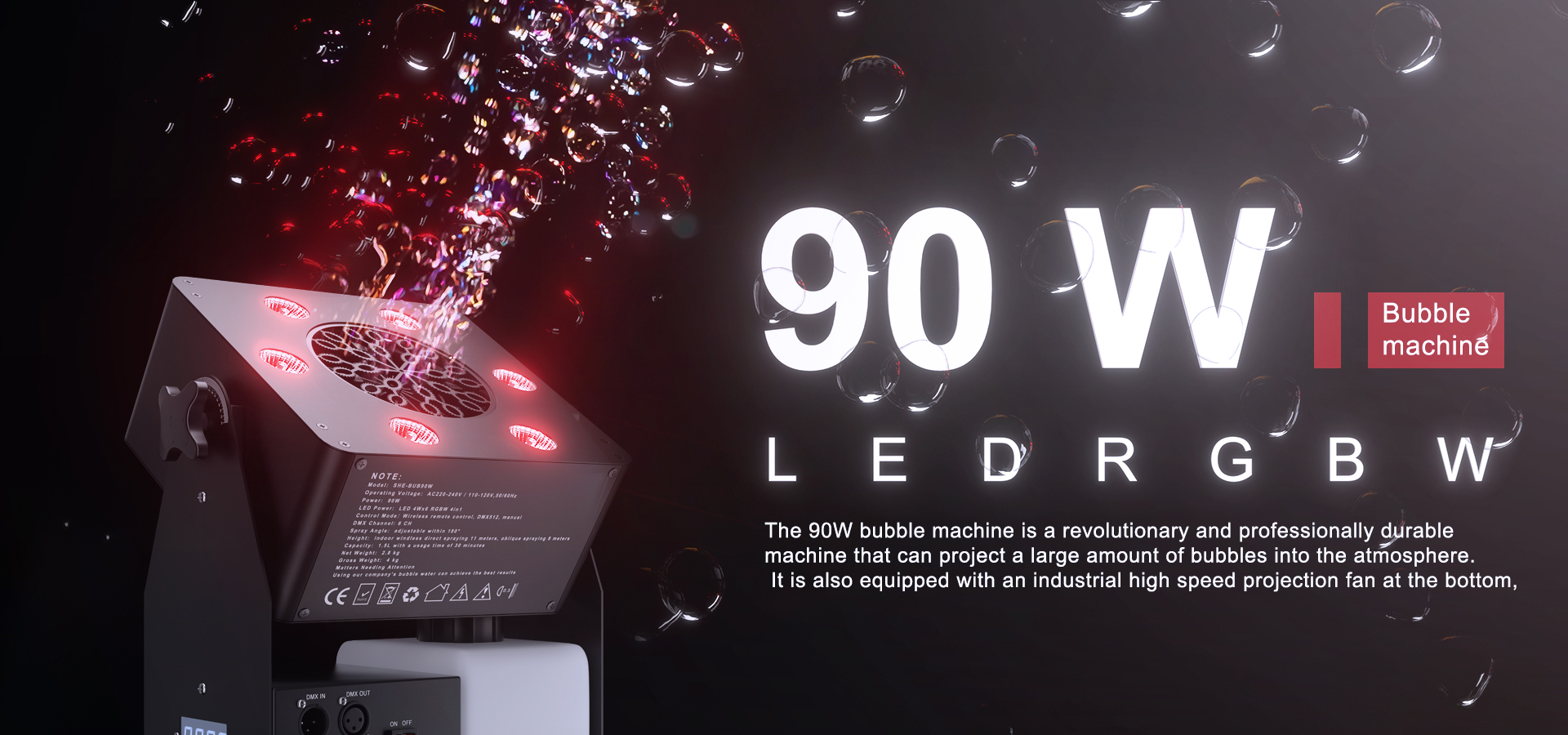

BUBBLE MACHINE - LED RGBW

The 90W bubble machine is a revolutionary and professionally durable machine that can project a large amount of bubbles into the atmosphere.

 It is also equipped with an industrial high speed projection fan at the bottom,

which providing a lot of aerodynamic to push bubbles up to 5-meter throw distance. The spray area is equipped with 6 RGBW LEDs,

which create a fairy like starry effect in the air, illuminating most romantic stage.

Product Features

Suitable for various stage performance, TV film and photo shooting.

It's with strong adaptability and ability to meet the needs of different scenes.

Applicable scenarios

Highly safety, avoiding harm to human body and environment, suitable for various occasions




Technical Parameter



Technical Parameter
-Electrical Specification and Connections
Power Supply:	90W Electronic Auto-Ranging
Input Voltage Range:	100-240V, 50/60 Hz
Power Connector:	PowerCON
Signal input/output:	3-pin XLR Cable Connector
-Output
Max Vertical Throw Distance:	Appr. 5~5.5 meters
Max 45° Throw Distance	Appr. 5~6 meters
Bubble Fluid Consumption @ full volume :	Appr. 1 Liter/30 minutes
Bubble Fluid Tank Capacity:	1.5 Liter
Maximum Continuous Duration @ full volume:	Appr. 45 min
-LED Source
Light Source:	LED 6x3W RGBW 4in1 Color Mixing
LED Lifespan:	20,000 Hours
Dimmer:	0~100% Linear Dimming
-Optical System
Tilt Range:	180°
Air Pressure:	6MPA
-Controlling and Programming
Protocols:	DMX512, RC control
Running Mode:	DMX512 Mode, Manual Mode, RC Mode
DMX Channel Mode：	6 CHs
Wireless remote control distance：	20 meters

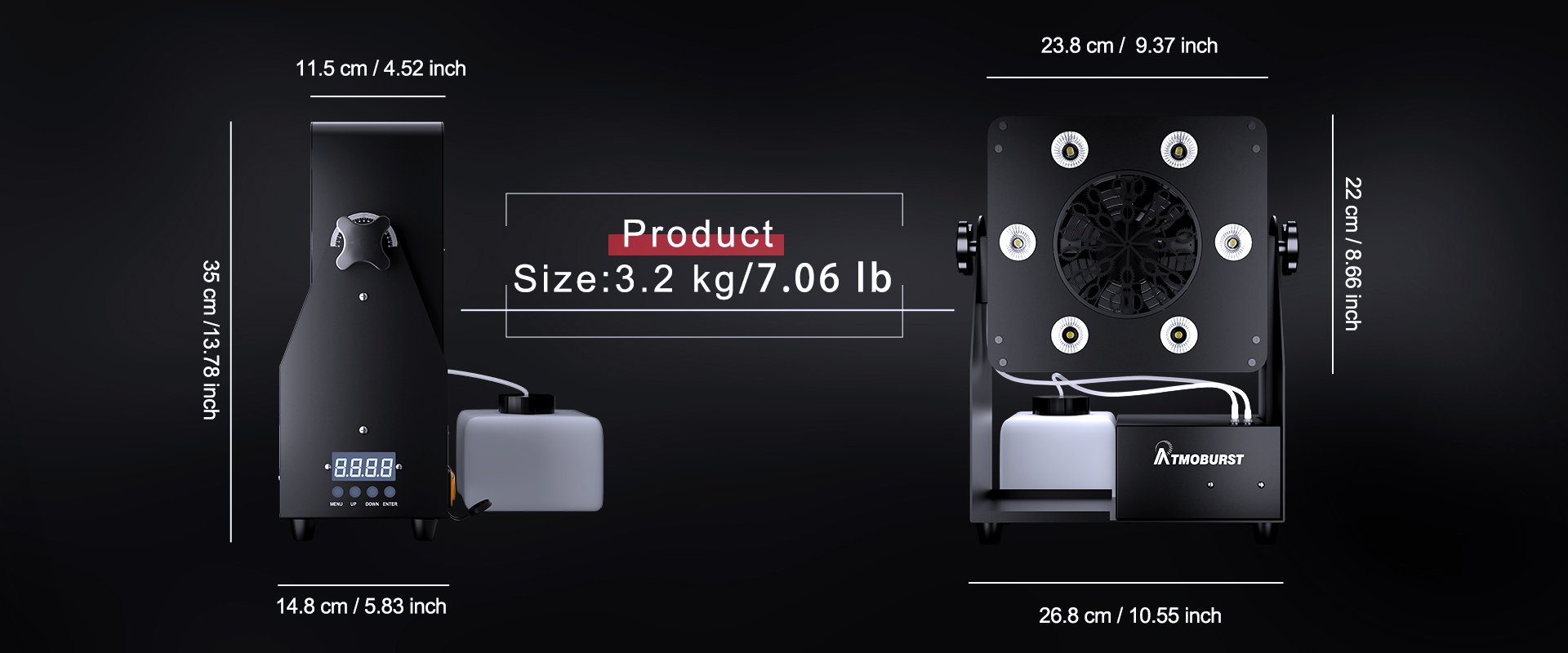

-Mechanical Specification
Housing :	High Strength Aluminum Alloy
Product Zize：	14.5 x 26.8 x 31.5 cm / 5.83 x 10.55 x 12.4 inch
Product Weight:	3.2 kg
Package Size:	31 x 26.5 x 37 cm
Package Weight:	4 kg
Ingress Protection Rating:	IP20

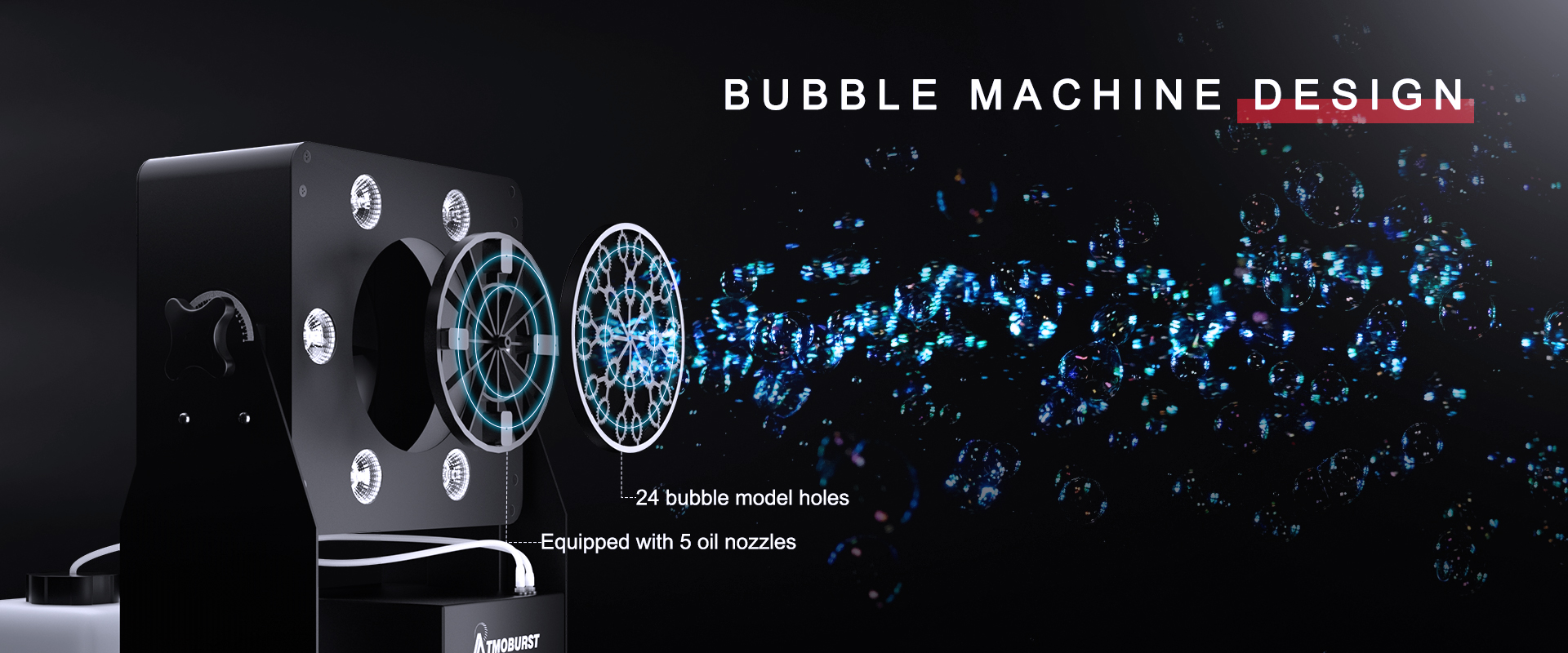

Bubble Design

In order to reduce bubble failure rate the nozzle pipe conveying system advoids bubble interference and protects parts inside the machine.

Equipped with 5 bubble fluid nozzles and 24 bubble model holes, it can generate a large number of bubbles in a short time.

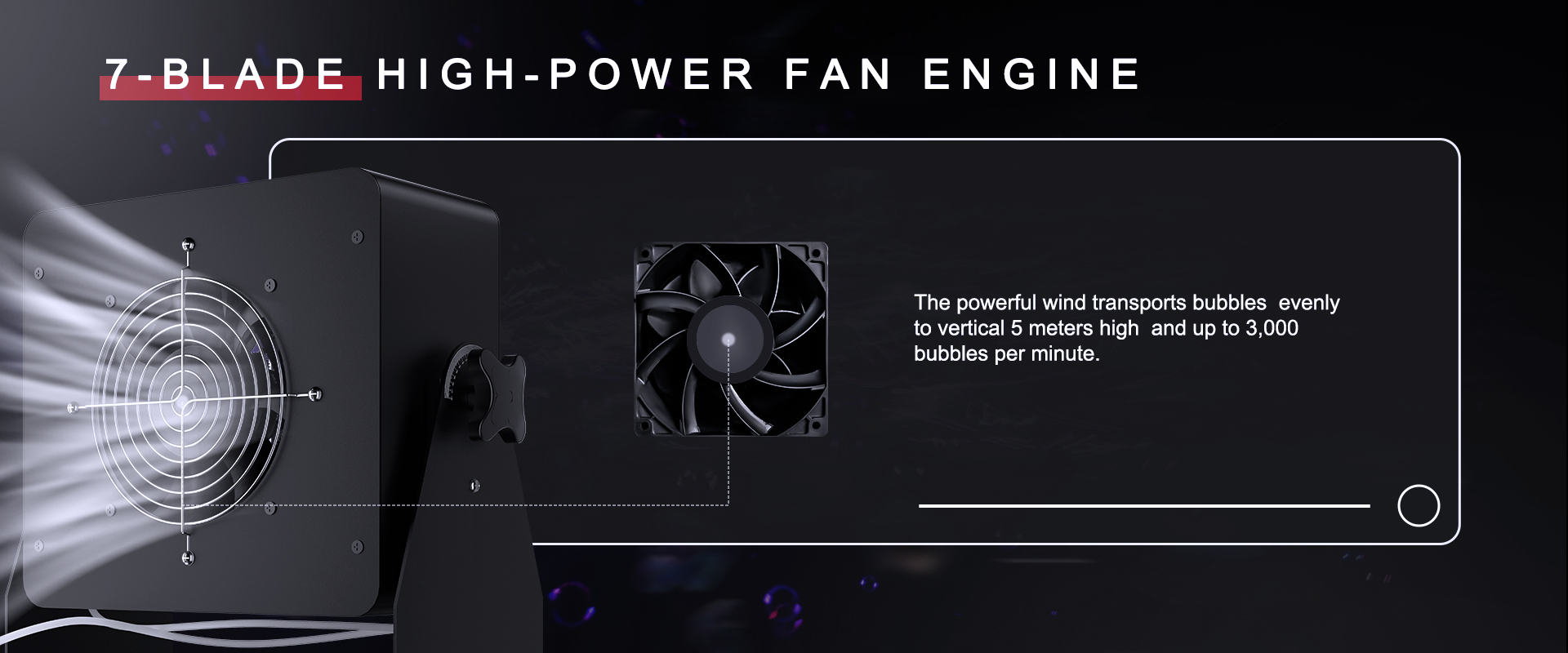

7-Blade High Speed Fan Engine

The powerful wind transports bubbles  evenly to vertical 5 meters high

and up to 3,000 bubbles per minute.

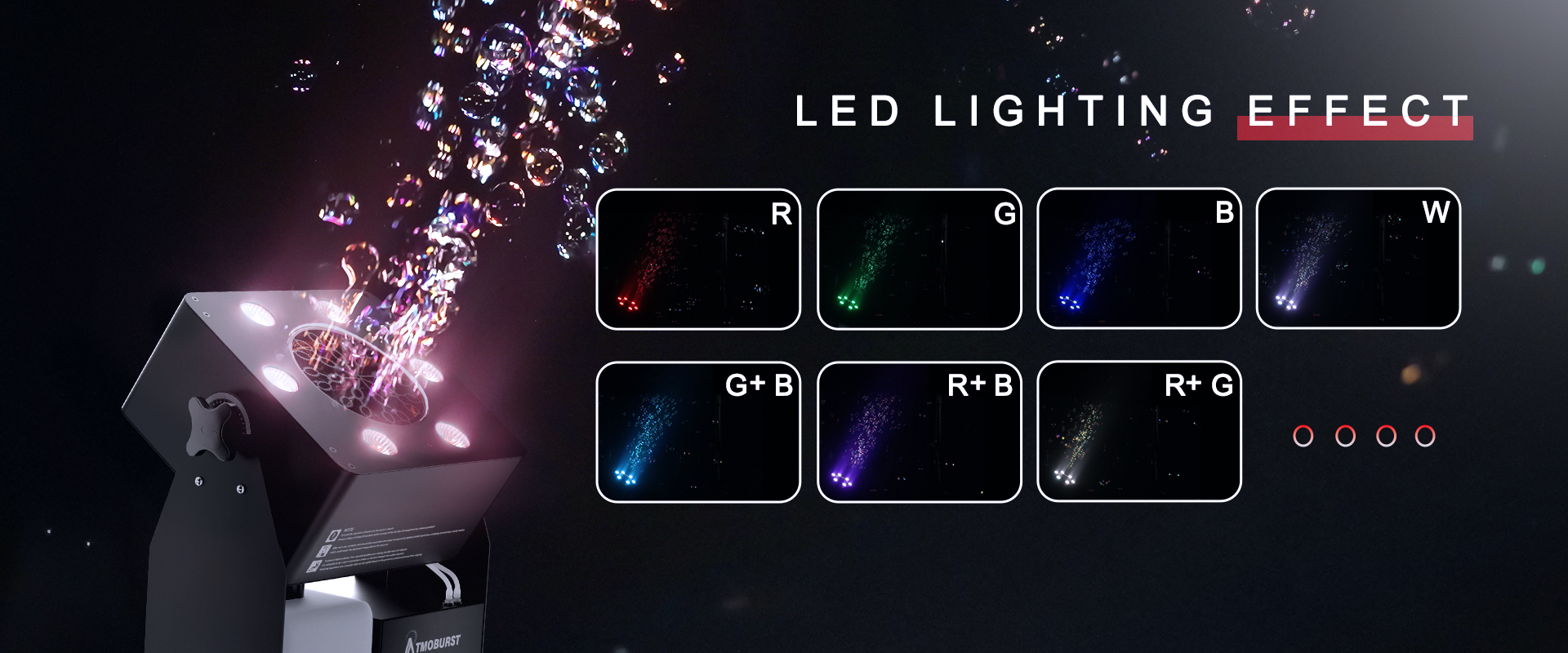

LED Lighting Effect

The device is equipped with 6 RGBW LEDs 4in1 which can render various effects of colored bubbles in dark environments,

making the bubble function suitable for more scenes!

Especially suitable for use in scenes such as Halloween, Christmas, children's parks etc.

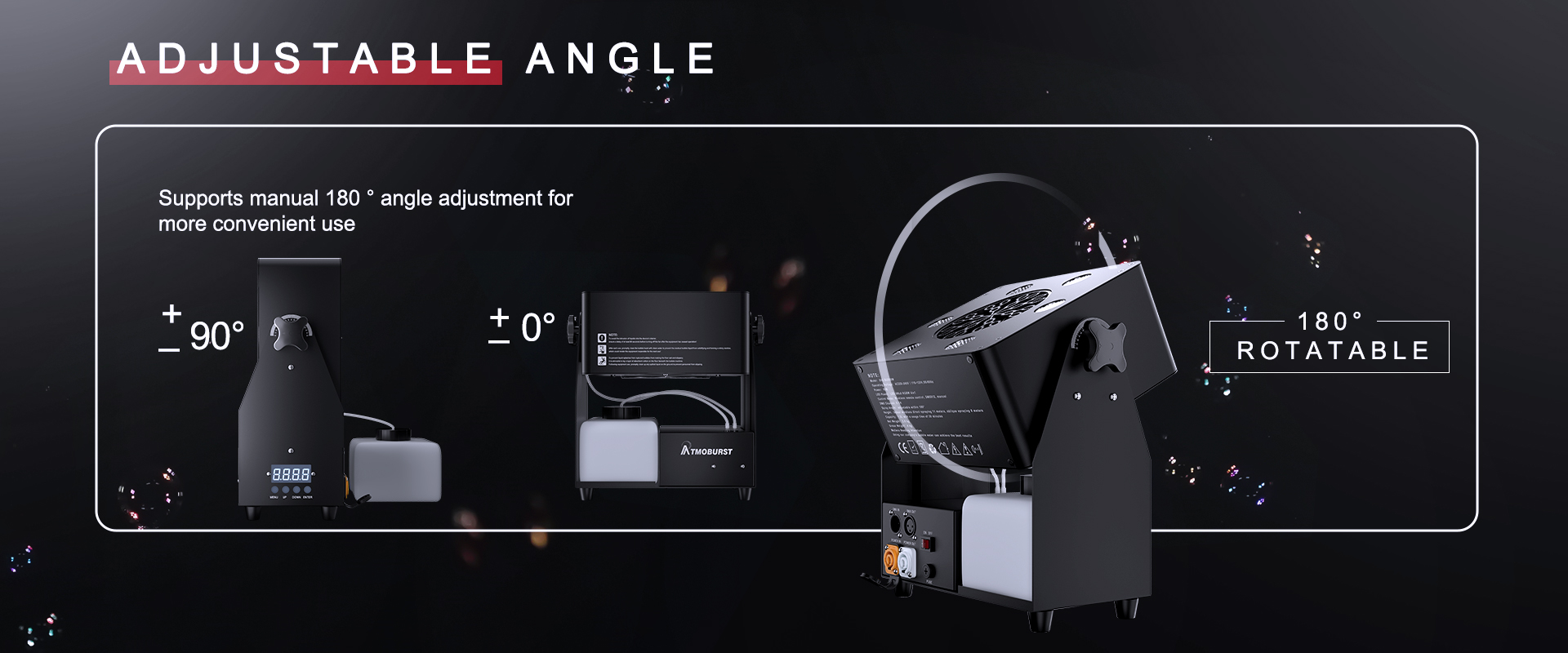

Adjustable angle

Manual Tilt 180° adjustment for more convenient use

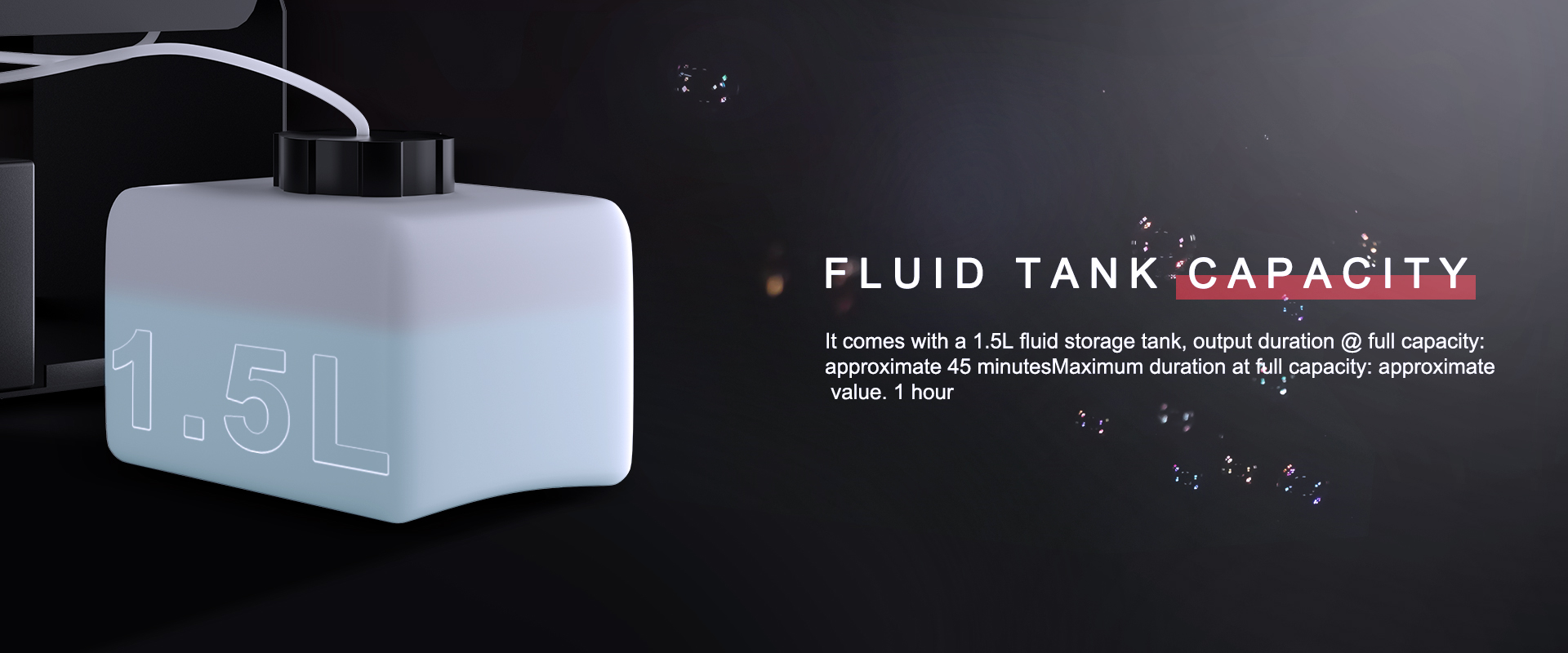

Fluid Tank Capacity

It comes with a 1.5L fluid storage tank, output duration @ full capacity: approximate 45 minutes

Maximum duration at full capacity: approximate value. 1 hour

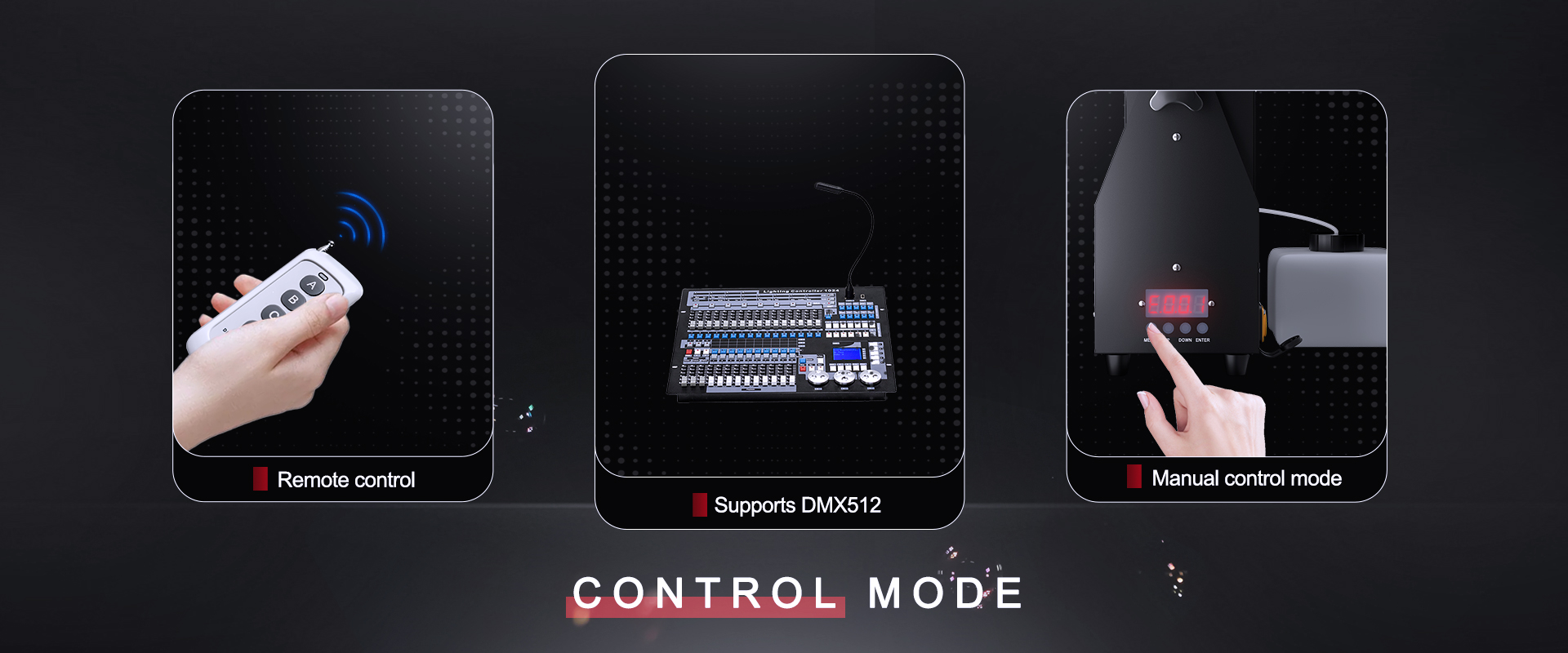

Control Modes

Supporting DMX512, 20m distance wireless remote control, and manual control mode

DMX512 and power input/output interface, supporting master-slave series mode

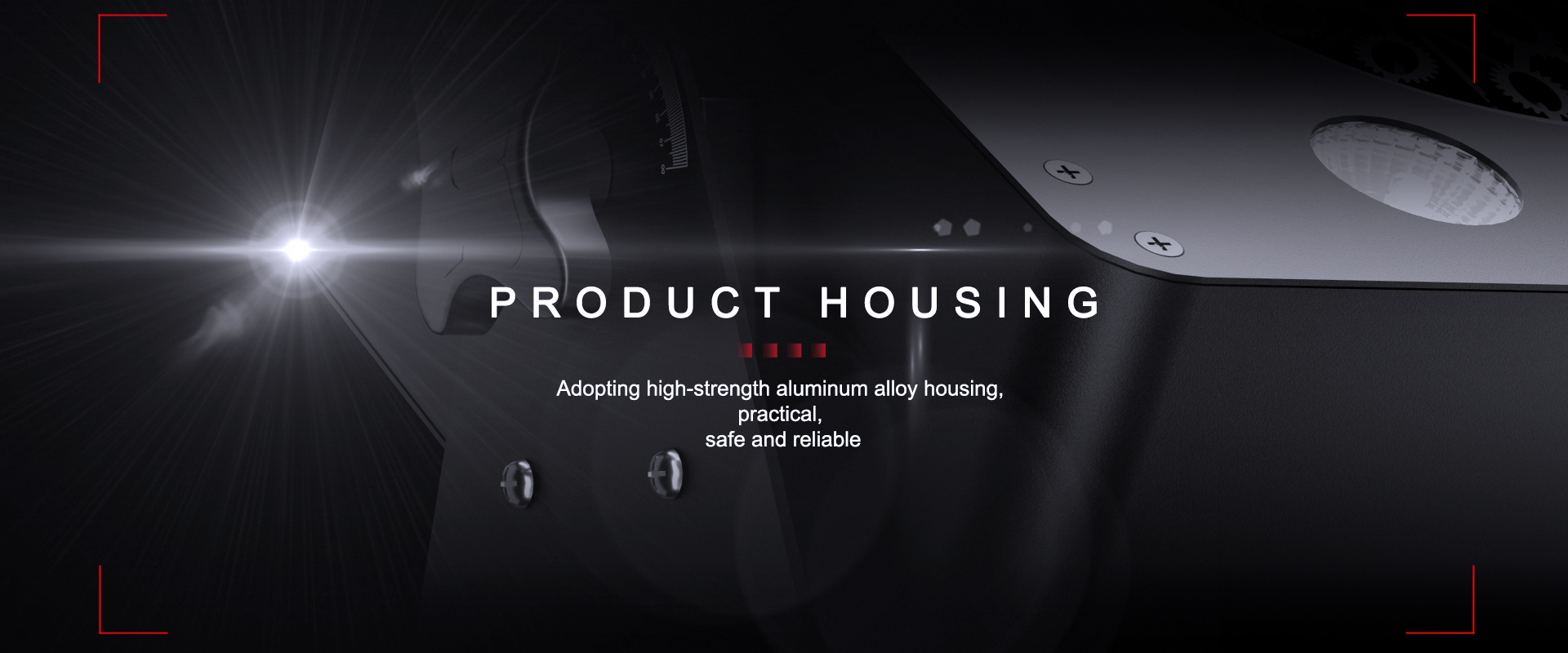

Product Housing

Adopting high-strength aluminum alloy housing, practical, safe and reliable

Introduction to Panel Functions

Contains multiple interactive function programs to visually display the operating status

and mode of the lighting fixtures

Built-in lamp operation status sensing and monitoring system,

which can check the operation status of the lamp at any time for easy parameter adjustment

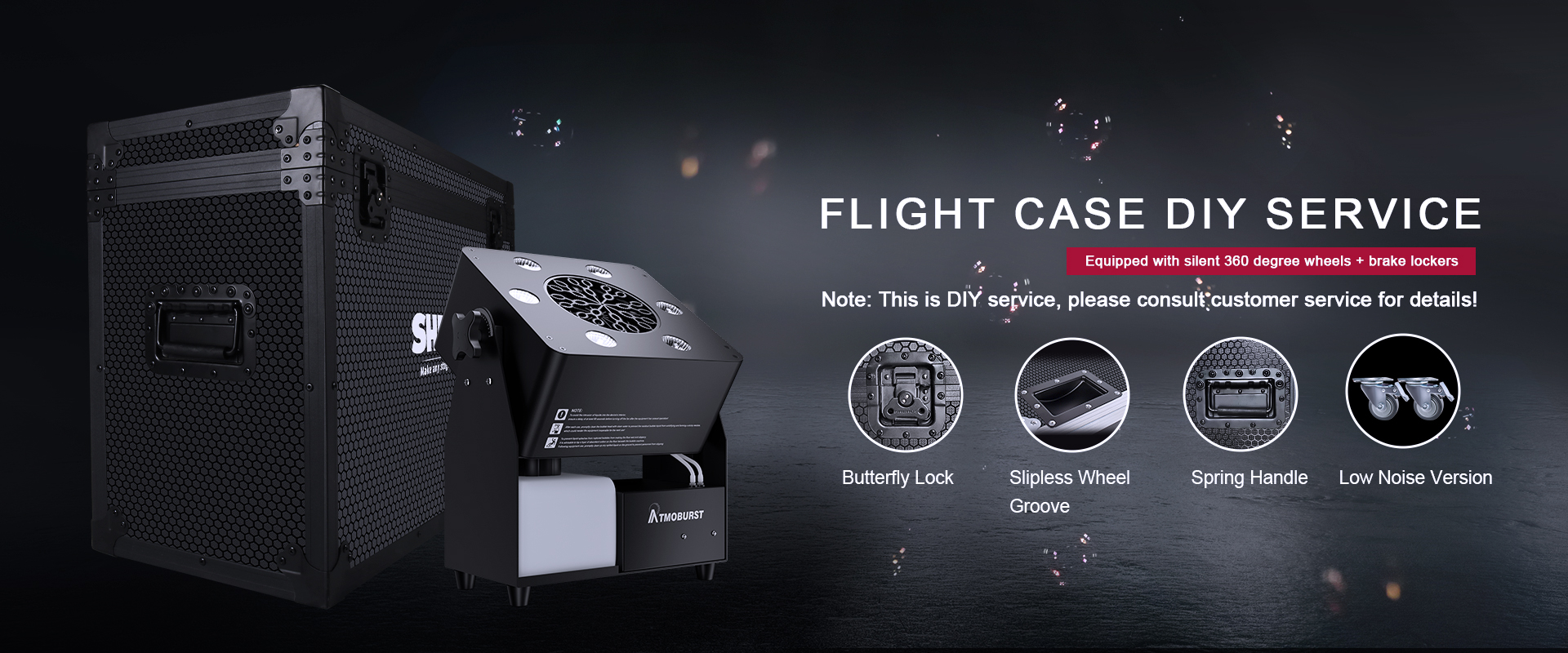

Flight Case DIY Service

Equipped with silent 360 degree wheels + brake lockers

Note: This is DIY service, please consult customer service for details!

Qualification Certificate

International Organizations Authority Certification
