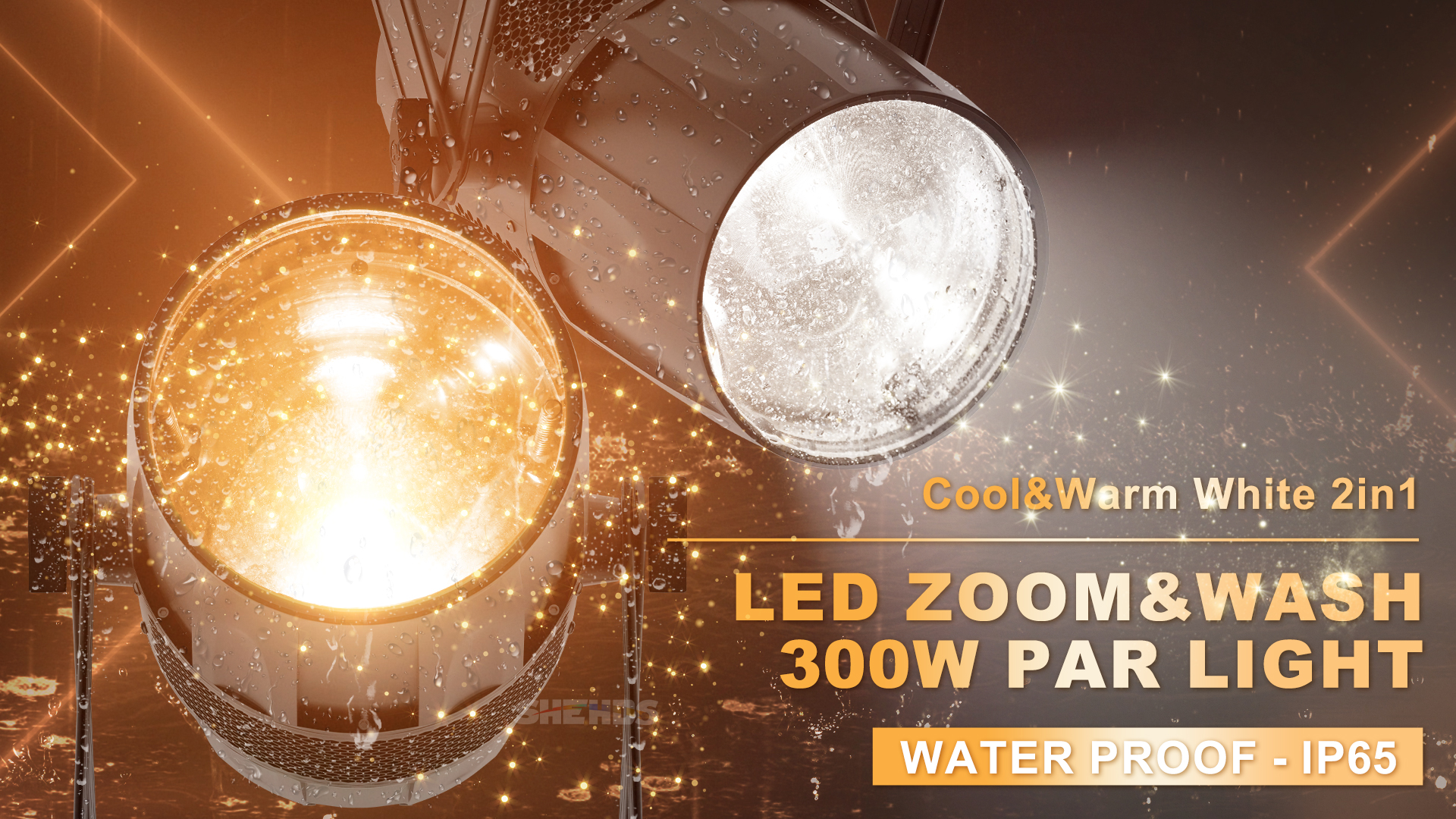

Waterproof LED Zoom&Wash Par
300W Cool&Warm White 2in1 Light（IP65）
The light source consists of 300W COB LEDs,
Linear adjustable color temperature from 2700K to 6500K creates the most realistic stage scene environment,
creates a strong visual impact for the performance.
Product Features
Dual modes are available, allowing the lights to dance to the music,
The lighting engineer can flexibly switch colors, angles, and lighting effects.
Technical Parameter
|
Light source parameters |
|
|
Dimmer: |
0-100% 16Bit mechanic |
|
Light source: |
300W |
|
Beam Lux: |
942 Lux / 10m |
|
Zoom angle: |
25~63° |
|
Strobe: |
Flash rate 0-25Hz |
|
Color temperature: |
2700K-6500K |
|
Security System |
|
|
Safety Item |
Overcurrentand voltage protection |
|
Degree Of Protection |
IP65 |
|
Operating Temperature |
-20℃~45℃ |
|
Interface And Control System |
|
|
Control Interface |
DMX In/Out |
|
DMX Channel |
3/7CH |
|
Power Interface |
Neutrik PowerCon |
|
Cooling System |
|
|
Cooling Method |
Passive heat dissipation |
|
Power Consumption |
|
|
Working Power |
100-240V 50/60HZ |
|
Physical Parameters |
|
|
Material: |
Die cast aluminum casing |
|

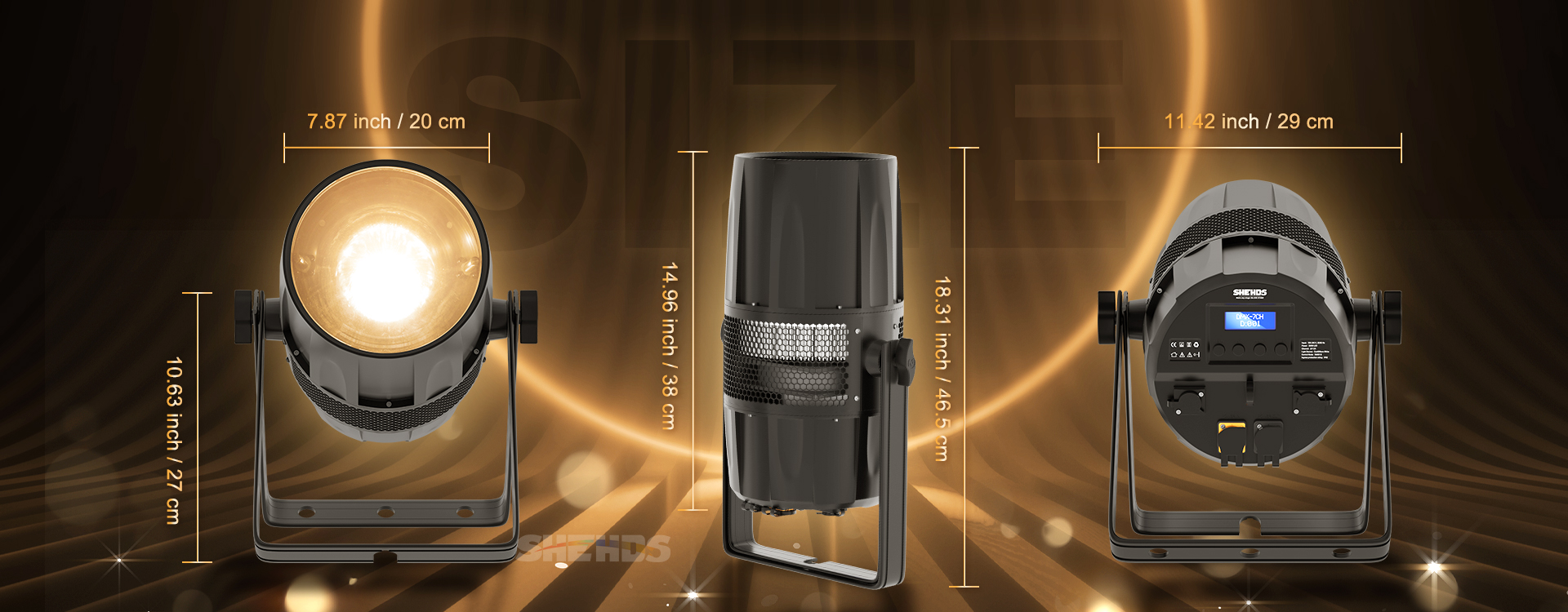

Product Size |
7.87x7.87x14.96 inch / 20x20x38 cm |
|
Product Weight |
6.5 kg |
|
Package Size |
20.28x12.01x10.83 inch / 51.5x30.5x27.5 cm |
|
Package Weight |
8.0 kg |

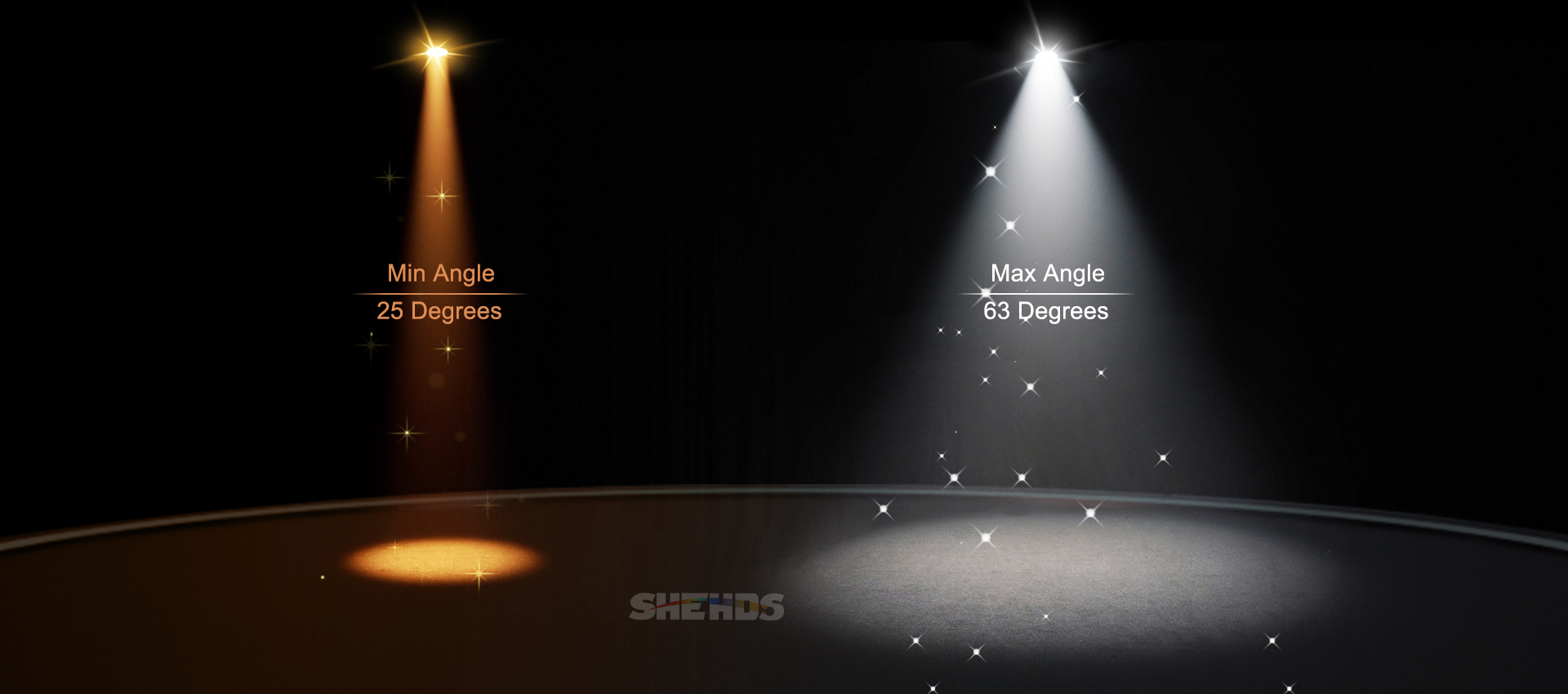

Beam Angle
Min 25°~ Max 63°

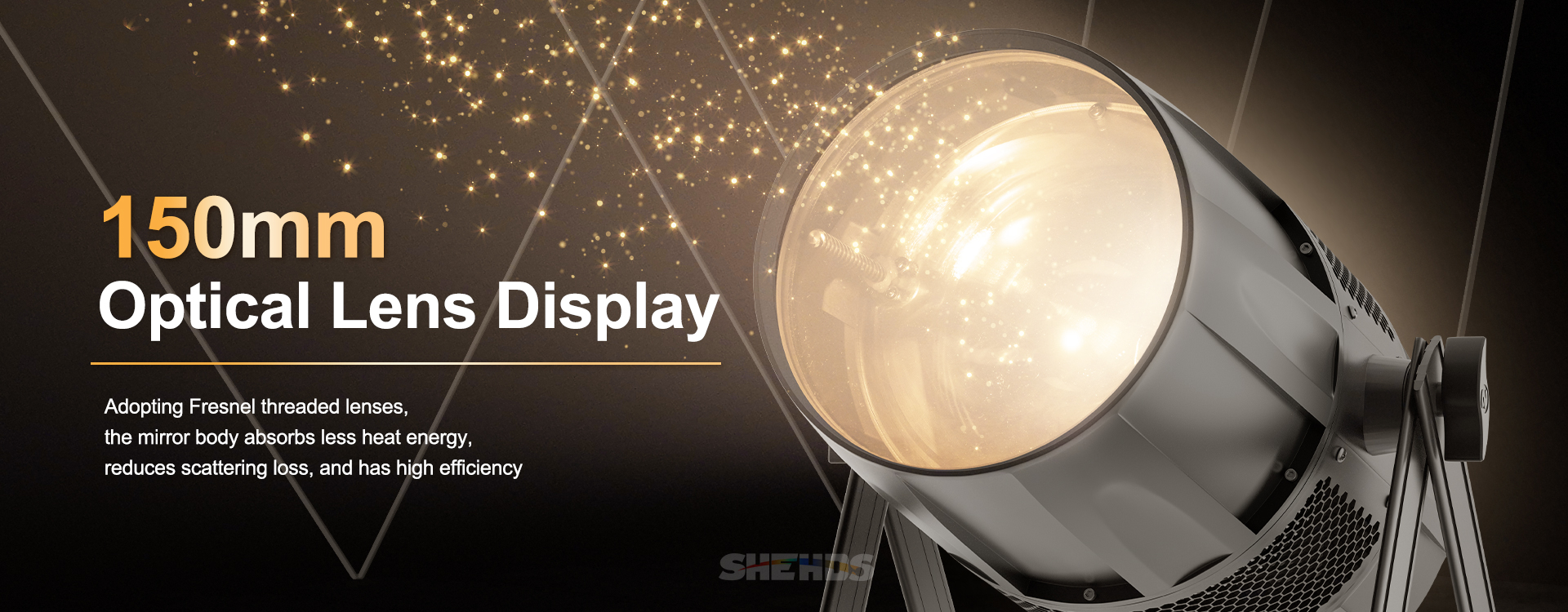

Optical Lens Display
Adopting Fresnel threaded lenses,
the mirror body absorbs less heat energy, reduces scattering loss, and has high efficiency
Integrating Powerful Beam
And Wash Functions
A linear focusing system with a beam angle of 25 ~63 °, multiple speed strobe effects,
and a smooth dimming function of 0-100%,
Can produce a variety of dynamic psychedelic lighting effects,
fully adapting to different stage application needs.
Zoom Effect
Adjust lighting through the lens to enhance the atmosphere of the scene.

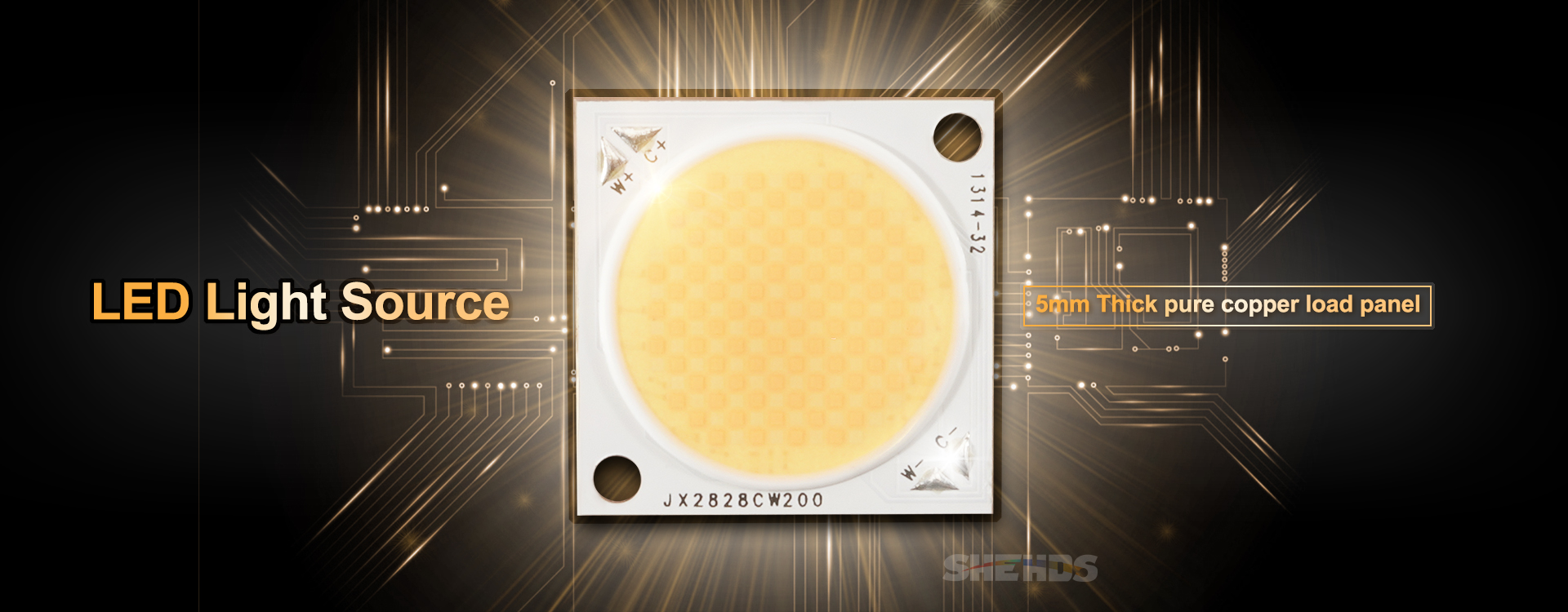

LED Light Source
5mm Thick pure copper load panel

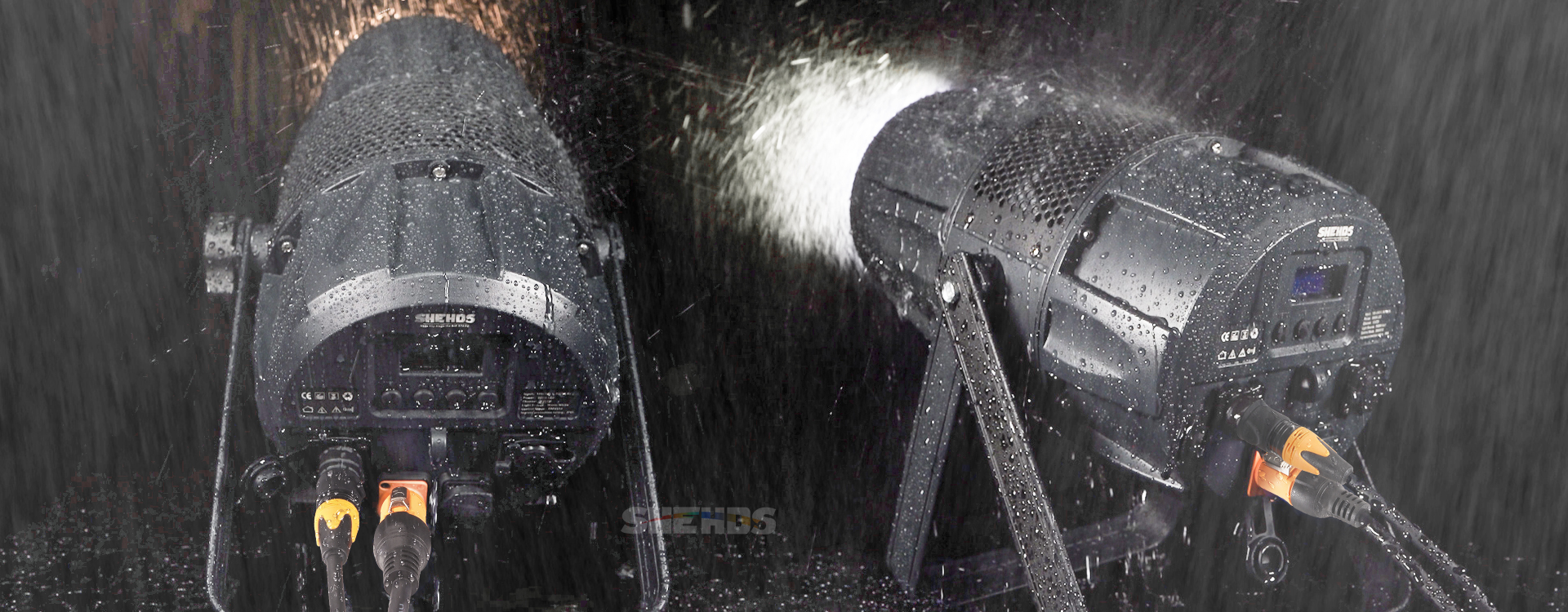

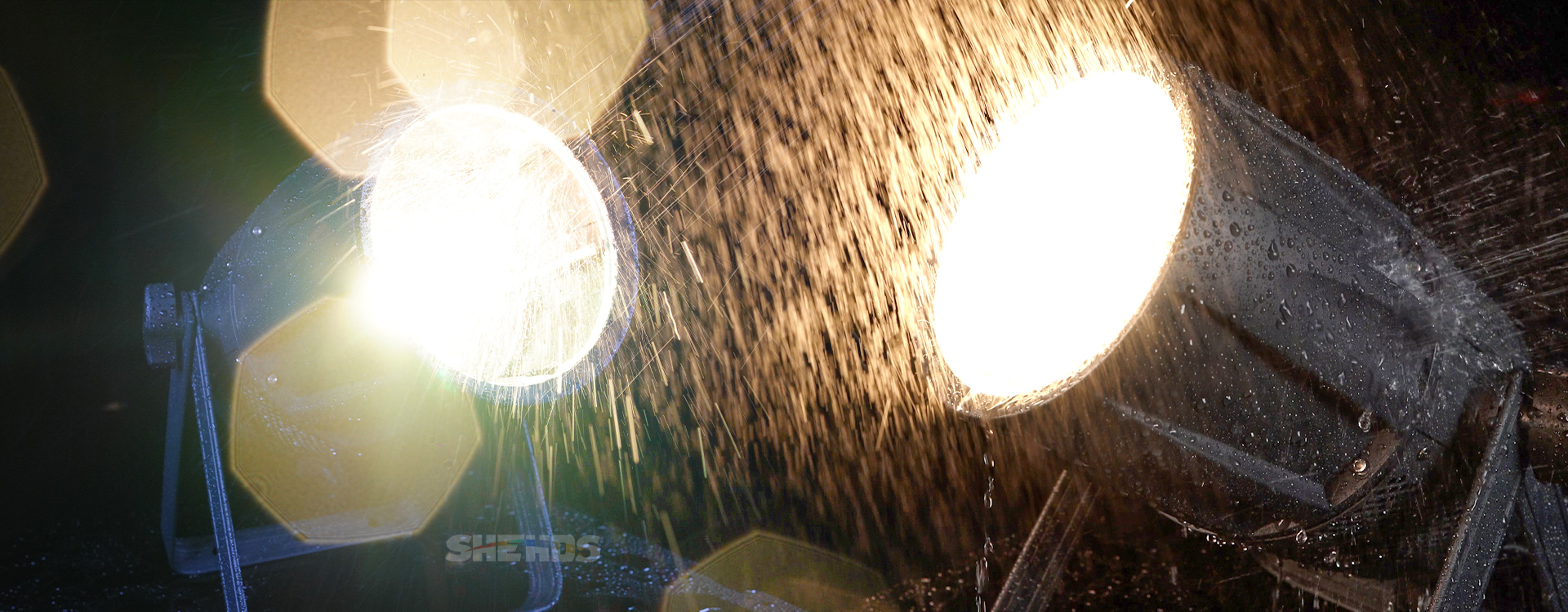

Waterproof Effect Test
Imitate the effect of the scene in the light rain
Applicable Scene
These lights are perfect for creating stunning visual effects in bars and clubs,
enhancing the vibrant atmosphere of any venue.

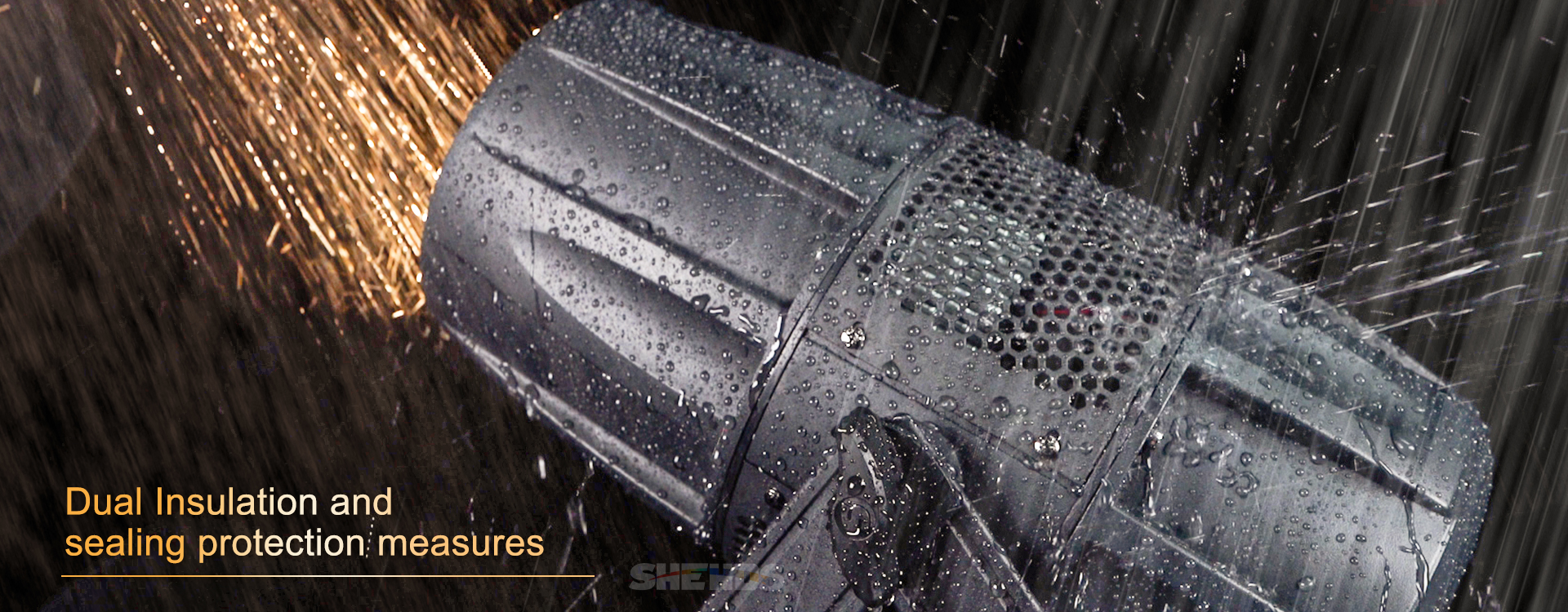

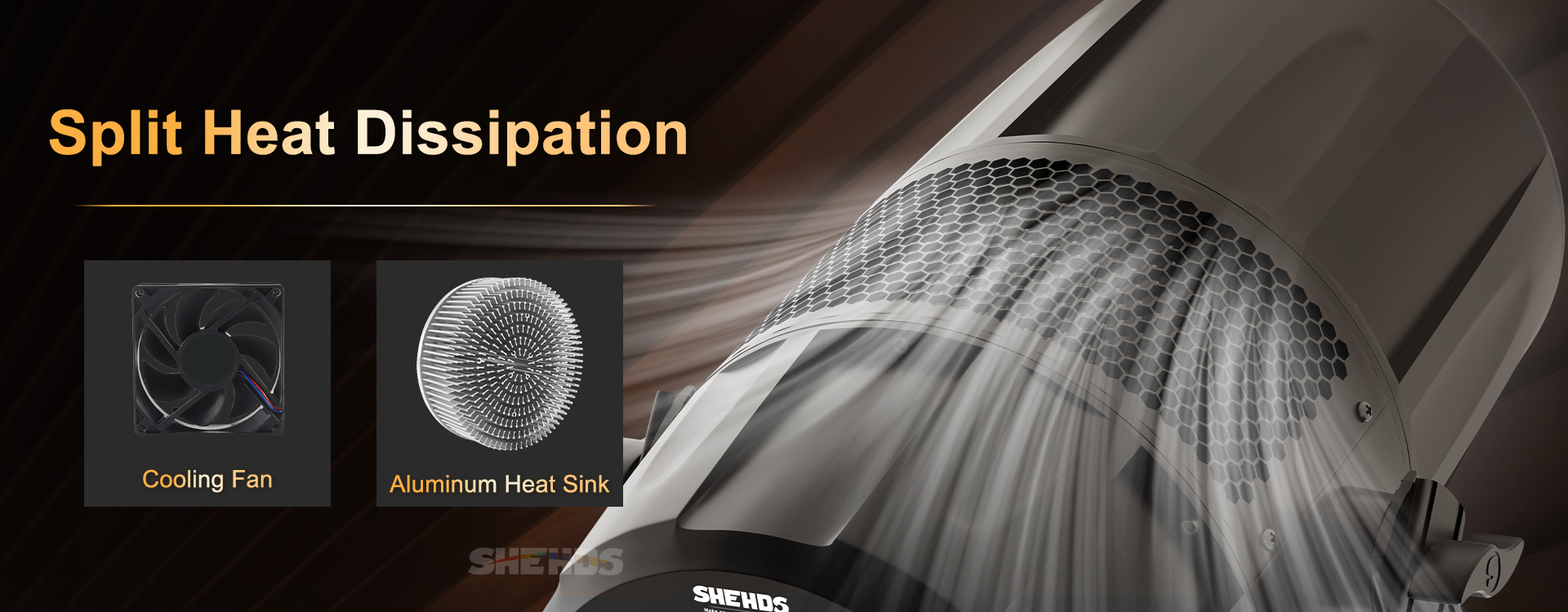

Split Heat Dissipation
Independent isolation compartment heat dissipation method, dual insulation and sealing protection measures,
high-performance waterproof fan with intelligent temperature control adjustment

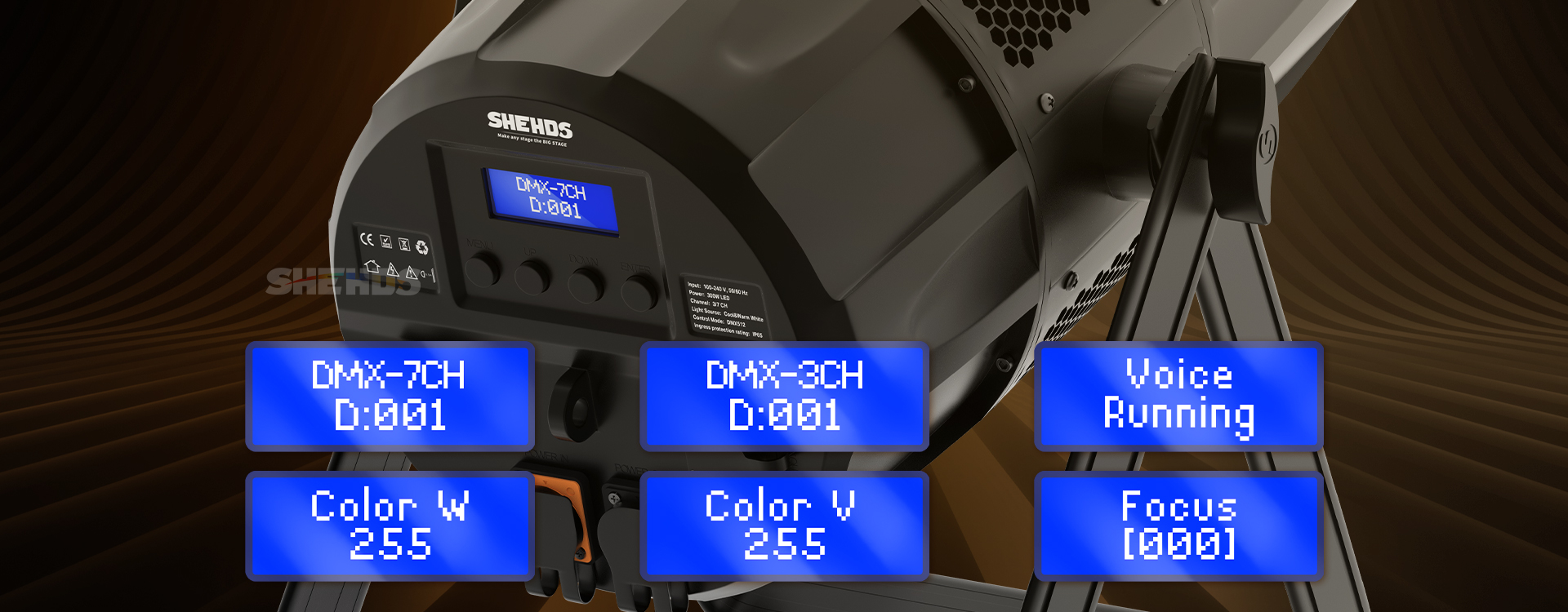

Introduction To Panel Functions
Waterproof soft glue menu button, simple interactive menu

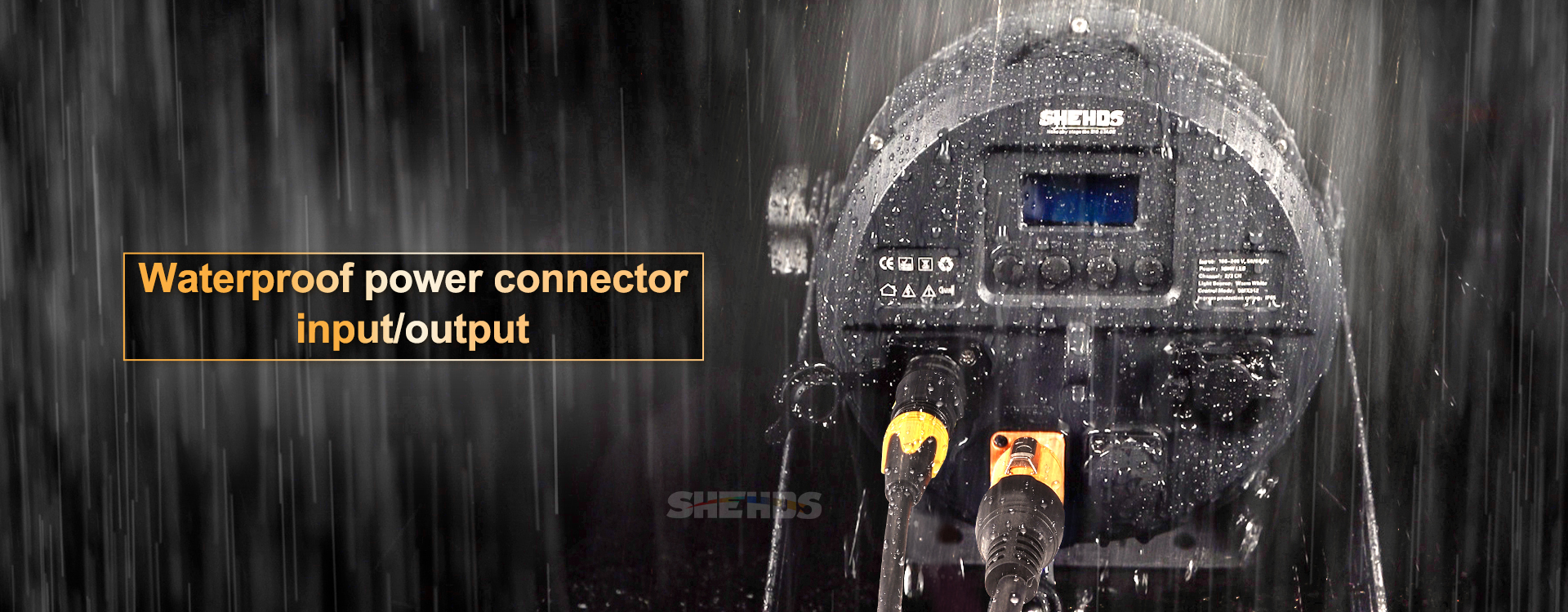

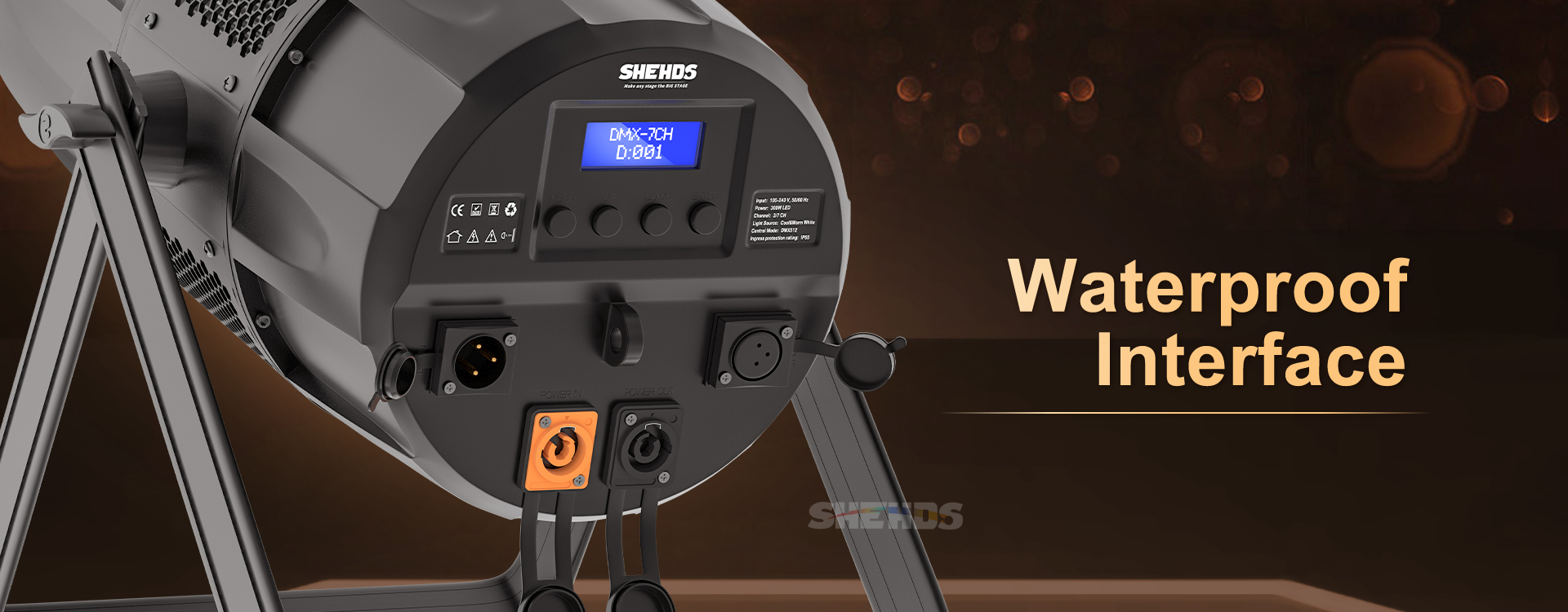

Waterproof Interface
All Weather Protective Beam Light
All weather protective beam light, waterproof power connector input/output , can be used outdoors all year round.
The carefully designed heat dissipation performance ensures the waterproofing and heat dissipation of high-power light bulbs,
ensuring the lifespan and smooth operation of the lamps.

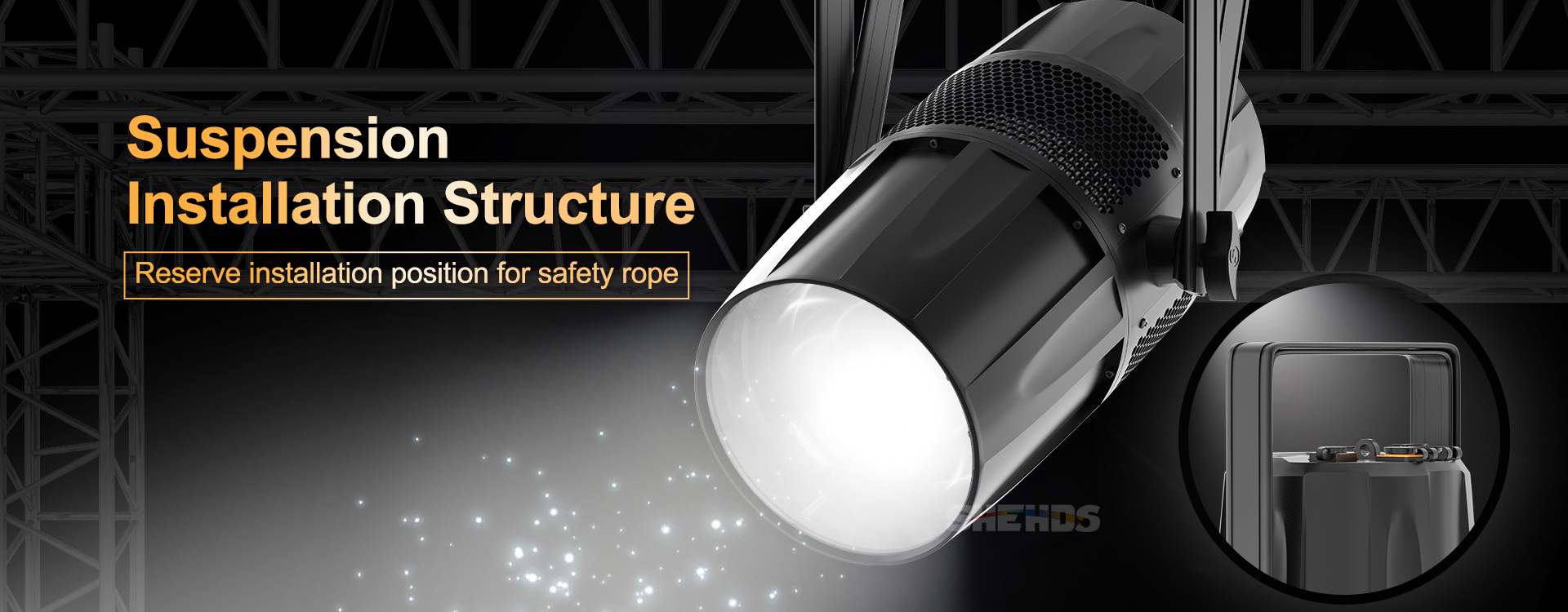

Suspension Installation Structure
Reserve installation position for safety rope

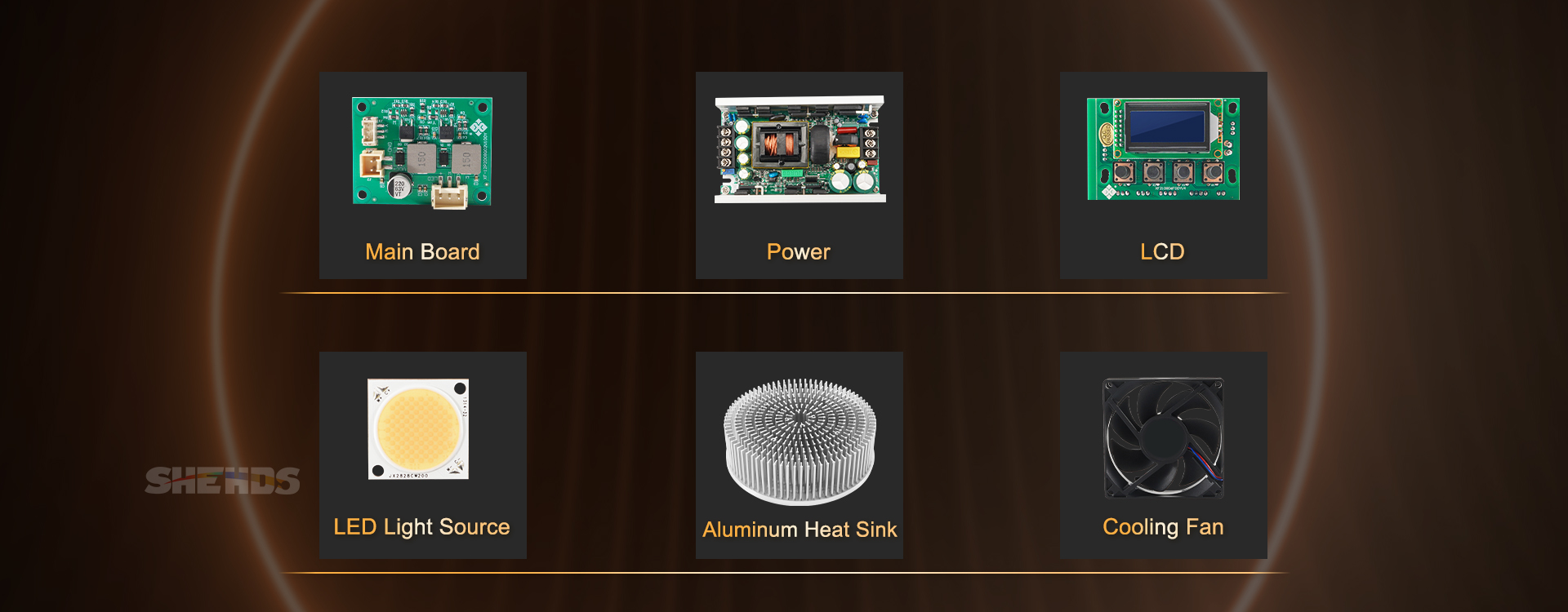

Carefully Select Excellent Accessories

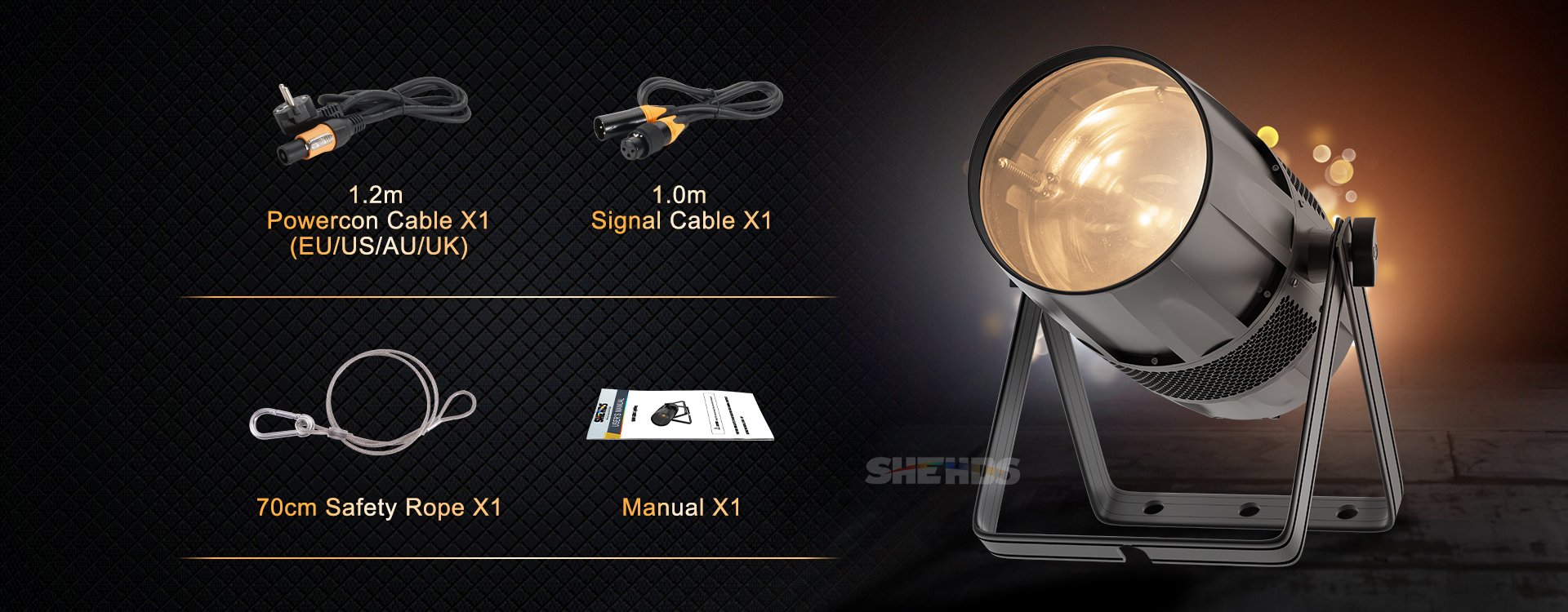

Packing List
Each process undergoes strict verification
Every part is carefully selected

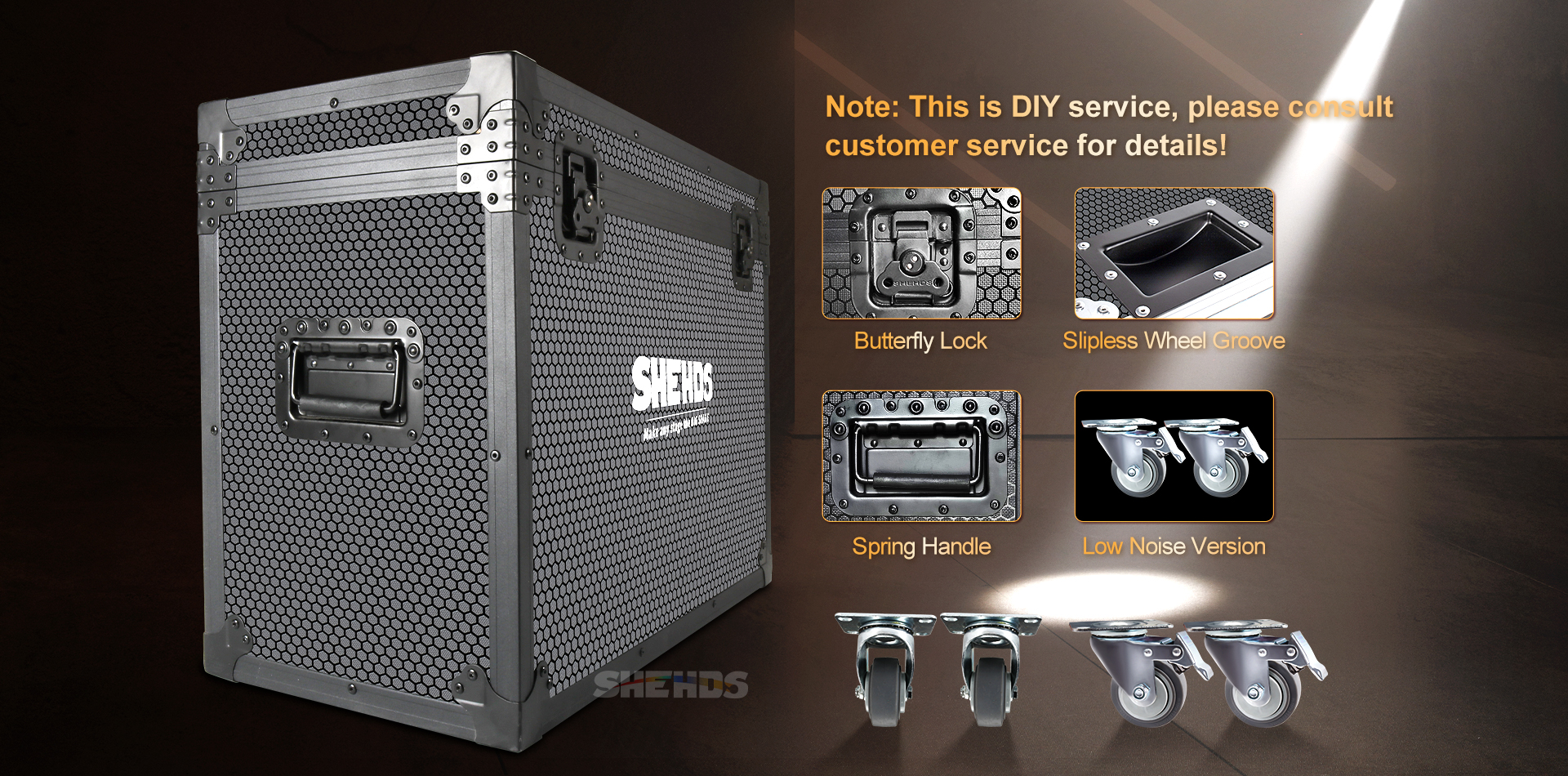

Flight Case DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
International organizations Authority certification
