Product Details

Features

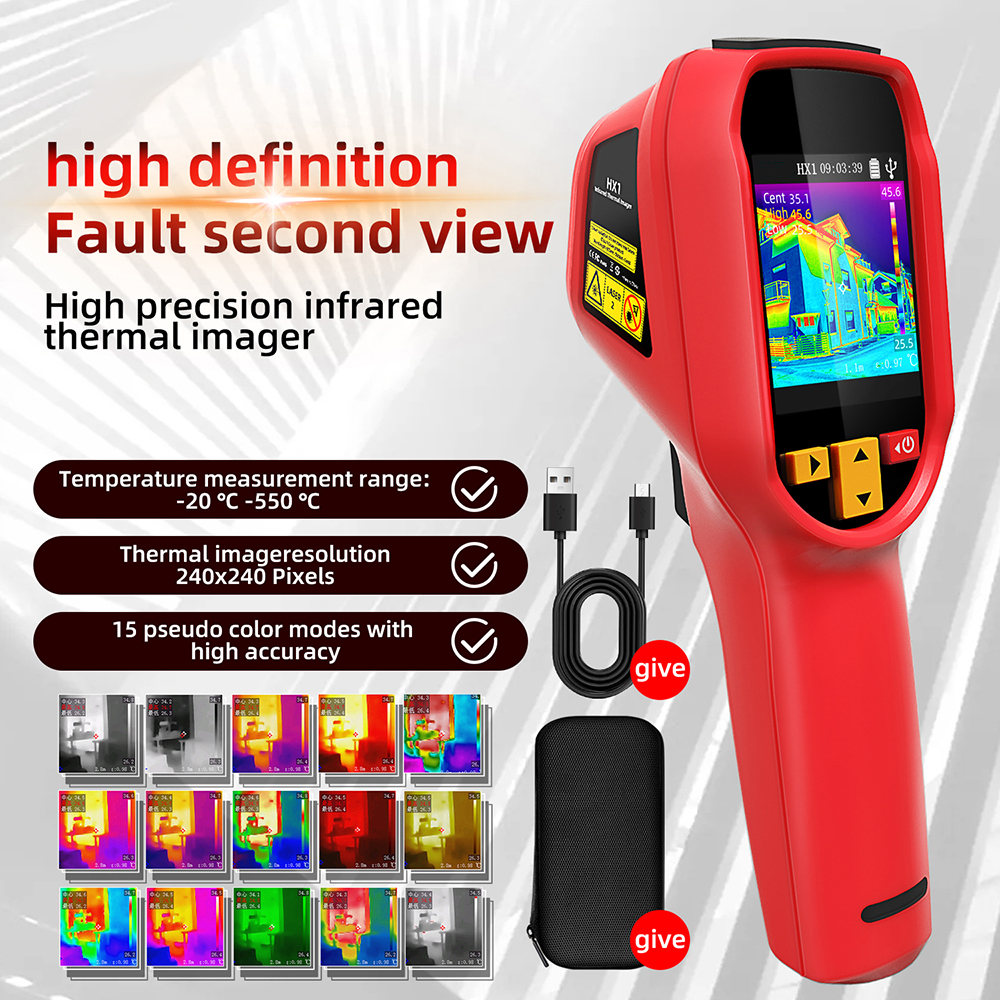

1. Multiple pseudo-color modes: real-time image transmission, different temperatures, high and low multiple color display to distinguish, can modify 15 different pseudo-color modes
2. Over-temperature red screen alarm: reaches a certain value will trigger the screen alarm, you can eliminate the danger of happening
3.2.4-inch LCD screen high brush imaging without lagging
4. Three-point temperature measurement: center / high temperature / low temperature point automatically and quickly measure the temperature of three points
5.USB link fast transmission archive analysis is more convenient

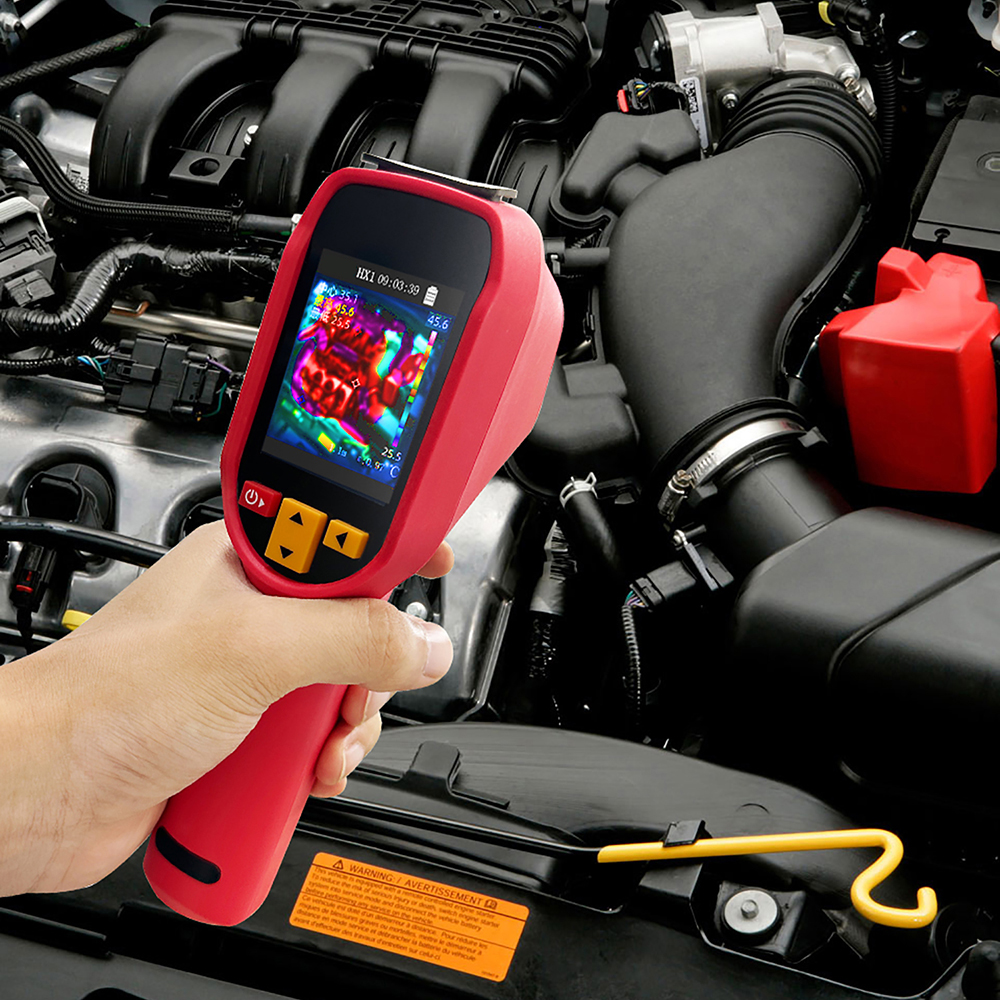

6.Temperature measurement application scenarios: floor heating pipeline maintenance, building leakage detection, electronic and electrical detection, mechanical equipment testing

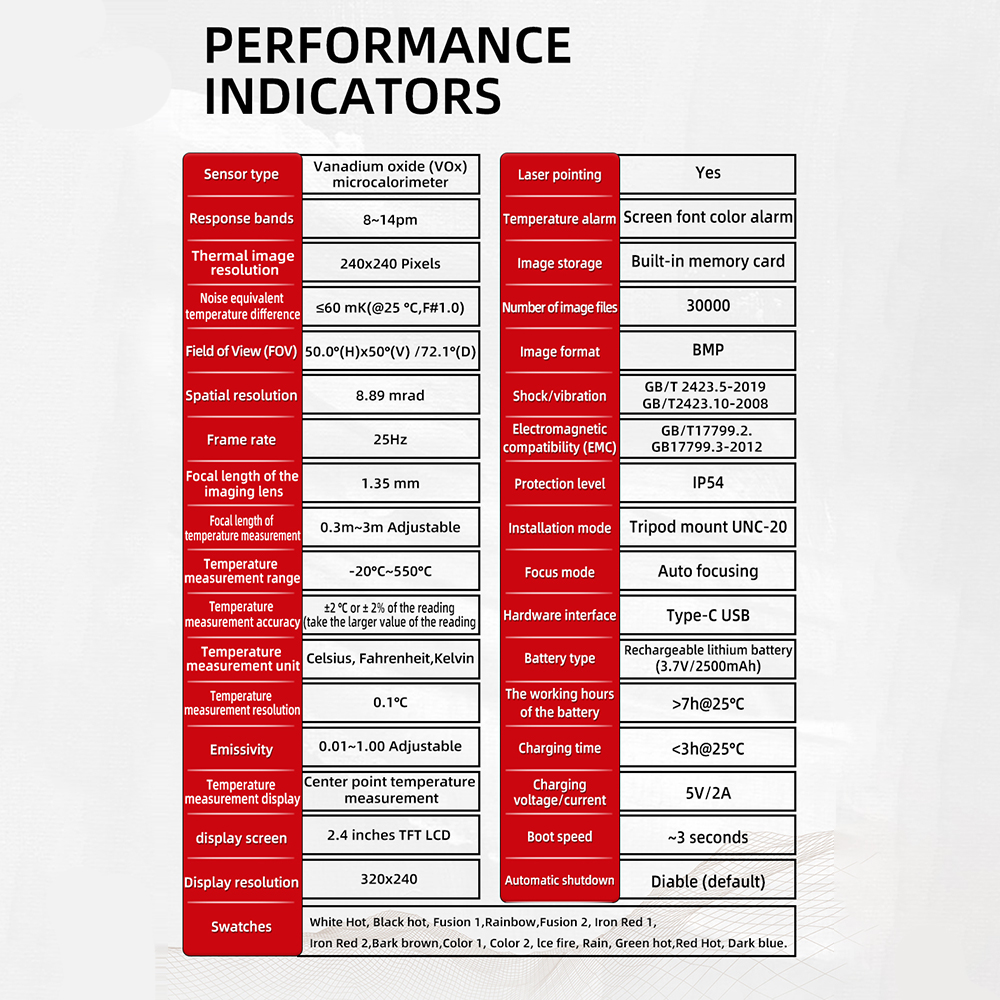

Specification
Sensor type: vanadium oxide (VOx) micro-radiometric thermometer
Response band: 8~14μm
Thermal image resolution: 240x240 pixels
Noise Equivalent Temperature Difference: ≤60 mK(@25°C,F#1.0)
Field of View (FOV): 50.0°(H)x50°()/72.1°(D)
Spatial resolution: 8.89 mrad
Frame rate: 25Hz
Imaging lens focal length: 1.35 mm
Measuring focal length: 0.3m~3m adjustable
Temperature measurement range: -20℃~550℃
Temperature measurement accuracy: ± 2 ℃ or ± 2% of the reading (take the larger value of the reading)
Temperature measurement unit: Celsius, Fahrenheit, Kelvin
Temperature measurement resolution: 0.1℃

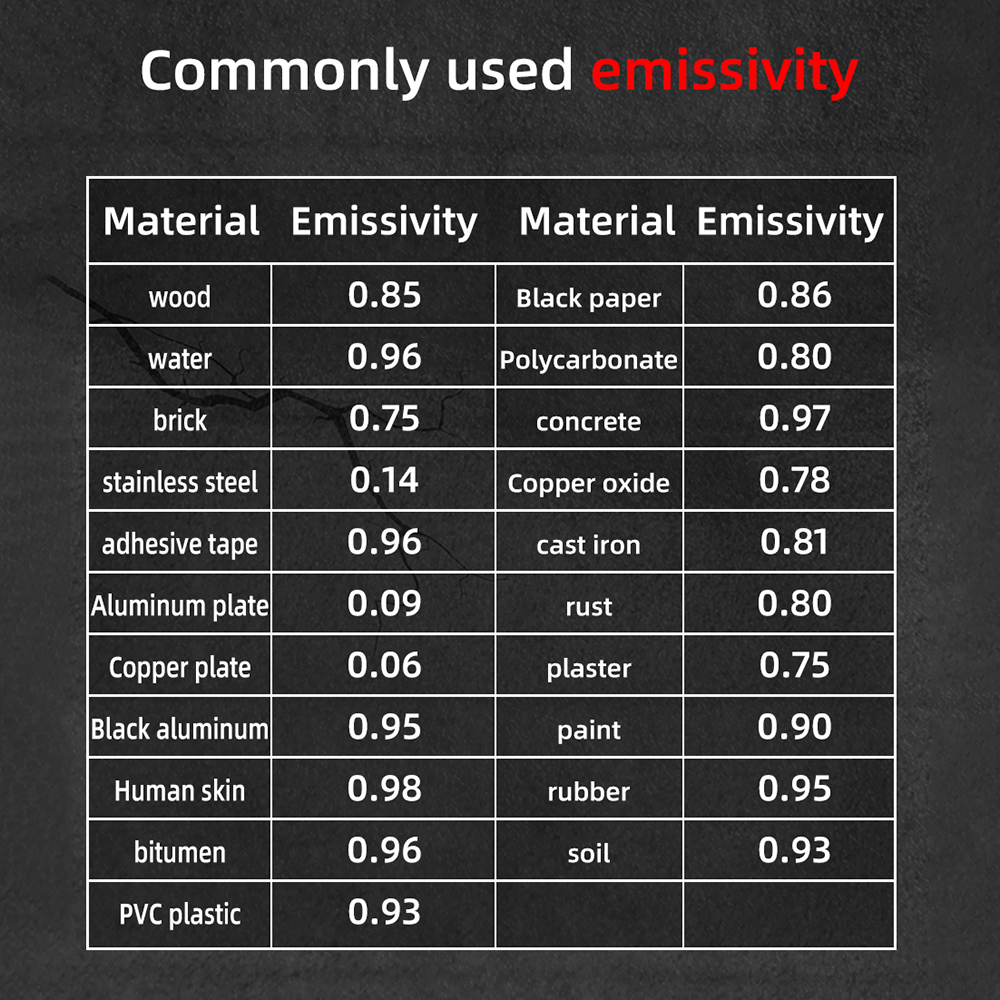

Emission rate: 0.01 ~ 1.00 adjustable

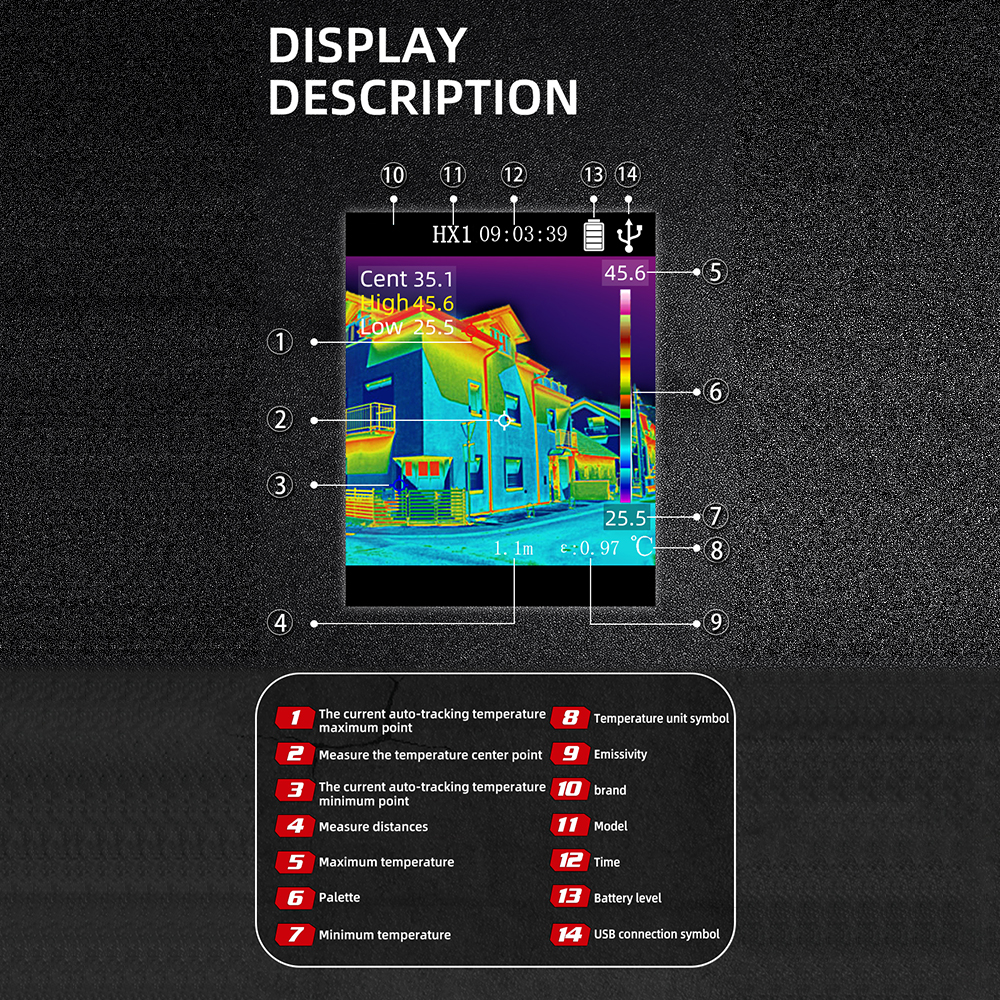

Temperature display: center point temperature measurement, high and low temperature tracking
Display: 2.4 inch TFTLCD
Display resolution: 320x240

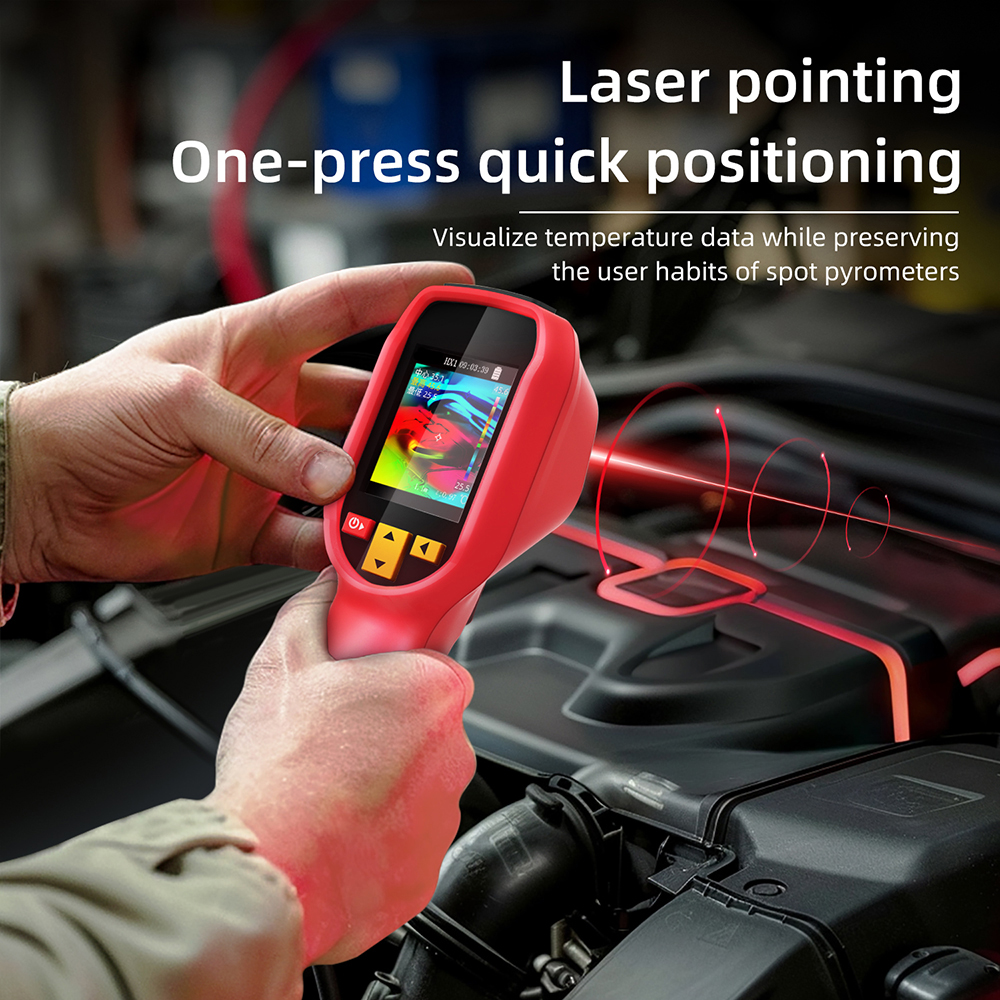

Laser indication: support
Temperature alarm: screen font color alarm
Image storage: built-in memory card
Number of image files: 30000
Image format: BMP picture
Focus mode: Focus-free
Hardware Interface: Type-C USB
Battery type: rechargeable lithium battery (3.7V/2500mAh)
Battery operating time: >7h@25℃
Charging time: <3h@25℃
Charging voltage/current: 5V/2A
Automatic shutdown: off (default) can be set 10,20,30,40,50,60 minutes
Operating temperature: -10℃50℃
Storage temperature: -40℃-70
Working humidity: ≤85%RH (non-condensing)
Color palette: white hot, black hot, fusion 1, rainbow, fusion 2, iron-red 1, iron-red 2, sepia, color 1, color 2, ice fire, rain, green hot, red hot, dark blue

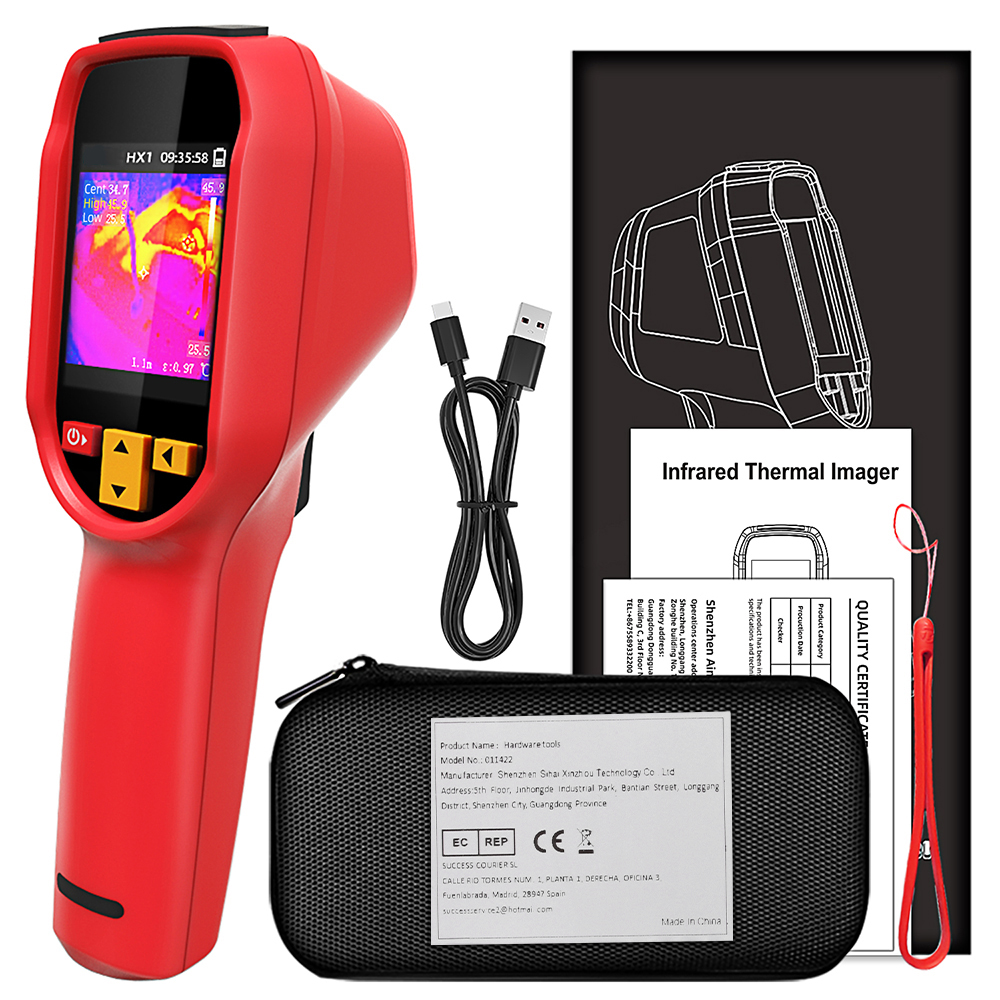

List
1 x Thermal Imager
1 x Instruction manual
1 x Tool Kit
1 x Type-C USB cable
1 x Lanyard
