SGSENSE Press Force Load Cell, 50000N Capacity, Stainless Steel, IP64

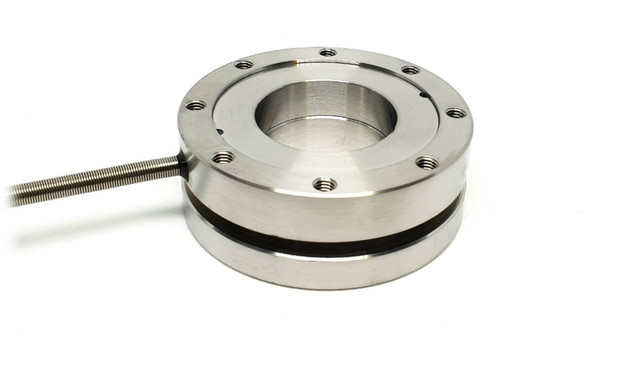

Press Force Load Cells are strain gauge-based transducers for press-force monitoring. This type offers capacities up to 100 kN and 20 klbf with compensated temperature performances. Cable is contained within a stainless-steel spring for strain relief purposes for additional protection.
For detail specification, please visit: Press Force Load Cell (SGPF)- SGSENSE (sgsensetech.com)
Specification
| Parameter | Range | Notes |
|---|---|---|
| Capacity (kN / klbf) | 2, 5, 10, 20, 50, 100 / 0.5, 1, 2, 5, 10, 20 | |
| Safe overload | 200% FS | No influence on measurement |
| Ultimate load | >300% FS | |
| Sensitivity (mV/V) | 1 +/- 20% | Voltage current loop or digital output versions are available on request |
| Non-linearity | +/- 0.25% FS | +/- 0.5% FS MAX |
| Hysteresis | +/- 0.25% FS | +/- 0.5% FS MAX |
| Repeatability | +/- 0.1% FS MAX | |
| No load offset | +/- 2% RO | |
| Zero temp coefficient | 0.02% RO / °C | |
| Sensitivity temp coefficient | 0.02% of load / °C | |
| Compensated temp range | -15 °C to 70 °C | |
| Operating temp range | -20 °C to 70 °C | |
| Bridge resistance (Ohm) | 700 +/- 100 | |
| Excitation voltage (V) | 5 recommended, 10 MAX | |
| IP rating | 64 | |
| Material | Stainless steel |

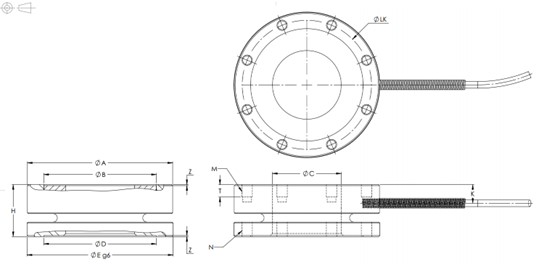

| Nominal Force | A (mm/in) | B (mm/in) | C (mm/in) | D (mm/in) | E (mm/in) | H (mm/in) | K (mm/in) | Z (mm/in) | M (mm/in) | T (mm/in) | LK (mm/in) | N (mm/in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 / 5 / 10 / 20 kN | 69.7 | 54 | 33 | 54 | 70 | 25 | 9 | 0.5 | M5-0.8 8 x 45° | 6 | 62 | M5-0.8 8 x 45° |
| 50 / 100 kN | 111.5 | 97 | 70 | 97 | 112 | 35 | 13 | 1.1 | M6-1 8 x 45° | 10 | 104 | M6-1 8 x 45° |
| 0.5 / 1 / 2 / 5 klbf | 2.74 | 2.13 | 1.30 | 2.13 | 2.756 | 0.98 | 0.35 | 0.02 | #10-24 8 x 45° | 0.24 | 2.44 | #10-24 8 x 45° |
| 10 / 20 klbf | 4.39 | 3.82 | 2.76 | 3.82 | 4.409 | 1.38 | 0.51 | 0.04 | #12-24 8 x 45° | 0.39 | 4.09 | #12-24 8 x 45° |

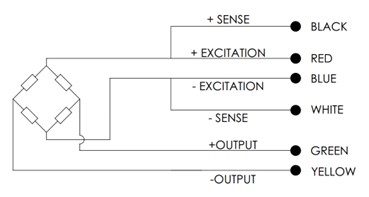

Wiring
Sensor is provided with 3m 30 AWG wire (Other lengths are available on request). Voltage current loop or digital output versions are also available on request.
Capacity and Deflection
| Capacity | Deflection (Nom) mm [in] |
|---|---|
| 2 kN / 0.5 klbf | 0.02 [0.001] |
| 5 kN / 1 klbf | 0.03 [0.001] |
| 10 kN / 2 klbf | 0.03 [0.001] |
| 20 kN / 5 klbf | 0.05 [0.002] |
| 50 kN / 10 klbf | 0.10 [0.004] |
| 100 kN / 20 klbf | 0.15 [0.006] |
