Package included:

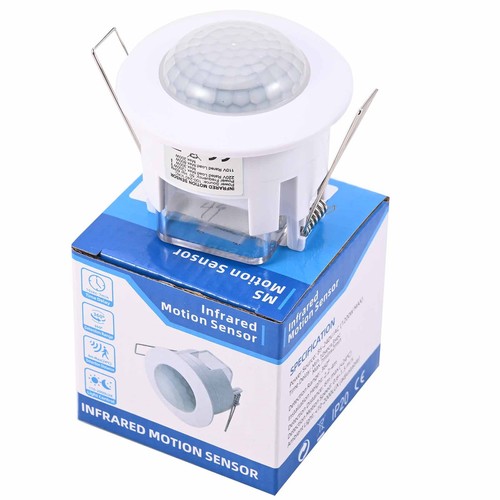

1x/2x/3x/4x Infrared Motion Sensor
Feature:
- Power Sourcing:220V-240V/AC
- Power Frequency:50Hz
- Ambient Light: 3-2000LUX (Adjustable)
- Time-delay adjustment: Min. 10+-3sec; Max.7+-2min.
- Rated Load:1200W Max. Tungsten; 300W Max.Florescent
- Detection Range:360°
- Working Temperature:-10~+40℃
- Working Humidity:<93%RH
- Installing Height:2.5m~3.5m
- Power Consumption:0.45W (Work); 0.1W (Static)
- Detection Motion Speed:0.6~1.5m/s
The light switch is suitable for indoor ceiling mount (concealed installation). Can
be used for home garden, living room, corridor, bedroom, bathroom, storage
room, wardrobe, bedroom and so on. Control exhaust fan and hidden lights, wall
lamp, night light, spotlights, downlights and so on auxiliary lighting.
Intelligent switch lights and other electrical appliances to facilitate home
life, eliminating the complexity of wiring, eliminating the memory switch
position, convenient for the elderly and children. In addition with anti-theft
deterrent function. Load power enough for home lighting, 360-degree all-round
induction, the maximum radius of 4.5 meters to cover the ordinary family living
room any corner.
1.Turn off the power.
2.Removing the transparent vinyl cover what is
in the bottom of the sensor.
3.Loosing the screws in the connection terminal,
connecting the power and rated load to connection terminal of sensor according
to connection sketch map.
4.Tighten the screws; put the transparent vinyl
cover into the the original station.

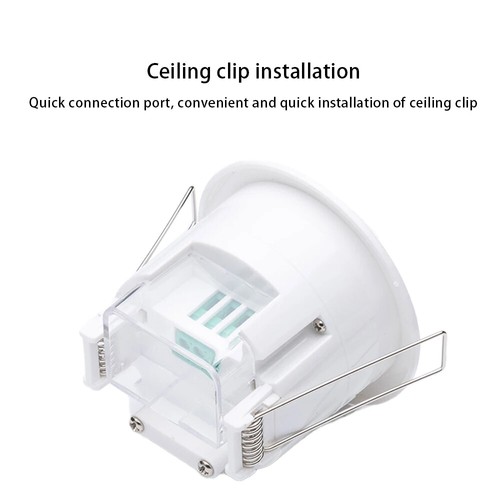

5.Folding the metal spring of the sensor to
upwards, until they are in “I” position with sensor, then put the sensor into
the hole or installation boa what is in the ceiling, the size is similar with
item. Releasing the spring, the sensor will be set in this installation position.
