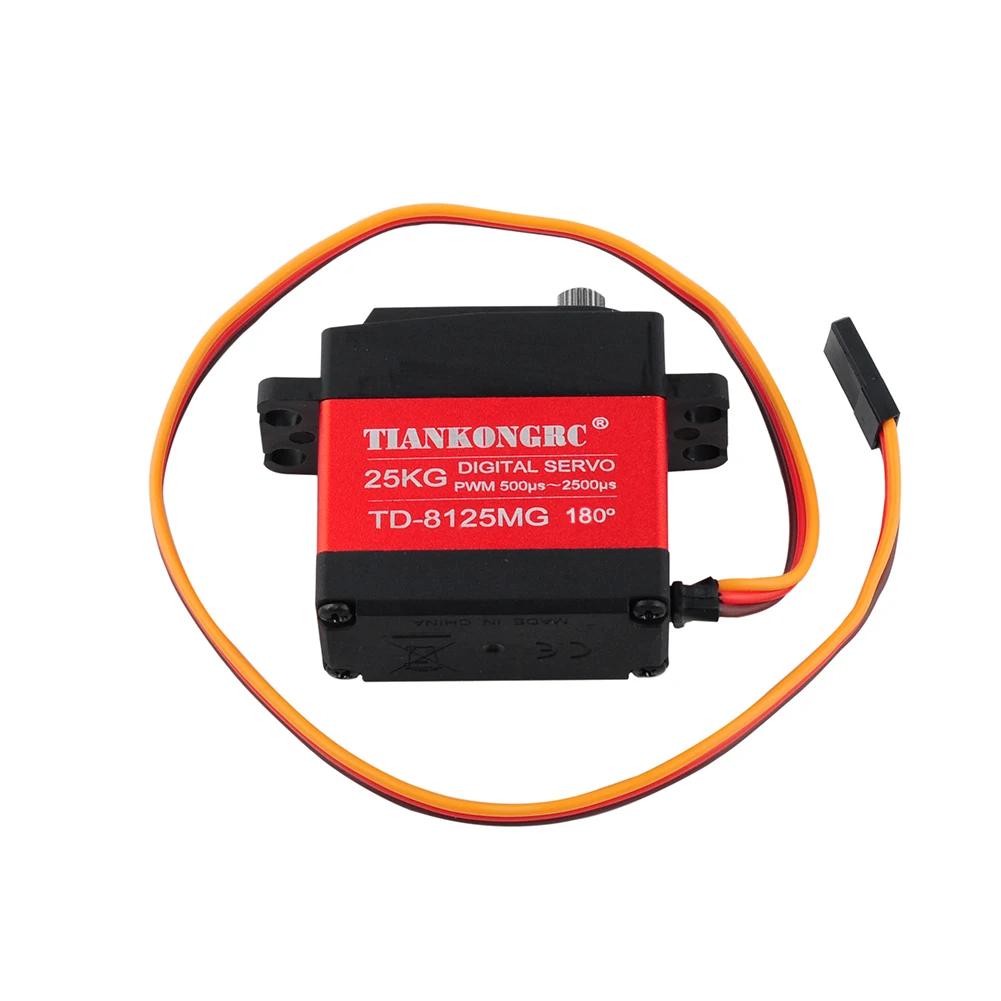

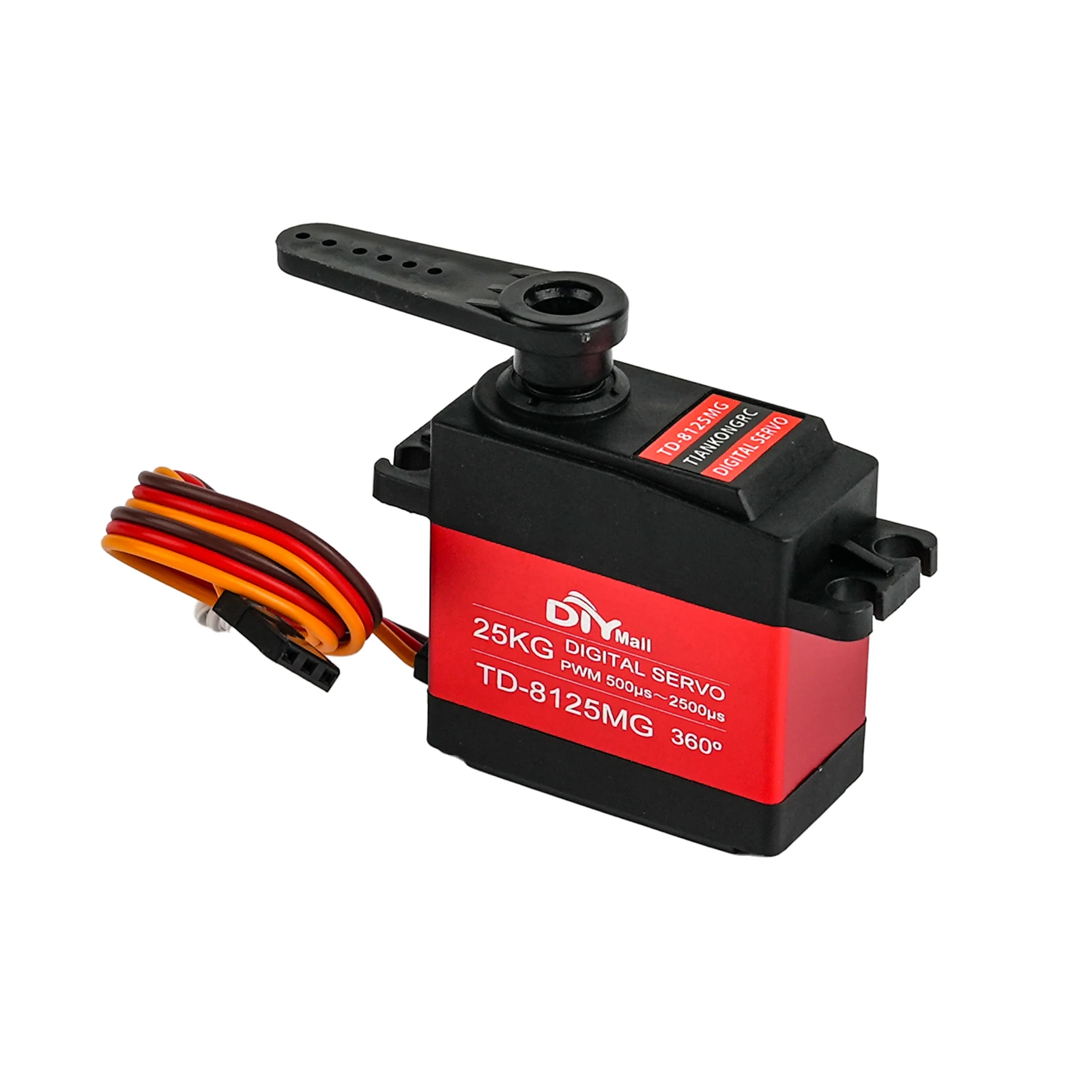

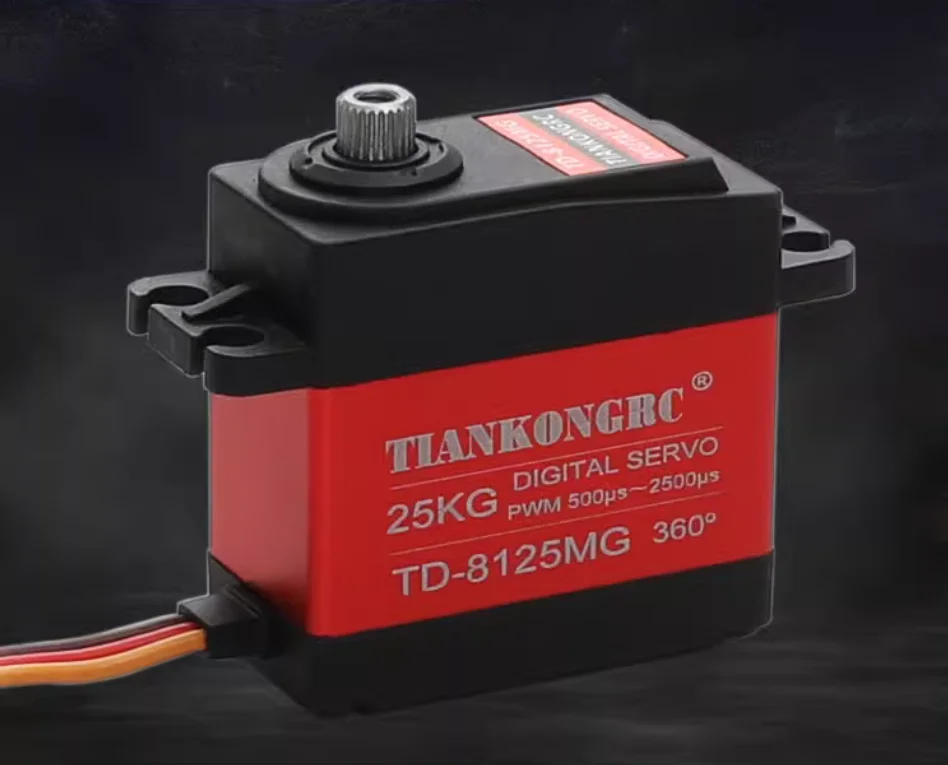

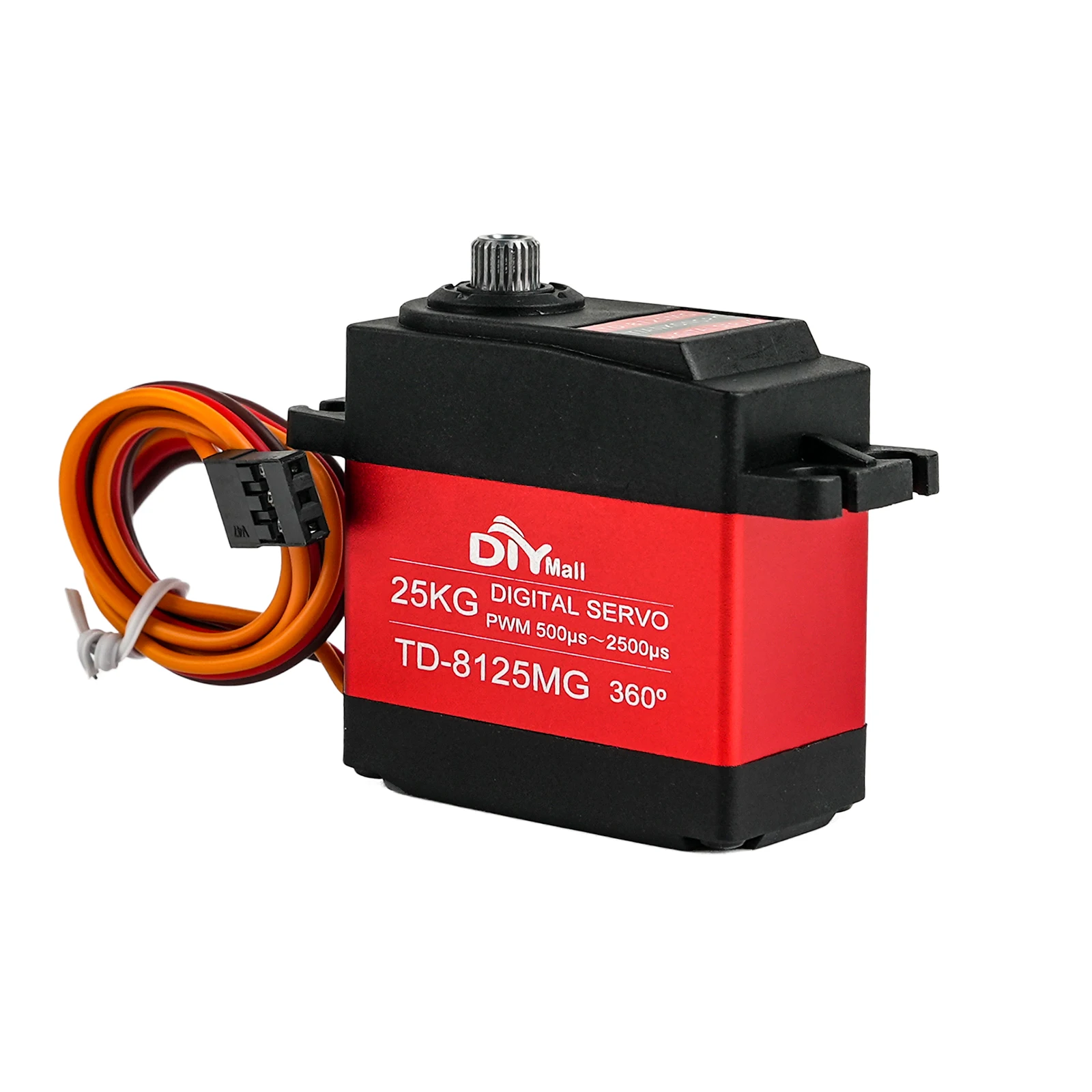

25KG Digital Servo Waterproof Large Torque Metal Gear for DIY Robot Arm RC Cars
Attention : The logo of DIYmall and TIANKONGRC is send by random

  • Large Torque :Peak stall torque is 23.5kg.cm-26.8kg.cm
  • High Quality:equipped with strong metal gear,CNC aluminium middle Shell
  • High Rotation:well-controlled, 360 degree rotation(can't control its angle). Widely uesd for DIY Car Robot Robotic Arm RC Model


Electrical Specification
Working voltage range: 4.8-7.2V
No load speed:
0.18sec/60°(4.8V), 0.14sec/60°(7.2V)
Runnig current:140mA(4.8V), 200mA(7.2V)
Peak stall torque: 23.5kg.cm(4.8V), 26.8kg.cm(7.2V)
Stall current: 2600mA±10%(4.8V), 3400mA±10%(7.2V)


Mechanical Specification

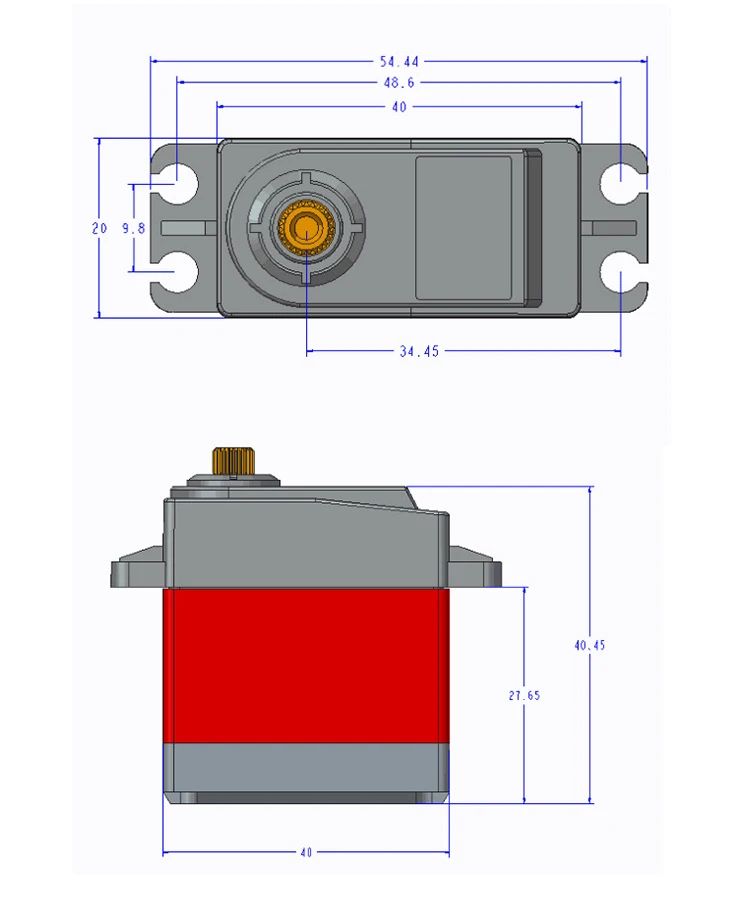

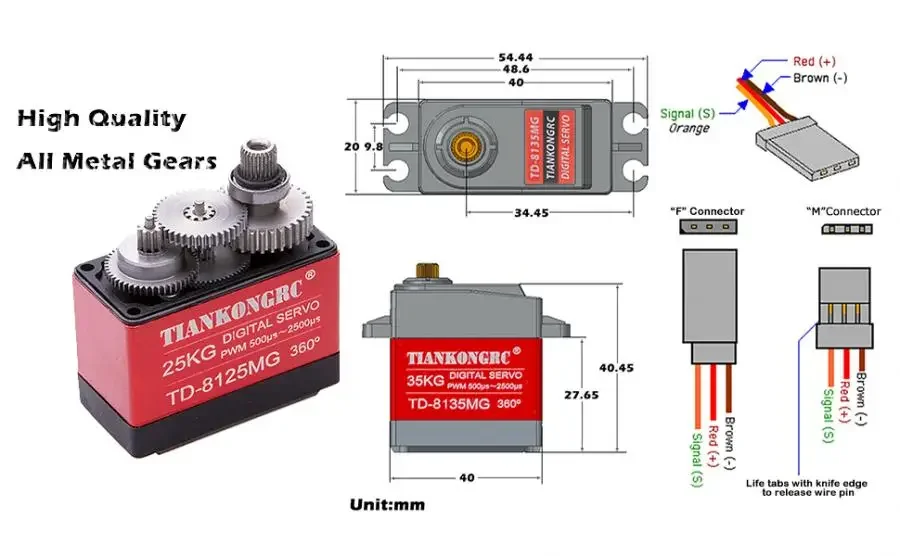

Size: 40.0*20.5*40.5mm
Weight: 56g±5%
Gear type: 5 Metal
Limit angle: 360°
Bearing: 2BB
Horn type: Plastic, POM
Case: Engineering plastics(PBT)+Aluminum alloy
Connector wire: 320mm±5mm
Motor: Carbon brush motor

Control Specification
Command signal: Pulse width modification
Amplifier type: Digital controller
Pulse width range: 500～2500usec
Neutral position: 1500usec
Running degree: 360°±3°(when 500～2500usec)
Dead band width: 5 usec
Rotating direction: Counterclockwise (when 1000～2000usec)
Storage Temperature Range: -30°C～80°C
Operating Temperature Range: -25°C～70°C

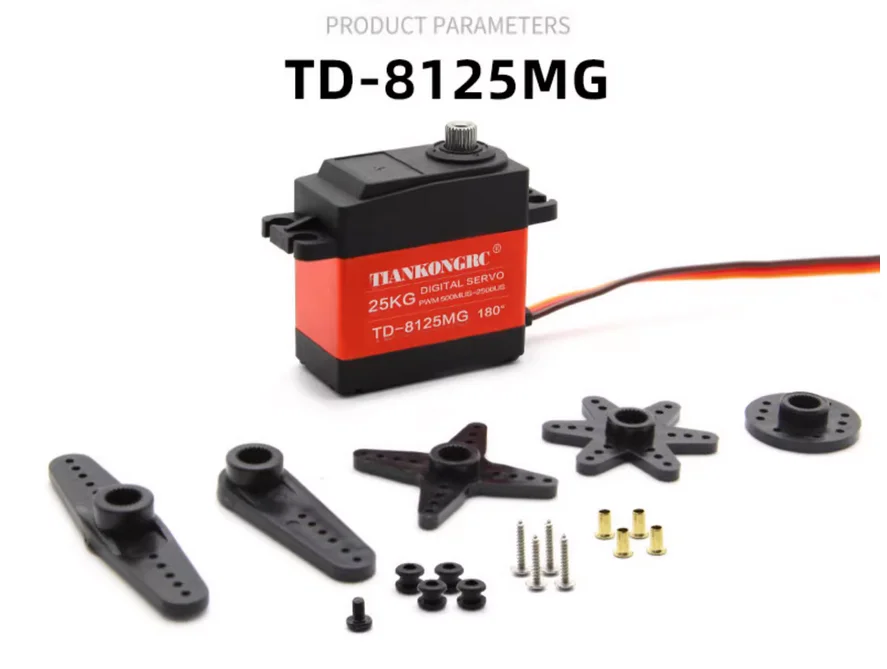

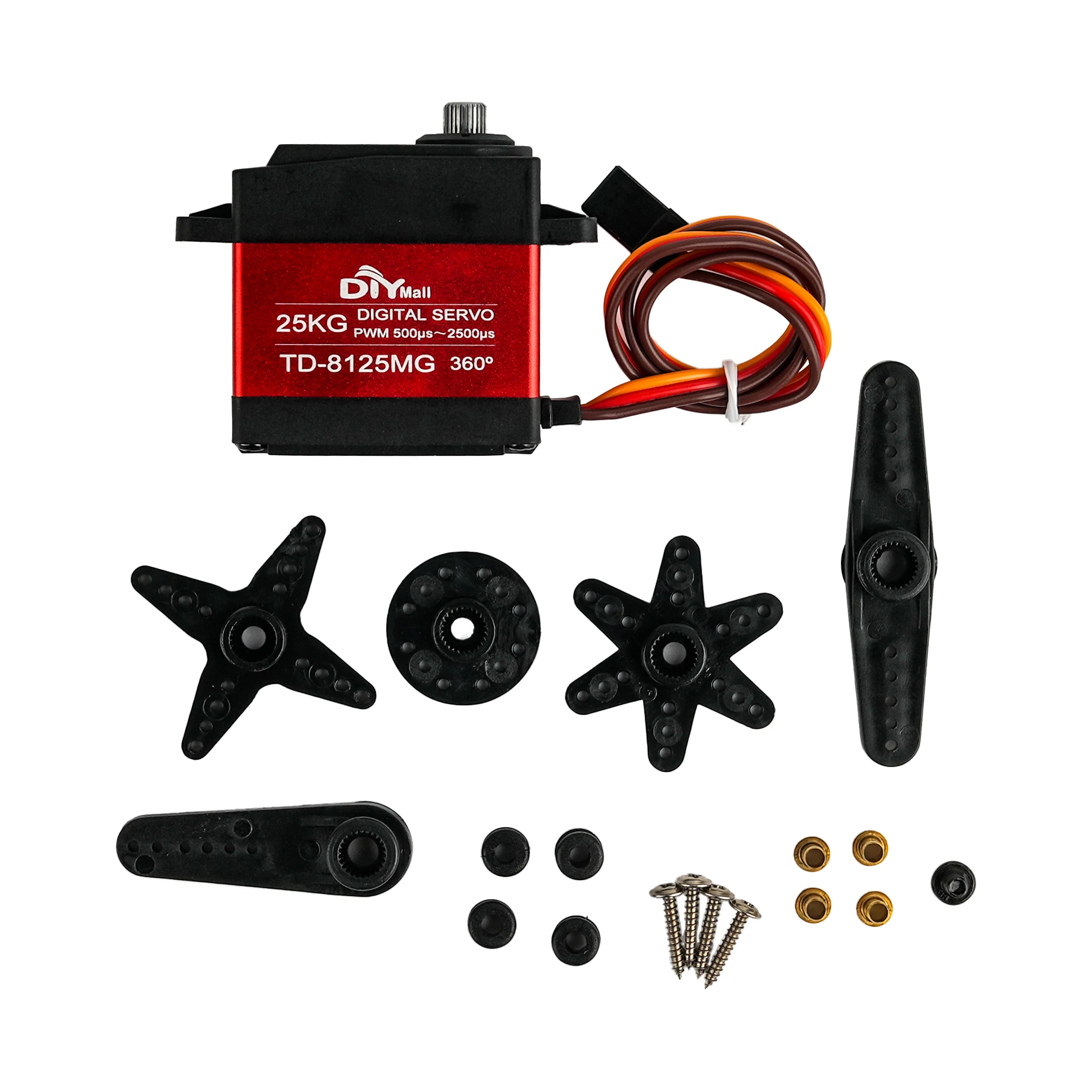

Package includes:

1pcs TD-8125MG 25KG Digital Servo with Accessories
