Welcome To iPoster:

iPoster 7 inch TFT LCD Screen Car Rear View Monitor with Remote Control/2ch 4PIN Video In, Rotated Bracket

1x White Color 12-24V 4Pin Heavy Duty Caravan CCD IR Color Eyeball

Reversing Camera + 1x Black color 4PIN Metal case Square Rear View Reversing Camera

Rear View IR LEDs Night Vision Waterproof Anti-Dust&Fog

+2x 10M/33Ft 4Pin Extention Cable(Waterproof Shield Cable)

10M advanced 4 PIN cable. Allowing the monitor to power up the camera no need to connect another power cable to camera

For Truck Bus Motorhome Trailer Van and other heavy duty device

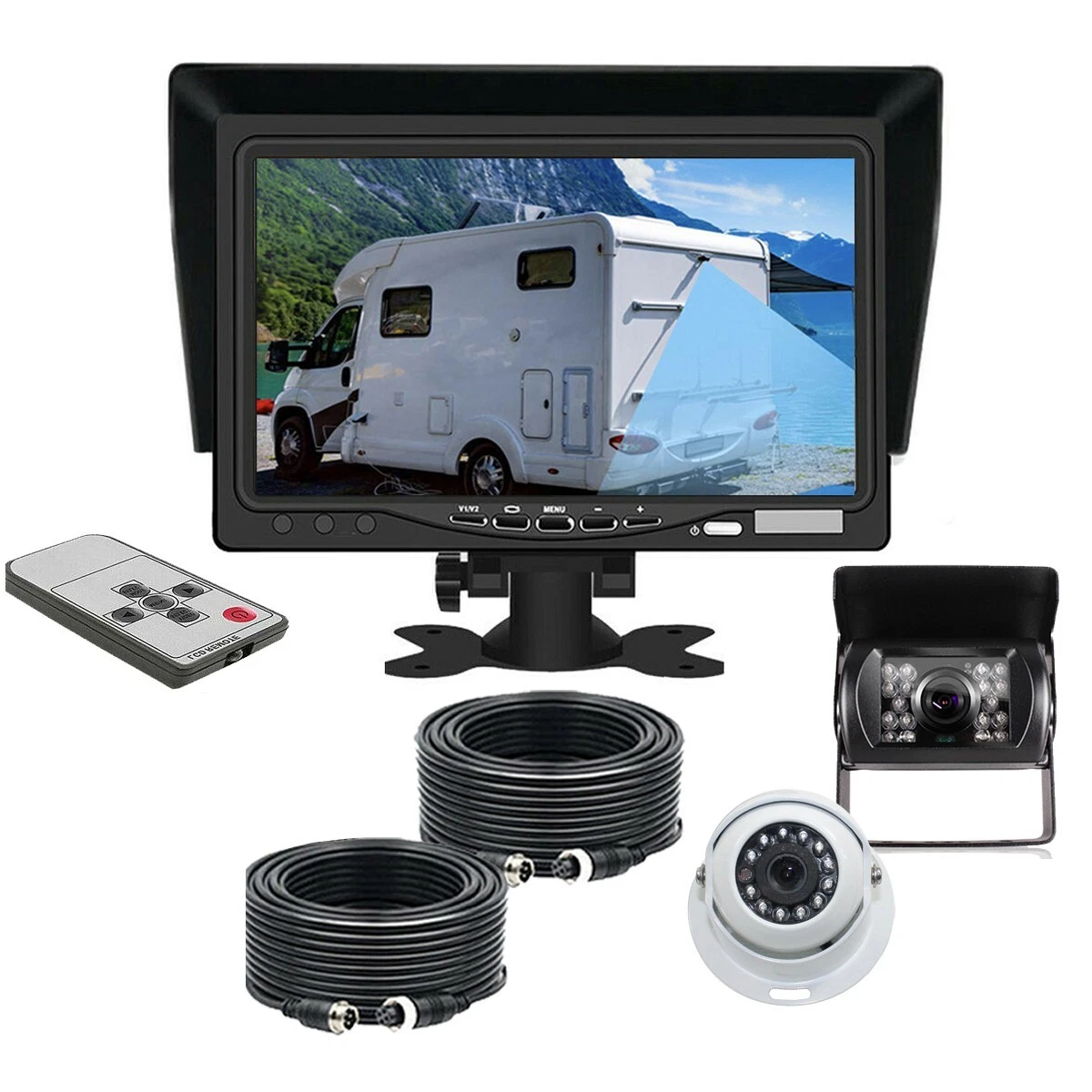

7" Monitor White dome rear view camera square rear view camera kit for caravan - Picture 1 of 24

7" LCD TFT Screen Features:
Show foot size: 7 inches. Best for the safe use of Rear view;
Displays: TFT-LCD. high-definition screen, make the image clearer, more vivid colors;
Resolution: 800 (H) × 480 (V);
Power: ≤ 2W. Ultra-low power consumption, to prevent over heat.
Video Input:AV1/AV2 video input
AV1 connect reversing camera (reversing automatically switch to);
Signal format: PAL / NTSC / AUTO. Compatible with all signal formats.
Contrast: 300:1. A clear contrast
Working Voltage: DC 12V.
Language:Chinese/English/Turkish/Polish/Russian/Dutch/Portuguese/German/Spanish/Italian/French/Korean/Chinese(Traditional)/Japanese

The difference between CCD and CMOS camera

CCD camera has sharper pictures. It sharpens the focus of picture, making it as real as possible.

CCD lens Makes clear night vision even in a low light environment.

12 infrared lamp used in the low light condition

You can easily adjust the angle at Multi-level

120 degree angle lens, ensure car’s rear side for effective reversing and parking operation

100% complete waterproof

12V-24V input

Size:

Camera
Style	4 PIN
Sensor	1/3 "SHARP Color CCD
Horizontal Resolution	800TV Lines
Effective pixel	PAL : 900(H) x 892(V)
Mimimum Illumination	0LUX(12 Pcs IR LEDs for night vision)
View angle	120°
Video Output	1.0Vp-p75Ω
Voltage	DC12V-24V
Waterproof grade	IP68
Shockproof	10G
Dimension	82(W) x 55(H) x 55(D) mm

Features:
- Professionally designed system with industrial leading components/parts.
- CCD camera with 2.8mm wideangle lens. This offers a super wide field of view angle at 120°.
Most other manufacturers use 3.6mm or 2.1mm lens, the view angle is much narrower. You can see more areas by using 2.8mm lens
- Builtin 12 IR LEDs for over 20ft nightvision view.
- power cable with a waterproof aerospacetype connector.
- Waterproof camera body with a sunvisor and metal bracket. Easy to mount on any flat surface of the vehicle
- Rubber seat for video cable to go through inside the cabinet without scratching the surface.
- 12-24V DC power input range to fit most of the medium to large vehicles on the road
- Aerospacetype cinch connectors are used for all connections. This is more reliable and simple to install.

Package Included:

1 x 7 Inch LCD Screen Monitor
1 x Power Harness
1 x Remote
1 x Stand Bracket
1 x Detachable Sunshade Cover
2 x Rear View Camera(1x White Dome+1x Black Square)
2 x 10m 4pin Cables.
1 x Set of screws
1x English Manual
