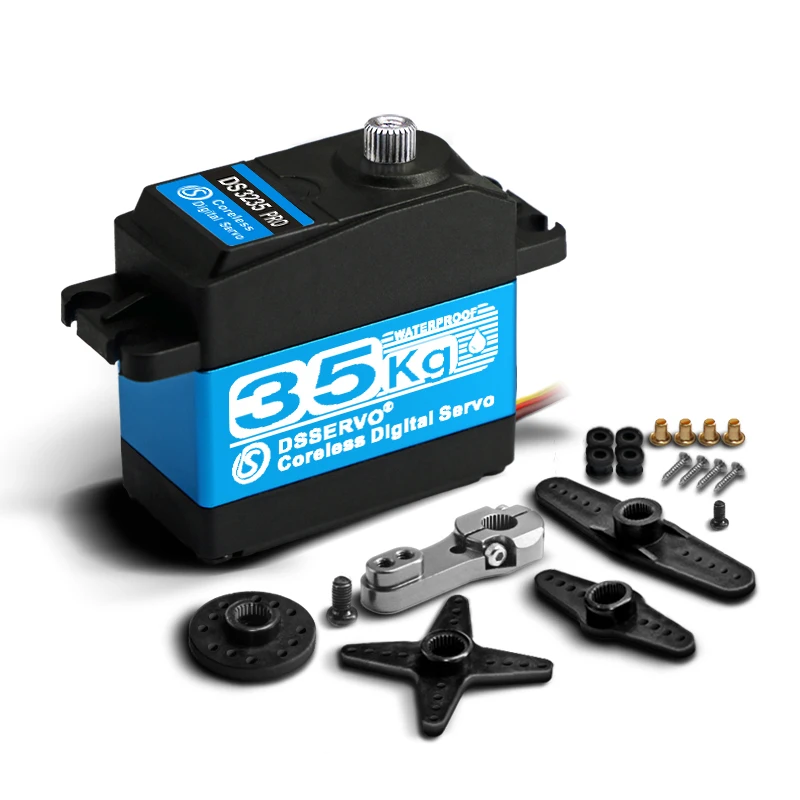

35kg DS3235 Pro Digital Servo Stainless Gear for 1:8 1:10 1:12 RC Car Baja Robot

DS3235 PRO Coreless Digital Servo High Torque High Speed Stainless Steel Gear Motor Waterproof 180/270 Degree for 1:8 1:10 1:12 RC Baja Car

Please note:
It is waterproof but cannot work under water

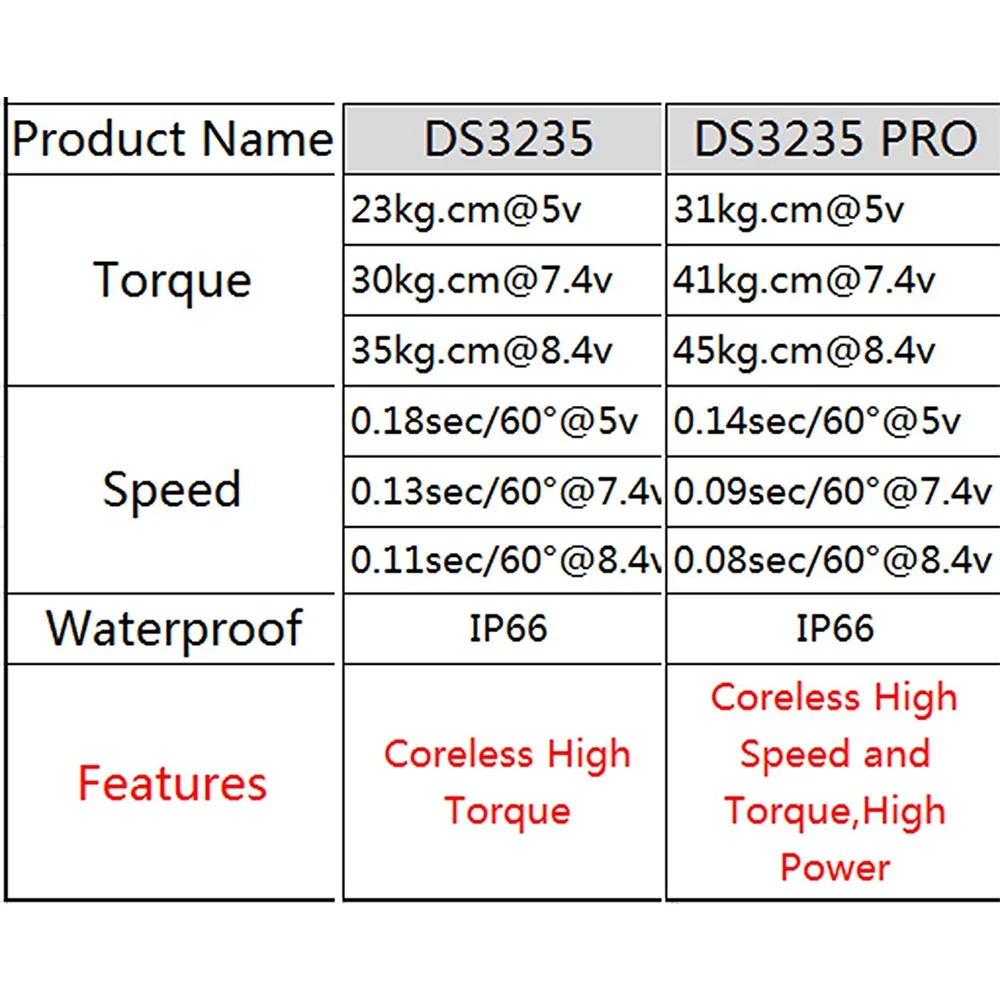

Decsription of DS3235 Pro
Torque :31kg.cm@5v, 41kg.cm@7.4v,45kg.cm@8.4v
Speed:0.14sec/60°@5v,0.09sec/60°@74,0.08sec/60°@8.4
Waterproof :IP66
Features : Coreless High Speed and Torque,High Power

Apply Environmental Conditon:
1.Storage Temperature Range:-30°C~80°C
2.Operating Temperature Range:-25°C~70°C

Mechanical Specification:

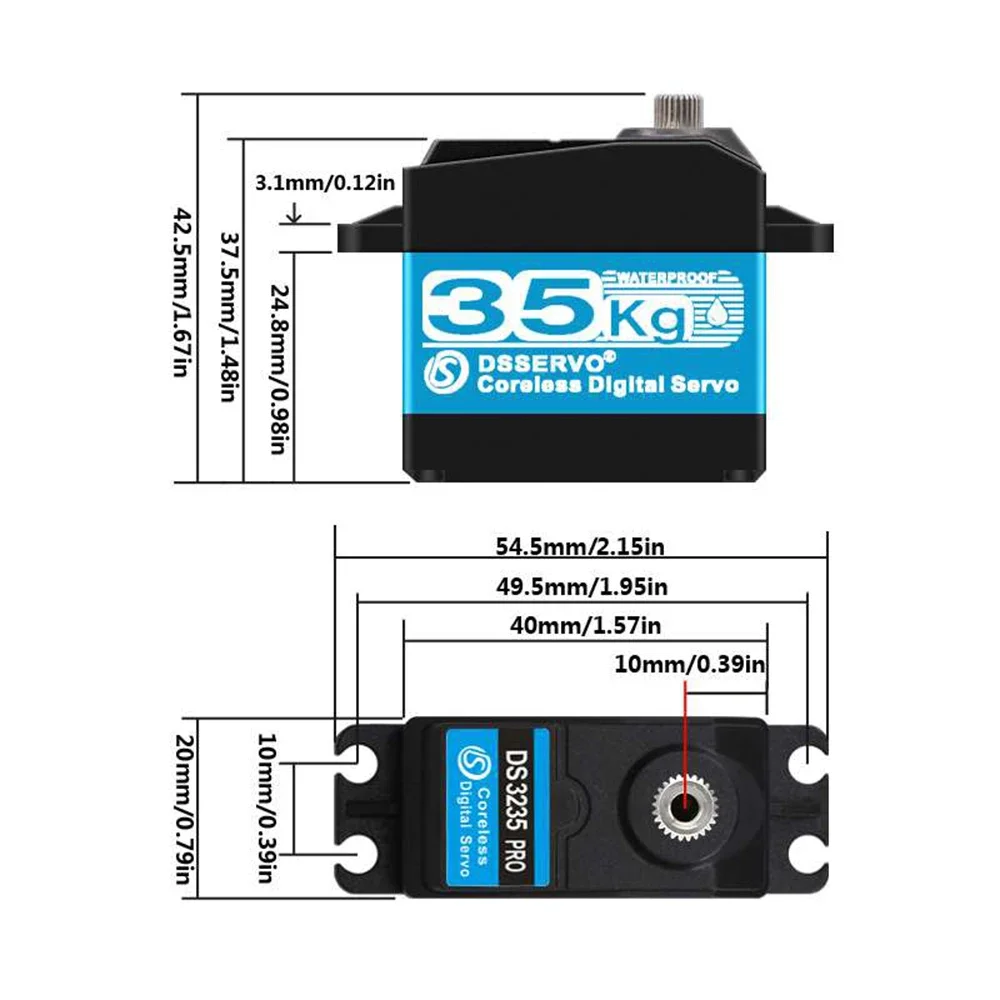

1. Size: 40.0*20.5*40.5mm
2. Weight: 58g±2g
3. Limit angle: 360°
4.Bearing: 2BB
5.Horn gear spline: 25T   Diameter:5.9mm
6.Case : Engineering plastics+Aluminum alloy
7.Connector wire: 320mm±5mm
8.Motor: Coreless brush motor

Electrical Specification:
1.Working voltage range:  5 - 8.4V

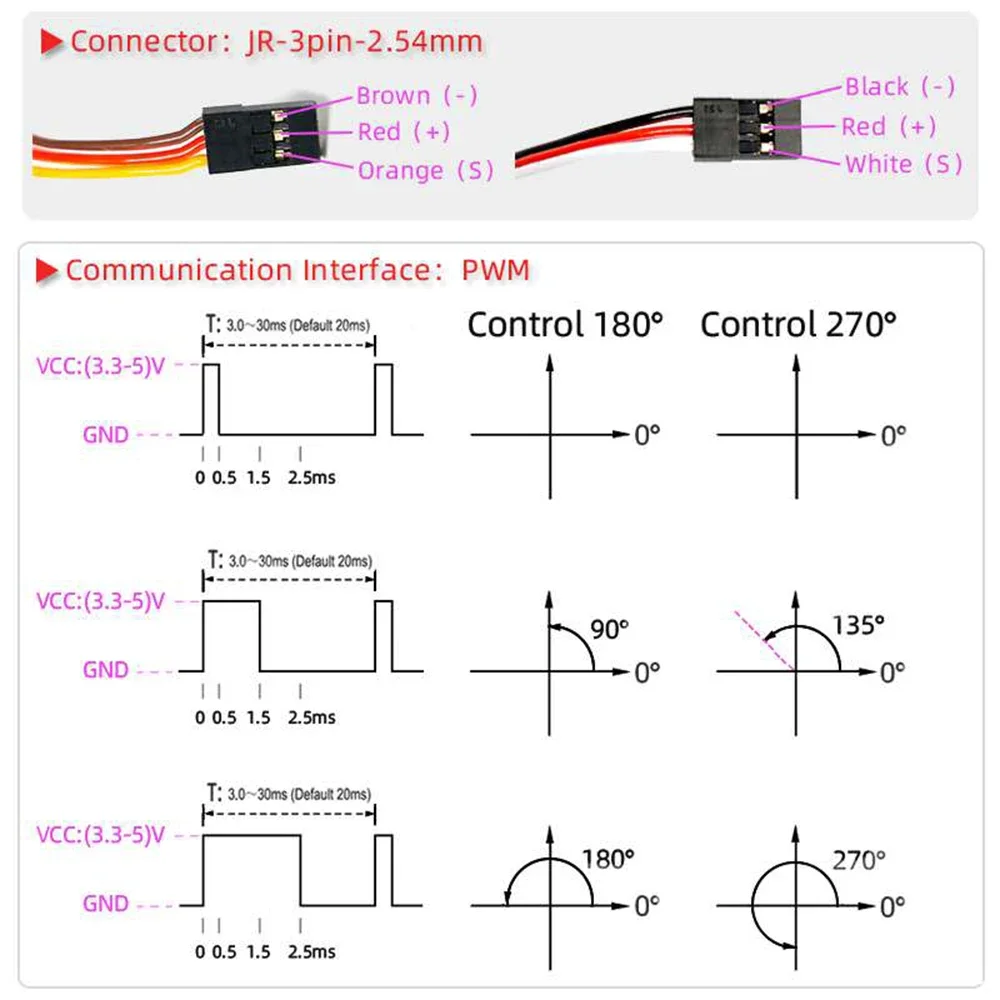

2.Command signal: Pulse width modification
3.Amplifier type: Digital controller
4.Pulse width range: 500～2500usec
5.Neutral position: 1500usec
6.Running degree: 180±3°(PWM 500～2500usec)
7.Dead band width: 3 usec
8.Rotating direction Counterclockwise: (when 1000～2000usec)

Decsription of DS3235
Operating voltage range: 5-7.4V
Operating speed (at no load) : 0.13 sec/60 degree @5.0V
Operating speed (at no load): 0.12 sec/60 degree @6.0V
Operating speed (at no load): 0.11 sec/60 degree @ 7.4V
Stall torque  (at locked): 29kg/cm @5.0V
Stall torque  (at locked): 32kg/cm @6.0V
Stall torque (at locked) : 35kg/cm @7.4V
Stall current (at locked): 1.9A @5.0V
Stall current (at locked): 2.1 A@6.0V
Stall current (at locked): 2.3A@7.4V

Item:DS3235 35KG Coreless Stainless Steel Gear Waterproof Digital Servo
Operating Voltage: 5 ~ 7.4 DC Volts
Dead brand: 3μs / 2 μs
Weight: 60 g (2.12 oz)
Motor Type: Coreless Motor
Gear Type: Copper & Aluminum / Stainless Steel & Aluminum
Working frequence: 50-333Hz
Size: 40 x 20 x 38.5 mm ( 1.58 x 0.79 x 1.50 in)

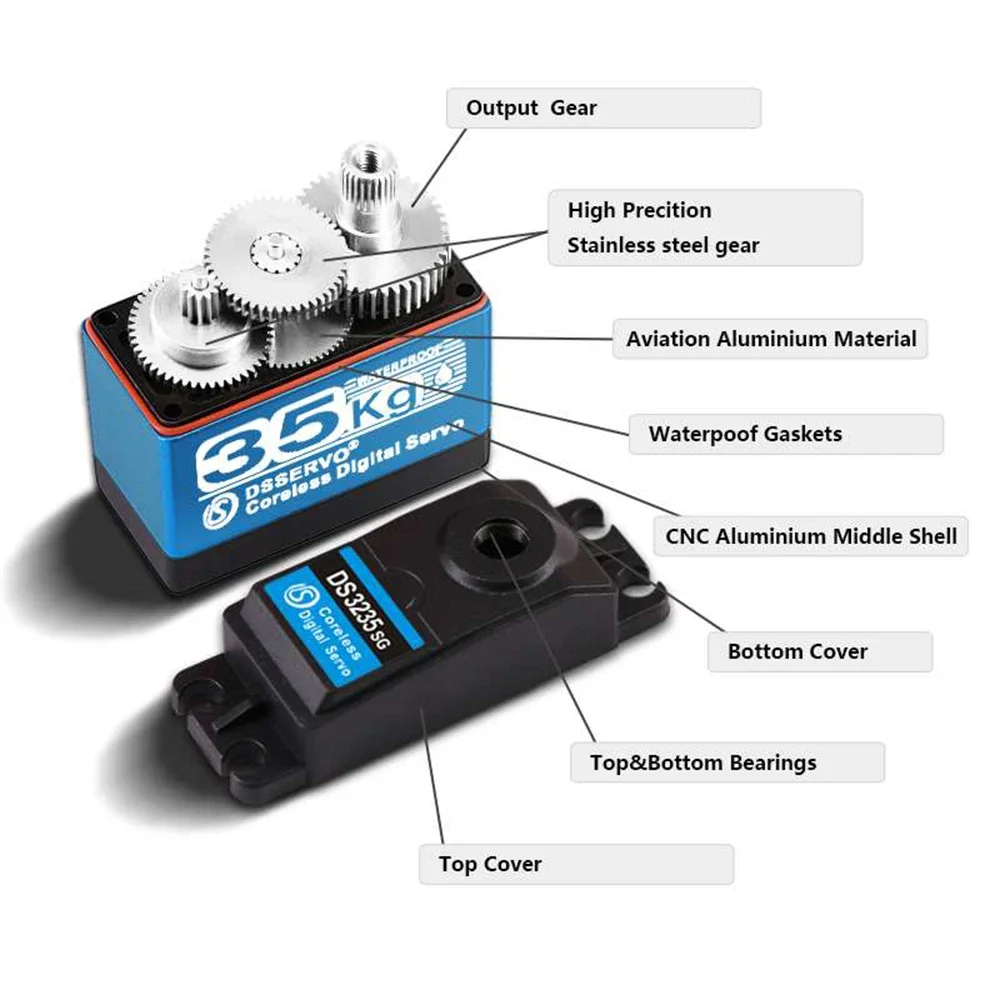

Features:
- High performance digital standard servo

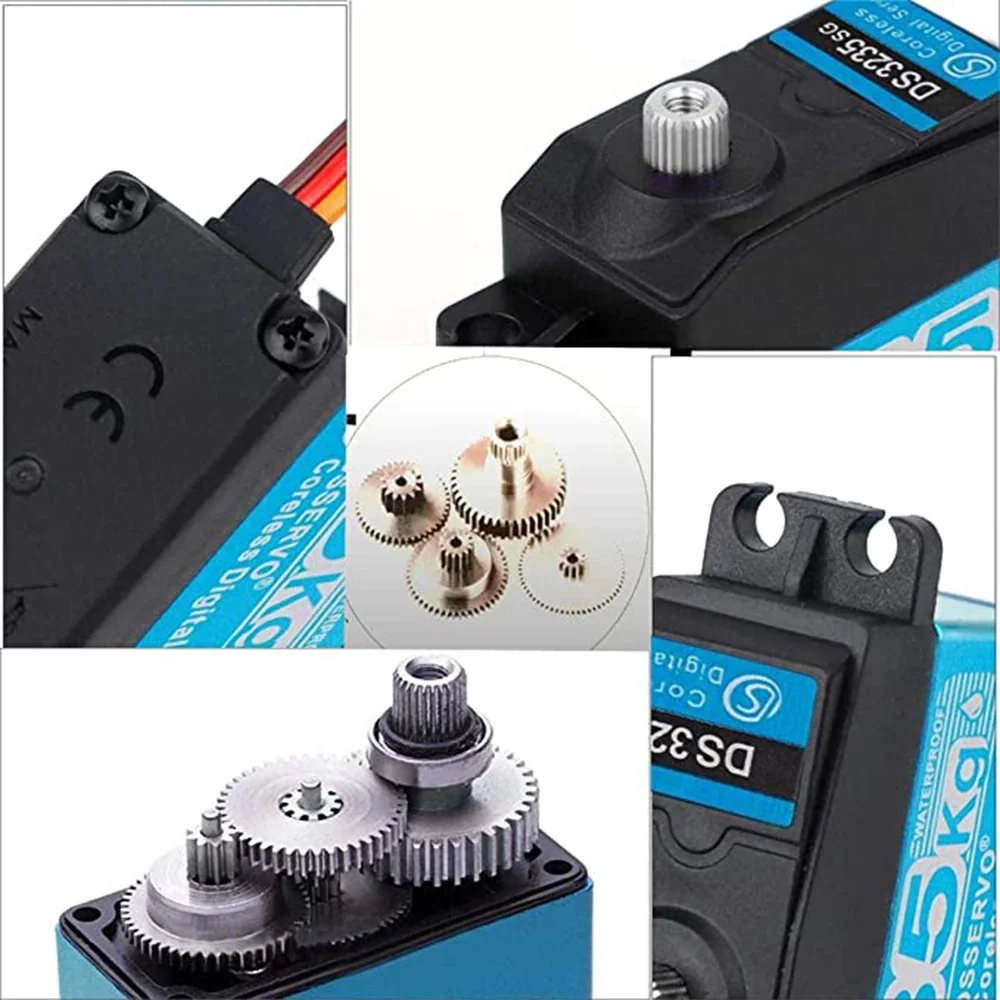

- High-precision metal gears (Stainless steel gear)with hard anodizing
- CNC aluminium middle Shell
- Dual ball bearings

Package:
Bundle 1 - 1PCS DS3235 180 Degree
Bundle 2 - 2PCS DS3235 180 Degree
Bundle 3 - 4PCS DS3235 180 Degree
Bundle 4 - 1PCS DS3235 270 Degree
Bundle 5 - 2PCS DS3235 270 Degree
Bundle 6 - 4PCS DS3235 270 Degree
Bundle 7 - 1PCS DS3235 PRO 180 Degree
Bundle 8 - 2PCS DS3235 PRO 180 Degree
Bundle 9 - 4PCS DS3235 PRO 180 Degree
Bundle 10 - 1PCS DS3235 PRO 270 Degree
Bundle 11 - 2PCS DS3235 PRO 270 Degree
Bundle 12 - 4PCS DS3235 PRO 270 Degree
