Product View
Product Details

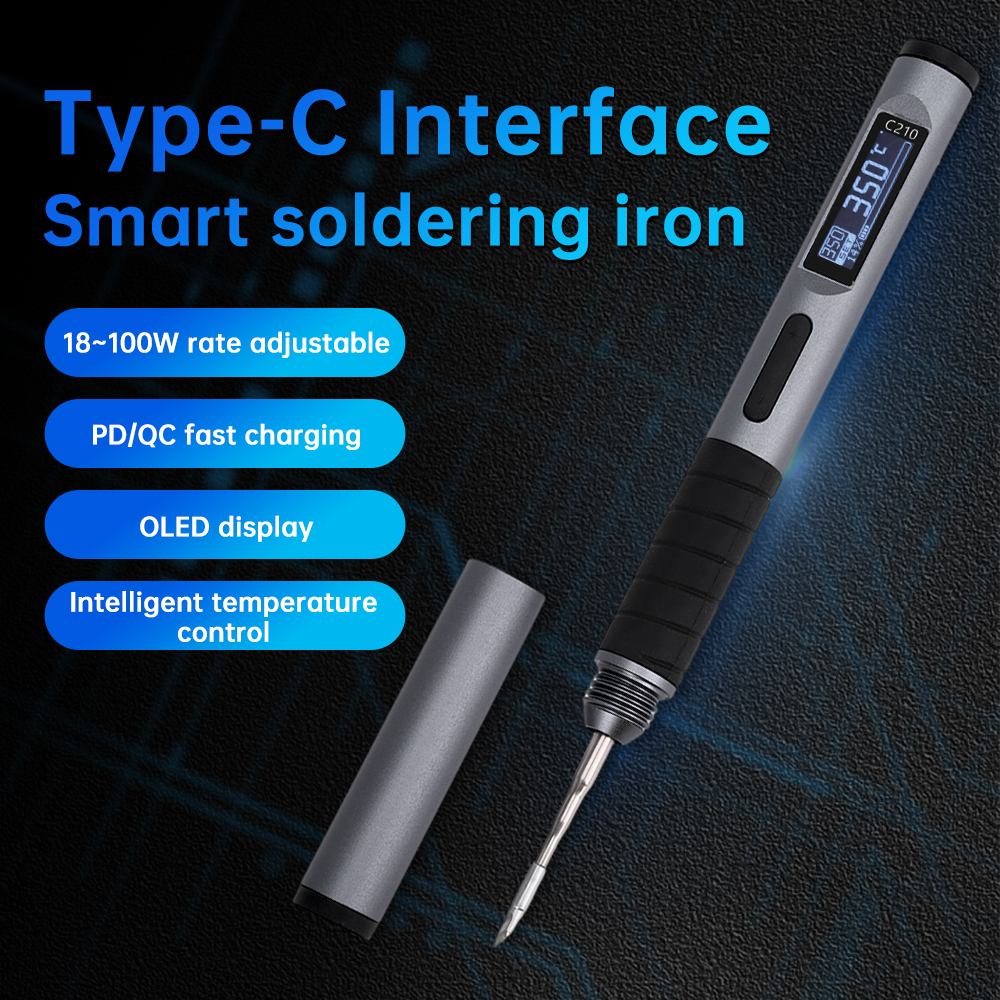

Product Features

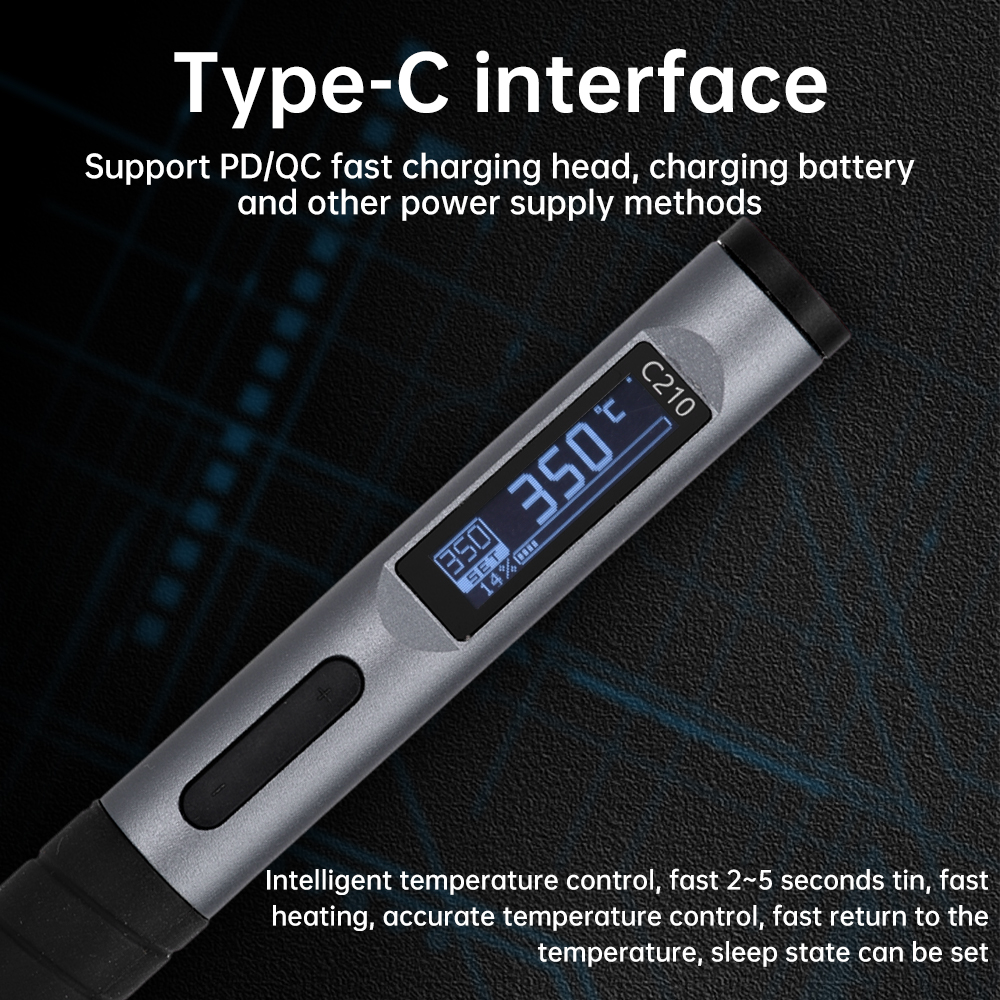

1.Type-C interface, support PD/QC fast charger, charging treasure and other power supply modes
2. Selected voltage gear, fine-tuning current can achieve 18 ~ 100W power adjustable
3.Support 9~20V working voltage range

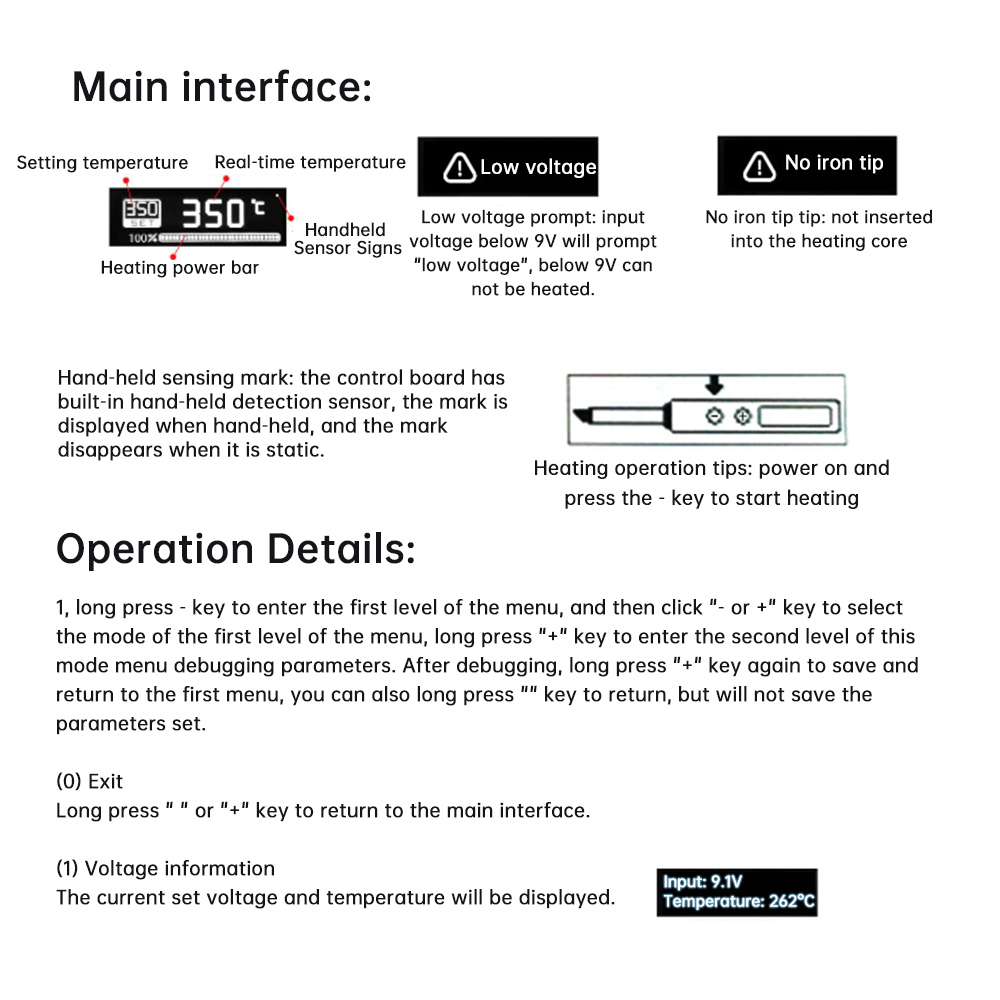

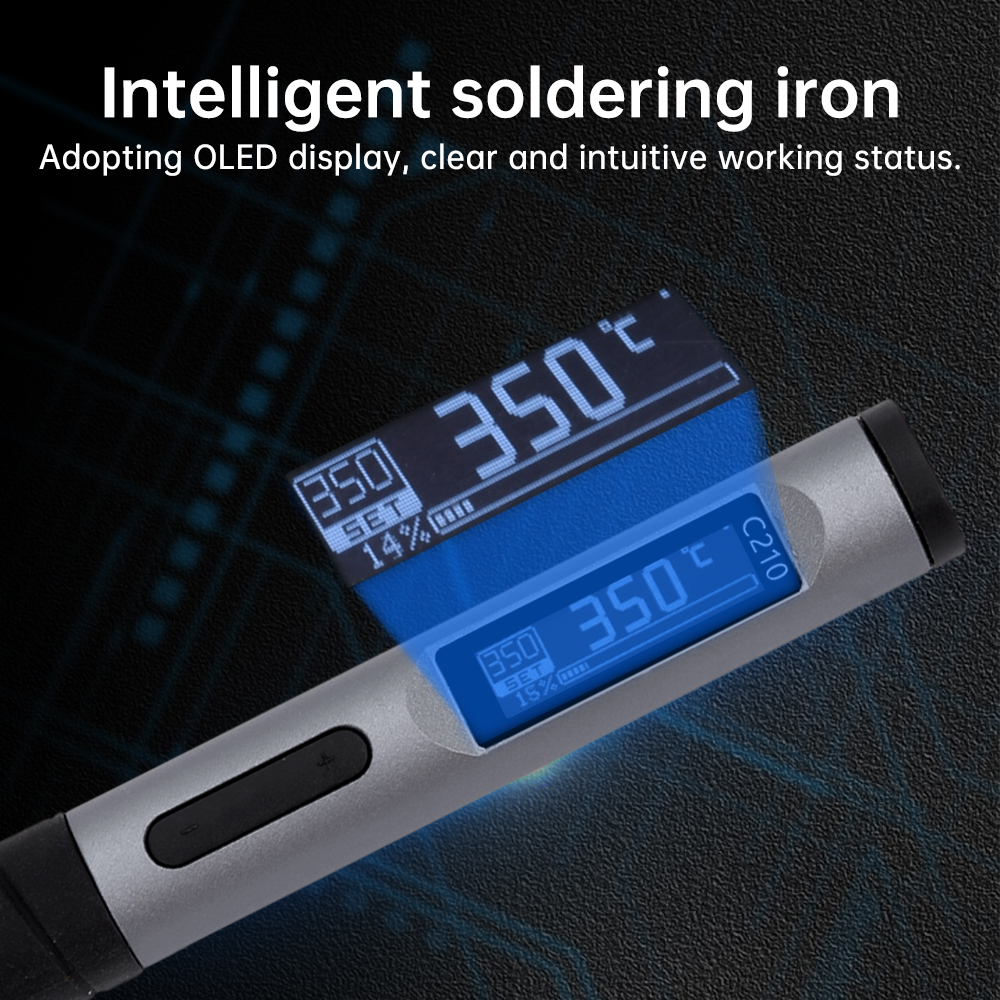

4.OLED display, clear and intuitive working status.
5. Intelligent temperature control, fast 2~5 seconds tin, fast heating, temperature control quasi-quasi, fast return to the temperature, dormant state can be set

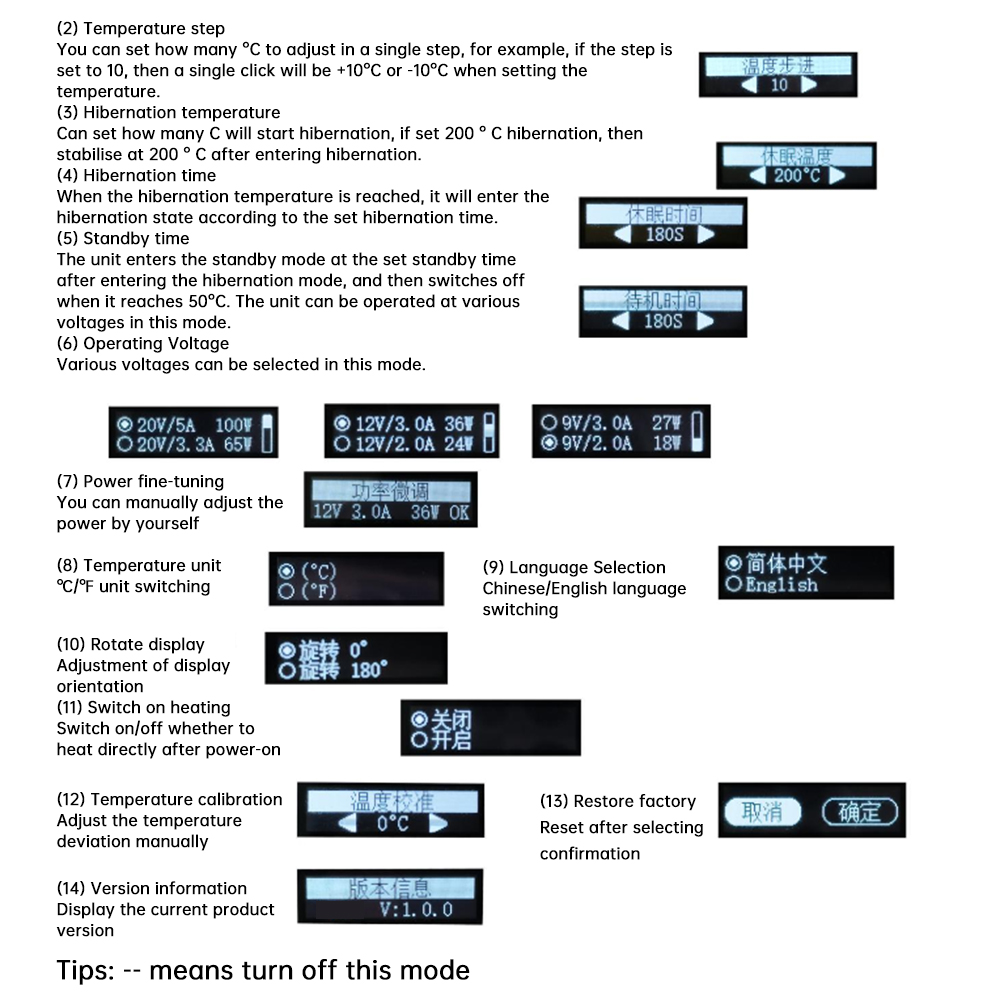

6. Sleeping temperature, standby time, working voltage and other parameters can be set, support for Chinese and English language, can be converted between Celsius (80~450 ℃) and Fahrenheit (176-842 ℉) and other settings to meet individual needs.
1.Type-C interface, support PD/QC fast charger, charging treasure and other power supply modes
2. Selected voltage gear, fine-tuning current can achieve 18 ~ 100W power adjustable
3.Support 9~20V working voltage range
4.OLED display, clear and intuitive working status.
5. Intelligent temperature control, fast 2~5 seconds tin, fast heating, temperature control quasi-quasi, fast return to the temperature, dormant state can be set
6. Sleeping temperature, standby time, working voltage and other parameters can be set, support for Chinese and English language, can be converted between Celsius (80~450 ℃) and Fahrenheit (176-842 ℉) and other settings to meet individual needs.
Product Parameter

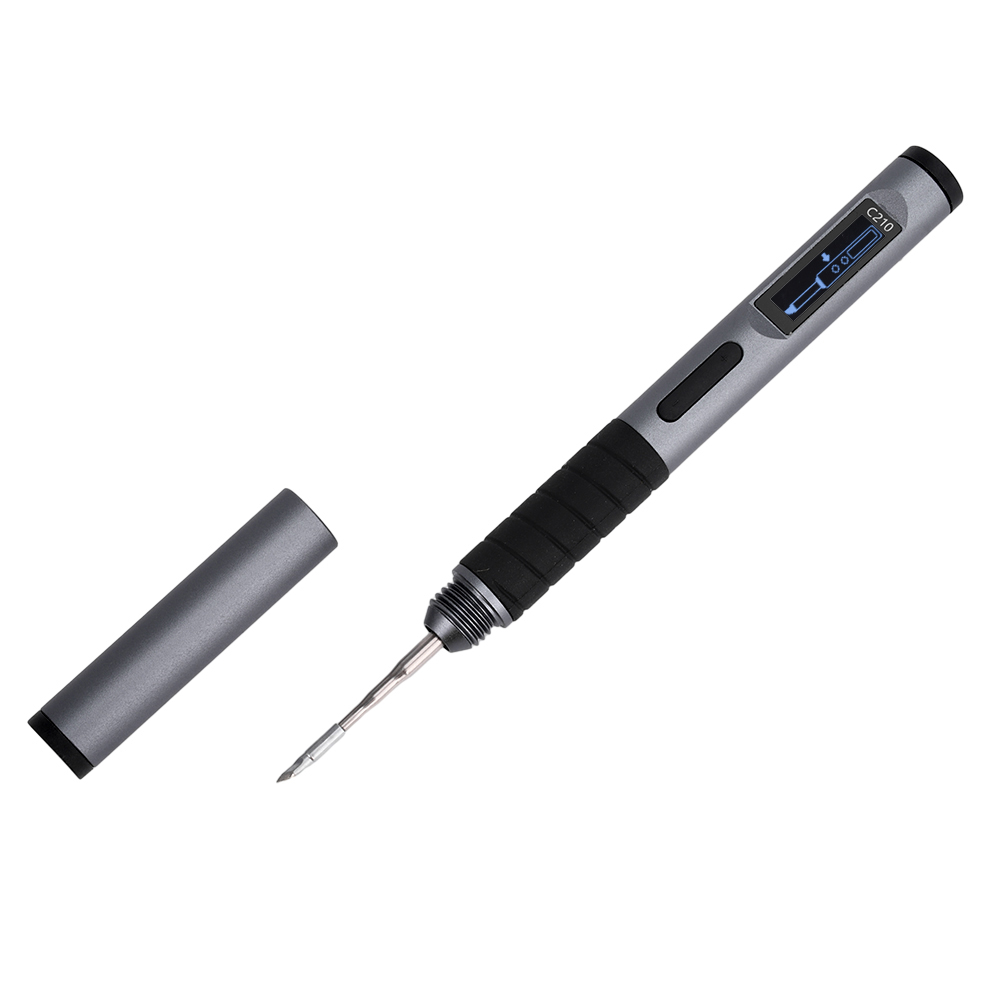

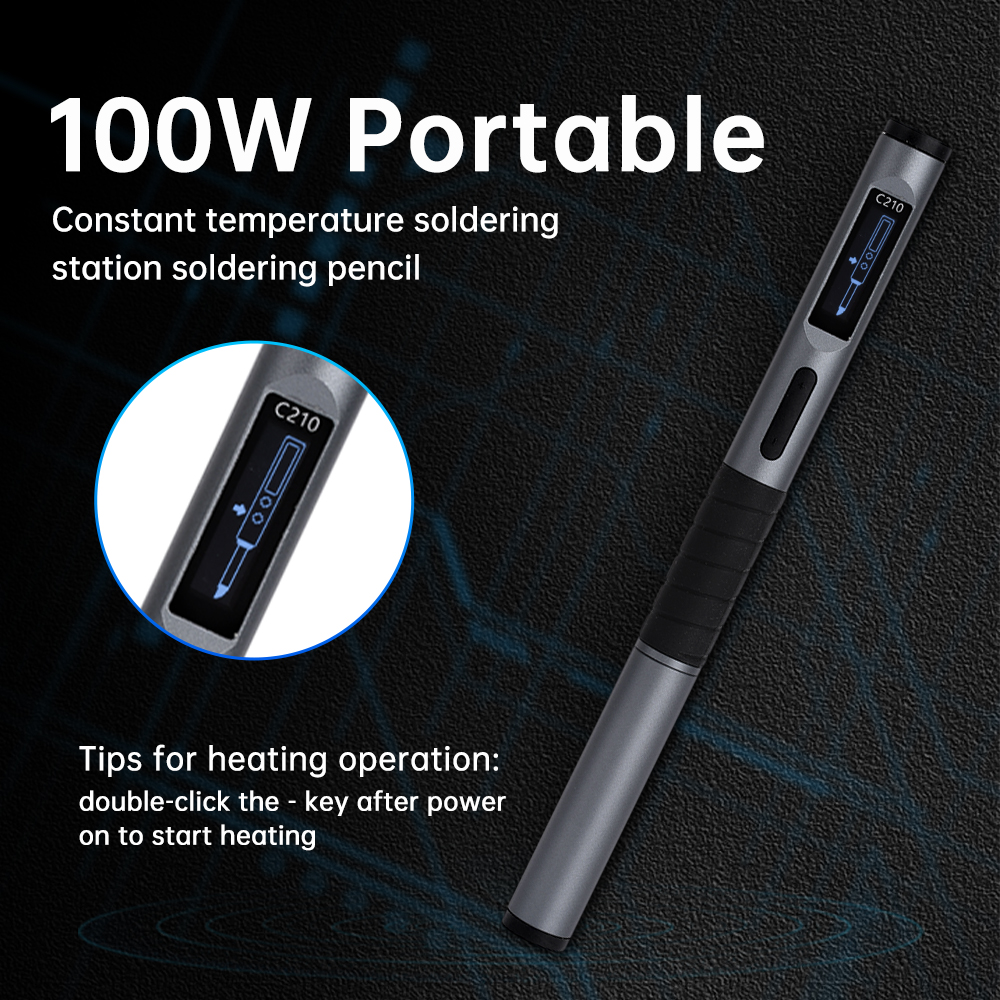

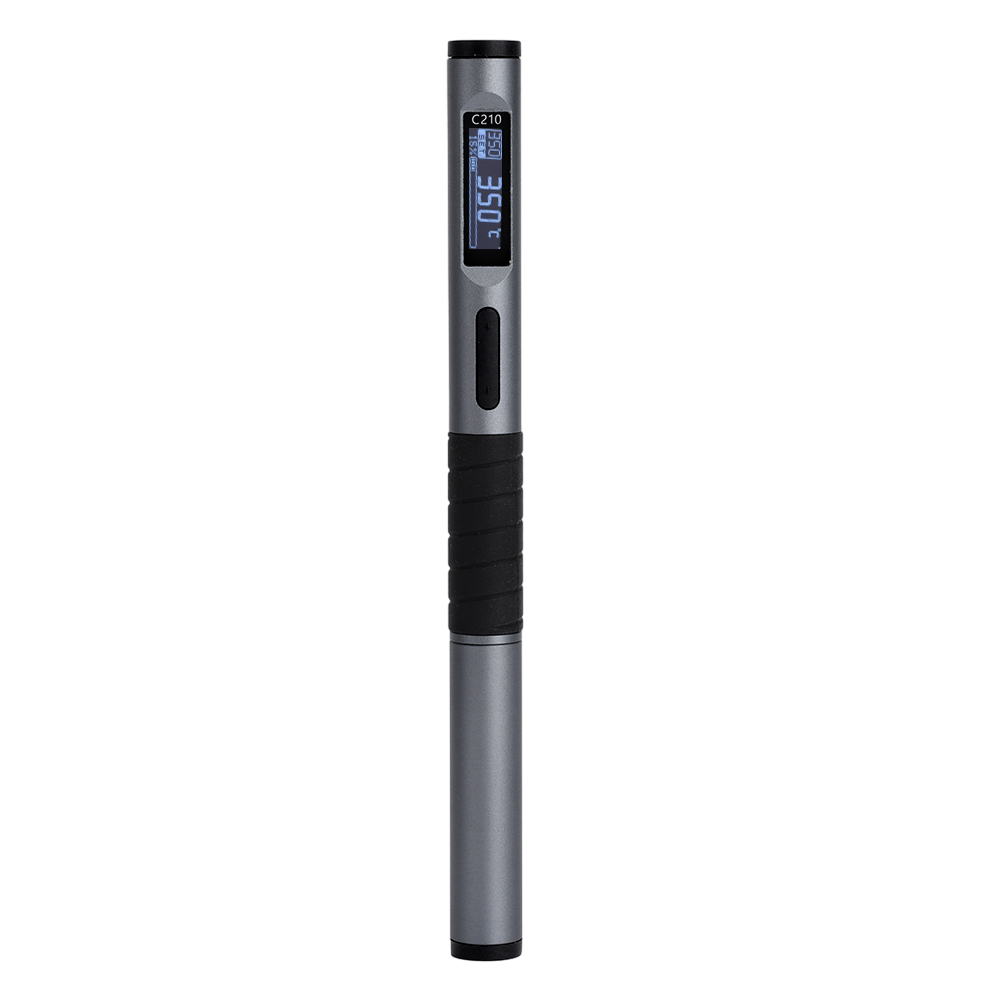

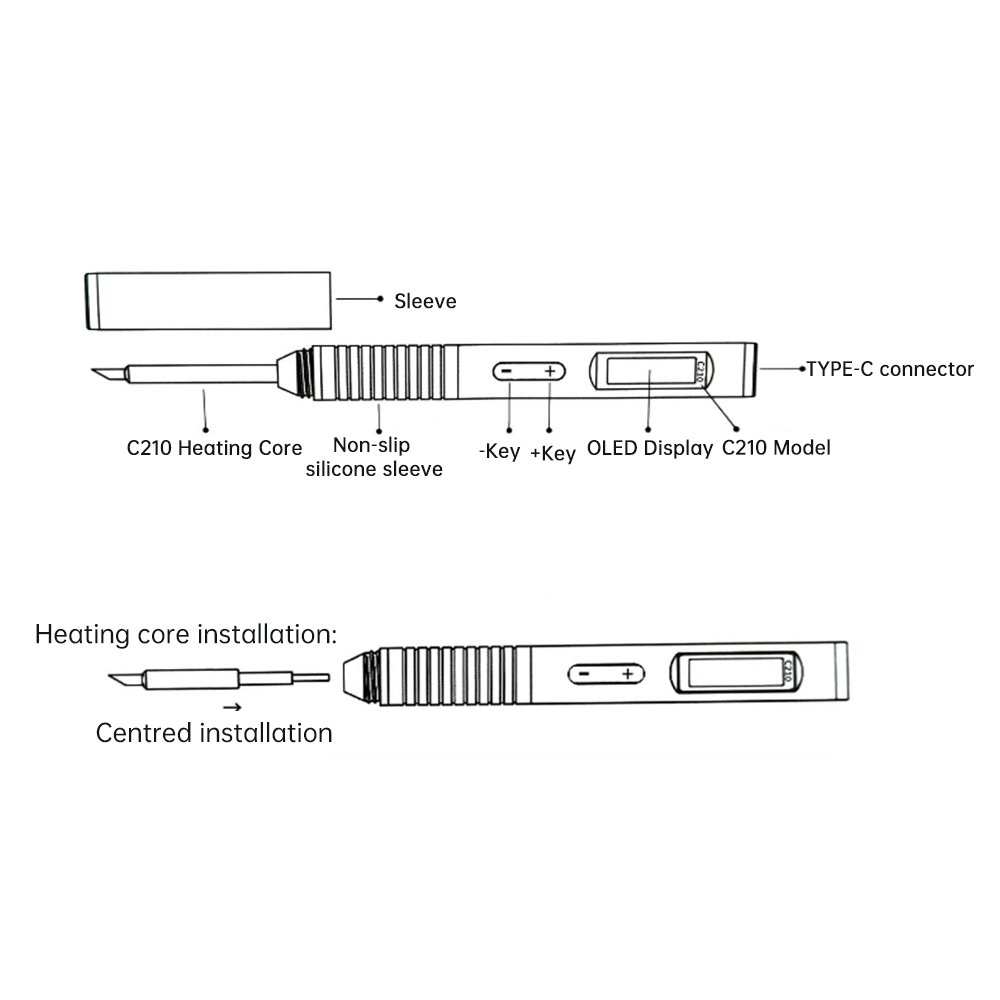

Product Name: Intelligent Portable Soldering Pen
Power supply interface: Type-C (need to use with fast charger, delivery without fast charger)
Operating voltage range: DC9~20V
Type-c fast charging protocol: PD2.0/3.0 QC2.0/3.0
Temperature control range: 80~450℃ Fahrenheit: 176-842℉
Heating power (adjustable): 18~100W
Overall size (including sleeve): L175mmφ14mm
Screen: 0.87 ‘OLED (128*32 pixels)
Heating core model: C210
Resistance value of heater core: 2.1Ω
Tinning time: 2S (100W)
Product Name: Intelligent Portable Soldering Pen
Power supply interface: Type-C (need to use with fast charger, delivery without fast charger)
Operating voltage range: DC9~20V
Type-c fast charging protocol: PD2.0/3.0 QC2.0/3.0
Temperature control range: 80~450℃ Fahrenheit: 176-842℉
Heating power (adjustable): 18~100W
Overall size (including sleeve): L175mmφ14mm
Screen: 0.87 ‘OLED (128*32 pixels)
Heating core model: C210
Resistance value of heater core: 2.1Ω
Tinning time: 2S (100W)
Main Matters:
1. The working temperature of the soldering iron can reach 80~450℃, do not touch the head of the soldering iron!
2. Please place it out of reach of children!
3. Do not wet the machine in a humid environment!
4. Do not stay in a long time (≥ 420 ℃) state, to avoid dry burning!
5. When not in use for a long time, please turn off the power!
1. The working temperature of the soldering iron can reach 80~450℃, do not touch the head of the soldering iron!
2. Please place it out of reach of children!
3. Do not wet the machine in a humid environment!
4. Do not stay in a long time (≥ 420 ℃) state, to avoid dry burning!
5. When not in use for a long time, please turn off the power!

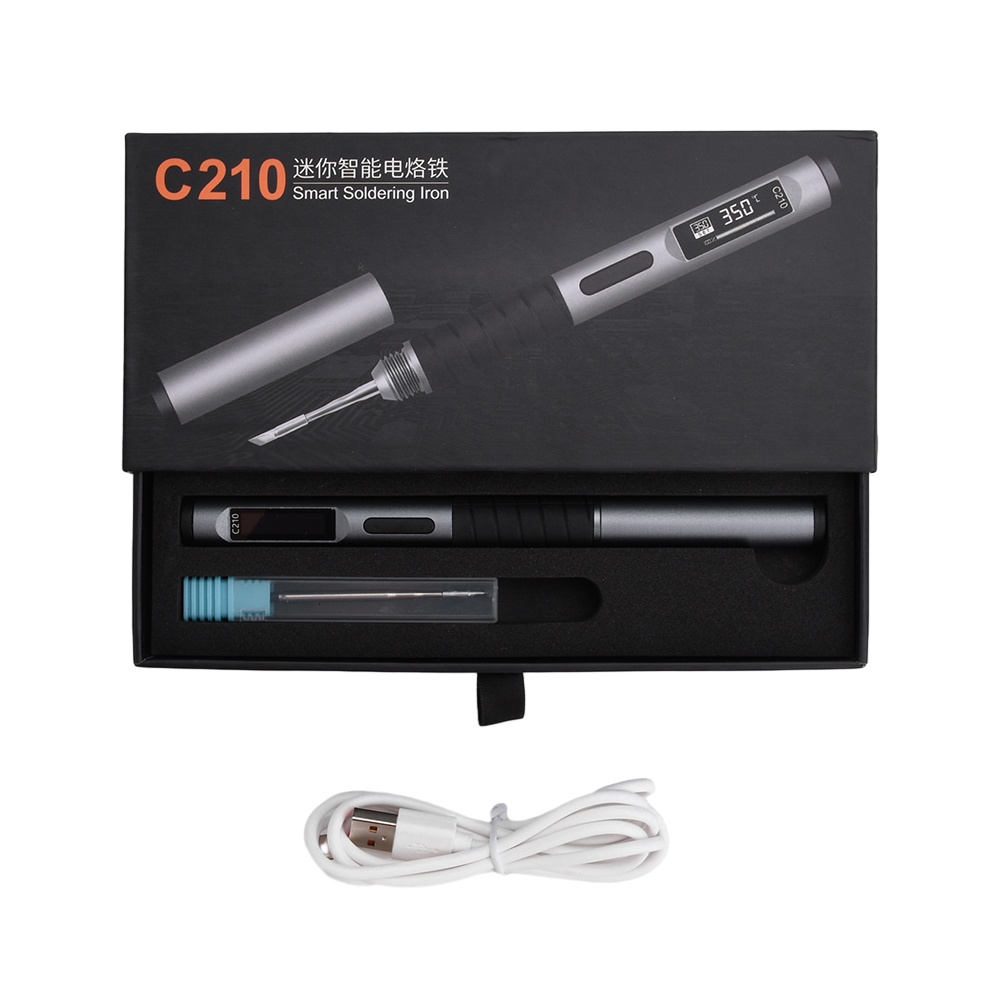

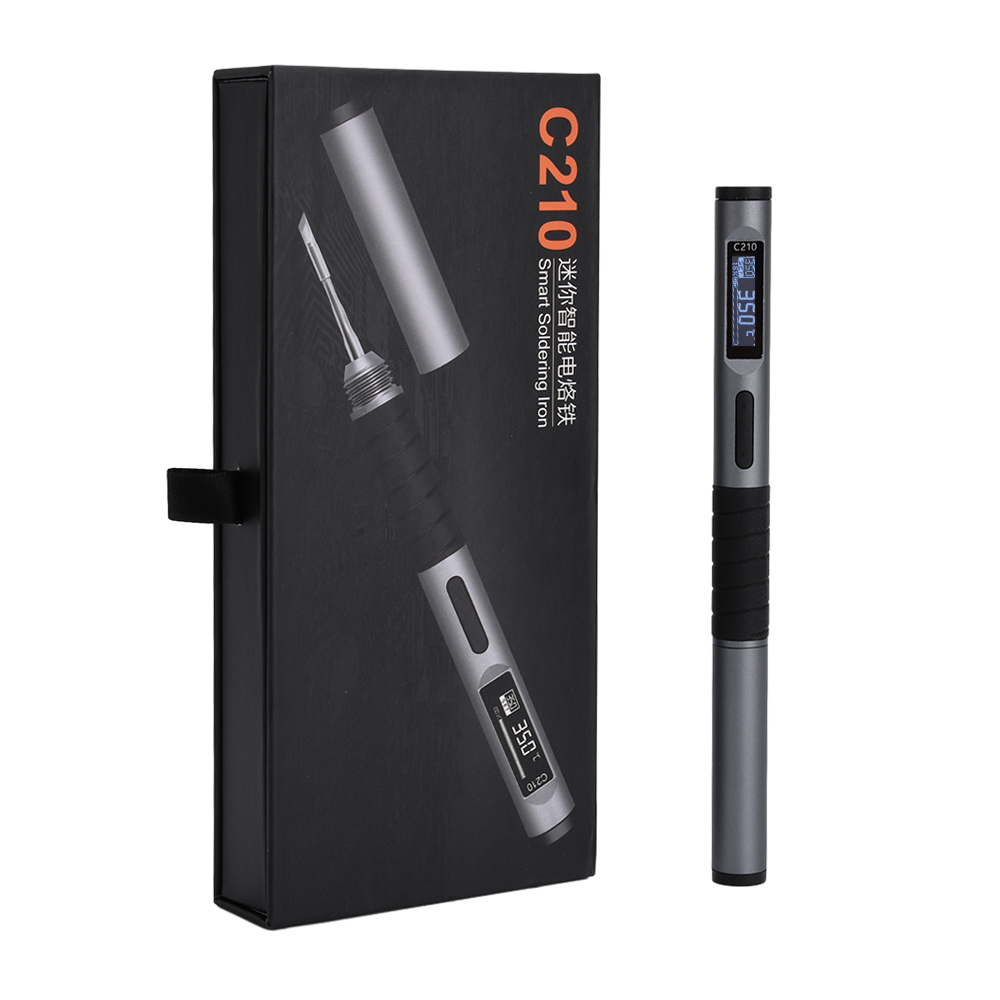

Delivery list
Host *1
Heating core (KU head)*1
USB cable (Type-C)*1
Host *1
Heating core (KU head)*1
USB cable (Type-C)*1
