DESCRIPTION:
Product introduction:
When high-temperature water enters the mixing system, it is diverted to the various pipes in the room through the water separator, and heat is transferred to the floor of the room, turning into relatively low-temperature water, which returns to the mixing system from the water collector. When the temperature of the pipeline under test is lower than the set temperature, the water mixing valve is opened, and the water flows from the water mixing system to the heating system, which satisfies the full heat exchange of hot water in the heating system, and performs heat exchange external circulation. When the temperature of the pipeline under test When the temperature is the same as the stop temperature, the valve of the water mixing system is closed, and the heat exchange internal circulation is carried out, which effectively controls the room temperature and saves energy.
When the water temperature of the heating system cannot meet the water cut-off temperature setting value of the temperature control center, the temperature control center will automatically stop the water pump.
If the system cuts off the water, the water pump will also stop working due to the rapid drop in temperature. When the temperature of the measured pipeline returns to the set value of the water cut-off temperature, the water pump will resume operation, thereby avoiding the risk of the water pump being burned out when it is running without water.
Parameter:

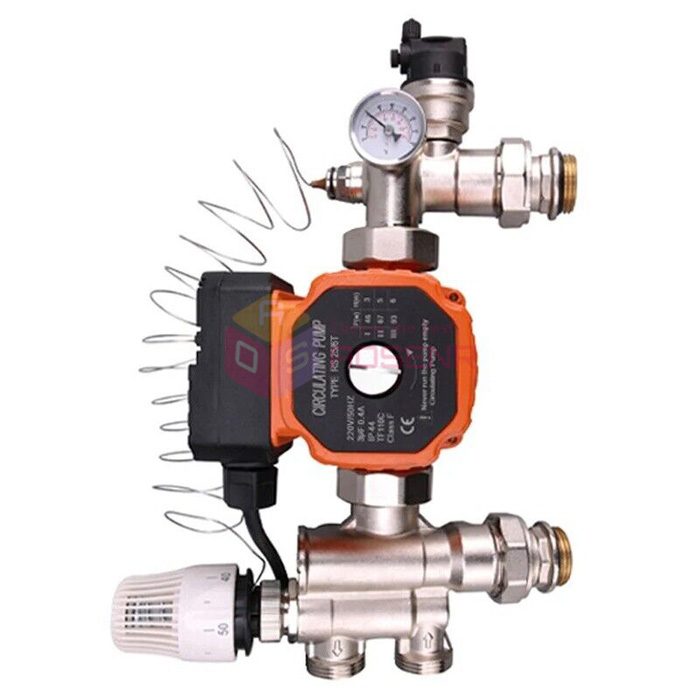

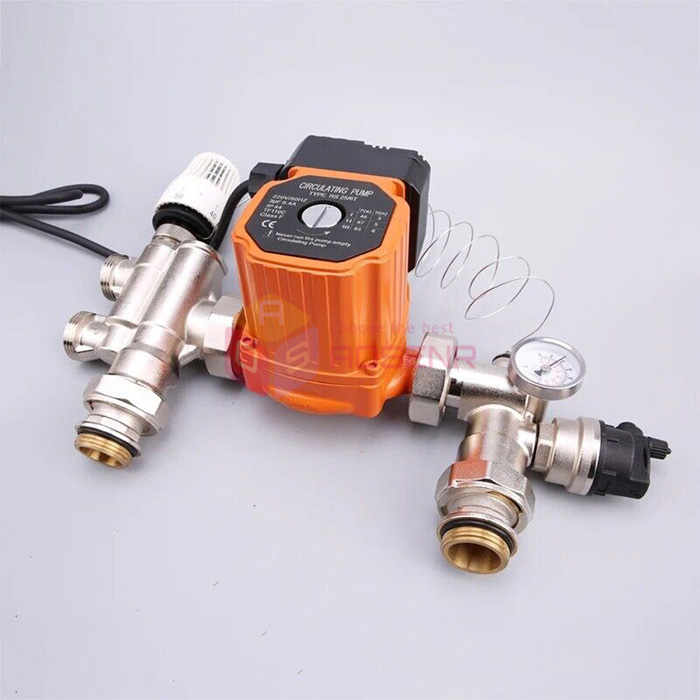

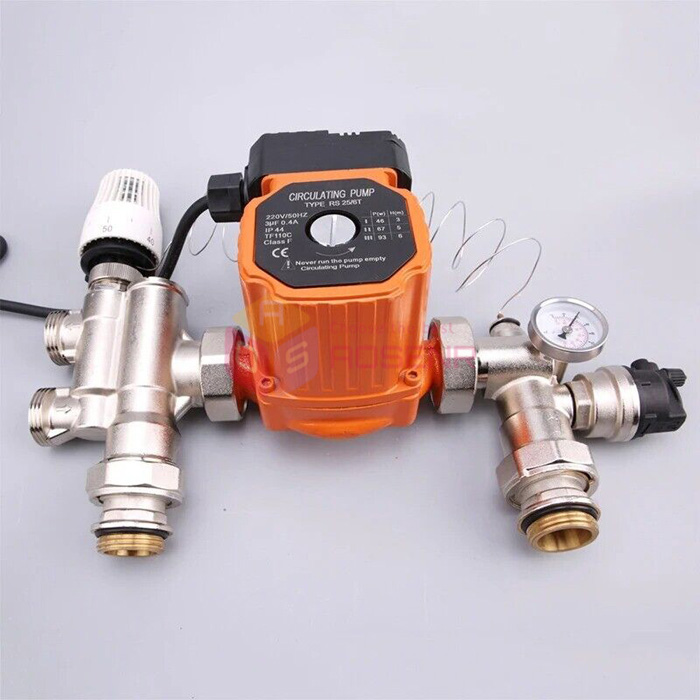

Name: floor heating mixed water system
Body: Brass
Working pressure: 1.0MPa
Working medium: water
Working temperature: 0℃≤t≤90℃

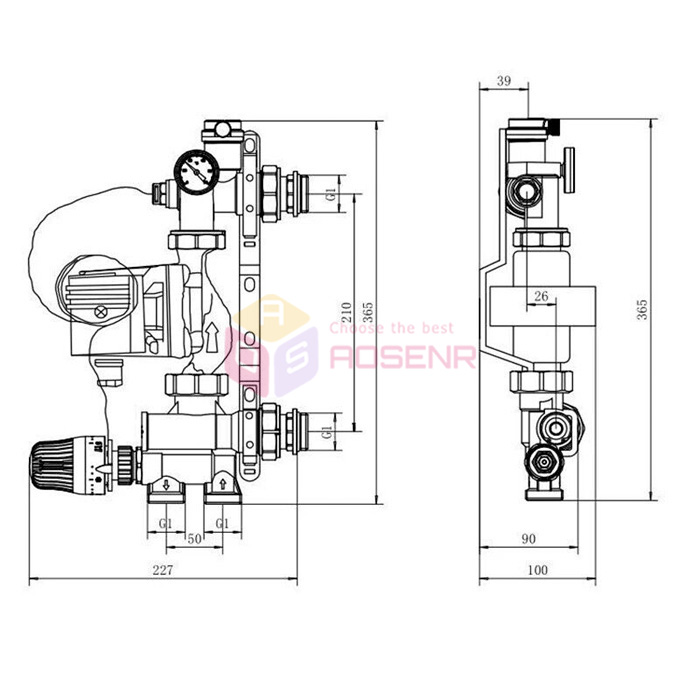

Size: 25*35CM
Features:

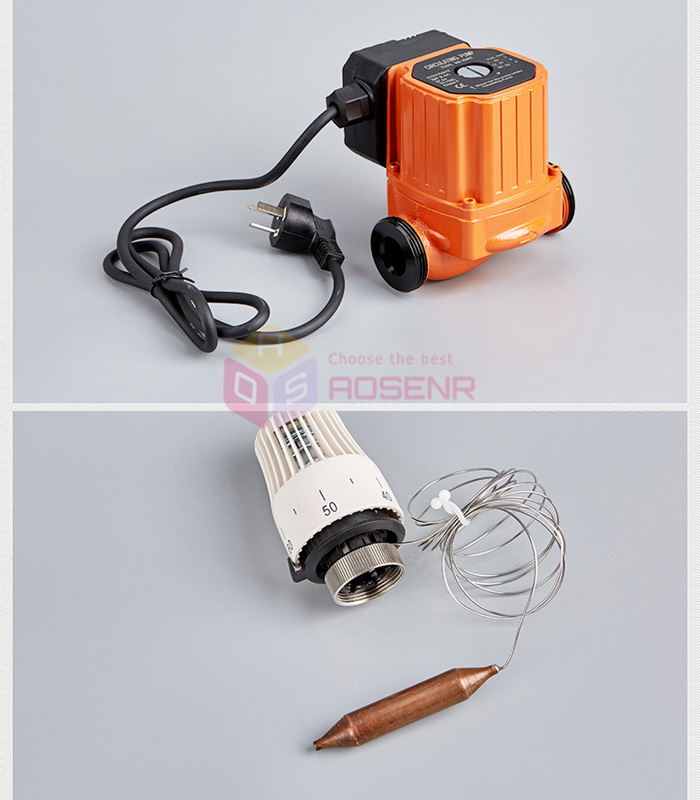

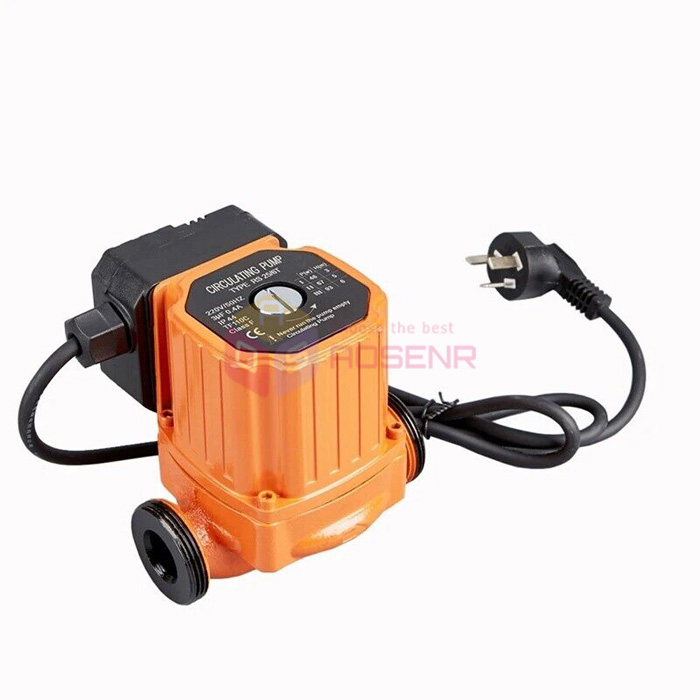

Booster pump unit
The internal circulation pressurization can ensure the stability of the pressure in the pipeline. The built-in protection system can protect the pump from burning no matter the water is stopped or the pump is jammed.

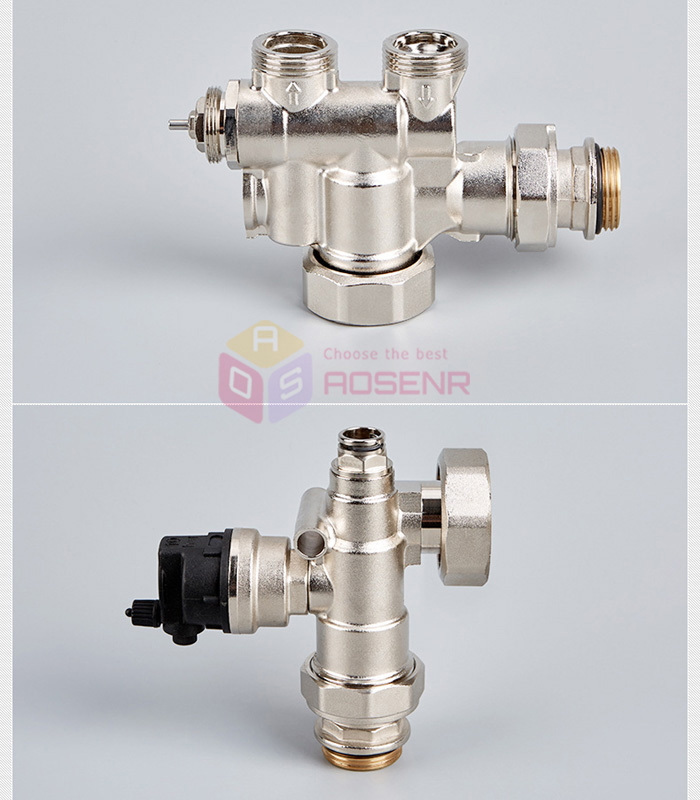

Thermostatic function
The automatic thermostat is equipped with a temperature sensing element, which can sense the temperature change in the pipeline to control the proportion of inlet and return water to achieve a constant temperature effect, which is more energy-saving and intelligent.
Exhaust anti-blockage
The automatic exhaust valve can discharge the gas in the manifold and pipeline to ensure the smooth flow of liquid in the pipeline
Installation Steps:

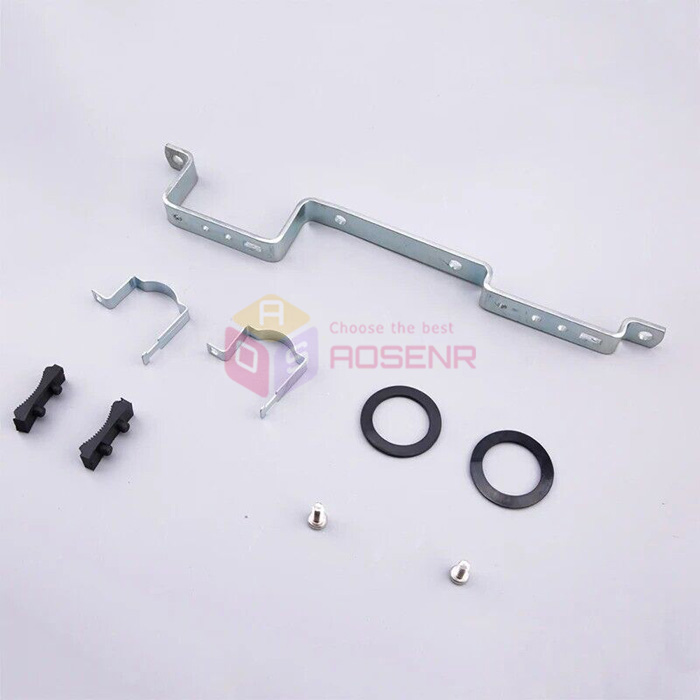

1. Fix the mounting bracket and connect the water collector according to the requirements. Remove the actuator to allow the gas to be discharged from the manifold and piping.
2. Connect the water pipe at the inlet end and inject water.
3. Observe whether there is water flowing out of the backwater end until there are no bubbles.
4. Check once according to the wiring diagram before powering on to ensure that the lines are connected in good condition.
5. If there is water flowing out of the return end at this time and there is no bubble, you can screw on the actuator and close the drain valve of the water collector at the same time.
|
