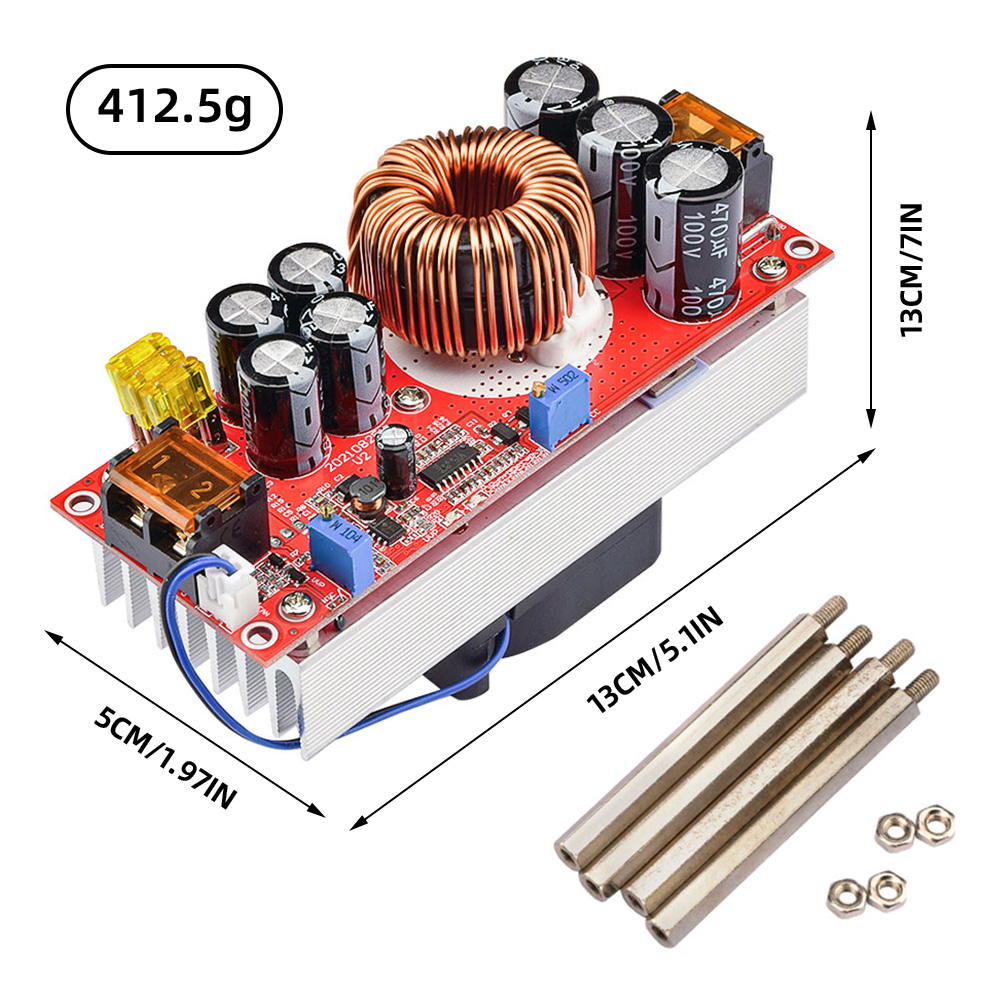

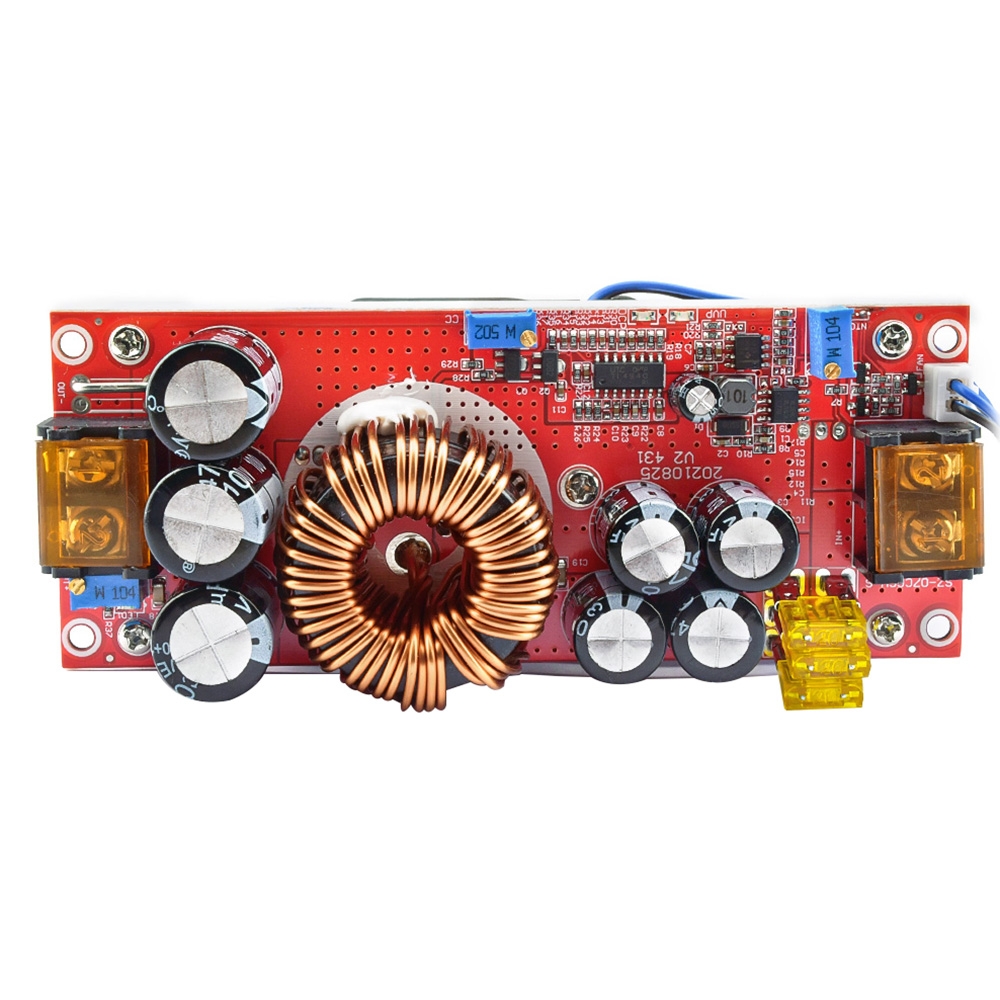

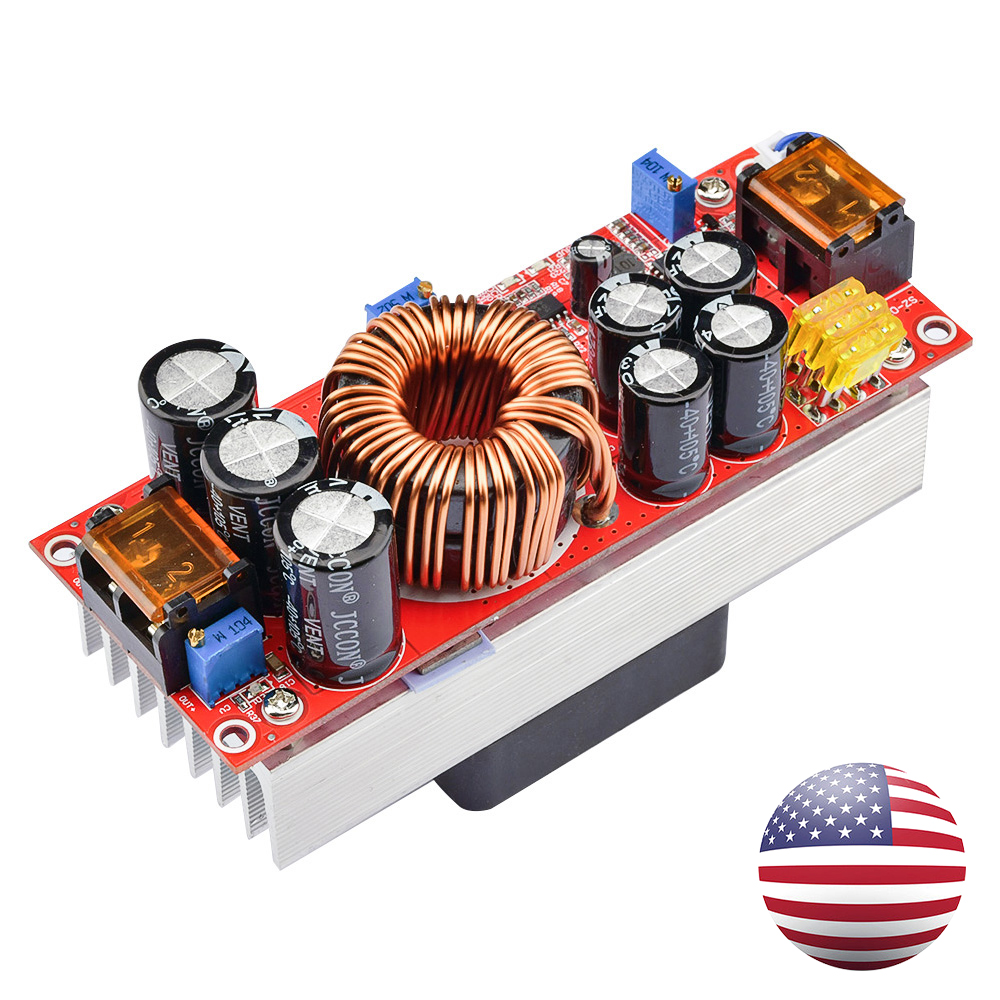

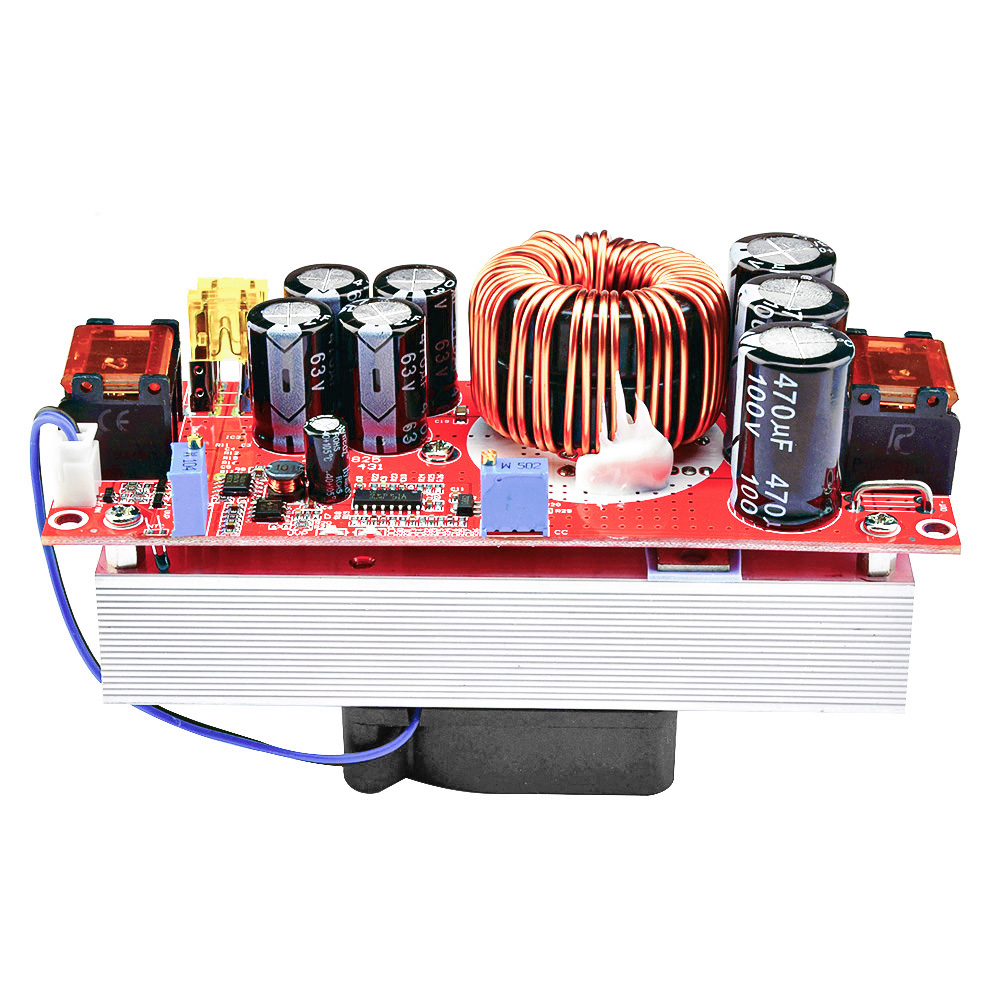

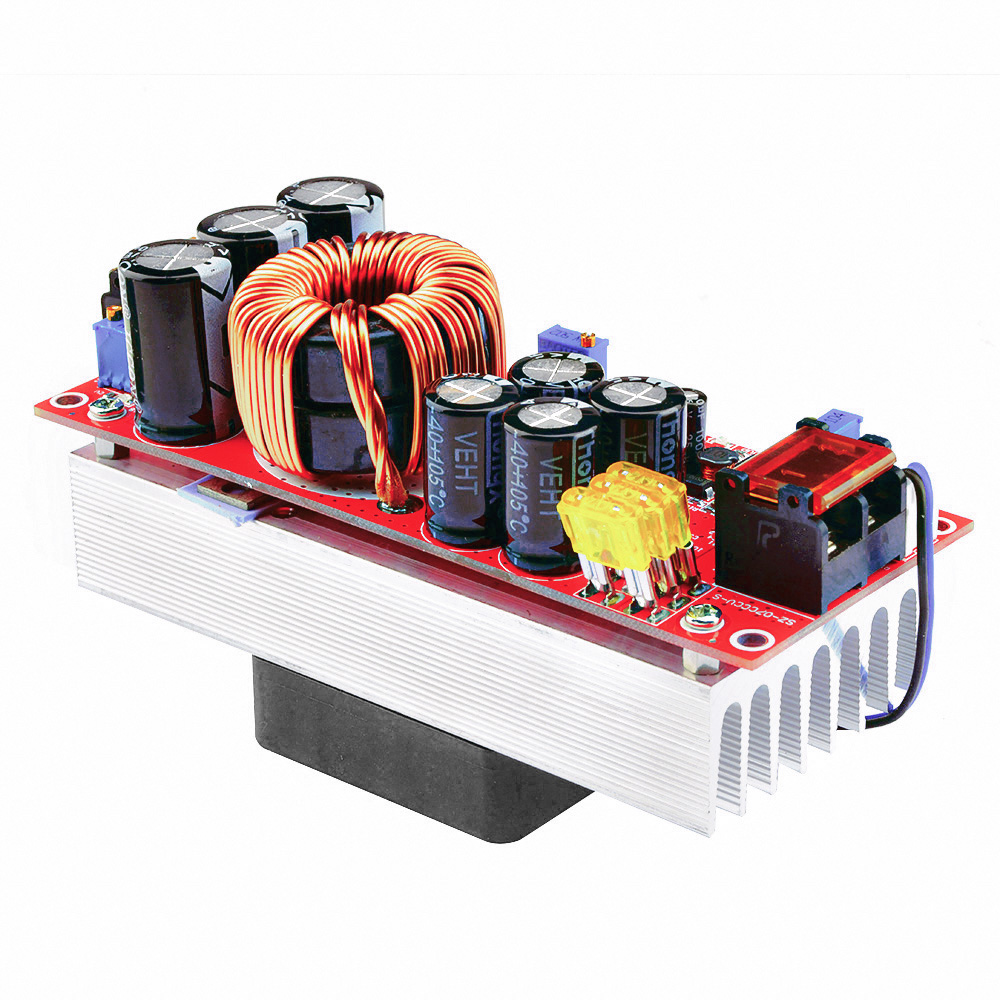

Item Description
1. Using high-quality materials, the quality is guaranteed

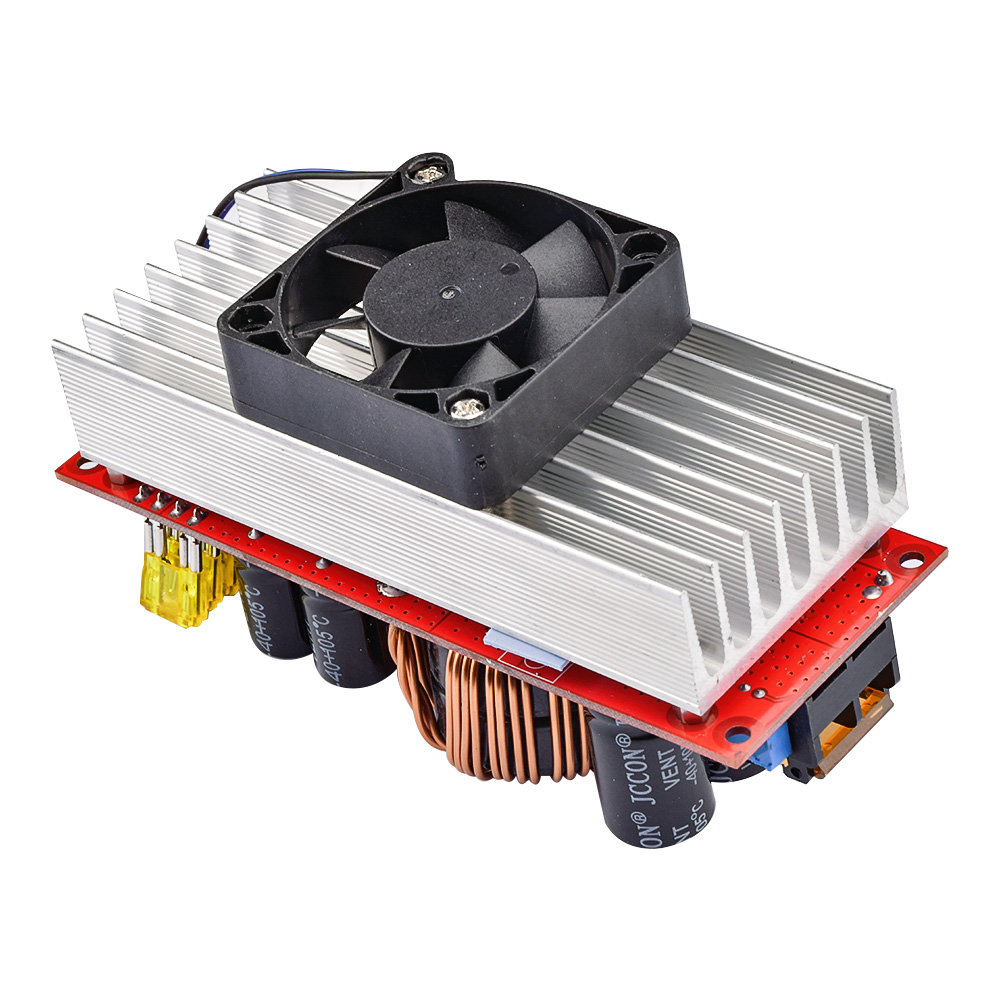

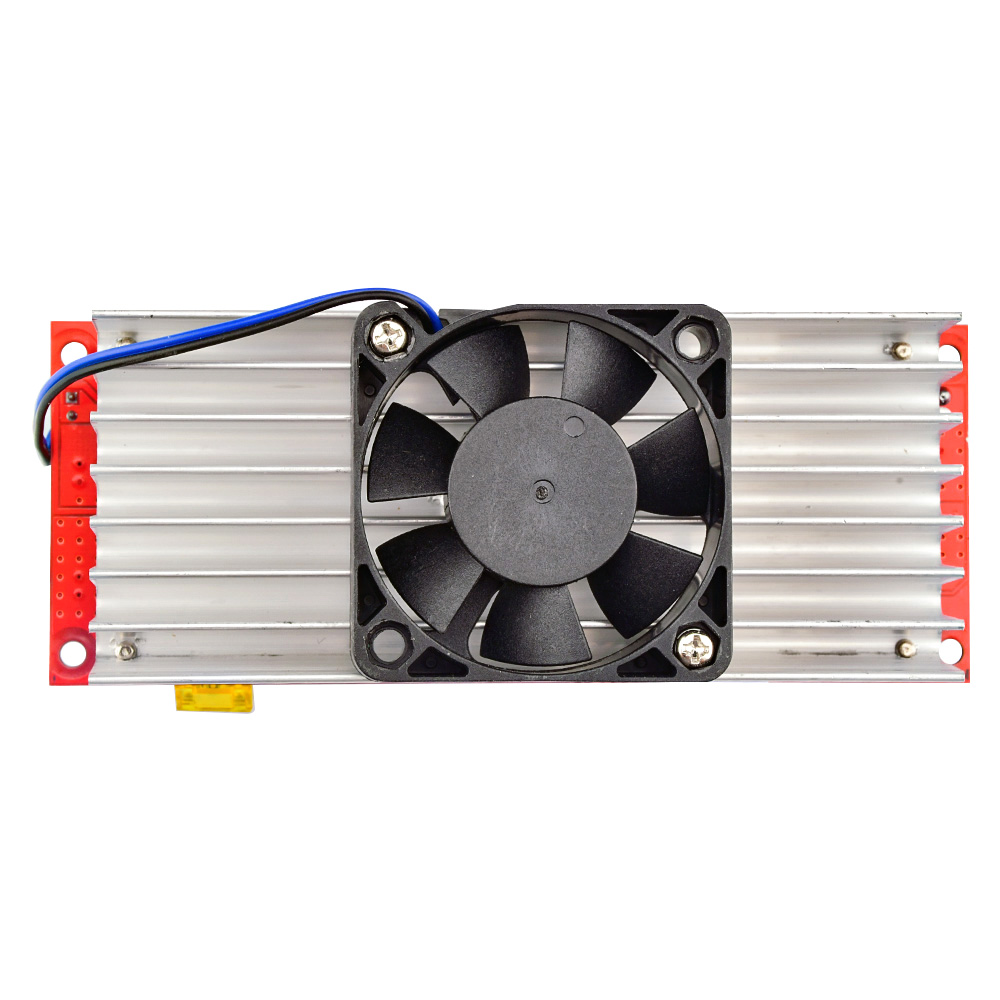

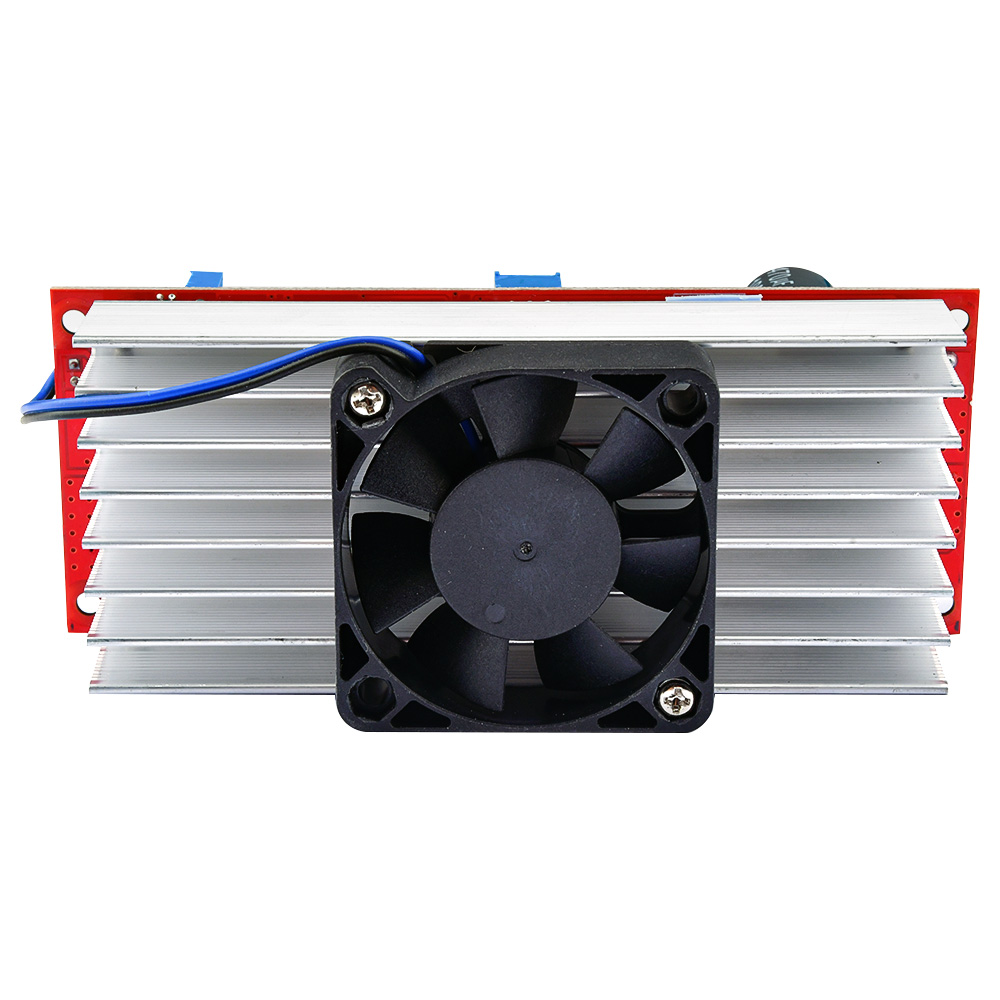

2. Fan blade heat dissipation is adopted, the heat dissipation effect is very good, and the output power is higher
3. The temperature-controlled fan adopts hydraulic bearing fan, which has achieved a good balance in noise and heat dissipation. When the load is light, the fan does not turn. When the load temperature reaches about 60 degrees, the fan automatically rotates. Can effectively reduce noise and prolong service life
4. The main power tube insulation board is made of high-quality alumina, and the thermal conductivity is 10 times that of ordinary insulation pads
5. Oversized ferrosilicon aluminum magnetic ring, using four 1.2 pure copper enameled wires, low calorific value and high efficiency
6. With constant current function, it can be used for car battery boost, battery charging, etc.
2. Fan blade heat dissipation is adopted, the heat dissipation effect is very good, and the output power is higher
3. The temperature-controlled fan adopts hydraulic bearing fan, which has achieved a good balance in noise and heat dissipation. When the load is light, the fan does not turn. When the load temperature reaches about 60 degrees, the fan automatically rotates. Can effectively reduce noise and prolong service life
4. The main power tube insulation board is made of high-quality alumina, and the thermal conductivity is 10 times that of ordinary insulation pads
5. Oversized ferrosilicon aluminum magnetic ring, using four 1.2 pure copper enameled wires, low calorific value and high efficiency
6. With constant current function, it can be used for car battery boost, battery charging, etc.
Parameter:
Working characteristics:
Output power: 1800W
Input voltage range: 10V-60V
Output voltage range: 12V-90V
Input current: 40A
Output current: 22A
Conversion efficiency: 48V to 60V 8A (98.1 %)
48V to 72V 8A (98.1%)
48V 84V 8A (97.6%)
Charge Regulation: 10% to 50% charge (72V output)
Temperature coefficient: 50% load
Ripple and Noise: 20MHz bandwidth (48V-72V 4A) 100mVp-p
Switching frequency: VIN = 48V VO = 72V 4A (110khz)
No-load current: VIN = 48V VO = 72V (18mA)
Input reverse protection: yes
Storage humidity: 95%
Operating temperature: -20 65 °C
Storage temperature: -40 125 °C
Operating Temperature Rise: 48V to 60V 5A (45 °C)
Overheating Protection: 60°C
Wiring method: input, output (solderless, terminal block).
Cooling method: strong air cooling
Working characteristics:
Output power: 1800W
Input voltage range: 10V-60V
Output voltage range: 12V-90V
Input current: 40A
Output current: 22A
Conversion efficiency: 48V to 60V 8A (98.1 %)
48V to 72V 8A (98.1%)
48V 84V 8A (97.6%)
Charge Regulation: 10% to 50% charge (72V output)
Temperature coefficient: 50% load
Ripple and Noise: 20MHz bandwidth (48V-72V 4A) 100mVp-p
Switching frequency: VIN = 48V VO = 72V 4A (110khz)
No-load current: VIN = 48V VO = 72V (18mA)
Input reverse protection: yes
Storage humidity: 95%
Operating temperature: -20 65 °C
Storage temperature: -40 125 °C
Operating Temperature Rise: 48V to 60V 5A (45 °C)
Overheating Protection: 60°C
Wiring method: input, output (solderless, terminal block).
Cooling method: strong air cooling

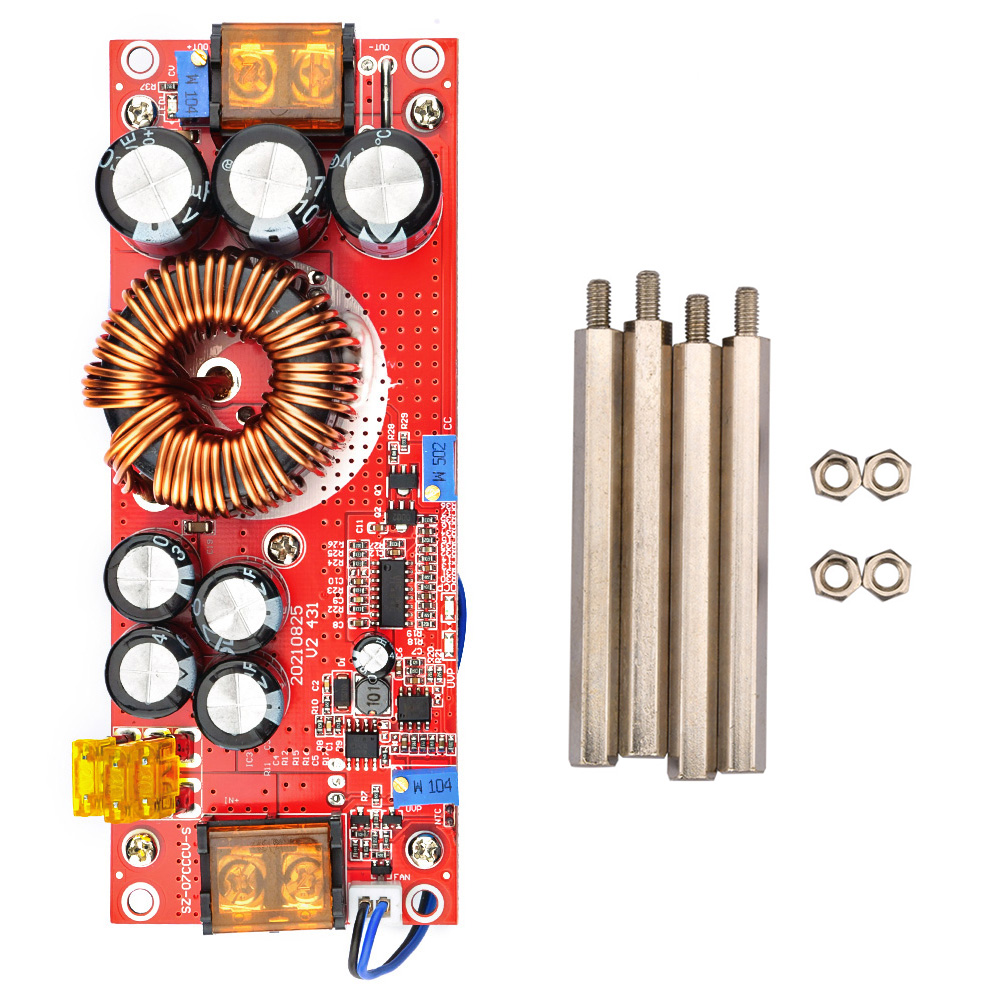

Package list:
Boost Converter*1
Boost Converter*1
