1x2/1x4/1x8 HDMI™ Splitter With Extender PoC 4K@60Hz

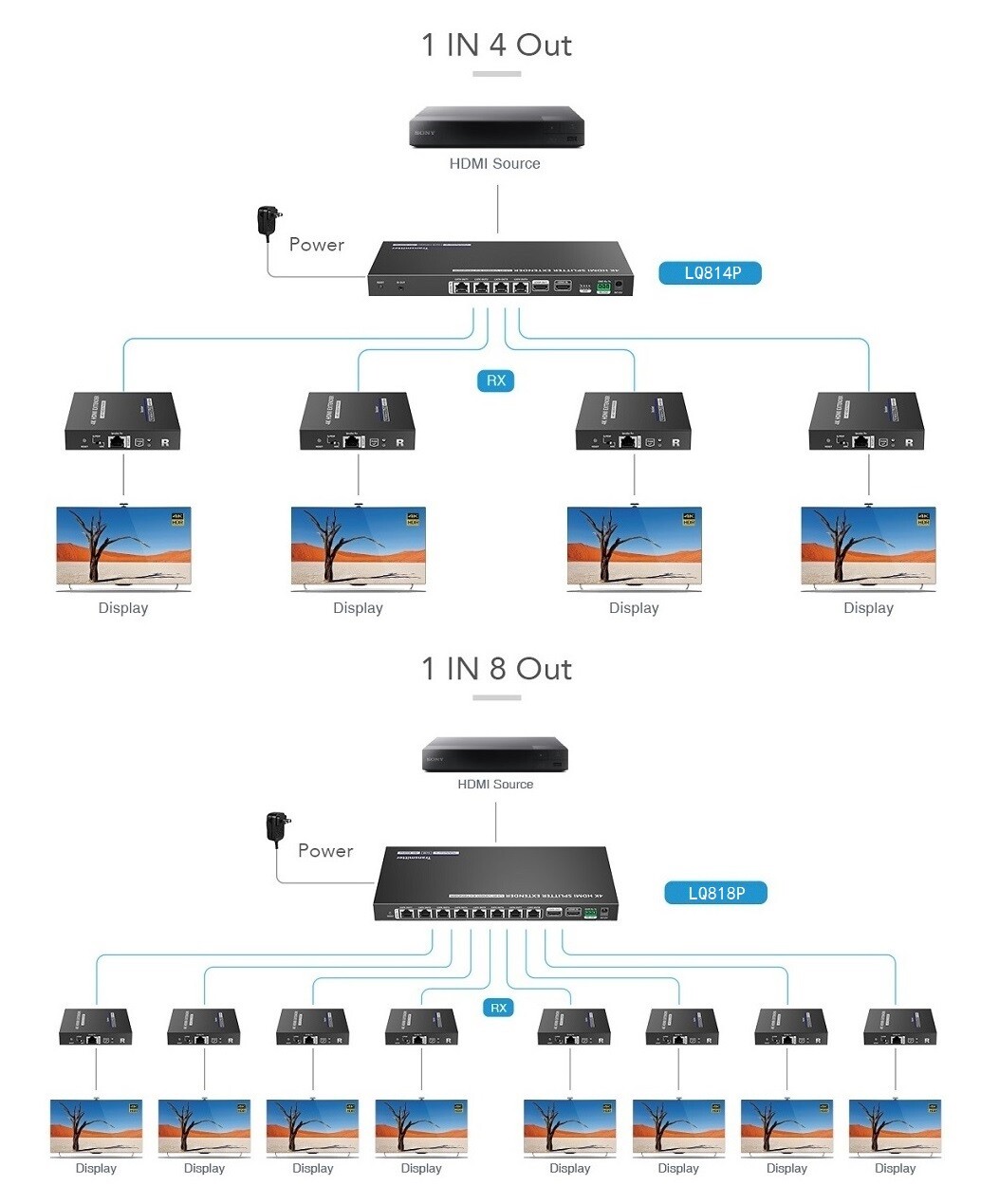

This product is a 1 input 2 or 4 or 8 outputs extender splitter kit, which integrates the functions of distribution and extension. It distributes 1 HDMI™ input signal to 2 or 4 or 8 identical signal outputs, extends these signals up to 70 meters, and supports 4K@60Hz resolution. It also supports IR passback, RS-232 control and other functions. It is suitable for studios, multimedia classrooms, rail transit, etc.
Description
Features:
- 1.Zero latency transmission.
- 2. Split and extend one HDMI input signal to eight identical network output signals.
- 3. Support up to 4K@60Hz resolution.
- 4. Transmission distance up to 70 meters by using Cat6/6A/7 cables.
- 5. Support IR passback (20KHz~60KHz).
- 6. The transmitter supports HDMI loop out.
- 7. The receiver can output the digital audio of the TV or source device from the S/PDIF port.
- 8. Support EDID passthrough or manually set the EDID of the product.
- 9. Support RS-232 command control.
- 10. Surge Protection,Lightning Protection,ESD Protection.
- 11. Equipped with rack mount ears.
- 12. Support PoC,only the transmitter is required to supply power.

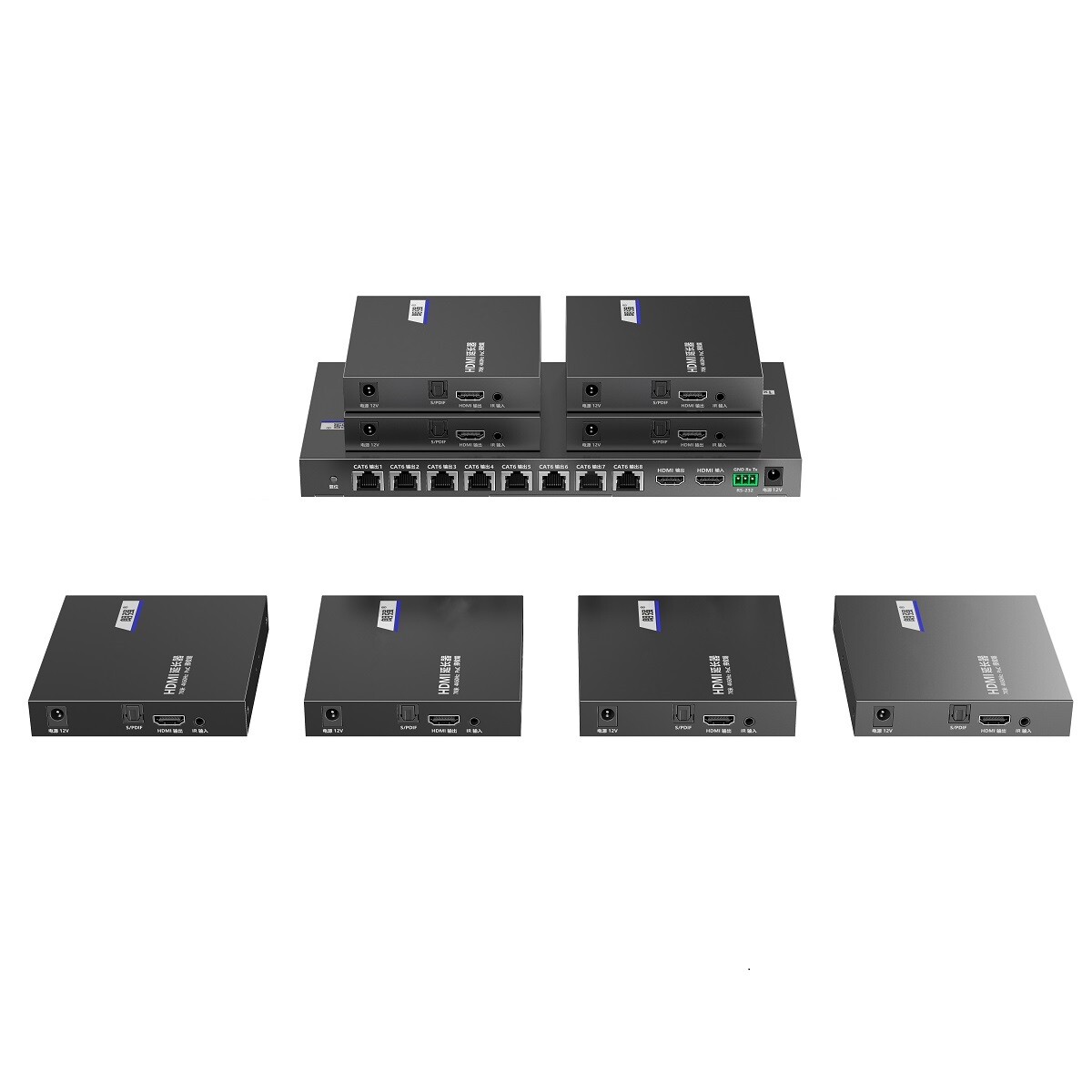

Package Included:
1 x HDMI Transmitter(Tx)
2 or 4 or 8 x HDMI Receiver(Rx)
1 x IR Blaster cable
2 or 4 or 8 x IR Receiver cable
