Product Overview
Details
With reliable performance, sensitive action stable running.
Good environment adaptability.
High quality metal material, high performance motor, built-in stroke switch.

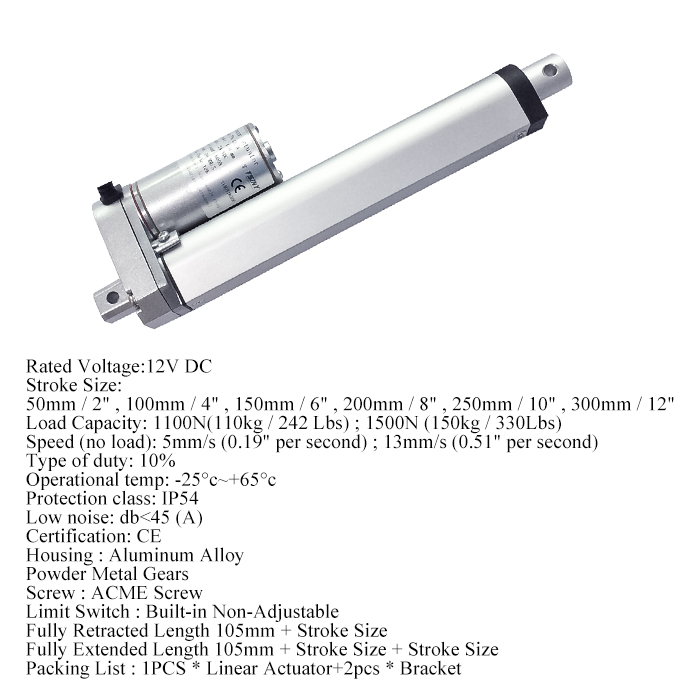

Input Voltage : DC 12V
Current : 5A at full Load
Load Capacity : 1100N/1500N (242Lbs/330Lbs)
NO-Load Speed : 5mm/s 13mm/s

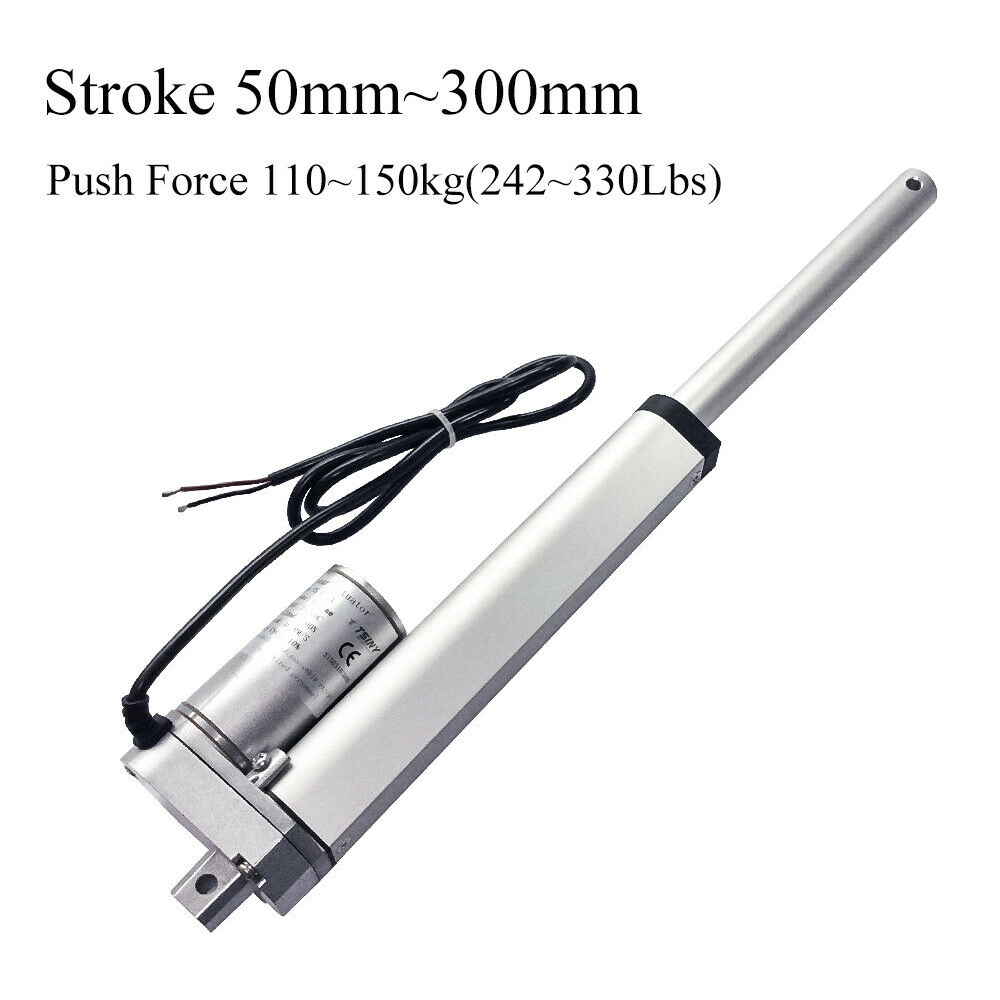

Stroke: 50mm 2" ,100mm 4",150mm 6" , 200mm 8" , 250mm 10" , 300mm 12"
Duty Cycle : 10%
IP Grade : IP 54
Low Noise : db<45(A)
Certigcations : CE
Housing : Aluminum Alloy
Powder Metal Gears
Screw : ACME Screw
Limit Switch : Built-in Non-Adjustable
Operational Temperature : -25℃~+65℃
1 X Linear Actuator
Any two motor's speed will not completely same, cause the DC motor speed tolerance is ±10%. If you order 2 motors, we will try to select two's speed closely, but we can not sure the motors' speed are accurate same.There are two fixed stroke limited switch in the two sides of linear actuator, motor will stop when arrive either of the two ends.
This is the description of Payment Method.
Do not dismiss your dream.
To be without dream is to be without hope.
To be without hope is to be without purpose.
Do not run through your life so fast that you forget not only where you have been, but also where you are
going.
Life is not race, but a journey to be savored each step of the way.
This is the description of Returns Policy.
Do not dismiss your dream.
To be without dream is to be without hope.
To be without hope is to be without purpose.
Do not run through your life so fast that you forget not only where you have been, but also where you are
going.
Life is not race, but a journey to be savored each step of the way.
Copyright©2018 DataCaciques
Product Overview
Details
With reliable performance, sensitive action stable running.
Good environment adaptability.
High quality metal material, high performance motor, built-in stroke switch.
Input Voltage : DC 12V
Current : 5A at full Load
Load Capacity : 1100N/1500N (242Lbs/330Lbs)
NO-Load Speed : 5mm/s 13mm/s
Stroke: 50mm 2" ,100mm 4",150mm 6" , 200mm 8" , 250mm 10" , 300mm 12"
Duty Cycle : 10%
IP Grade : IP 54
Low Noise : db<45(A)
Certigcations : CE
Housing : Aluminum Alloy
Powder Metal Gears
Screw : ACME Screw
Limit Switch : Built-in Non-Adjustable
Operational Temperature : -25℃~+65℃
1 X Linear Actuator
Any two motor's speed will not completely same, cause the DC motor speed tolerance is ±10%. If you order 2 motors, we will try to select two's speed closely, but we can not sure the motors' speed are accurate same.There are two fixed stroke limited switch in the two sides of linear actuator, motor will stop when arrive either of the two ends.
1)All items will be shipped to your ebay address .Please update your latest address when you check out,and please make sure to provide us with correct,precise and detailed shipping address.
2)All items will be shipped in 1-2 business days (excluding Sat,Sun & Holiday) after payment received and cleared. For the long-time holiday, we'll post the info on our store and reply you automatically via emails.
3)If you don't receive items over 30 business days,please make sure to contact us before leaving any neutral or negative feedbacks.We'll try our best to help you solve the problem.
We accept PayPal Only！
Import duties, value added taxes and any other charges are not included, Buyers are responsible for import duties, custom fees and taxes, if any.
Please check with your country's custom office to determine the additional costs impose on the item prior to buying.
We are absolutely NOT responsible for any import tax or Customs duty.
Return is accepted within 30 days after the buyer receiving the item.
Returned item has to be in its original condition,Return shipping is to be paid by the Buyer.
