5g-5kg Bottle/Bag Coffee Filling Machine Weighing Scale Filler

Product Description

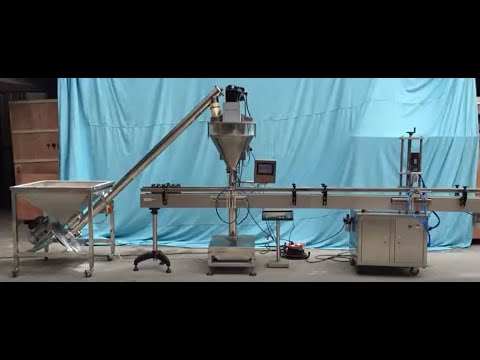

DF-A & DS-3 & QDX Filling + feeding + capping product line

Video will open in a new window
Using the eBay App? Paste link into a browser window:

Please tell us what is your material, your filling range, show me some pictures, and what is your bottle size before purchase,  then i can make sure if this machine suitable for you, Thank you.

Feature

1. Except for the motor, the rest is made of stainless steel and is extremely durable.

2. The servo motor drives the screw for accurate positioning and stable performance.

3. Comes with a platform scale to measure the filling weight and the result can be fed back to the filling machine to improve the weighing accuracy.

4. It adopts PLC control, anti-interference and high-precision weighing.

5. Suitable for filling all kinds of particles, the operation is simple and intuitive.



Short description

The standard machine comes with the 2 auger filling nozzle, the outer Diameter of the screw is 39mm and 50mm

If you need other size screw please contact us.



Technical details

Filling Range

5 - 5000g

Precision Packaging

±1%

Filling speed

40 - 120 bottles / min

Power Input

110V, 60Hz

Power

1.6 hp (1.2kW)

Compressed Air Pressure

58 – 87 psi (0.4 – 0.6 MPa)

Compressed Air Consumption

0.05 cbm/min

Hopper capacity

9.25 gal (35L)

Additional information

Machine Size

77" × 26" × 33-1/2"

(1950 × 650 × 850mm)

Packing Size

79" × 27-1/2" × 39"

(2000 × 700 × 985mm)

Machine Weight

352lb (160kg)

Packing Weight

661lb (300kg)
