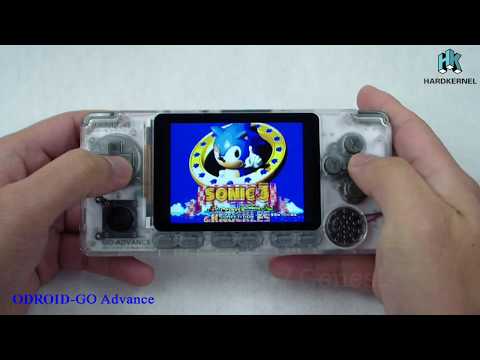

ODROID-GO Advance is an amazing handheld game system running your favorite gaming software on a bright 3.5" TFT LCD screen with great resolution of 320x480 . The LCD has a cover glass for full protection. The unit comes with a 3000mAh rechargeable battery for many hours of game play.

The unit comes in both DIY kit or pre-assembled with SD card for instant game play.

EMULATORS SUPPORTED

atari2600, atari5200, atari7800, atarilynx, gamegear, gb, gba, gbc, mastersystem, megadrive, nes, pcengine, pcenginecd, psx, segacd, snes, psp, and more

Installing OS image on your SD card

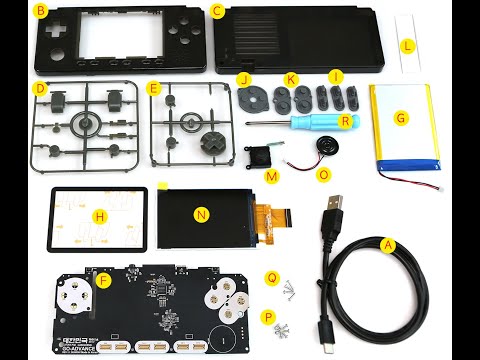

Assembly Instructions for DIY kit



Video walkthrough



SPECIFICATIONS

Processor	CPU : RockChip RK3326(Quad-Core ARM Cortex-A35 1.3GHz) GPU : Mali-G31 Dvalin
Memory	1GB (DDR3L 786Mhz, 32 Bits bus width)
Storage	SPI Flash(16Mbytes Boot), Micro SD Card slot(UHS-1 Capable interface)
Display	3.5inch 320×480 TFT LCD (ILI9488, MIPI interface)
Audio	Earphone Jack, 0.5Watt 8Ω Mono
Battery	Li-Polymer 3.7V/3000mAh, Up to 9 hours of continuous game playing time
DC Jack	5V input, USB-C power connector: A USB-C charging cable is included in the package.
External I/O	USB 2.0 Host x 1, 10Pin port(I2C, GPIO, IRQ at 3.3Volt)
Input Buttons	F1, F2, F3, F4, F5, F6, A, B, X, Y, Direction Pad, Left Shoulder, Right Shoulder, Left Shoulder2, Right Shoulder2, Analog joystick
Wireless	Built-in 2.4Ghz 802.11b/g/n (ESP-WROOM-S2)
Power consumption	Game emulation: 300 ~ 550mA (depends on backlit brightness and type of game emulations and the wireless usage) Power off mode: <1mA If you turn off the WiFi, the power consumption will be same as the previous Revision 1.0.
Charging time	2.5~3 hours when the device turns off. When you play game, it takes 4~5 hours.
Dimensions	155x72x20 mm (6.1×2.8×0.8 inch), Weight: 180 g (6 oz)
