FRESH WATER SIMPLY TASTES BETTER.
** Keeping your refrigerator in tip top shape with a brand new water filter is a smart move.
** By changing your LT1000P / LT1000PC water filter on a regular basis, you'll continue to reduce contaminates such as iron, particulates
and chlorine in your dri nking water and ice cubes. You'll notice the difference!
** It is essential that the manufacturer's recommended installation, maintenance and filter replacement requirements be carried out for the product to perform as ** advertised.
** This is 100% Genuine LG Original part.

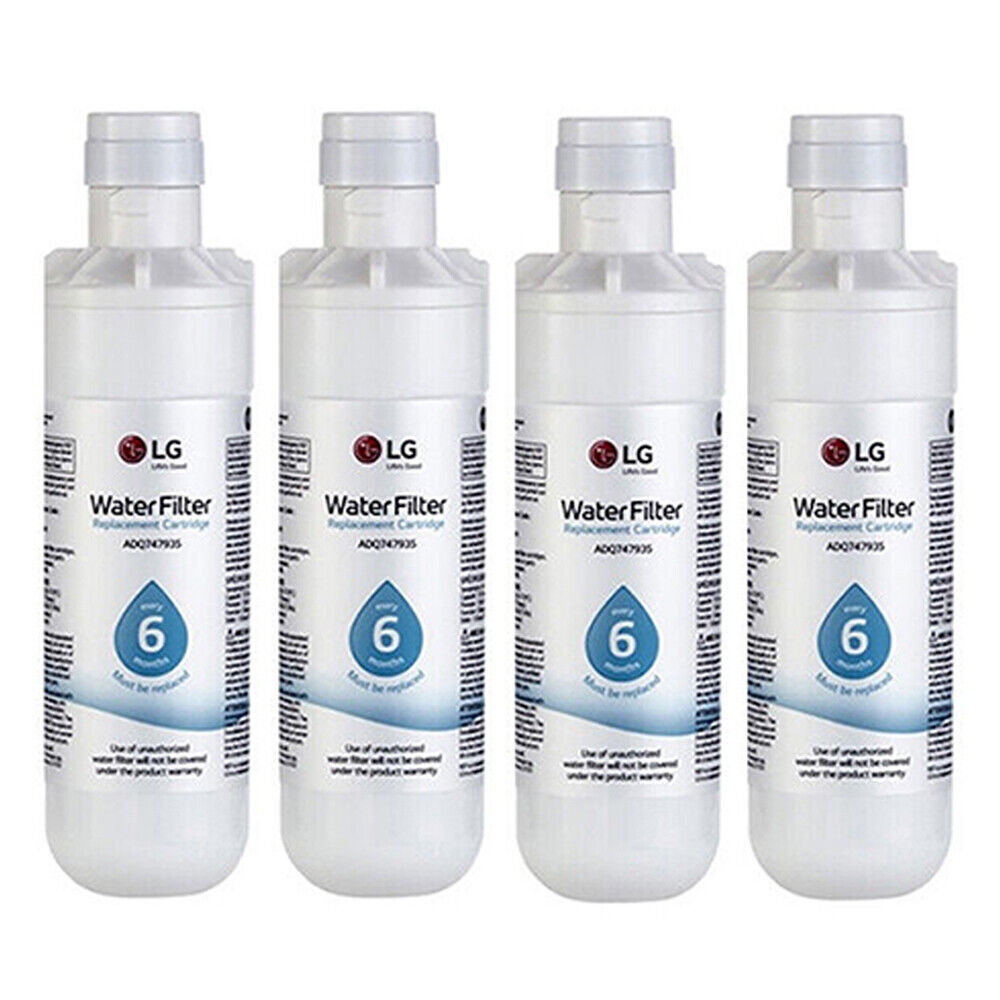

** The LG LT1000P / LT1000PC Replacement Refrigerator Water Filter (part# MDJ64844601) is compatible with the following LG refrigerators
-
GF-D708BSL
GF-D708MBSL
GF-L570MBL
GF-L570PL
GF-L677SL
GF-L708PL
GF-V570MBL
GF-V708BSL
GF-V708MBSL
GF-V910MBSL
SG-5I700TSL
-
LFXC24796D
LFXC24796S
LFXS30796D
LFXS30796S
LMXC23796D
LMXC23796S
LMXS30796D
LMXS30796S
LSFXC2496D
LSXC22396D
LSXC22396S

LSXS26396S

INSTALLATION

1. Remove the top shelf.

If the top shelf, which is located below the water filter, is in the highest position, it will need to be removed. This can be done in two simple steps:

- Tilt up the front of the shelf and lift it.

- Pull the shelf out.

2. Remove old water filter.

Pull the old water filter downward and turn it counter-clockwise to pull it out.

Make sure to rotate the filter down completely before pulling it out of the manifold hole.

3. Install new water filter.

Take a new water filter out of its packaging and remove the protective cover from the o-rings.

With the filter tabs in the horizontal position, push the new filter into the manifold hole, rotate it up into place, and close the cover.

4. Remove trapped air.

Now that the filter is replaced, dispense 2.5 gallons of water to remove trapped air and contaminants from the system.

Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF, rather then dispensing continuously.



If your model is equipped with a water filter indicator on the display, press and hold the FILTER button

or RESET button for approximately 5 seconds to reset the filter indicator.
