PIT BIKE GEARBOX GEAR BOX FOR LIFAN 110 ENGINE 110CC GEARS SET
PIT BIKE GEARBOX GEAR BOX FOR LIFAN 110 ENGINE 110CC GEARS SET
Price: £34.00

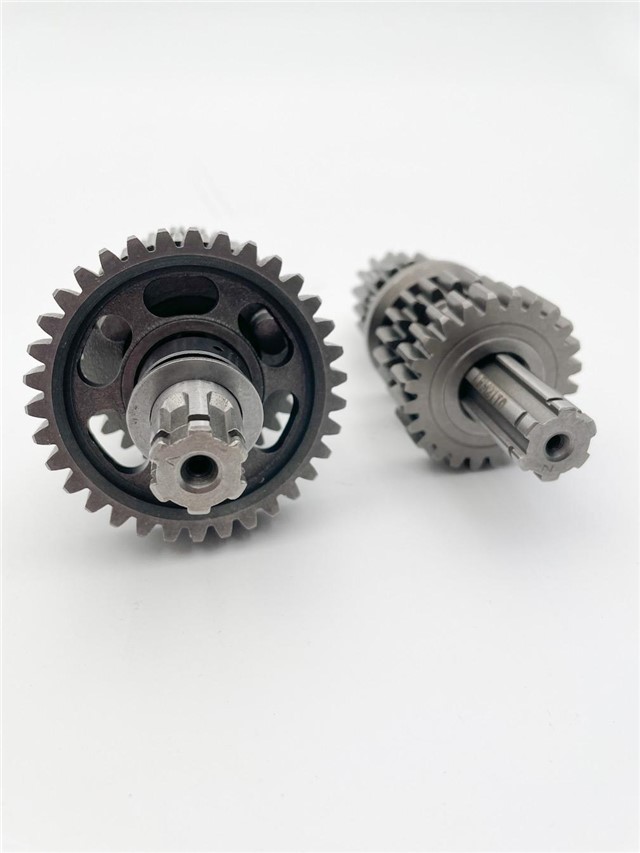

Here we have a new gear box for a Lifan 110cc engine. Make sure check before ordering as Lifan have used 2 different sizes of bearings. It consists of the 2 shafts of gears as pictured.
Top shaft is 121.7mm long with 17mm 6 tooth spline on the right side and 12mm on the other end for the bearing, the gears from left to right 11 teeth & 24mm, 16 teeth & 33mm, 20 teeth & 40mm, 23 teeth & 45.5mm
Bottom shaft is 113.8 long and has a 17mm output spline and 12mm on the right side for the bearing, the gears from left to right are 36 teeth & 66.5mm, 31 teeth & 57.5mm, 26 teeth & 49mm, 24 teeth & 45mm.
Please check your gearbox dimensions before asking questions as we have been very accurate with the description and most questions should be answered above.
ORDER BEFORE 2PM TUESDAY TO FRIDAY AND BEFORE 12 MIDDAY ON MONDAYS OR AFTER BANK HOLIDAYS FOR SAME DAY DISPATCH DELIVERY WILL BE WITHIN THE TIME FRAME OF THE DELIVERY OPTION CHOSEN. WE ONLY DISPATCH ORDERS MONDAY TO FRIDAY. YOU CAN CALL OUR CUSTOMER SERVICES TEAM ON 01789 766777 MONDAY TO FRIDAY 9am to 5pm
