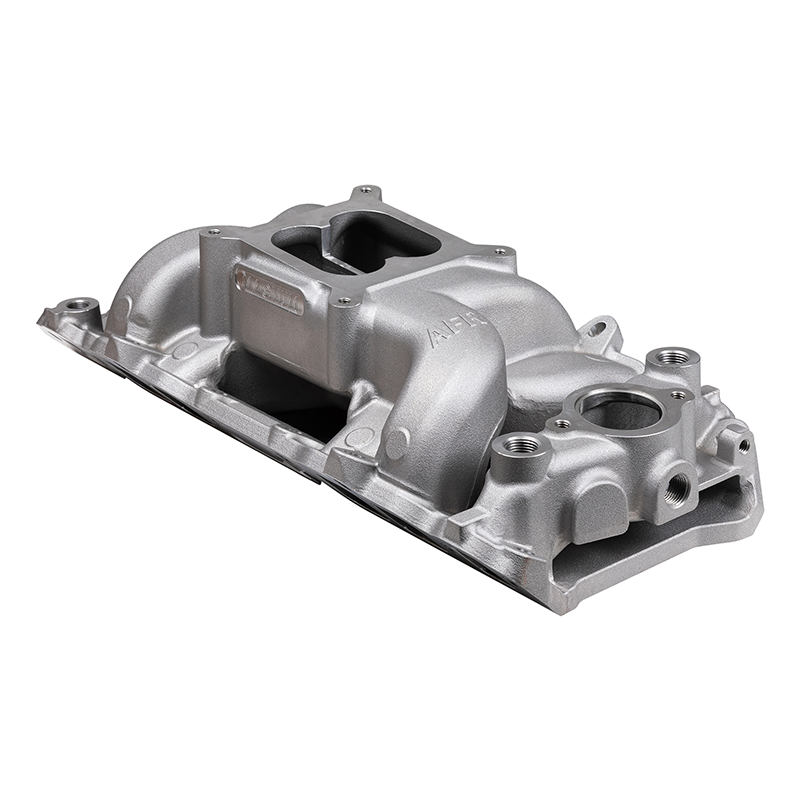

AFR 4910, Intake Manifold, Magnum Oval Port Dual Plane 1800-6200 for 1965-90 BBC

Specifications

  • Intake Manifold Series: Magnum
  • Year: 1965 to 1990
  • Make: Chevy
  • Engine: 396 to 454
  • Deck Height: 9.800 in.
  • Port Style: Oval
  • Intake Style: Dual Plane
  • Carburetor or Throttle Body Flange: 4150 Square Flange
  • RPM Range: 1800 to 6200
  • EGR or Non-EGR: Non EGR
  • Material: Aluminum
  • Finish: Satin
  • Front Height: 5.220 in.
  • Rear Height: 5.570 in.
  • Notes: Best fit for AFR Magnum Oval Port 265cc, 290cc, and 300cc cylinder heads. May require porting and machining to match other cylinder heads.
  • Quantity: Sold As Each

Features

  • Carb Flange Height: Front: 5.22” Middle: 5.39” Rear: 5.57”
  • 1800-6200 RPM optimal operating range
  • Designed for a standard/ stock block height
  • 4150 carburetor flange

Description

AFR proudly presents the Magnum Intake Manifold, the ultimate power upgrade for your Big Block Chevy engine. Crafted with precision and engineered to perfection, this manifold is the key to unlocking a new level of performance for your street vehicle. Designed to seamlessly integrate with our acclaimed AFR Magnum Oval port cylinder heads, this manifold promises a hassle-free enhancement to your engine’s capabilities. Say goodbye to the painstaking task of port matching, as it is a direct bolt-on solution for our select cylinder heads. The Magnum Intake Manifold utilizes a dual-plane design, featuring runners that are custom-tailored for high-horsepower applications thriving in the 1800-6200 RPM range. Elevate your driving experience today with AFR’s Magnum Intake Manifold – where power meets precision.
