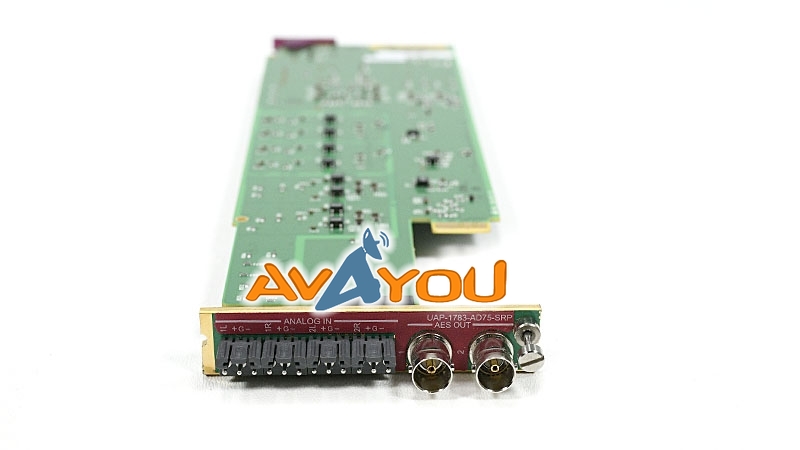

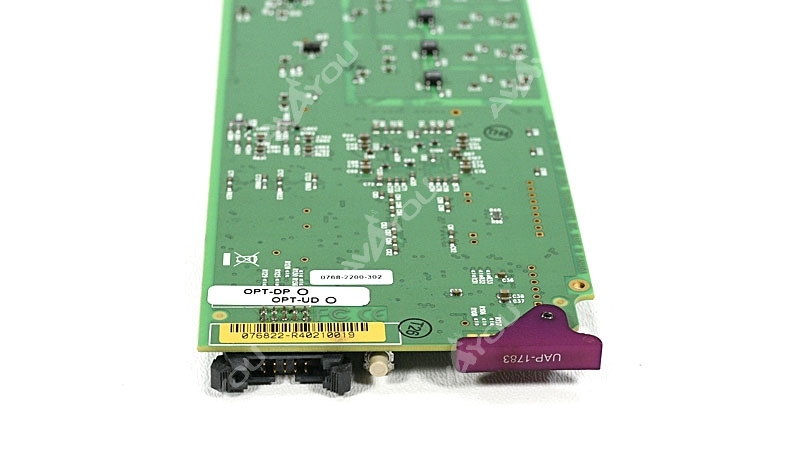

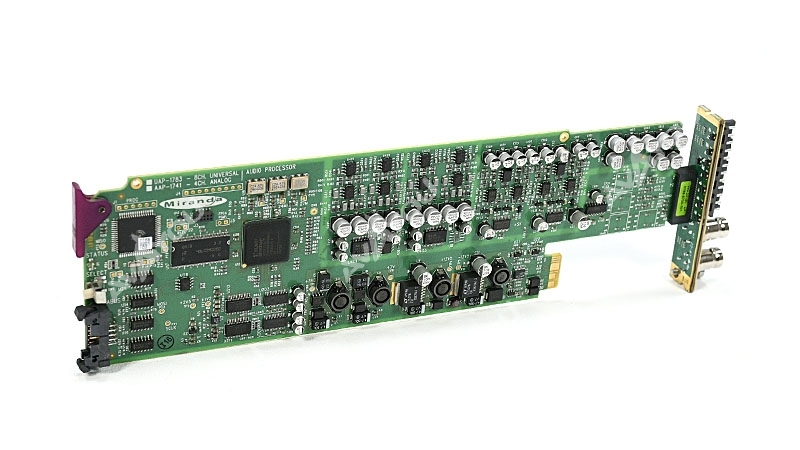

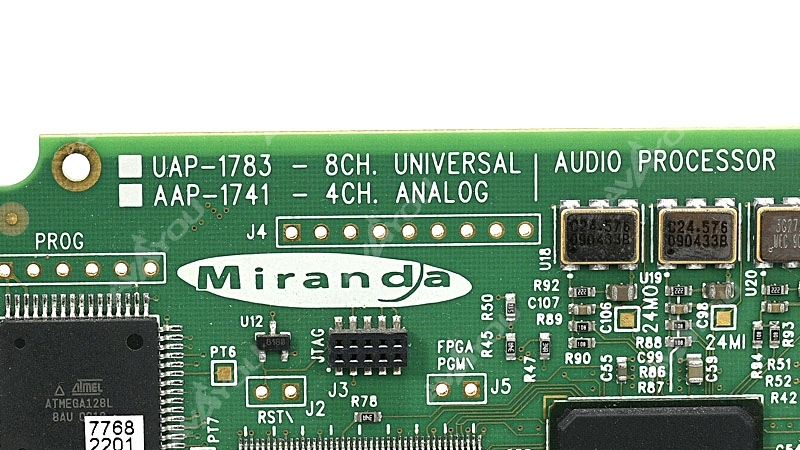

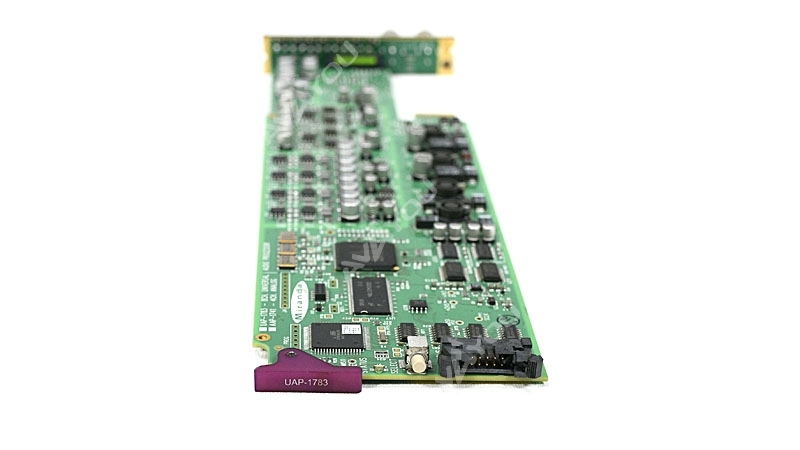

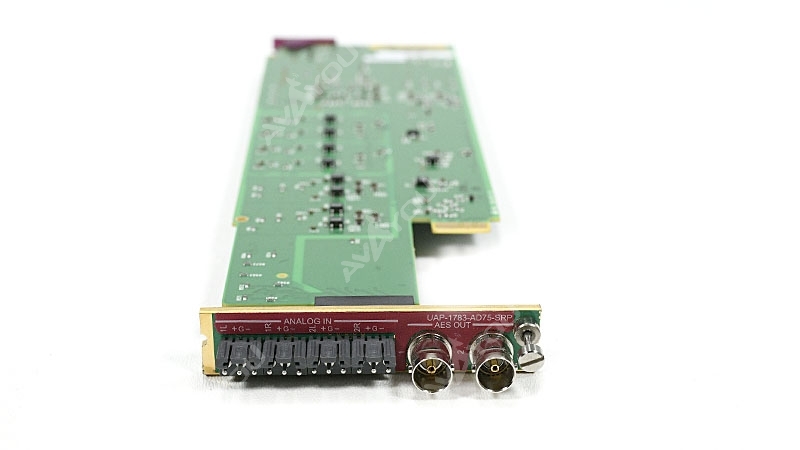

Miranda GV UAP-1783 Eight Ch Universal Audio Processor - Dolby +AD75-SRP
Miranda GV UAP-1783 Eight Ch Universal Audio Processor - Dolby +AD75-SRP
Miranda GV UAP-1783 Eight Ch Universal Audio Processor - Dolby +AD75-SRP
Functional Condition: Fully Functional
Cosmetic Condition: Very Good
CONDITION:
Functional: Fully Functional
Cosmetic: Very Good
Scroll down for additional photos
Overview:
For sale is ONE (1) used audio processor by Miranda. It is a modular card housed in Densite frame. Very good condition. It comes with a single backplane AD75-SRP. No optional licenses included. Because we have a quantity of these, appearances may vary, but condition is guaranteed to be better or equal to pictured sample. Serial numbers are unique to each unit sold and may be different from one depicted in the photos - we record all serial numbers of all items shipped. If you are looking for any other Miranda modular cards - we probably have them. Thousands of cards available. Check out our inventory.
SKU# 6480
Description:
The UAP-1783 is a high quality, 24 bit universal audio processor that can process up to 8 discrete channels of audio. Inputs comprise Mono/2 Stereo analog channels as well as 2 AES. Outputs are analog (4 Mono/2 Stereo) and 2 AES. The actual I/O combination depends on the rear panel installed. (single rear backplane included from 1781 card)
The UAP-1783 can be used as a standalone audio processor for discrete audio signals or can be combined with a wide range of video Analog to Digital, Digital to Analog video converters and digital frame synchronizer proc/amps. When working in conjunction with a video card the audio cards process embedded audio channels that have been de-embedded and can be re-embedded into the video signals. Two audio processing cards can be combined together to process a total of 16 audio channels. When combining any two cards together, all audio processing is synchronous and in-phase ensuring proper alignment and matched delays.
The card is housed in a (DENSITÉ) frame, with a single or double width rear connector panel.
Features:
  • Analog and digital audio inputs/outputs
  • 8 channels of audio processing (phase, tracking delay, fixed delay, gain)
  • 24 bits high quality audio converters
  • Full channel shuffling and 2 & 4 Channel mix/sum
  • Works as standalone audio processor or in conjunction with other processing cards (video or audio)
  • Audio metering data for audio levels and phase over IP
  • Dolby™ E compatibility
  • Internal EBU tone generator
  • Overload detection and reporting
  • All settings through frame control panel or remotely
  • Status LED and alarms remote reportin
