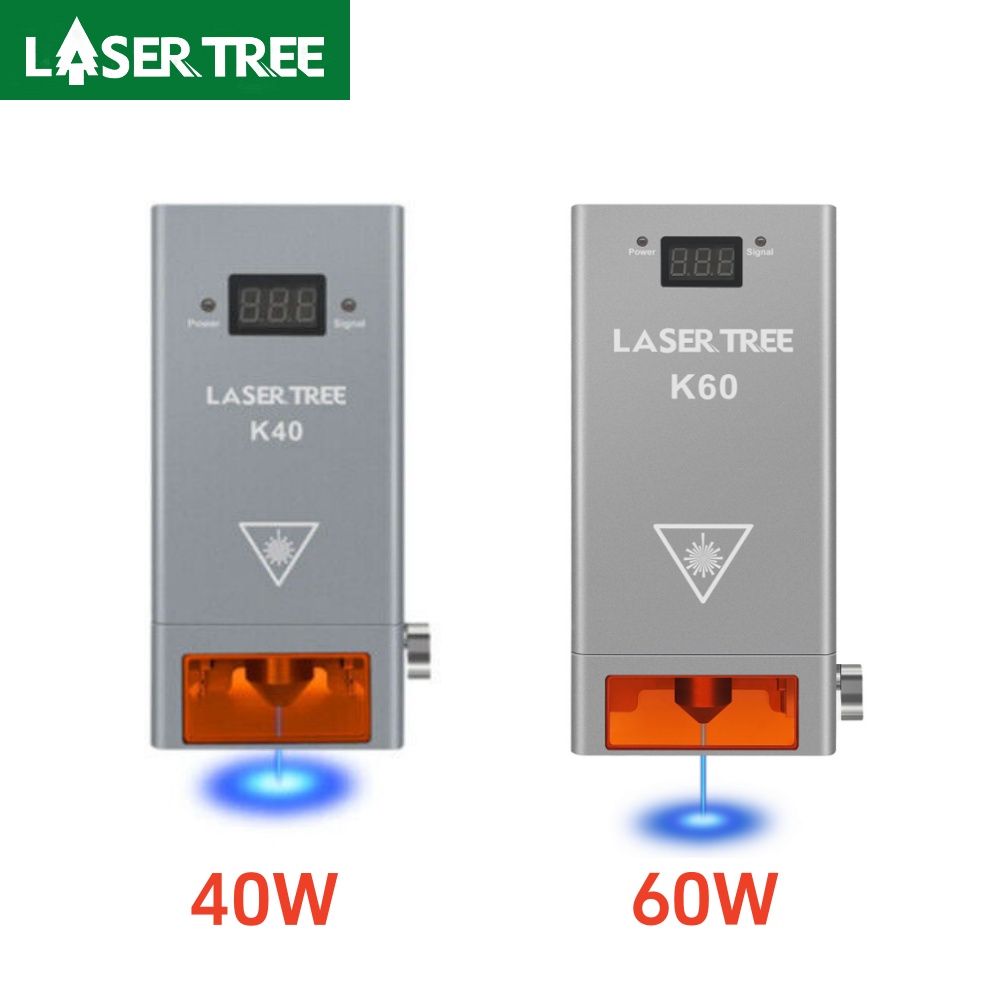

K40 40W / K60 60W Optical Power Laser Module Head for Engraver Cutting DIY Tools
Its power can give you a completely different cutting experience. In order to improve the compatibility with different laser engraver machines, K40 provides a solution by an adapter board for electric compatibility and a sliding plate with multi holes for installation compatibility. Electric compatibility can be checked easily by 'power' and 'signal' LED indicators.
Focusing is more convenient, and the dual fan cooling is excellent. These features give the K40 reliable and stable performance and higher service life.
Features:
1. K40 Built-in 8*5.5W fast-axis compression diodes, which can provide up to 40W-46W optical power to achieve fast and efficient cutting.
2. Electric compatibility can be checked easily by 'power' and 'signal' LED indicators.
3. Focusing is more convenient, and the dual fan cooling is excellent.
4. The bottom is equipped with a red cross positioning cursor (offset X: 0mm, Y: -21mm), which can quickly locate the starting point and ensure the accuracy of the secondary cutting operatio
5. Detachable protective cover, removable and removable, meeting both needs at once.
6. Integrated dovetail guide design ensures smooth movement and stability of the equipment. The guide rail is 115mm long, allowing a wide range of height adjustment to adjust the focus position, improving the user experience.
7. Adopt a large dual-fan design to maximize the air volume and maintain the best cooling effect while reducing noise, thereby achieving stable cutting and engraving performance.
8. Built-in thermistor, real-time monitoring of tube core temperature ensures long-term safe and stable operation of the laser module
Cutting ability:
55mm/min 1pass cutting 30mm Pinewood
200mm/min 1pass cutting 15mm Plywood
150mm/min 1pass cutting 9mm MDF
15mm/min 1pass cutting 30mm Acrylic
LT-K60 (60W+ Optical Laser Module):
Features:
1. High Power Laser Module--- 12-Beam compression technology, 60W+ optical power laser module
2. Switchable Power Mode---Three kinds of optical power（60W+/40W+/20W can be freely.
3. Powerful Cutting Ability
Cut 25mm bass plywood: 200mm/min, 100% power, by 2 passes
Cut 30mm black acrylic: 30mm/min, 100% power, by one pass
Cut 12mm MDF: 300mm/min, 100% power, by 2 passes
4. Professional Air Assist--- Blowing through the air nozzle to get clean-cut edges, improve cutting performance
5. Super Fast Engraving Speed--- ultra-fast engravingon stainless steel-30mm/s
6. Widely Compatibility--- Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.
LT-AP:
Description:
The air pump is an essential part of the laser module with air assisted.
It provides a steady high-pressure airflow to blow away smoke and obtain clean-cut edges;
Protecting the laser head's lens from contamination and extending the laser head's service life.
In addition, it can improve the efficiency of laser processing and thus save your time.
Features:
1. High-quality materials: metal nozzle, resisting high temperature.
2. Large and steady air output: Adjustable airflow of 0-30L/min, blowing away smoke and residue produced during laser processing, cut deeper、faster and cleaner.
3. Low Noise & Low Vibration: Anti-slip& damping feet keep the body stable and reduce the vibration noise effectively.
4. Rapid Heat Dissipation: Aluminum alloy shell, strong heat dissipation, long lasting and more durable.
5.Wide Compatibility: With two sizes of nozzles (PC6-M8 & PC8-M8)and hoses( φ8x6mm & φ6x4mm), compatible with most of the laser module‘s nozzle interfaces on the market. If it is a special size module air inlet nozzle just need to replace the appropriate air tube and air outlet nozzle.
Specification:
Voltage: 110V
Power: 16W
Exhaust Pressure: 0.03Mpa
Exhaust Volume: 30L/min
Outlet diameter: 8mm
Item Weight: 1.6kg
Item Size: 12.5*12*7cm
The air pump is an essential part of the laser module with air assisted.
It provides a steady high-pressure airflow to blow away smoke and obtain clean-cut edges;
Protecting the laser head's lens from contamination and extending the laser head's service life.
In addition, it can improve the efficiency of laser processing and thus save your time.
Features:
1. High-quality materials: metal nozzle, resisting high temperature.
2. Large and steady air output: Adjustable airflow of 0-30L/min, blowing away smoke and residue produced during laser processing, cut deeper、faster and cleaner.
3. Low Noise & Low Vibration: Anti-slip& damping feet keep the body stable and reduce the vibration noise effectively.
4. Rapid Heat Dissipation: Aluminum alloy shell, strong heat dissipation, long lasting and more durable.
5.Wide Compatibility: With two sizes of nozzles (PC6-M8 & PC8-M8)and hoses( φ8x6mm & φ6x4mm), compatible with most of the laser module‘s nozzle interfaces on the market. If it is a special size module air inlet nozzle just need to replace the appropriate air tube and air outlet nozzle.
Specification:
Voltage: 110V
Power: 16W
Exhaust Pressure: 0.03Mpa
Exhaust Volume: 30L/min
Outlet diameter: 8mm
Item Weight: 1.6kg
Item Size: 12.5*12*7cm
