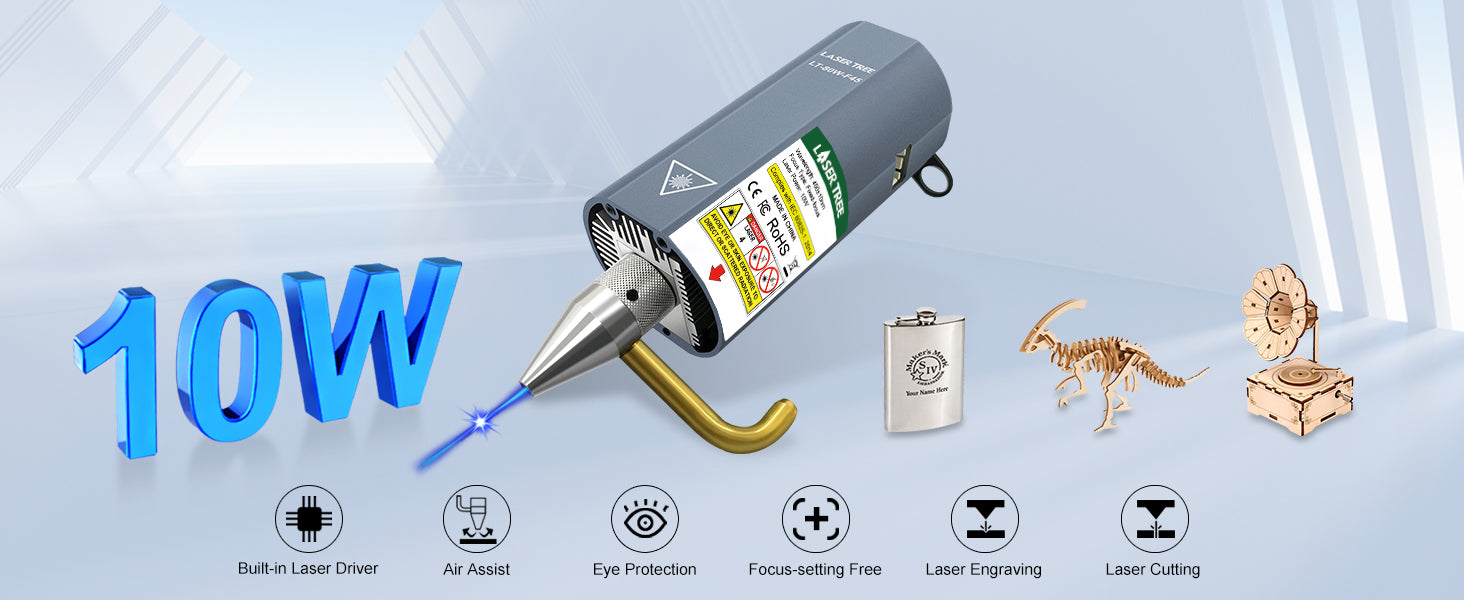

Compatible with 10W optical power laser module for CNC 3018 Machine
| Optical Power | 10W (±1W) |
| Input | DC 12V 3A |
| Wavelength | 450nm(±10nm) |
| Focus length | 45mm |
| PWM modulation | 0/3 12v , 0-5kHz |
| Fan speed | 1000rpm |
| Operating temperature | 0-60℃ |
| Interface | XH2.54-3P Soket |
| Cable | 3PIN , 80cm |
| Module size | 43*130mm |
| Module weight | 250g |
| Application | Engraving or Cutting |
LT-80W-F45 is a laser engraving and cutting module specially designed for CNC 3018 machines. It is compatible with most CNC machines with a round top mounting base. For example, 3-axis CNC engraving machine (1610 pro/3018/3018 pro/3018 Max/4540/3020 Plus engraving machine, etc.)
Function：
【Excellent 10W+ Laser】
The optical power of laser module is 10W+. It has 0.08mm sharp compressed focal point and 0.01mm engraving accuracy. The ctting speed is faster, and the engraving accuracy is higher
【Fixed Focus & Powerful】
The fixed focus distance is 20mm. At the same power, this laser module can cut 4mm wood perfectly at once. It is ideal for engraving and cutting many different materials such as plywood, bamboo, cardboard, acrylic, MDF, etc.
【Long Service Life】
Equipped with high-quality aluminum heatsink and cooling fan, this can help the heat dissipate faster and ensure the module works continuously. This laser module can work at full power for 8 hours. The service life can be up to 10,000 hours
【Widely Applicable】
Our laser module is compatible with LaserGRBL, LightBurn and most engraving software. LaserGRBL software is compatible with Windows system, LightBurn is compatible with Mac OS and Windows system. Compatible with engraving machines and CNC milling machines 3018 series
Professional Air Assist
Upgraded 6mm diameter air nozzle has an advanced hydrodynamic design, which better reduces air resistance and faster jet airflow.
With Air Assist VS No Air Assist
Blowing through the air nozzle to get clean-cut edges, improve cutting performance
without Air Nozzle: Scorched Edges
with Air Nozzle: Clean-Cut Edges
Powerful Cutting Ability
Cut 8mm plywood: 120mm/min,100% power. By one pass
Cut 15mm Pinewood: 50mm/min,100% power. By one pass
Cut 5mm black acrylic : 50mm/min,100% power. By one pass
Dual-LDs With Beam Compressed Technology
One laser module has two built-in laser diodes.The optical power of each diode is 5W.
With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.
