2 Pin Hookup Equipment Stranded Copper Cable Wire 26AWG to 14AWG LED Strips
£
2.79 - 35.49

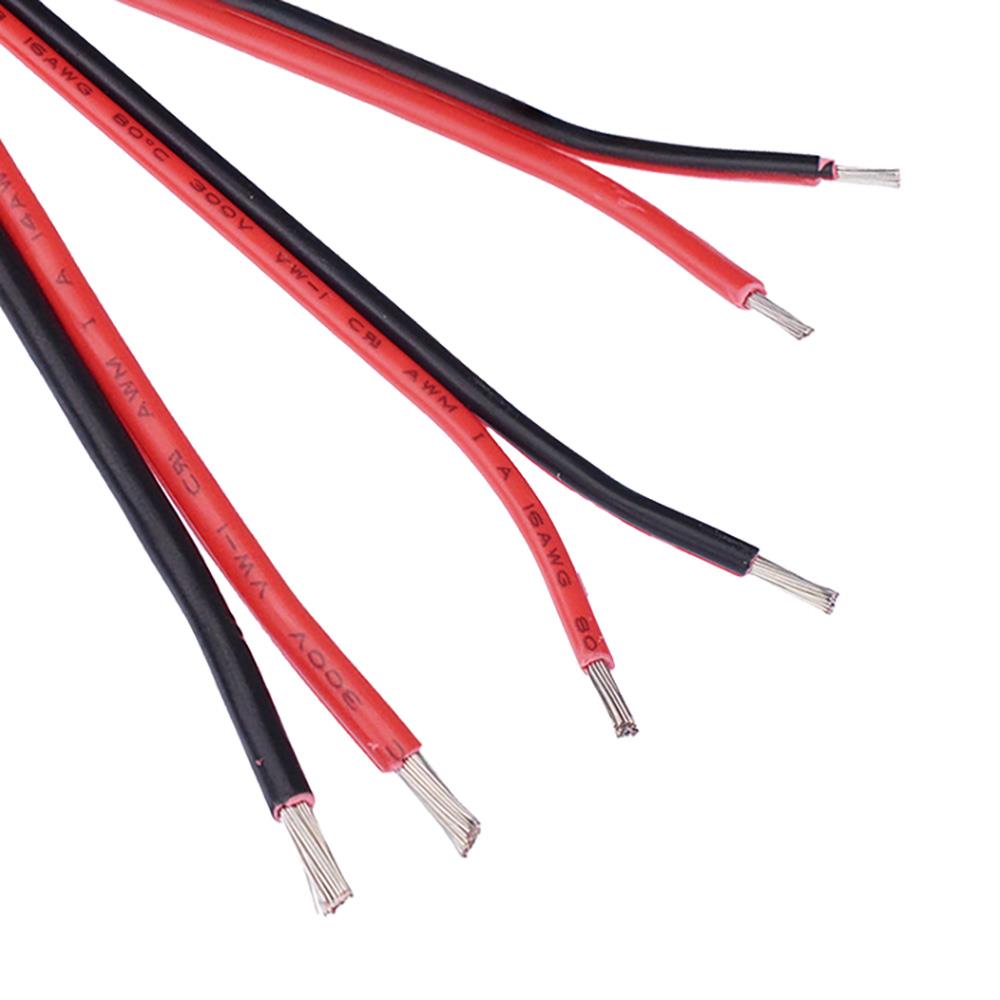

2-pin multi stranded copper wire with PVC insulation providing excellent resistance to oil, petrol, diesel and high temperatures. The cable is suitable for a wide range of applications including automotive, lighting, electronic applications.
- Available in red/back or white/white insulation
- Wide temperature range
- Tinned copper conductor
- Rated voltage: 300V
- Cut to length in pieces up to 25 metres
| Cable Size | Stranding | Conductor Cross Sectional Area |
|---|---|---|
| 26AWG | 7/0.16mm | 0.14mm² |
| 22AWG | 17/0.16mm | 0.34mm² |
| 18AWG | 34/0.178mm | 0.75mm² |
| 16AWG | 26/0.254mm | 1.27mm² |
| 14AWG | 41/0.254mm | 2.07mm² |
