BETAFPV C03 FPV Micro Camera  2.1mm lens  1/3'' CMOS sensor 160° FOV suit For M03 5.8G VTX For FPV Quadcopters

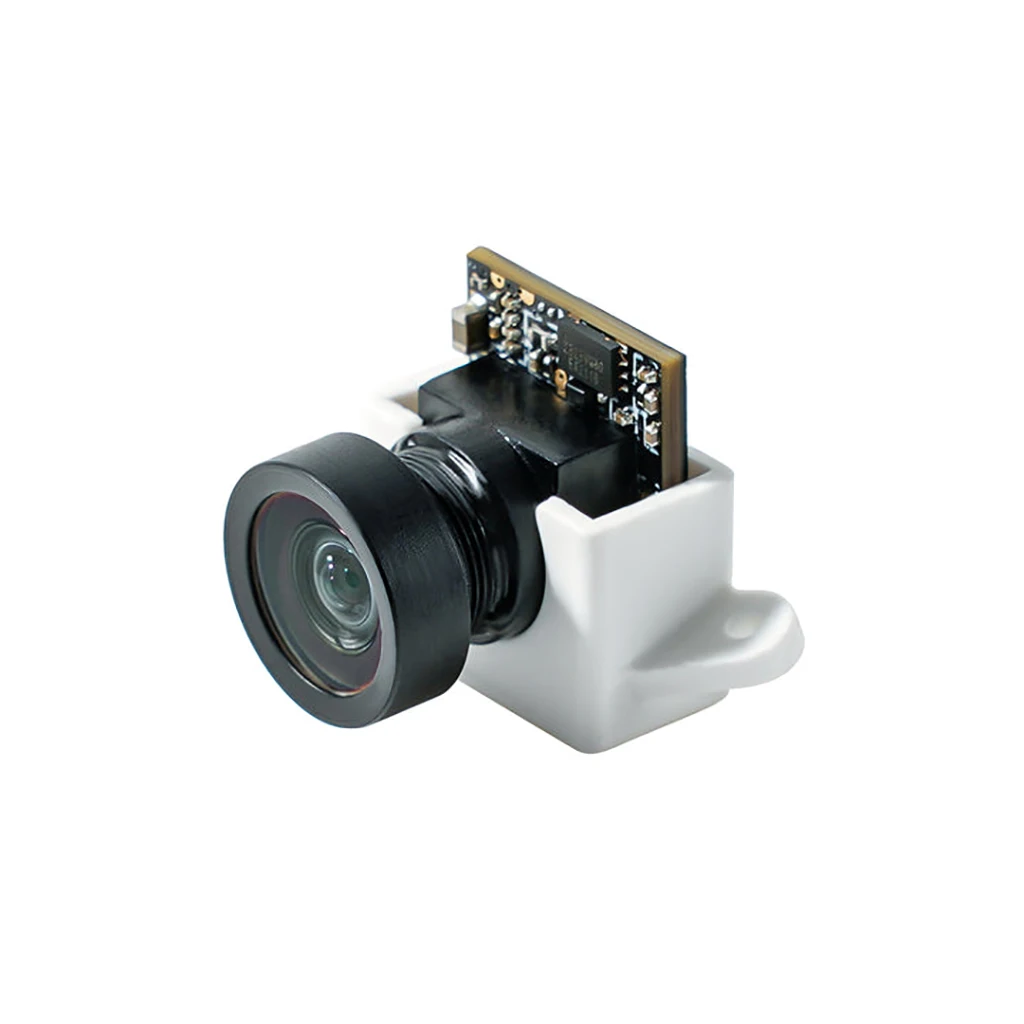

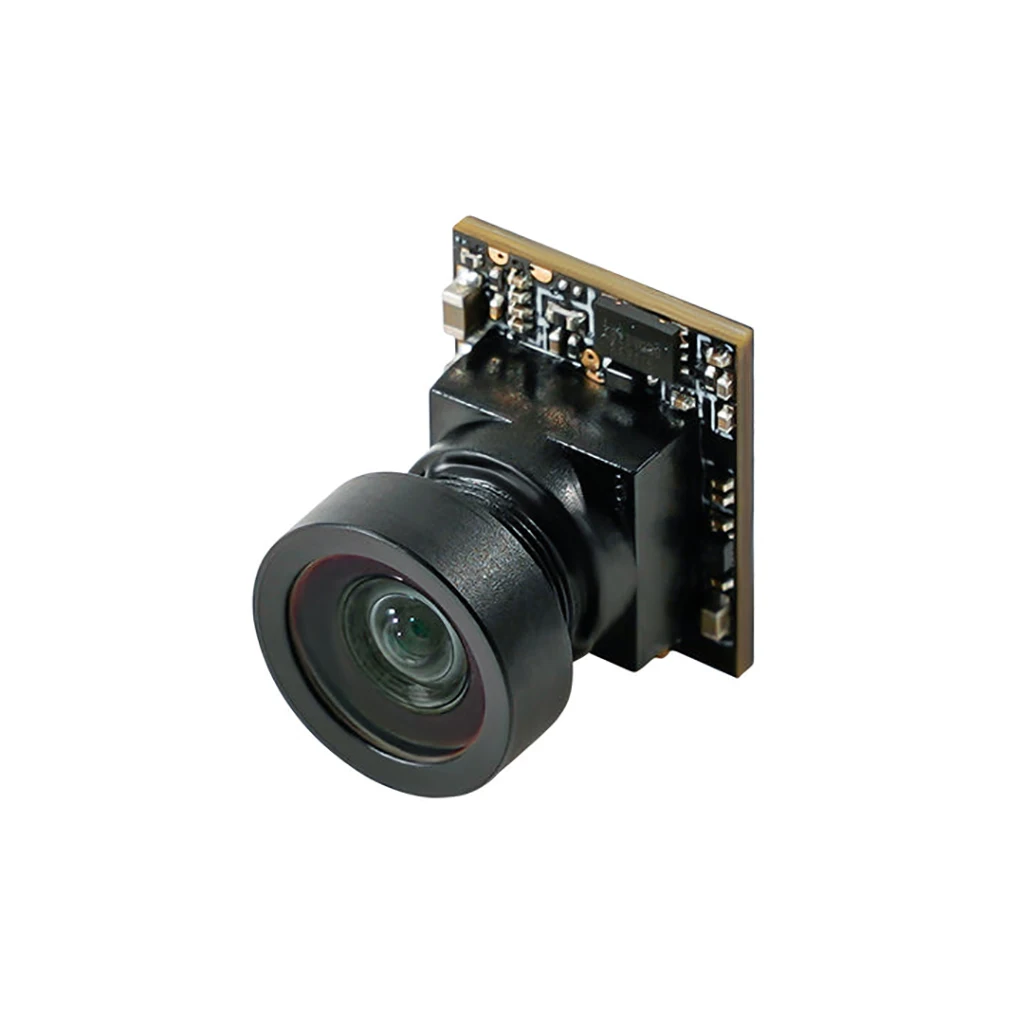

C03 FPV Micro Camera, specially designed for indoor micro FPV quadcopters, comes with a 1.45g lightweight, 1/3'' CMOS sensor, 2.1mm lens for 160° FOV, and excellent latency. Recommend using C03 FPV Micro Camera with BETAFPV Micro Canopy.

Bullet Points

  • Made of high-quality ABS material and covered by BETAFPV Micro Canopy, the C03 FPV Micro Camera is durable enough for use.

  • Miniature, and lightweight design, weighing only 1.45g. Completely match with M03 5.8G VTX on micro whoop drone.

  • 1200TVL resolution and 1/3" CMOS sensor ensure a high-quality and clear image

  • Global WDR camera, 4:3 aspect ratio, shoot clear dynamic image even in low light condition

  • 2.1mm lens, FOV 160° beyond the wide angle for recording more wide and beautiful scenes.

Specification

  • Item: C03 FPV Micro Camera

  • Image Sensor: 1/3" CMOS Sensor

  • Horizontal: 1200TVL with Global WDR

  • Signal System: NTSC (4:3)

  • Lens : 2.1mm(M7) FOV 160°

  • S/N Ratio: >50db

  • Electronic Shutter Speed: Auto

  • Auto Gain Control (AGC): Auto

  • Min. Illumination: 0.01Lux@1.2F

  • D-WDR: Auto

  • Day/Night: Color

  • Power: DC 3-5.5V

  • Current: 100mA@5V / 120mA@3.3V

  • Housing Material: ABS

  • Dimension: 11*14.1*13.5mm

  • Net weight: 1.45g

Plug-N-Play Connector

C03 FPV Micro Camera features a JST-0.8 connector, a special design in plug-and-play, that makes it easy to install without soldering. Suitable for Meteor series drones, BETAFPV F4 1S 5A AIO FC,BETAFPV M03 VTX, and NBD BeeBrain flight controllers.

Recommend Parts

  • Canopy: BETAFPV Canopy for Micro Camera 2022

  • VTX: BETAFPV M03 5.8G VTX

  • FC: BETAFPV F4 1S 5A AIO FC, NBD BeeBrain flight controllers

  • Drones: Meteor65/75 drones, or other micro whoop drones in the market.

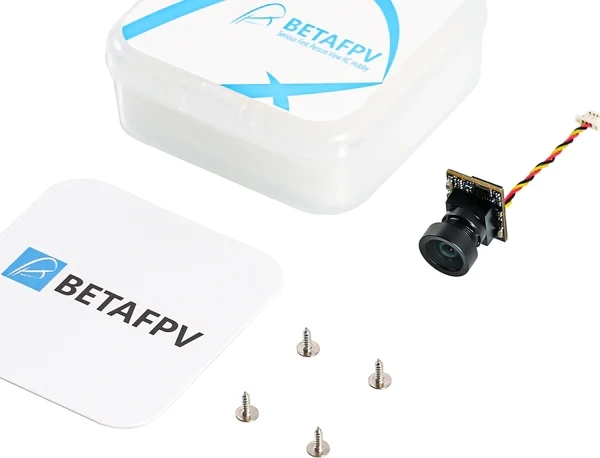

Package

1 * C03 FPV Micro Camera

4 * M1.4*5 Screws
