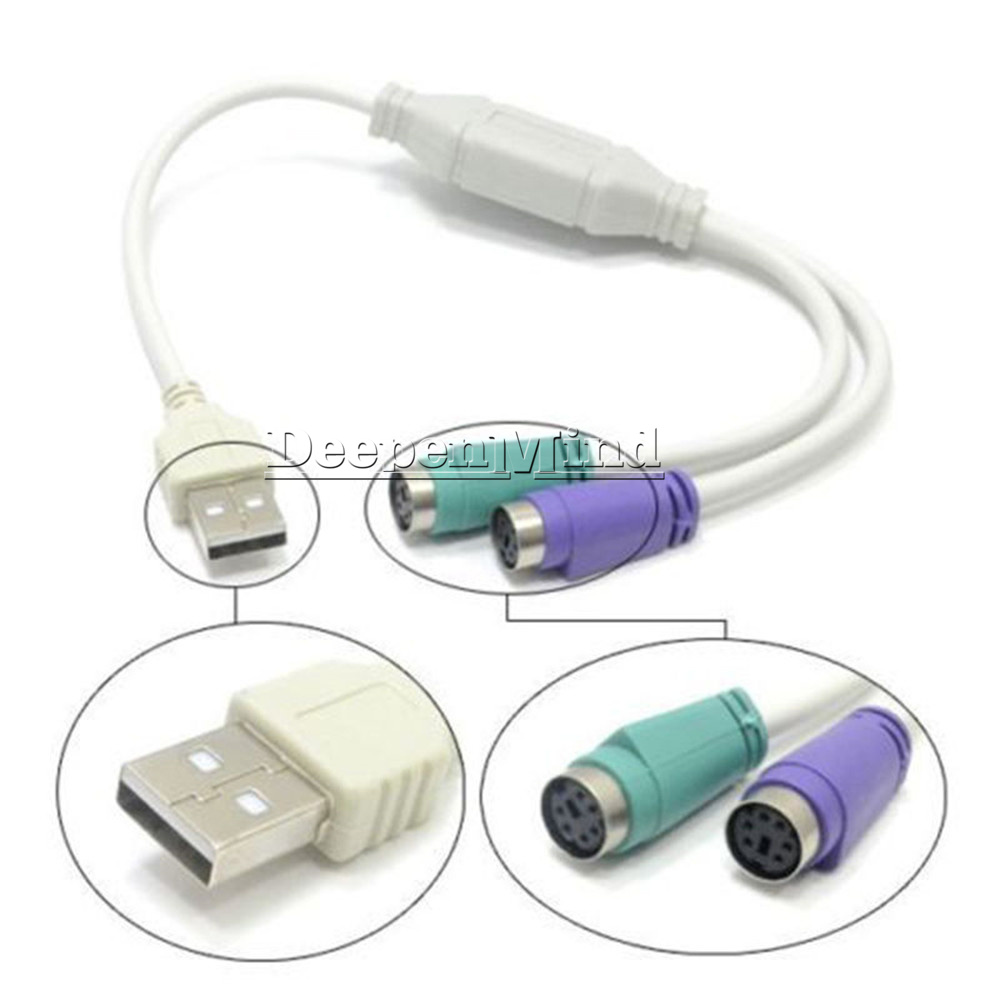

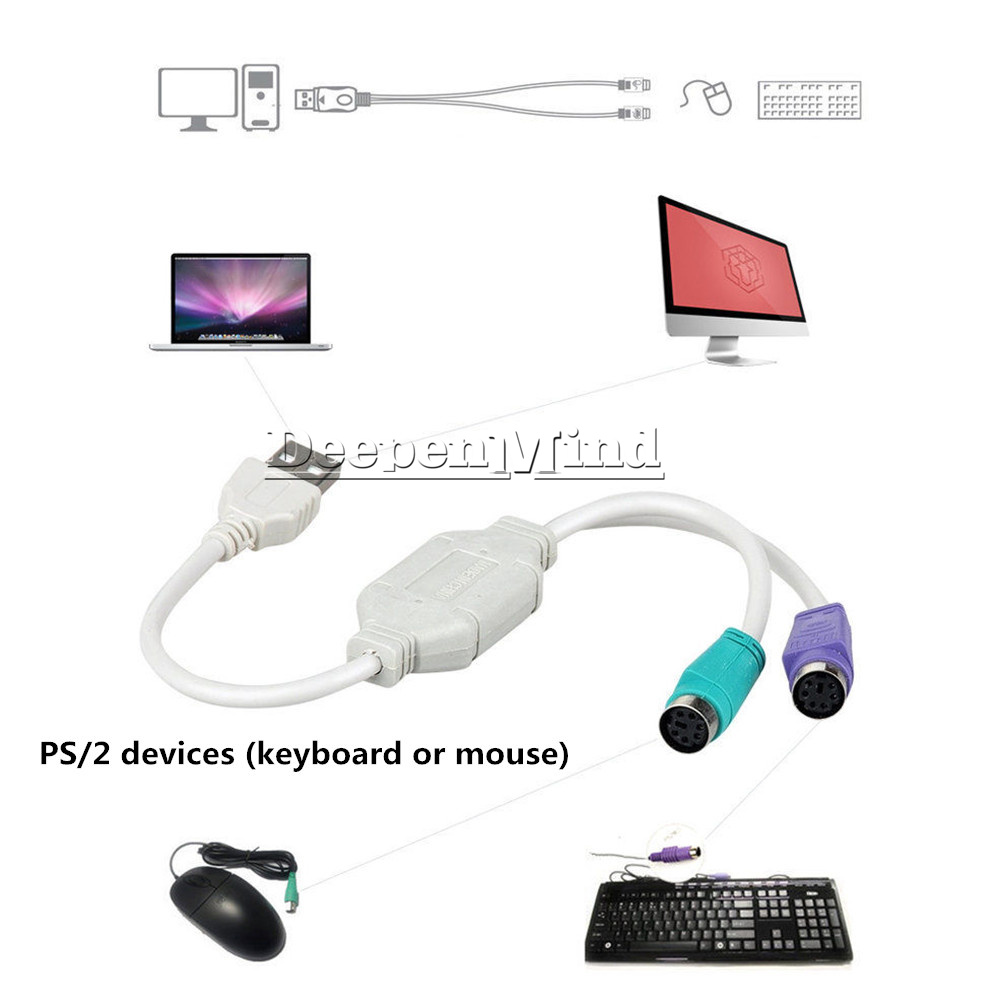

USB to Dual PS2 Converter White Cable
Supports PS/2 devices (keyboard or mouse) and converts to the USB interface.
USB plug and play compatible.
Compatible with USB 3.0, USB 2.0, USB 1.1 ports.
Support Windows 98/SE/ME/2000/XP and Mac OS9.0/OSX/Linux
Total Length:32cm
Color:as picture shows
USB plug and play compatible.
Compatible with USB 3.0, USB 2.0, USB 1.1 ports.
Support Windows 98/SE/ME/2000/XP and Mac OS9.0/OSX/Linux
Total Length:32cm
Color:as picture shows

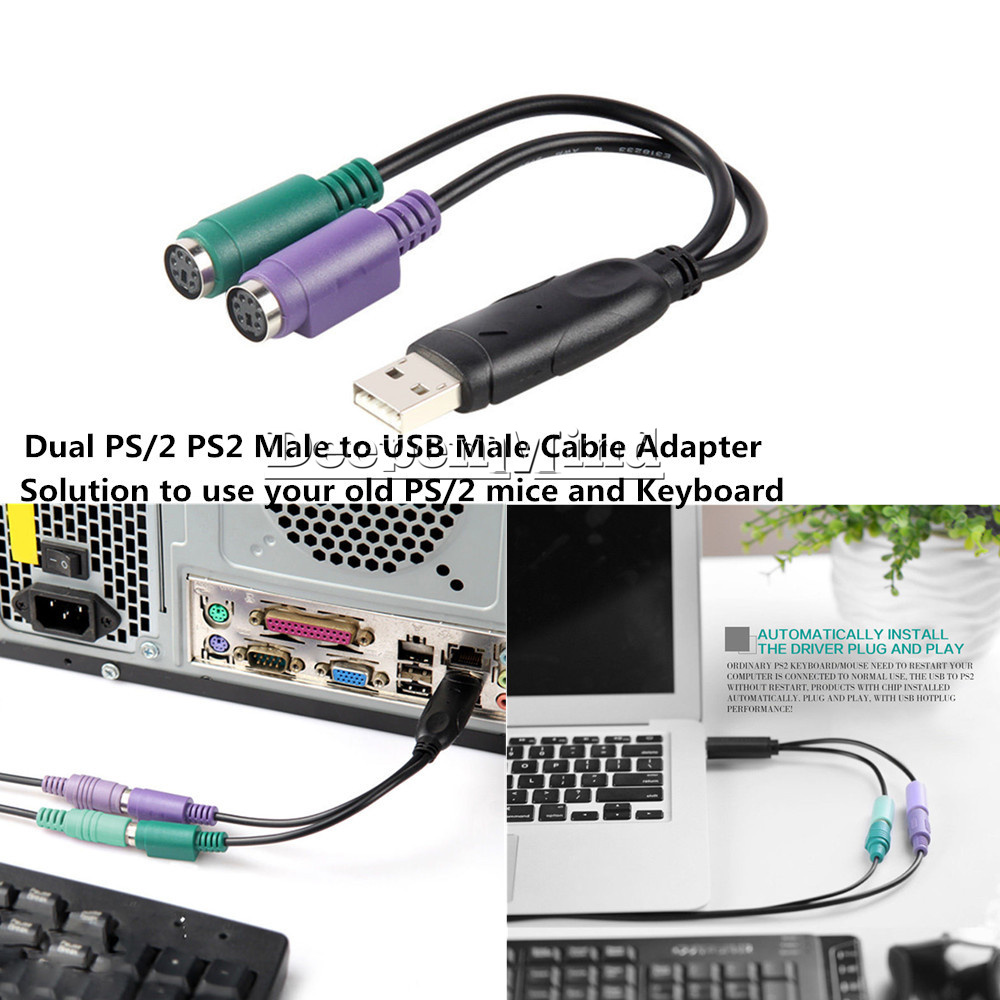

USB to Dual PS2 Converter Black Cable
Supports both UHCI and OHCI specifications.
Converts dual PS/2 devices (Keyboard & Mouse) to 1 USB port!
Supports computer USB interface to PS/2 port of KVM Switch.
USB Bus Powered, no power adapter is needed!
Fully compliant with PS/2 keyboard & mouse
Support USB and PS/2 Plug and Play
Support standard windows multimedia keys, Easy to install.
Converts dual PS/2 devices (Keyboard & Mouse) to 1 USB port!
Supports computer USB interface to PS/2 port of KVM Switch.
USB Bus Powered, no power adapter is needed!
Fully compliant with PS/2 keyboard & mouse
Support USB and PS/2 Plug and Play
Support standard windows multimedia keys, Easy to install.

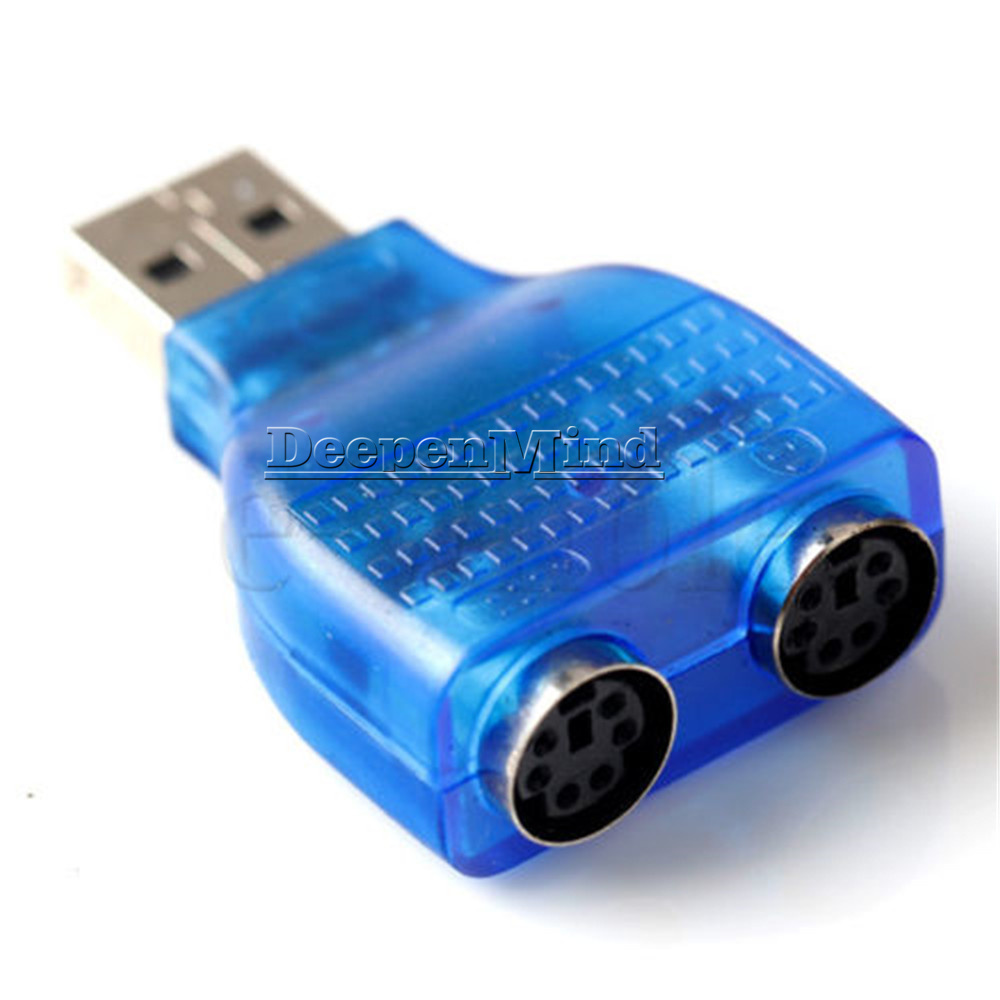

USB to Dual PS2 Converter Head
This USB to dual PS/2 connector adapter takes up one USB port and gives you two PS/2 ports for your old mouse and keyboard.
Allows you to use your PS/2 compatible mouse and keyboard as USB compatible device.
Fully compliant with PS/2 keyboard/mouse.
Type: USB to PS/2 Adapter
Material: Plastic Cover
Male: USB
Female: Dual PS/2
Support: for Windows 98SE/ME/2000/XP, for Netware 4.11 above, for HP Unix，for Linux, for Mac OSX(10.2-), for Mac OS9.1-9.X
Features: Plug and Play, No Need to Install Drivers, USB Bus Powered
Allows you to use your PS/2 compatible mouse and keyboard as USB compatible device.
Fully compliant with PS/2 keyboard/mouse.
Type: USB to PS/2 Adapter
Material: Plastic Cover
Male: USB
Female: Dual PS/2
Support: for Windows 98SE/ME/2000/XP, for Netware 4.11 above, for HP Unix，for Linux, for Mac OSX(10.2-), for Mac OS9.1-9.X
Features: Plug and Play, No Need to Install Drivers, USB Bus Powered

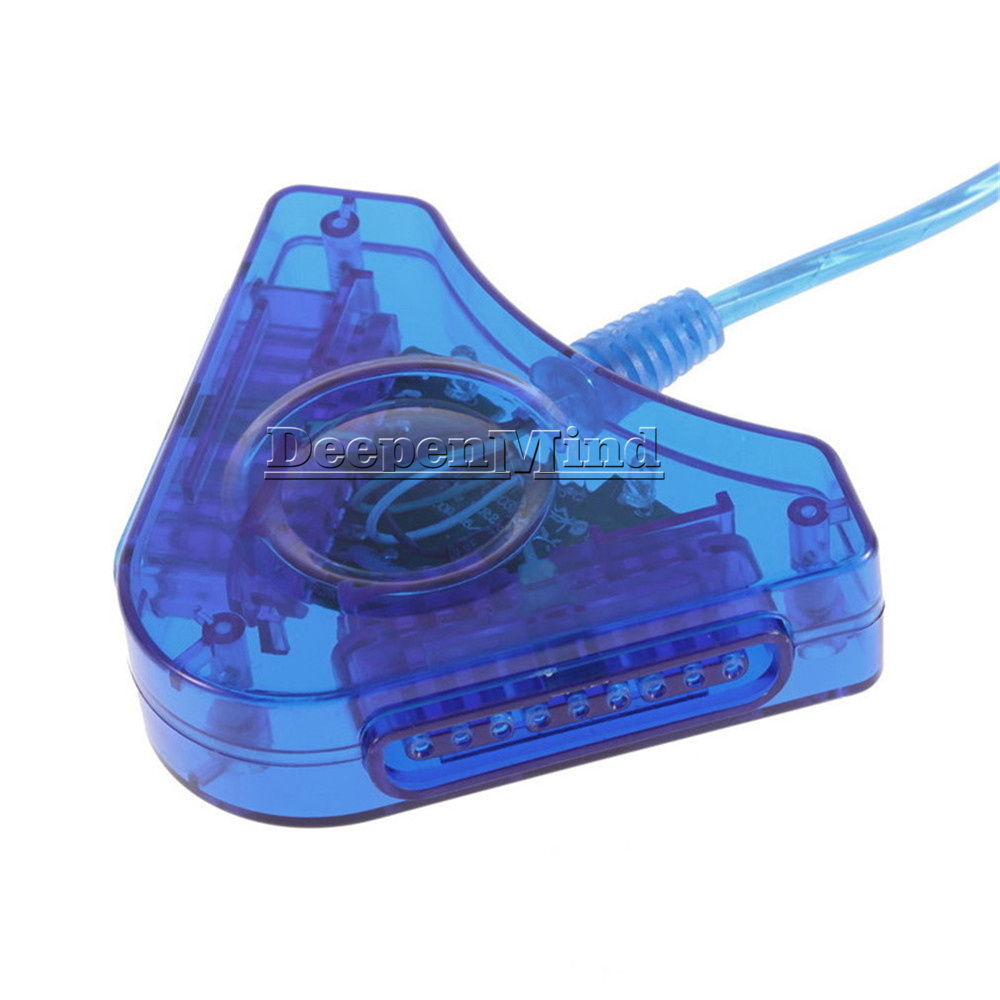

Dual PS2 To PC USB
Features:
1. Plug and Play
2. Supports 2 Controllers
3. Convert your PS2 and PSX controller, Gun, Dance Pad to use on your PC
4. Supports all buttons on your PlayStation controller / DDR Dance Pad
5. Supports Shock Real Vibration Function on supported games
6. Supports Both Digital and Analog modes
7. DDR dancing controller is compatible,push "start + select + up" for 3 seconds, it will switch to PS/PS2 dancing pad mould automatically.
8. Build-in flashing signal indicator
9. Compatible with Windows 98 / 98SE / ME / 2000 / XP, together with the DirectX 7.0a or above
10.USB1.1/1.0/2.0 is compatible
Size : 8.5 x 7 x 2 cm ( USB Cable length: about 55cm)
1. Plug and Play
2. Supports 2 Controllers
3. Convert your PS2 and PSX controller, Gun, Dance Pad to use on your PC
4. Supports all buttons on your PlayStation controller / DDR Dance Pad
5. Supports Shock Real Vibration Function on supported games
6. Supports Both Digital and Analog modes
7. DDR dancing controller is compatible,push "start + select + up" for 3 seconds, it will switch to PS/PS2 dancing pad mould automatically.
8. Build-in flashing signal indicator
9. Compatible with Windows 98 / 98SE / ME / 2000 / XP, together with the DirectX 7.0a or above
10.USB1.1/1.0/2.0 is compatible
Size : 8.5 x 7 x 2 cm ( USB Cable length: about 55cm)

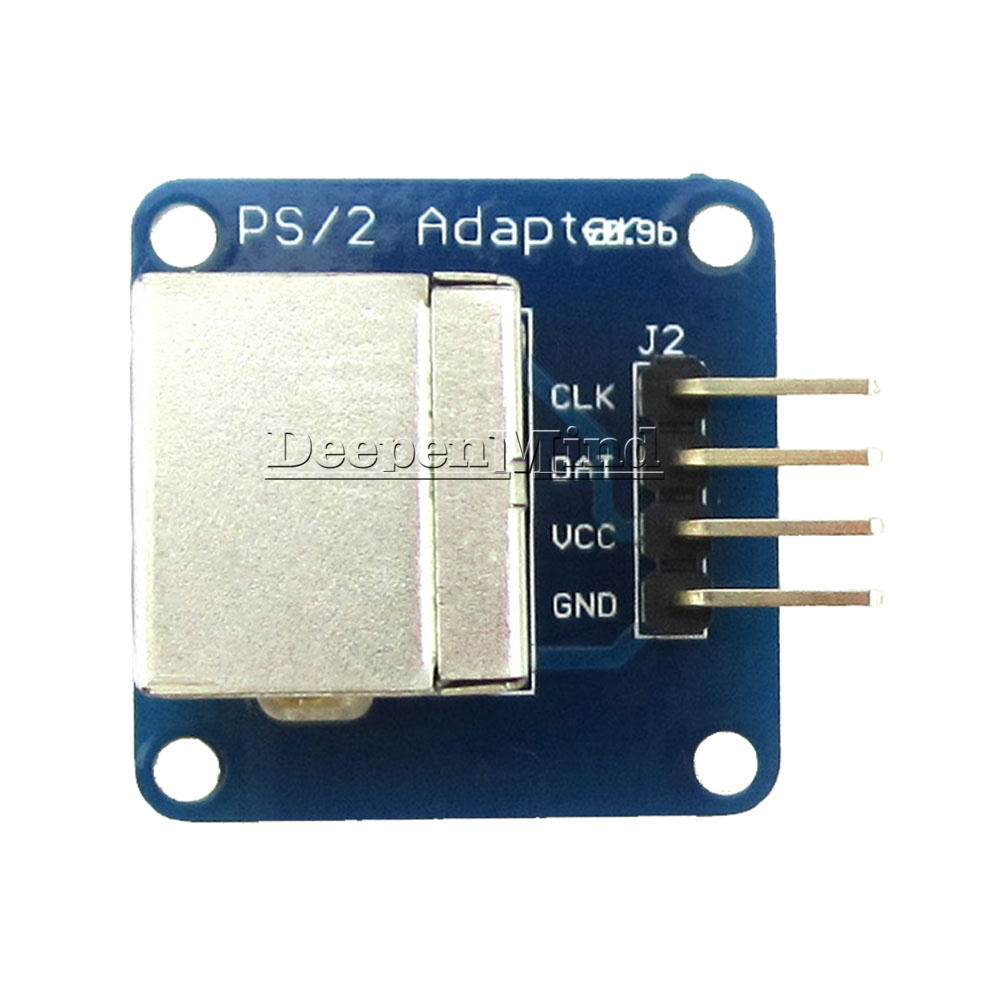

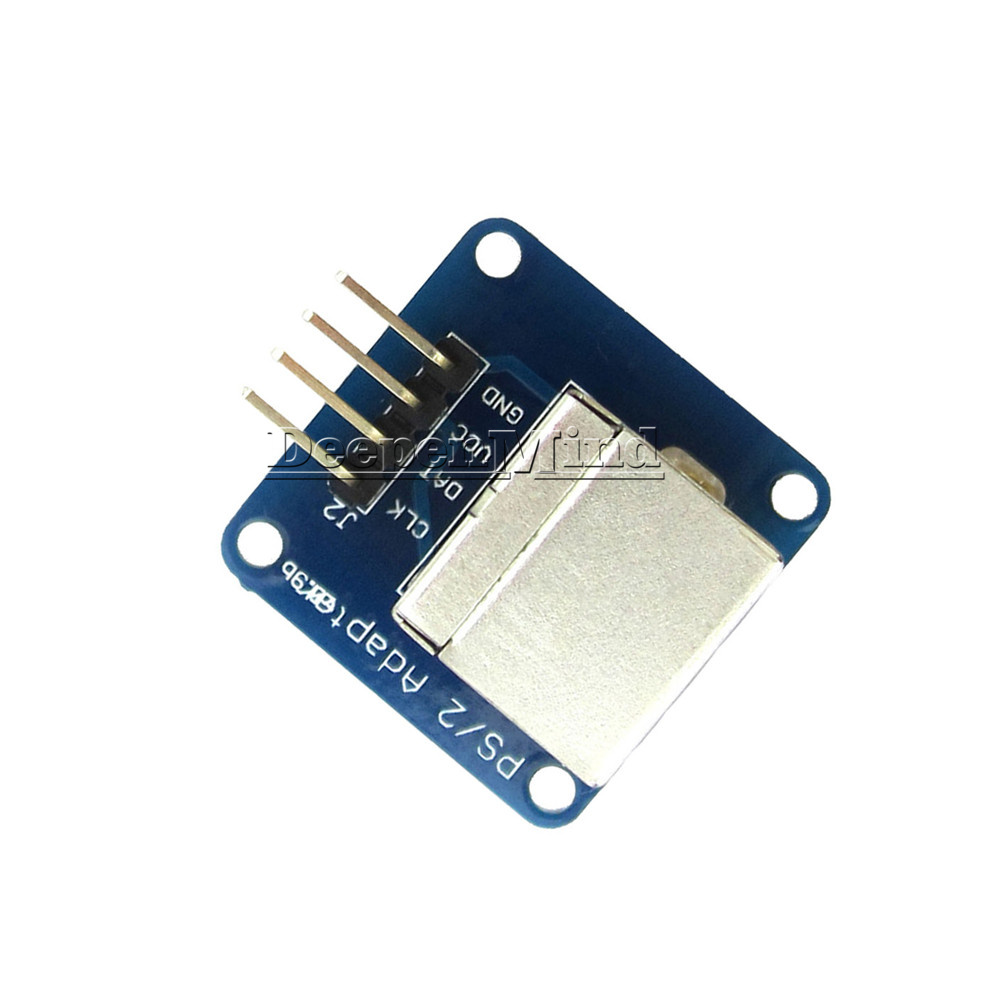

PS2 Adapter
The PS/2 Adapter enables you to connect a PS2 device to the Arduino mainboards. With the help of PS2Keyboard library, you can create the bridge between these PS2 keyboard and the Arduino.
Standard PS/2 interface;
Power Supply should be 5V DC;
4 screw mounting holes whose diameter is 2.2mm
Interface:
Control interface: A total of four pins (GND, VCC, DAT, CLK), GND to ground, VCC is the power supply, DAT is data input and output pin, CLK is the clock signal pin.
PS/2 socket: Standard PS/2 interface.
Mounting hole: 4 screw mounting holes whose diameter is 2.2mm, so that the module is easy to install, easy to combine with other modules.
Standard PS/2 interface;
Power Supply should be 5V DC;
4 screw mounting holes whose diameter is 2.2mm
Interface:
Control interface: A total of four pins (GND, VCC, DAT, CLK), GND to ground, VCC is the power supply, DAT is data input and output pin, CLK is the clock signal pin.
PS/2 socket: Standard PS/2 interface.
Mounting hole: 4 screw mounting holes whose diameter is 2.2mm, so that the module is easy to install, easy to combine with other modules.
PS2 Driver Module
Performance parameter:
Working voltage:DC5V;
Key information is sent out by serial(Baud rate 19200) and parallel
Corresponding speed;
Apply to PC PS2 keyboard.
Module size: 39.1mm(length)*31.2mm(width)*18mm(high)
Working voltage:DC5V;
Key information is sent out by serial(Baud rate 19200) and parallel
Corresponding speed;
Apply to PC PS2 keyboard.
Module size: 39.1mm(length)*31.2mm(width)*18mm(high)
Matters need attention:
1.TWI/IIC address is 4. Modules for the host.
2.Do not use the TWI/IIC should be “IIC/TWI enable” Short circuit cap to remove. Otherwi se the module will not be able to work properly
3. *UART Baud rate: 19200
1.TWI/IIC address is 4. Modules for the host.
2.Do not use the TWI/IIC should be “IIC/TWI enable” Short circuit cap to remove. Otherwi se the module will not be able to work properly
3. *UART Baud rate: 19200
Application : Robot ,Electronic products,and so on
Package Include:
1 x Converter
