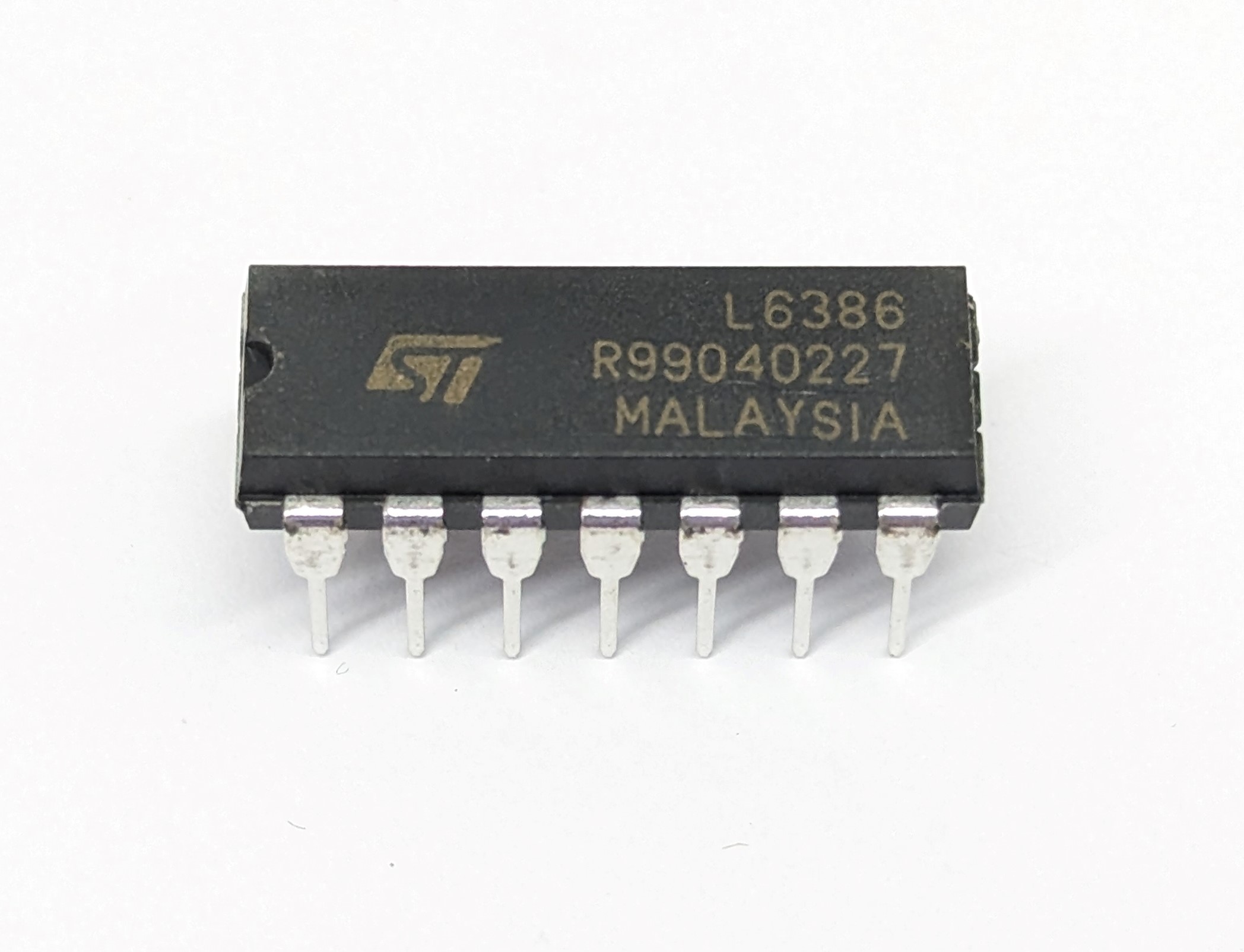

High-voltage high and low side driver
High voltage rail up to 600V | DIP14 package
- Manufacturer: STMicroelectronics
- Package: DIP14
- Product Family: Motor Driver
- Switching times 50/30 nsec rise/fall with 1nF load
- CMOS/TTL Schmitt trigger inputs with hysteresis and pull down
The L6386 is an high-voltage device,
manufactured with the BCD “off-line” technology.
It has a driver structure that enables to drive
independent referenced channel power MOS or
IGBT. The high-side (floating) section is enabled
to work with voltage rail up to 600 V. The logic
inputs are CMOS/TTL compatible for ease of
interfacing with controlling devices.
- High voltage rail up to 600V
- dV/dt immunity ±50V/nsec in full temperature range
- Driver current capability:
– 400mA source,
– 650mA sink - Switching times 50/30 nsec rise/fall with 1nF load
- Under-voltage lock out on lower and upper driving section
- Integrated bootstrap diode
- Outputs in phase with inputs
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED
- NOT RE-MARKED - NOT FAKED EXCLUSIVELY NEW OLD STOCK (NOS)
AUSSCHLIESSLICH NUR ALTE NEUE WARE (NOS) aus
Altlagerbestand - entnommen aus der original Verpackung (siehe Foto).
Bitte fragen sie uns an, falls
sie größere Stückzahlen benötigen oder geben Sie uns hierzu Ihren
Preisvorschlag.
