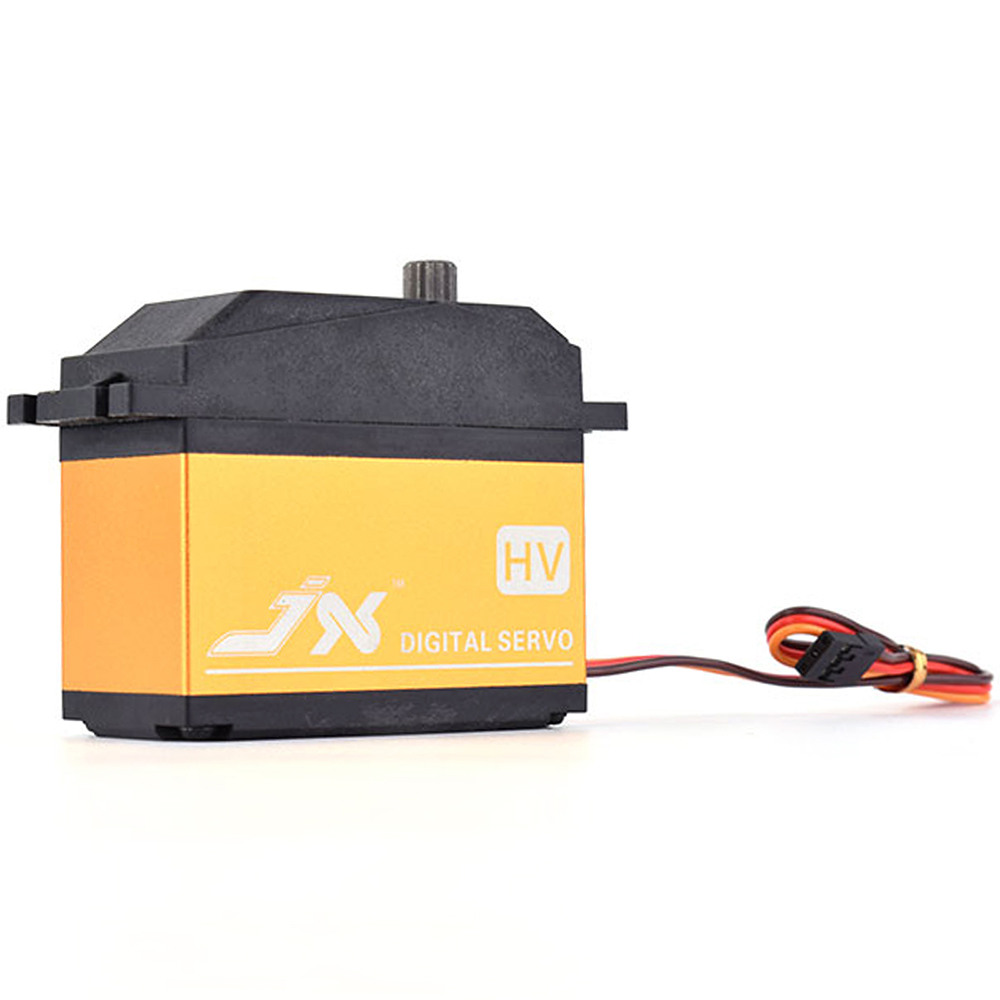

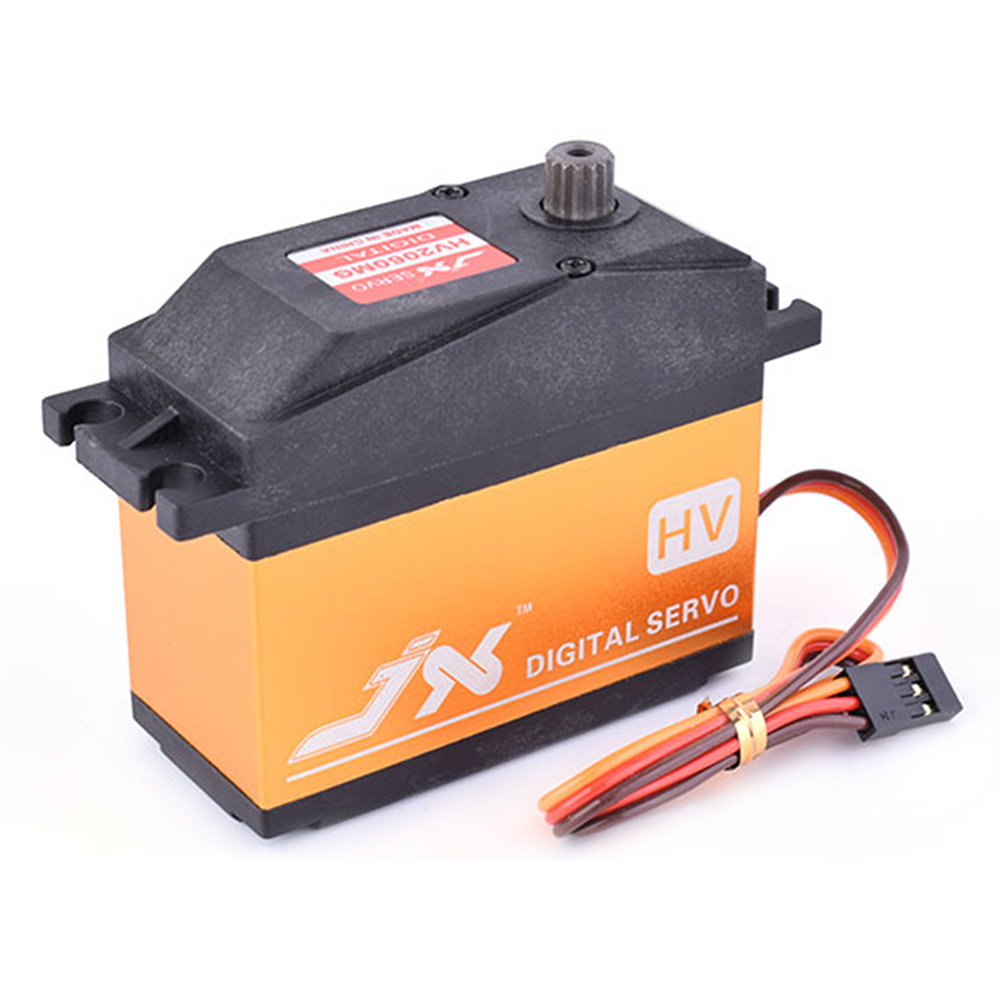

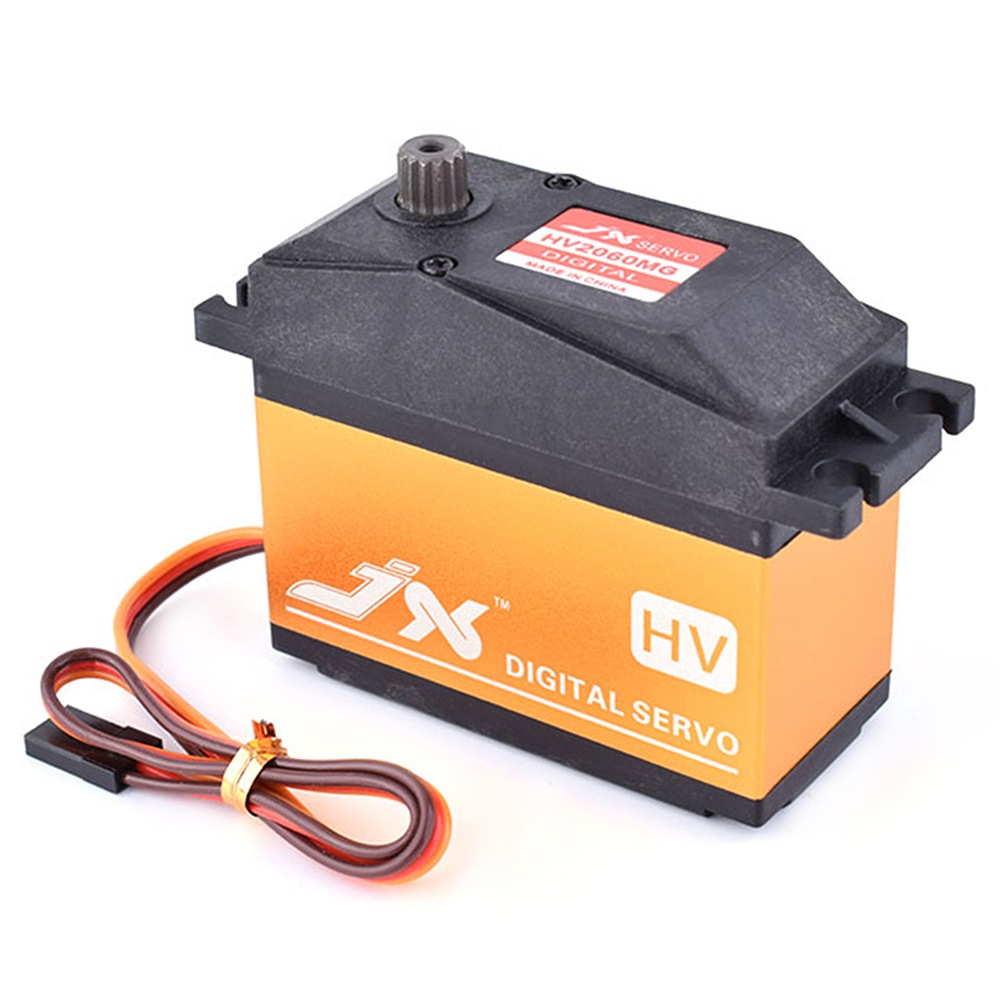

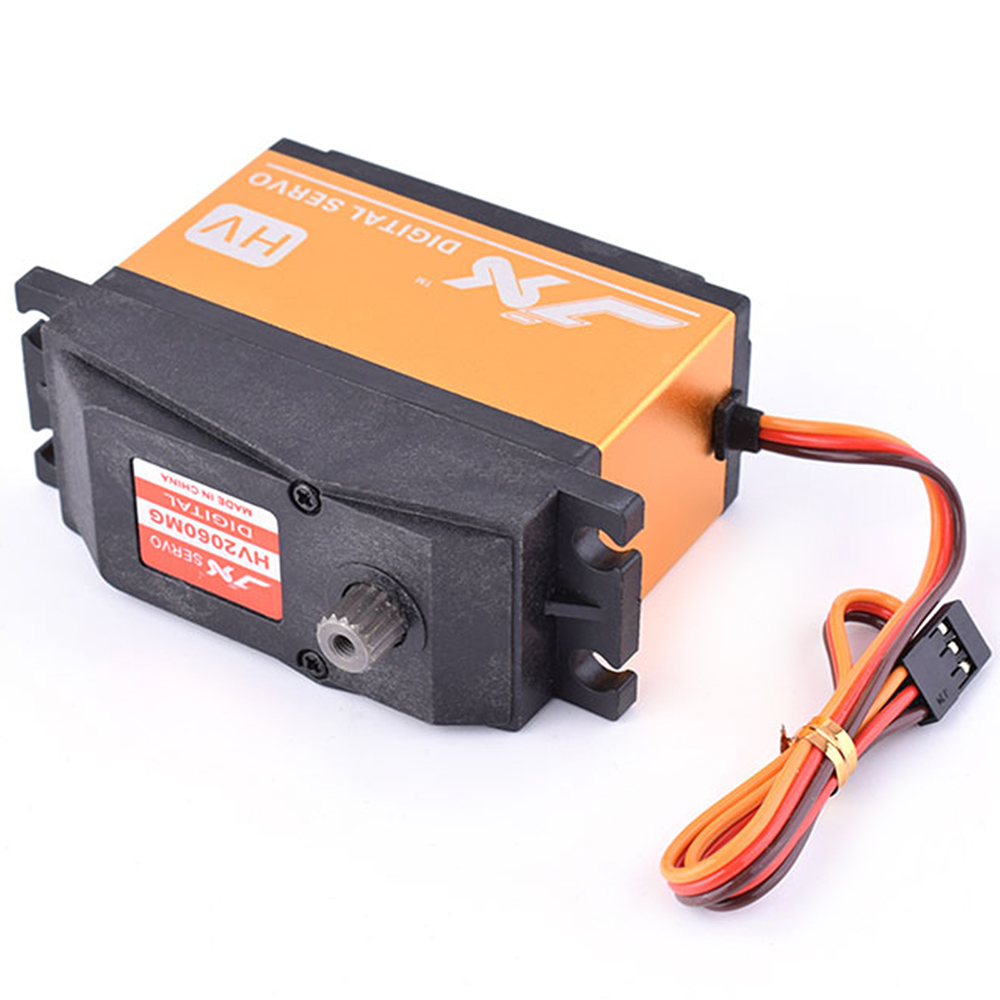

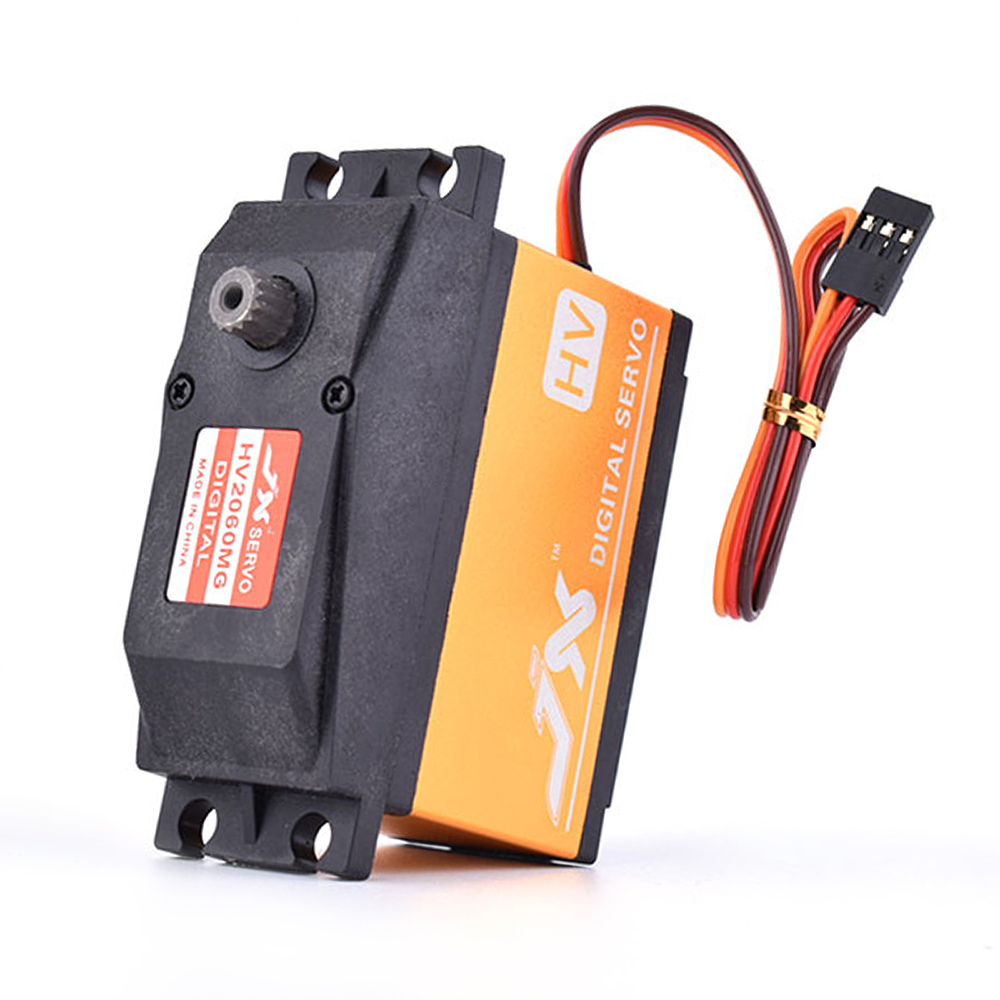

JX RC Servo PDI-HV2060MG 60KG High Torque 180° Digital Servo For 1/5 SAVOX-0236 LOSI XL 5T Baja RC Car Industry
Feartures:
1.High-performance and high-torque standard digital servo.
2.High-precision metal gear.
3.Full CNC aluminium Shell structure.
4.Dual ball bearing.
5.6.0-7.4V High voltage.
Descriptions:

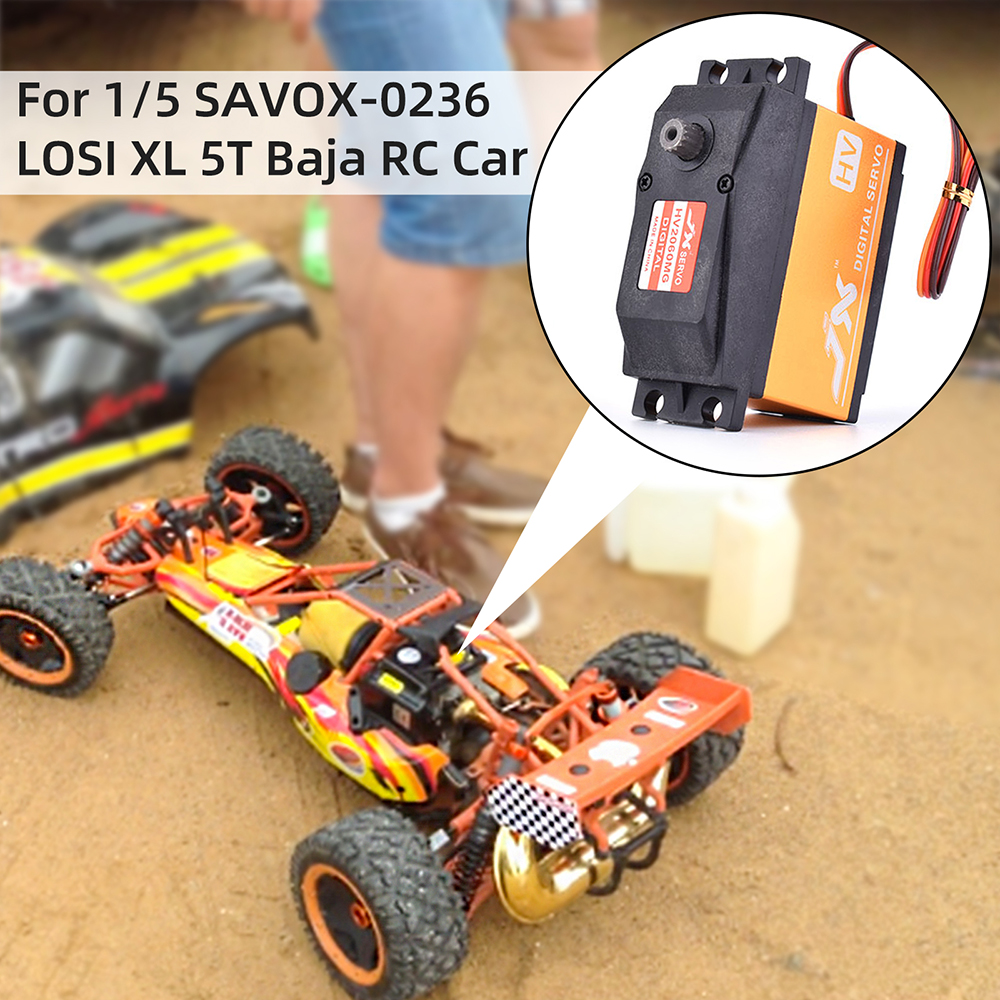

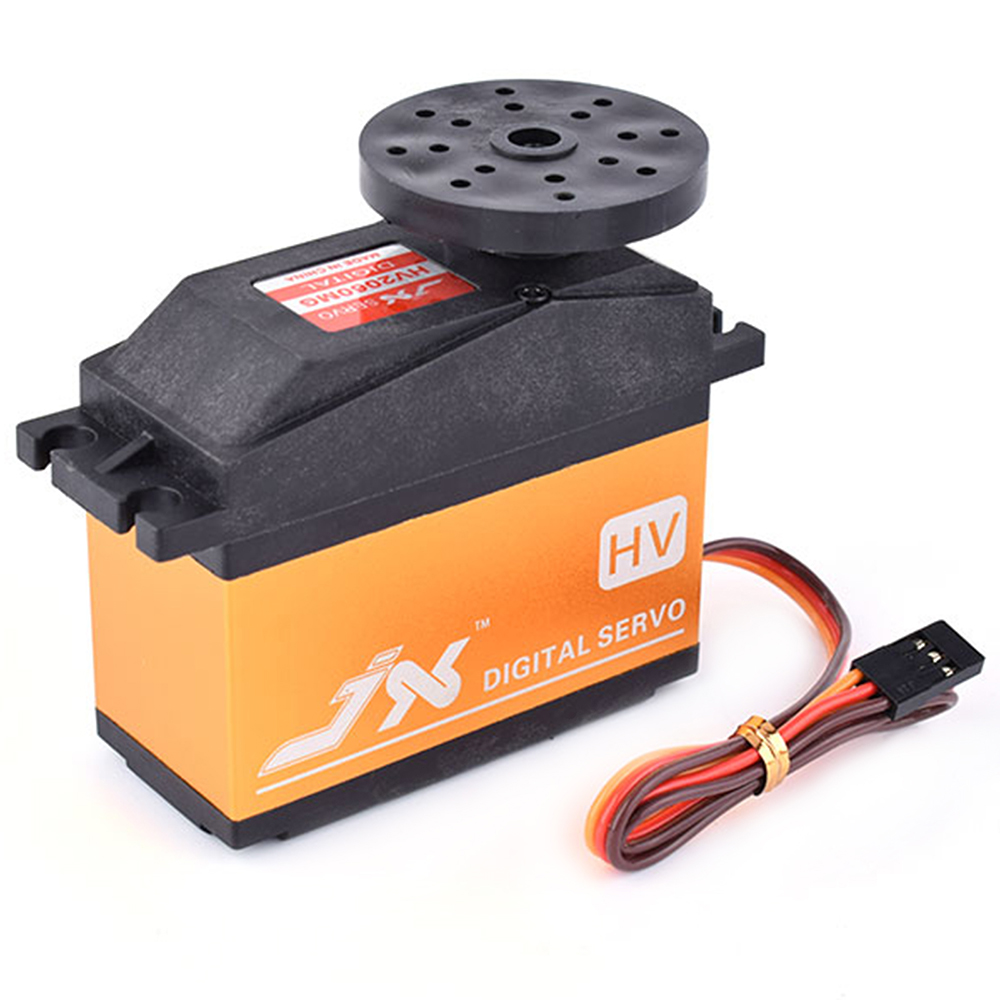

This is JX PDI-HV2060MG Metal Gear with high quality core motor and it is suitable for the 1/5 RC car SAVOX-0236 LOSI XL 5T BAJA Parts.
The aluminium case can enhance the heat dissipation and ensure that servo motor can work well.
And the high voltage and high speed can give an excellent performance.
Specifications:
Brand: JX Servo
Item NO.:PDI-HV2060MG
Signal: Digital
Maximum pulse width: 650-2350us angle 180 degrees (note that 500-2500us control board cannot be used directly)
Standard pulse width: 850-2150us (this item is ignored for remote control)
Dead band: 4μs
Working frequence: 1520μs / 330hz
Connector wire: About 260mm

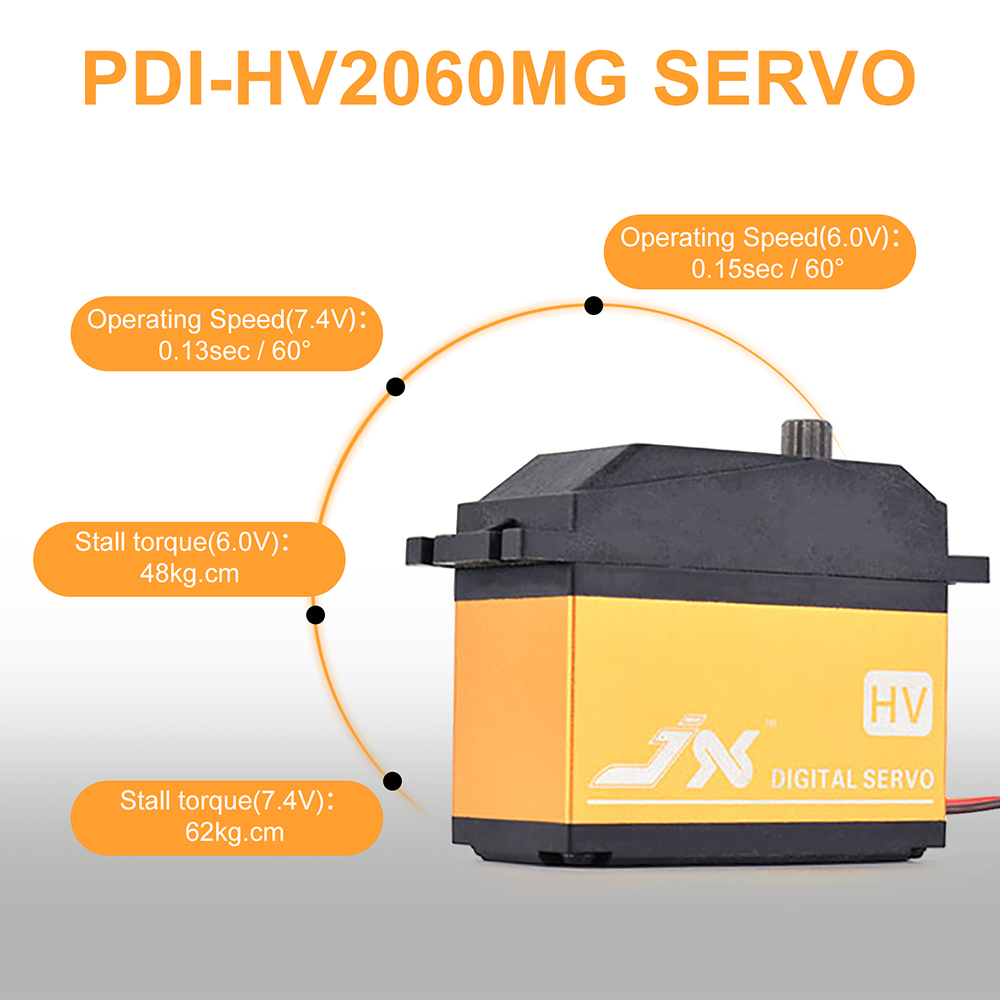

Operating Speed:（6.0V）：0.15sec / 60°
Operating Speed:（7.4V）：0.13sec / 60°
Stall torque:(6.0V): 48kg.cm
Stall torque:(7.4V)：62kg.cm
Operating Temperature Range: -20 to + 60°C
Bearing: 2BB
Output shaft teeth:15T

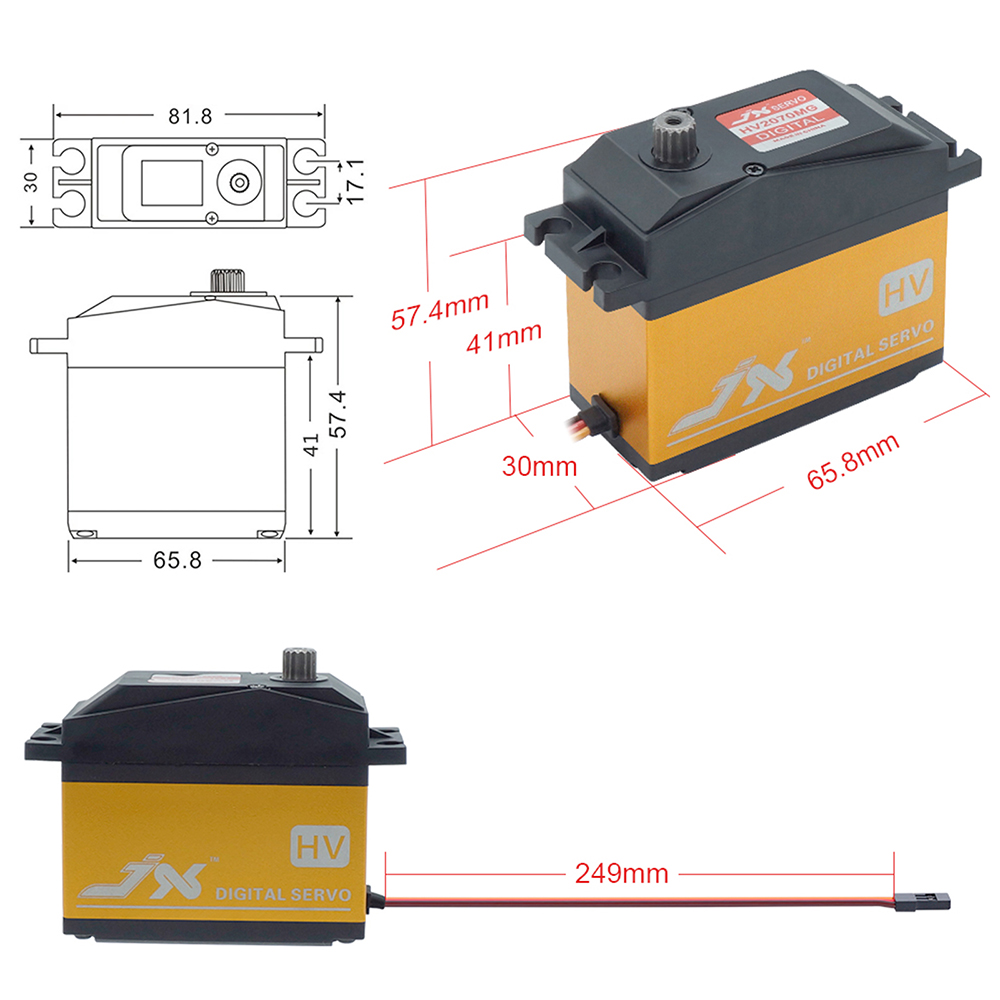

Item size: 65.8 * 57.8 * 30mm / 2.59 * 2.25 * 1.18in
Item weight: 197g (wires included)

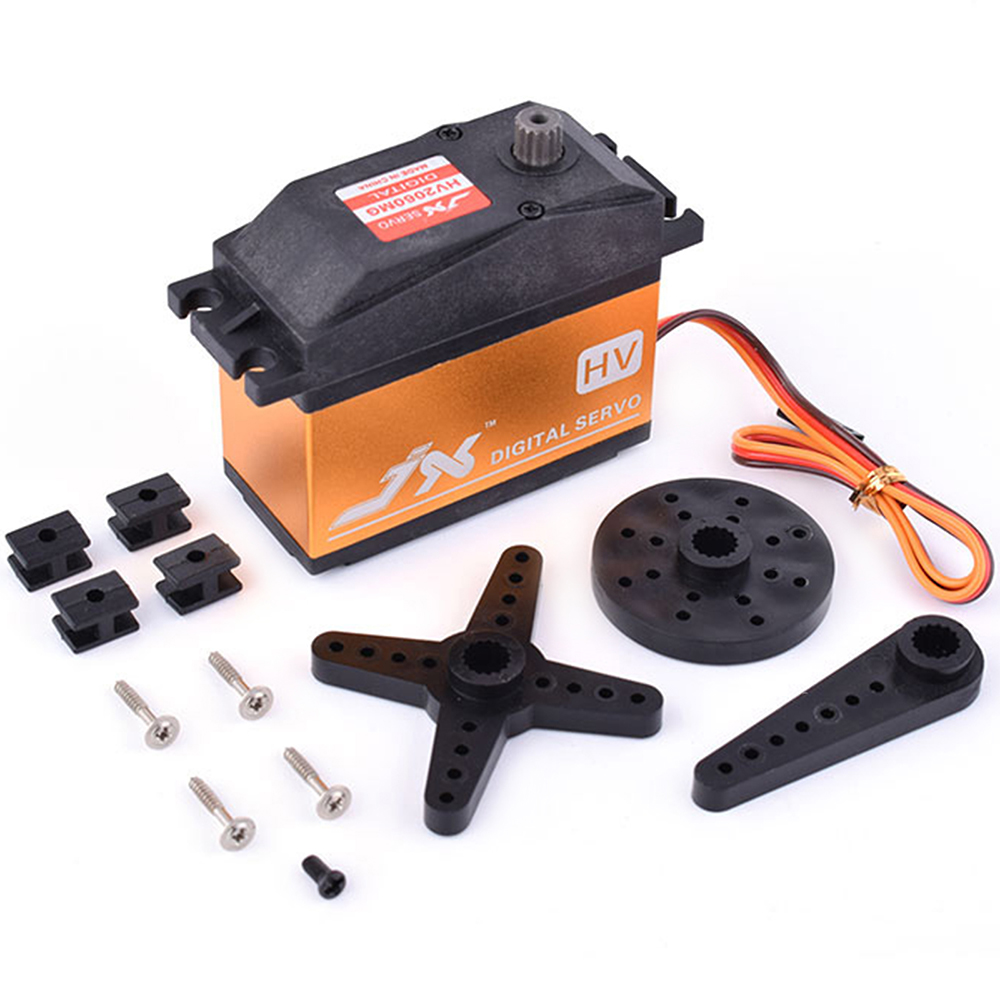

Package included
1 x JX PDI-HV2060MG Digital Metal Gear Servo
1 x Accessories set
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
