2 Stück / 2 pieces

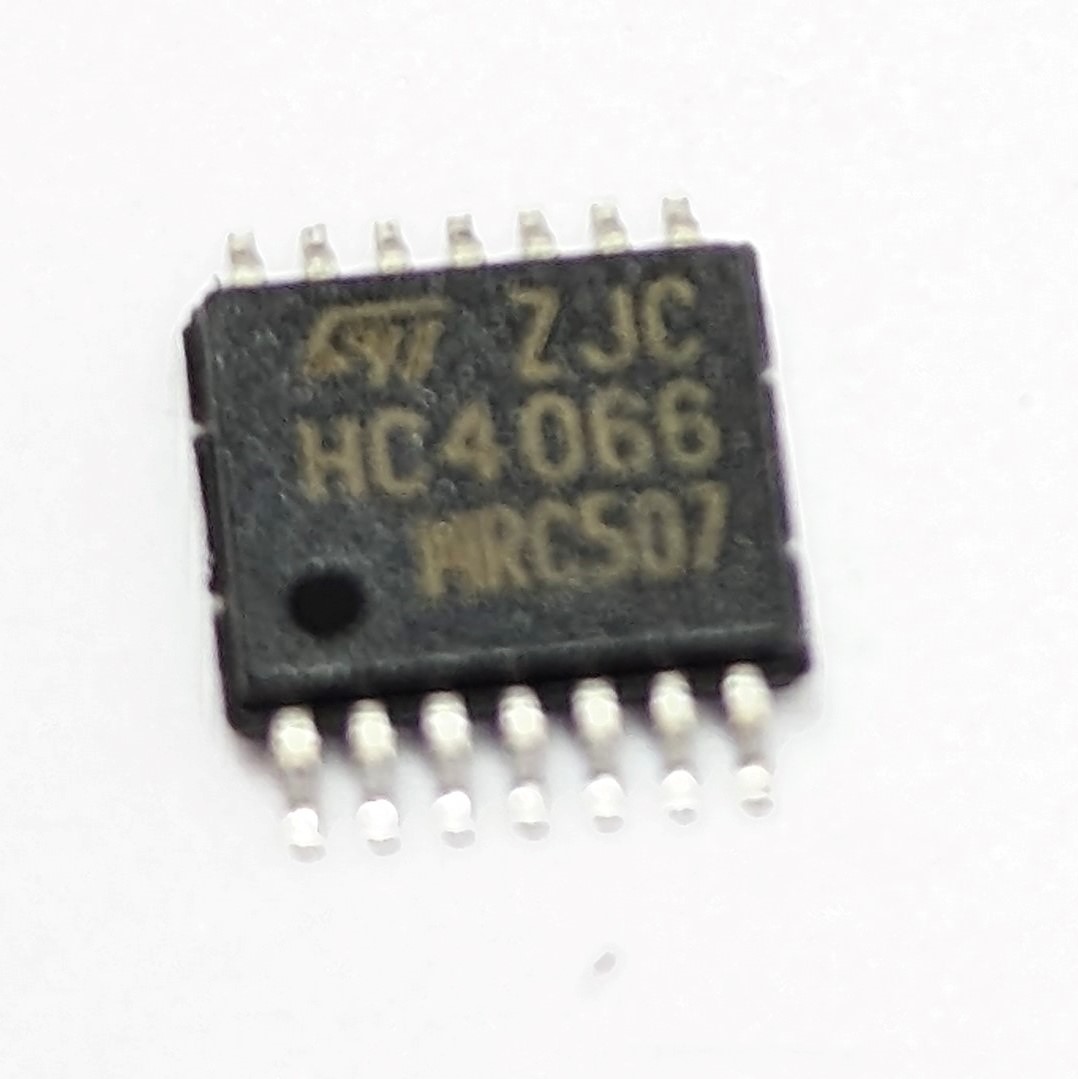

M74HC4066T
QUAD BILATERAL SWITCH
QUAD BILATERAL SWITCH
tPD = 7ns (TYP.) at VCC = 6V | ICC = 1mA(MAX.) at TA=25°C | TSOP14
package
- Manufacturer: STMicroelectronics

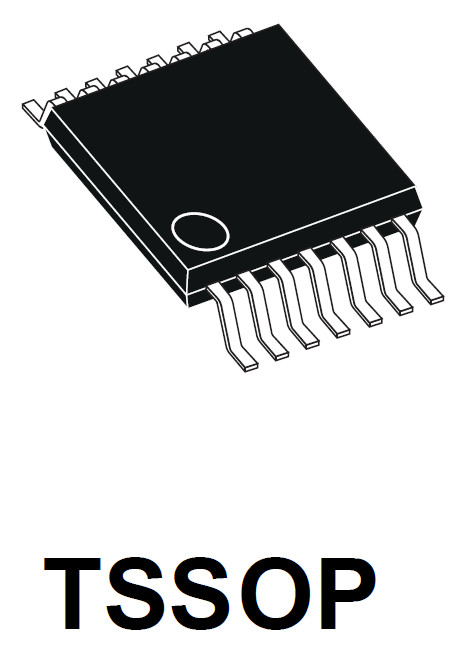

- Package: TSOP14
- Product Family: high speed CMOS
- PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 4066
The M74HC4066 is an high speed CMOS QUAD
BILATERAL SWITCH fabricated with silicon gate
C2MOS technology.
The C input is provided to control the switch; the switch is on when the C input is held high and off when C is held low.
The C input is provided to control the switch; the switch is on when the C input is held high and off when C is held low.
- HIGH SPEED:
tPD = 7ns (TYP.) at VCC = 6V - LOW POWER DISSIPATION:
ICC = 1mA(MAX.) at TA=25°C - LOW "ON" RESISTANCE:
RON = 50W TYP. AT VCC = 9V, II/O = 100 mA - WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2V TO 12V
- SINE WAVE DISTORTION: 0.042% at VCC = 4V f = 1KHz
- HIGH NOISE IMMUNITY: VNIH = VNIL = 28 % VCC (MIN.)
- PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 4066
NOT PULLED - NOT USED - NOT REFURBISHED - NOT
SOLDERED - NOT RE-MARKED - NOT FAKED EXCLUSIVELY NEW OLD STOCK (NOS)
AUSSCHLIESSLICH NUR ALTE NEUE WARE (NOS) aus Altlagerbestand
entnommen aus der original Verpackung (siehe Foto)
entnommen aus der original Verpackung (siehe Foto)
Bitte fragen sie uns an, falls sie
größere Stückzahlen benötigen oder geben Sie uns hierzu Ihren Preisvorschlag
