RV MOTORHOME LEVELERS
MTE HYDRAULICS

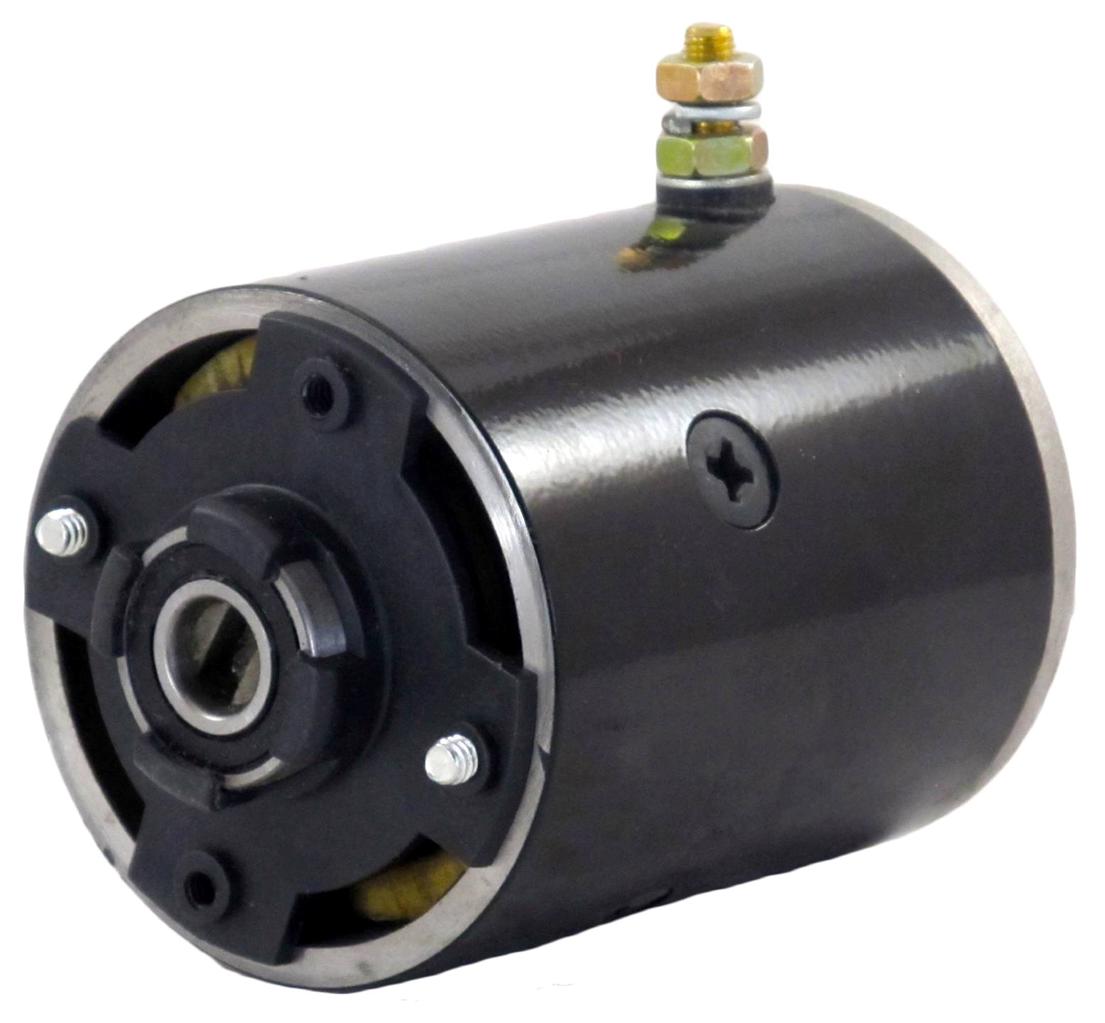

RV POWER GEAR HYDRAULIC PUMP ASSEMBLY
MTE HYDRAULICS
RV POWER GEAR HYDRAULIC PUMP ASSEMBLY
S103T*5200
SPECIFICATIONS
CURRENT TYPE DC
FIELD TYPE Series
HP 2.307
LENGTH 141.500 mm
LENGTH 5.571"
NUMBER OF FIELDS 4
OD 3.661"
OD 93 mm
POWER 1.720 kw
ROTATION DIRECTION Counter Clockwise
RPM 1614
SHAFT 6.5mm Slotted
TERMINAL 2 SIZE 5/16-24
VOLT 12
NEW ORIGINAL PUMP MOTOR MTE HYDRAULICS AMF4633 IM0024 39200428 39200428F 39200513 800302
Replaces Part Numbers & Specifications
ISKRA 11-212-440, 11-212-598, 11212440, 11212598, AMF4633, IM0024, AMF4613, 800302
MTE 39200428, 39200428F, 39200513
WESTERN MOTOR W-3528, W3528
ROTATION: CCW
SHAFT STYLE: SLOTTED
HOUSING FINISH: FIELD CASE IS BLACK.
OD: 3.75
ID: 3.25
Product Notice
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
