5 Stück / 5 pieces LM1881MX
Video Sync Separator
Video Sync Separator

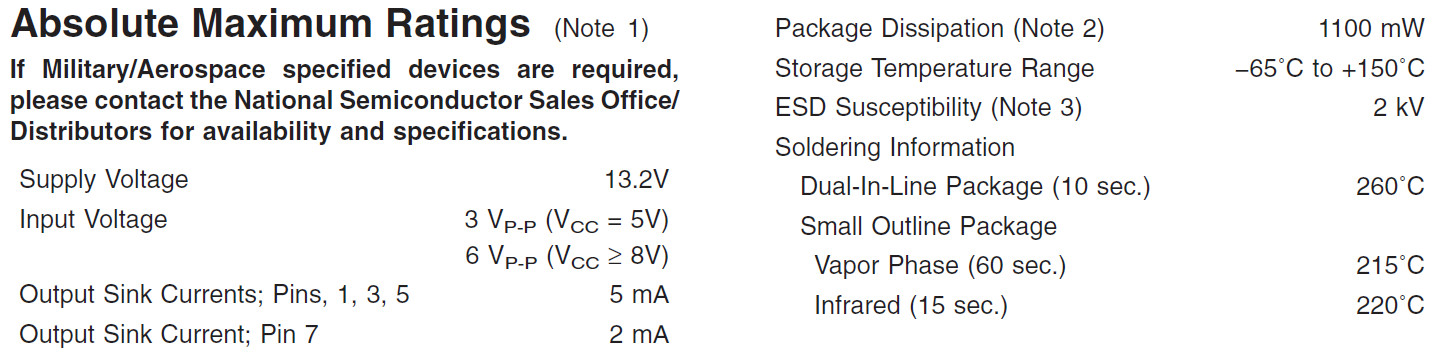

Supply Voltage 13.2V | -40°C to +85°C | SO-8 package
- Manufacturer: National Semiconductor
- Package: SO-32
- Product Family: CMOS SRAM
- Process Technology: Video Sync Separator
- AC coupled composite input signal
- >10 kΩ input resistance

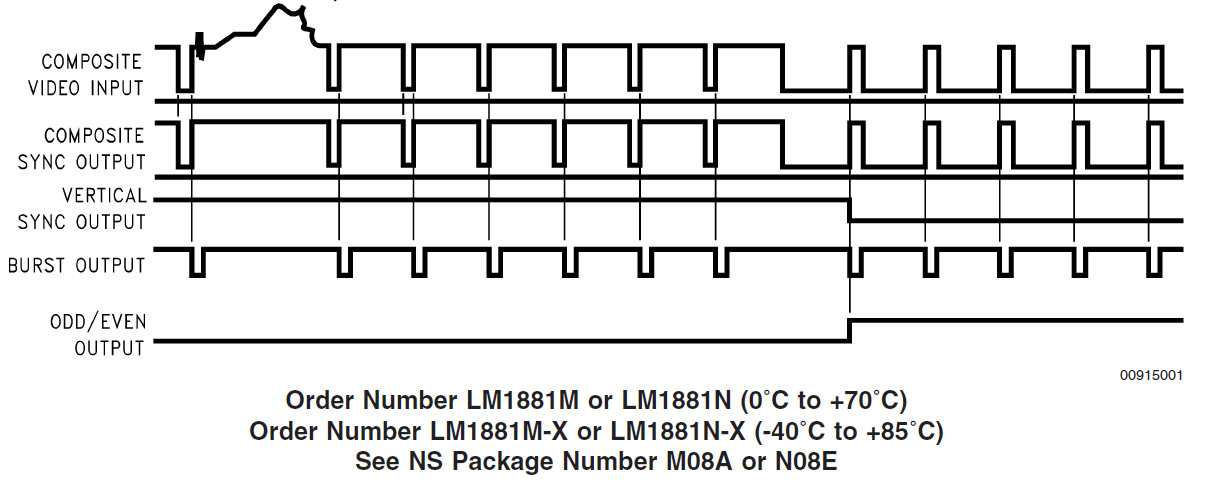

The LM1881 Video sync separator extracts timing information
including composite and vertical sync, burst/back porch
timing, and odd/even field information from standard negative
going sync NTSC, PAL* and SECAM video signals with
amplitude from 0.5V to 2V p-p. The integrated circuit is also
capable of providing sync separation for non-standard,
faster horizontal rate video signals. The vertical output is
produced on the rising edge of the first serration in the
vertical sync period. A default vertical output is produced
after a time delay if the rising edge mentioned above does
not occur within the externally set delay period, such as
might be the case for a non-standard video signal.
- AC coupled composite input signal
- >10 kΩ input resistance n
- 10 mA power supply drain current

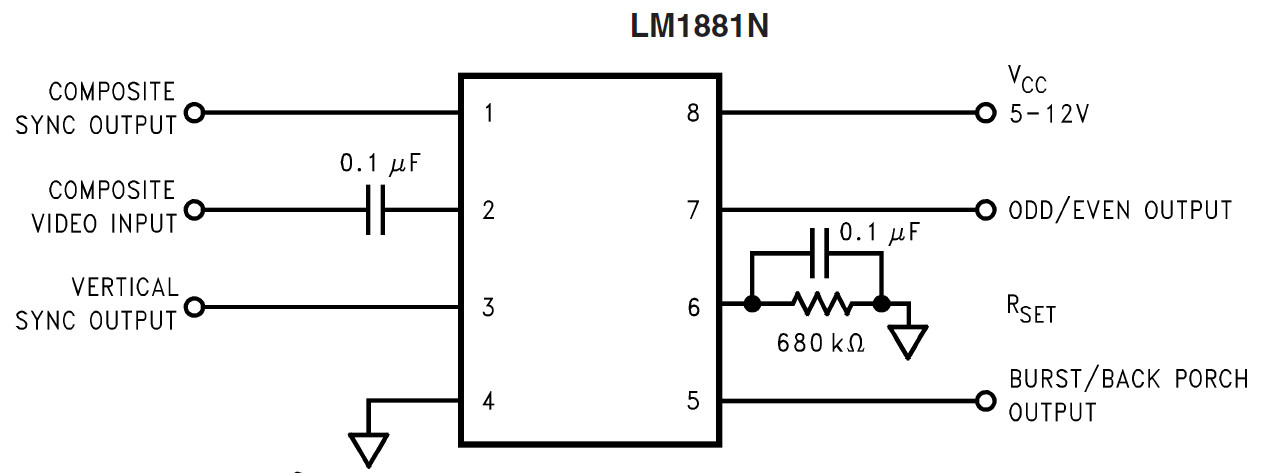

- Composite sync and vertical outputs
- Odd/even field output n
- Burst gate/back porch output
- Horizontal scan rates to 150 kHz
- Edge triggered vertical output
- Default triggered vertical output for non-standard video signal (video games-home computers)
- -40°C to +85°C operation (LM1881-X)
NEW OLD STOCK (NOS)
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED EXCLUSIVELY
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED EXCLUSIVELY
AUSSCHLIESSLICH NUR ALTE NEUE WARE (NOS) aus Altlagerbestand

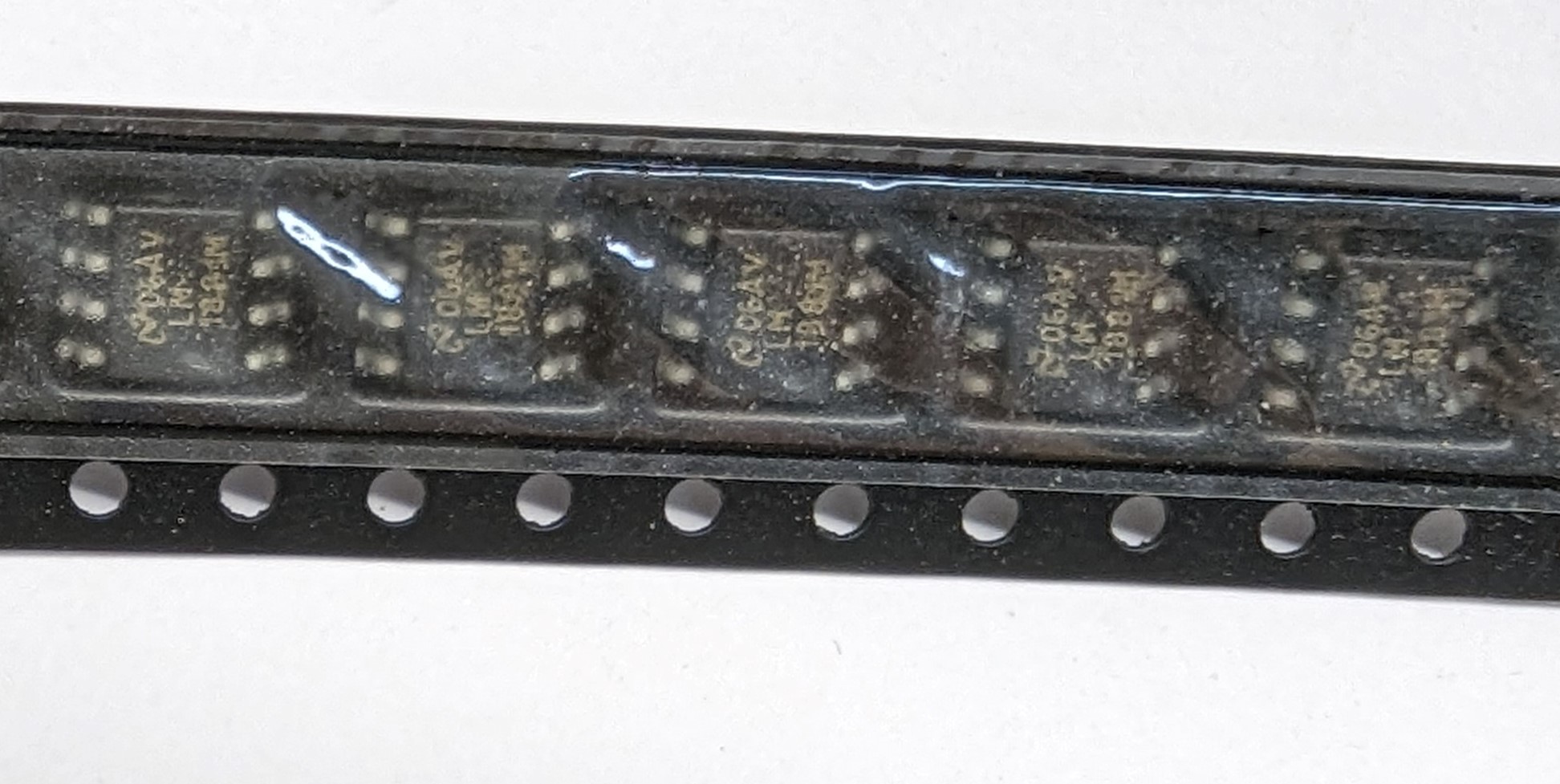

entnommen aus der original Verpackung (siehe Foto)
entnommen aus der original Verpackung (siehe Foto)
Bitte fragen sie uns an, falls sie größere
Stückzahlen benötigen oder geben Sie uns hierzu Ihren Preisvorschlag
